Point Cloud to Revit Conversion Challenges

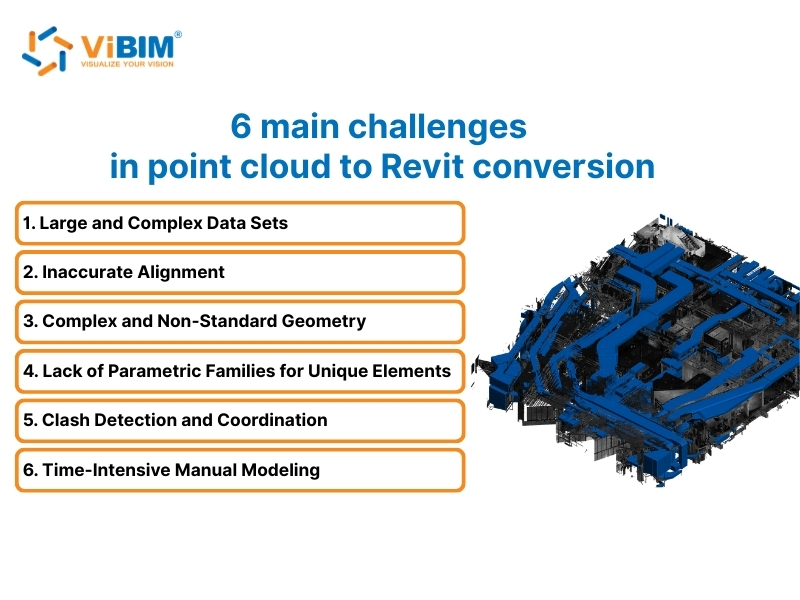

Converting point cloud data into Revit models presents unique challenges that can impact project timelines and accuracy. Understanding common obstacles and their solutions enables teams to deliver high-quality BIM models efficiently.
Managing Performance Issues
Large point cloud datasets often overwhelm system resources, causing lag and reduced productivity. Files containing billions of points can make Revit unresponsive, frustrating modeling efforts and delaying projects.
Effective solutions begin with preprocessing. Use Autodesk ReCap or Leica Cyclone to trim extraneous data before importing into Revit. Focus on areas critical to your modeling scope, removing peripheral data that doesn't contribute to deliverables.
Within Revit, section boxes become essential tools. By cropping point cloud visibility to your active work area, you maintain responsive performance without altering source files. This technique allows detailed work on specific zones while the complete dataset remains available when needed.
Decimation and filtering provide additional performance benefits. These processes intelligently reduce point density while preserving geometric accuracy necessary for modeling. Apply these techniques judiciously, balancing file size against detail requirements.
Ensuring Alignment Accuracy
Misalignment between point cloud data and Revit models compromises accuracy, potentially requiring costly rework. Proper coordinate system handling prevents these issues.
Establish alignment protocols during project initiation. Document which placement method—shared coordinates, origin-to-origin, or center-to-center—will be used, and communicate this decision to all team members. Consistency in approach prevents confusion and maintains accuracy.
Before modeling begins, verify point cloud registration quality. Check floor levels for consistency, confirm wall straightness, and validate geometric relationships. If discrepancies appear, resolve them with data providers before proceeding. This proactive approach prevents discovering problems after significant modeling work is complete.
Addressing Complex Geometries
Historic buildings, organic structures, and unique architectural features challenge Revit's parametric environment. Standard families often don't match actual conditions, requiring creative approaches.
Break complex forms into simpler components that Revit handles efficiently. Use custom family creation when standard libraries lack appropriate elements. The Family Editor provides tools for modeling intricate details based on point cloud measurements.
For exceptionally complex shapes, consider hybrid approaches. Convert point cloud sections to meshes, then use in-place massing or Dynamo scripts to represent geometry. While these methods may sacrifice some parametric flexibility, they enable accurate documentation of challenging forms.
Successful point cloud to Revit conversion balances technical knowledge with practical problem-solving. By anticipating common challenges and applying appropriate solutions, teams deliver accurate models that support project objectives effectively.
