Reference and explain what a V-speed is.Vx: most amount of altitude gained over a distance Vy: most amount of altitude gained over a period of time Va: the speed the airplane will stall before encountering structural damage Vfe: the maximum speed with the flaps extended Vmc: lowest speed at which a multi-engine aircraft can maintain controlled flight with one engine inoperative and the other at full powerVno: highest speed that you can safely fly in smooth airVne: the speed thats should never be exceeded Add a column to the table above and include V-speed indicators. There may not be an exact match, so think critically about what the parameter “speed” represents.
A full upward deflection of the right stick moves which control surface and in which direction?it controls my elevator and this cause the plane to pitch up A full rightward deflection of the left stick (at throttle idle) causes which two controls to move? What rotational motion will result from this input? Refer to the for additional information.full right rudder aka my yawing motion nose wheel steering on the ground
Under high power (i.e., during takeoff), the aircraft will experience an asymmetric condition called “P-factor.” Define P-factor and describe the control inputs required to counteract it. the descending propeller blade has an higher AOA and create more push of the air which causes spiraling action around the body of the aircraft and that air pushed on the left side of the rudder cause the aircraft to yaw to the left. You will need some right rudder.During the takeoff climb, power must be “pinned” fully open (i.e., throttle control stick full upward deflection) until you reach your cruise altitude and “level off.” You must maintain your takeoff speed according to your values from . What control input should you use to set your speed?My right stick (aka my pitch)As you reach cruise altitude (say, 200 ft AGL), how will you need to adjust the controls to level the aircraft at 200 ft AGL while maintaining cruise speed? decrease pitch and decrease power setting Counteract P-factor.Level off at a cruise altitude of 200 ft AGL.
What throttle input is used during takeoff (in percentage)?100%What throttle input is used during cruise (in percentage)?65%Describe the aileron input(s) required to achieve and maintain a 20° bank. ailerons and rudder should be used together to help the aircraft turn in the direction intended In the 20° bank above, what will happen to the altitude of the aircraft if neither the throttle nor the pitch is adjusted?you will lose altitude due to the decrease in the vertical component of lift Using the two questions above, what inputs are required to complete a turn from departure to crosswind?rudder ailerons and elevator. You need to turn the aileron in the direction of turn and increase pitch. Level off at a cruise altitude of 200 ft AGL.Maintain cruise speed (±5 mph)Perform all turns in the traffic pattern without gaining or losing altitude (± 25 ft)Complete the traffic pattern two times (do not set up for landing - fly the runway at cruise altitude)
What speed (in mph) should you target for your landing approach according to the ?33.56 MPHImagine the aircraft is aligned on the centerline, and you have hit the target altitude by the final turn. Describe the shape of the aircraft as it approaches you/the touchdown point?Nose down and following a three degree glide path If you notice that, as the aircraft is approaching you, it appears to be moving lower within your reference frame, what input should you provide to stop the ascent?add power What is a flare, and what is the purpose of this maneuver?The nose of the plane should lifted up slowly and held there to reduce the excess airspeedAt what point in the landing operation should you target the AIRSPEED_MIN_LND?26.84 MPHThe descent requires the opposite inputs from the ascent. Describe the throttle and pitch inputs needed to transition from straight and level flight in cruise into a descent?throttle needs to decrease and pitch needs to increase and decrease Level off at a cruise altitude of 200 ft AGL early in the downwind leg.Maintain cruise speed (±5 mph)Begin descent and target approach speed as you turn base.Continue descent through base and target ~75-100 ft AGL as your turn final.Continue descent, maintaining glide slope (ensure the aircraft does not move up or down in the reference frame).As you approach the runway, stop the ascent at eye level by adding throttle.Maintain centerline and eye level as the aircraft flies past your location.Perform a go-around as the aircraft passes you by, applying full throttle and targeting the takeoff speed.If you have mastered the lowpass, perform a touch and go by pulling throttle to idle, and begin rounding out (flare) until the rear wheels touch the runway (reference figure 9-10 in )Before the front wheel touches, perform a go-around as the aircraft passes you by, applying full throttle and targeting the takeoff speed.
Upload a completed copy of this document (as a PDF) to brightspace by the due date listed in the . See to add this page to your own doc.See to create a PDF of your doc for submission.Inline or attached to Brightspace submission.Inline or attached to Brightspace submission.Inline or attached to Brightspace submission.
AT 219 - SeligSIM Assignment 3
15 points
Nathan Tyler Rose
Last edited 24 days ago by Venkata Rehan Devapatla.
Overview
Tasks
Simulator Setup Overview

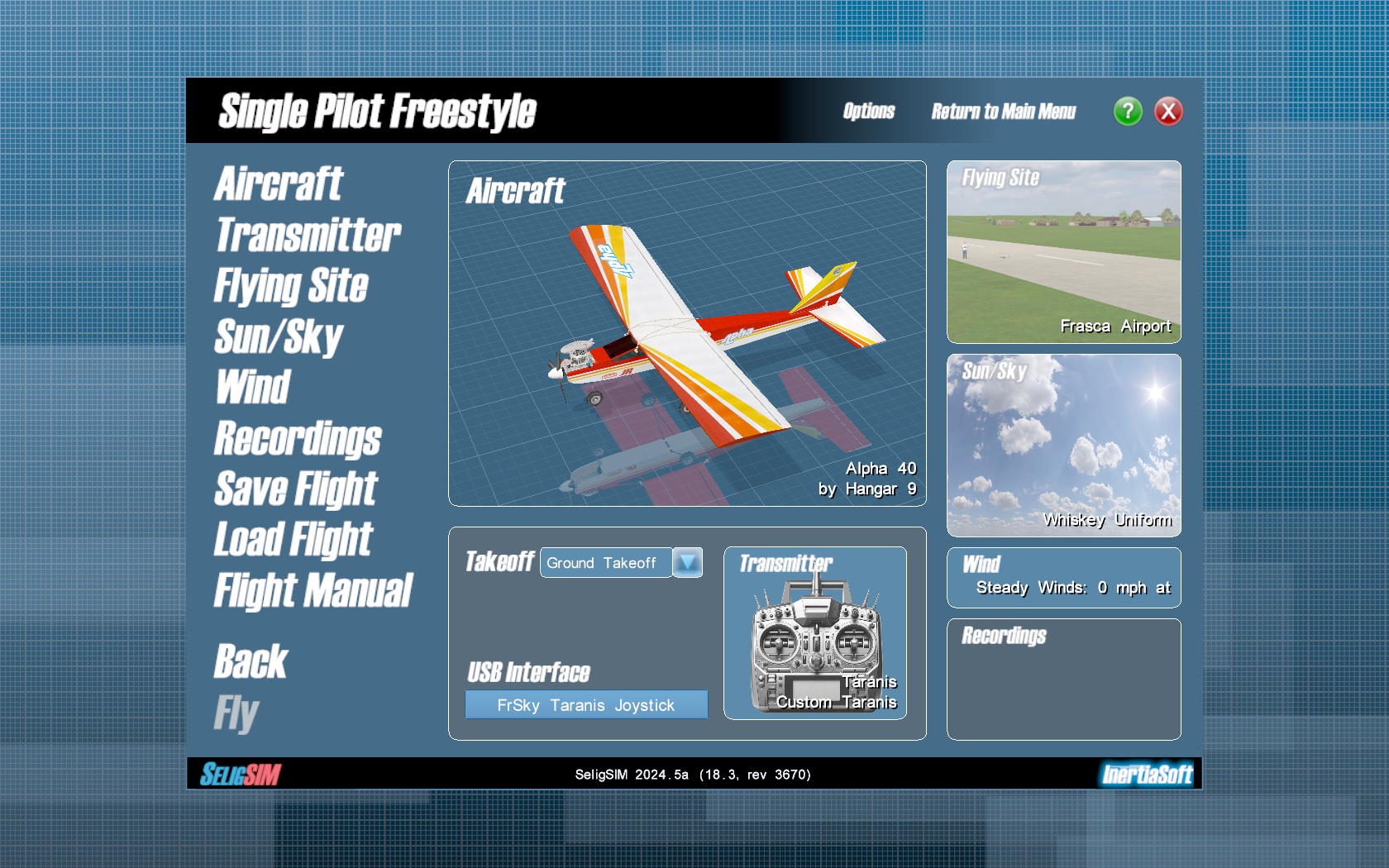

Use the following images and settings to set up your simulator. Be sure to reference and for help with setup.
Broken link
Broken link
Aircraft and environmental defaults

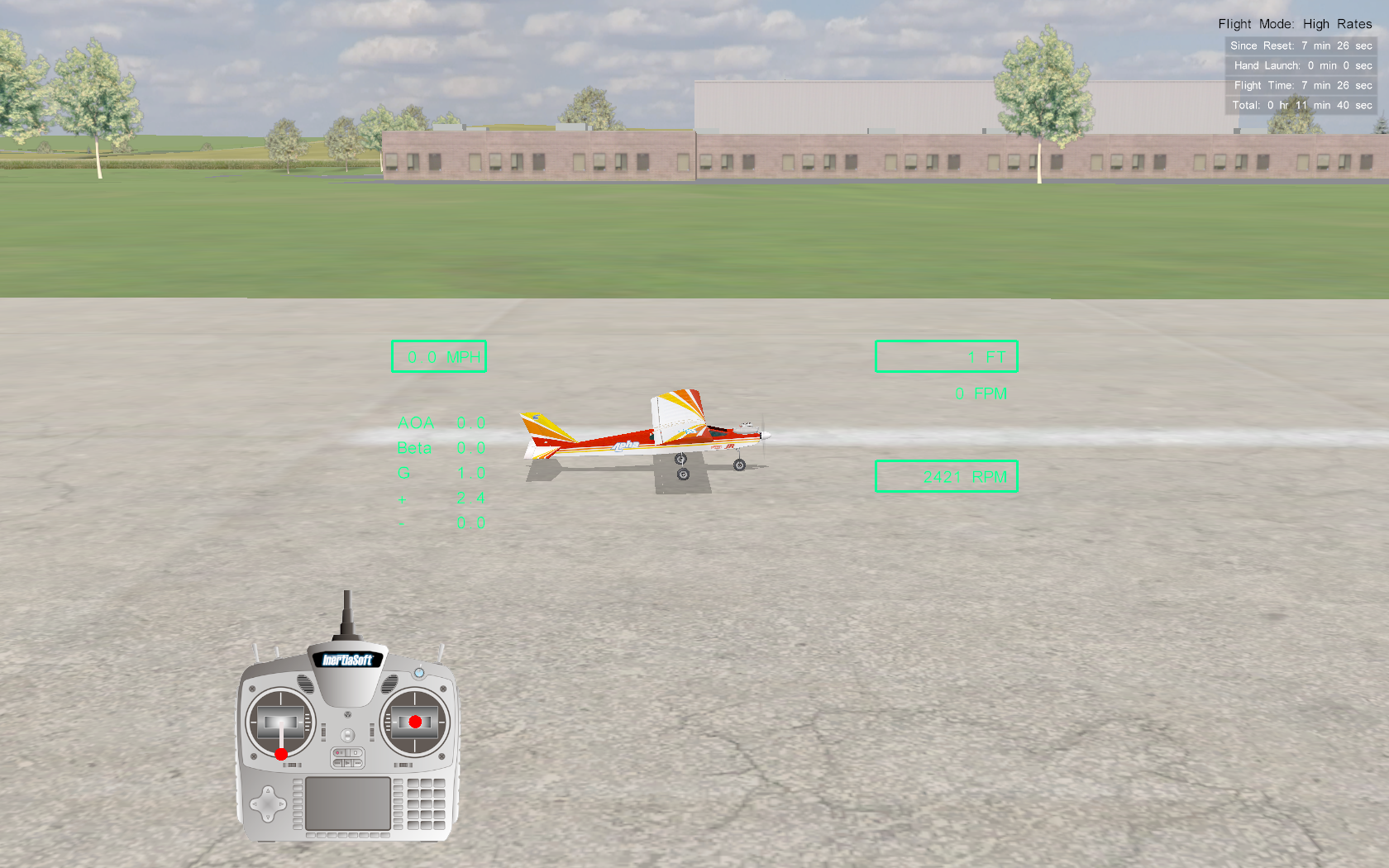

Flight screen must show transmitter and HUD.
Aircraft Setup
The aircraft in it’s current configuration is overpowered relative to the Believer. Please follow the guidance in by to set the aircraft output to 75% of current.
Screenshot
Take a screenshot of the updated motor/engine output.
Convert and Define Speeds
The SeligSIM (at the time of writing) does not allow changing the airspeed units from miles per hour (mph). In this and all future SeligSIM assignments, we will follow and reference the Believer's airspeed settings.
Create a table below that shows the unit corrected speeds from the . The table must include four columns: 1. Parameter/condition Name, 2. YOUR description of the parameter/condition, 3. Speed (m/s), 4. and Speed (mph). The description of each parameter may require some research into as well as some intuition. There should be 9 rows in your table. The conversion from m/s or kts to mph MUST be completed using a formula entered into Coda. You may use AI and the Coda help docs to build your formula. Type out your formula in the callout below.
Conversion Table
Build and complete the required conversion table as a deliverable.
Formula:
Scaled Platform Checklist
Unit Corrected Speed
Parameter/Condition Name
Description of the Parameter
Speed (M/S)
Speed (Knots)
Speed (MPH)
Scaled
Vspeed
Airspeed_Cruise
The maximum airspeed during cruise flight
20
0
44.74
31.32
Va
Airspeed_Appr
The maximum airspeed while approaching to land
15
0
33.56
23.49
a bit lower than Vfe
Airspeed_Max
The maximum airspeed the drone should be flow at
38
0
85.01
59.5
Vno
Airspeed_Min
The minimum airspeed the drone should be flow at
16
0
35.79
25.05
Vs1
Airspeed_Min_LND
The minimum airspeed the drone should be flow at while trying to last
12
0
26.84
18.79
Vs0
Airspeed_TKOFF
The airspeed the plane should be rotated at
20
0
44.74
31.32
Vr
Vne
The maximum airspeed of the plane before it endures structural damage
0
50
57.55
40.29
Vne
Stall Speed
The airspeed at which the wing exceeds the critical AOA and can no longer produce lift
0
24
27.62
19.34
Vs
Max Demonstrated Crosswind
full rudder away from the wind will create longitudinal axis of the plane to be parallel with the runway
0
5
5.76
4.03
Vcx
0
0
There are no rows in this table
Speed Questions
Traffic Pattern Diagram
Throughout the Believer flight training, you will be expected to navigate and communicate using standardized aviation language. Positional information about the aircraft will be communicated in accordance with a standard traffic pattern. That is, if your instructor commands a left turn for base, you must know what that means and execute the maneuver expeditiously and confidently. Additionally, each leg of the traffic pattern may have a different speed requirement that must be followed for successful launch, cruise, and landing.

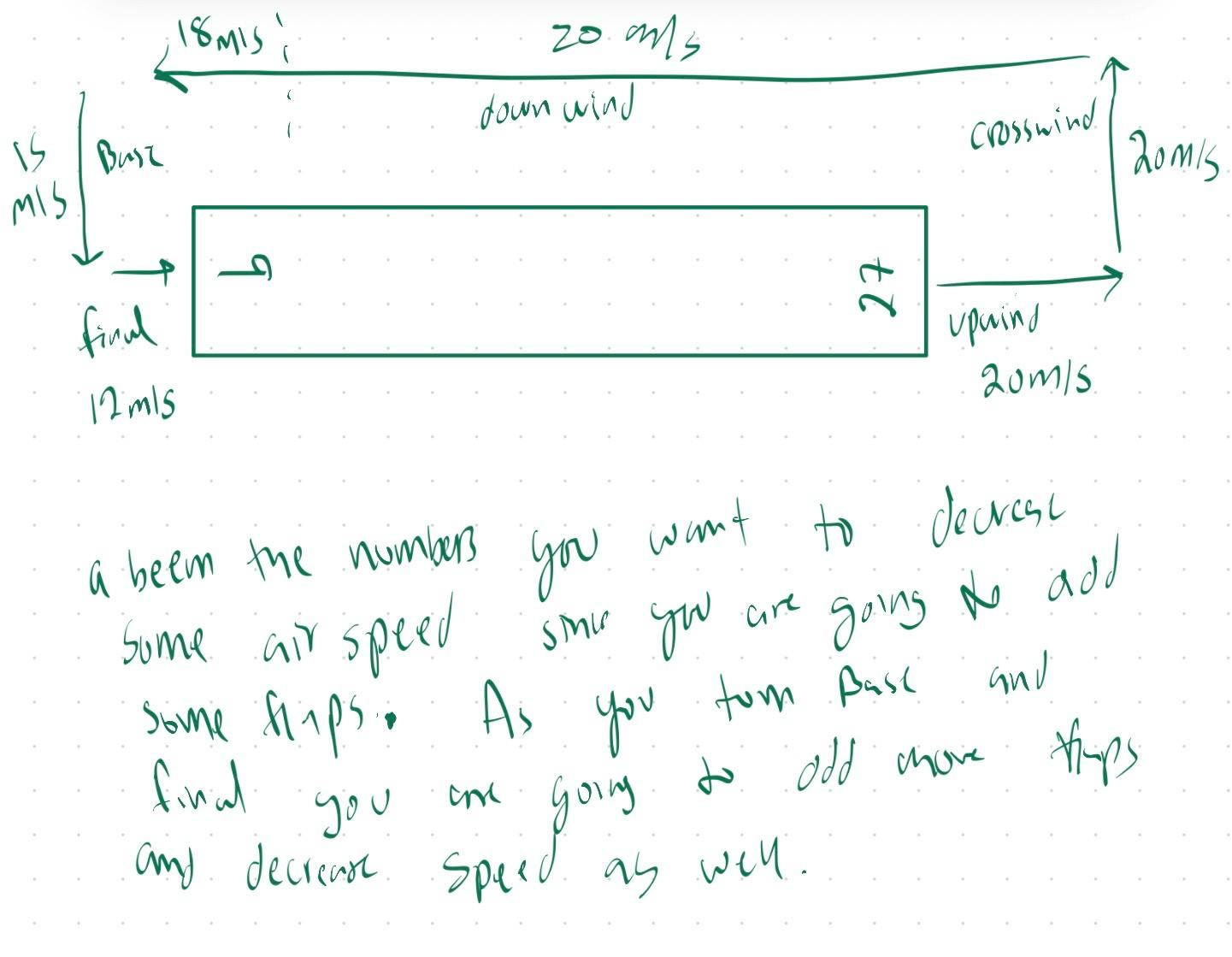

For this task, draw and label a standard left-hand traffic pattern for the simulated Frasca Airport. Assume that the aircraft is oriented to take off on runway 09. You must label the leg name in the traffic pattern AND the desired speed for each leg. If needed, you may justify your response in the footer of your drawing.
