When click on a brand (HPE Product Page)—>

HPE D3000 Disk Enclosures (Disk Enclosure) Product page:

OVERVIEW
Has your business exceeded your storage capacity? Manage your small and midrange business growing storage needs by deploying the HPE D3000 Enclosures, the next generation 12 Gb SAS low-cost, high-capacity, tiered external storage system. The HPE D3000 Enclosures are ideal for your small application environments, remote offices and departmental locations. The 12 Gb SAS enclosures - large form factor (LFF) D3600/D3610 with 12 drive bays and small form factor (SFF) D3700/D3710 with 25 drive bays—offer flexible, modular solutions to simplify capacity expansion of HPE ProLiant server and HPE BladeSystem environments to external storage without having to make the full move to SAN or NAS.

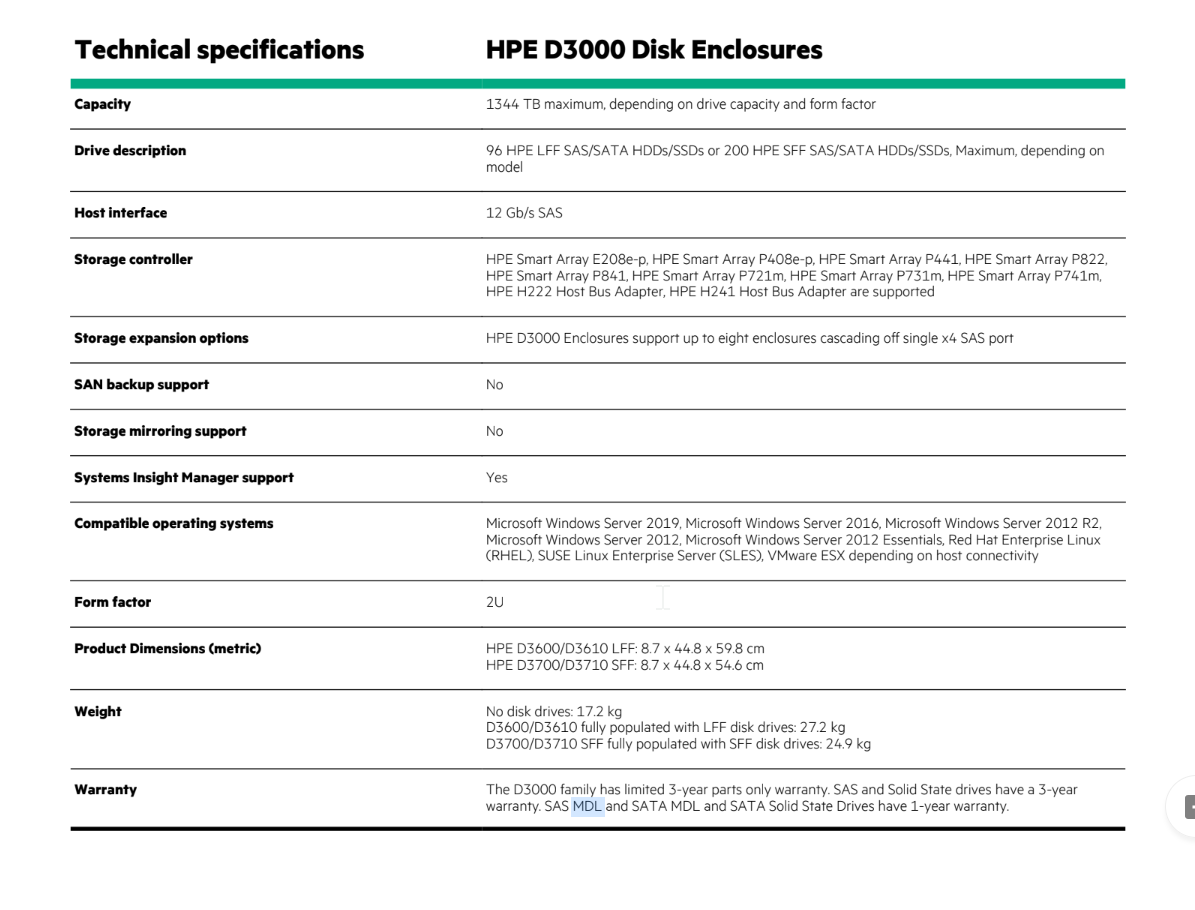

Technical specifications HPE D3000 Disk Enclosures
Capacity 1344 TB maximum, depending on drive capacity and form factor
Drive description 96 HPE LFF SAS/SATA HDDs/SSDs or 200 HPE SFF SAS/SATA HDDs/SSDs, Maximum, depending on model
Host interface 12 Gb/s SAS
Storage controller HPE Smart Array E208e-p, HPE Smart Array P408e-p, HPE Smart Array P441, HPE Smart Array P822,
HPE Smart Array P841, HPE Smart Array P721m, HPE Smart Array P731m, HPE Smart Array P741m,
HPE H222 Host Bus Adapter, HPE H241 Host Bus Adapter are supported
Storage expansion options HPE D3000 Enclosures support up to eight enclosures cascading off single x4 SAS port
SAN backup support No
Storage mirroring support No
Systems Insight Manager support Yes
Compatible operating systems Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012 R2,
Microsoft Windows Server 2012, Microsoft Windows Server 2012 Essentials, Red Hat Enterprise Linux
(RHEL), SUSE Linux Enterprise Server (SLES), VMware ESX depending on host connectivity

Form factor 2U
Product Dimensions (metric) HPE D3600/D3610 LFF: 8.7 x 44.8 x 59.8 cm
HPE D3700/D3710 SFF: 8.7 x 44.8 x 54.6 cm

Weight No disk drives: 17.2 kg

D3600/D3610 fully populated with LFF disk drives: 27.2 kg
D3700/D3710 SFF fully populated with SFF disk drives: 24.9 kg

Warranty The D3000 family has limited 3-year parts only warranty. SAS and Solid State drives have a 3-year warranty. SAS MDL and SATA MDL and SATA Solid State Drives have 1-year warranty.
⁠
⁠
⁠
