Phase 1: Site Analysis and Urban Design Workshop

Objective:

To thoroughly analyze and understand the existing urban fabric of Muar, leading to the development of a comprehensive Urban Design Framework and effective Site Planning as well as Urban Design Formation.

Aims:

To develop a typical site planning as the basis for an Art and Craft Centre design and identify the urban elements that can be utilised in ensuring the urban design is responsive to the site context

Phase 1 Tasks:

PART A: Research and Analysis (Materials for Workshop)

In a group of 7, you are required to prepare:

Town Appraisal of Jalan Maharani: Record and Document the townscape of the existing urban fabric and architecture of the township. (Group A).

Town Appraisal of Study Jalan Abdullah: Record and Document the townscape of the existing urban fabric and architecture of the township. (Group B).

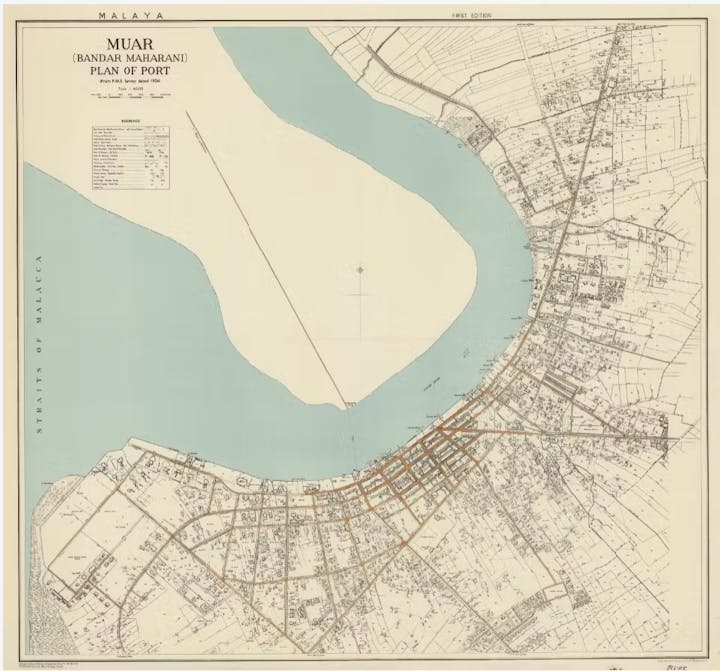

Macro Site Analysis: Conduct a macro site analysis of the Muar Township. (Group Ci)

Micro Site Analysis: Conduct a micro site analysis of the site for the proposed site. (Group Cii)

Please share with the tutors the content of your study by 23rd December 2024.

Documentation and Presentation (Workshop Outcomes)

Each group is required to produce a sketches and notes that record and show:

A process report outlining the revitalization plan for the Muar Township.

A detailed map of the new route that leads the users to the new market place building.

A set of design guidelines for the revitalization of the Muar Township.

A proposed conceptual site plan and massing for the proposed building on the identified site.

Each group must present the revitalization plan on 2nd January 2025.

PART B1: Concept Development (StructuredWorkshop)

Working in guided brainstorming workshop format (with a facilitator) each group will:

Develop a conceptual framework for the revitalization of the Muar Township.

Develop a design strategy for the new pedestrian path.

Conduct a precedent study of project’s site.

Develop a design strategy for the project’s building.

Stationery for the workshop:

A0 white papers

Butter papers (A3)..bigger is better

Sticky Notes (3”x3”)

Masking Tape

Colour Markers/ Copic

Black Markers

Drawing Pens

Paper Cutter

Glue/ glue tape

PART B2: Concept Development (Structured Workshop)

Based on the new tutorial group

Appoint a group leader and/or facilitator.

Pick one of these Framework Theme:

Riverwave Enclave

Streetwise Enclave

Based on the theme, develop a conceptual framework for your group, you must put riverfront revitalisation as an important part of the framework.

List down 5 design principles for your framework with some explanation about each principle.

Identify 3 nodes located within the study area that connecting the Main Muar Landmarks to your proposed site (plus the 2 anchor nodes, in total there are 5 nodes).

Identify and draw the paths that connecting the 5 nodes (in total there are minimum of 4 paths).

In group, design the nodes and the paths according to any

brainstorming jam method⁠

The main questions that you need to concentrate are:

How can we improve/change the node/the path?

What is the suitable urban form/character for the node/path?

What are the suitable activities/events for the node/path?

What the node/path should look like? visual image of the node/path?

In group, proposed in a diagrammatic conceptual program for the proposed new riverfront and the surrounding buildings:

The main items that you need to provide are:

The site layout diagram which shows the location that you picked the new riverfront

The proposed riverfront entrance location and outlook.

The shops/facilities supporting the riverfront for the leftover ‘heritage’ blocks.

The proposed circulation diagram.

The street facades (with intervention if any).

Compile the design process in a scrapbook format using Canva/PowerPoint/Goggle Slides.

Prepare another presentation slides for the finalised design. Please refer to

Gordon Cullen’s⁠

serial vision narrative in preparing the presentation sequence.

Present the finalised design verbally.
