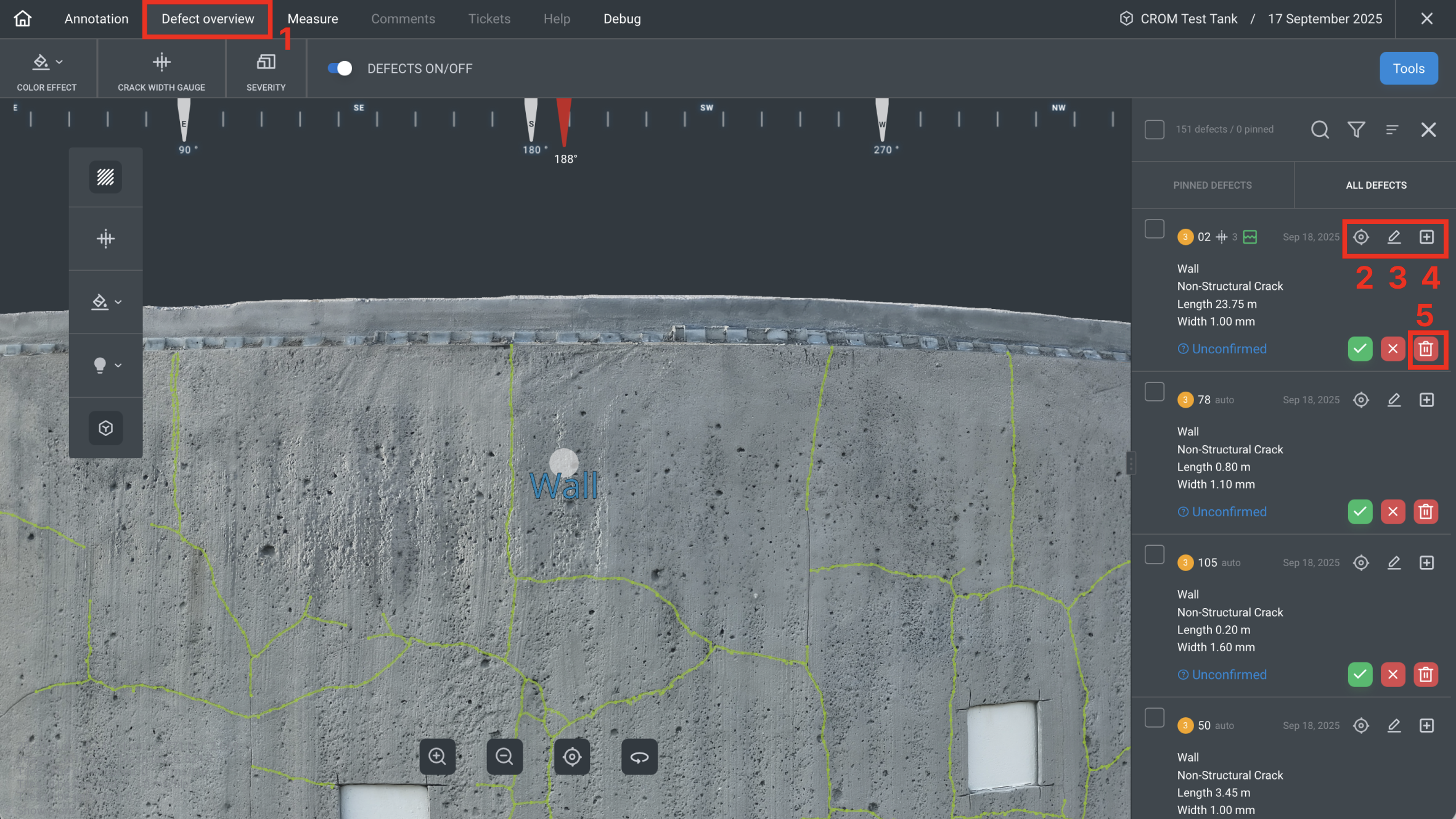

Open the Defect Overview tab to see the full list of defectsClick an item to jump to the defect on the modelEdit defect properties directly from the listAdd defects to favorites using the Pin icon (Pinned Defects)Delete defect

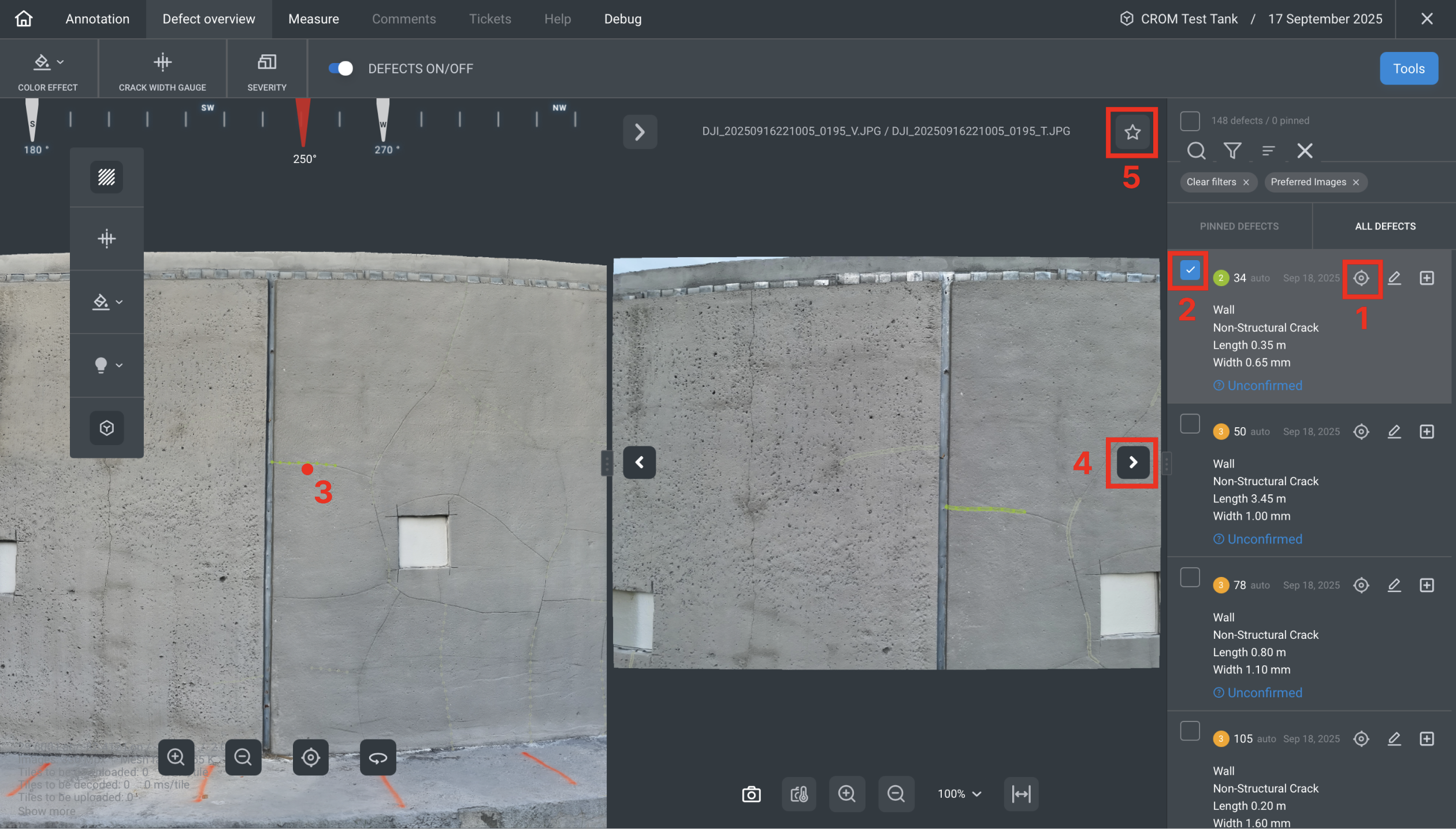

Open the filterScroll to the relevant parameter, select it, and apply the filterNavigate to the correct position on the modelCheck the box next to the defectClick near the defect on the model to open the photo panelSelect a suitable photoClick the star icon ⭐ to set it as the Preference Image
9. Defect Overview
Use Defect Overview to work with already added defects.
Filters

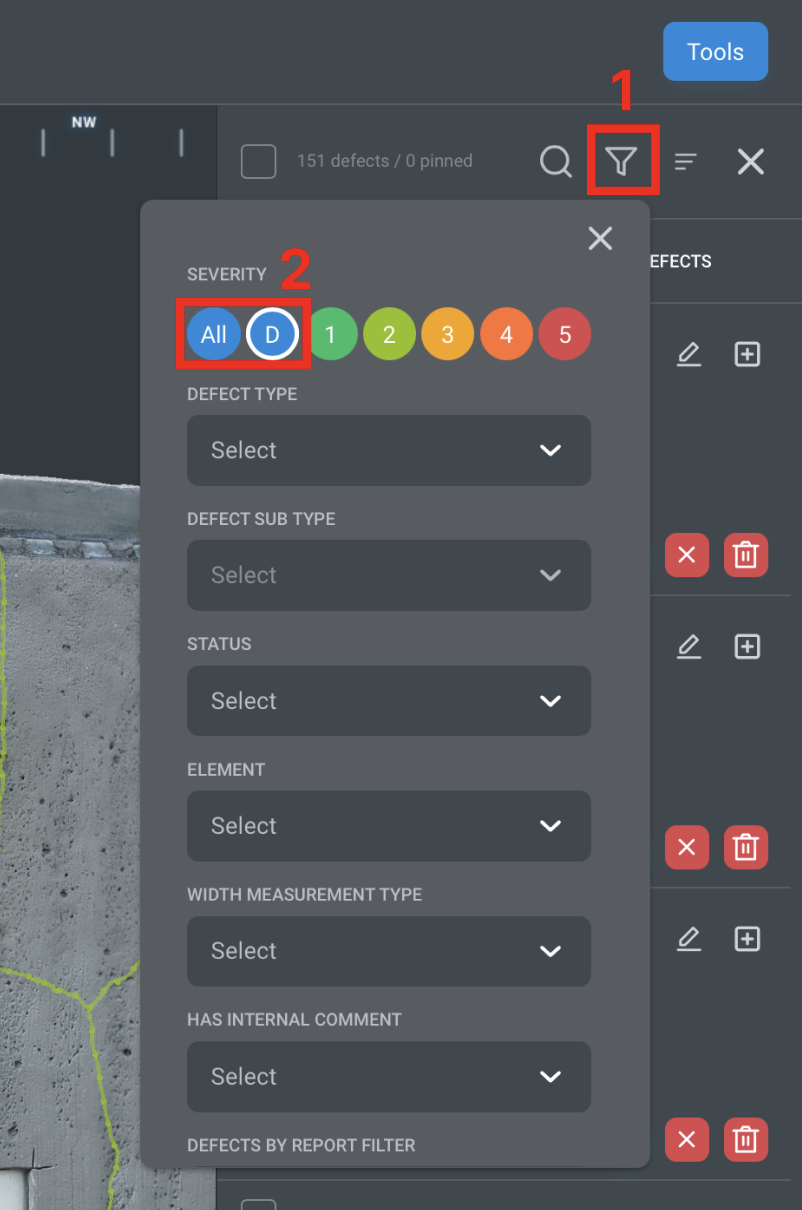

Use filters (1) for quick search. For example, to see all draft defects, uncheck ALL and select D (2).

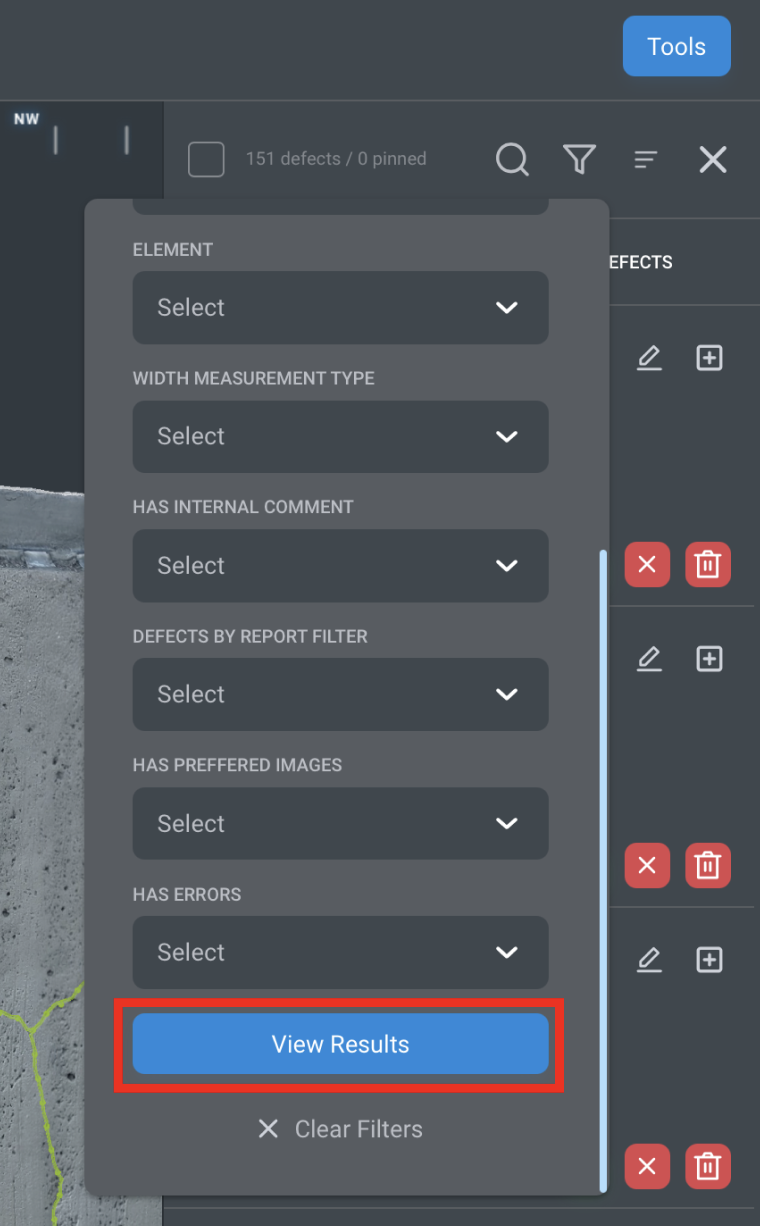

Scroll down in the filter panel to apply the filter.
Selecting a Preference Image using Defect Overview
You don’t need to enter defect edit mode to assign a Preference Photo.

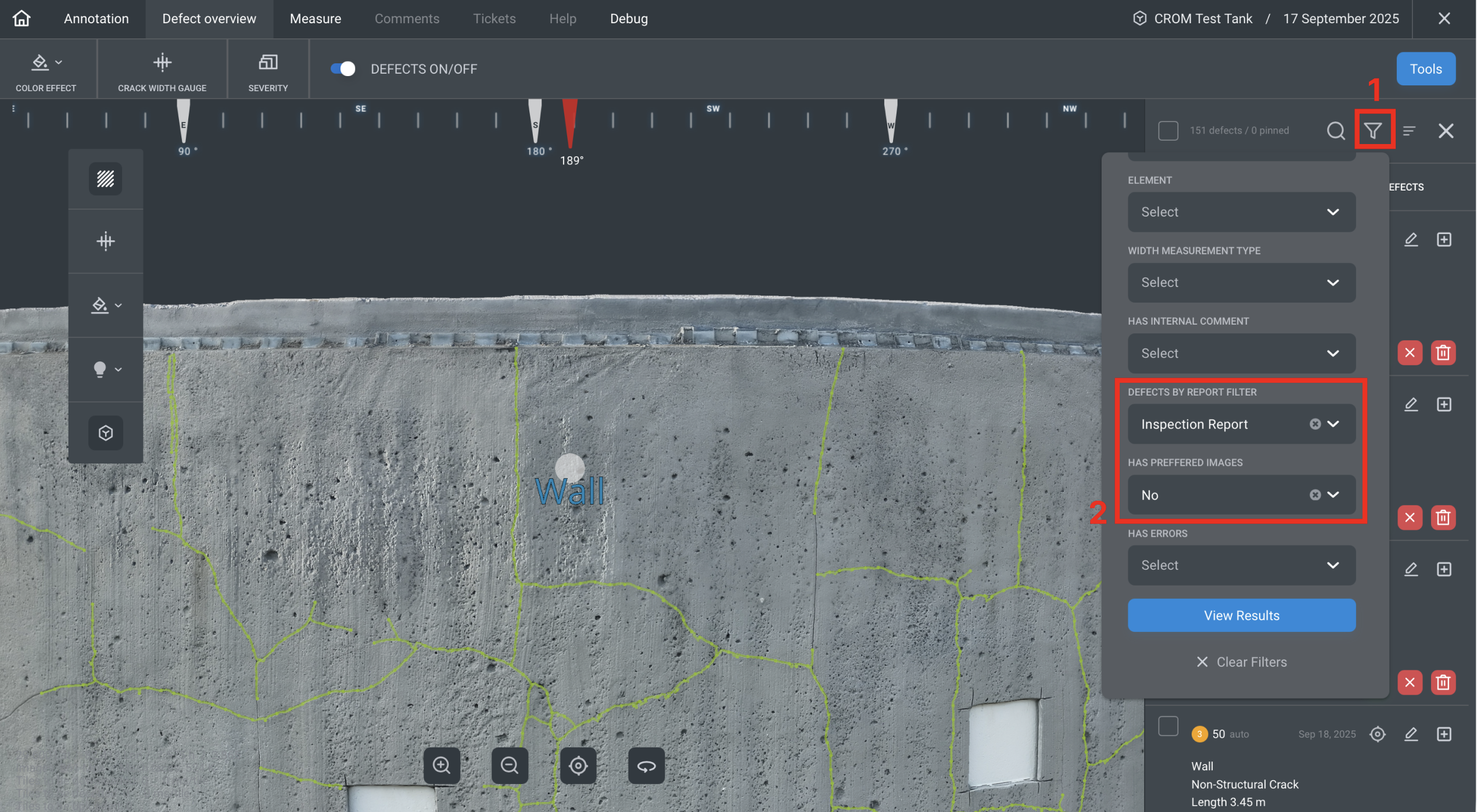

(Optional) Show defects that will appear in the report but don’t have a preferred photo yet:
Assign a photo to a defect
