System Architecture

Architecture

⁠

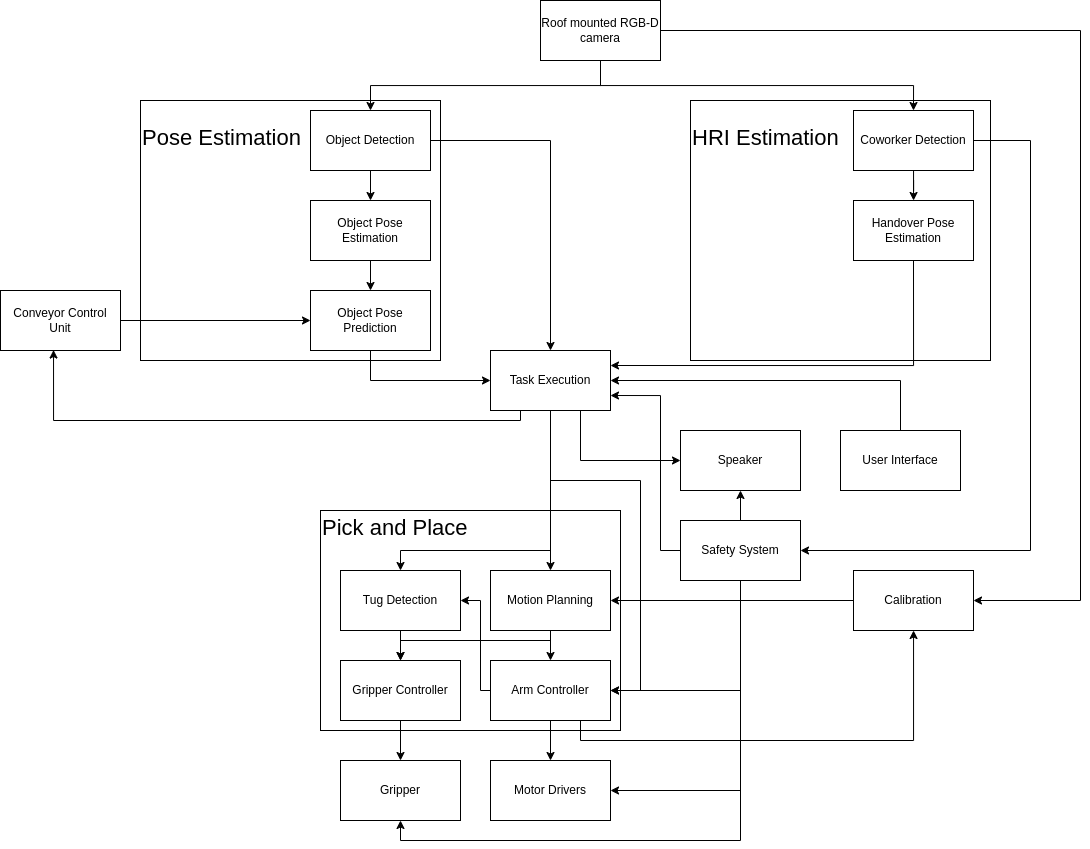

Note: Arrow direction is used to describe primary information flow, that is, information that causes subsequent action in the system. This does not mean systems at the end of an arrow cannot provide feedback. For example, when Task Execution commands motion to a particular EEF pose, it may still receive feedback from Motion Planning as to the state of execution of the motion, it’s success and resulting robot pose.

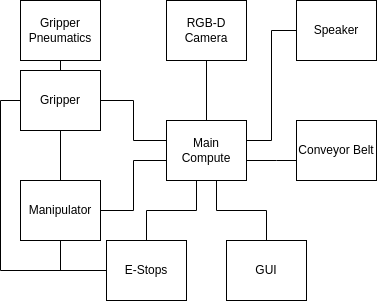

Component Connectivity

⁠

⁠

Explanation

RGB-D Camera mounted on the roof with sufficient FOV of workspace and peripherals

Pose Estimation

Object detection provides image segmentation of target object

Passes segmented depth-registered image to object pose estimation

Notifies task execution of incoming target

This output is a continued stream as long as the object is stil being detected

Object pose estimation uses camera calibration values, object templates and depth readings to estimate object pose

Passes estimated timestamped pose to object pose prediction

This output is a continued stream as long as the object is stil being detected

Object pose prediction predicts object pose on the conveyor belt at a certain horizon into the future based on pose at detection and conveyor speed

Passes predicted pose to task execution

This predicted pose is constantly updated and a continued stream as long as the object is stil being detected

HRI Estimation

Coworker detection provides image segmentation of target object

Passes segmented depth-registered image to handover pose estimation and the safety system

Handover pose estimation determines an ergonomic gripper pose based off coworker relative location and orientation

Passes estimated pose to task execution

This estimated pose is constantly updated and a continued stream as long as the coworker is stil being detected

Task Execution

Handles the overall behavioral logic and recovery actions.

Responds to the prescence of incoming objects, determines if the arm will be able to pick in time using high-level heuristics, and if not, pauses the conveyor

Translates predicted object poses into motion goals, namely, a gripper pose and gripper action, and monitors the execution of these

Translates estimated handover poses into motion goals, namely, a gripper pose, and monitors the execution of these

Utilizes the speaker to provide verbal updates of actions, particularly alterting the coworker to handover

Toggles the handover control mode in the arm controller, whereby a detected tug triggers the gripper to open

Responds to the user interface commands

Responds to the safety system pause

Pick and place

Motion planning converts target gripper poses into joint-space trajectories

Executes these trajectories by passing them to the arm controller

Provides low level recoveries for retries

Arm controller executes the above trajectories

Uses momentum based control for safe interaction with humans and objects

Provides full telemetry to motion planning and tug detection

Tug detection detects EEF tugs and triggers gripper release

Uses estimated EEF dyanmics to detect tugs at the EEF

Commands gripper to open when tug is identified

Gripper controller opens and closes the gripper

Controls the pneumatics to apply firm but non-damaging pressure to object

Senses drops via integrated sensors

Safety System

Includes HW E-stops that shut off power to actuated systems

Can pause the system

Can provide a SW E-stop that puts the arm into high compliance mode and opens the gripper

Consumes coworker detection and engages pause or SW E-stop based on proximity and calculated risk

User Interface

Allows for start, stop, cancel, resume, restart, schedule of operation

Provides updates of current action and operational state

Provides information of safety status and allows for clearing of errors

Calibration

Commands arm to calibration poses through motion planning

Consumes RGB-D data, and arm telemetry to run the hand-eye calibration procedure

Runs the camera-checkerboard calibration proedure
