f24 CSD 4503 Lab: Drills on GitHub Actions

Goal: Reinforce GitHub Actions understanding through three progressively challenging drills, culminating in setting up a workflow to trigger Jest tests.

By the end of this lab, students will have all the skills needed to complete Assignment 4 and the Final Project.

⁠

Lab Structure

Overview

Section 1: Basic GitHub Actions Workflow – Echo Commands

Section 2: Automating Code Linting with GitHub Actions

Section 3: Running Jest Tests with GitHub Actions

Each section includes:

Entry Point (Learning Outcome): What students will learn.

Checklist Instructions: Step-by-step micro-tasks.

Exit Point (Accomplishment): What students will have achieved.

⁠

Condensed Version:

Access your GH repo

Find the Actions Panel

Section 1: Basic GitHub Actions Workflow

Entry Point (Learning Outcome): Understand the basic structure of a GitHub Actions workflow by creating a simple workflow that echoes commands to the console.

⁠

Following the earlier lab work from last week: You have:

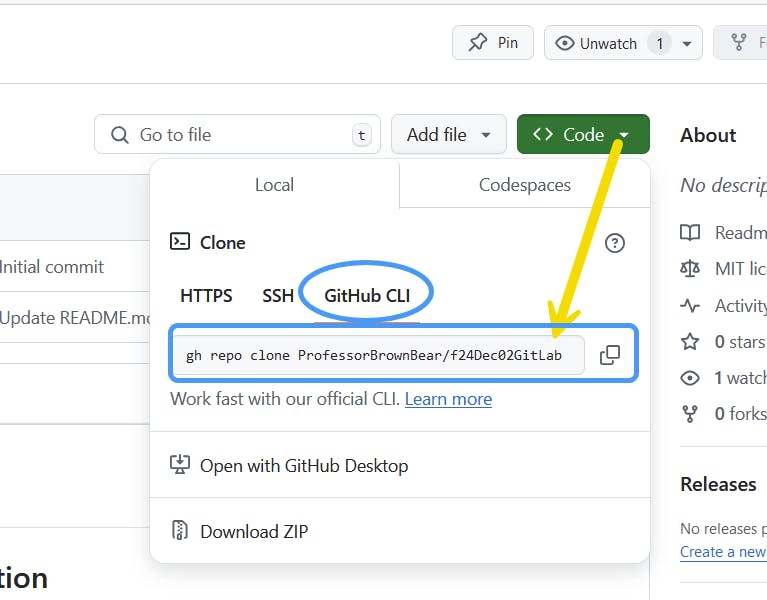

Create a GITHUB cloud repository.

Clone this to a local repository.

→ In this local clone directory: you put whatever files you want into this directory. (Sublime is the preferred text editor for working here, due to handling .git

GIT PUSH syncs local files up to Cloud.

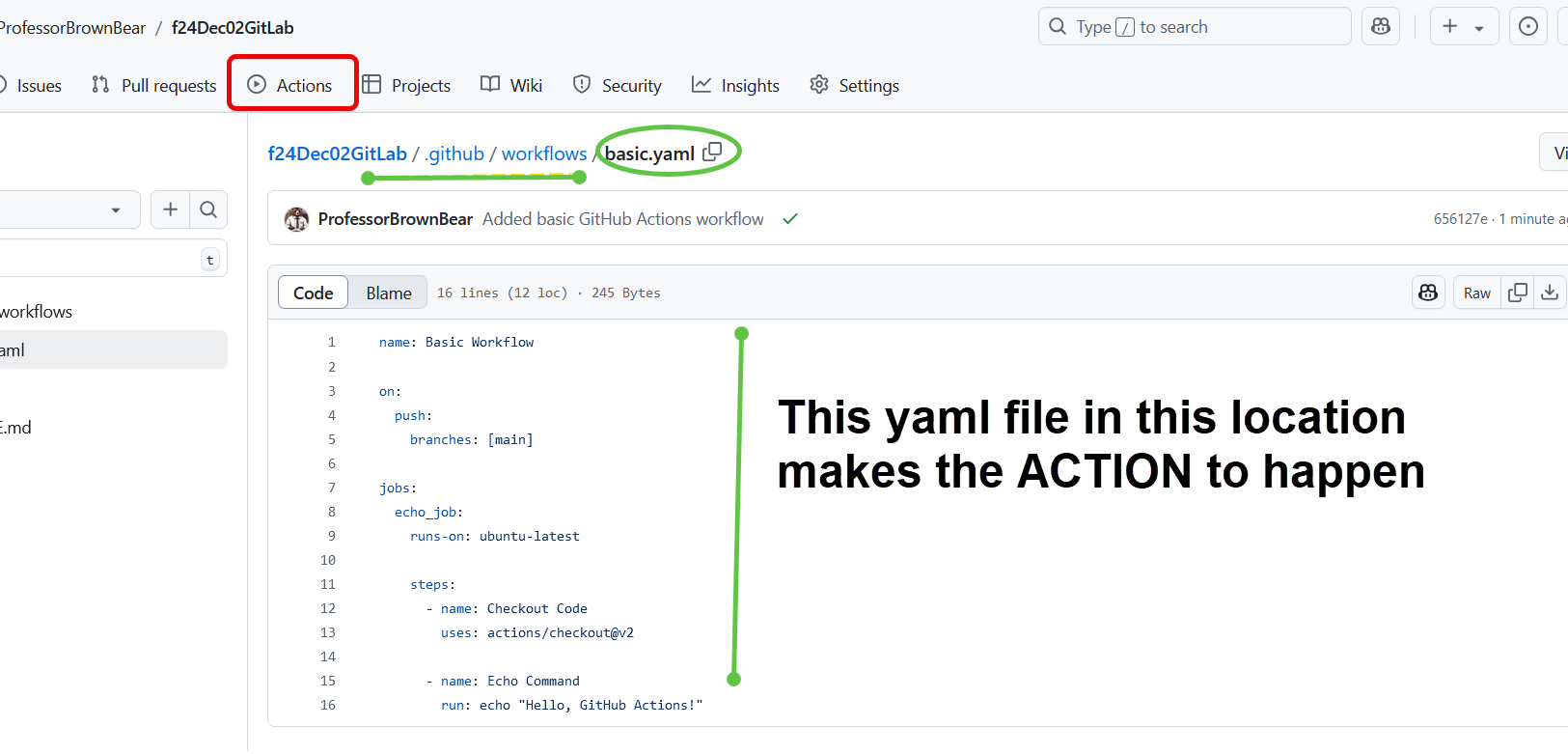

Once that YAML File in in Git HUB REPO: it will start doing its job.

To repeat the process of Creating a GITHUB REPO and cloning it to the local file system: see this Lab Book:

⁠

https://coda.io/@peter-sigurdson/for-section-1-entry-point-here-is-how-to-make-a-local-from-the-g⁠

⁠

Checklist Instructions:

Create a Workflow File:

In your local repository:

mkdir -p .github/workflows

touch .github/workflows/basic.yml

If the .github directory does not exist, you can easily create it manually. Here's how to proceed:

⁠

Creating the .github Directory and workflows Subdirectory

Step-by-Step Instructions:

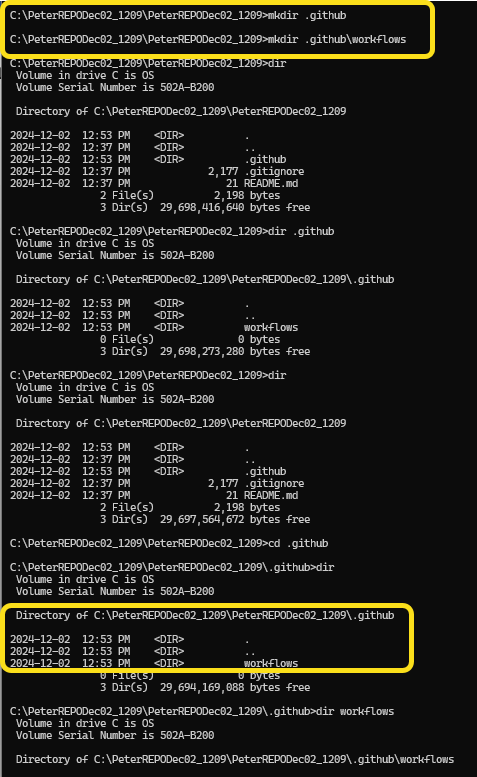

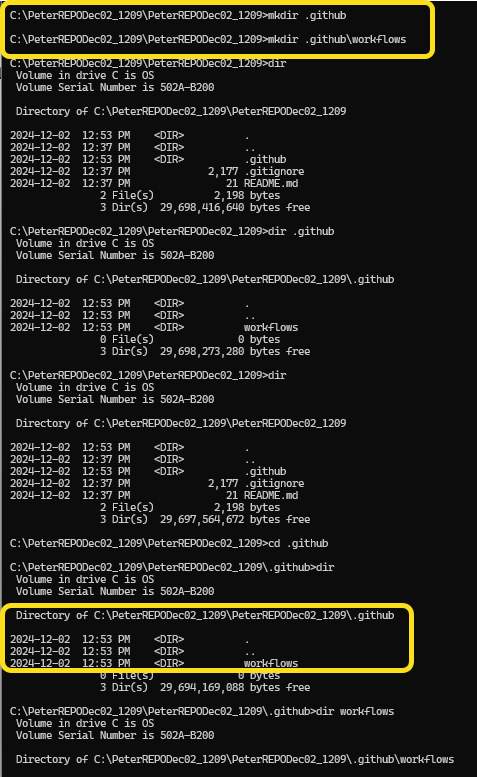

Manually Create the Directory:

In your terminal or PowerShell, run the following commands to create the necessary directories:

mkdir .github

mkdir .github/workflows {this is where our YAML file will go}

If you're on Windows and encounter syntax issues, you can split it into two steps:

mkdir .github

mkdir .github\workflows

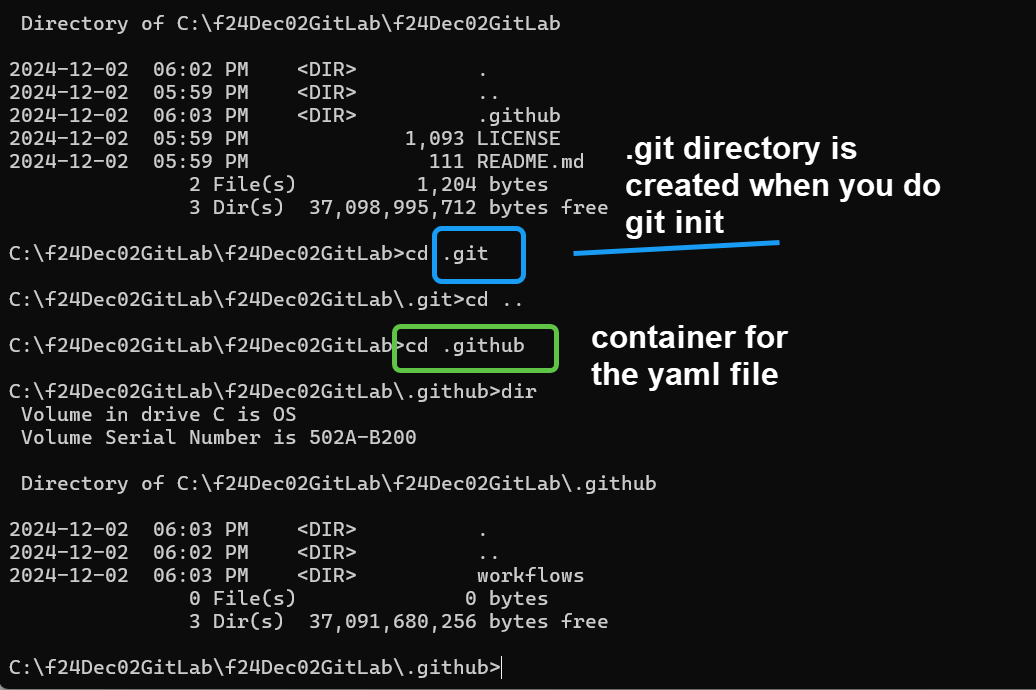

Verify the Directory Structure:

Run the following command to ensure the directories were created:

dir .github

Expected output:

A directory named workflows should appear under .github.

⁠

now → To create the basic.yml file in the workflows directory, follow these simple steps:

⁠

Creating basic.yml in the workflows Directory

Step-by-Step Instructions:

Navigate to the workflows Directory:

Use the following command in your terminal or PowerShell:

cd .github/workflows

Use Sublime to create the file:

Add Workflow Content to basic.yml:

Open the file in the editor and paste the following content:

⁠

Save and Close the File:

Save the changes and close the editor.

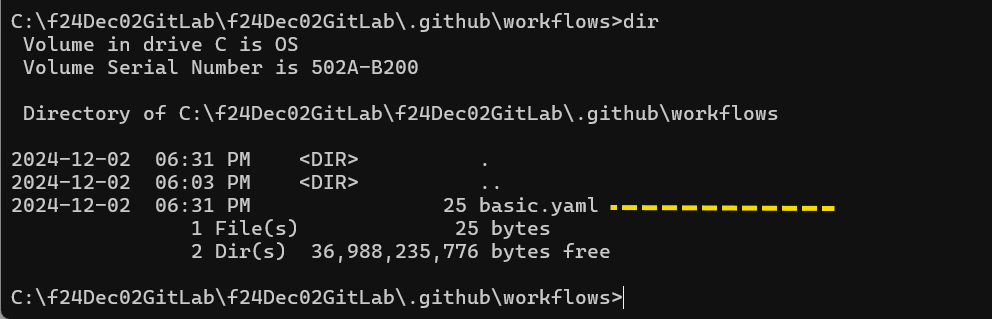

Verify the File Exists:

Check the directory for the basic.yml file:

dir

You should see basic.yml listed.

Commit and Push the Workflow:

Add the file to Git and commit the changes:

git add basic.yml {adds unstaged changes to local git repo staging area}

git commit -m "Added basic GitHub Actions workflow" {push staged file to a commited level}

git push

⁠

Result: You have successfully created the basic.yml file in the workflows directory, and it is now part of your repository.

The gh command-line tool focuses on GitHub-specific actions like managing repositories, issues, pull requests, etc. For basic Git operations (e.g., git add, git commit, git push), you still use the standard git commands.

The commands in your workflow (git add, git commit, git push) do not need to change, even though you authenticated with gh auth login.

⁠

Why Keep Using git for These Commands?

git add: Stages files for commit locally.

git commit: Commits changes locally.

git push: Pushes changes from the local repository to GitHub.

The gh CLI is not designed to replace these fundamental Git commands but to enhance interactions with GitHub-specific features.

⁠

When to Use gh Instead?

Use gh for:

Cloning repositories: gh repo clone

Creating repositories: gh repo create

Viewing or managing pull requests: gh pr

Authenticating: gh auth login

Continue using git for core Git operations, such as adding files, committing changes, and pushing/pulling updates.

⁠

Result: The listed commands (git add, git commit, git push) are correct and do not need to change when using gh auth login. Would you like additional examples to clarify how gh complements git?

Add the following content to basic.yml:

on:

push:

branches: [main]

jobs:

echo_job:

runs-on: ubuntu-latest

steps:

- name: Checkout Code

uses: actions/checkout@v2

- name: Echo Command

run: echo "Hello, GitHub Actions!"

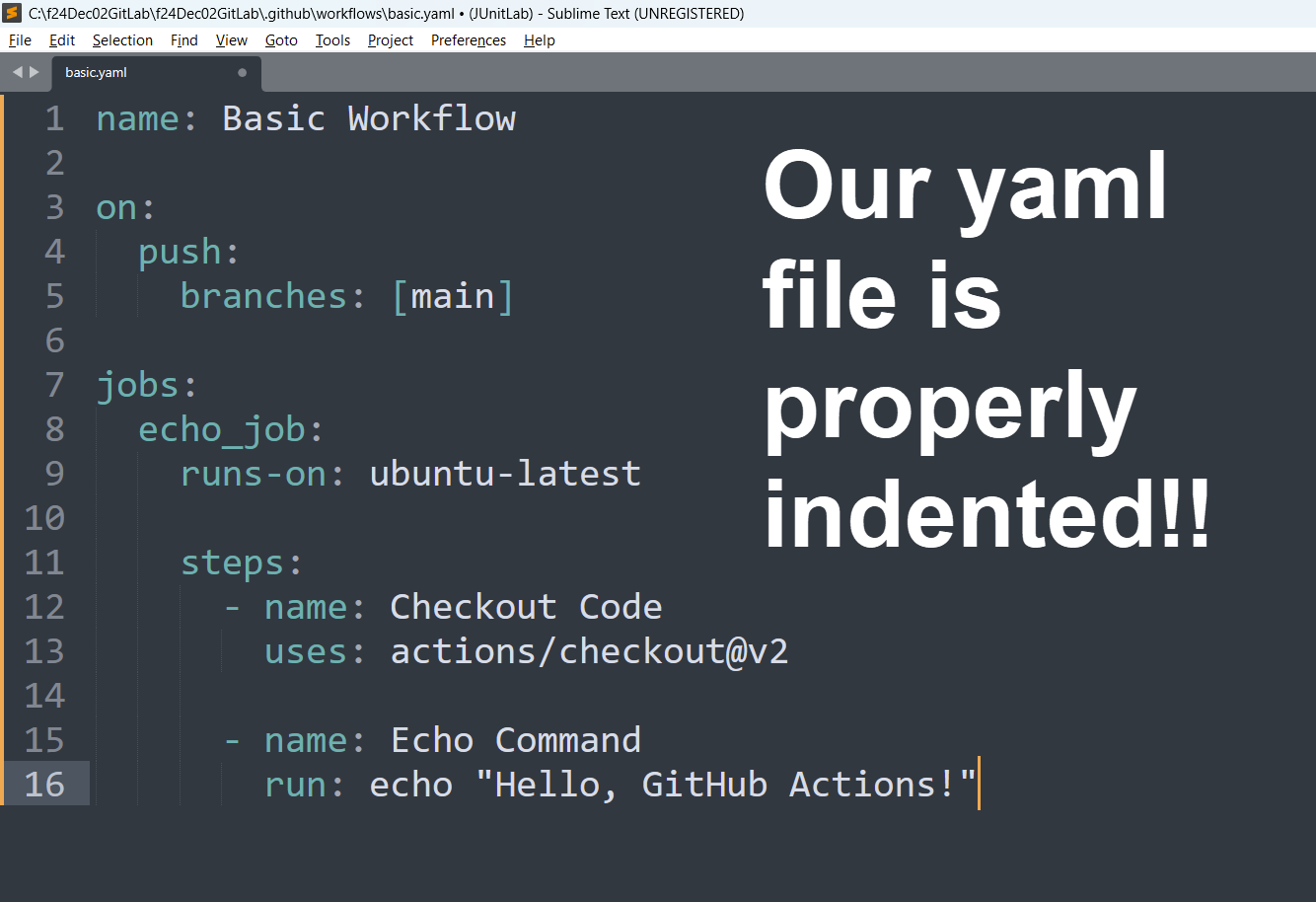

For yml, indentation matters! You can get a run failure due to incorrect indention:

Fix the Indentation

Here’s how your workflow file should look with proper formatting:

yaml

on:

push:

branches: [main]

jobs:

echo_job:

runs-on: ubuntu-latest

steps:

- name: Checkout Code

uses: actions/checkout@v2

- name: Echo Command

run: echo "Hello, GitHub Actions!"

Key Points:

Indentation Matters:

The steps block must be indented under jobs.echo_job.

Each - name and uses/run pair must align correctly under the steps block.

Fix the Error:

Ensure uses: actions/checkout@v2 is aligned under name: Checkout Code.

Adjust all indentation levels to match the example above.

⁠

How to Fix It Locally

Edit the File:

Open the file (basic.yml) in your editor.

Apply the corrected formatting as shown above.

Save the File and Commit Changes:

git add .github/workflows/basic.yml

git commit -m "Fix YAML syntax in workflow file"

git push

Trigger the Workflow Again:

Make any small change to the repository (e.g., modify README.md), commit, and push to trigger the workflow.

⁠

Verifying the Fix

Go to the Actions tab in your GitHub repository.

Look for the new workflow run.

If the syntax is correct, the workflow will execute successfully.

⁠

Commit and push the workflow:

git add .github/workflows/basic.yml

git commit -m "Add basic GitHub Actions workflow"

git push

Run git status and git diff --cached after staging files (git add ...) and before committing (git commit), or after committing and before pushing (git push).

IF before doing this, you made changes directly on GitHub, a divergence occurred because your remote branch (origin/main) now contains commits that are not in your local branch (main). Here's how to sync your local branch with the remote one and push your changes safely:

⁠

Steps to Resolve Divergence

1. Pull the Remote Changes

You need to fetch and merge the changes from GitHub into your local branch. Run:

git pull origin main

This will bring the changes you made directly on GitHub into your local repository.

If there are no conflicts, Git will merge the changes automatically.

⁠

2. Handle Merge Conflicts (If Any)

If there are conflicting changes between your local and remote commits, Git will stop the merge and display a list of files with conflicts. Here’s how to resolve them:

Open the conflicting files and manually resolve the conflicts. Look for markers like this:

<<<<<<< HEAD

(Your local changes)

=======

(Remote changes)

>>>>>>> (commit hash)

Keep the desired changes and remove the conflict markers (<<<<<<<, =======, >>>>>>>).

Mark the conflicts as resolved by running:

git add <file>

Complete the merge with:

git commit -m "Resolved merge conflicts"

⁠

3. Push Your Changes

After resolving conflicts (if any), push your local changes back to GitHub:

git push origin main

⁠

Quick Explanation

Why git pull is necessary: It ensures your local branch contains the commits from GitHub before adding your own changes.

Why conflicts might happen: Both the remote and local branches modified the same lines in the same files.

⁠

Pro Tip for Future Workflows

If you plan to work on the repository both locally and directly on GitHub, follow these best practices to avoid divergence:

Always pull the latest changes from GitHub before starting local work:

git pull origin main

Avoid making changes directly on GitHub when collaborating with local work.

Test the Workflow:

Make a small code change to trigger the workflow:

echo "// Minor edit" >> index.js

git add .

git commit -m "Trigger basic workflow"

git push

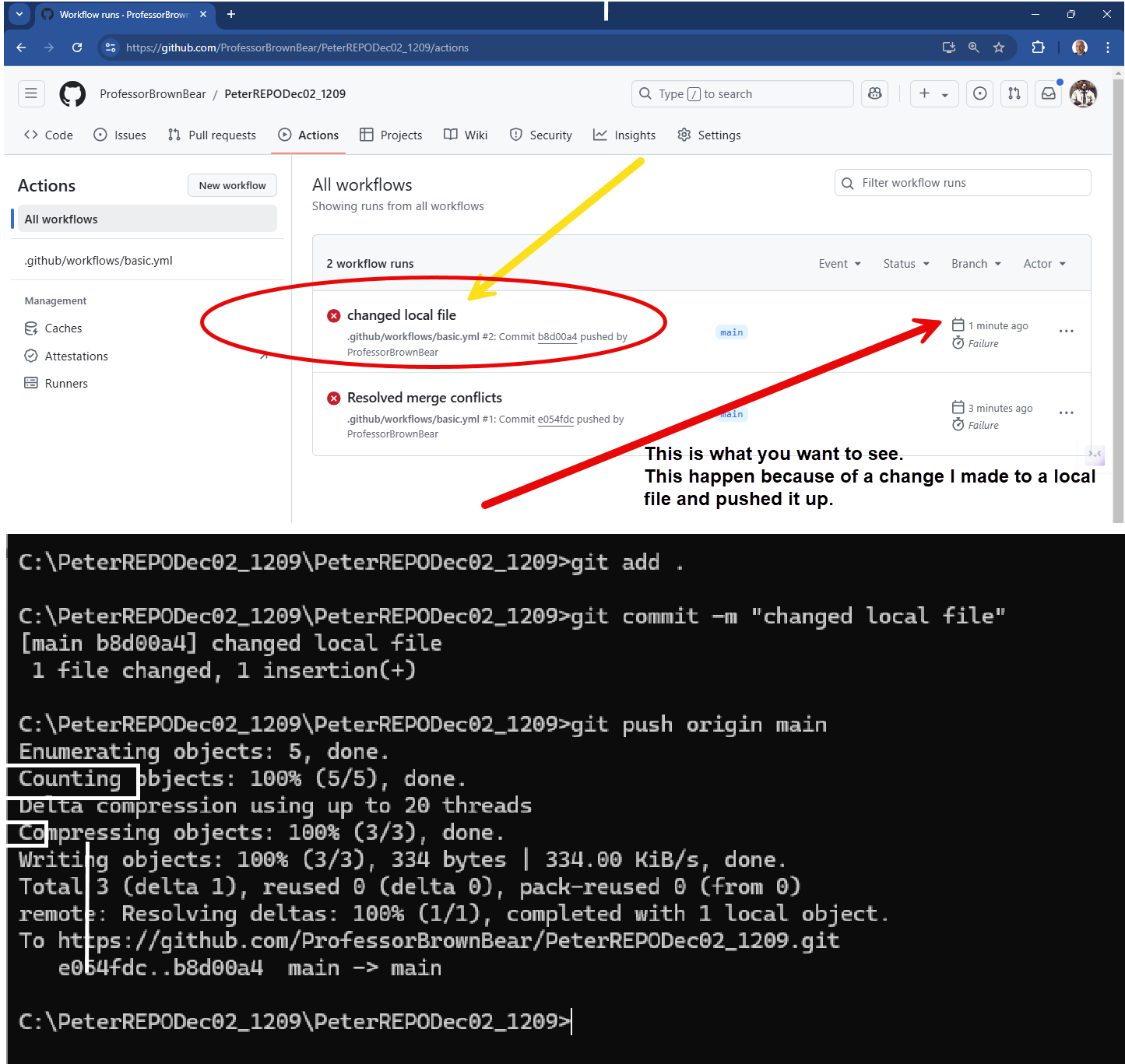

Go to the Actions tab on GitHub to observe the workflow execution.

⁠

Exit Point (Accomplishment): Students have created and tested a simple GitHub Actions workflow that runs on every push to the main branch.

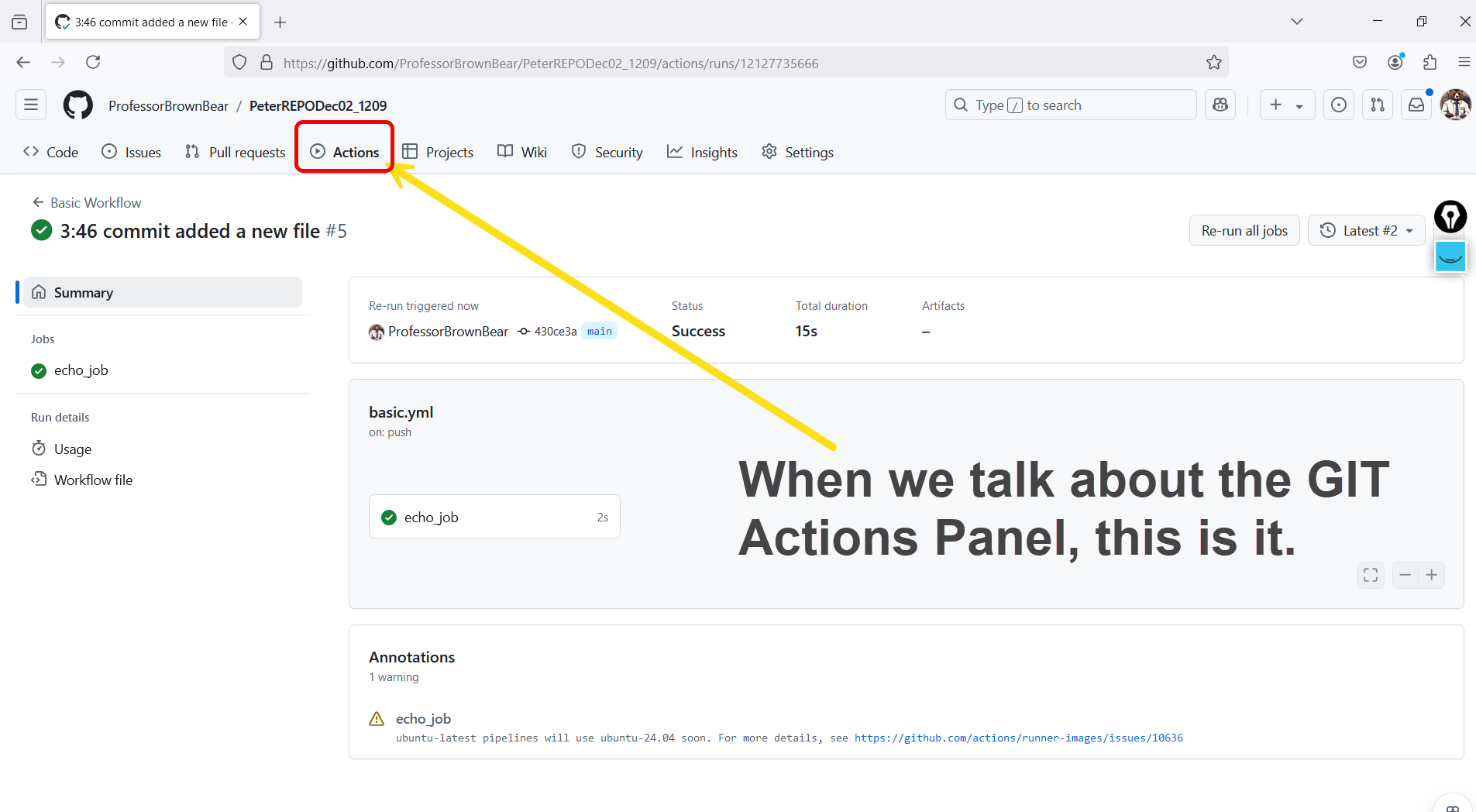

You observed the Action in the GIT Actions Panel of the GitHub Repository.

⁠

Section 2: Automating Code Linting

Entry Point (Learning Outcome): Learn how to automate linting using GitHub Actions to ensure code quality.

⁠

Checklist Instructions:

Install ESLint Locally:

In your project directory:

npm -init

npm install eslint --save-dev

npx eslint --init

Follow the prompts to configure ESLint.

Create a Linting Workflow:

Add a new workflow file:

touch .github/workflows/lint.yml

Add the following content to lint.yml:

yaml

on:

push:

branches: [main]

jobs:

lint_job:

runs-on: ubuntu-latest

steps:

- name: Checkout Code

uses: actions/checkout@v2

- name: Setup Node.js

uses: actions/setup-node@v2

with:

node-version: '16'

- name: Install Dependencies

run: npm install

- name: Run ESLint

run: npx eslint . --ext .js

Commit and push the workflow:

git add .github/workflows/lint.yml

git commit -m "Add linting workflow"

git push

Test the Workflow:

Introduce a linting error (e.g., remove a semicolon in index.js) and push:

echo console.log('Lint error') >> index.js // cmd line generate a small file

git add .

git commit -m "Test linting workflow"

git push

Check the Actions tab for linting results.

⁠

Exit Point (Accomplishment): Students have automated linting using GitHub Actions and understand how to enforce code quality standards.

⁠

add a .gitignore file to exclude the node_modules directory (or any other files/directories) from being pushed to the repository.

Here's how to do it:

⁠

Steps to Add .gitignore for node_modules

Create a .gitignore File:

If you don’t already have a .gitignore file in your repository, create one:

touch .gitignore

Edit the .gitignore File:

Open the .gitignore file in a text editor and add the following line:

node_modules/

This tells Git to ignore the node_modules directory.

Remove node_modules from Tracking (If Already Added):

If node_modules is already being tracked by Git, you need to remove it from the Git index:

bash

Copy code

git rm -r --cached node_modules

This removes the directory from tracking but leaves it intact locally.

Commit the Changes:

Stage and commit the .gitignore file and the changes to stop tracking node_modules:

git add .gitignore

git commit -m "Add .gitignore to exclude node_modules"

Push the Changes to GitHub:

Push the changes to the remote repository:

git push origin main

⁠

Verify the .gitignore is Working

After making these changes, any files in the node_modules directory will no longer appear in git status, and they won’t be pushed to the remote repository.

⁠

Best Practices

It’s a good practice to always include node_modules in .gitignore for JavaScript/Node.js projects to avoid unnecessary large file uploads and ensure the repository stays clean.

now → Section 3: Running Jest Tests with GitHub Actions

Entry Point (Learning Outcome): Master how to automate running Jest tests with GitHub Actions.

⁠

Checklist Instructions:

Verify Jest Tests Are Ready:

Confirm your __tests__/example.test.js exists and works locally:

npx jest

Create a Testing Workflow:

Add another workflow file:

touch .github/workflows/test.yml

Add the following content to test.yml:

yaml

on:

push:

branches: [main]

jobs:

test_job:

runs-on: ubuntu-latest

steps:

- name: Checkout Code

uses: actions/checkout@v2

- name: Setup Node.js

uses: actions/setup-node@v2

with:

node-version: '16'

- name: Install Dependencies

run: npm install

- name: Run Jest Tests

run: npx jest

Commit and push the workflow:

git add .github/workflows/test.yml

git commit -m "Add Jest testing workflow"

git push

Test the Workflow:

Make a small code change and push:

echo "// Test Jest workflow" >> index.js

git add .

git commit -m "Testing Jest workflow"

git push

Go to the Actions tab and review the test results.

⁠

Exit Point (Accomplishment): Students can automate Jest tests, ensuring each commit triggers tests and provides pass/fail results in GitHub Actions.

⁠

Key Outcomes for Students:

Section 1: Basic GitHub Actions workflow understanding.

Section 2: Automation of code linting for quality assurance.

Section 3: Running Jest tests with GitHub Actions for CI/CD.

By completing this lab, students will have mastered GitHub Actions and be fully prepared for Assignment 4 and the Final Project.

Let’s run a JEST testing workflow sequence

Lab: Running Jest Tests with GitHub Actions for a TypeScript Program

⁠

Objective

Students will create a simple TypeScript program that adds two numbers, write a Jest test to verify the functionality, and automate testing using GitHub Actions.

This lab will guide students step-by-step through writing, testing, and pushing the program, while ensuring they can observe test results in the GitHub Actions log.

⁠

Checklist Instructions

⁠

1. Create a TypeScript Program

Initialize the TypeScript Project:

In the project folder, initialize the project with:

npm init -y

npm install typescript jest ts-jest @types/jest --save-dev

npx tsc --init

Write the TypeScript Program:

Create a file named add.ts:

touch add.ts

Add the following content:

export function add(a: number, b: number): number {

return a + b;

}

Compile the TypeScript Program:

Compile to JavaScript with:

npx tsc

⁠

2. Write Jest Tests

Configure Jest:

Create a Jest configuration file:

npx ts-jest config:init

Write the Test:

Create a test file named add.test.ts in the __tests__ directory:

mkdir __tests__

touch __tests__/add.test.ts

Add the following test:

import { add } from '../add';

test('adds 1 + 2 to equal 3', () => {

expect(add(1, 2)).toBe(3);

});

test('adds -1 + -1 to equal -2', () => {

expect(add(-1, -1)).toBe(-2);

});

Run the Tests Locally:

Verify that tests pass locally:

npx jest

⁠

3. Set Up GitHub Actions

Create a Workflow File:

Add the workflow file:

mkdir -p .github/workflows

touch .github/workflows/test.yml

Add the Workflow Configuration:

Add the following content to test.yml:

on:

push:

branches: [main]

jobs:

test_job:

runs-on: ubuntu-latest

Want to print your doc?
This is not the way.

Try clicking the ··· in the right corner or using a keyboard shortcut (

CtrlP

) instead.
