Android Location Maps Lab B a1

Creating a simple Android Kotlin app that integrates Google Maps and Location Services involves several steps.

⁠

https://console.cloud.google.com/google/maps-apis/⁠

⁠

Wait for all updating to complete

Here is your work flow sequence:

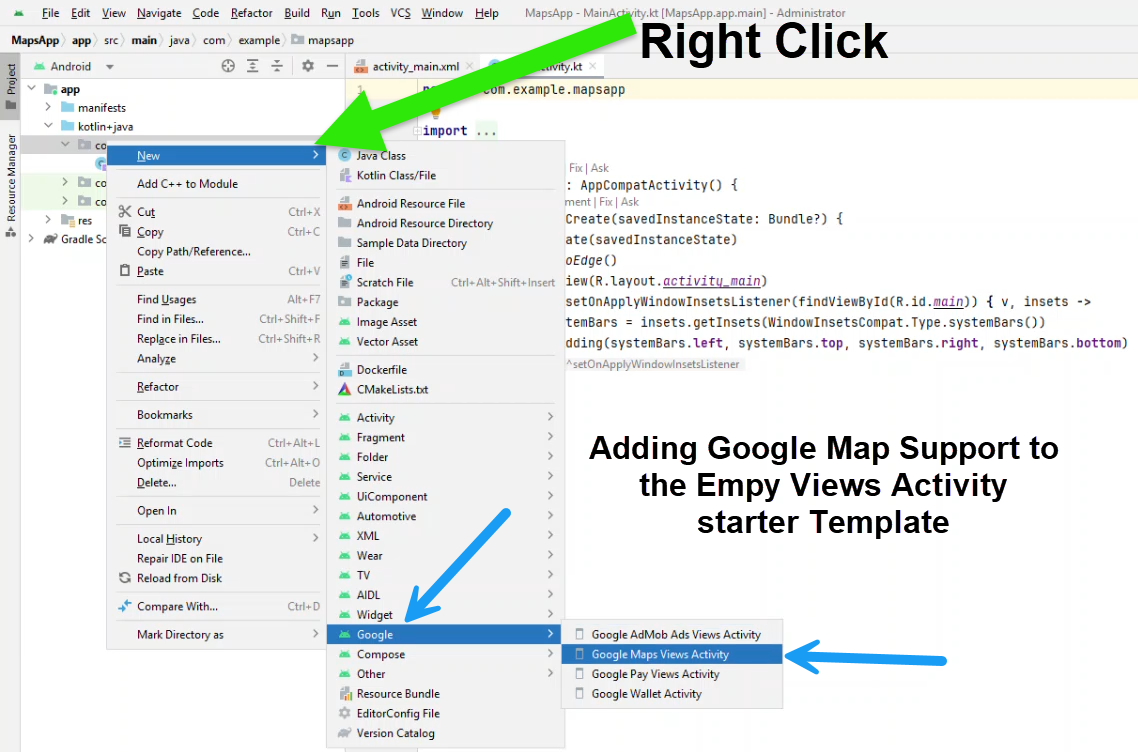

Start with making a new App with Google Maps support.

Create the essential components:

`MainActivity.kt`,

`activity_main.xml`, and

`build.gradle.kts`.

This app will showcase a basic map view and the user's current location,

adhering to the latest Android development best practices, including the use of view bindings.

1. `build.gradle.kts` (Project Level): Ensure you have the Google services classpath in your project-level `build.gradle.kts`: ```kotlin buildscript { // ... other configurations ...

dependencies { // ... other dependencies ... classpath("com.google.gms:google-services:4.3.13") } }

// ... rest of the file ... ```

2. `build.gradle.kts` (App Level): Include necessary dependencies for

Google Maps,

Location Services, and

view binding: ```kotlin plugins { // ... other plugins ... id("com.android.application") kotlin("android") kotlin("android.extensions") id("com.google.gms.google-services") }

android { // ... other configurations ...

buildFeatures { viewBinding = true } }

dependencies { // ... other dependencies ...

implementation("com.google.android.gms:play-services-maps:18.0.2") implementation("com.google.android.gms:play-services-location:20.0.0") }

// ... rest of the file ... ```

3. `AndroidManifest.xml`: Add permissions and the API key in `AndroidManifest.xml`: ```xml <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.example.mapapp">

<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />

<application // ... other attributes ... > <meta-data android:name="com.google.android.geo.API_KEY" android:value="YOUR_API_KEY_HERE"/>  </application> </manifest> ```

4. `activity_main.xml`:

When using View Binding in Android, the outermost tag should be <layout>. This tag is used by the Android build system to generate binding classes. The rest of the layout is then nested inside this tag. Your current layout is correctly structured in this regard.

Here’s the slightly revised activity_main.xml:


<layout xmlns:android="http://schemas.android.com/apk/res/android">


    <RelativeLayout


        android:layout_width="match_parent"


        android:layout_height="match_parent">


        <fragment


            android:id="@+id/map"


            android:name="com.google.android.gms.maps.SupportMapFragment"


            android:layout_width="match_parent"


            android:layout_height="match_parent"/>


    </RelativeLayout>


</layout>

The XML layout you've provided for `activity_main.xml` is structured correctly for a basic Google Maps integration using View Binding in an Android project.

There are a couple of key points to consider to ensure it works correctly when you copy/paste it into an Android Studio project:

1. **Google Maps API Key**:

Your project needs a valid Google Maps API key. Without it, the map will not load. This key must be defined in your `AndroidManifest.xml` file.

2. **Dependencies**:

Ensure that your project's `build.gradle` file includes dependencies for Google Maps and View Binding.

For Google Maps, you typically add something like

`implementation 'com.google.android.gms:play-services-maps:x.y.z'` where `x.y.z` is the version number.

3. **Internet Permission**:

Your app will need internet access to load map data.

Make sure to include the `<uses-permission android:name="android.permission.INTERNET" />` permission in your `AndroidManifest.xml`.

4. **Enable View Binding**:

In your module-level `build.gradle` file, make sure you've enabled View Binding:

```kotlin android { ... buildFeatures { viewBinding true } } ```

5. **Project Package Name**:

Ensure that the package name specified in your `AndroidManifest.xml` and your project structure match.

The XML layout references `com.google.android.gms.maps.SupportMapFragment`, which should be consistent with your project setup.

6. **Min SDK Version**:

Google Maps and View Binding have minimum SDK requirements. Ensure your app's `minSdkVersion` meets these requirements.

7. **Sync Project**:

After making changes to Gradle files or XML layouts, always sync your project with Gradle files in Android Studio.

8. **Runtime Permissions for Location**:

If your app will access the device's location, remember to handle runtime permissions for location access (especially for Android 6.0, API level 23, and above).

Considering these points, if the other parts of your project are set up correctly

API key,

permissions

dependencies, etc.)

the provided XML layout should work for integrating a Google Map into your Android app.

Remember, the map's functionality will also depend on how you implement the map interactions in your Kotlin/Java code.

With this setup:

The RelativeLayout serves as a flexible container, allowing for potential additional UI elements if needed in the future.

The <fragment> tag correctly initializes the SupportMapFragment, which is used for displaying Google Maps.

The android:id="@+id/map" attribute is essential to reference this fragment in your Kotlin code via View Binding.

Make sure that View Binding is enabled in your build.gradle file to utilize the automatically generated binding classes in your Kotlin code.

This feature enhances type safety and null safety when interacting with views.

Given the structure of your activity_main.xml, you're all set to proceed with implementing map functionalities in your Android application.

Remember to handle permissions and configurations related to Google Maps and location services appropriately in your Kotlin code and AndroidManifest.xml.

This layout places a <fragment> inside the RelativeLayout for displaying the map. The SupportMapFragment is used to manage the lifecycle of the map and display it.

With this layout, you can use View Binding in your Kotlin code to reference the map fragment directly, leading to more concise and safer code.

emember that View Binding requires enabling in your build.gradle file (module level):


android {

...


    buildFeatures {


        viewBinding true

Once this is set up, you can use the generated binding class to interact with your views in a type-safe manner.

Recall from our earlier classes:

The connection between MainActivity.kt and activity_main.xml in an Android application is primarily established through a process called "inflation", and in modern Android development, this is often facilitated by a feature called View Binding.

Let's break down how this connection works:

1. Defining the Layout (activity_main.xml):

First, you create an XML layout file (activity_main.xml), which describes the user interface of your activity. This XML file defines the layout structure and the UI components like buttons, text views, map fragments, etc.

2. Enabling View Binding:

View Binding is a feature that generates a binding class for your XML layout files. For activity_main.xml, a corresponding binding class ActivityMainBinding will be generated. This feature needs to be enabled in your module-level build.gradle file:


kotlinCopy code


android {

...


    buildFeatures {


        viewBinding true

3. Inflating the Layout in MainActivity.kt:

In your MainActivity.kt, you use the generated binding class to "inflate" the layout, which means converting the XML layout into actual View objects that can be displayed on the screen.

Here’s how it's done:


Kotlin code:


import com.example.mapapp.databinding.ActivityMainBinding


class MainActivity : AppCompatActivity() {


    private lateinit var binding: ActivityMainBinding


    override fun onCreate(savedInstanceState: Bundle?) {


        super.onCreate(savedInstanceState)


        // Inflating the layout


        binding = ActivityMainBinding.inflate(layoutInflater)


        setContentView(binding.root)


        // Now you can use binding to access the views defined in your XML file

In this code:

ActivityMainBinding.inflate(layoutInflater) inflates the activity_main.xml layout. The inflate method creates the layout's view objects.

setContentView(binding.root) sets the activity's content view to the root of the inflated layout. binding.root refers to the top-level layout in activity_main.xml.

4. Accessing Views:

With View Binding, each view in the activity_main.xml file is represented in the binding class. You can access these views directly using the binding object.

For example, if you have a button with the ID @+id/myButton in your XML, you can access it in MainActivity.kt using binding.myButton.

This mechanism eliminates the need for findViewById and enhances code safety and clarity. It ensures type-safety and null-safety when accessing views.

The connection between MainActivity.kt and activity_main.xml is made through the process of inflating the XML layout file into View objects using a binding class generated by View Binding. This connection allows your Kotlin code to interact dynamically with the layout defined in XML.

5. `MainActivity.kt`: Implement `MainActivity` with location functionality:

// ... existing imports ... import android.Manifest import android.content.pm.PackageManager import android.os.Bundle import androidx.appcompat.app.AppCompatActivity import androidx.core.app.ActivityCompat import com.example.mapapp.databinding.ActivityMainBinding import com.google.android.gms.maps.CameraUpdateFactory import com.google.android.gms.maps.GoogleMap import com.google.android.gms.maps.OnMapReadyCallback import com.google.android.gms.maps.SupportMapFragment import com.google.android.gms.maps.model.LatLng import com.google.android.gms.maps.model.MarkerOptions

class MainActivity : AppCompatActivity(), OnMapReadyCallback {

private lateinit var binding: ActivityMainBinding private lateinit var map: GoogleMap private val locationPermissionCode = 101

override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) binding = ActivityMainBinding.inflate(layoutInflater) setContentView(binding.root)

val mapFragment = supportFragmentManager.findFragmentById(R.id.map) as SupportMapFragment mapFragment.getMapAsync(this)

checkLocationPermission() }

private fun checkLocationPermission() { if (ActivityCompat.checkSelfPermission(this, Manifest.permission.ACCESS_FINE_LOCATION) != PackageManager.PERMISSION_GRANTED) { ActivityCompat.requestPermissions(this, arrayOf(Manifest.permission.ACCESS_FINE_LOCATION), locationPermissionCode) } }

override fun onRequestPermissionsResult(requestCode: Int, permissions: Array<String>, grantResults: IntArray) { if (requestCode == locationPermissionCode) { if (grantResults.isNotEmpty() && grantResults[0] == PackageManager.PERMISSION_GRANTED) { map.isMyLocationEnabled = true } else { // Handle the case where permission is denied. // You could show a dialog explaining why the permission is needed and how to enable it. } } }

override fun onMapReady(googleMap: GoogleMap) { map = googleMap

// Enable zoom controls on the map map.uiSettings.isZoomControlsEnabled = true

// Check if permission is granted (considering that permission might have been denied) if (ActivityCompat.checkSelfPermission(this, Manifest.permission.ACCESS_FINE_LOCATION) == PackageManager.PERMISSION_GRANTED) { map.isMyLocationEnabled = true }

// Example: Add a marker in Sydney, Australia, and move the camera val sydney = LatLng(-34.0, 151.0) map.addMarker(MarkerOptions().position(sydney).title("Marker in Sydney")) map.moveCamera(CameraUpdateFactory.newLatLng(sydney)) } }

Code Analysis: `MainActivity.kt` code

onCreate inflates the layout using View Binding, sets the content view, and initializes the map fragment.

checkLocationPermission checks for location permission and requests it if not already granted.

onRequestPermissionsResult handles the result of the permission request.

onMapReady is implemented to configure the Google Map once it's ready. This includes setting up a marker and enabling user location if permission is granted.

Let's go through this `MainActivity.kt` code line by line:

### Imports ```kotlin import android.Manifest ``` Imports Android’s `Manifest` class for accessing various manifest constants, here specifically for permission constants.

```kotlin import android.content.pm.PackageManager ``` Imports the `PackageManager` class, which provides information about applications installed on the device, used here to check permissions.

```kotlin import android.os.Bundle ``` Imports the `Bundle` class for passing data between Android components.

```kotlin import androidx.appcompat.app.AppCompatActivity ``` Imports `AppCompatActivity`, a base class for activities that use the support library action bar features.

```kotlin import androidx.core.app.ActivityCompat ``` Imports `ActivityCompat` for compatibility handling of runtime permissions.

```kotlin import com.example.mapapp.databinding.ActivityMainBinding ``` Imports the generated binding class for the activity's layout to use View Binding.

```kotlin import com.google.android.gms.maps.CameraUpdateFactory import com.google.android.gms.maps.GoogleMap import com.google.android.gms.maps.OnMapReadyCallback import com.google.android.gms.maps.SupportMapFragment import com.google.android.gms.maps.model.LatLng import com.google.android.gms.maps.model.MarkerOptions ``` Imports classes from the Google Maps API for handling maps, map fragments, camera updates, locations (LatLng), and markers.

### Class Declaration ```kotlin class MainActivity : AppCompatActivity(), OnMapReadyCallback { ``` Declares `MainActivity` as a subclass of `AppCompatActivity`, and it implements `OnMapReadyCallback` for handling Google Maps.

### Class Properties ```kotlin private lateinit var binding: ActivityMainBinding ``` Declares a late-initialized property for view binding, allowing direct access to views in `activity_main.xml`.

```kotlin private lateinit var map: GoogleMap ``` Declares a late-initialized `GoogleMap` object for manipulating the map.

```kotlin private val locationPermissionCode = 101 ``` Defines a constant for the location permission request code.

### onCreate Method ```kotlin override fun onCreate(savedInstanceState: Bundle?) { ``` Overrides the `onCreate` method of `AppCompatActivity`.

```kotlin super.onCreate(savedInstanceState) binding = ActivityMainBinding.inflate(layoutInflater) setContentView(binding.root) ``` Sets up view binding and inflates the layout.

```kotlin val mapFragment = supportFragmentManager.findFragmentById(R.id.map) as SupportMapFragment mapFragment.getMapAsync(this) ``` Finds the map fragment and requests an asynchronous callback for when the map is ready.

```kotlin checkLocationPermission() } ``` Calls a custom method to check for location permissions.

### checkLocationPermission Method ```kotlin private fun checkLocationPermission() { ``` Defines a method to check and request location permissions.

```kotlin if (ActivityCompat.checkSelfPermission(this, Manifest.permission.ACCESS_FINE_LOCATION) != PackageManager.PERMISSION_GRANTED) { ActivityCompat.requestPermissions(this, arrayOf(Manifest.permission.ACCESS_FINE_LOCATION), locationPermissionCode) } } ``` Checks if location permission is granted and requests it if not.

### onRequestPermissionsResult Method ```kotlin override fun onRequestPermissionsResult(requestCode: Int, permissions: Array<String>, grantResults: IntArray) { ``` Overrides the method to handle the result of the permission request.

```kotlin if (requestCode == locationPermissionCode) { ``` Checks if the request code matches the location permission request code.

```kotlin if (grantResults.isNotEmpty() && grantResults[0] == PackageManager.PERMISSION_GRANTED) { map.isMyLocationEnabled = true } else { // Handle the case where permission is denied. } } } ``` Handles the outcome of the permission request.

### onMapReady Method ```kotlin override fun onMapReady(googleMap: GoogleMap) { ``` Overrides `OnMapReadyCallback`'s `onMapReady` method.

```kotlin map = googleMap ``` Initializes the `GoogleMap` object.

```kotlin map.uiSettings.isZoomControlsEnabled = true ``` Enables zoom controls on the map.

```kotlin if (ActivityCompat.checkSelfPermission(this, Manifest.permission.ACCESS_FINE_LOCATION) == PackageManager.PERMISSION_GRANTED) { map.isMyLocationEnabled = true } ``` Checks if location permission is granted and enables the My Location layer if so.

```kotlin val sydney = LatLng(-34.0, 151.0) map.addMarker(MarkerOptions().position(sydney).title("Marker in Sydney")) map.moveCamera(CameraUpdateFactory.newLatLng(sydney)) } ``` Adds a marker at Sydney and moves the camera there.

This code provides a good foundation for a basic Google Maps application with permission handling in Android. It's structured to follow best practices in modern Android development, including the use of View Binding and runtime permission handling.

With the latest Kotlin version being 1.9.23, you should update the `ext.kotlin_version` in the project-level `build.gradle` file accordingly.

Here’s how the `build.gradle` files should look with the updated Kotlin version:

### Project-Level `build.gradle`:

```gradle // Top-level build file where you can add configuration options common to all sub-projects/modules.

buildscript { ext.kotlin_version = "1.9.23" // Updated Kotlin version repositories { google() mavenCentral() } dependencies { classpath("com.android.tools.build:gradle:7.0.4") // Use the latest Gradle Plugin version classpath("org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlin_version")

// Google Services plugin for Google Maps classpath("com.google.gms:google-services:4.3.10") // Use the latest version } }

allprojects { repositories { google() mavenCentral() } }

task clean(type: Delete) { delete rootProject.buildDir } ```

### Module-Level `build.gradle`:

```gradle plugins { id 'com.android.application' id 'kotlin-android' }

android { compileSdkVersion 31 // Set the compile SDK version

defaultConfig { applicationId "

com.example.a2404041901⁠

" // Replace with your application ID minSdkVersion 21 // Set your minimum SDK targetSdkVersion 31 versionCode 1 versionName "1.0"

testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner" }

buildTypes { release { minifyEnabled false proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro' } }

buildFeatures { viewBinding true } }

dependencies { implementation "org.jetbrains.kotlin:kotlin-stdlib:$kotlin_version"

// Dependencies for Google Maps implementation 'com.google.android.gms:play-services-maps:18.0.0' // Use the latest Maps version

// Standard Android dependencies implementation 'androidx.core:core-ktx:1.7.0' implementation 'androidx.appcompat:appcompat:1.4.1' implementation 'com.google.android.material:material:1.5.0' }

// Apply the Google Services plugin apply plugin: 'com.google.gms.google-services' ```

Remember to replace the placeholder `com.example.yourapp` with your actual application package name.

Also, ensure that other dependency versions (like `play-services-maps`, `appcompat`, `material`, etc.) are compatible with your setup and are the latest available at the time of your project's development.

Keeping dependencies up-to-date helps with accessing new features and improvements while ensuring compatibility and security.

Steps to Run the App: 1. Replace `YOUR_API_KEY_HERE` in the AndroidManifest.xml with your Google Maps API key. 2. Sync your project with Gradle files. 3. Ensure you have the proper emulator or device setup with Google Play Services. 4. Run the app. It should display a map centered on Sydney with a marker.

This basic setup can be extended to include more advanced location functionalities and further customization of the map. Remember to handle runtime permissions for location access, especially if targeting Android 6.0 (API level 23) and above.

The provided setup and code should work without errors on the latest Android Studio Iguana | 2023.2.1, provided you follow the setup correctly and take care of a few important aspects:

API Key: Ensure you have a valid Google Maps API key inserted in your AndroidManifest.xml. Without a valid API key, the map will not load.

Permissions: Since the app requires location access, make sure to handle runtime permissions for accessing fine location. Starting from Android 6.0 (API level 23), you must request permissions at runtime. While the basic code doesn't include this, it's important for a fully functional app.

Google Play Services: The device or emulator running the app must have Google Play Services installed and up-to-date. This is essential for Google Maps and Location Services to function.

Gradle Dependencies: Make sure that the versions of the dependencies in the build.gradle.kts file are compatible with your development environment and the target SDK version of your app.

Kotlin and Android Jetpack: The code follows Kotlin best practices and utilizes View Binding, a part of Android Jetpack, which is the recommended approach for interacting with views in a safe and concise manner.

Network Access: The app requires network access to load map data. Ensure that the device or emulator has an active internet connection.

SDK Version: Ensure that the minSdkVersion and targetSdkVersion in your build.gradle.kts file are set appropriately for your app's requirements and are compatible with the Google Maps and Location Services APIs.

Sync Project with Gradle Files: After updating build.gradle.kts or any other configuration files, sync your project with Gradle to make sure all dependencies are properly loaded.

API Compatibility: As of the latest updates prior to your version of Android Studio, the APIs and methods used in the sample code are up-to-date. However, always check the official Android and Kotlin documentation for any changes or deprecations.

If you follow these steps and considerations, the app should run without errors in Android Studio Iguana | 2023.2.1. If any issues arise, they are likely due to configuration or environment-specific factors, which can usually be resolved by Google Researching error messages and ensuring all setup steps have been correctly followed.

Let's review the assets provided for building a basic map app in an Android environment.

1. `activity_main.xml:

- Your `activity_main.xml` file is correctly set up for a basic Google Maps view. - It includes a `RelativeLayout` with a `SupportMapFragment`. - The layout file should work for integrating a Google Map into an Android app, provided that View Binding is enabled in your build configuration.

2. `MainActivity.kt`:

- This Kotlin file is set up to use View Binding, initialize the Google Map, and handle location permissions. - It correctly implements the `OnMapReadyCallback` and configures the map in the `onMapReady` method. - The code includes runtime permission checks for accessing the device's location.

3. Project-Level `build.gradle`:

- The project-level `build.gradle` is configured with the latest Kotlin version (1.9.23), which is a good practice. - It includes the Google Services classpath necessary for Google Maps.

4. **Module-Level `build.gradle`**:

- The app module's `build.gradle` is set up with dependencies for Google Maps and View Binding. - It correctly applies the Google Services plugin and includes necessary Android dependencies.

5. **Other Considerations**:

- Ensure you have a valid Google Maps API key in your `AndroidManifest.xml`. - Include permissions for the internet and fine location in `AndroidManifest.xml`. - Make sure your `minSdkVersion` and `compileSdkVersion` are appropriate for the Google Maps API and other dependencies. - The provided dependency versions (like `play-services-maps`) should be verified for being up-to-date at the time of the project setup.

Conclusion:

The provided assets and instructions form a comprehensive foundation for students to build a simple map app. However, remember that software development, especially in Android, is subject to changes in tools and libraries. It is advisable for students to check for the latest versions of dependencies and tools, and to understand that Android Studio and the Android SDK are frequently updated, which may require slight adjustments to the provided assets over time.

Want to print your doc?
This is not the way.

Try clicking the ⋯ next to your doc name or using a keyboard shortcut (

CtrlP

) instead.
