Top 8 Best Red Dot for Co-Witness of 2025
Co-witnessing is the simple idea that your dot and your iron sights live in the same visual stack, so you can use both without changing head position. In practice, it’s a game of mount height, sight geometry, and window clarity.
Absolute co-witness (about 1.41″ optic centerline on AR-15s) puts irons in the middle of the window; lower-1/3 co-witness (~1.57″) pushes irons to the bottom third so your dot floats above the front sight in a more open view. On pistols, “co-witness” means your suppressor-height irons peek in the window so you can align them through the optic.
If you’ve ever had a battery die at a match, or a lens fog when you step from AC into tropical heat, you understand why this matters. When people search for Best Red Dot for Co-Witness, they’re really looking for a clean sight picture, a mount that hits the right height, and dependable controls that don’t shift point of impact after a thousand presentations.
Below I share my short list, then dig into how I test, what to look for, and detailed long-form reviews of optics I’ve actually put on rifles, PCCs, and pistols with fixed FSBs, flip-ups, and tall irons.
Top Product List (Quick Picks)
Here’s my shortlist for the Best Red Dot for Co-Witness across rifles, PCCs, and pistols, organized by use case and mount behavior:
Top 8 Best Red Dot for Co-Witness of 2025
Aimpoint Micro T-2 (2 MOA) — Micro Toughness, Mounts for Any Height
The Micro T-2 is the little tank I keep coming back to because it does everything a co-witnessed setup asks without drama.
It’s a compact, enclosed-emitter 2 MOA dot with excellent glass, minimal tint, and Aimpoint’s legendary brightness range and battery life. The sight body is small enough that fixed front posts don’t feel claustrophobic, and the protective turrets help when rifles get tossed into bags or grazed by barricades.
Product Specs:
2 MOA dot; multi-year CR2032 life; sub-3.5 oz optic body; sealed construction; daylight-bright settings with NV lows.
My experience:
On an AR with a fixed FSB, the T-2 at lower-1/3 simply disappears around the post—dot floats just above the sight, and my first-shot times were consistently faster than absolute on dynamic drills. Durability speaks for itself: I’ve paint-penned these for months with no shift, including a few not-so-gentle knocks during VTAC board runs.
Community feedback:
Owners routinely cite “set-and-forget” reliability and zero retention after travel; the only repeated wish I hear is “I want it cheaper.”
Mounting:
Out of the box you’ll likely add a mount to hit the right height; absolute (~1.41″) or lower-1/3 (~1.57″) are both easy with common micro mounts. Direct-to-rail low mounts work for shotguns or AK side rails, but for an AR co-witness, pick a purpose-built micro mount at your desired height.

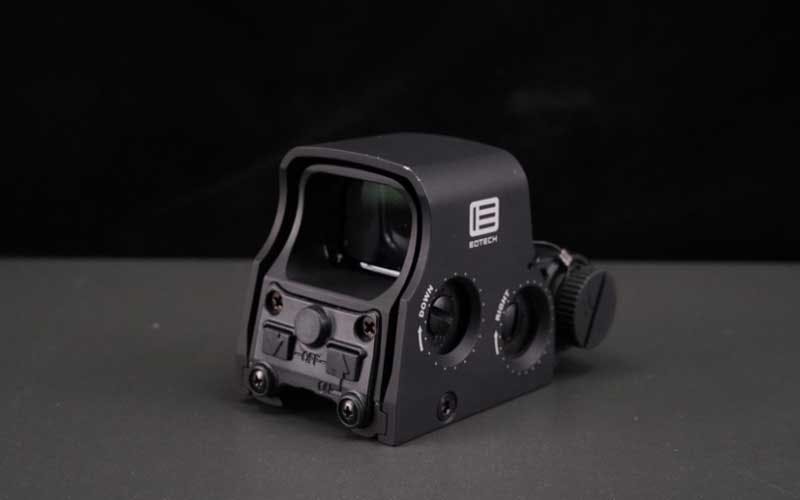

EOTech EXPS3 — Lower-1/3 Built In, Ring-Dot Speed
The EXPS3 is my “fixed front sight” friend because it literally bakes lower-1/3 height into the footprint with its 7mm riser and QD lever.
This is a holographic sight with a crisp 68 MOA ring and precise 1 MOA center dot, daylight-bright with NV modes, and the forgiving eye box EOTech is known for. The rectangular window frames irons cleanly, and the left-side buttons are easy to access behind magnifiers.
Product Specs:
1 MOA dot/68 MOA ring; CR123 battery; integrated QD; lower-1/3 height as shipped; NV-compatible brightness ladder.
My experience:
On carbines with pinned FSBs, I see more target and less front sight tower, and transitions stay clean even when I’m crowding cover. I also love that the ring naturally “catches” the front post during panic reloads; it’s a subconscious alignment that shortens recovery. I’ve soaked the window moving between AC and humidity, and the reticle remains usable without blooming into nonsense.
Community feedback:
Shooters praise the instant lower-1/3 co-witness and large window; recurring notes are battery preference (CR123 vs coin cells) and the usual “keep the hood screws tight.”
Mounting:
The EXPS3 clamps directly to 1913; you don’t need a separate riser for lower-1/3. If you prefer absolute co-witness, the XPS series sits lower, but the EXPS is the no-brainer if lower-1/3 is your goal.

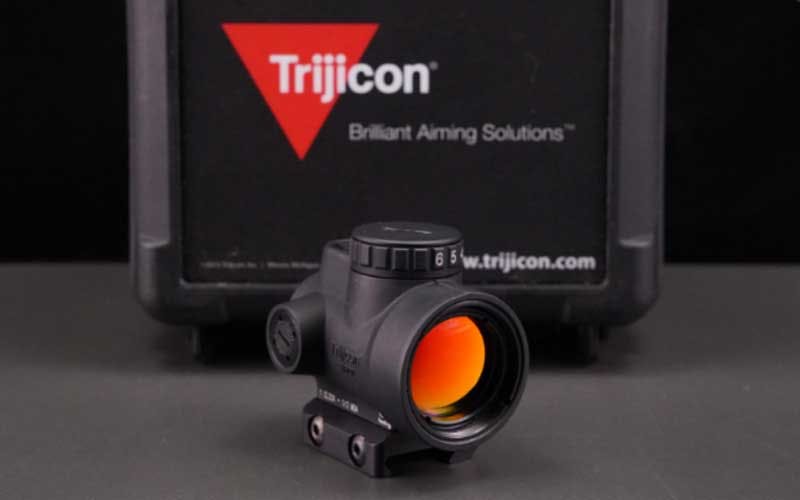

Trijicon MRO / MRO HD — Big Window Micro With Flexible Mounts
The MRO line splits the difference between a compact tube and an open reflex by giving you a generous circular window that forgives imperfect head position around irons.
It’s a 2 MOA (or multi-reticle in HD) red dot with long battery life and robust housing, available with mounts that land at either absolute or lower-1/3. The top dial is glove-friendly, and the glass is bright with slight tint that I hardly notice outdoors.
Product Specs:
2 MOA dot (HD adds ring-dot), CR2032 battery, ~4–5 oz depending on mount, ambi-friendly controls.
My experience:
On a training carbine with fixed front sight and a rear aperture, the MRO at lower-1/3 gave me very fast dot acquisition—likely due to the larger apparent window compared to most “micro” tubes. The reticle stayed centered even when I mashed cheek weld under stress, and tracking through a 1–5–1 drill felt intuitive.
Community feedback:
Owners love the field of view and simple controls; some mention a hint of magnification, which I find minimally relevant for CQB distances.
Mounting:
Package options ship with absolute or lower-1/3 mounts; for ARs I prefer the lower-1/3 to push irons down. If you buy optic-only, pick a quality mount at your target height; direct low mounts fit shotguns, but co-witness on rifles will require the correct riser.

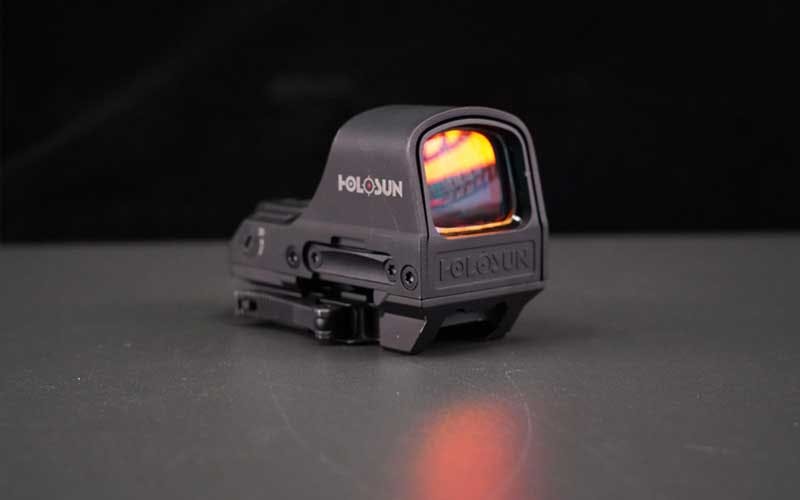

Holosun 510C — Open Reflex Speed With Circle-Dot Guidance
When someone wants a big window that makes front posts feel small, the 510C is the gateway drug.
This is an open-reflex sight with the versatile 2 MOA dot + 65 MOA circle, solar assist, motion activation, and a quick-detach base. The frame is tough for an open design, and the window gives huge peripheral awareness, which matters when irons are cluttering the view.
Product Specs:
2 MOA dot/65 MOA circle; CR2032 battery; QD base; ~5 oz; tool-less quick release; multiple brightness levels.
My experience:
On a fixed-sight carbine, the 510C’s circle acts like training wheels for the eye—you naturally bracket the front sight while your brain drives to the dot. On failure drills I posted some of my fastest first-shots to A-zone with this optic in absolute height, though I prefer a riser for lower-1/3 to reduce sight clutter. I’ve hosed it in rain and it kept trucking; an open emitter will always be more exposed than an enclosed tube, but maintenance is easy.
Community feedback:
People rave about value, window size, and feature set; long-term users mention keeping the QD lever tensioned right.
Mounting:
Out of the box it sits around absolute co-witness on AR-height rails. If you want lower-1/3, add a riser plate; it clamps directly to 1913 without a separate mount system beyond the included base.

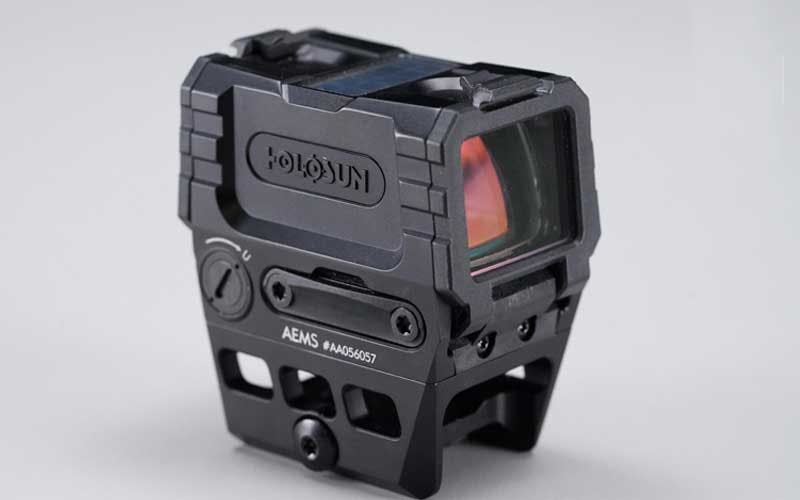

Holosun AEMS — Enclosed Compact With Lower-1/3 Included
AEMS is what I grab when someone wants the weather resistance of an enclosed emitter but the visual forgiveness of a broader window than most micro tubes.
It’s a compact, squared-window optic with 2 MOA dot (and optional circle-dot variants), side battery tray, and excellent brightness steps for outdoor use. The glass is clear with restrained tint, and the housing keeps crud off the emitter.
Product Specs:
Enclosed emitter; ~4 oz; CR2032; multi-reticle options; included lower-1/3 mount plate with optional absolute plate available.
My experience:
On a patrol-style carbine, the included lower-1/3 mount was perfect with a fixed FSB—my front post lived in the lower part of the window and never felt in the way. The side tray battery change didn’t disturb zero, and motion activation worked reliably after weeks in the safe. Through drizzle and dust, the enclosed design kept reticle flare to a minimum.
Community feedback:
Owners consistently call out “feature density” and love the included mounting plate; critiques are mostly about button feel and the square aesthetic.
Mounting:
It mounts directly via the included plate at lower-1/3; if you want absolute, swap to the alternate plate. No extra riser is required for standard AR-height co-witness.

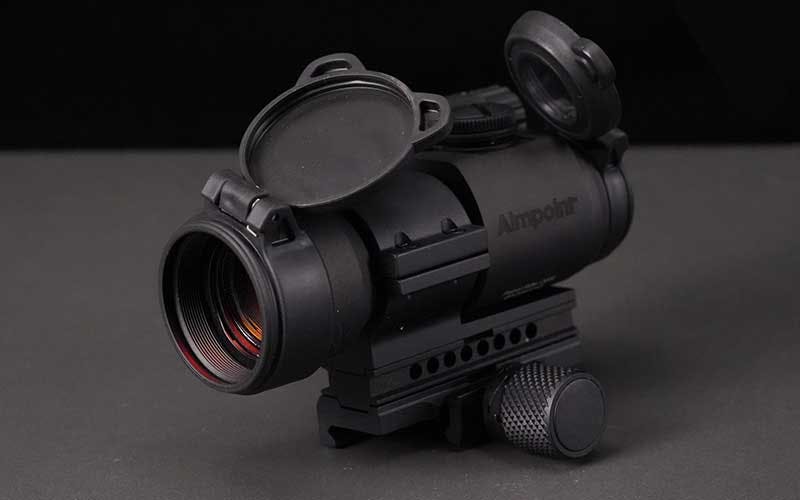

Aimpoint PRO — Duty Tube With Rock-Solid Return-to-Zero
The PRO is the “I want a proven duty optic with a complete mount in the box” answer, and it continues to punch above its price for serious users.
A 2 MOA tube sight with long battery life, rugged housing, and a QRP2 mount that’s sturdy and repeatable. Turrets are positive and the dot stays daylight-bright in sun.
Product Specs:
2 MOA dot; multi-year battery on a DL1/3N cell; included QRP mount with spacer; ~7–8 oz optic body (more with mount).
My experience:
On a rifle with fixed irons, I appreciate how consistent the included mount is—clamp on, confirm co-witness, and it just stays there. I’ve removed and reinstalled for cleaning and returned to zero well within a click at 50 yards. The glass shows a mild tint that I stop noticing outdoors.
Community feedback:
The consensus is “boring reliability,” with frequent praise for the included mount and battery life; occasional notes mention weight compared to micro options.
Mounting:
The included mount supports absolute co-witness as shipped; adding or removing the spacer configures height (many users run the spacer for lower-1/3 on ARs). It’s a direct clamp to 1913—no extra parts needed unless you’re changing height.

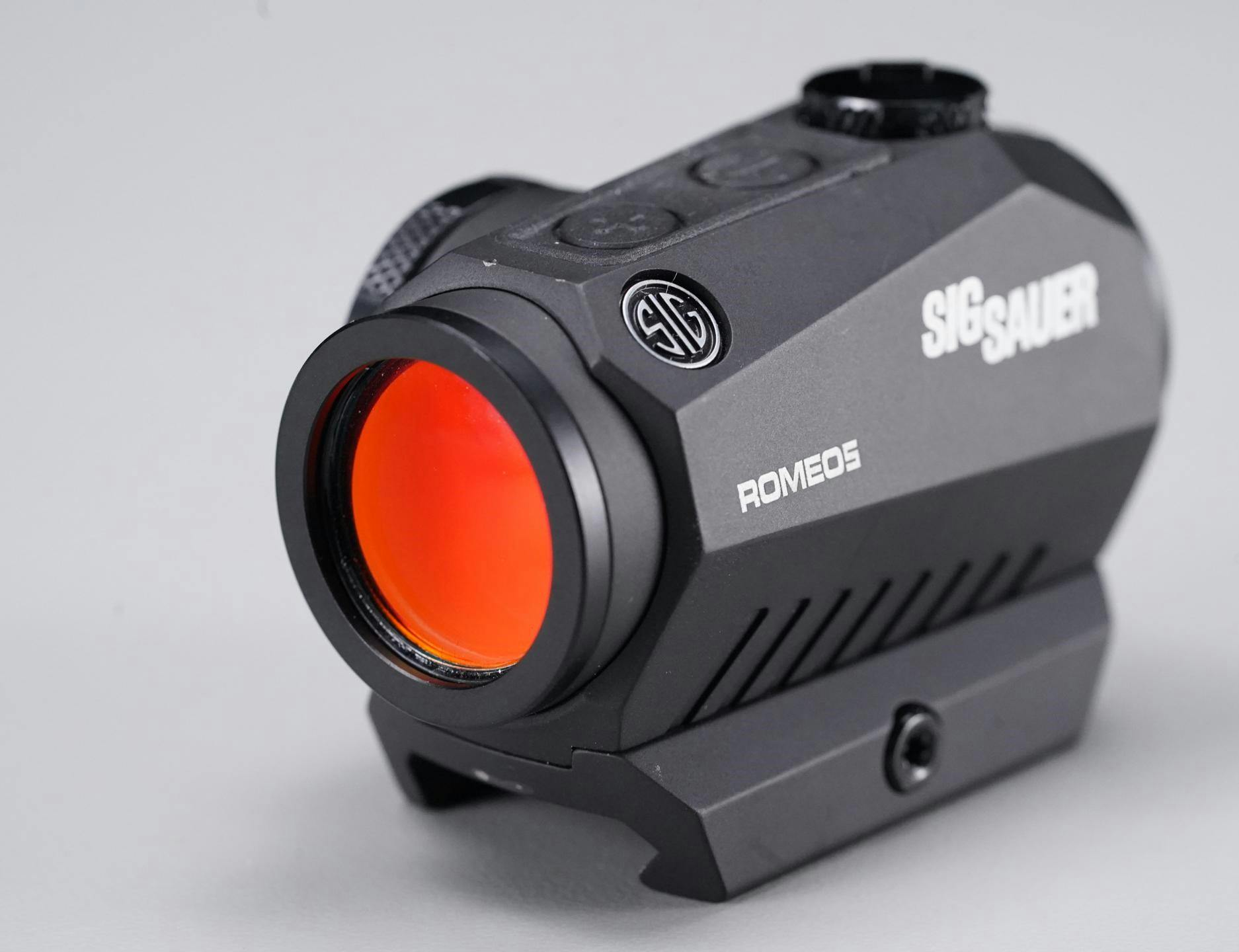

SIG Sauer ROMEO5 — Budget-Friendly, Co-Witness-Capable Starter
The ROMEO5 is often my recommendation for a first-time buyer who still wants a proper co-witness and a decent warranty without blowing the build budget.
It’s a compact 2 MOA dot with motion-activated illumination (wake-on-move), sensible brightness steps, and clear glass for the price. It arrives with both a low mount and a “high” mount for ARs.
Product Specs:
2 MOA; CR2032 battery; MOTAC motion activation; ~5 oz; included low and high 1913 mounts.
My experience:
Paired with a fixed front sight, the “high” mount lands at an absolute-style height on most AR-pattern rifles, giving me a reliable co-witness. First-shot times were fractionally slower than premium glass in backlight, but still perfectly usable, and zero stayed put across range trips. I’ve submerged lenses in rain and wiped them with a shirt—no harm done.
Community feedback:
Owners praise value and MOTAC; recurring advice is to thread-lock screws and periodically check ring tension.
Mounting:
Ships with low and high mounts; “high” typically corresponds to absolute. If you want lower-1/3, you’ll add a riser that lands around ~1.57″; still simple, still affordable.

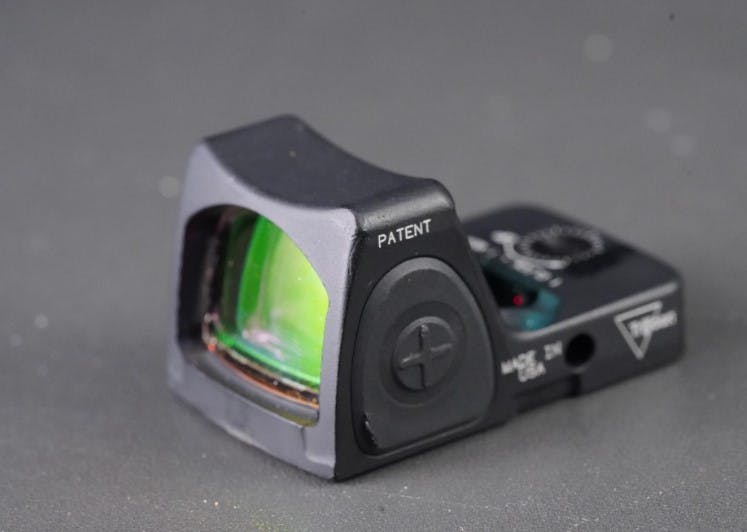

Trijicon RMR Type 2 (3.25 MOA) — The Pistol Standard for Iron-Dot Harmony
On pistols, nothing has taught more people what true co-witness feels like than the RMR Type 2.
It’s a tiny, bomb-proof open-emitter optic with a crisp 3.25 MOA dot, excellent brightness range, and long battery life. The housing is engineered to take slide reciprocation and impacts that would retire lesser dots.
Product Specs:
3.25 MOA adjustable LED; CR2032; ~1.2 oz; proven RMR footprint; tactile brightness.
My experience:
On a direct-milled slide with .350″–.400″ suppressor-height irons, the front blade kisses the lower part of the window so I can “ride irons to the dot” under time pressure. Presentation becomes subconscious: pick up the blade, dot appears, break the shot. I’ve run these in heat and drizzle, and while an open emitter can collect lint and sweat, regular cleaning keeps it crisp.
Community feedback:
The chorus is durability and repeatability; folks often note you should test your plate screws and consider sealing plates for harsh weather.
Mounting:
On pistols, “direct” means a milled slide or an RMR-pattern plate system; you’ll need suppressor-height irons to actually co-witness. On PCCs, RMRs require a dedicated mount to hit AR-height absolute or lower-1/3.
Why You Should Trust Me
I set up optics professionally and obsessively for content, classes, and personal rifles. My process isn’t a quick range glam-shot. I mount, torque, witness-mark, and record zero shifts over multiple sessions. I run true co-witness tests on fixed FSB carbines, a clamp-on BUIS setup, and pistols with both standard and suppressor-height irons. I pay attention to how an optic behaves when you’re sweaty, breathing hard, and moving through barricades—because a spec sheet never tells you how fast you can pick up the dot behind a stubborn front sight post.
I also read and save field notes from students and online owners—what breaks, what loosens, what fogs, and what just works. Finally, I revisit gear months later: battery changes, turret tracks, lens coatings after cleaning, and how quickly I can re-establish a co-witness after removing and re-installing a mount.
How I Tested
Platforms & heights. On rifles, I test three heights: ~1.41″ (absolute), ~1.57″ (lower-1/3), and ~1.93″ (high-rise for nods/plate carriers) with fixed front sights and with flip-ups. On pistols, I run direct-milled slides and popular plates (MOS/Pro, RMR footprint) with .300–.400″ “suppressor-height” irons.
Drills. Ready-ups from low-ready and compressed ready, 1-R-1 transitions with irons only (dot off), then dot only (irons down) to see how eye index transfers. I measure first-shot time to A-zone at 10m, 25m B-8 groups, and hold-over checks at 5m.
Abuse & environment. Heat soak in a parked car, AC-to-outside fog test, rain spray, and dust exposure. I note reticle bloom at dusk, and any halo on wet lenses.
Mounting discipline. I use blue Loctite where appropriate, torque per manufacturer spec, and paint-pen all screws and knobs. I deliberately bump the optic on a padded post during transitions to check for zero retention and return-to-zero after removal.
Buying Guide: What “Good Co-Witness” Really Means
Set-Up Tips for a Clean Co-Witness
Common Mistakes (and Easy Fixes)
FAQs
What’s the practical difference between absolute and lower-1/3 co-witness on a carbine?
Absolute puts the irons in the middle of your optic window, which can feel busy but gives a very direct alignment. Lower-1/3 drops irons to the bottom of the window, keeping the dot floating higher and your target less obstructed. Most shooters with fixed front sights prefer lower-1/3 for a cleaner view and faster transitions.
Can I co-witness a red dot on a pistol without suppressor-height irons?
Usually no. Standard-height irons often sit too low to appear in the optic window. You’ll need taller sights matched to your slide cut and optic thickness to see a proper iron picture through the window.
