Canvas Components
Timeline
How to design it in Power Apps

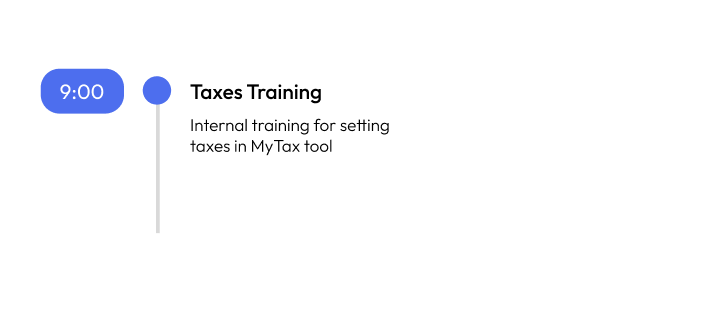

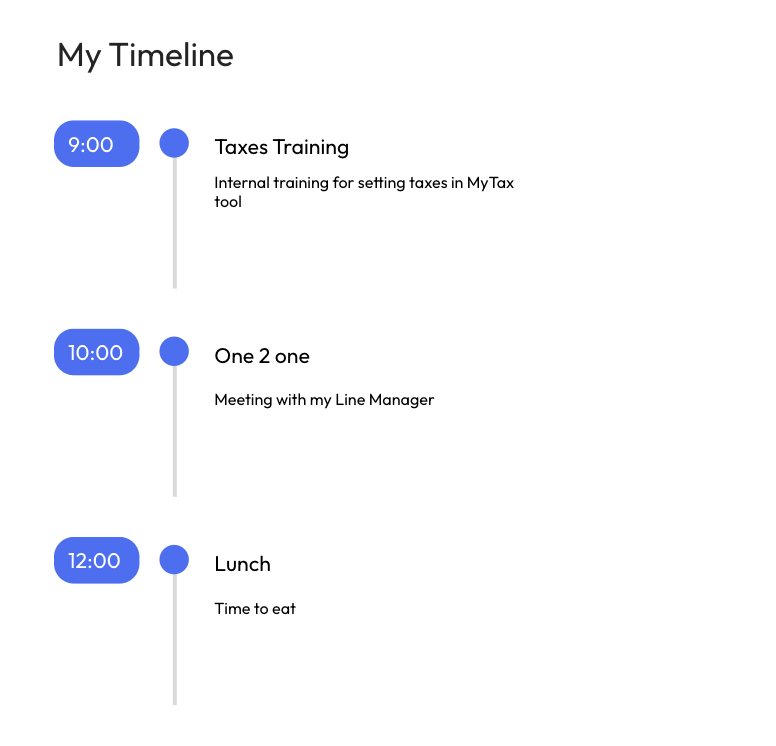

Preview

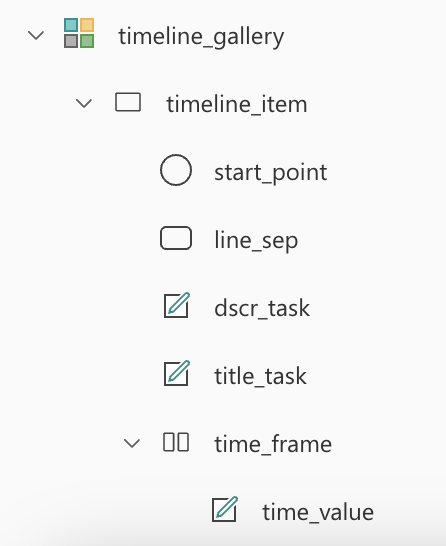

What does it consist of?
Procedure
Step 1 - create gallery
Add a new Vertical Gallery object, call it "timeline_gallery" with this "Items" property:
[{time: "9:00",title:"Taxes Training",dscr:"Internal training for setting taxes in MyTax tool"},
{time: "10:00",title:"One 2 one",dscr:"Meeting with my Line Manager"},
{time: "12:00",title:"Lunch",dscr:"Time to eat"}]
you can put your SharePoint list or Dataverse table instead of this sample data.
Step 2 - create cover frame
Add a new Container object, call it "timeline_item" with general properties.
Step 3 - create content
Add a new Circle object under "timeline_item", call it "start_point" with this "Color" property:
RGBA(67, 111, 246, 1)
Add a new Rectangle object under "timeline_item", call it "line_sep" with this "Color" property:
RGBA(217, 217, 217, 1)
Add a new Label object under "timeline_item", call it "title_task" with this "text" property:
ThisItem.title
Add a new Label object under "timeline_item", call it "dscr_task" with this "Color" property:
ThisItem.dscr
Step 4 - create time value frame
Add a new Horizontal Container object, call it "time_frame" with "Gap" property:
14
This is an output:
How to design it in Figma
Preview

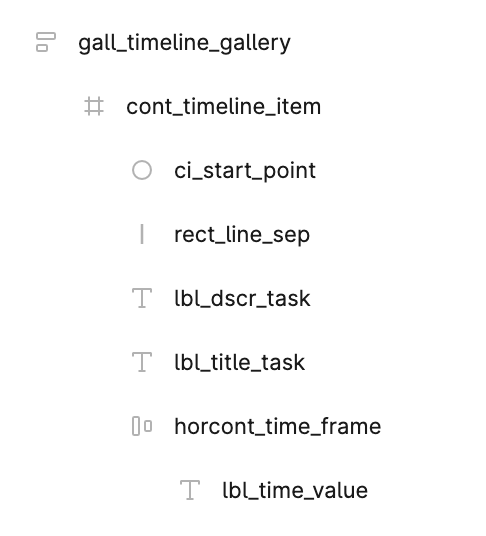

What does it consist of?
Procedure
Step 1 - create a timeline gallery frame

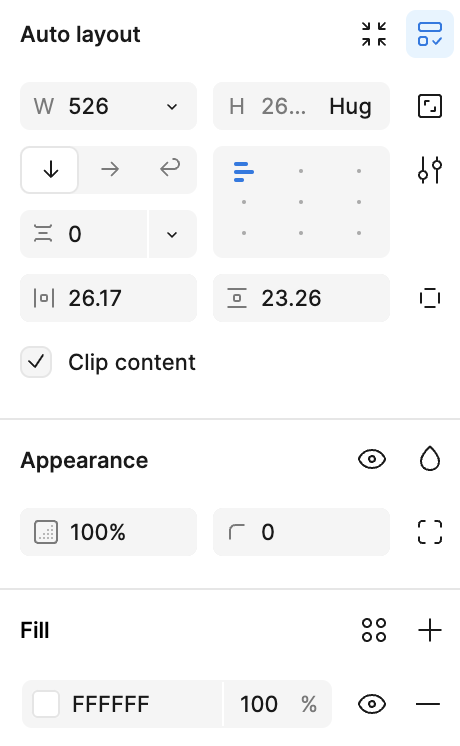

Add a new Frame (F command) with vertical auto layout (SHIFT + A command) object, call it "gall_timeline_gallery" with these properties:
Step 2- create an item frame

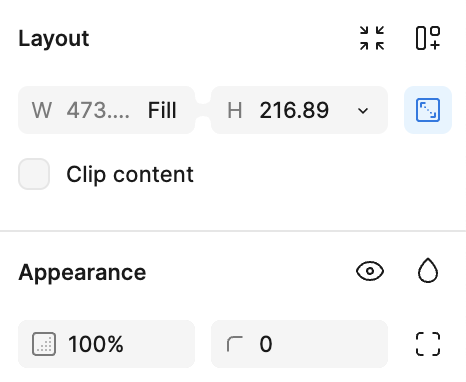

Add a new Frame (F command) object, call it "cont_timeline_item" with these properties:
Step 3- create content

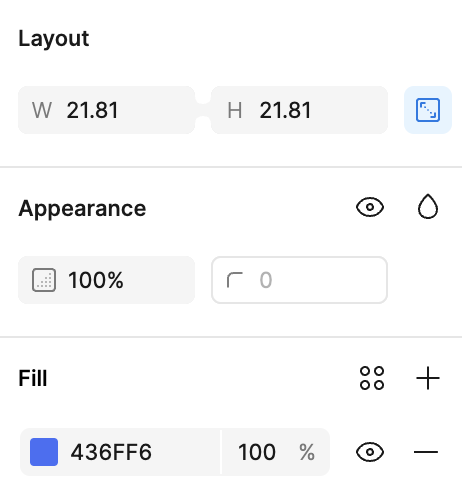

Add a new Ellipse (O command) object under "cont_timeline_item", call it "ci_start_point" with these properties:

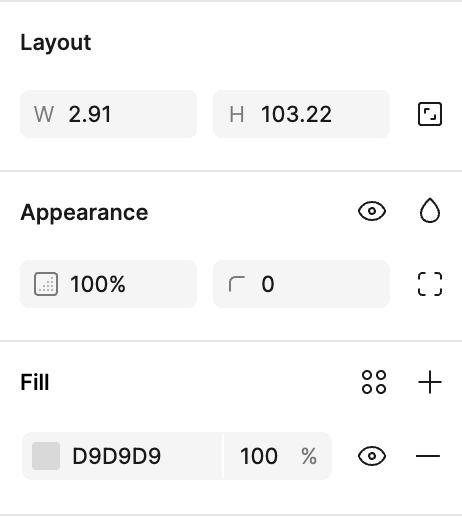

Add a new Rectangle (R command) object under "cont_timeline_item", call it "ci_start_point" with these properties:

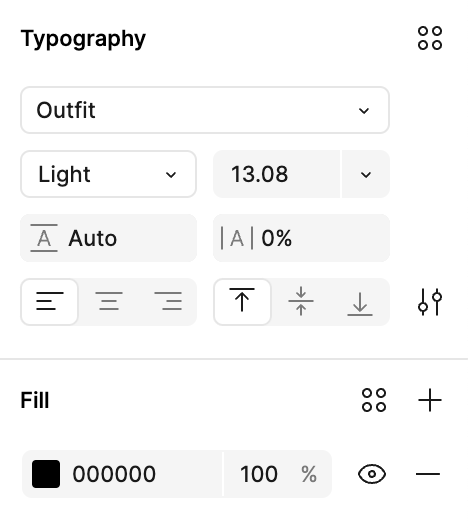

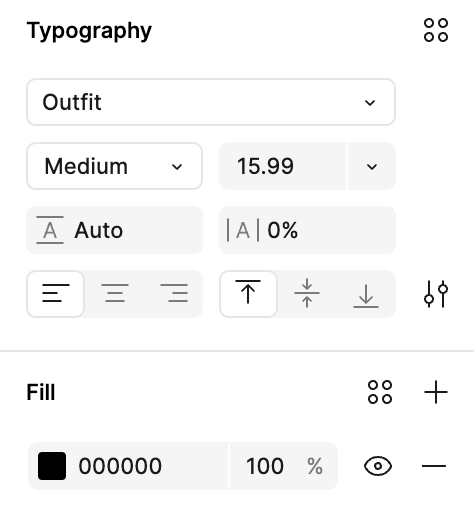

Add a new Text (T command) object under "cont_timeline_item", call it "lbl_title_task" with these properties:
Add a new Text (T command) object under "cont_timeline_item", call it "lbl_dscr_task" with these properties:
Step 4- create time value frame

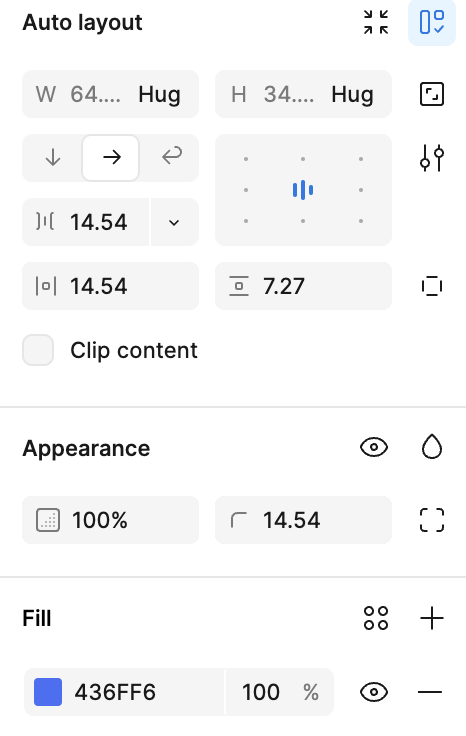

Add a new Frame (F command) with horizontal auto layout (SHIFT + A command) object, call it "horcont_time_frame" with these properties:

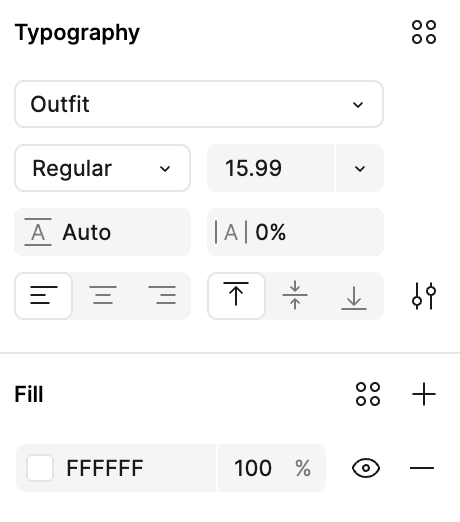

Add a new Text (T command) object under "horcont_time_frame", call it "lbl_time_value" with these properties:
This is an output:
How to use it via DesignKit
Prerequisites
Used Prefixes
YAML Output
Used Colours
