Skip to contentPractice Skydio 2 flight operationsCapture nadir images at altitudes from 25’ to 200’Explore Ground Sample Distance (GSD) & Field of View (FOV)Execute Skydio “Waypoint” and “Keyframe” autonomous skills

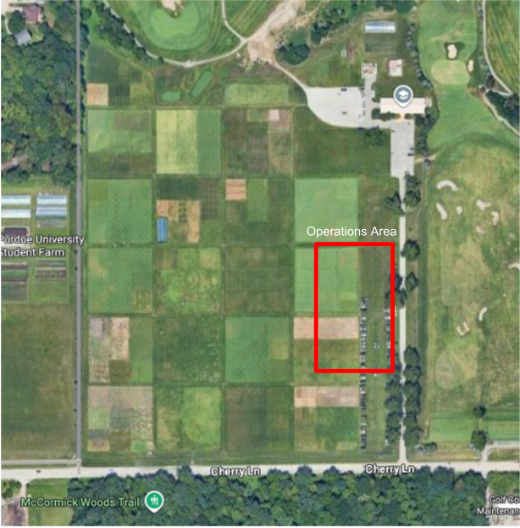

Location: 1340 Cherry Ln, West Lafayette, IN 47907 (a.k.a. “Turf Farm”)Operation Zone: East side of the site (see Fig. 2 below)Nearby Hazards:Power lines south along Cherry LaneOther UAS crews operating at 50 ft and 100 ft AGLManned aircraft above 200 ft AGL
Preflight Checks: Software updates, visual airframe inspection, battery health, connectivity.Roles:Nikolai – RPICMason – Visual Observer (VO)Hailey – Notetaker & Crew CoordinatorFlight Setup:No geofence or sensing floor/ceiling applied (not a mapping mission)Manual photo capture at 25’ increments (25–200 ft)Skydio Waypoint flight route created via 2D mapKeyframe flight set manually in 3D and flown autonomously
8 high-resolution nadir images for FOV comparison4 videos (autonomous waypoint & keyframe demonstrations)Full metadata logs for altitude, image resolution, and flight conditionsLAANC documentation and weather observations included
Contributors: Nikolai Auclair (PIC), Mason Cramer (VO), Hailey Manuel (Notetaker)
Flight Date: Tuesday, September 2nd
Flight Time: 15:57 to 16:28
Location: William H. Daniel Turfgrass Research and Diagnostic Center
Airspace: Class D (LAANC Authorization Required)
Mission Objectives:
Study Area
Figure 1
Methods
Data Collection Outcomes
Metric
Value
Time to set up at site
13 minutes
Total flight time
31 minutes
Nadir images captured
8
Videos recorded
4
Dataset size
6.45 GB
There are no rows in this table
Video Metadata
Video Name
Duration
Size
Waypoints.mp4
30 seconds
55.3 MB
WaypointsClear.mp4
3 mins 38 sec
2.54 GB
Keyframe.mp4
1 minute
108 MB
KeyframeClear.mp4
5 mins 21 sec
3.75 GB
There are no rows in this table
Image Metadata
Altitude
Filename
File Size
Ground FOV
25 ft
7.98 MB
~15 ft (4.5 m)
50 ft
7.22 MB
~31 ft (9.5 m)
75 ft
6.58 MB
~46 ft (14 m)
100 ft
6.27 MB
~62 ft (19 m)
125 ft
5.96 MB
~78 ft (23.8 m)
150 ft
5.85 MB
~93 ft (28.3 m)
175 ft
5.94 MB
~109 ft (33.2 m)
200 ft
5.82 MB
~124 ft (37.8 m)
There are no rows in this table

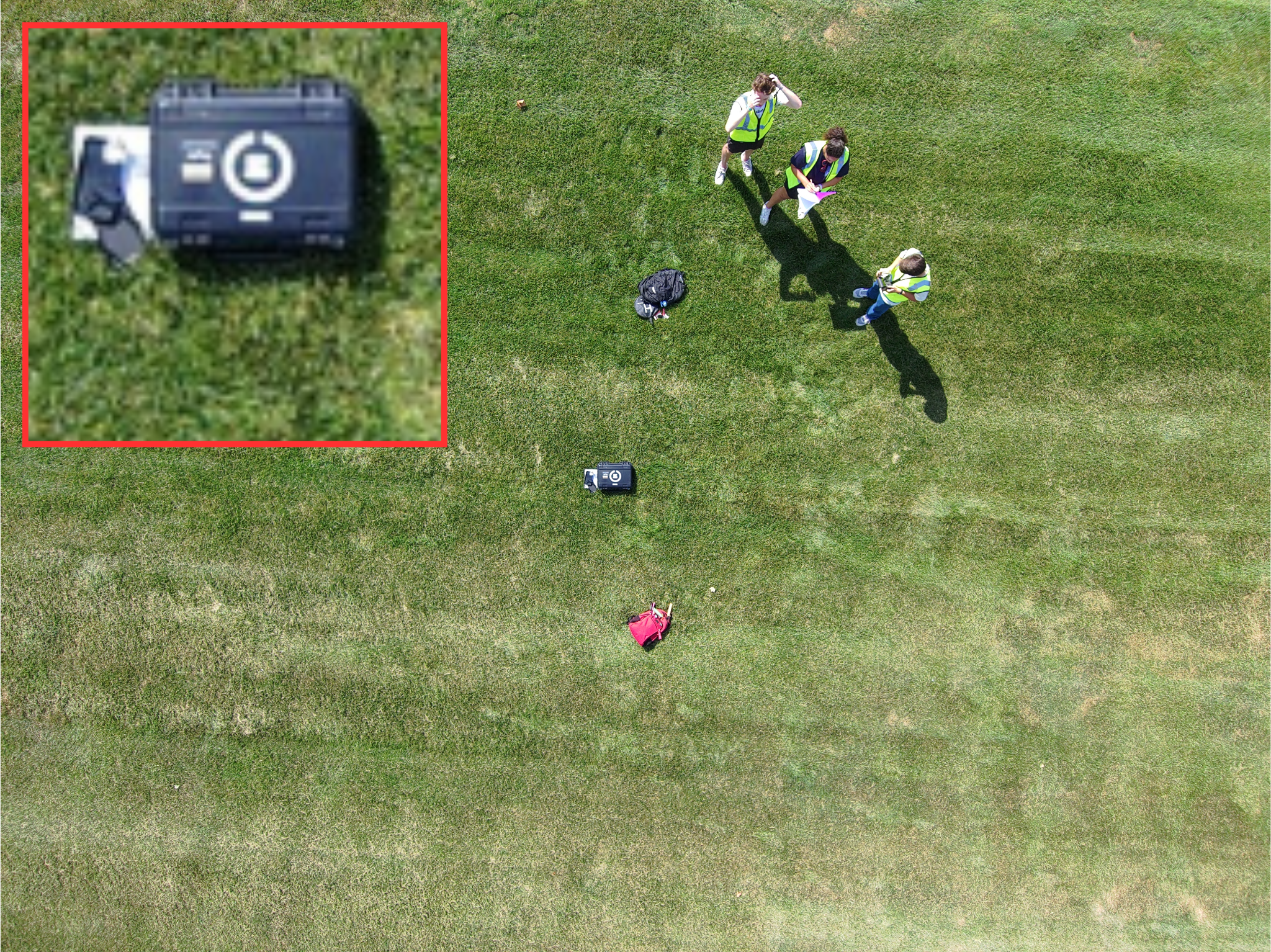

25 feet

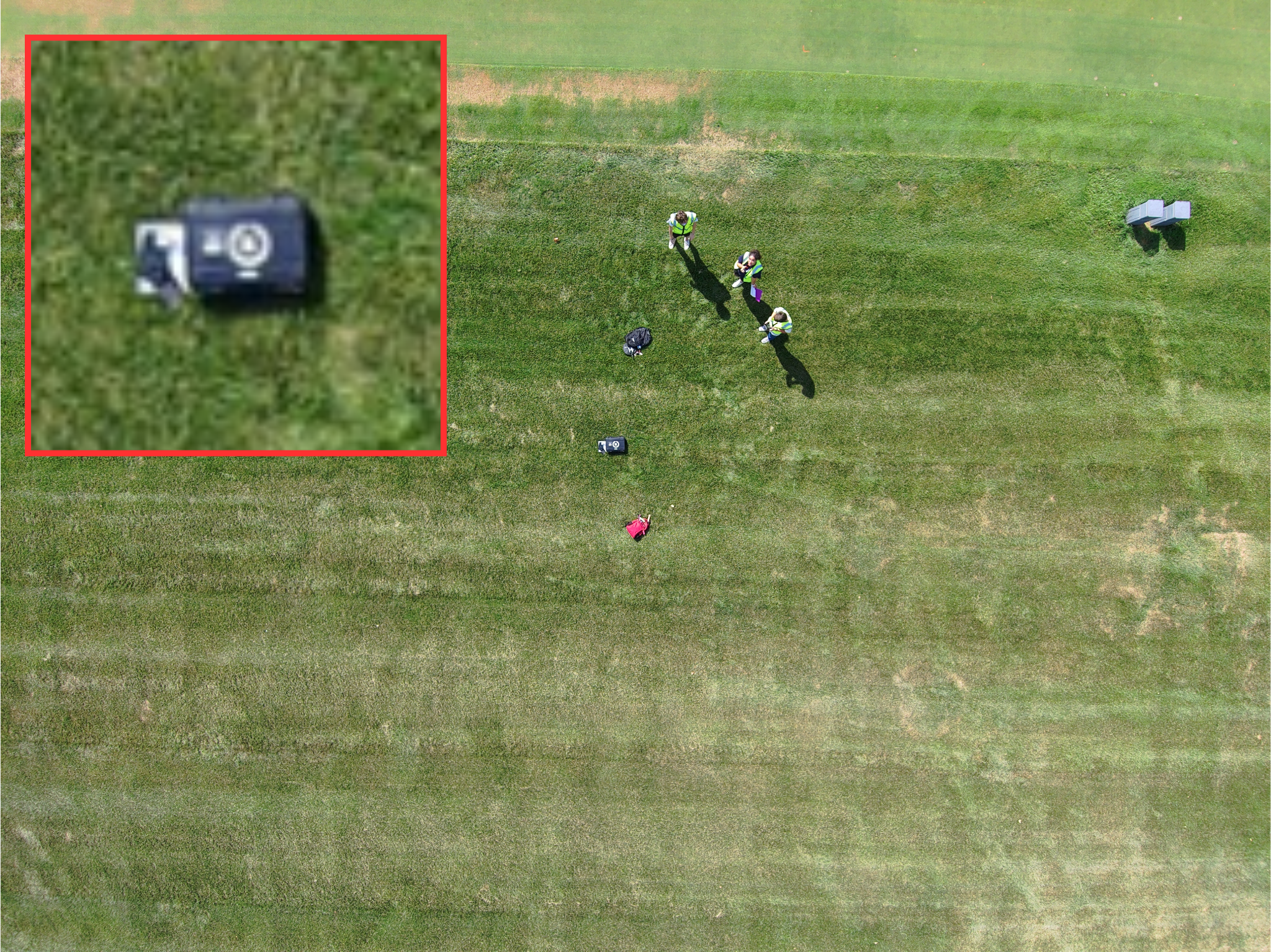

50 feet

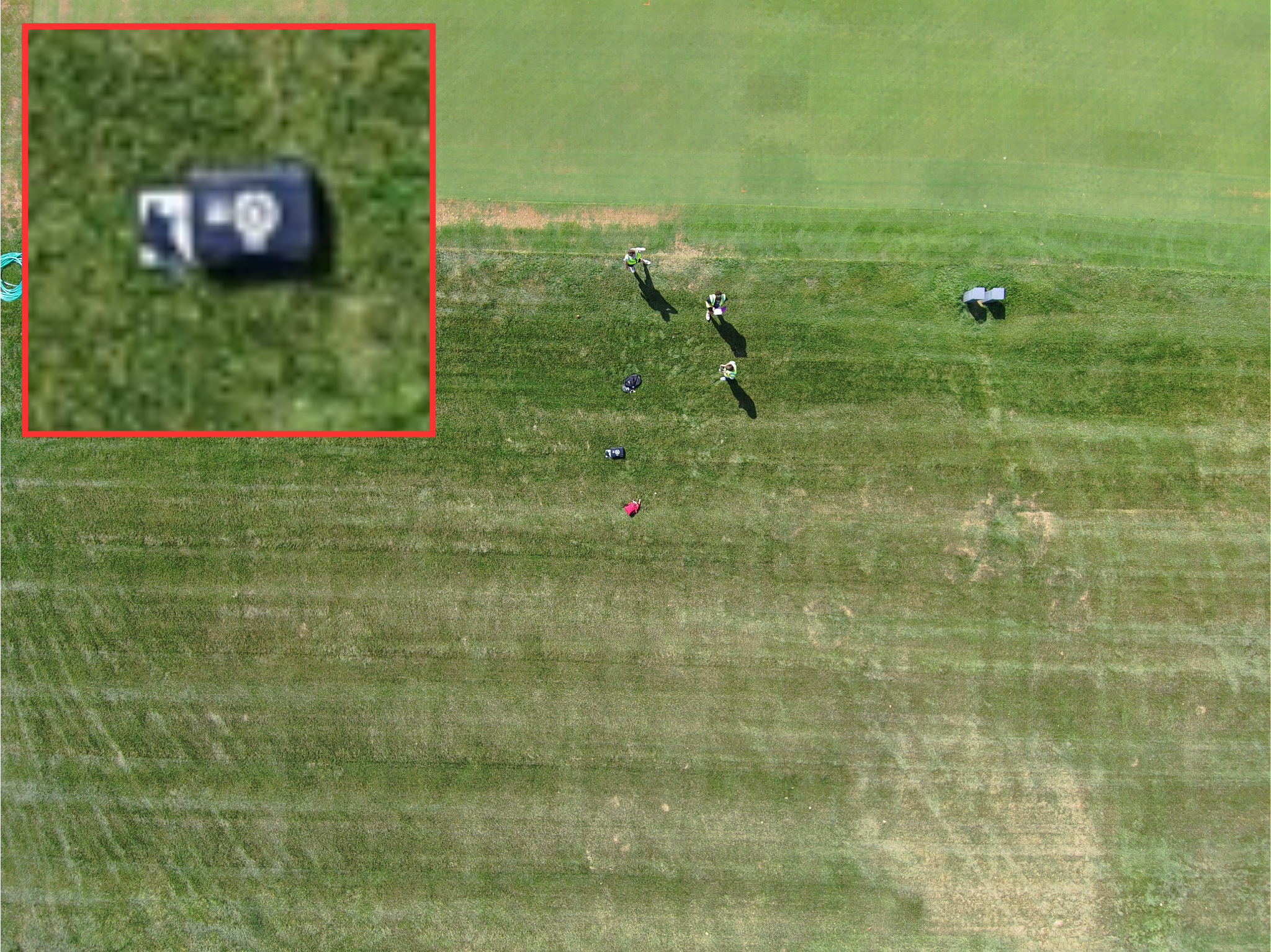

75 feet

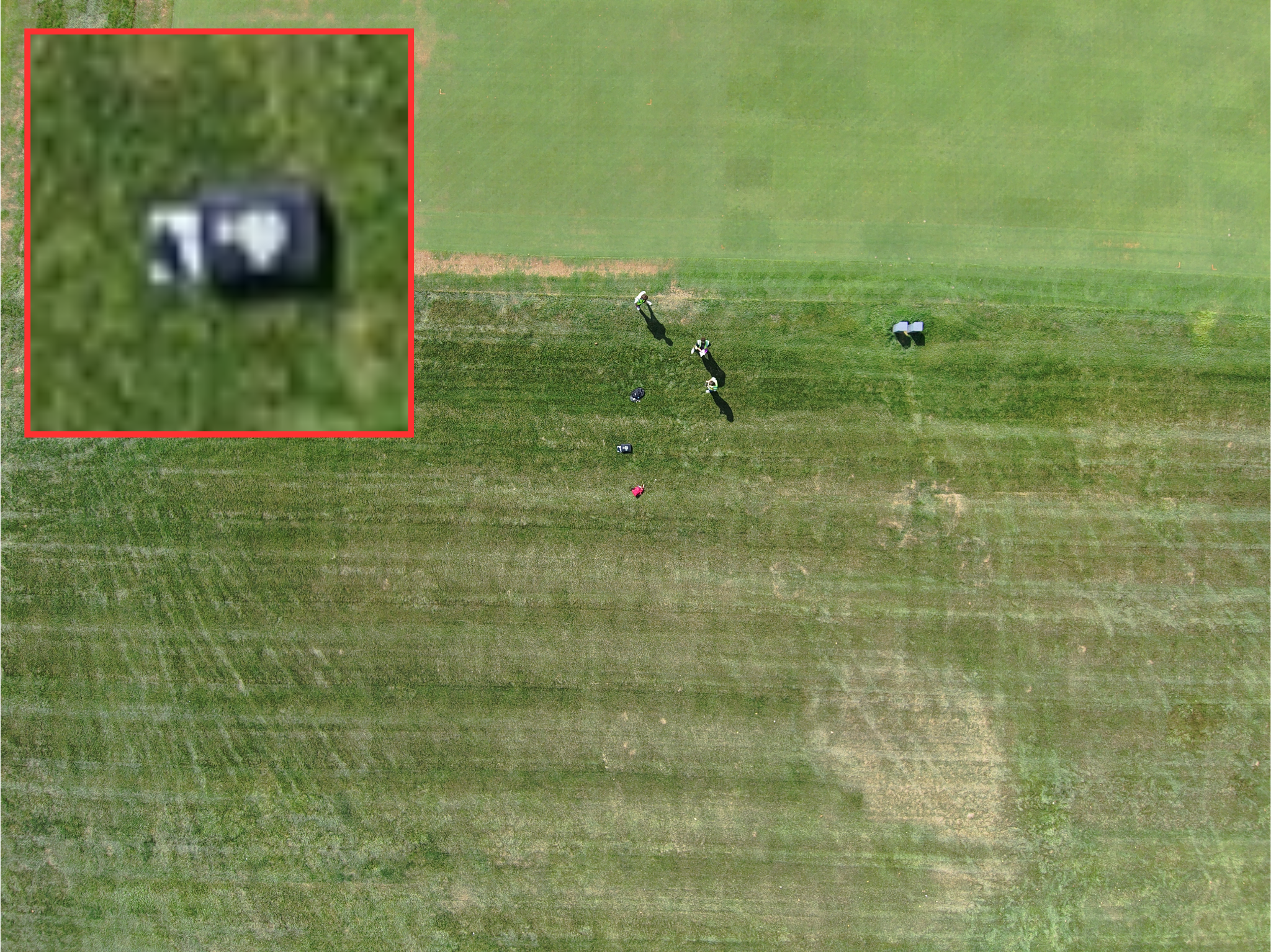

100 feet

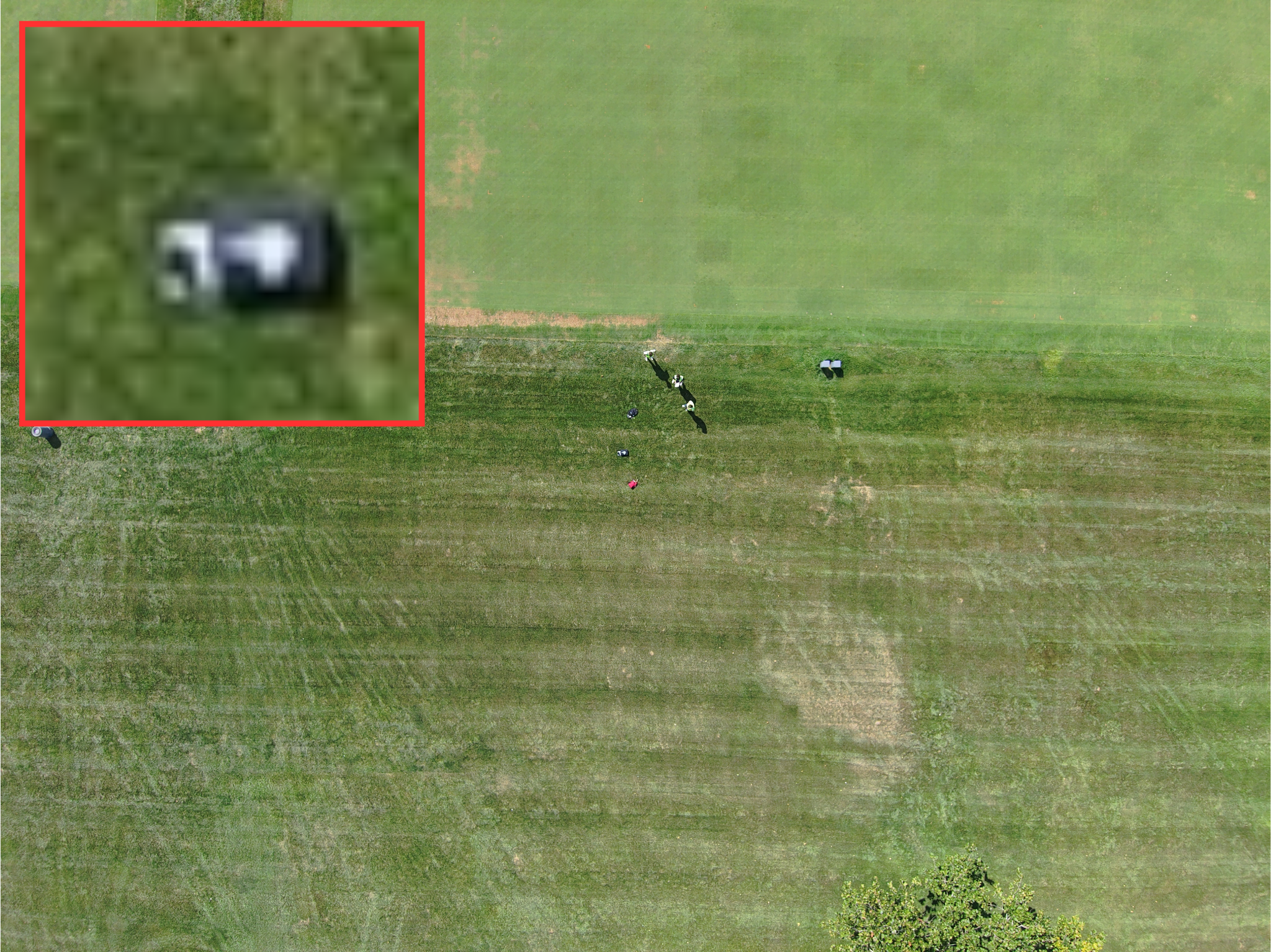

125 feet

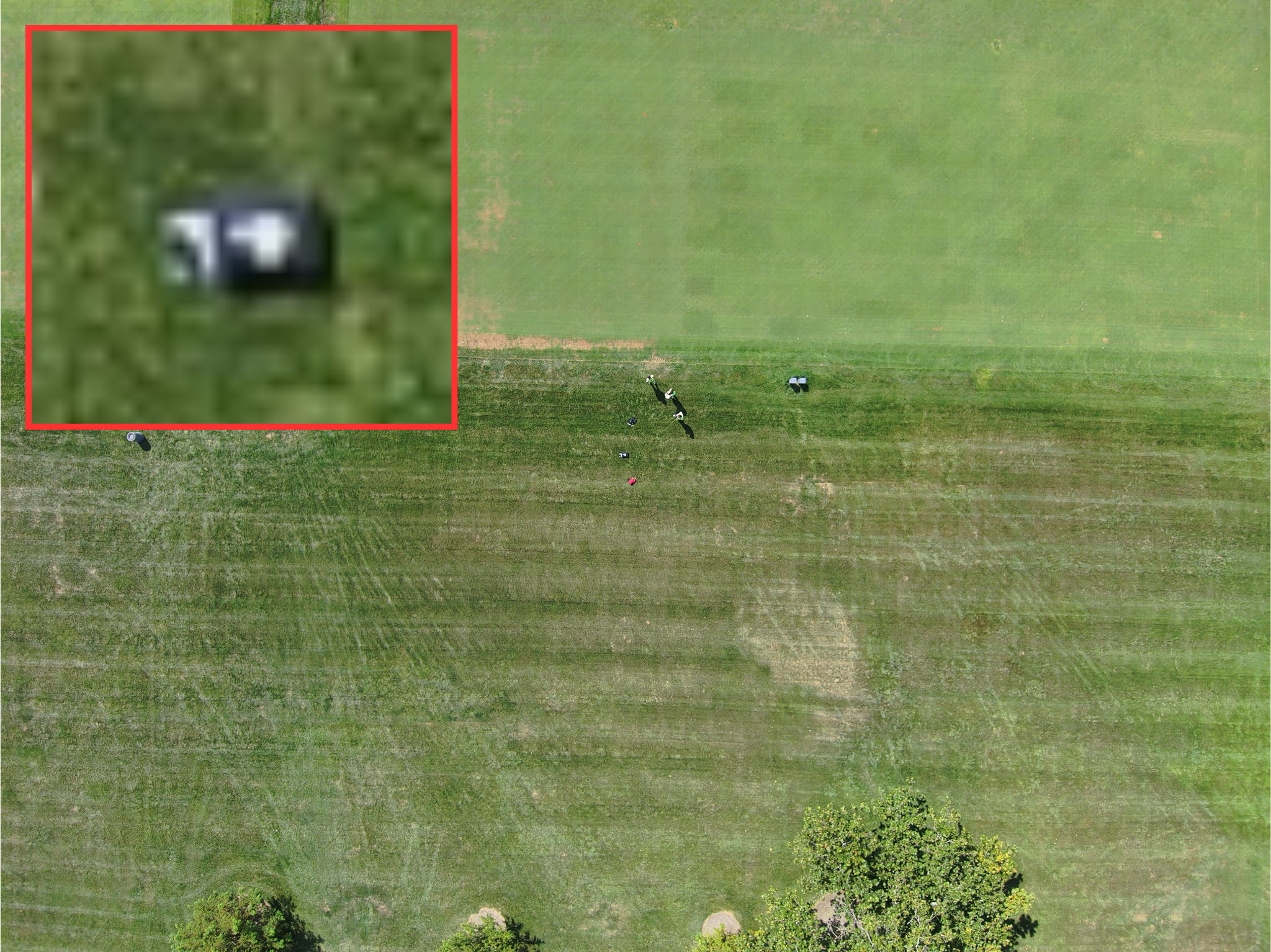

150 feet

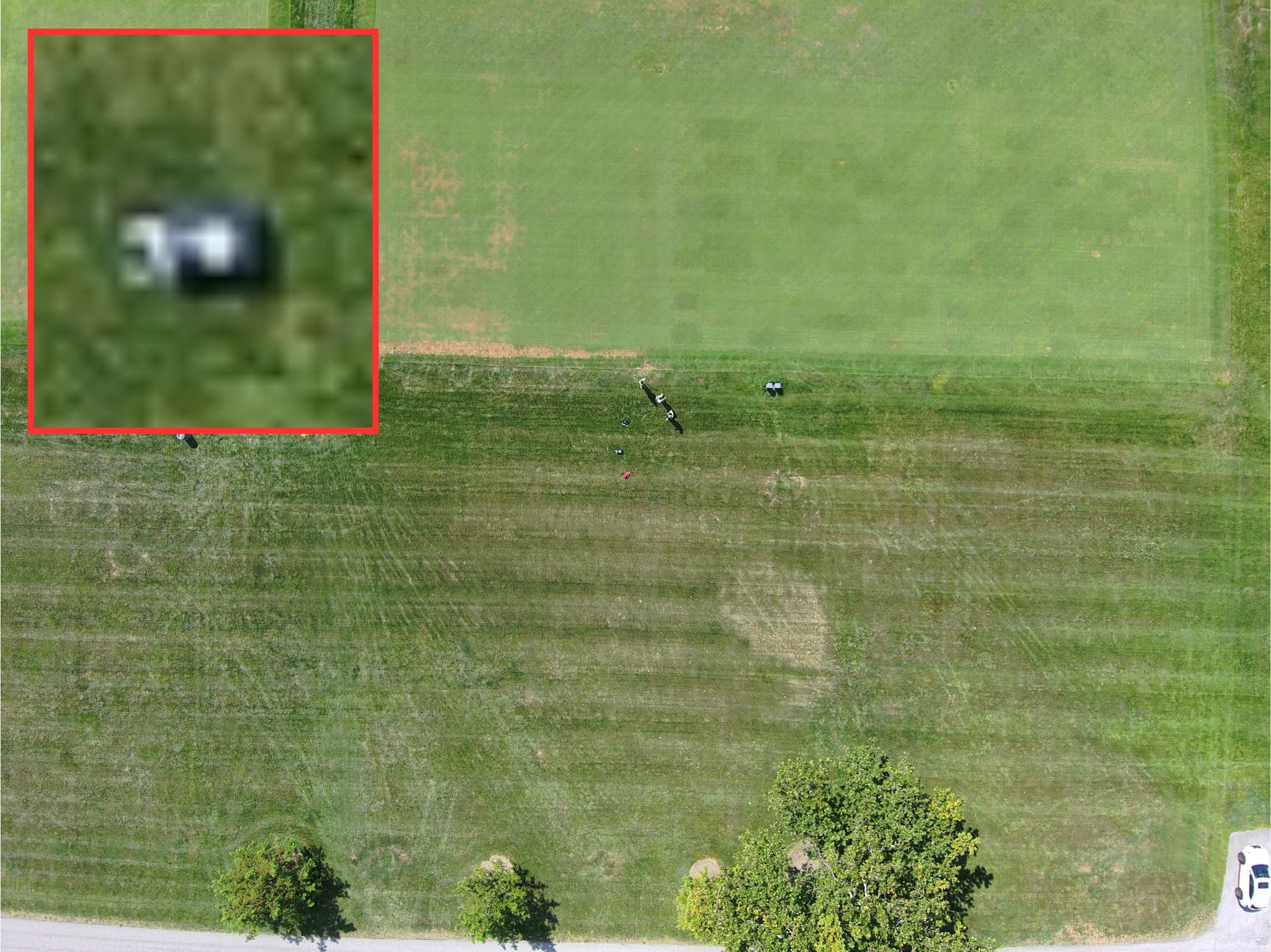

175 feet

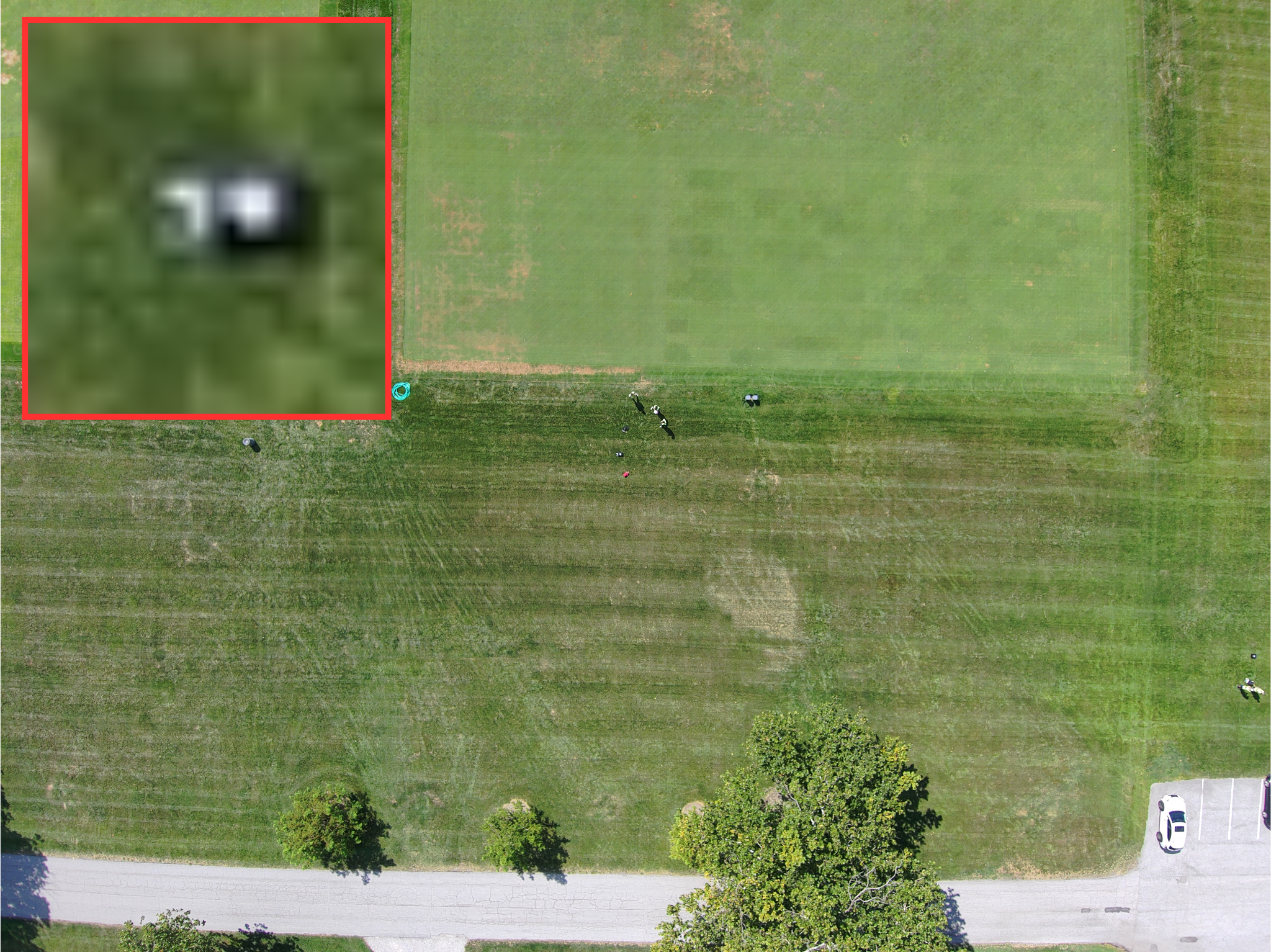

200 feet
There are no rows in this table
Deliverables
