Execute two Skydio 3D scan modes (3D Scan & 3D Tower Capture)Evaluate resolution (GSD), image overlap, and dataset sizeUnderstand best practices for scanning different object typesApply geofencing and altitude floor/ceiling settings
Location Description: Parking lot near the Northwest Recreation Fields and Purdue Student GardenScan Zones:🔷 Blue Rectangle – Car Scan🔴 Red Rectangle – Light Pole ScanAirspace: KLAF Class DLAANC: Auto-approval to operate up to 200 ft AGLHazards Identified:One other drone crew in area (deconflicted with)Active parking lot (VOs stopped & directed traffic)Obstacles: trees, poles, structures
Visual inspection, SD card format, software update checkTeam roles assigned:Nik – RPICMason – VO / Traffic DirectorHailey – Notetaker / Secondary VOLaunch point and safety boundaries established
Area: Active parking lot (geofence enabled)Altitude floor: ~2 ft below car, ceiling: ~2 ft aboveFront/side overlap: 80%GSD: ~2.5 mmDuration: 4 minsFully automated scan
Area: Isolated light pole (geofence not required)Altitude floor/ceiling set to bound pole volumeFront/side overlap: 80%GSD: ~1.5 mmDuration: 6 minsAutomated orbital capture with vertical stacking
Contributors: Nik Auclair (PIC), Mason Cramer (VO), Hailey Manuel (Notetaker)
Flight Date: Tuesday, September 9th
Flight Time: 41 minutes
Location: Parking lot near Purdue Student Garden, 1491 Cherry Ln, West Lafayette, IN
Airspace: Class D (LAANC auto-approval received)
Mission Objectives:
Study Area

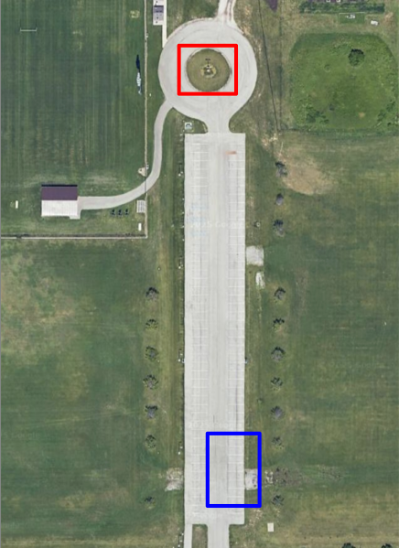

Figure 1: Satellite Image of the Study Area

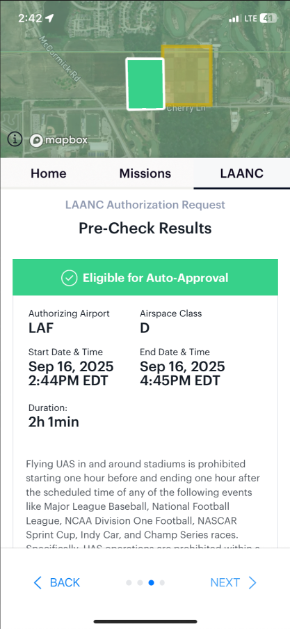

Figure 2: LAANC Auto-Approval
There are no rows in this table
Weather at Site
Metric
Value
Temperature
84°F
Dewpoint
52°F
Winds (METAR)
10 mph gusting to 17 mph (NE)
Winds (at surface)
~5 mph
Precipitation
0% chance
Visibility
10 SM
Clouds (Observed)
Scattered
There are no rows in this table
Methods
Preflight Setup:
Scan 1 – Car (3D Scan Feature):

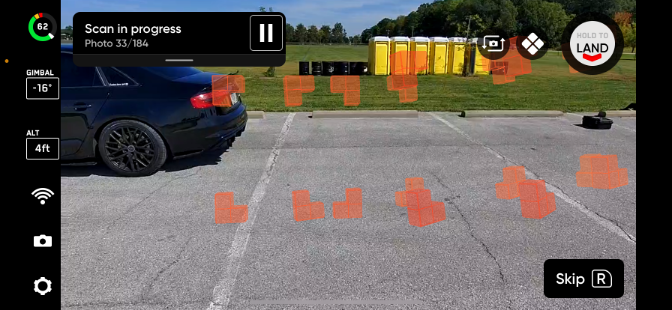

Figure 4: Scan In Progress
Scan 2 – Light Pole (3D Tower Capture):
Figure 5: Tower AR Observer Point

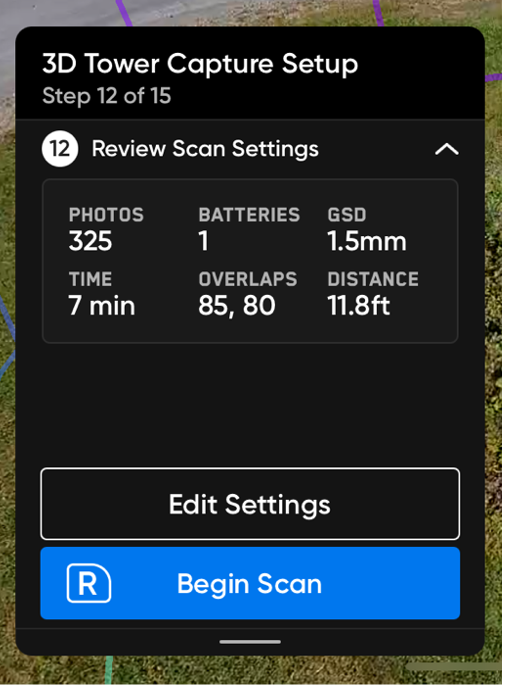

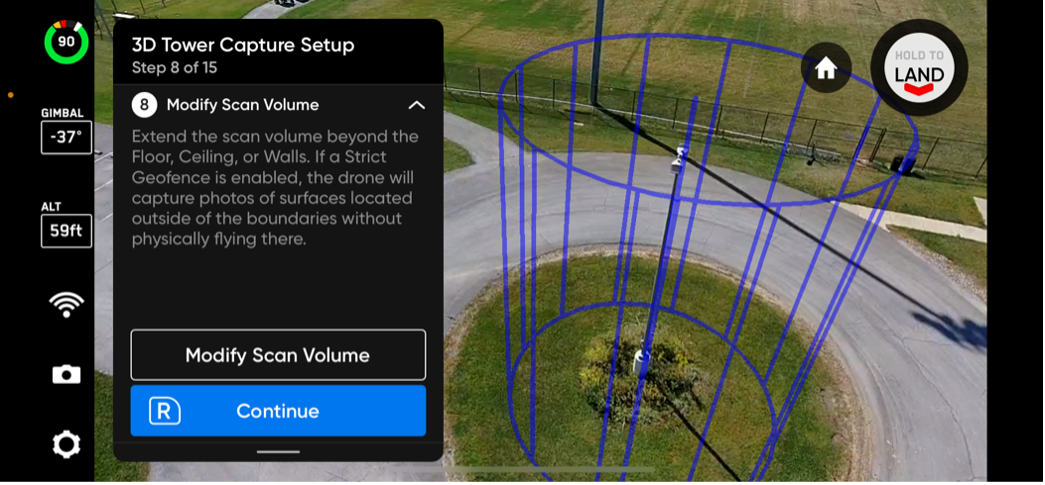

Figure 6: Tower Scan Setup

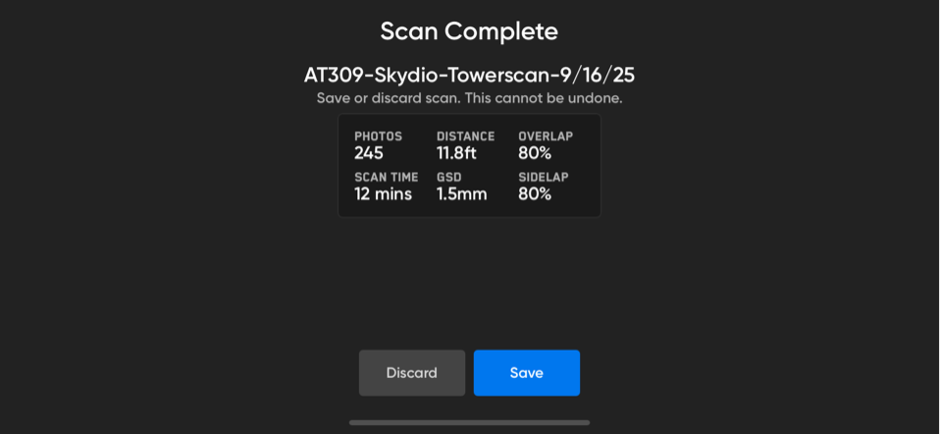

Figure 7: Tower Scan Results
Data Collection Summary
Metric
Value
Setup Time
14 minutes
Total Flight Time
41 minutes
Total Images Captured
425 photos
Dataset Size
4.1 GB
There are no rows in this table
