Diagrams and visualizations using Mermaid

The Mermaid Pack lets you create diagrams and visualizations using text. This doc demonstrates what is possible with different examples.

Leandro Zubrezki

⁠

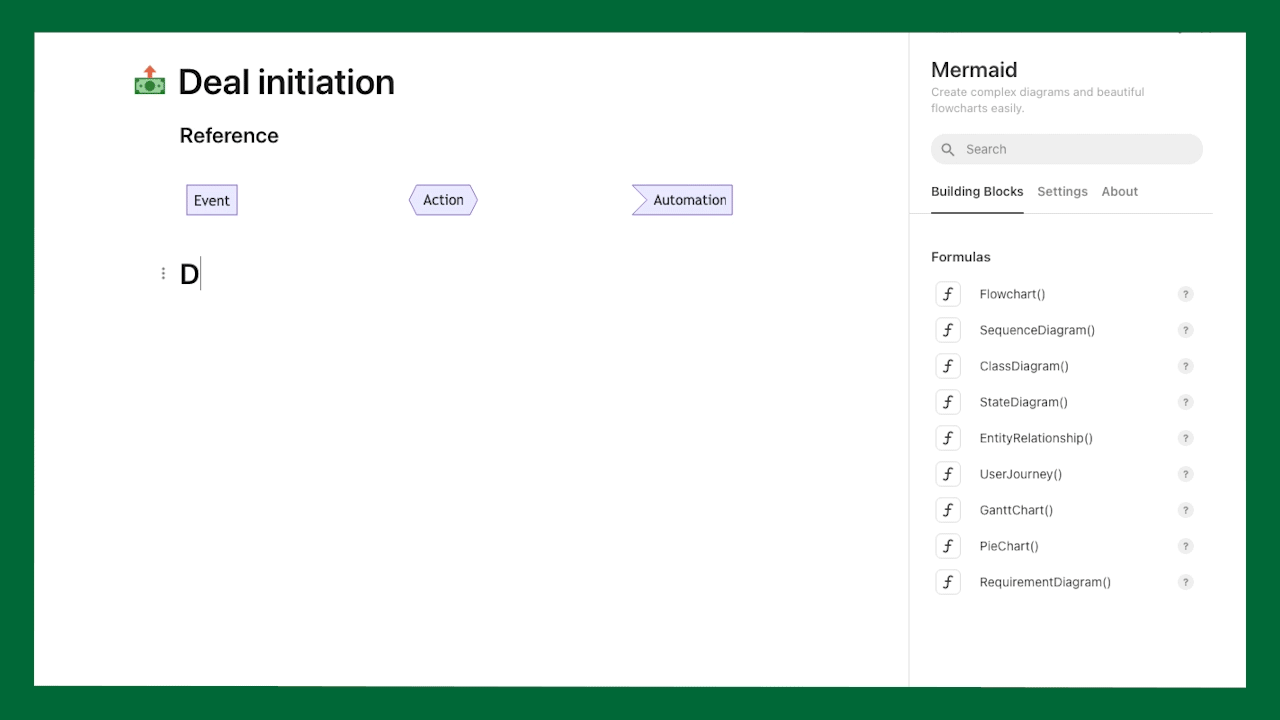

Mermaid is a JavaScript based diagramming and charting tool that takes Markdown-inspired text definitions and creates diagrams dynamically. With the Mermaid Pack you can draw different charts and diagrams using simple Coda formulas and render them as images.

⁠

Install the Pack

⁠

Copy this doc

⁠

Mermaid documentation

⁠

Explore Diagram Types ⤵️

⁠

Flowcharts⁠

⁠

A-->B

A-->C

B-->D

C-->D

⁠

Morning routine

Morning routine

Wake up

Drink coffee

Meditate

Kids to school

There are no rows in this table

⁠

Sequence Diagram⁠

⁠

participant Alice

participant Bob

Alice->>John: Hello John, how are you?

loop Healthcheck

John->>John: Fight against hypochondria

end

Note right of John: Rational thoughts <br/>prevail!

John-->>Alice: Great!

John->>Bob: How about you?

Bob-->>John: Jolly good!

⁠

Class Diagram⁠

⁠

Class01 <|-- AveryLongClass : Cool

Class03 *-- Class04

Class05 o-- Class06

Class07 .. Class08

Class09 --> C2 : Where am i?

Class09 --* C3

Class09 --|> Class07

Class07 : equals()

Class07 : Object[] elementData

Class01 : size()

Class01 : int chimp

Class01 : int gorilla

Class08 <--> C2: Cool label

⁠

State Diagram⁠

⁠

[*] --> Still

Still --> [*]

Still --> Moving

Moving --> Still

Moving --> Crash

Crash --> [*]

⁠

Entity Relationship⁠

⁠

CUSTOMER ||--o{ ORDER : places

ORDER ||--|{ LINE-ITEM : contains

CUSTOMER }|..|{ DELIVERY-ADDRESS : uses

⁠

User Journey⁠

⁠

title My working day

section Go to work

Make tea: 5: Me

Go upstairs: 3: Me

Do work: 1: Me, Cat

section Go home

Go downstairs: 5: Me

Sit down: 5: Me

⁠

Gantt Chart⁠

⁠

dateFormat YYYY-MM-DD

title Adding GANTT diagram to mermaid

excludes weekdays 2014-01-10

section A section

Completed task :done, des1, 2014-01-06,2014-01-08

Active task :active, des2, 2014-01-09, 3d

Future task : des3, after des2, 5d

Future task2 : des4, after des3, 5d

⁠

Pie Chart⁠

⁠

title Pets adopted by volunteers

'Dogs' : 386

'Cats' : 85

'Rats' : 15

⁠

Requirement Diagram⁠

⁠

requirement test_req {

id: 1

text: the test text.

risk: high

verifymethod: test

}

element test_entity {

type: simulation

}

test_entity - satisfies -> test_req

⁠

Git Graph⁠

commit

branch develop

checkout develop

commit

checkout main

merge develop

commit

⁠

C4 Diagram⁠

C4Context

title System Context diagram for Internet Banking System

Enterprise_Boundary(b0, "BankBoundary0") {

Person(customerA, "Banking Customer A", "A customer of the bank, with personal bank accounts.")

Person(customerB, "Banking Customer B")

Person_Ext(customerC, "Banking Customer C", "desc")

Person(customerD, "Banking Customer D", "A customer of the bank, <br/> with personal bank accounts.")

System(SystemAA, "Internet Banking System", "Allows customers to view information about their bank accounts, and make payments.")

Enterprise_Boundary(b1, "BankBoundary") {

SystemDb_Ext(SystemE, "Mainframe Banking System", "Stores all of the core banking information about customers, accounts, transactions, etc.")

System_Boundary(b2, "BankBoundary2") {

System(SystemA, "Banking System A")

System(SystemB, "Banking System B", "A system of the bank, with personal bank accounts. next line.")

}

System_Ext(SystemC, "E-mail system", "The internal Microsoft Exchange e-mail system.")

SystemDb(SystemD, "Banking System D Database", "A system of the bank, with personal bank accounts.")

Boundary(b3, "BankBoundary3", "boundary") {

SystemQueue(SystemF, "Banking System F Queue", "A system of the bank.")

SystemQueue_Ext(SystemG, "Banking System G Queue", "A system of the bank, with personal bank accounts.")

}

BiRel(customerA, SystemAA, "Uses")

BiRel(SystemAA, SystemE, "Uses")

Rel(SystemAA, SystemC, "Sends e-mails", "SMTP")

Rel(SystemC, customerA, "Sends e-mails to")

UpdateElementStyle(customerA, $fontColor="red", $bgColor="grey", $borderColor="red")

UpdateRelStyle(customerA, SystemAA, $textColor="blue", $lineColor="blue", $offsetX="5")

UpdateRelStyle(SystemAA, SystemE, $textColor="blue", $lineColor="blue", $offsetY="-10")

UpdateRelStyle(SystemAA, SystemC, $textColor="blue", $lineColor="blue", $offsetY="-40", $offsetX="-50")

UpdateRelStyle(SystemC, customerA, $textColor="red", $lineColor="red", $offsetX="-50", $offsetY="20")

UpdateLayoutConfig($c4ShapeInRow="3", $c4BoundaryInRow="1")

⁠
