INSTALLING FORTINET FIREWALL ON VMWARE WORKSTATION AND HOW TO USE IT

April 4, 2023

SETUP 1: INITIAL SETUP

Send the file to your selected path. You may download the files from this


Go to your VMWare Workstation 16 Pro. If you don’t have one, you may need to download it from the official website of You can use the free trial version or buy it from them.

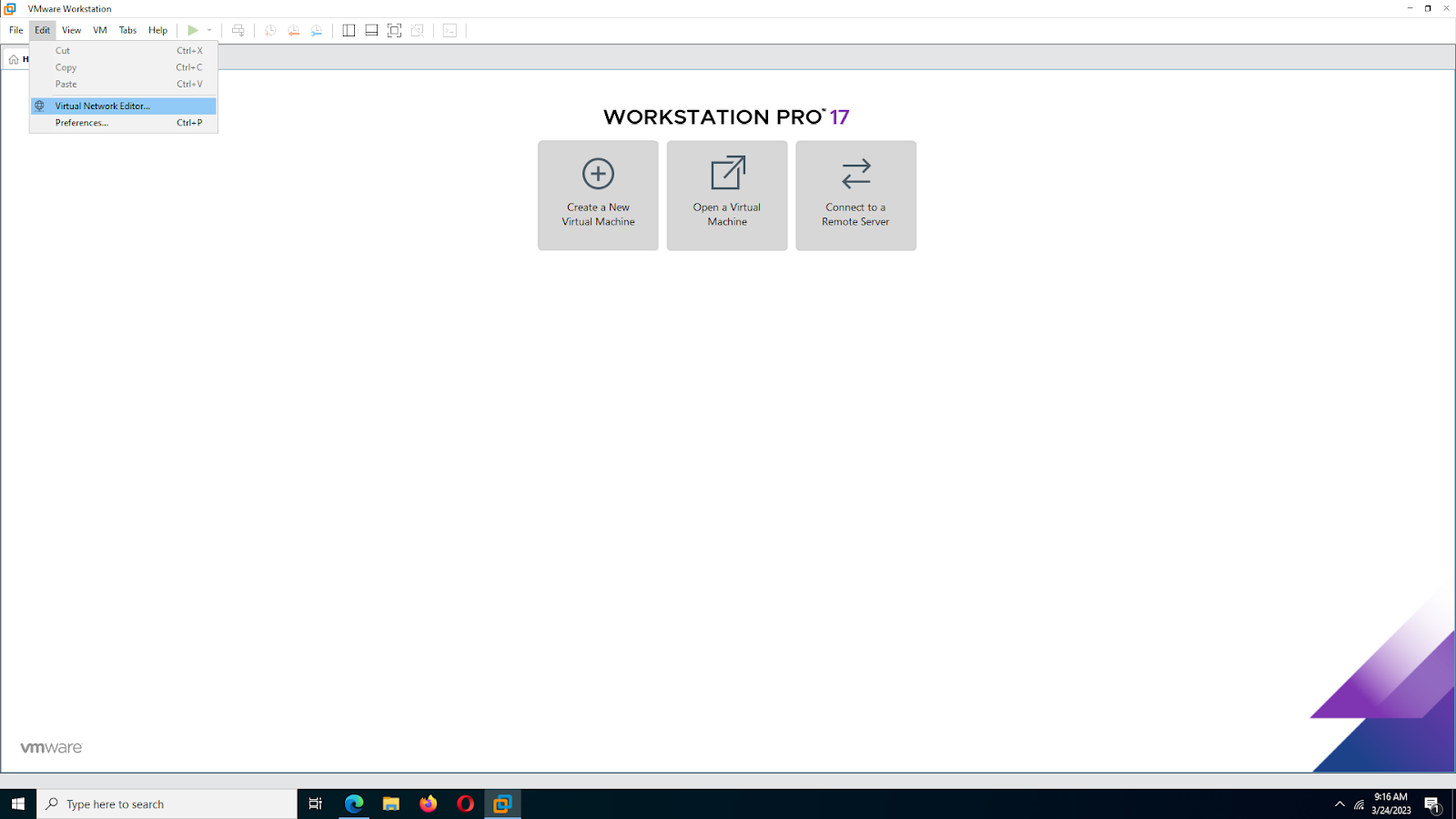

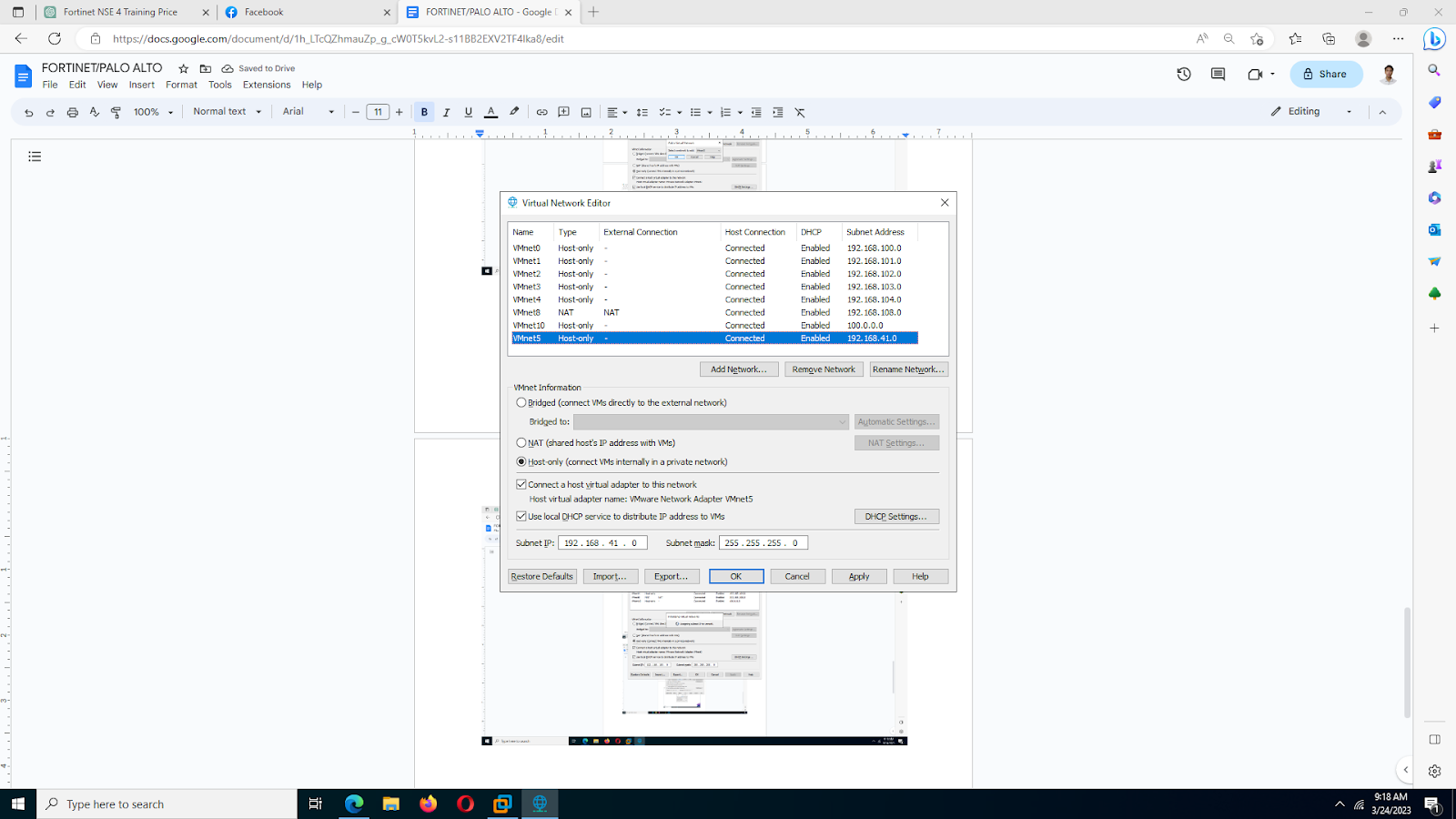

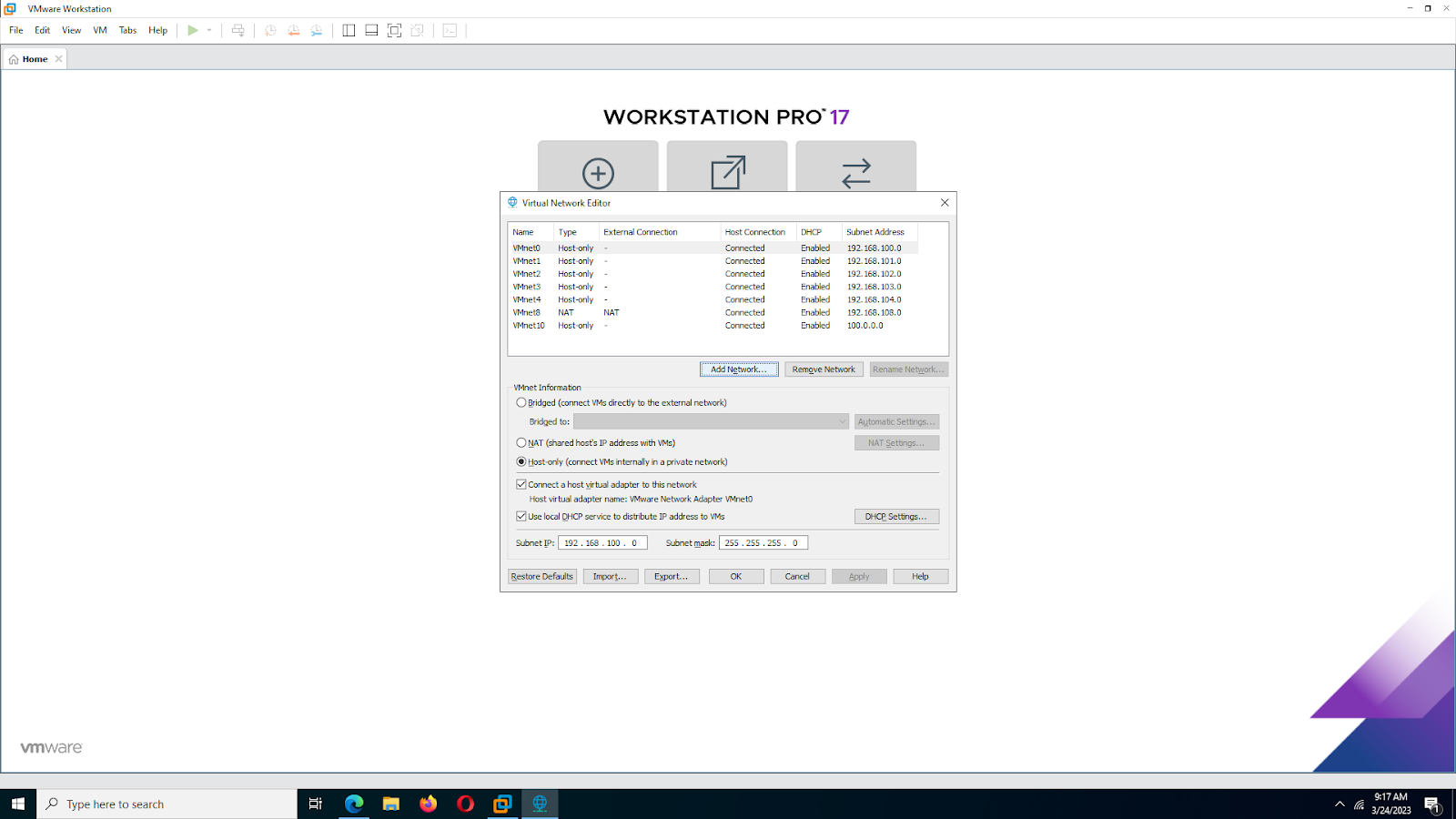

Open Virtual Network Editor..

NOTE: Please remember your third octet in your NAT (VmNet8), in my case my third octet is 108. So if yours is 72 or whatsoever then that’s default octet for you to use in the next process.

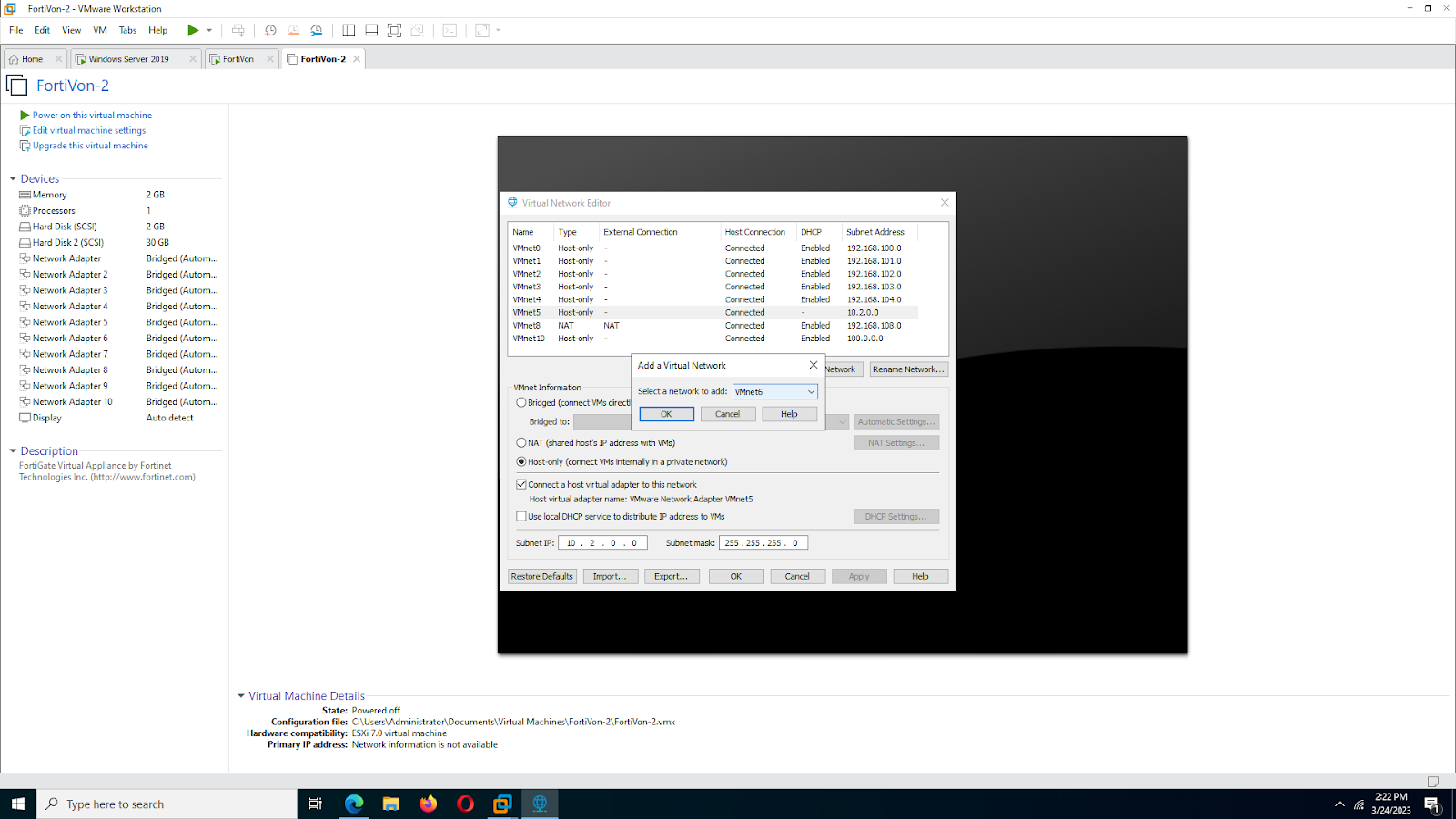

Select Add Network.




Select any VMNet of your choice, but for my case I will use VMNet5.

Wait for the settings to be applied.


A VMnet has been added.

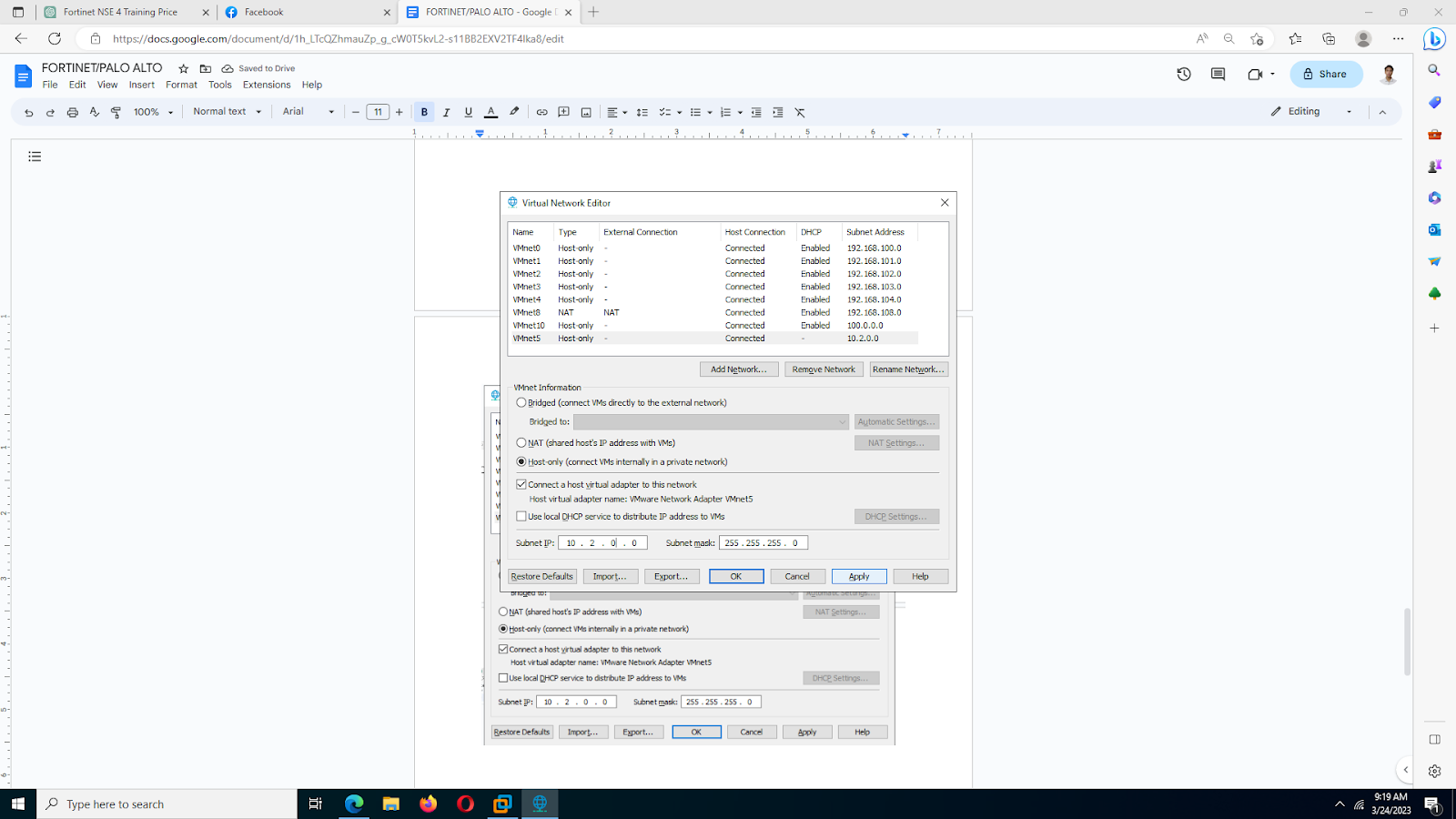

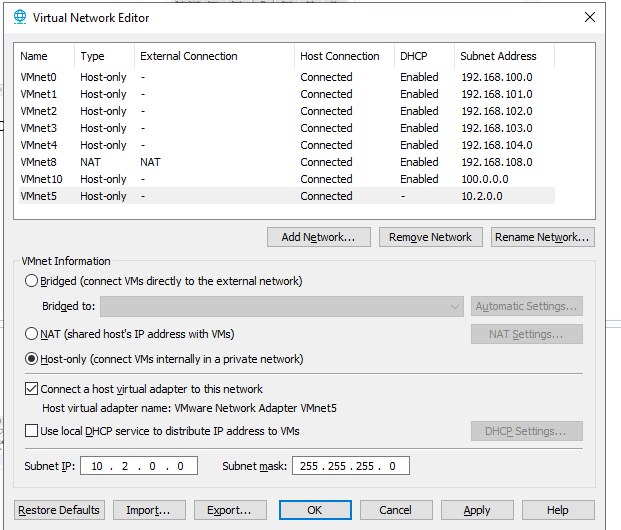

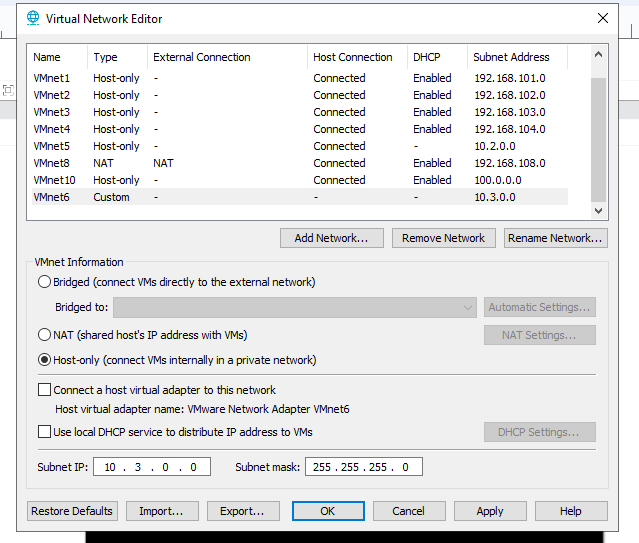

Set the Subnet IP to 10.2.0.0, and uncheck this setting:
Use local DHCP service to distribute IP address to VMs.



Save the settings by clicking Apply.


SETUP 2: INSTALLING WINDOWS SERVER 2019/2022

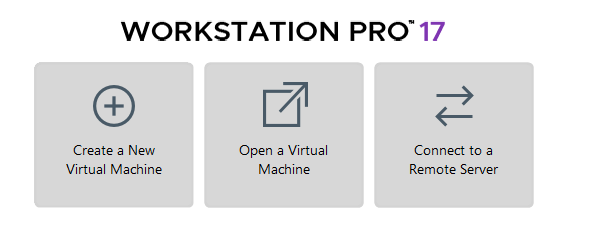

Go back to your VMWare and click Create a Virtual Machine.

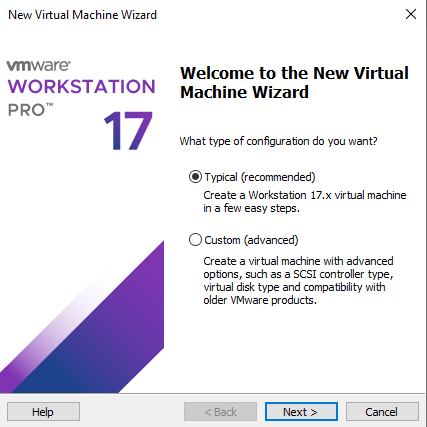

Select Typical (recommended).

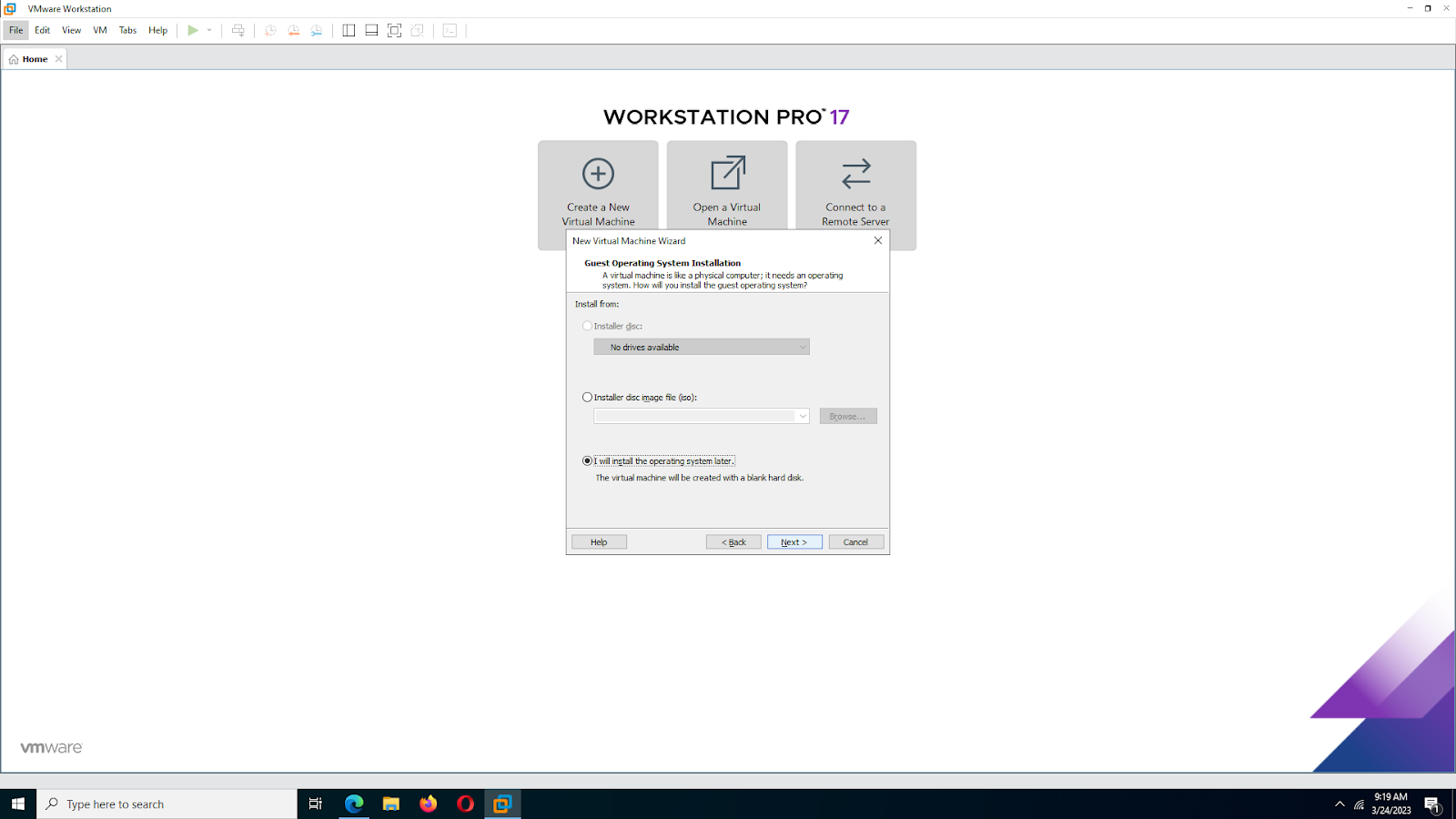

Choose I will install the operating system later.

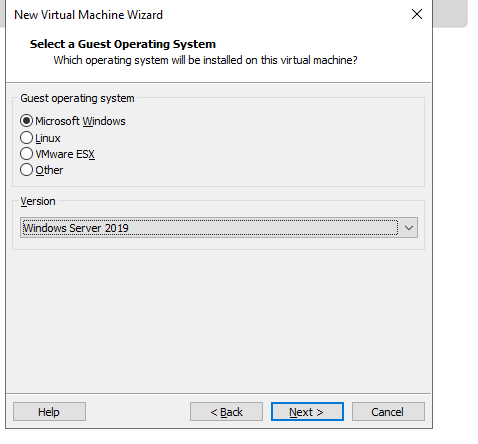

Choose Windows Server 2019 from the dropdown menu.
Or it might be better if the VM has Windows Server 2022 in the options, then select it.

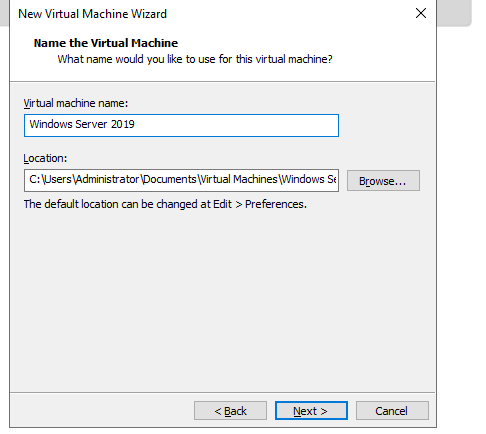

Name the VM of your choice.

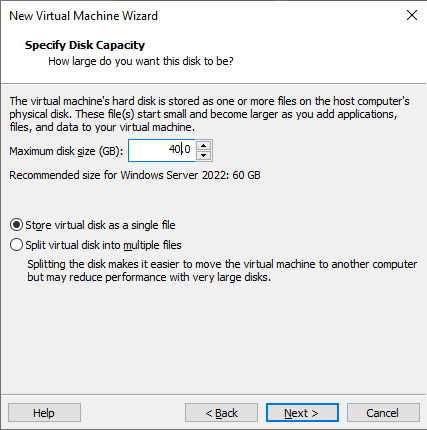

Set to 40 - 60GB (recommended), and choose Store virtual disk as a single file.

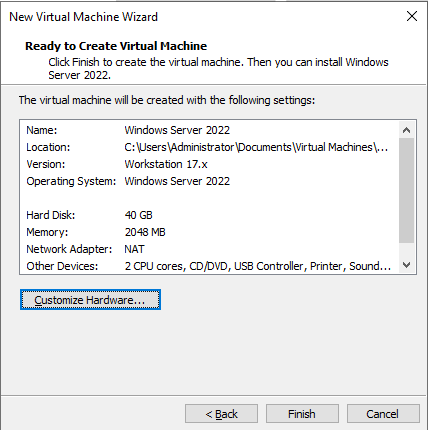

Click Customize Hardware.

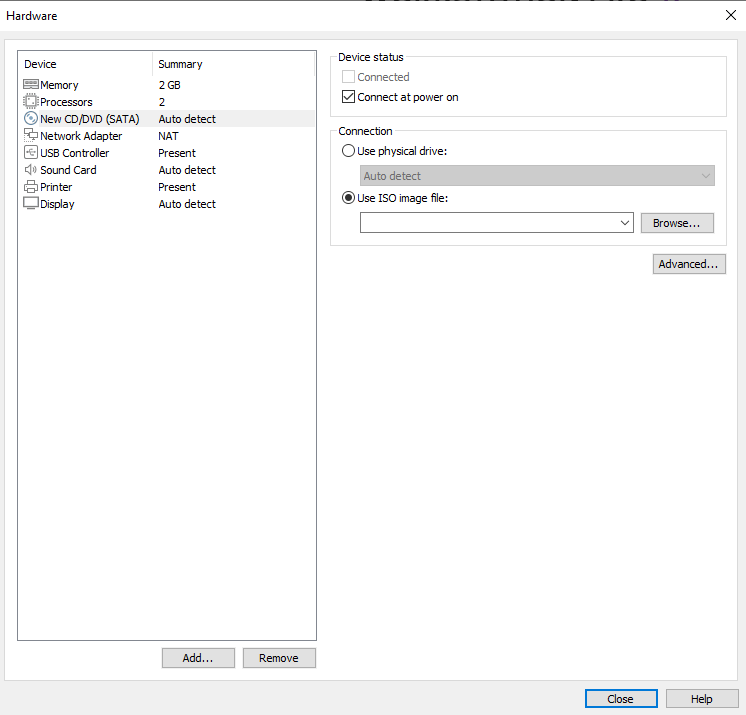

Select “New CD/DVD...” and click “Use ISO image file”.
Then click “Browse”.

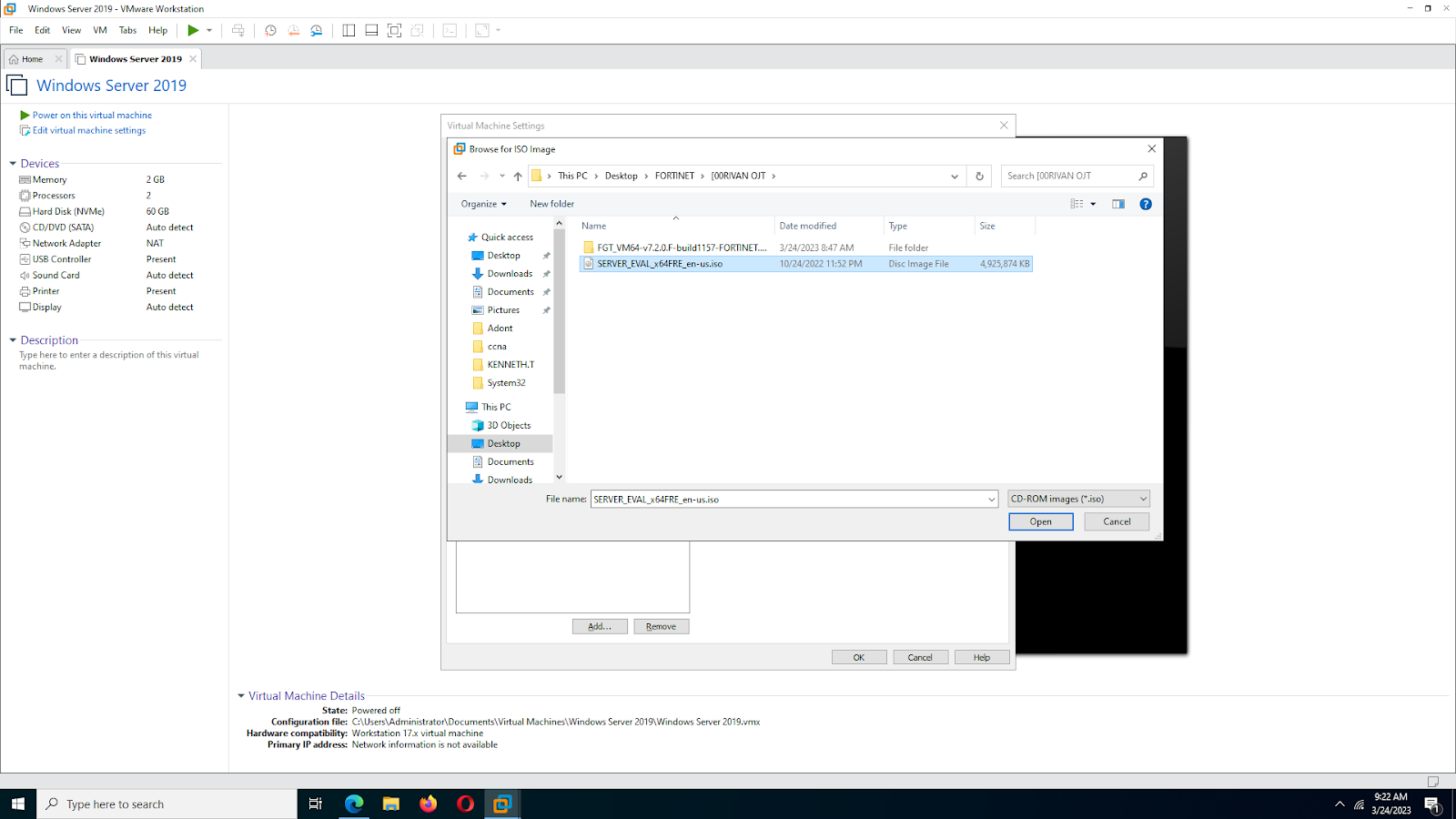

Select the .iso file that contains the Windows Server OS.

Select Network Adapter, and select VMNet_ (Host-only).

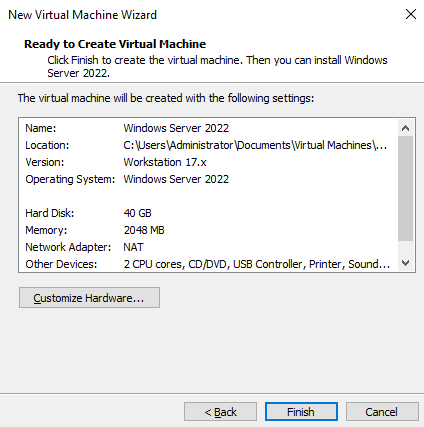

Click Finish.

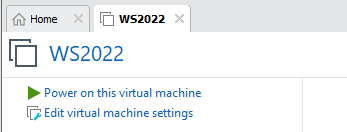

Select Power on this virtual machine.

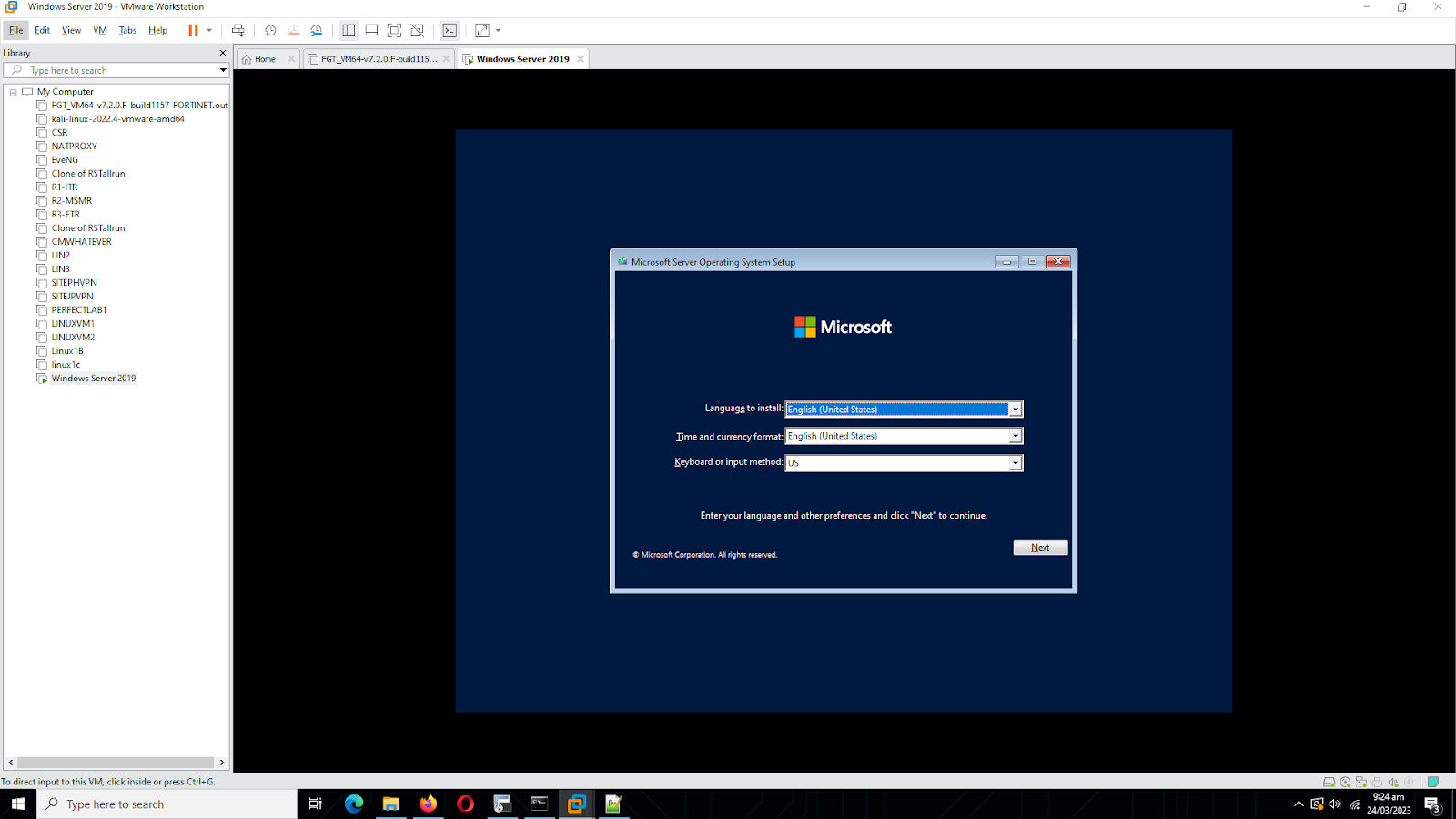

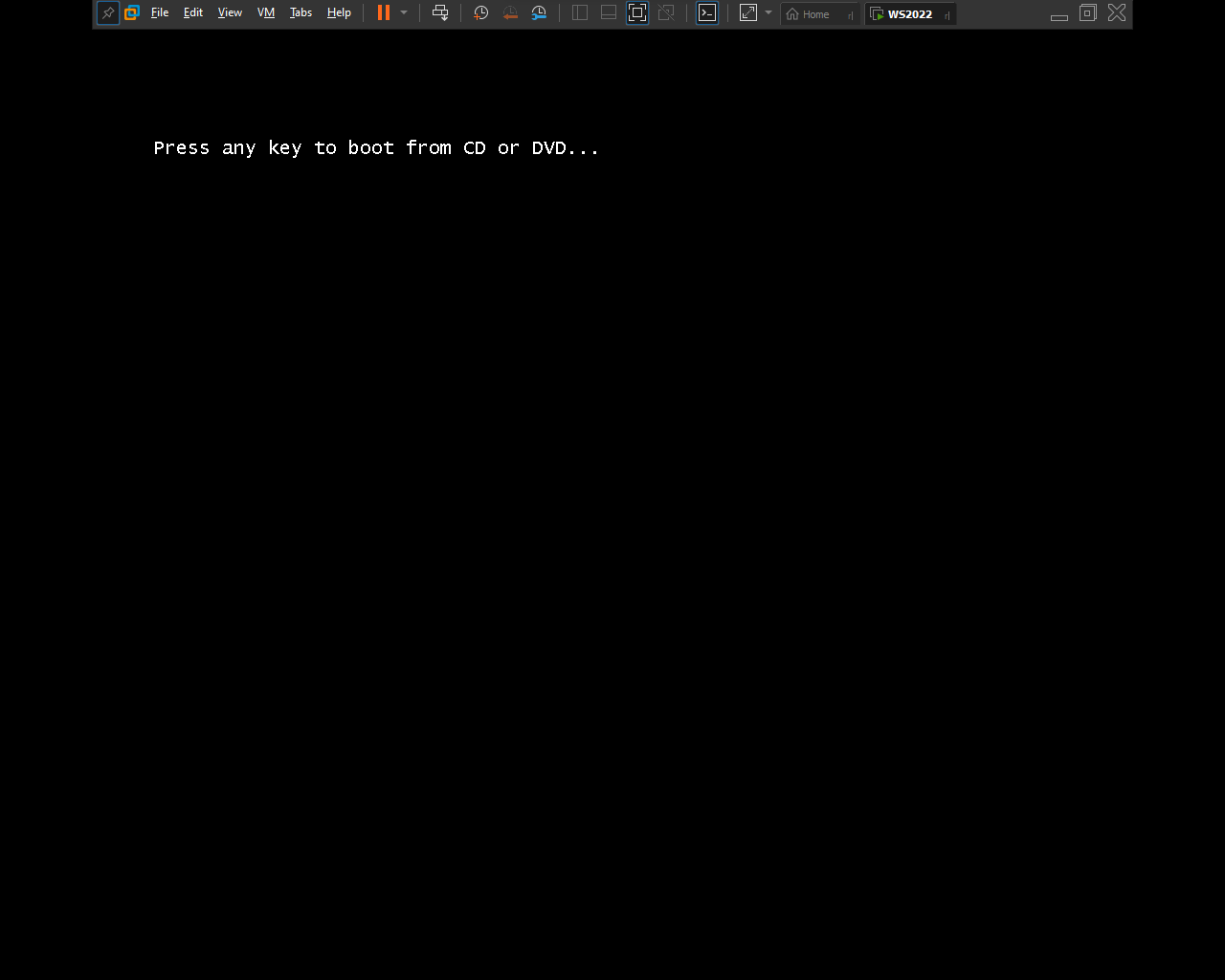

When open, click your VM screen, and press Enter multiple times.
pasted image 0.png

Click Next.
pasted image 0.png

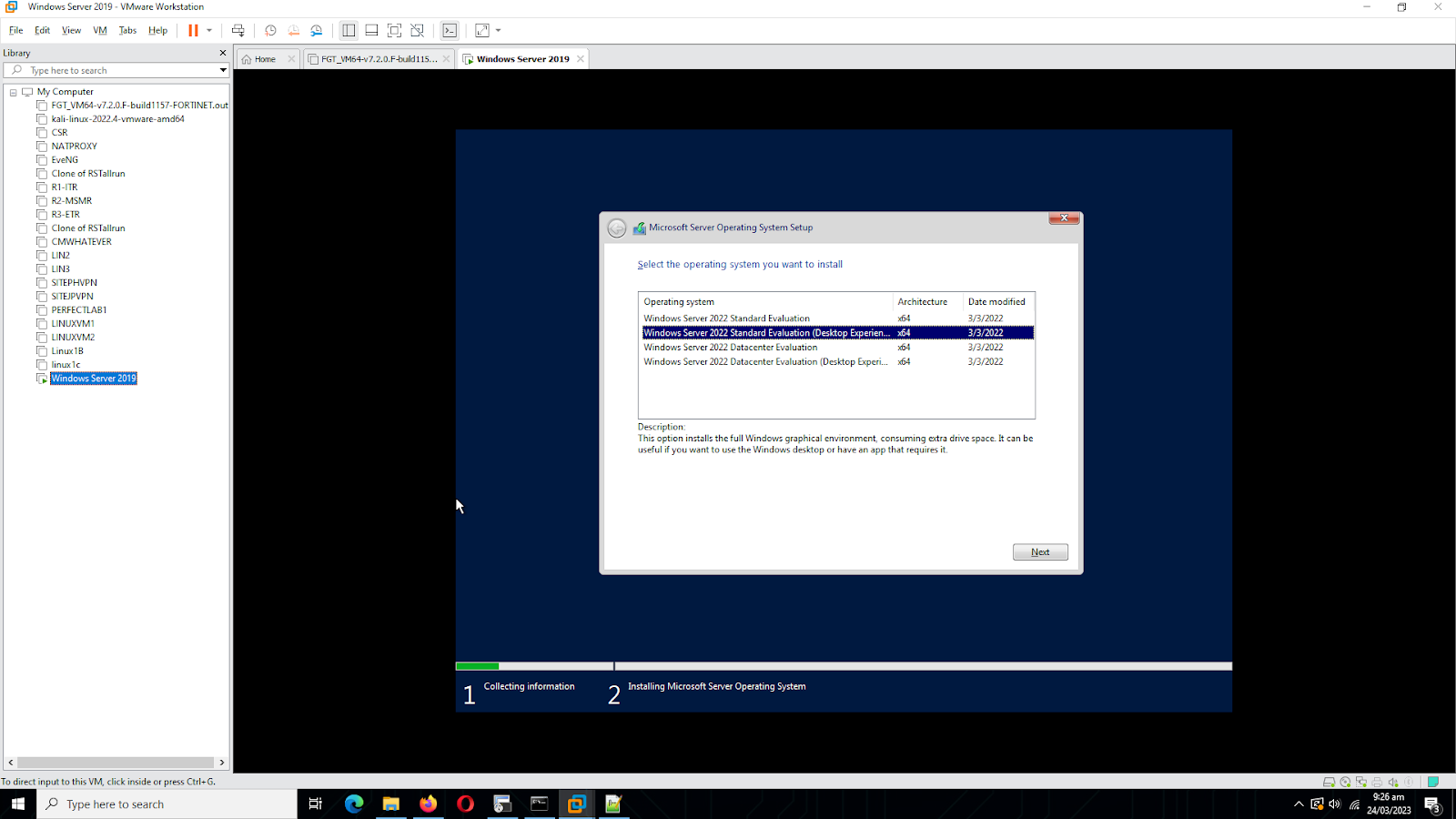

Select the second option which has Desktop Experience.
pasted image 0.png

Accept the License Terms.
pasted image 0.png

Wait for the installation to finish.

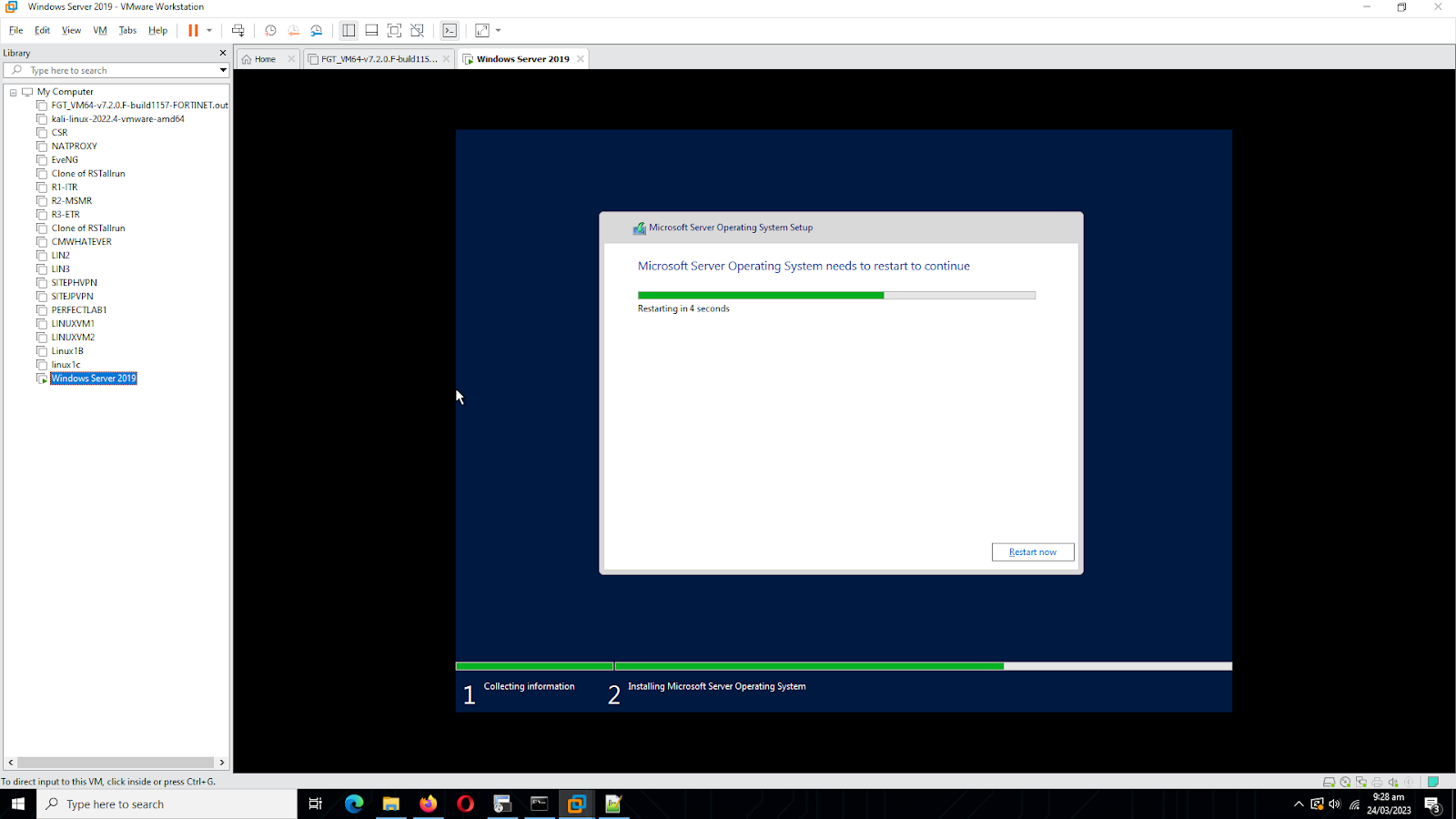

Click Restart now.
pasted image 0.png

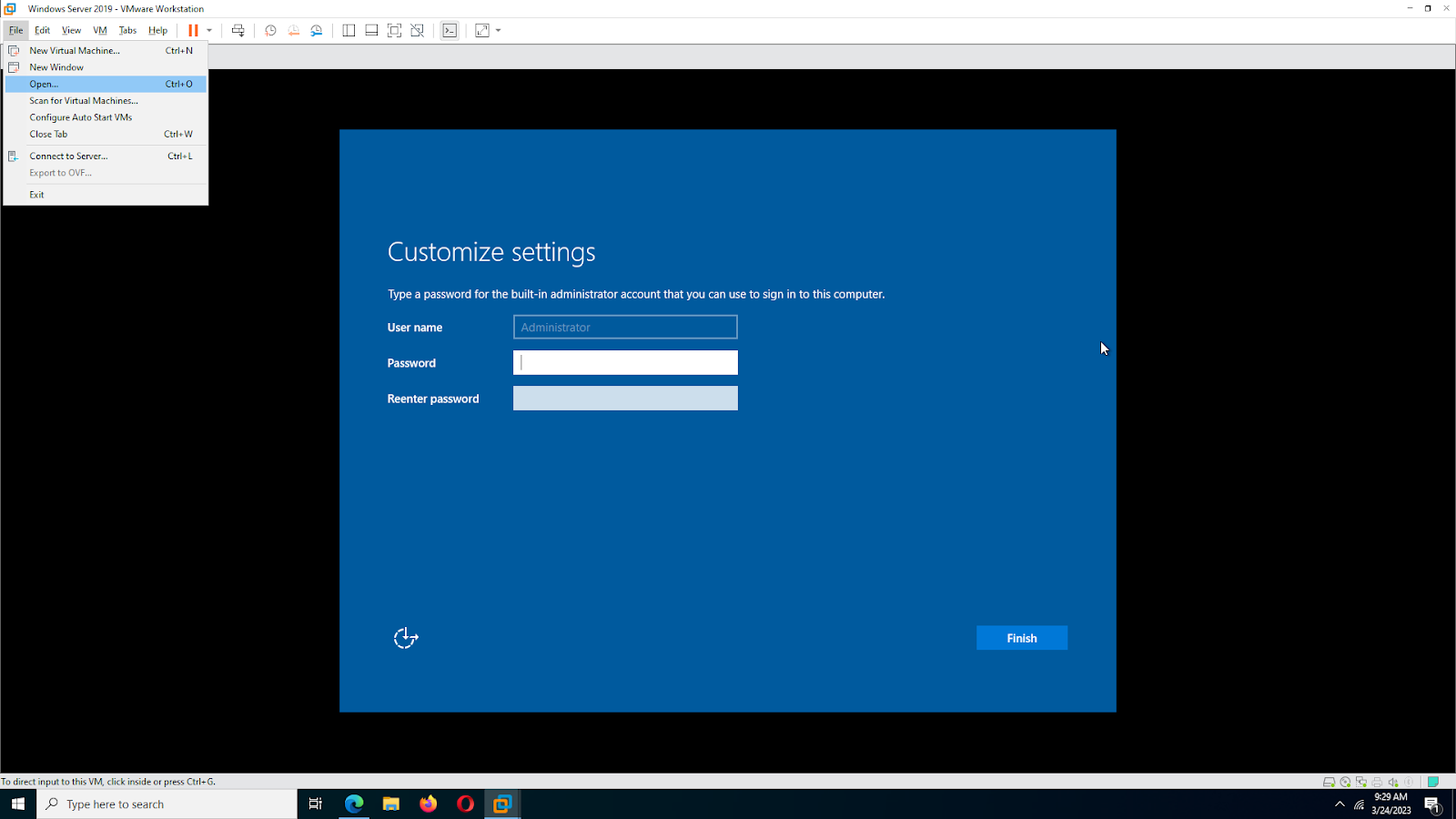

Add a password:
Password: C1sc0123

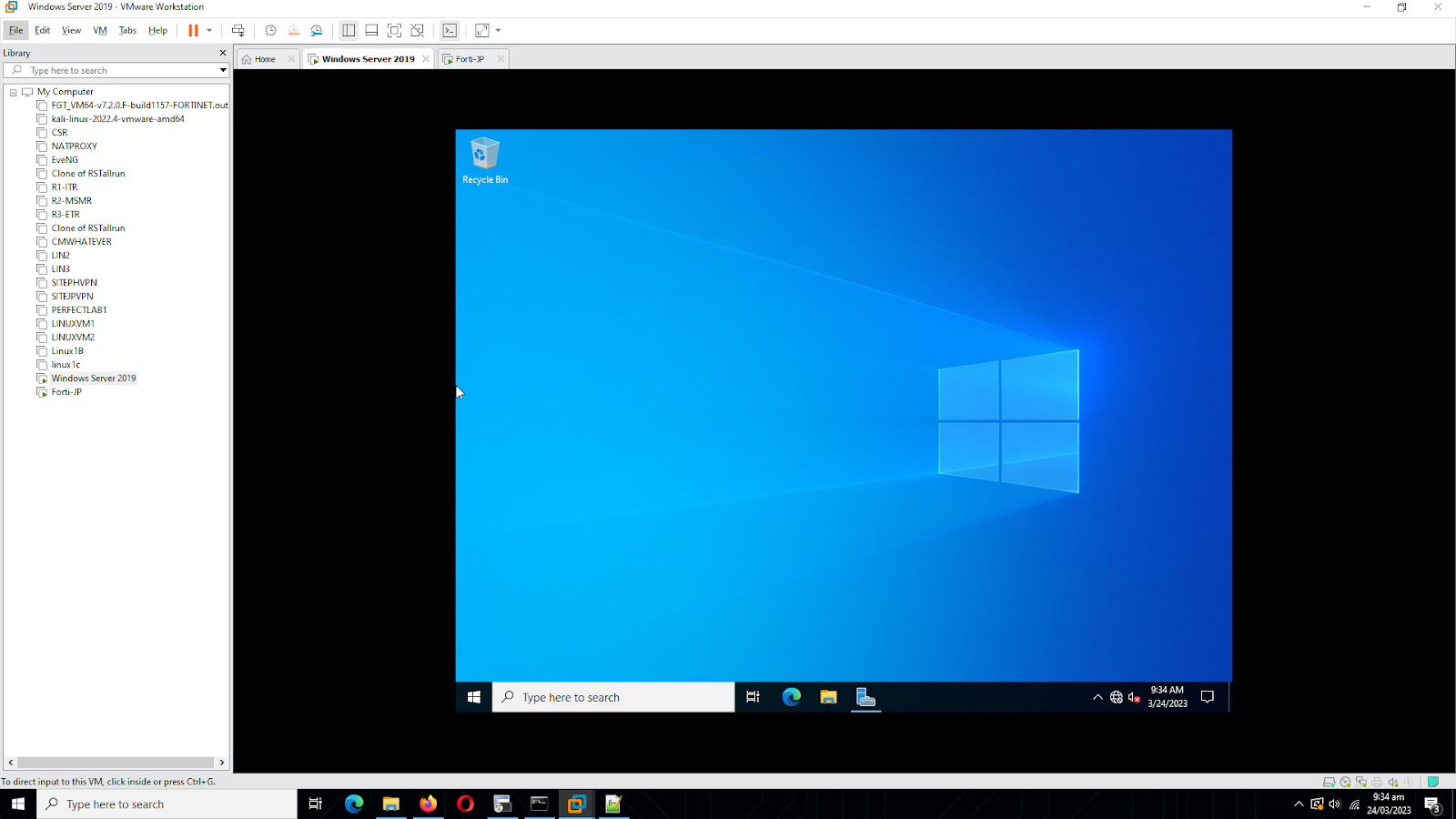

Login your Windows Server and let’s proceed to the next setup.
pasted image 0.png


SETUP 3: IMPORTING FORTIGATE FIREWALL VM

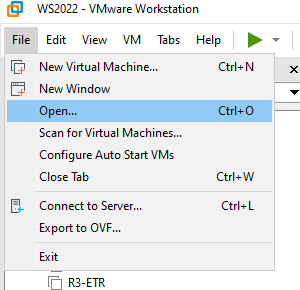

Click Open to import VMs.

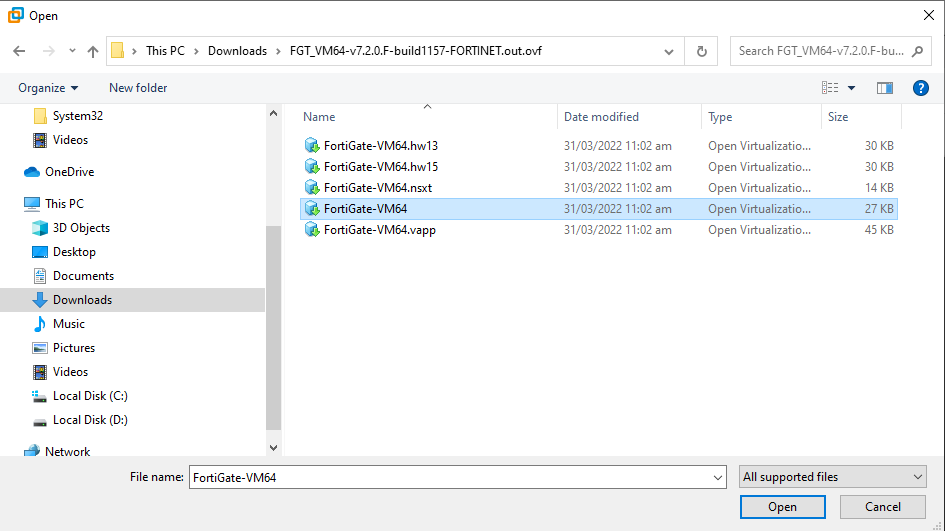

Find the folder where you download the Fortigate VM.
Select Fortigate-VM64
and click Open.

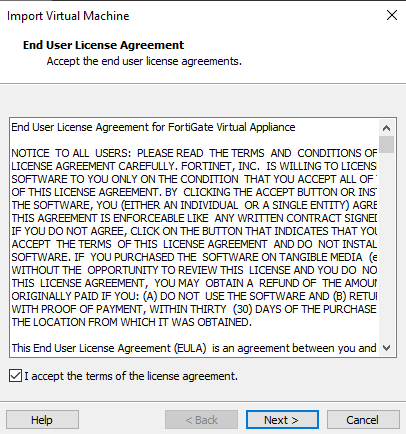

Accept the Terms of License
Click “Next”.

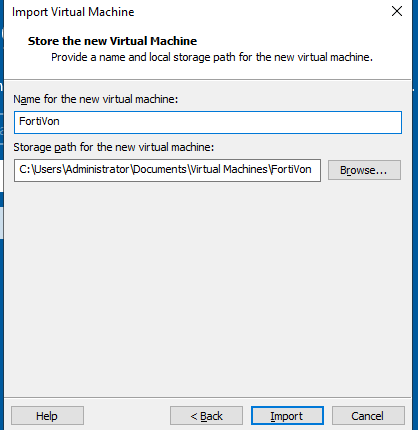

Type the VM name of your choice.

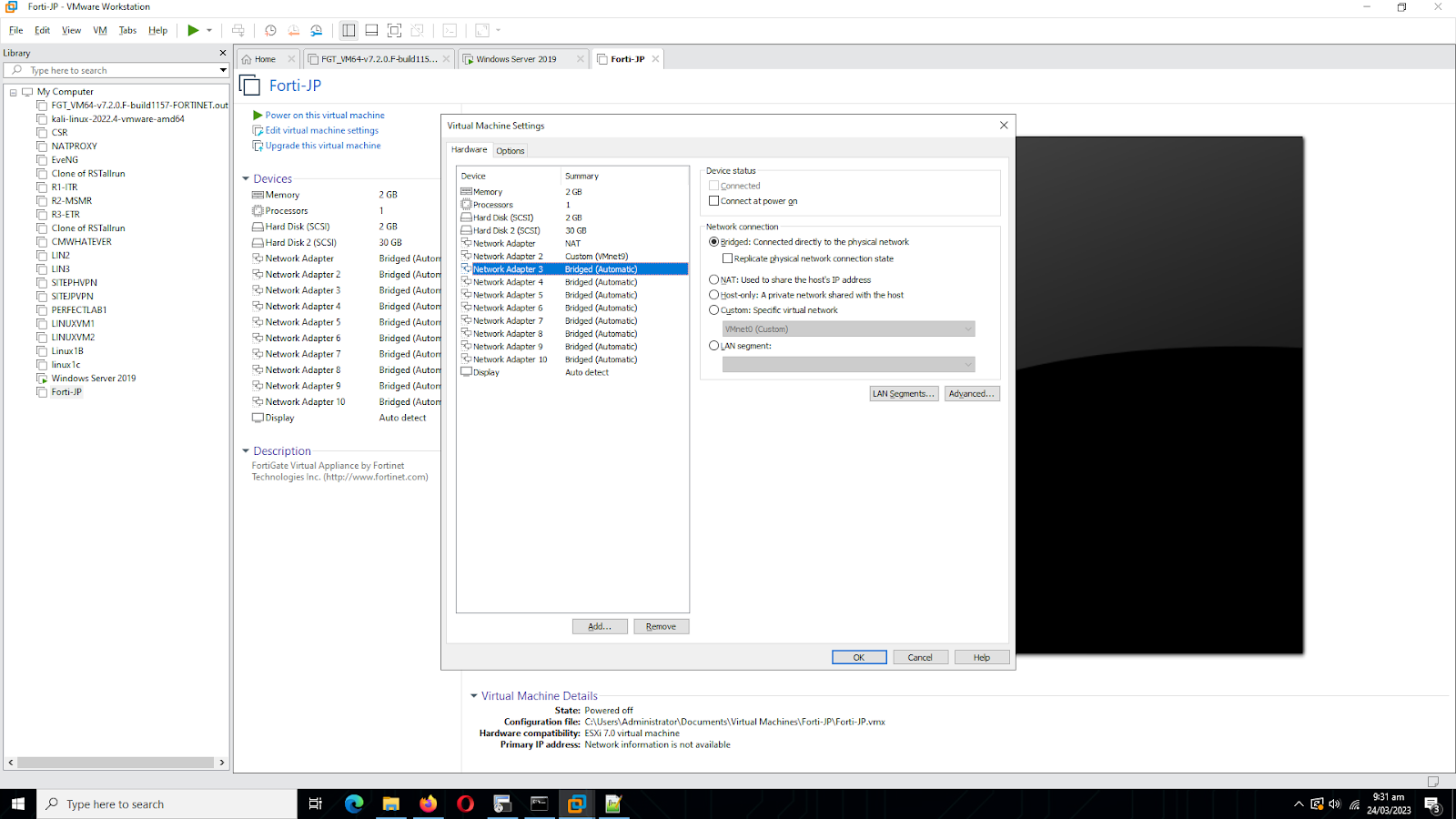

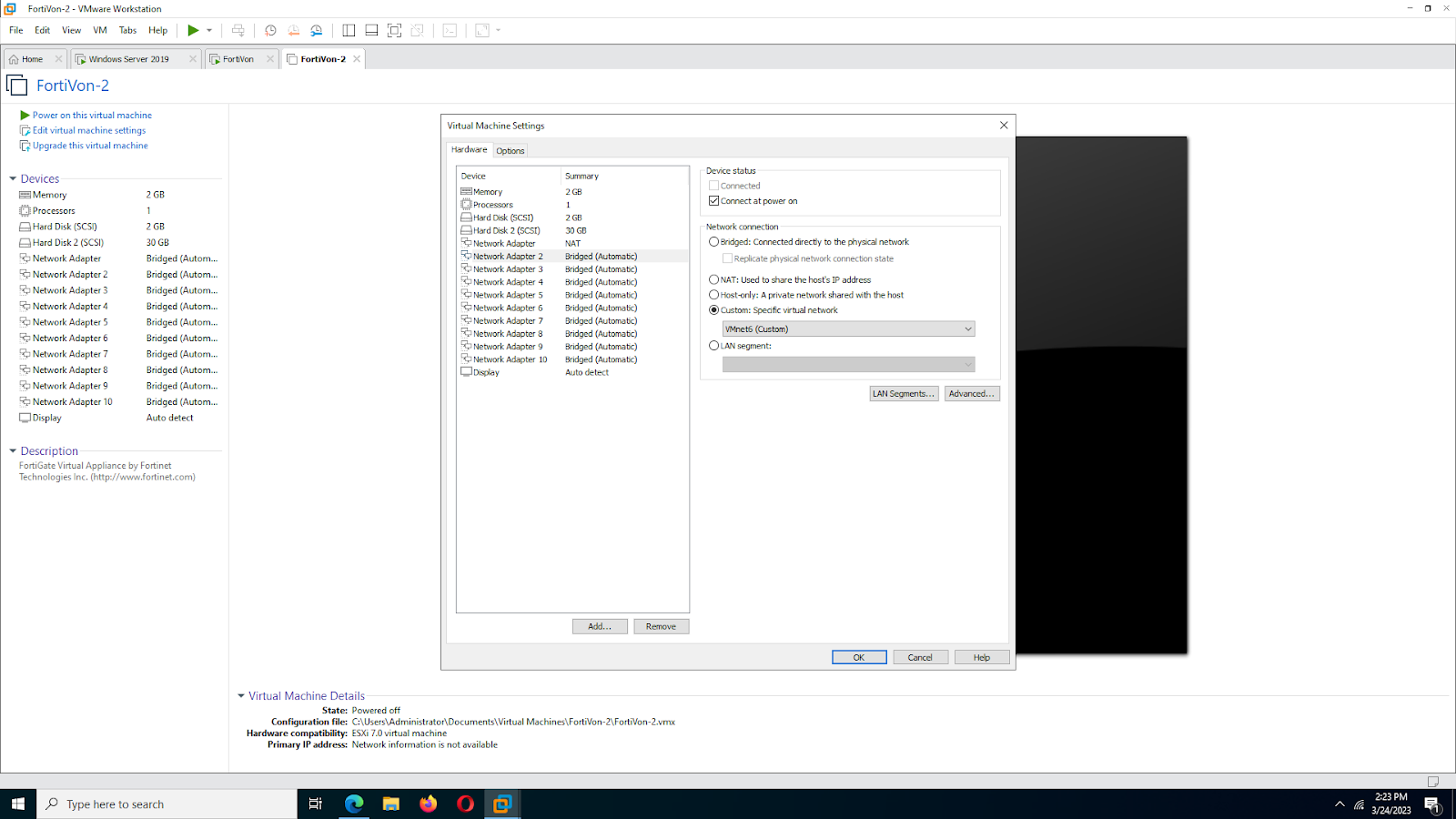

Select the Network Adapter 2 and set the following options:
Network Adapter 1: NAT
Network Adapter 2: Custom (for my case I will use VMnet5)
pasted image 0.png

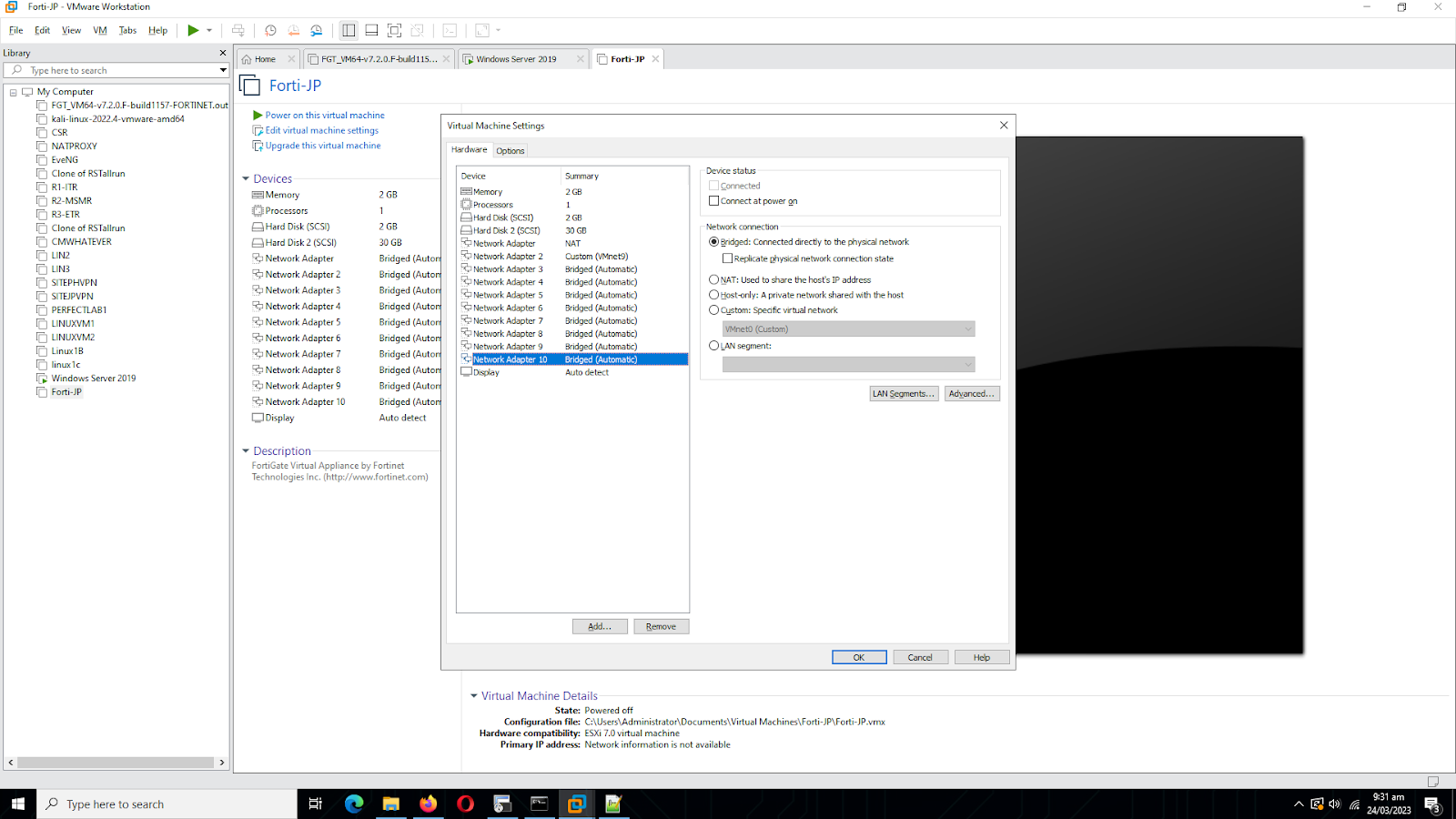

From Network Adapter 3 to 10, you need to uncheck the Connect at power on.
After unchecking all Network Adapters, click OK.
pasted image 0.png


SETUP 4: CONFIGURING FORTIGATE FIREWALL IN THE CLI

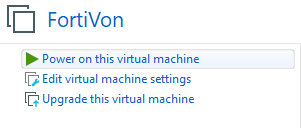

Select Power on this Virtual Machine.

Wait for the system to load.

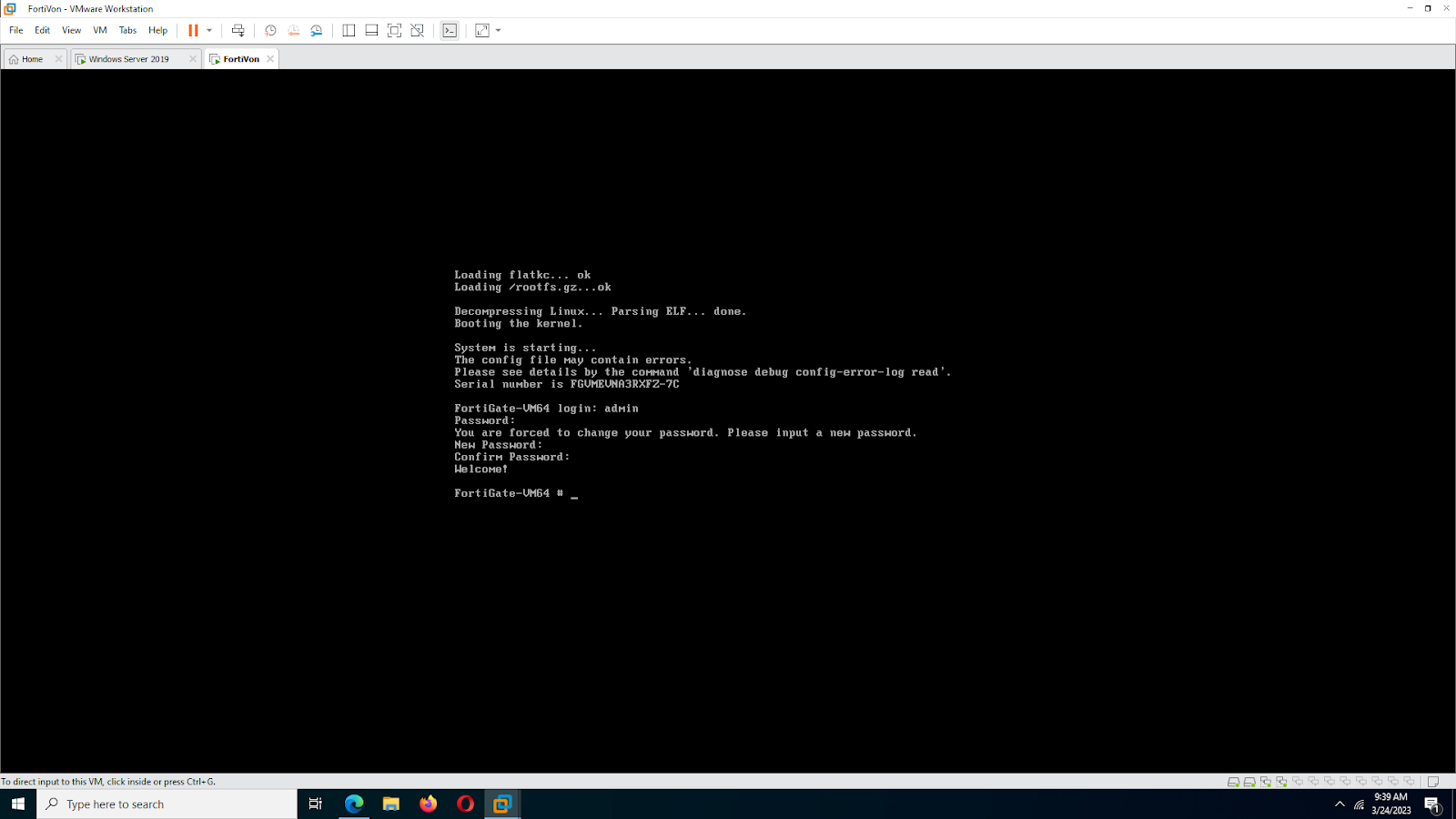

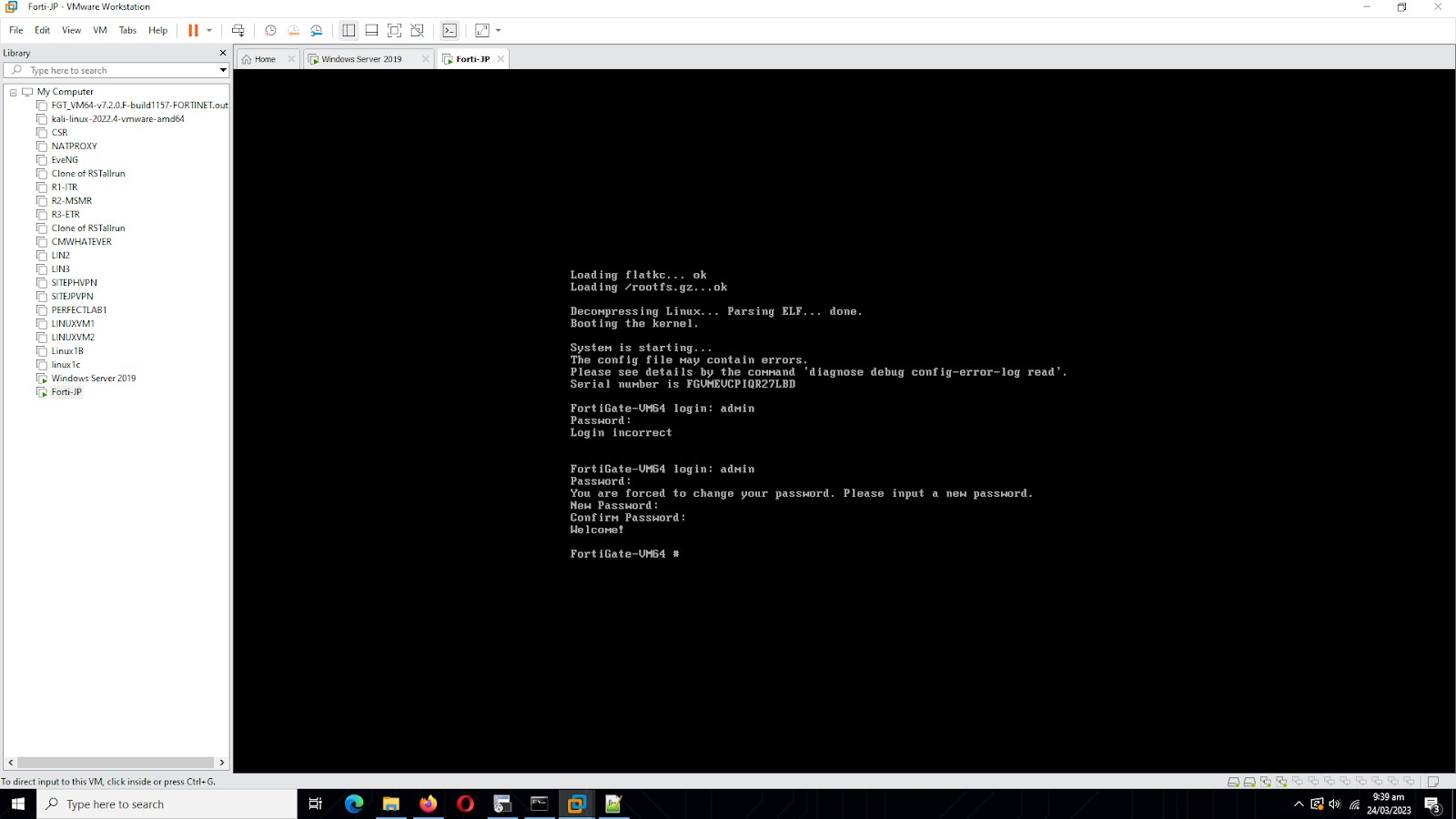

After loading, login your Fortigate with following credentials.
FortiGate-VM65 login: admin
Password: <press Enter Key>

You are force to change your password. Please input your new password:
New Password: pass
Confirm Password: pass
pasted image 0.png

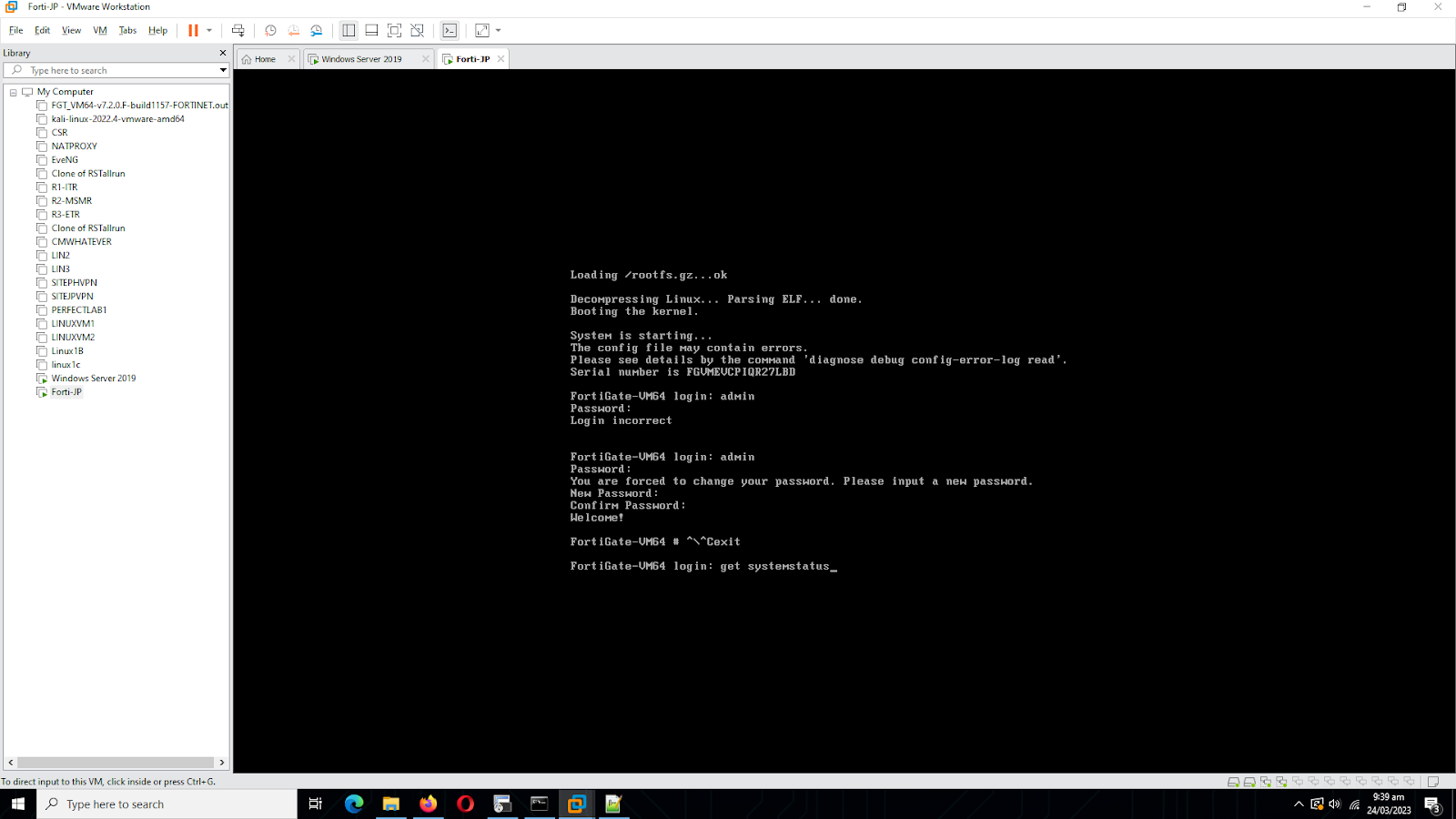

Type this command to check the license of your Fortigate:
get systemstatus
pasted image 0.png
NOTE: The license of your Fortigate should appear as “EXPIRED/INVALID”, since I was fast enough to type the command and didn’t finish loading the system, that’s why it appeared as “VALID”. You should retype the command again after loading the system for a few minutes, then the License would now appear as “INVALID”.

Press Ctrl+C to skip command/display.

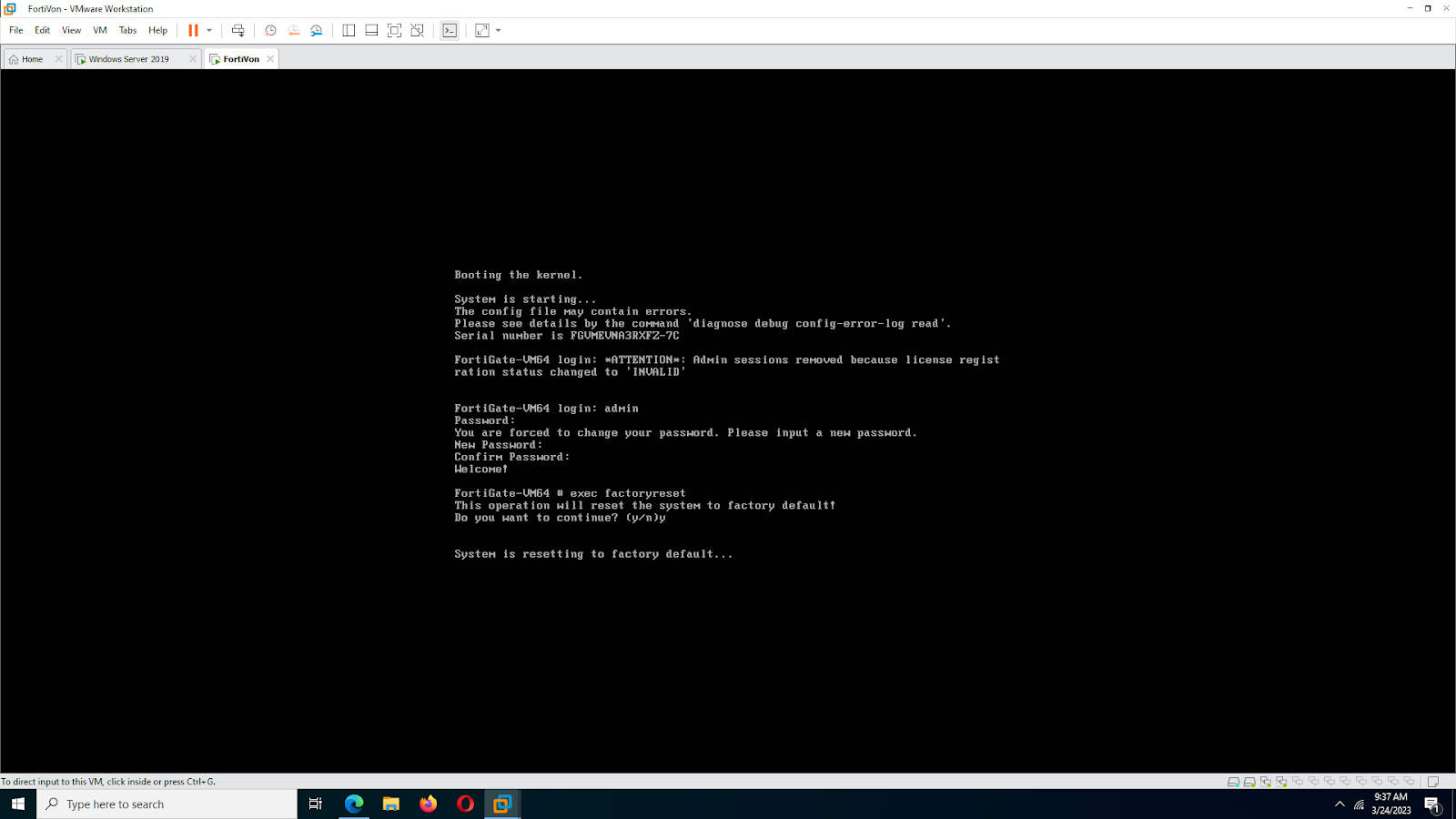

Type this command to factory reset your Fortigate:
exec factoryreset

Then type y to confirm.

Wait for the system to reboot
Re-enter the credentials:
FortiGate-VM65 login: admin
Password: <press Enter Key>

You are force to change your password. Please input your new password:
New Password: pass
Confirm Password: pass

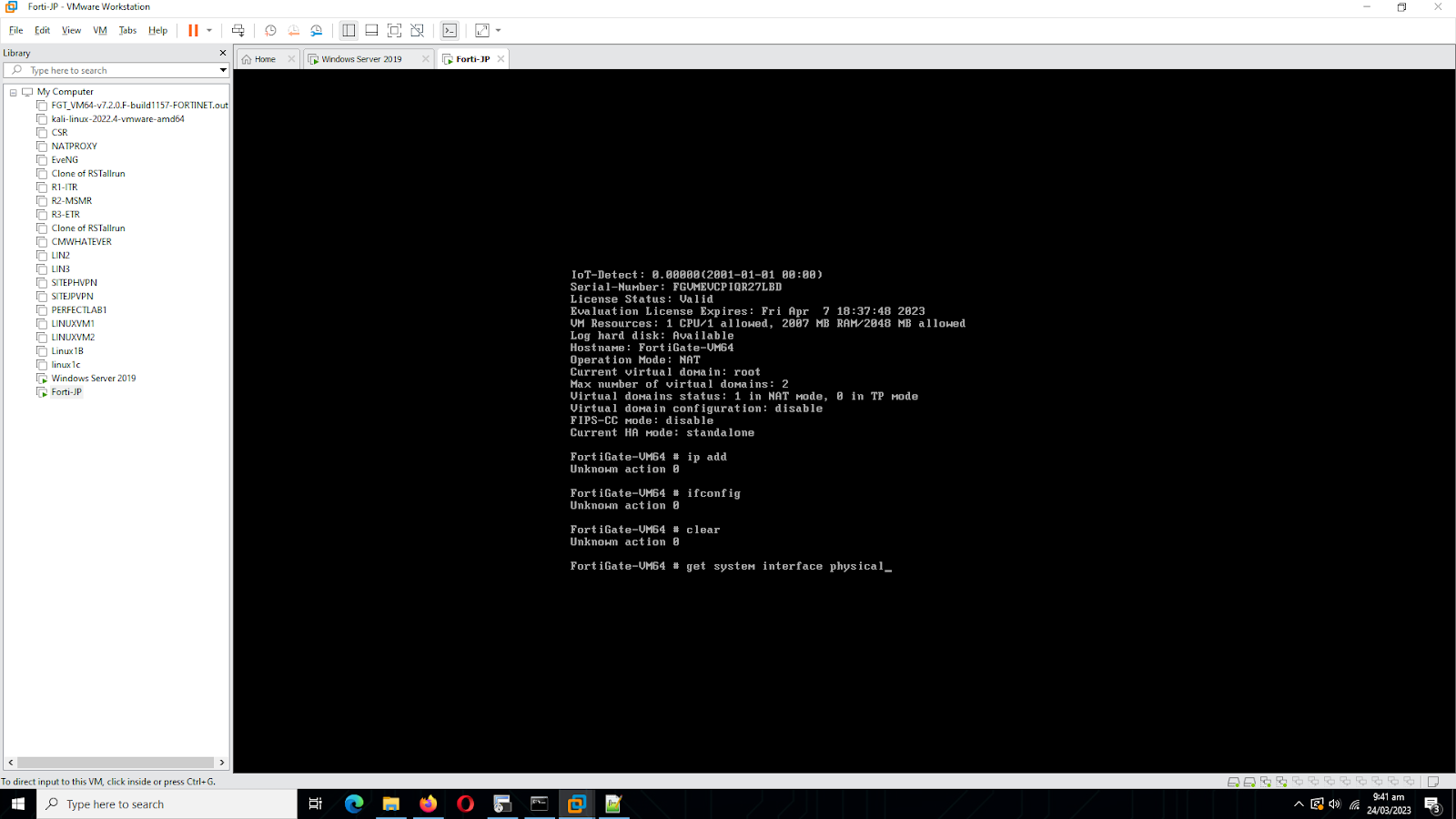

Type this command to check ports and IP:
get system interface physical

pasted image 0.png

Now you will have a view of your ports and IP.
*REMINDER: Still remember your third octet? Well in case you forgot, you could check here at this option after we enter the command. Oops, before I forgot, also remember your fourth octet.

SET YOUR PORT1 TO STATIC IP IN YOUR FORTINET INTERFACE BY TYPING THIS COMMAND:
config system interface
edit port1
set mode static
set ip 192.168._._/24
set allowaccess http https ssh telnet ping
exit


SETUP 5: SETTING UP FORTIGATE FIREWALL IN YOUR BROWSER:

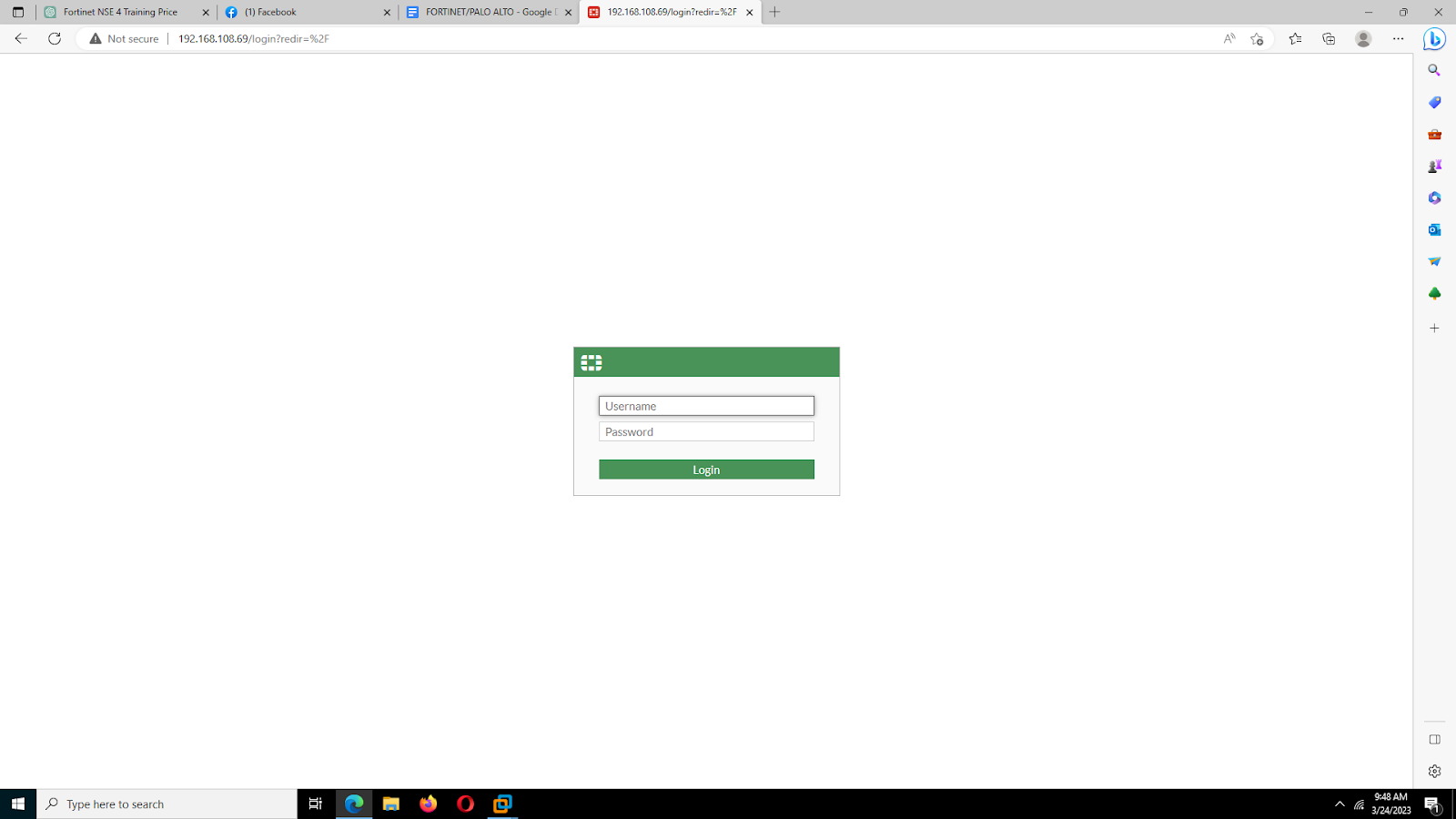

Put the IP Address in your browser:
192.168._._
In my case its 192.168.108.69

Enter your credentials:
Username: admin
Password: pass

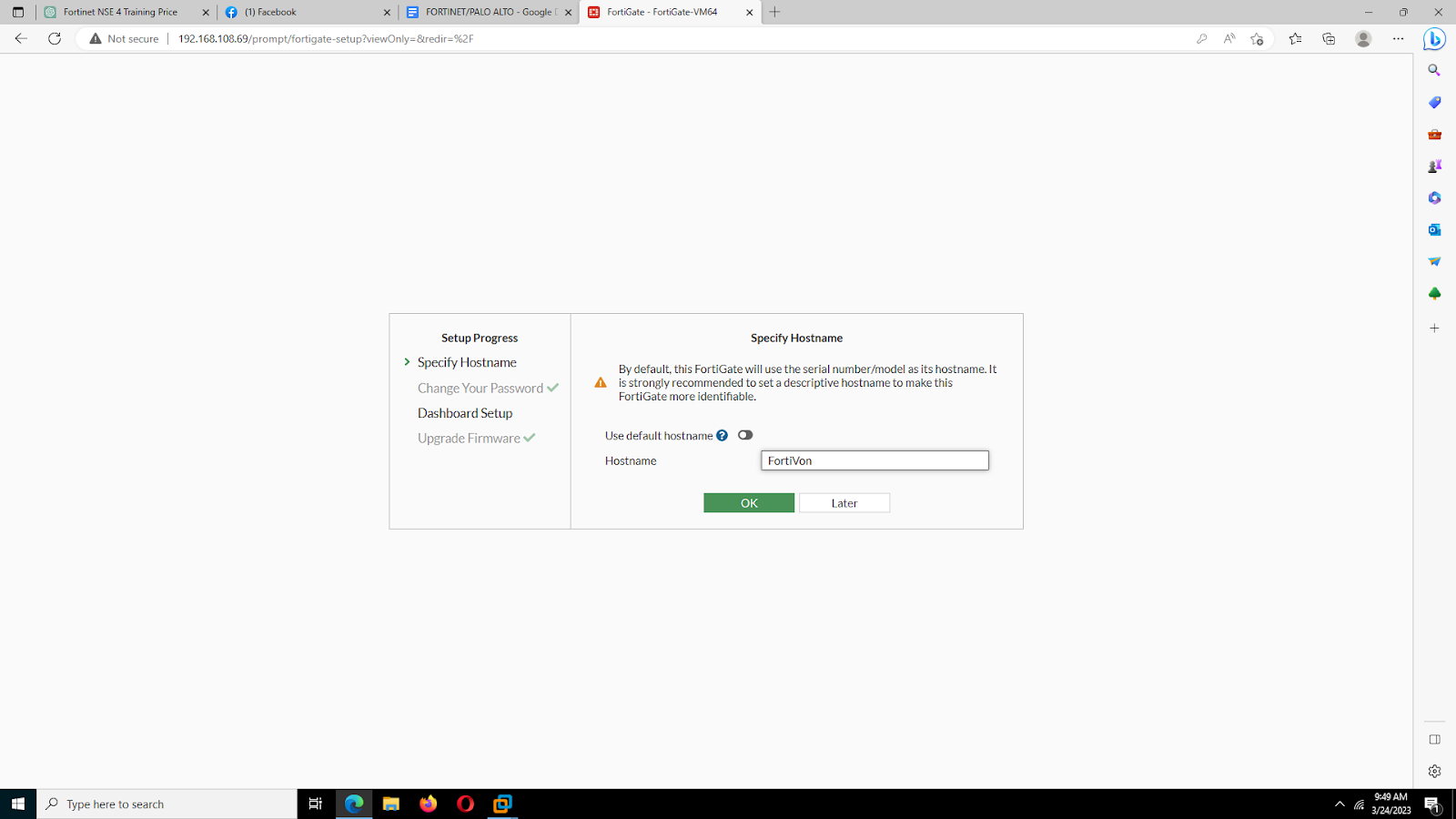

Set the name of your choice then click OK.

Click OK.
pasted image 0.png

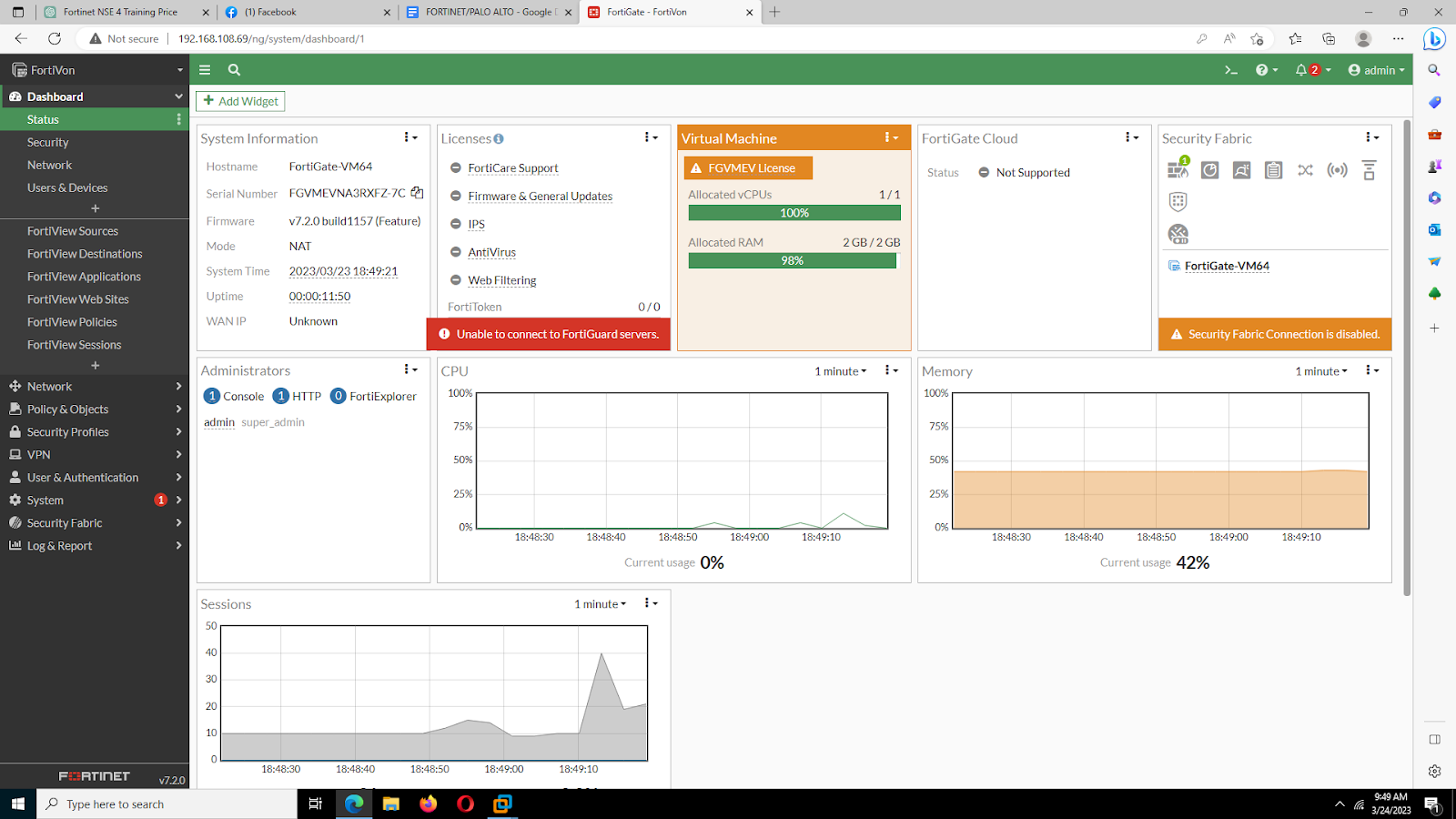

Fortigate Firewall Interface Dashboard.

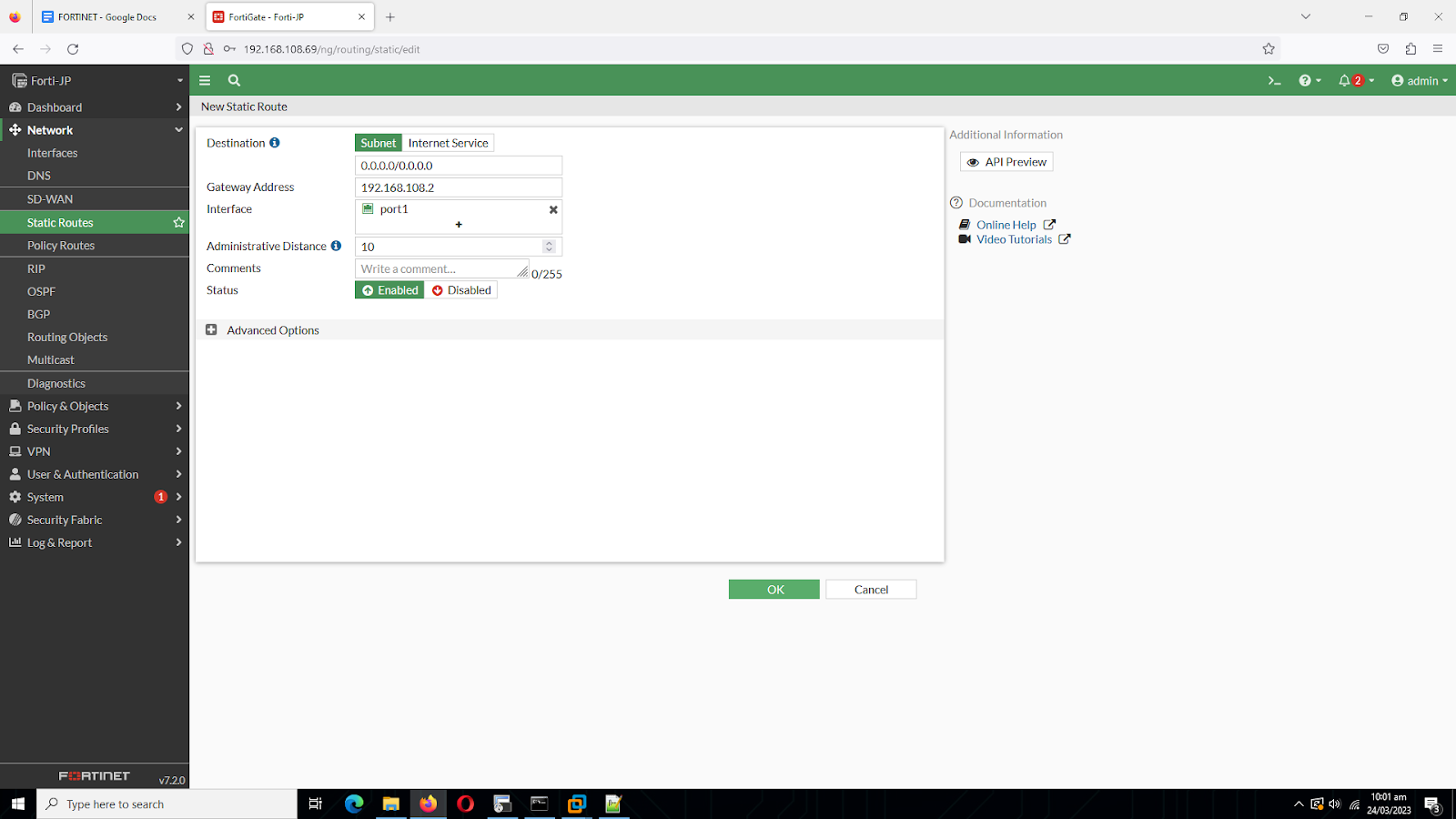

Expand the Network Tab, then select Static Routes, and click Create New.
Set the following configurations below:
Gateway Address: 192.168._.2
Interface: port1
Administrative Distance: 10
Status: Enabled
Save changes by clicking OK.
pasted image 0.png

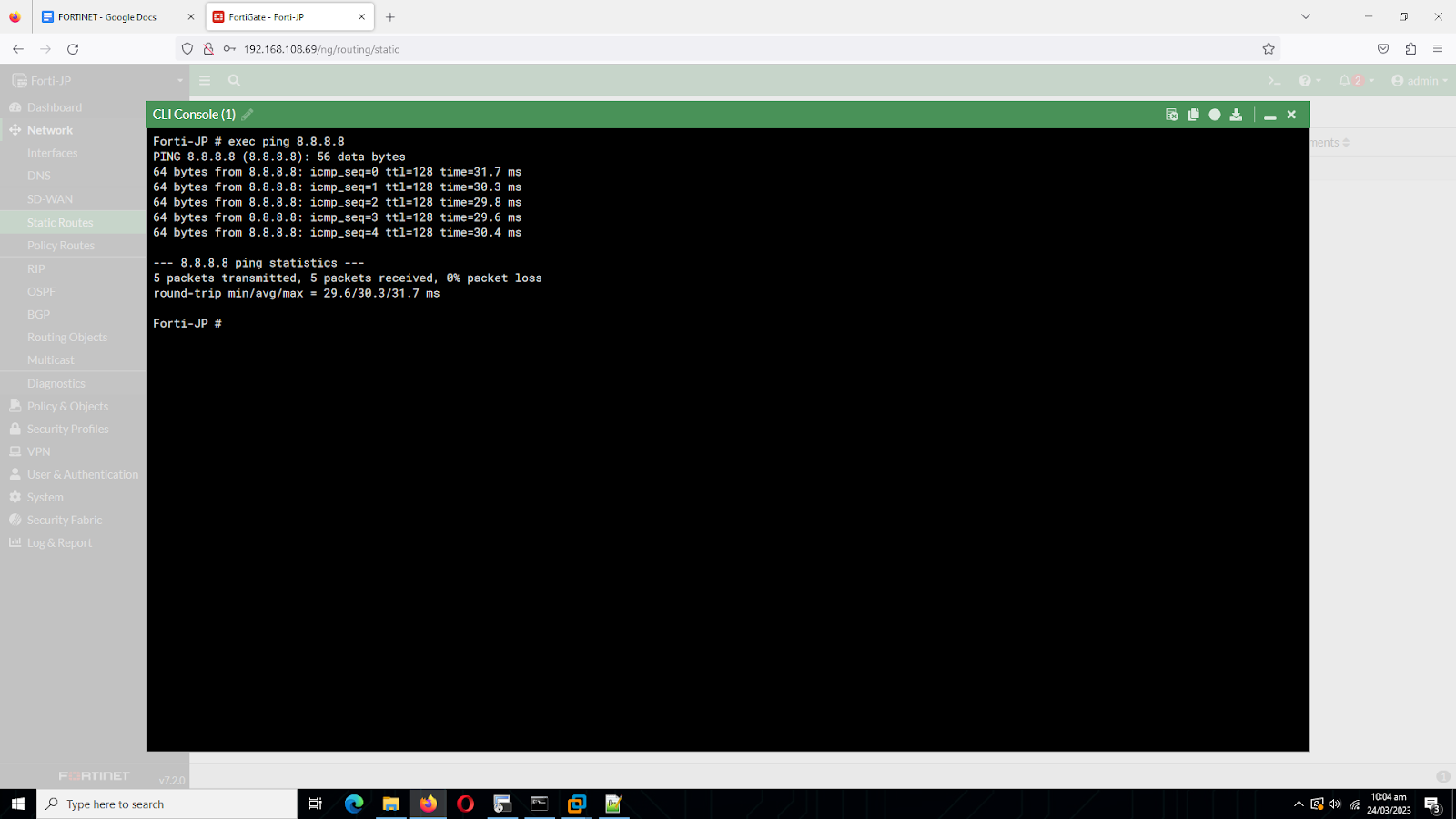

Ping 8.8.8.8 to the CLI of the Fortigate to check if internet is existing.
exec ping 8.8.8.8
pasted image 0.png

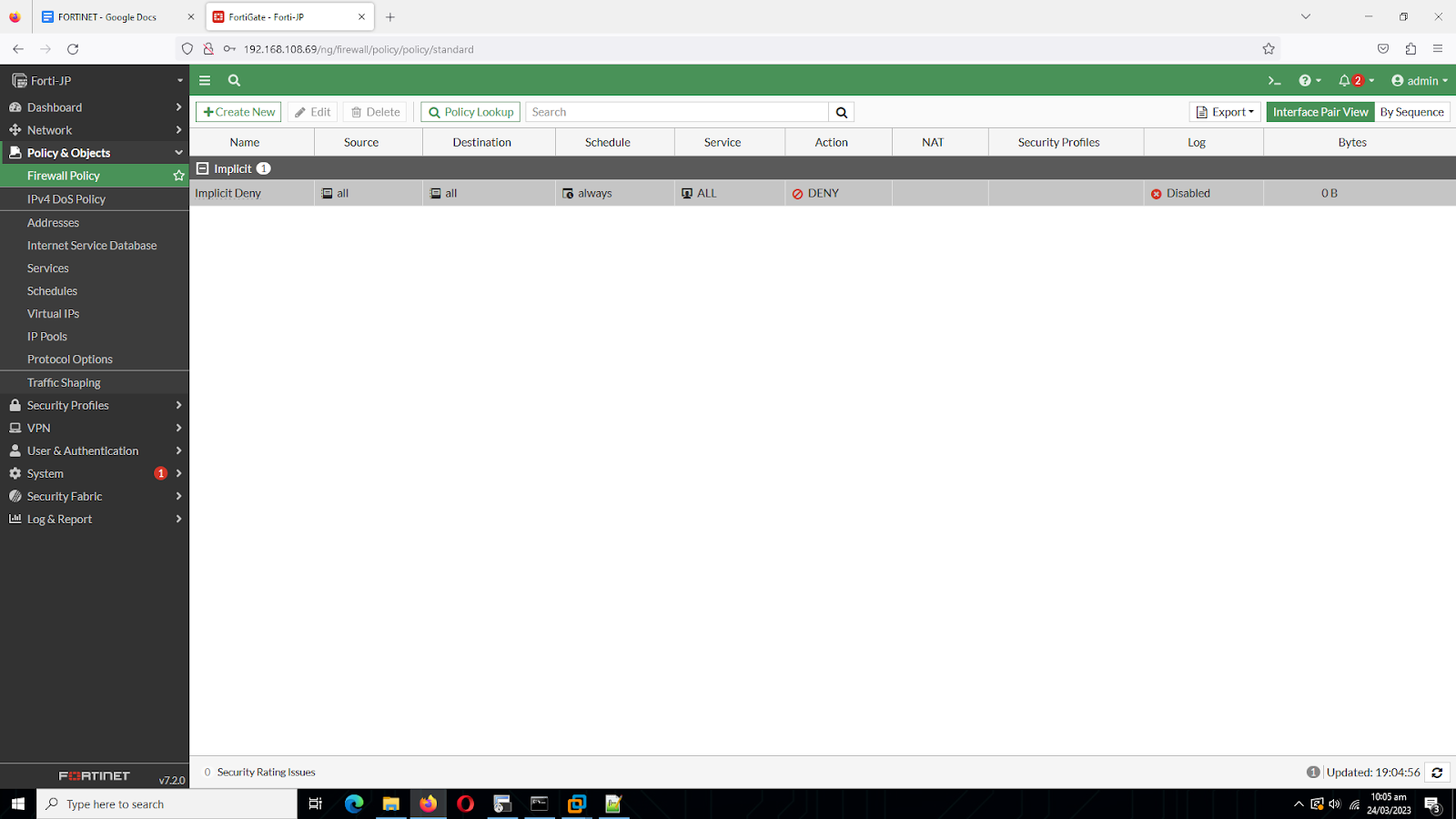

Expand the Policy & Objects Tab, and select Firewall Policy.
Click Create New.
pasted image 0.png

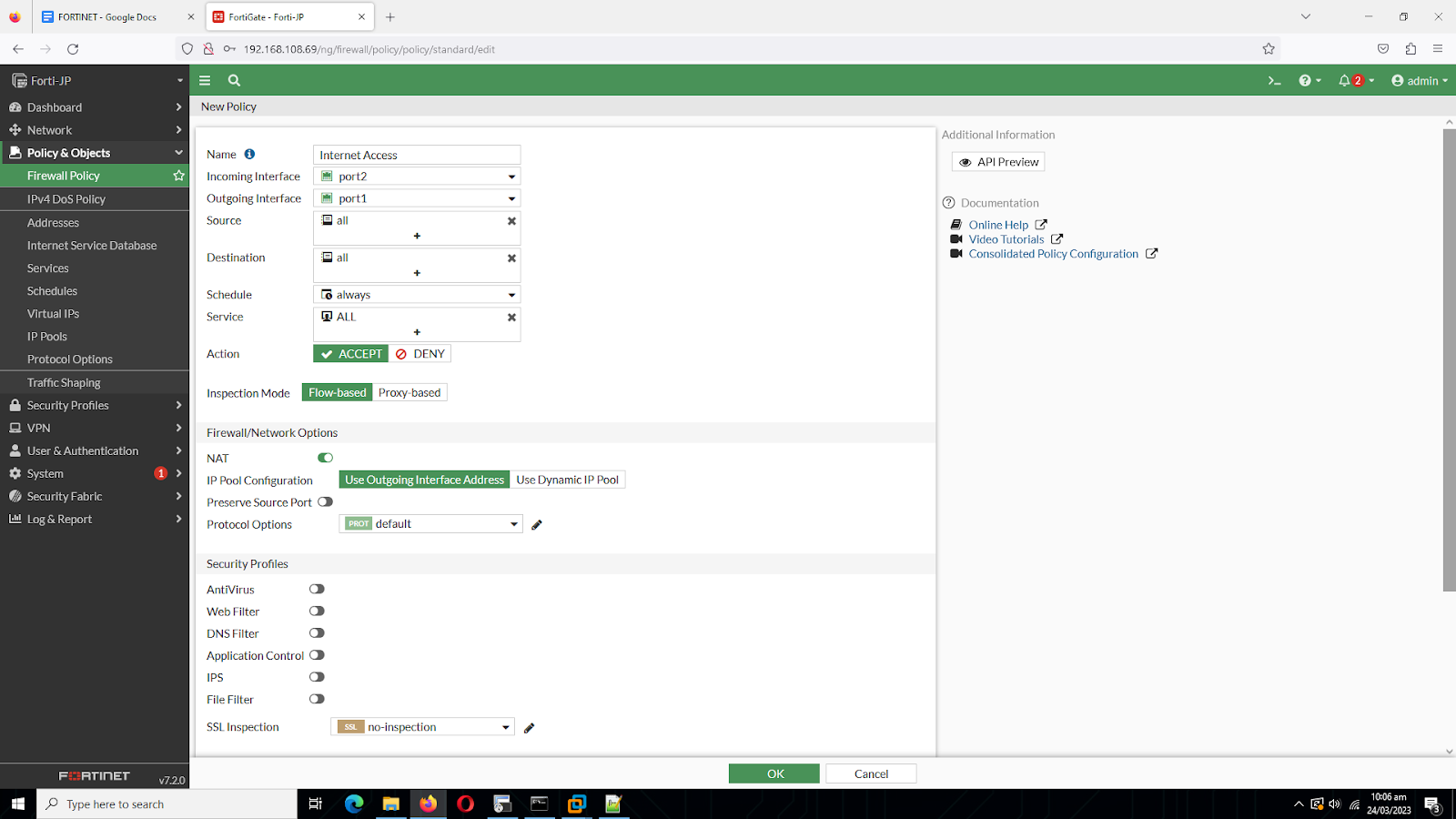

Set the following configuration:
Name: <you select>
Incoming Interface: port2
Outgoing Interface: port1
Source: all
Destination: all
Schedule: always
Service: ALL
Action: ✔ ACCEPT
NAT: Enable

Others are default. Click OK to save changes.
pasted image 0.png

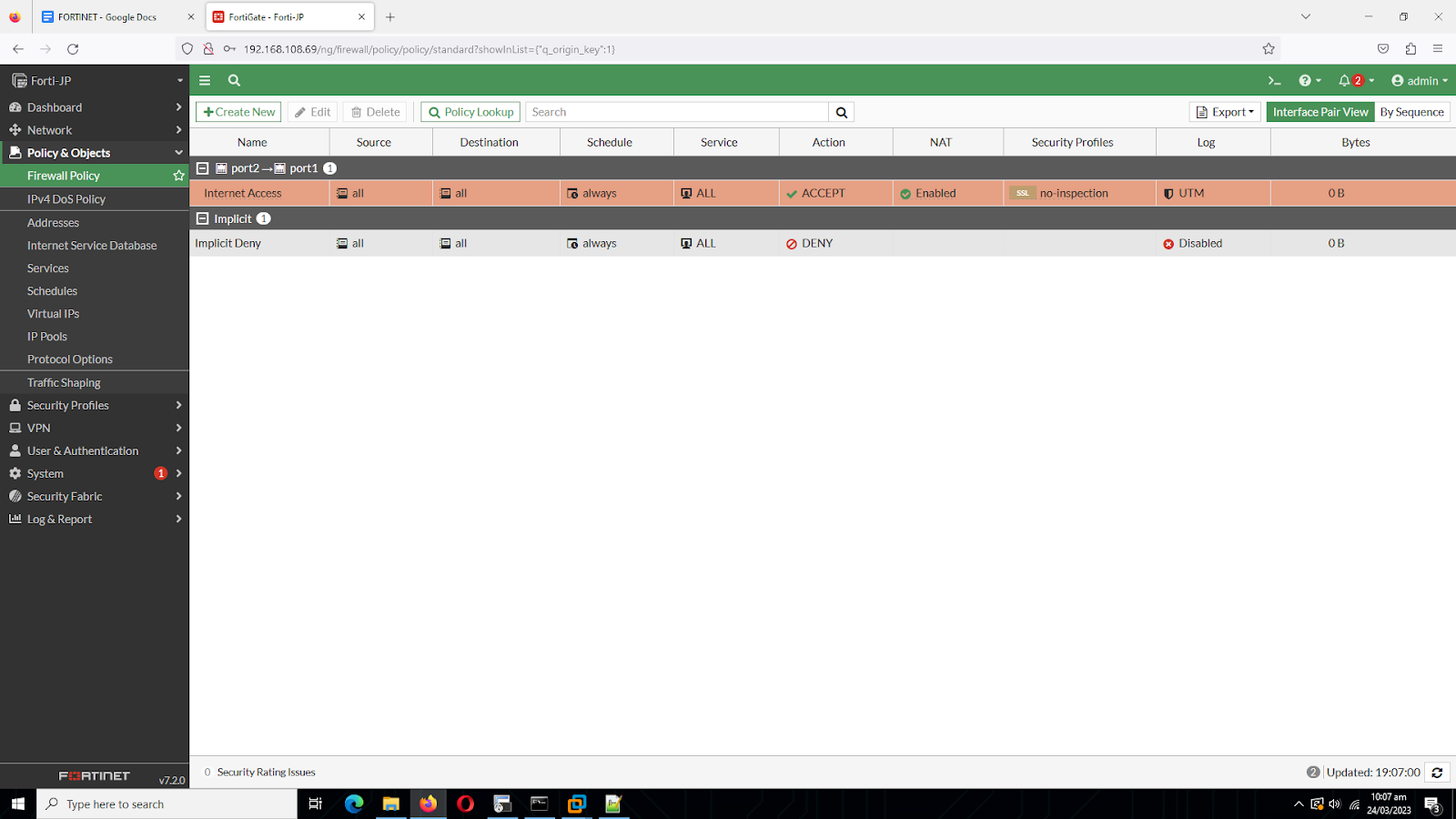

Policy saved.
pasted image 0.png

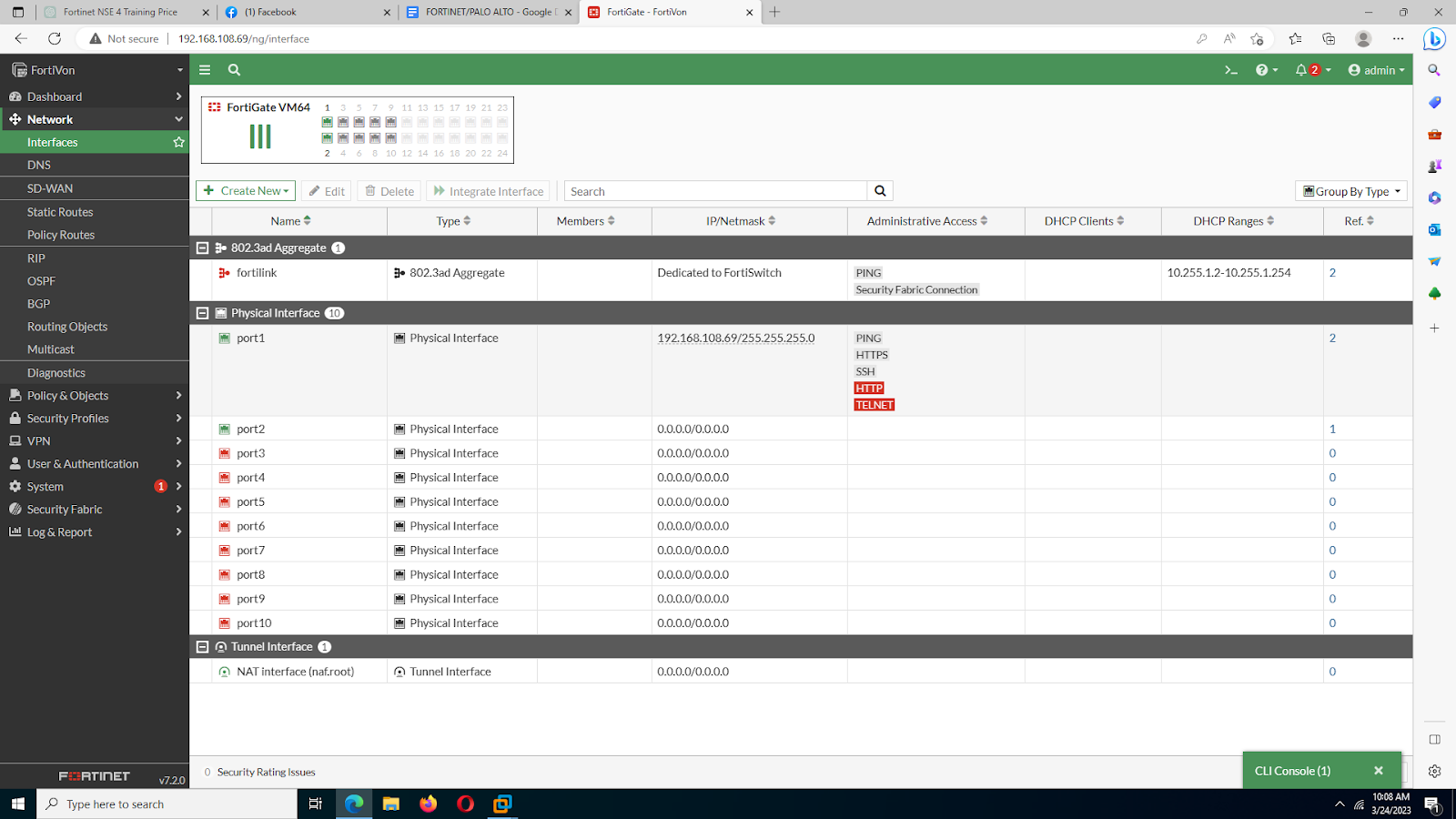

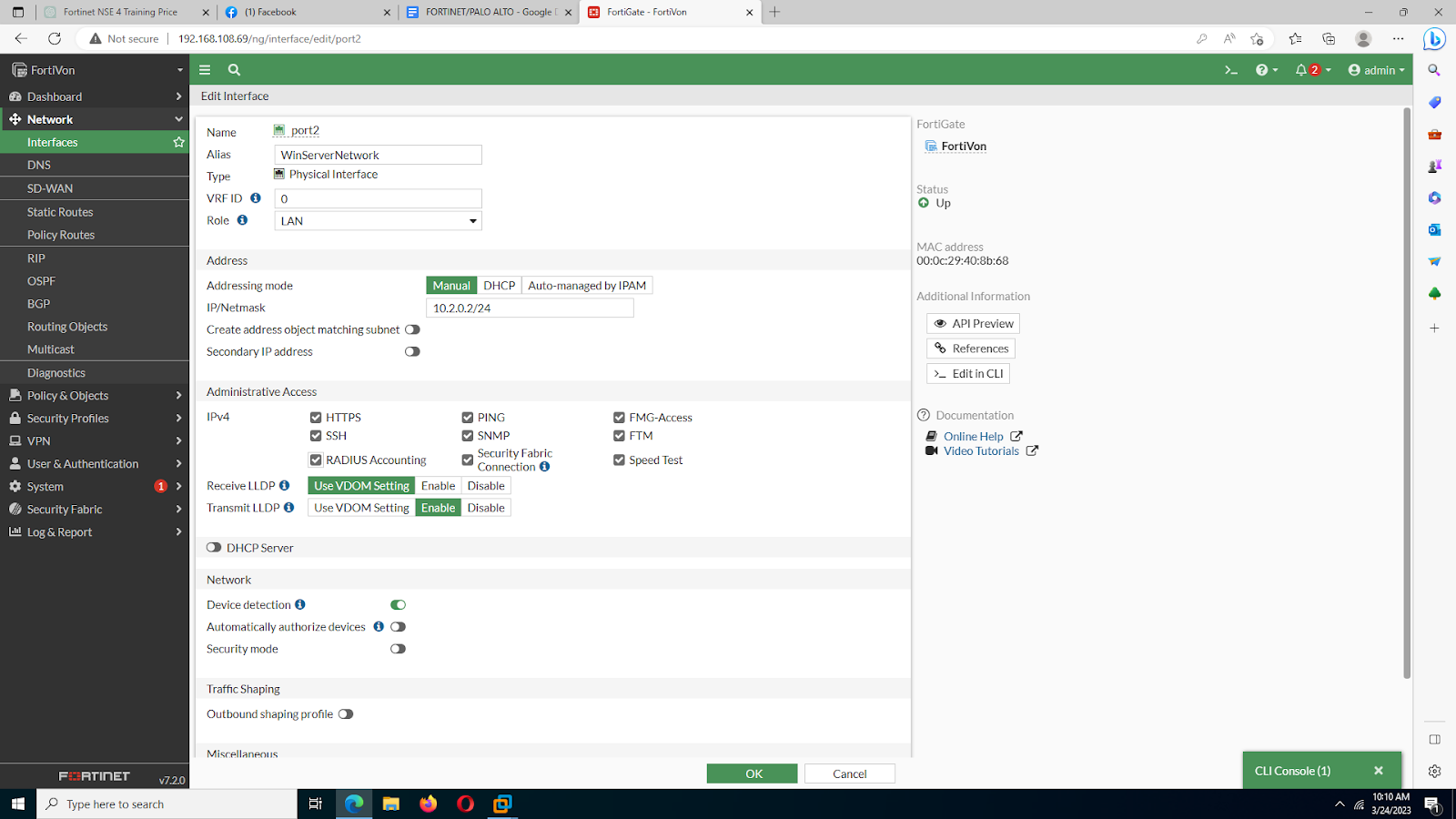

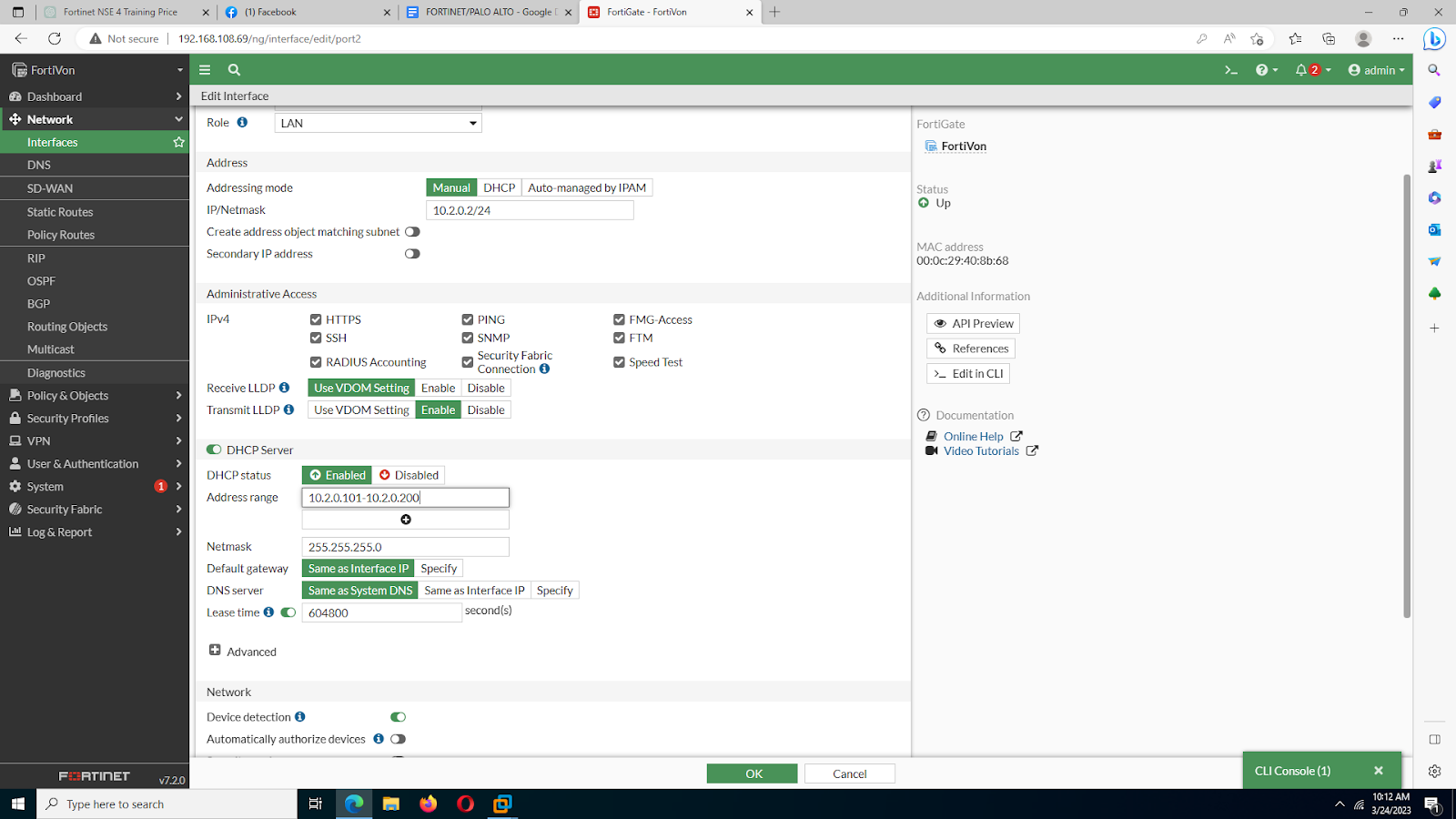

Expand the Network Tab, and select port2.

Set the following configurations:
Alias: WinServerNetwork
Type: Physical Interface
Role: LAN
Addressing Mode: Manual
IP/Netmask: 10.2.0.2/24
IPV4: ✔ (check all options)

Scroll down and set the following configurations:
**Enable DHCP Server**

DHCP status: Enable
Address range: 10.2.0.101-10.2.0.200
Netmask: 255.255.255.0

Others are default. Click OK to save changes.

Back to your Windows Server, press Windows+R key to enter Run.
Type this to go to your Network :
ncpa.cpl

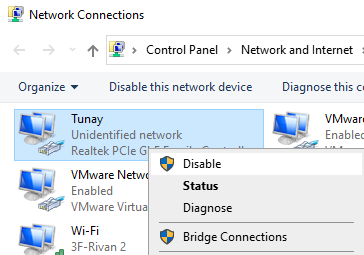

Right click Ethernet Adapter then choose Disable.
Right click again, but this time Enable it.

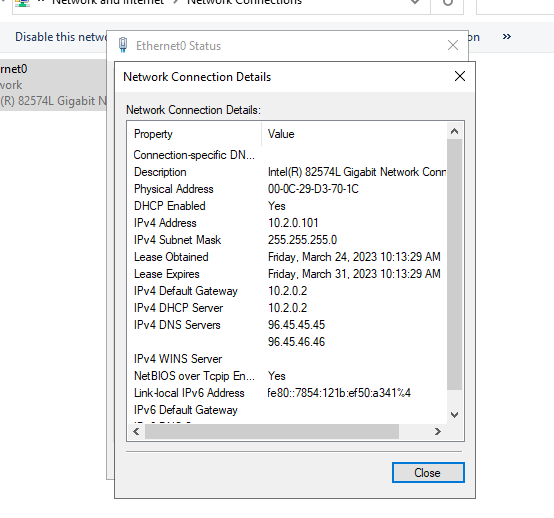

Go to the Properties of your network to check if the Windows Server has an IP Address.


SETUP 6: NGFW - WEB FILTER POLICY

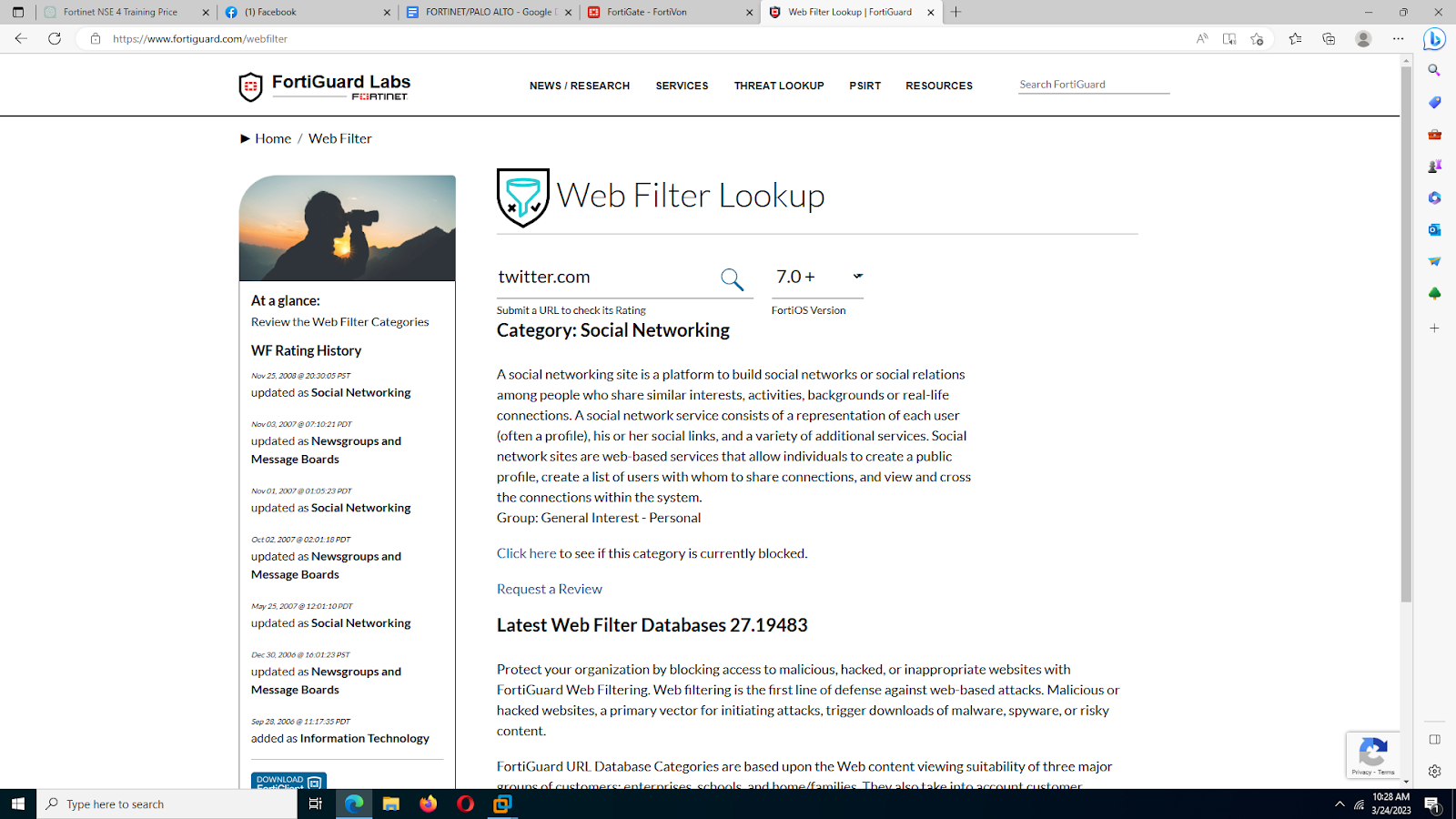

FYTE: Go to this website
Type any website you are familiar with to check the Category.

Go back to your Fortinet, then expand Security Profiles, and select Web Filter.

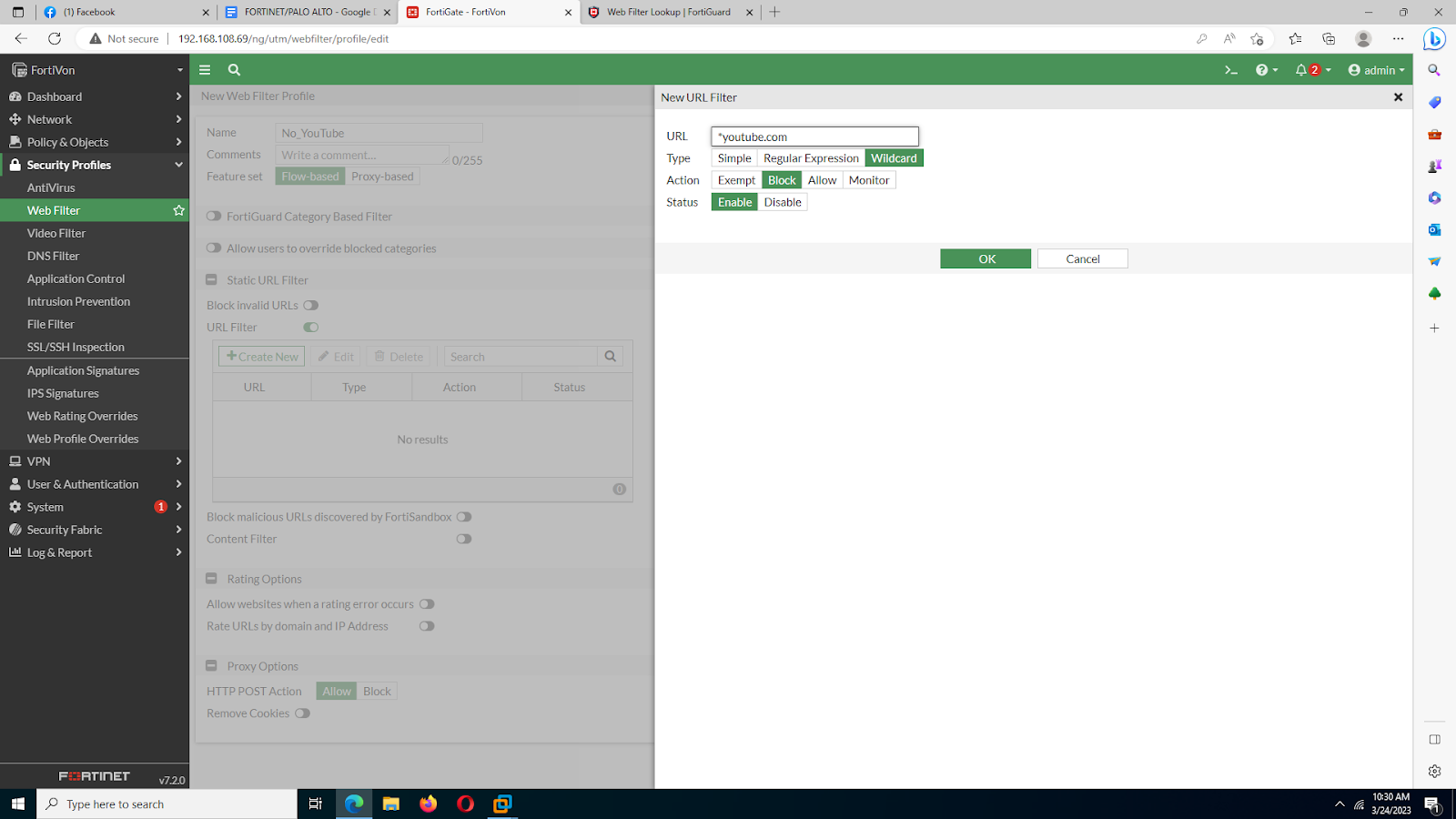

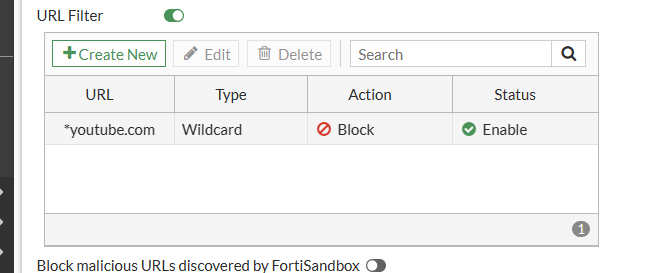

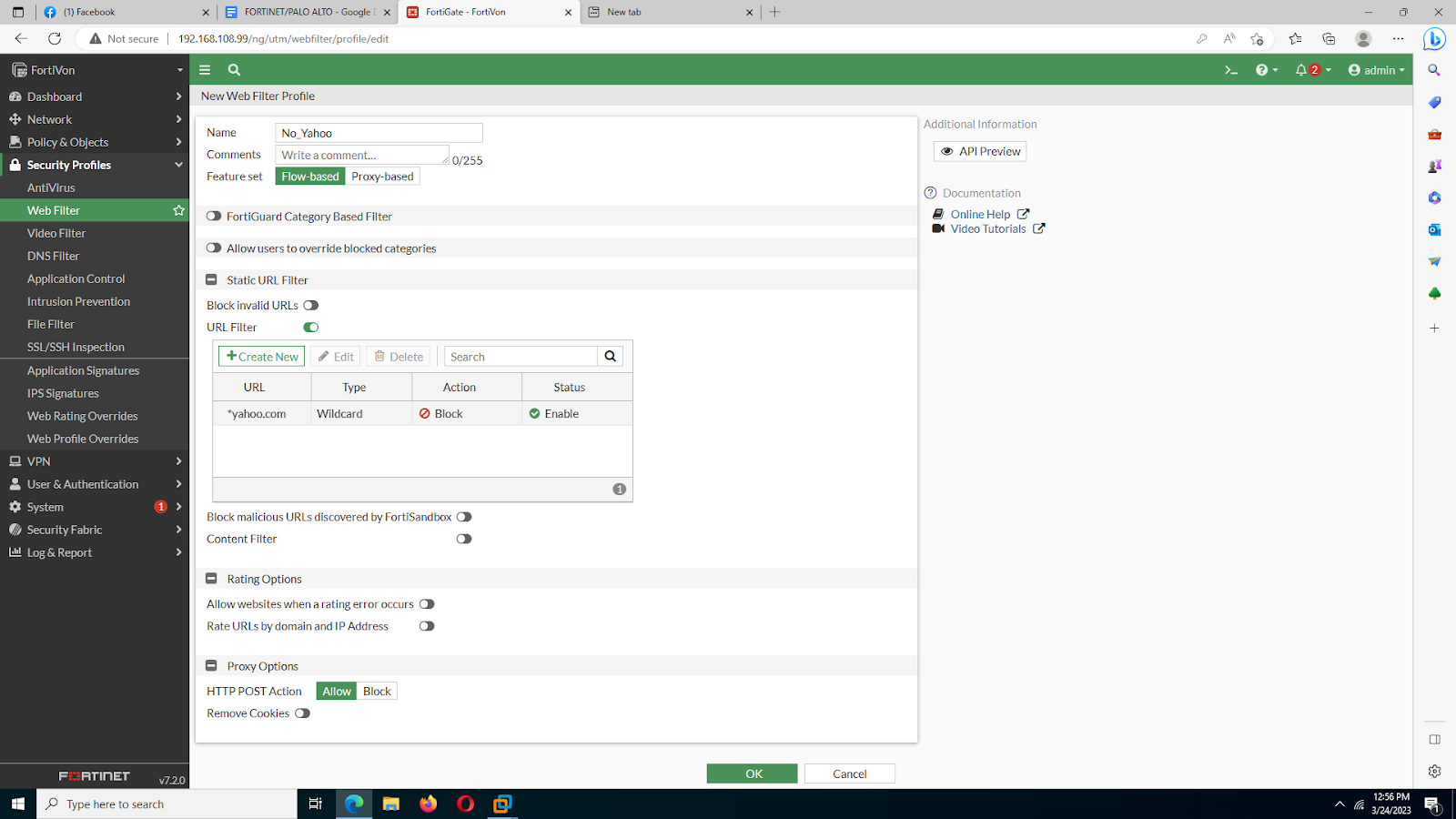

Click Create New, and set the following configurations:
URL: *youtube.com \\don't remove the asterisk\\
Type: Wildcard
Action: Block
Status: Enable
Or you could add the website you’ve searched on the WebFilter Lookup.

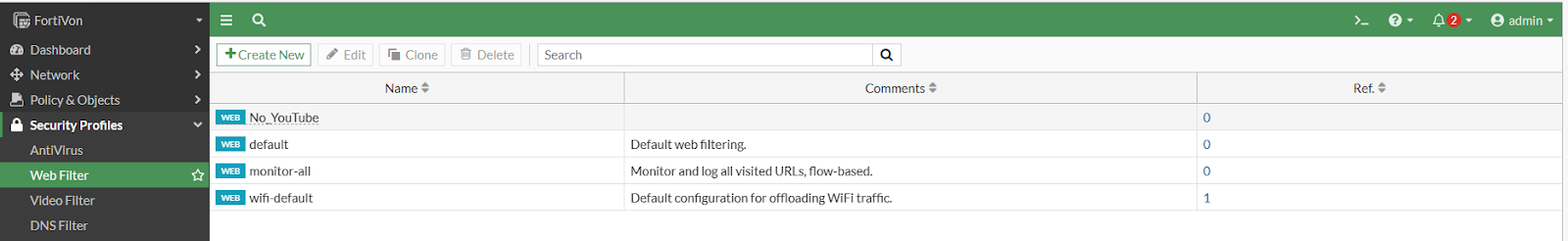

After-save.

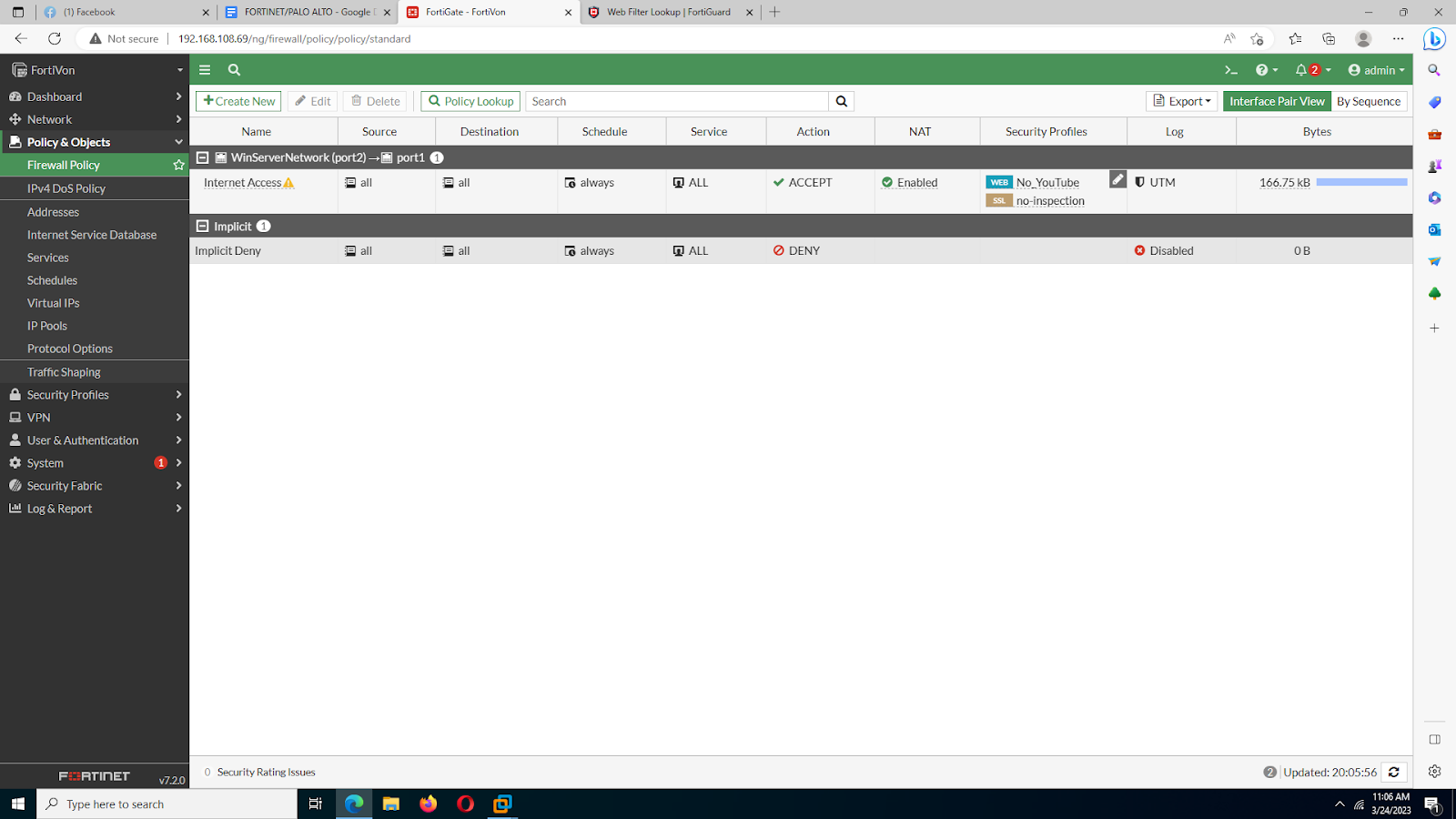

Policy Saved.

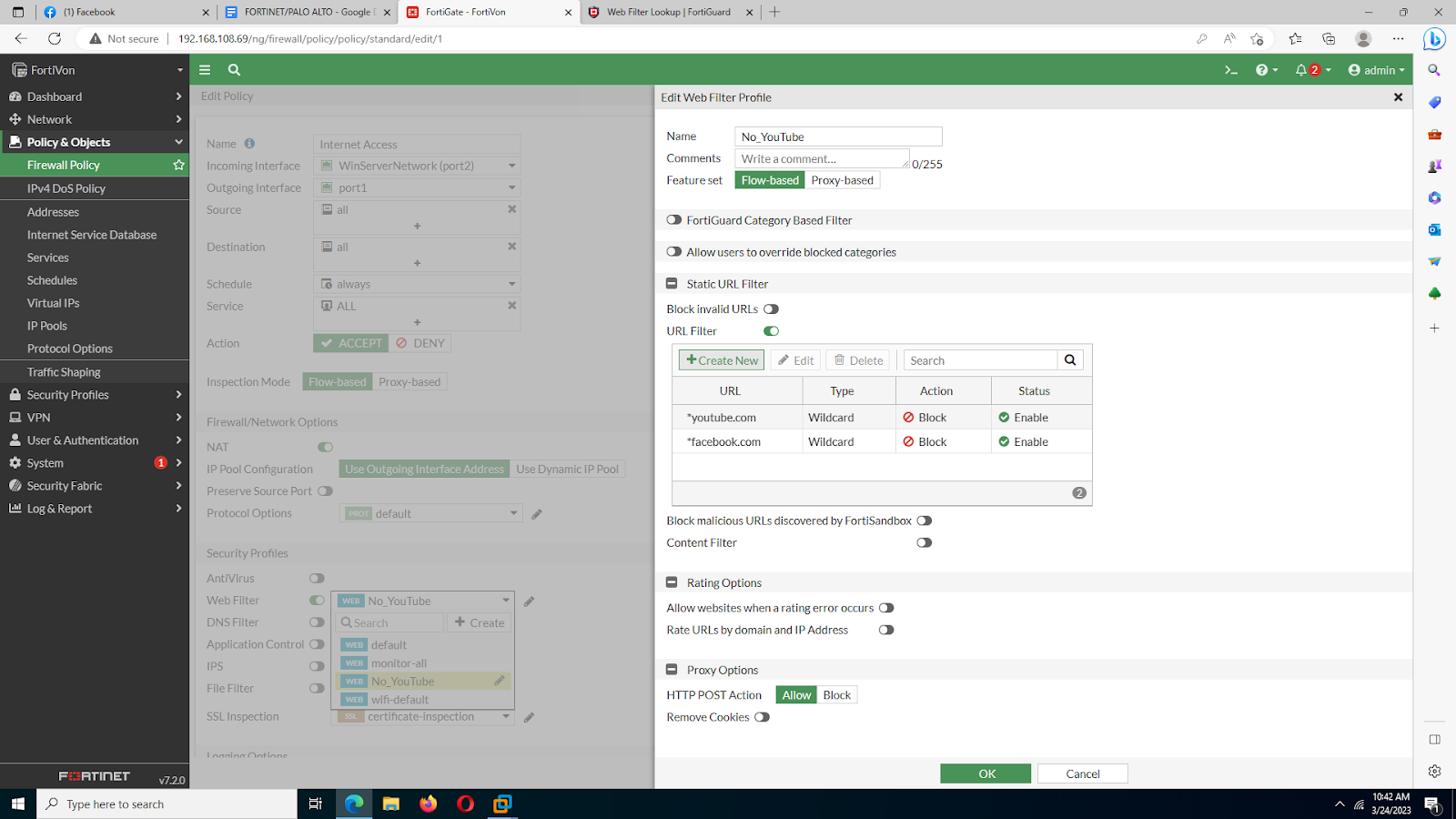

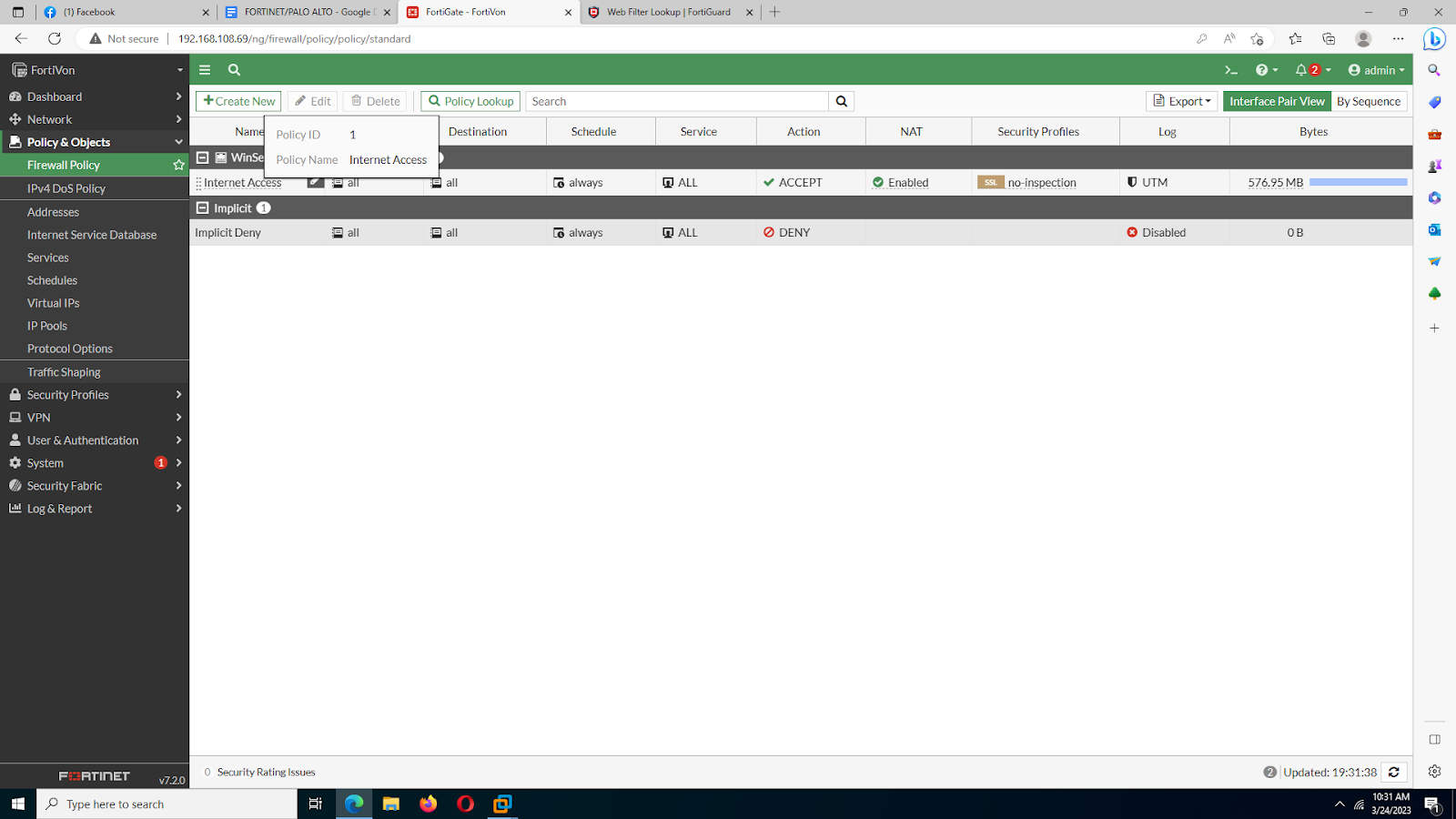

Expand Policy & Objects, and select Firewall Policy.
Double click Internet Access.

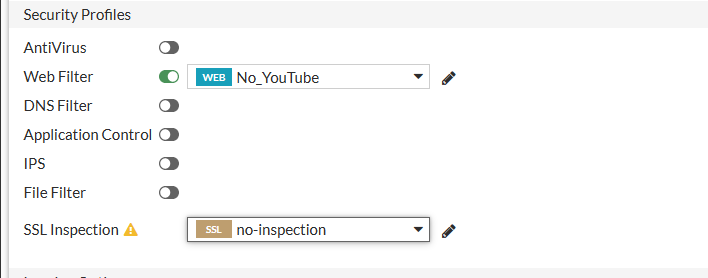

Add this option.
Web Filter: \\the policy you've set on Web Filter, in my case it's called "No_Youtube"\\
SSL Inspection: no-inspection

Go to your Windows Server, and test the website if it’s still accessible or blocked.

Now try adding *facebook.com and test it yourself.


SETUP 7: NGFW - DNS FILTER

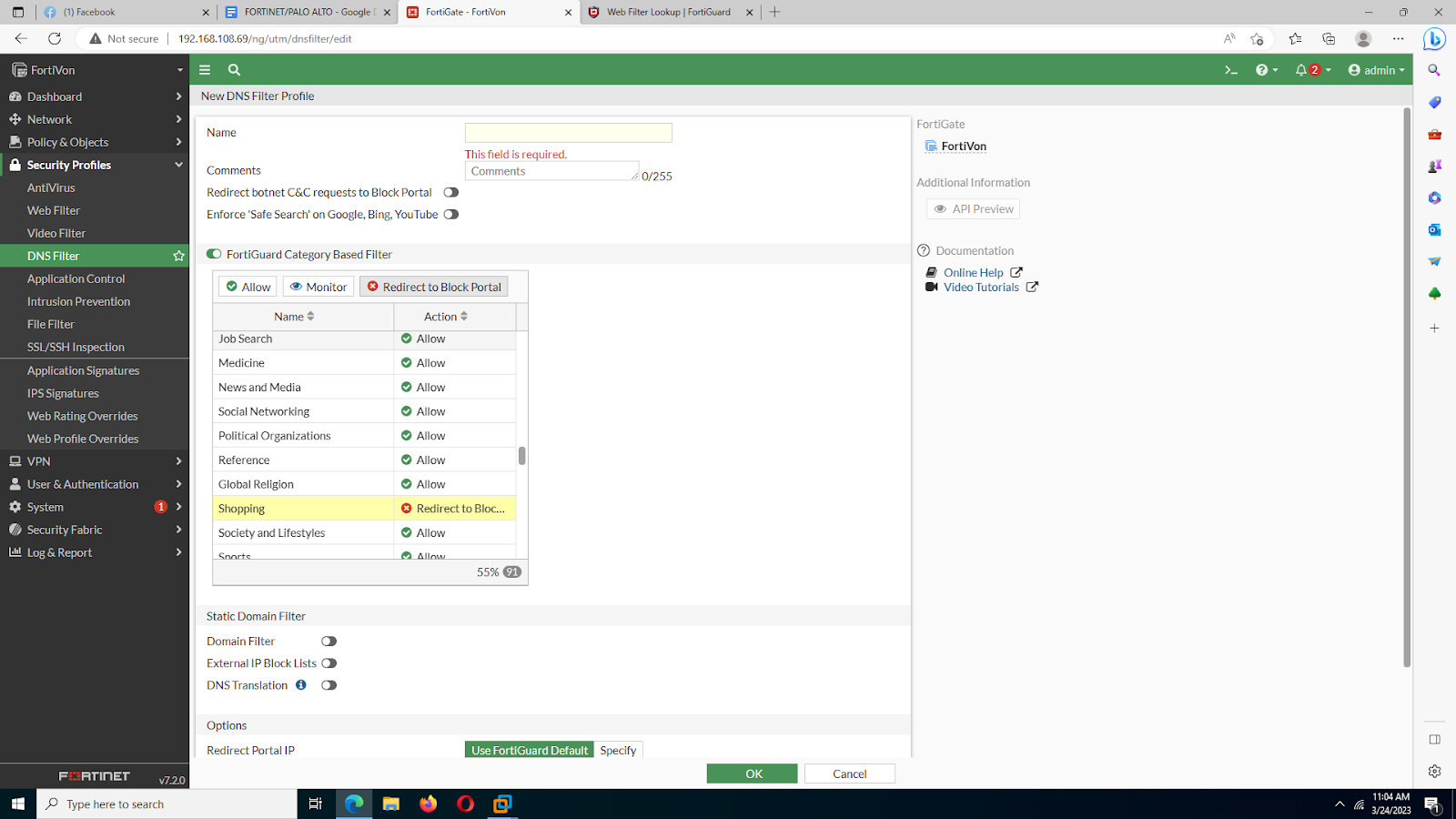

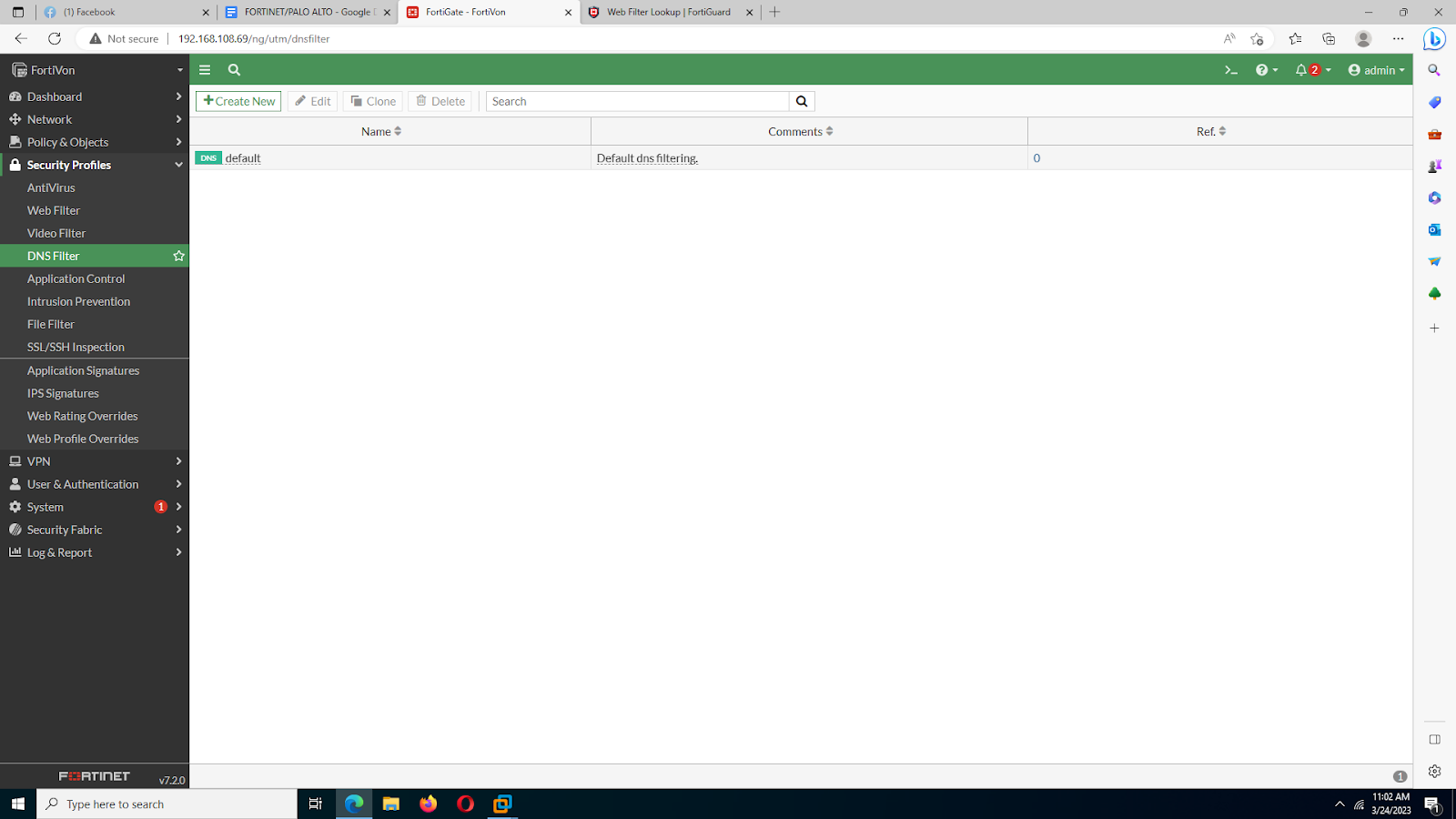

Expand the Security Profiles Tab, and select DNS Filter.

Click Create New. Set the name to as No_Shopping.
Find the Category named Shopping, then click “Redirect to Block Portal” above.

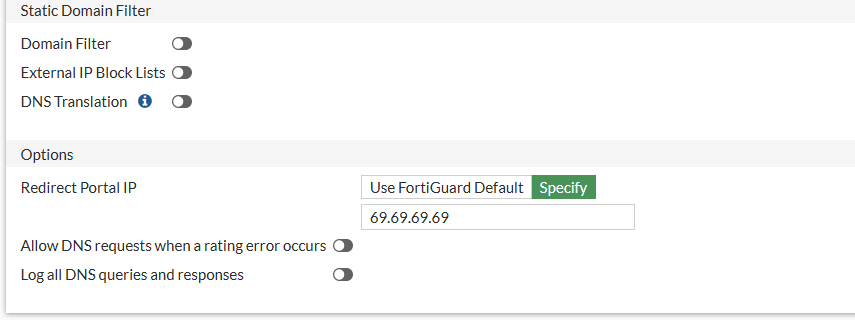

Find Redirect to Portal IP below.
Click “Specify”, and set the IP Address to 69.69.69.69, save changes by clicking OK.

Go back to Policy and Objects, and select Firewall Policy.

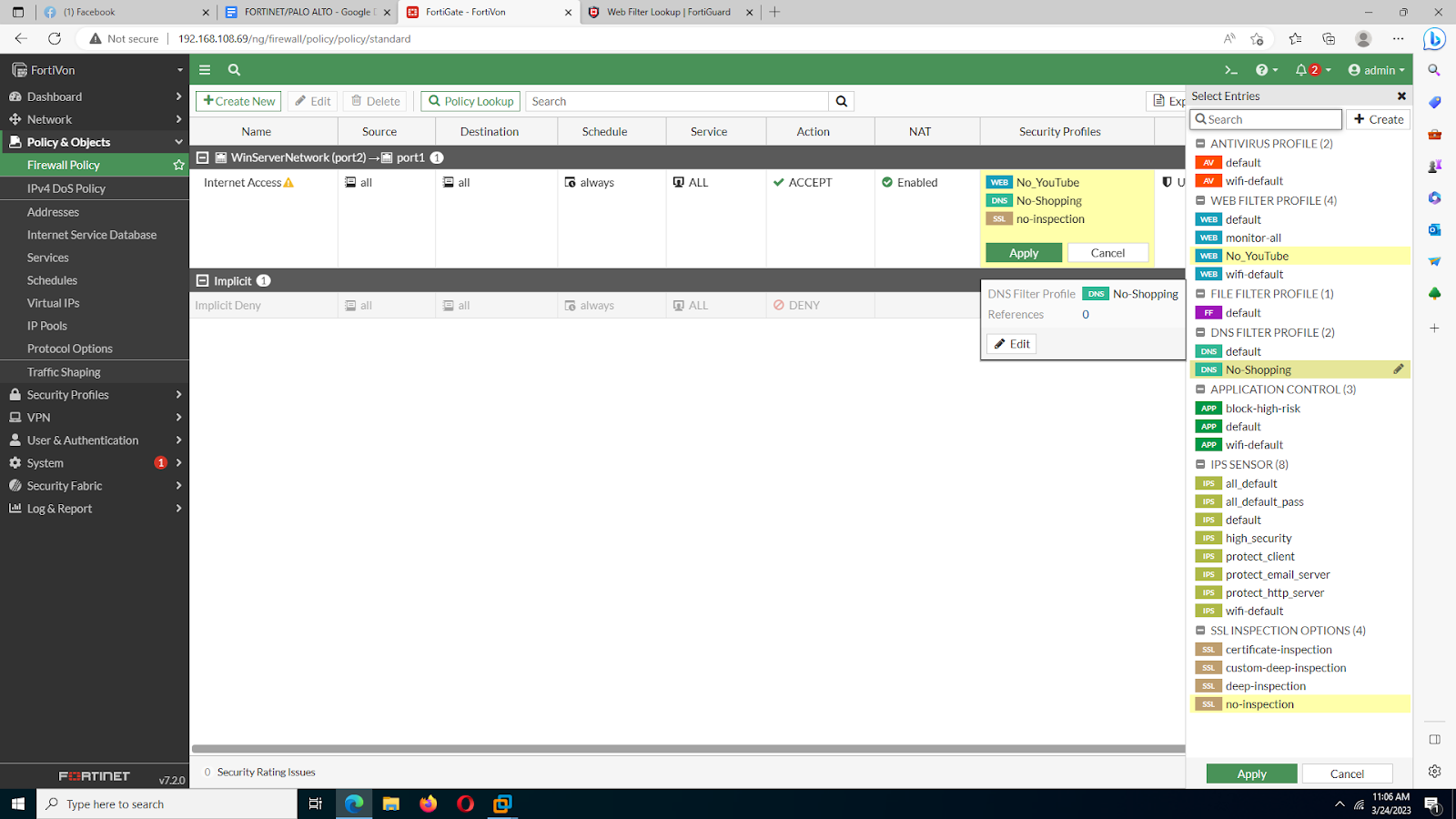

Select the pen icon under Security Profiles column, and then choose the No_Shopping you set at DNS Filter. Save it by clicking Apply.

Go back to your Windows Server, and then check some websites that is associated with Shopping to see if it is still accessible or blocked. You can use the to check the category of the website.

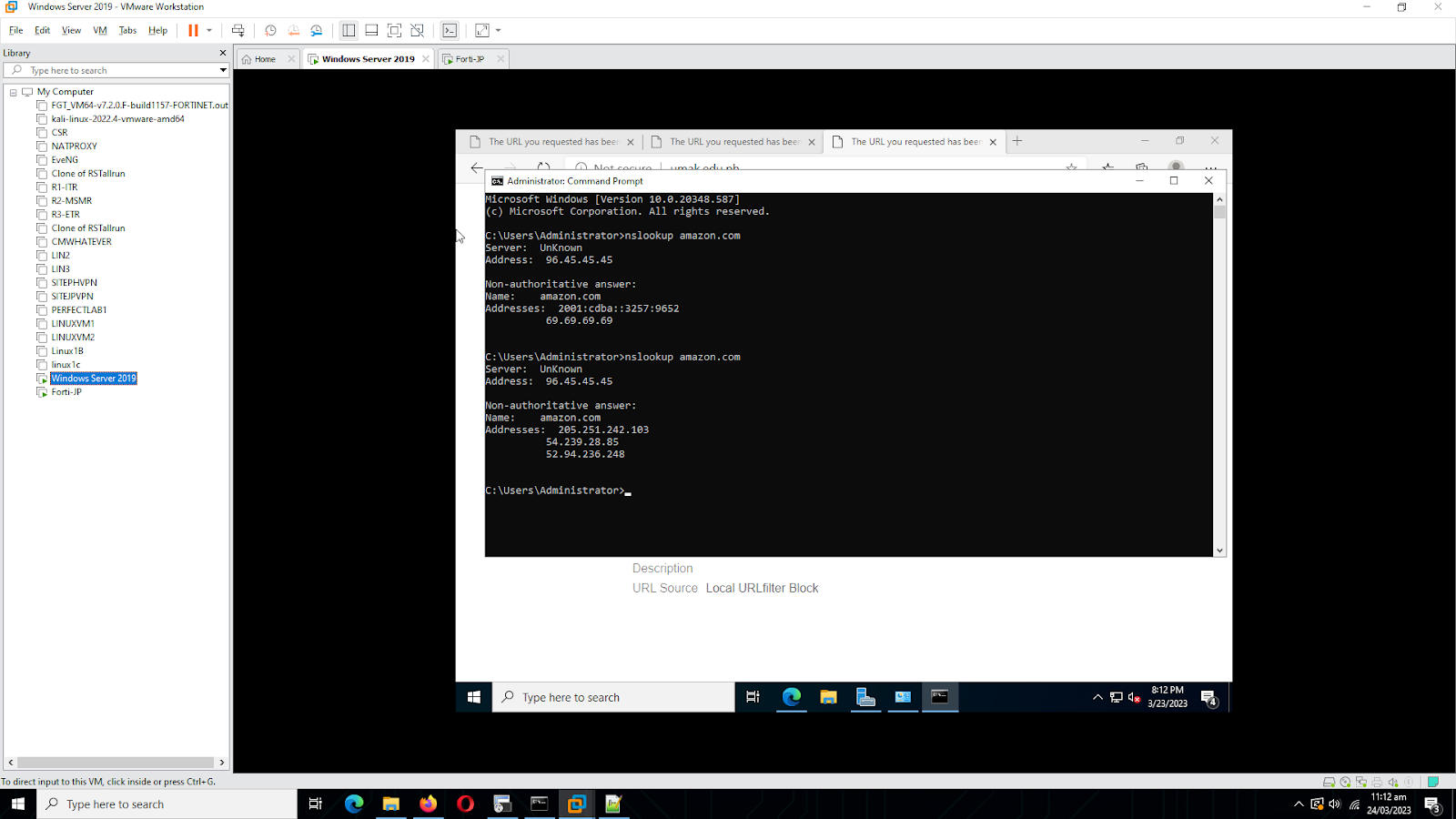

Whether it works or not, you can just simply just check by opening the Command Prompt and typing this command:
nslookup <url>
pasted image 0.png
If you see the IP address 69.69.69.69, that means the policy works.


SETUP 8: NGFW - APPLICATION CONTROL

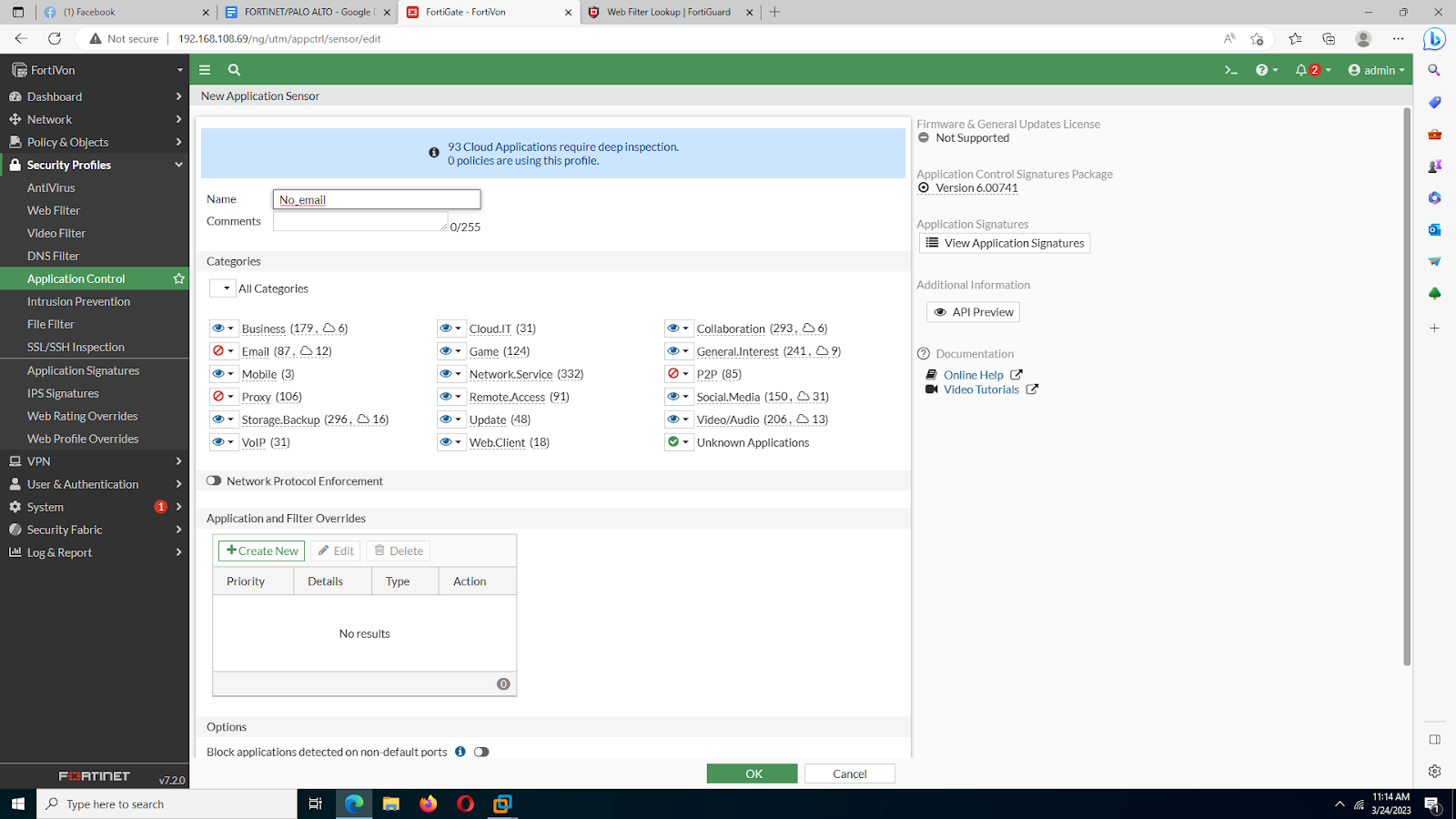

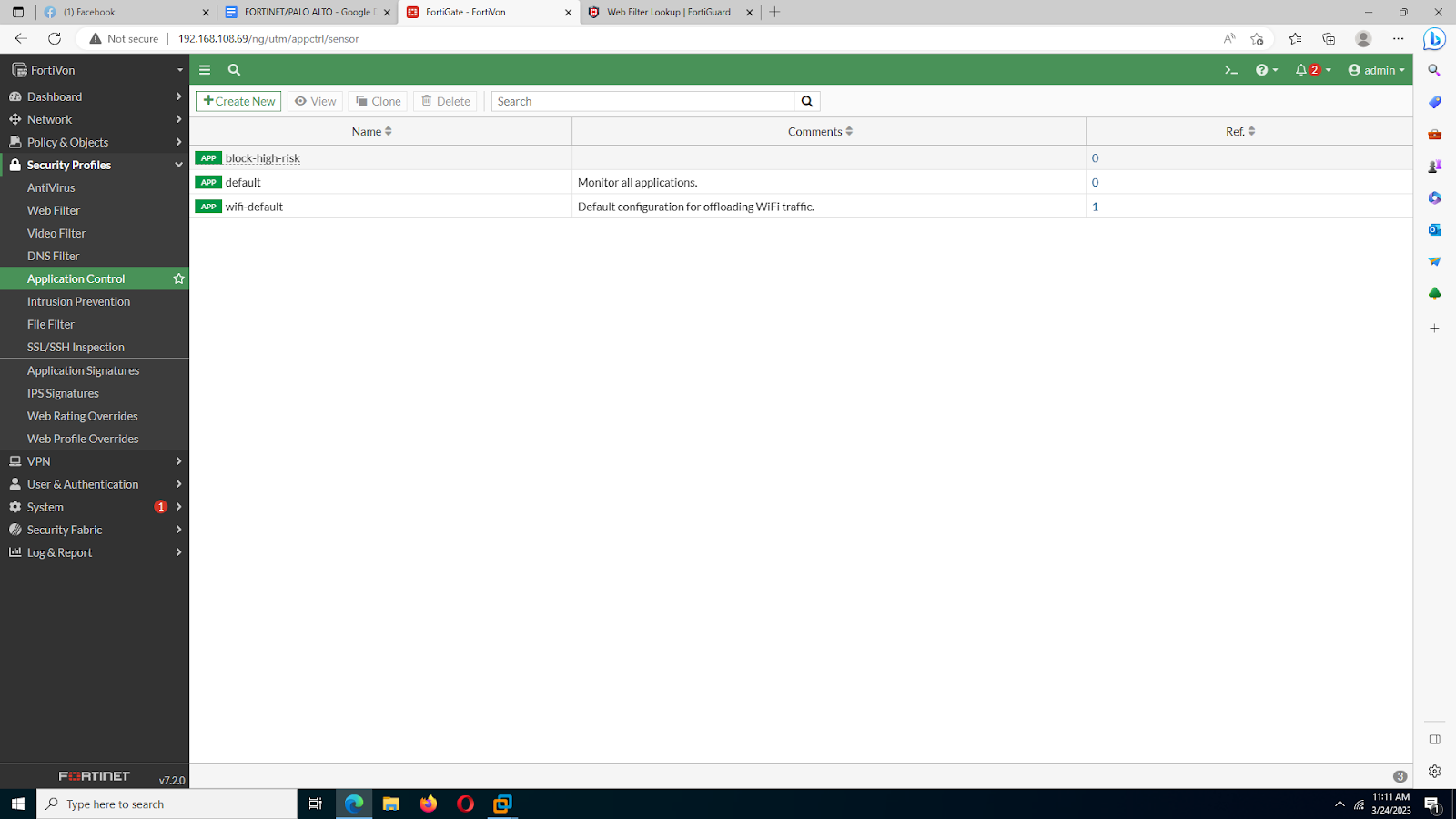

Expand the Security Profiles, and then select Application Control.

Click Create New.
Name the Profile as No_Email.
Find Email Category. Click the eye icon and change it to Block/Disallow.

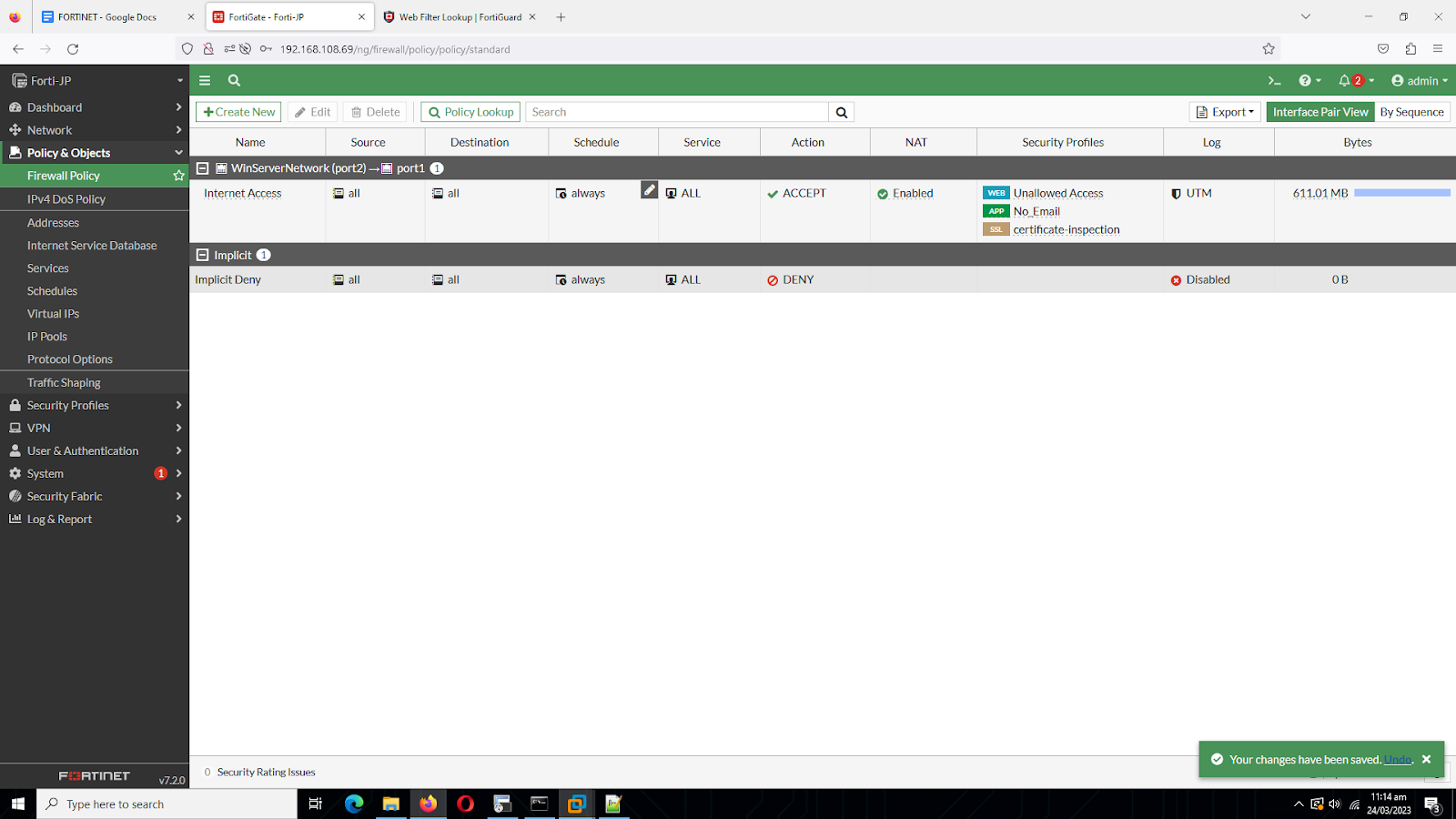

Select the pen icon under Security Profiles column, and then choose the No_Email you set at Application Control. Save it by clicking Apply.
pasted image 0.png

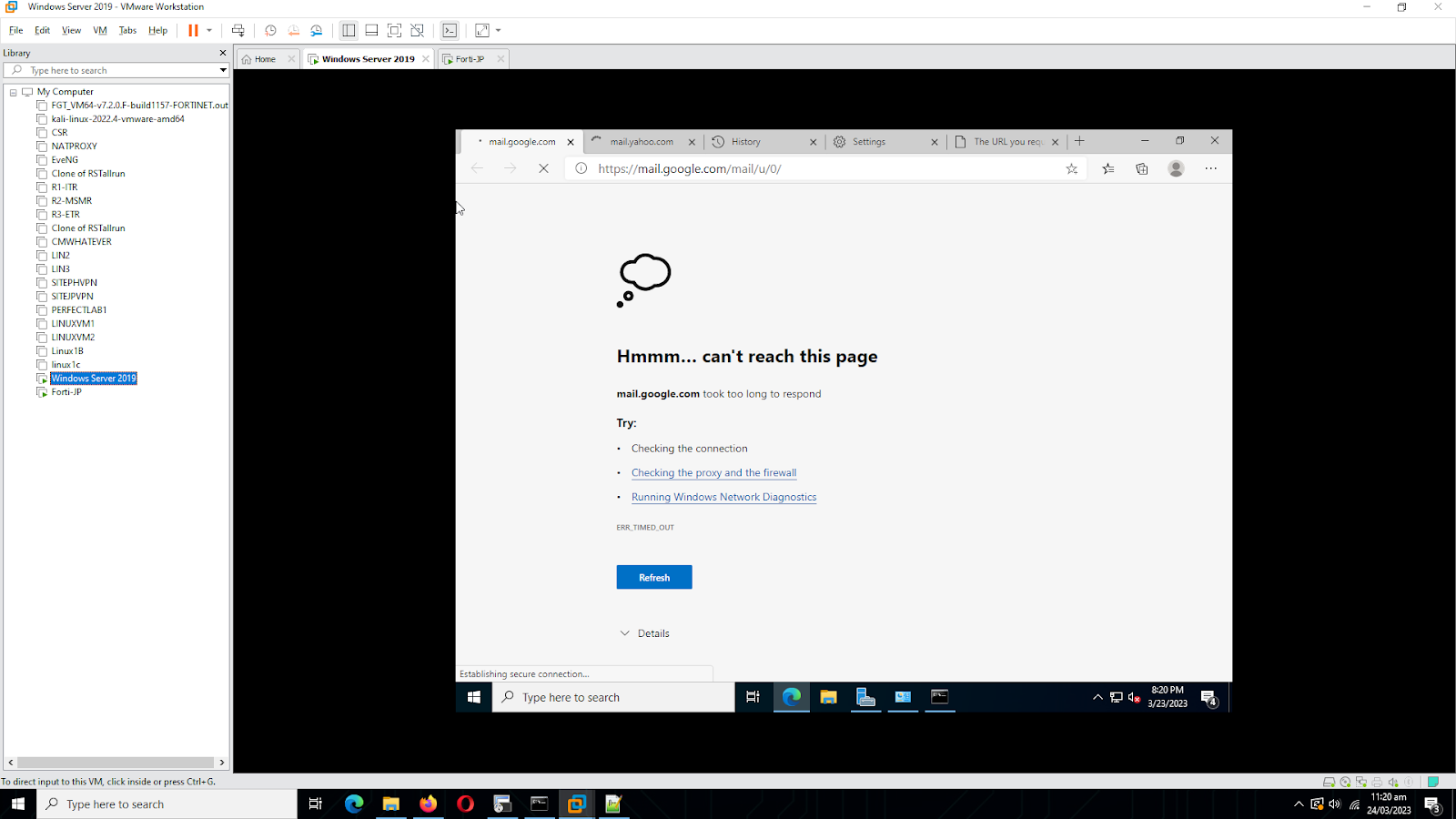

Test some website related to Emails if it is still accessible or blocked. You can use the to check the category of the website.
pasted image 0.png

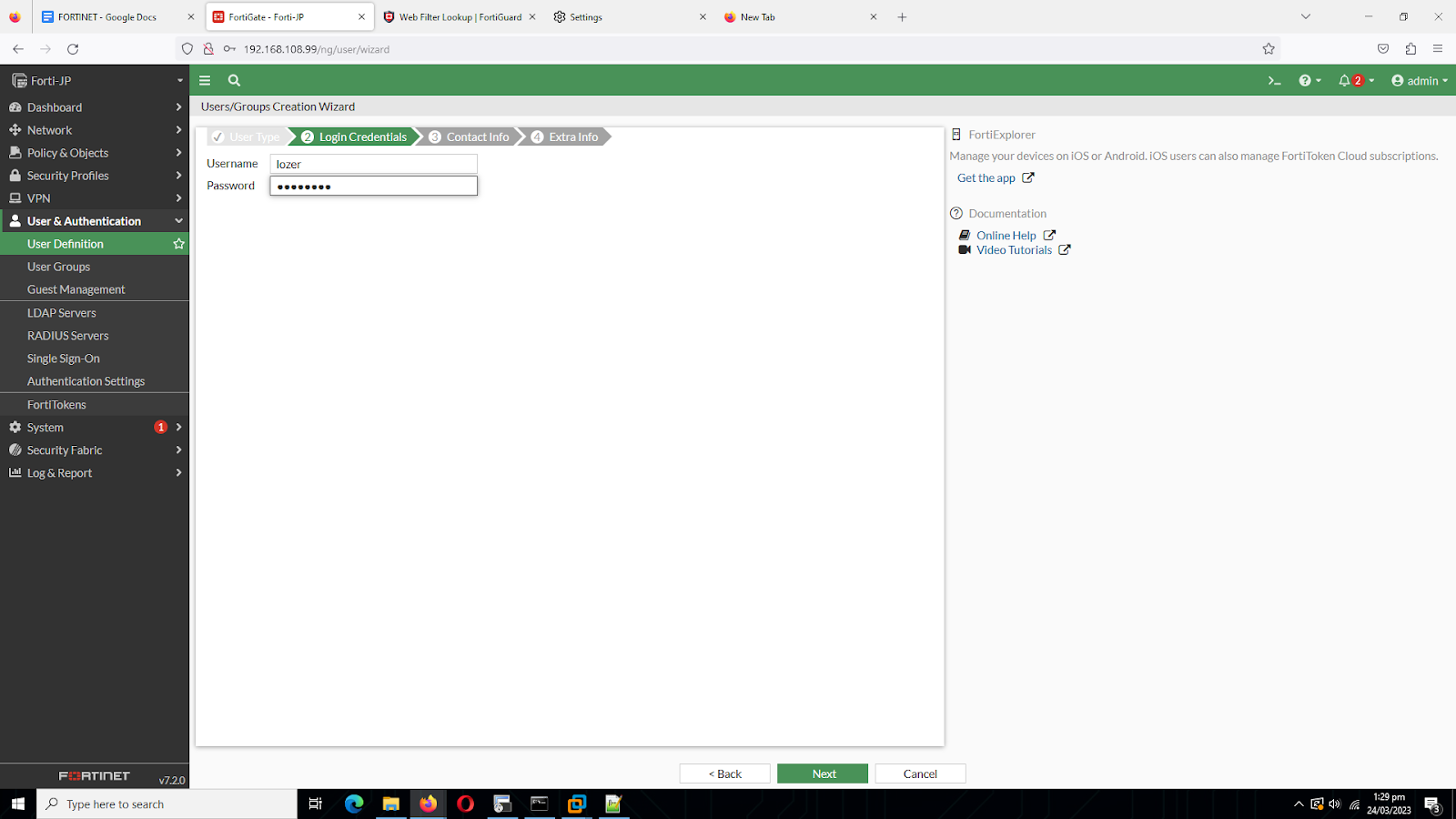

SETUP 9: USER AUTHENTICATION (Basic Setup)

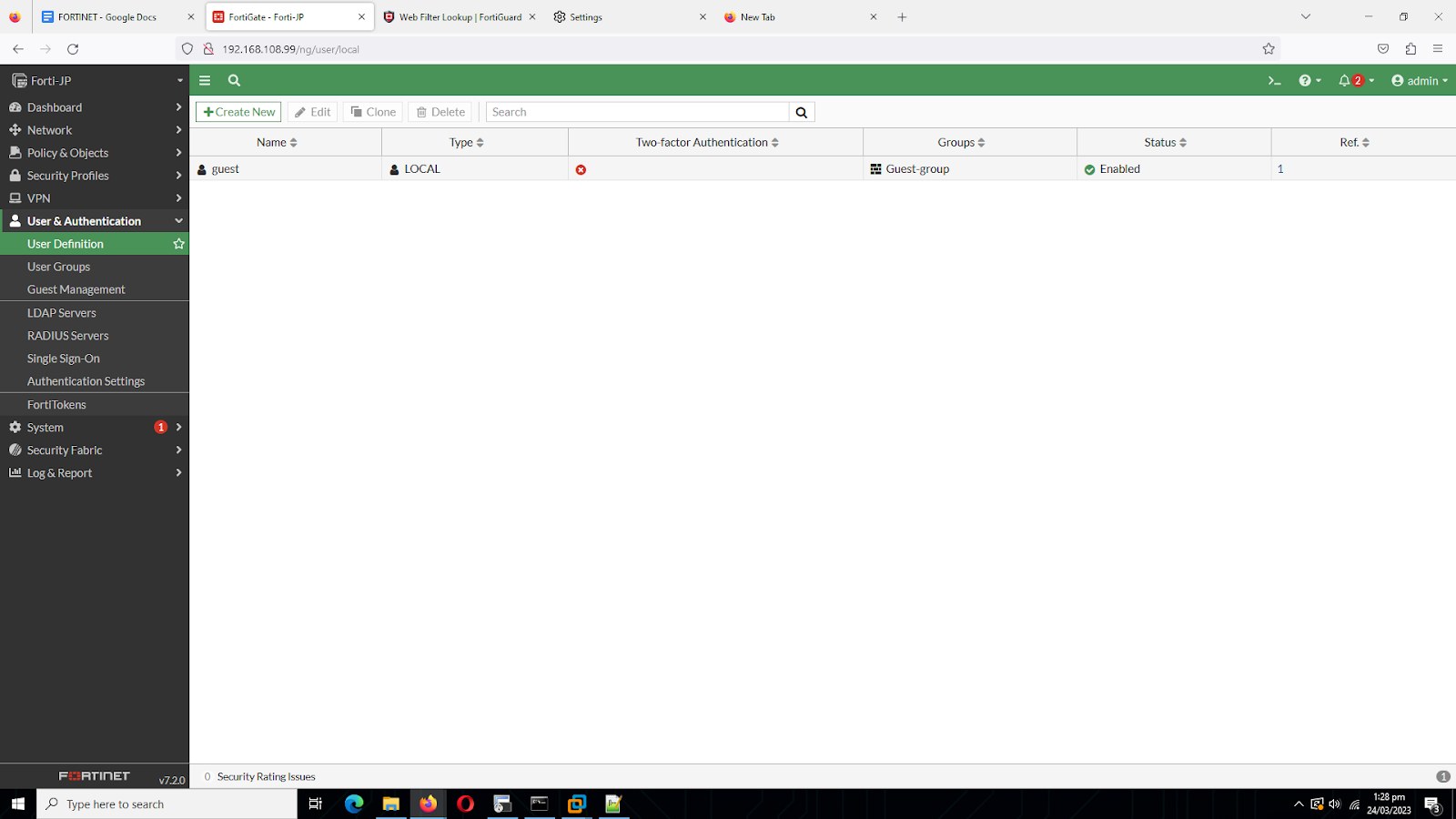

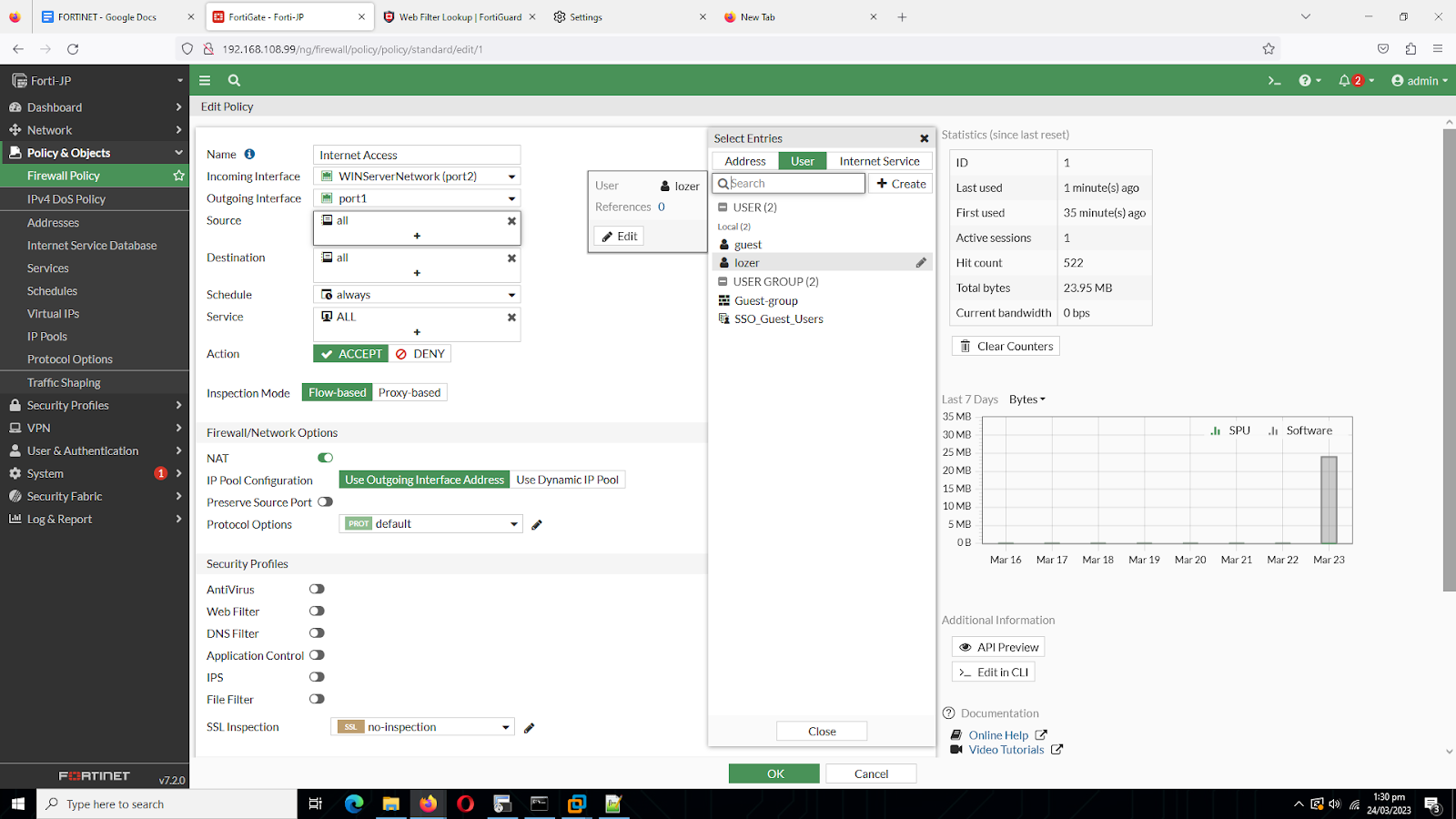

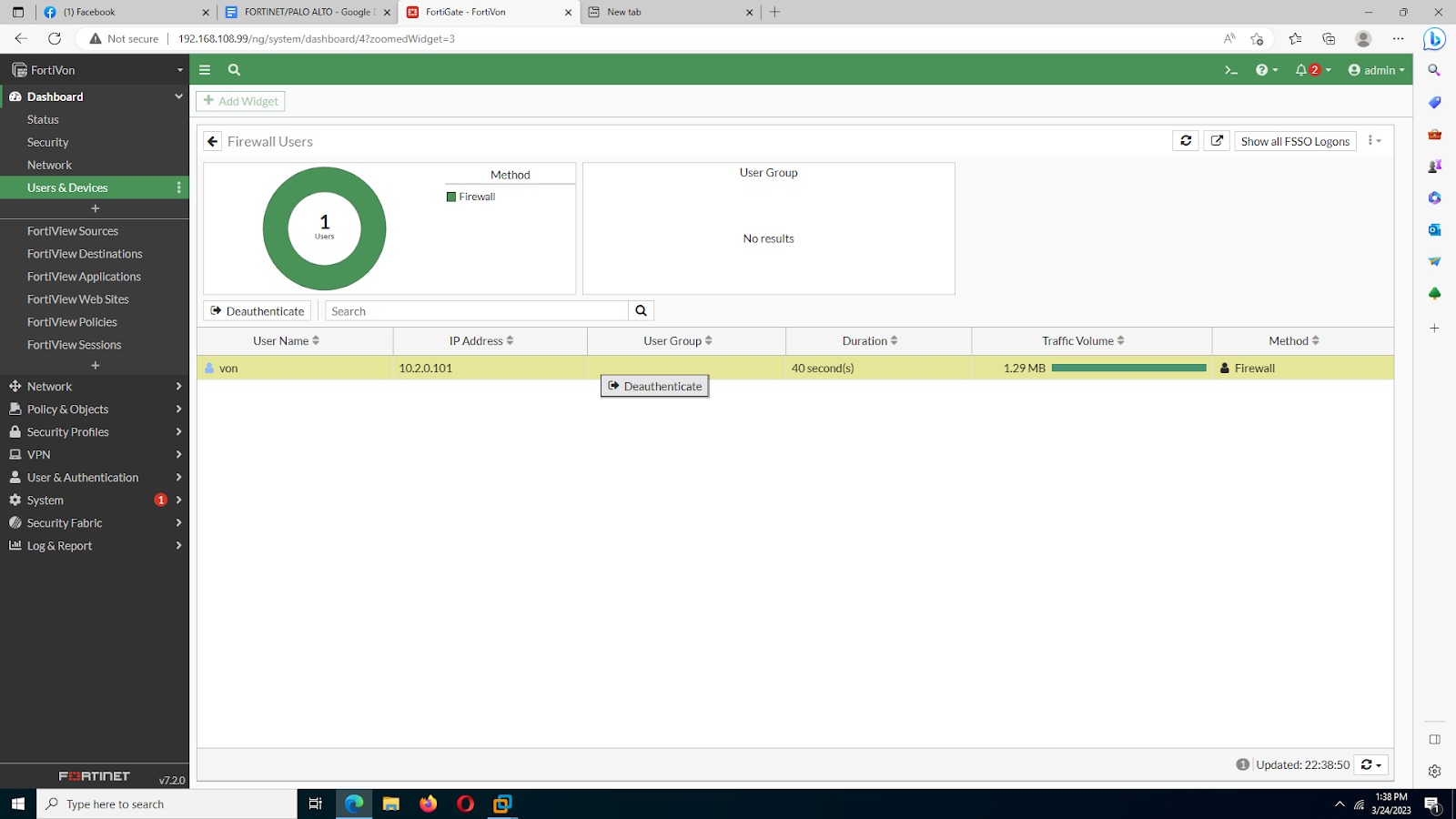

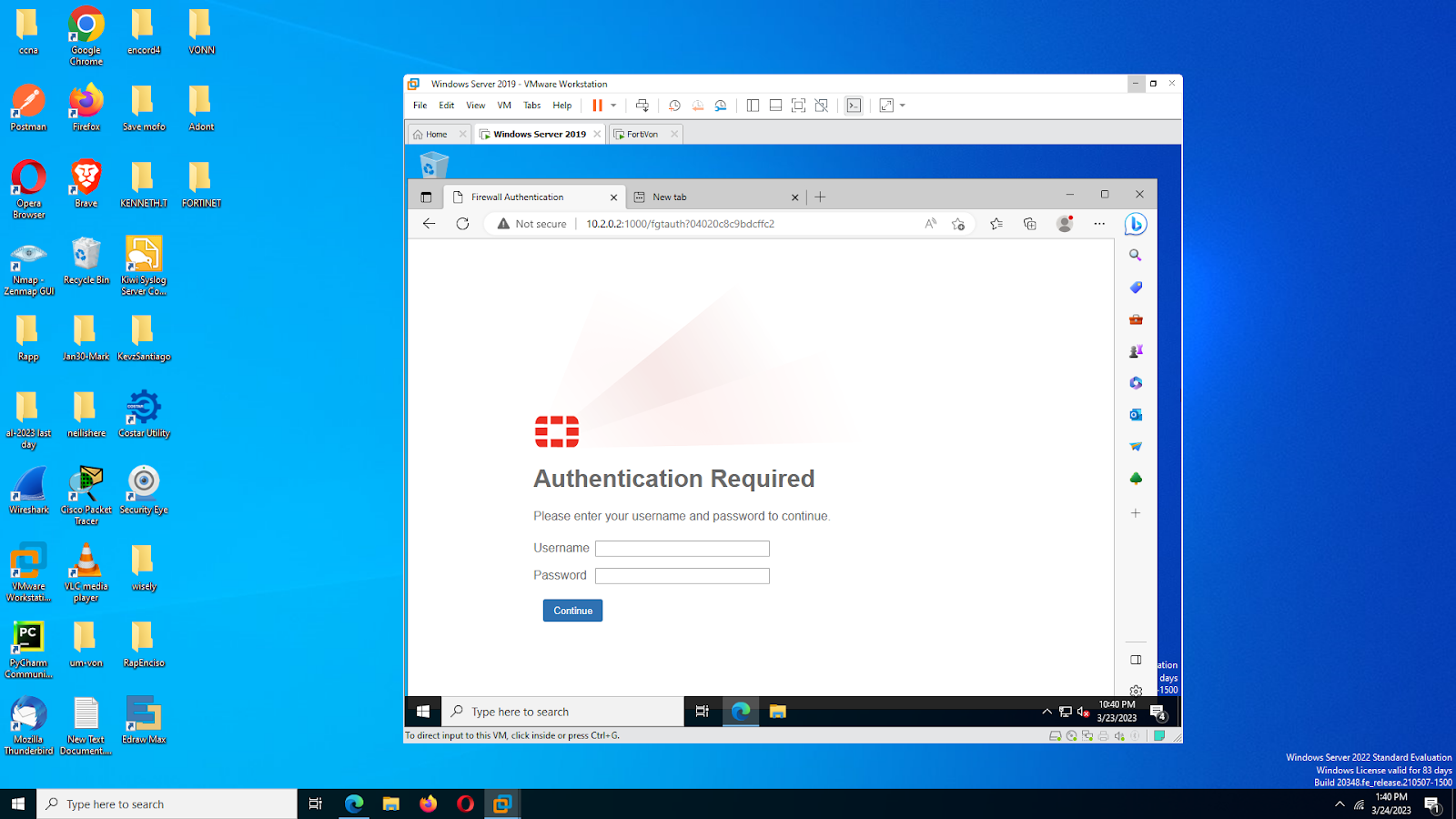

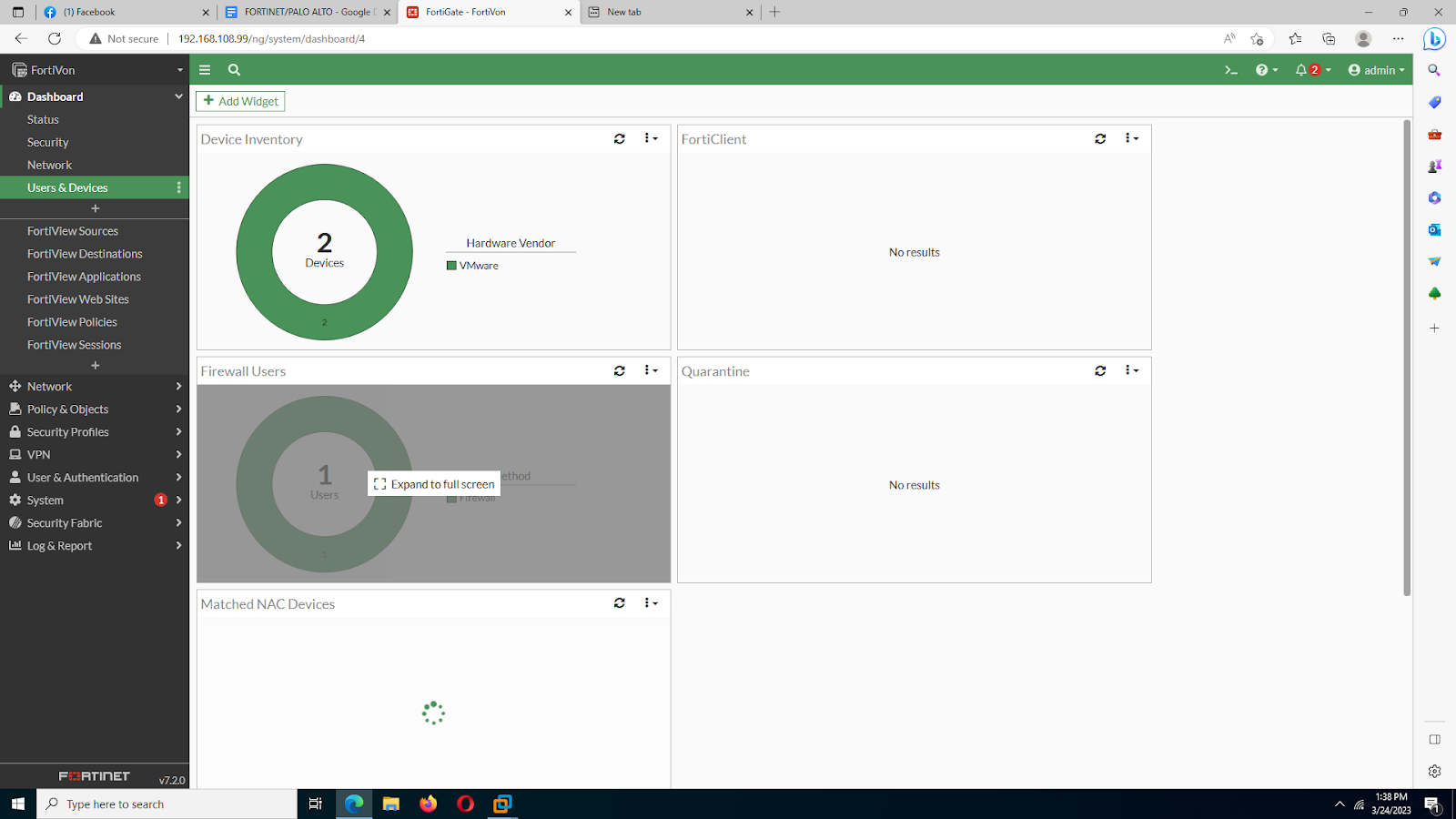

Expand the User & Authentication Tab.
