Found Wall Heights

Wall-to-FF (11-1/4”)

⁠
⁠
⁠

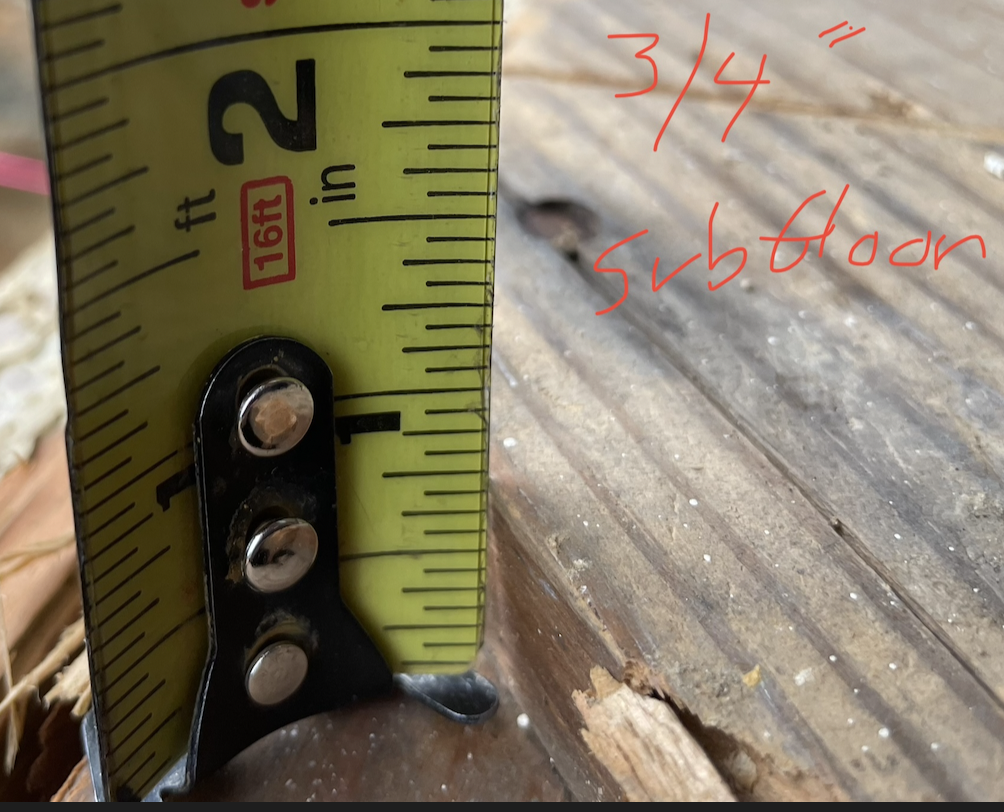

Subfloor (3/4”)

⁠
⁠
⁠

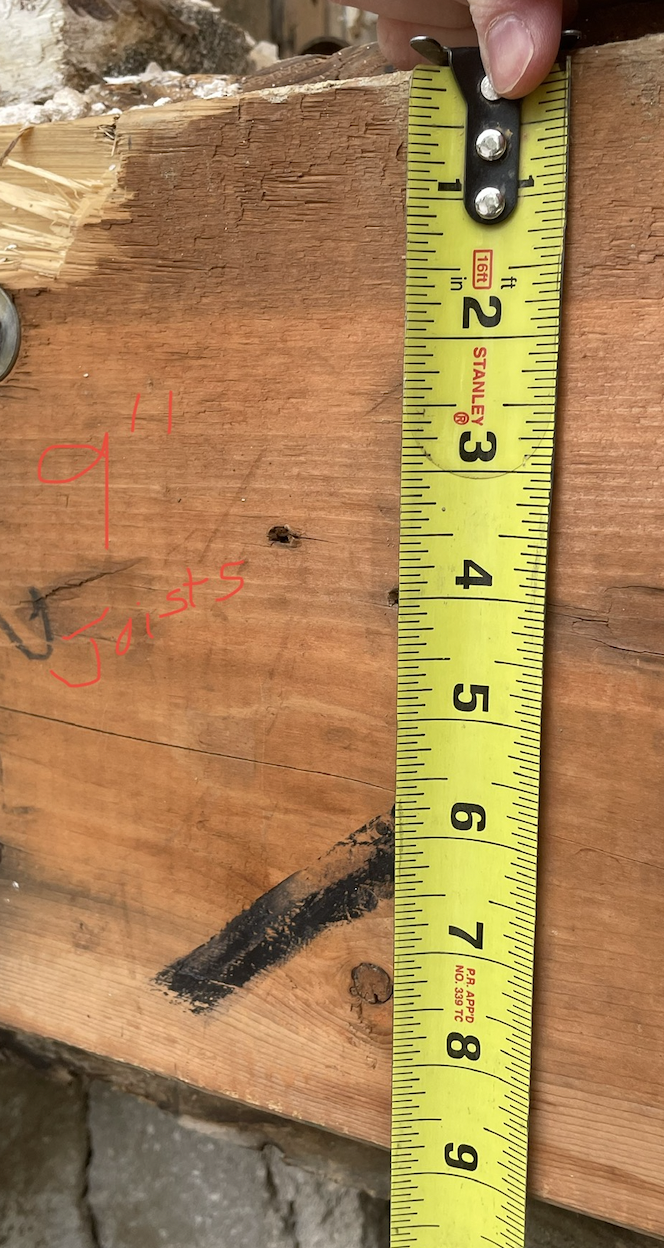

Joist (9”)

⁠
⁠
⁠

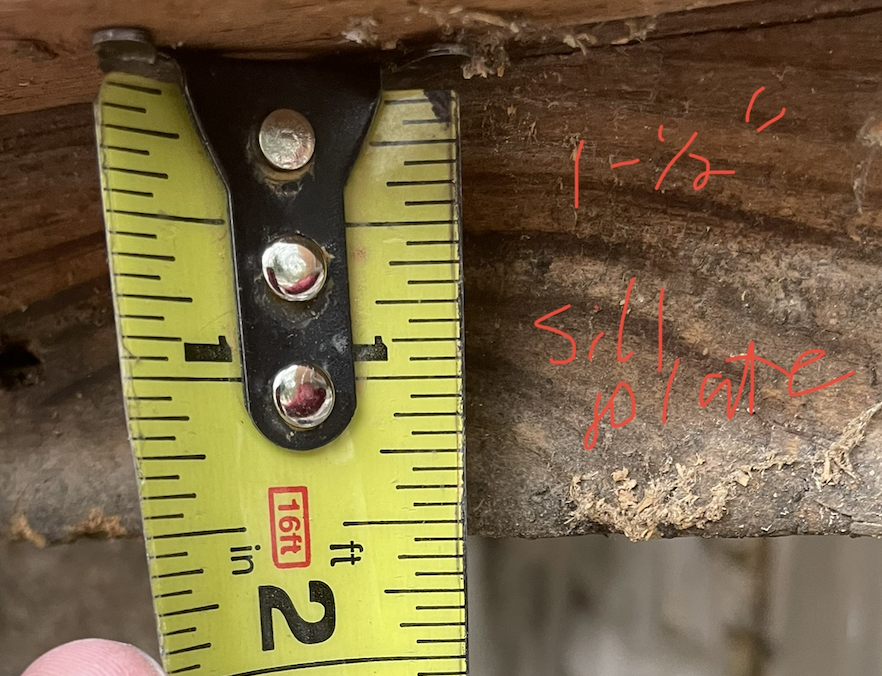

Sill Plate (1-1/2”)

⁠
⁠
⁠

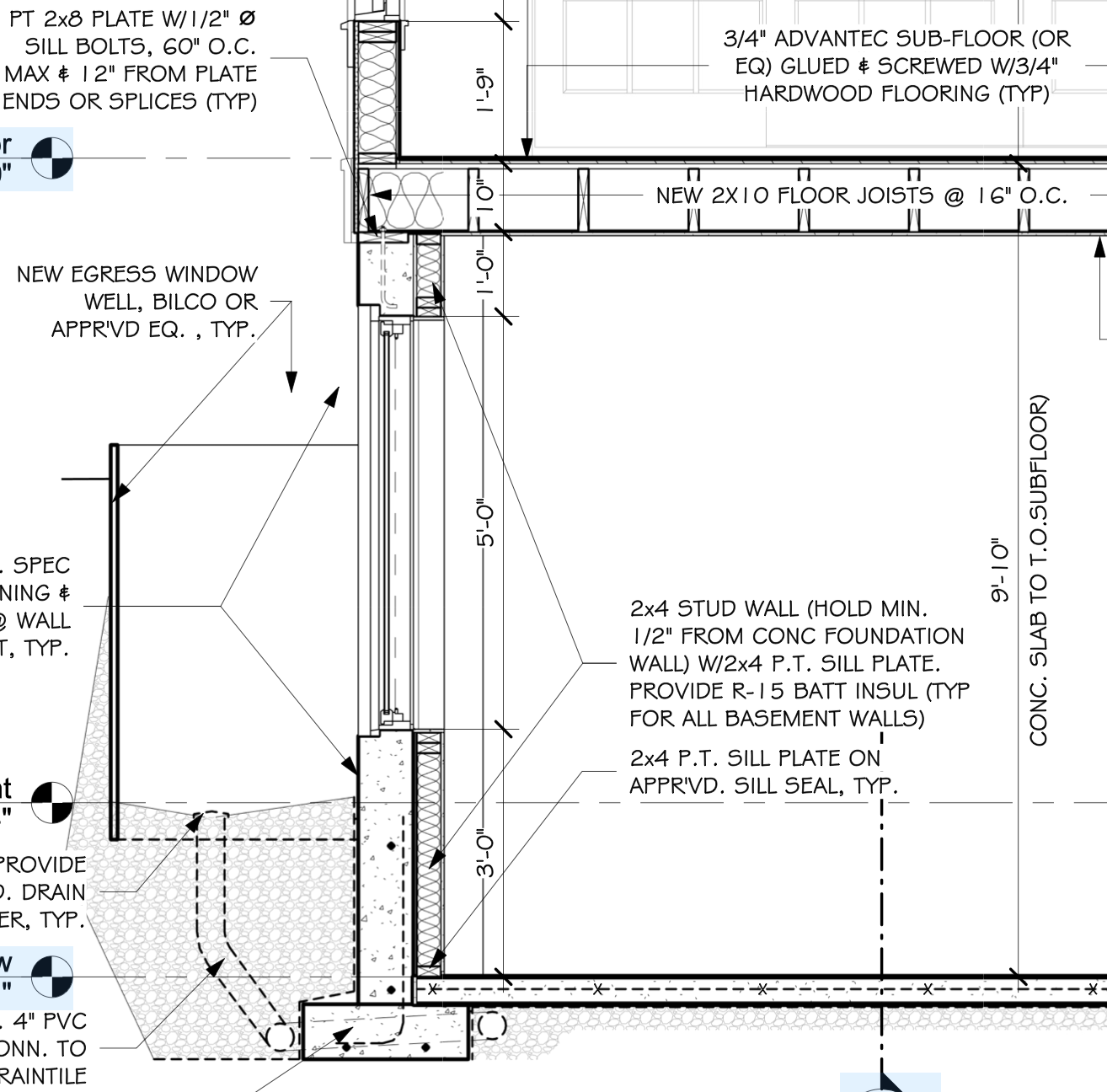

Plan

⁠
⁠
⁠
⁠
⁠
⁠

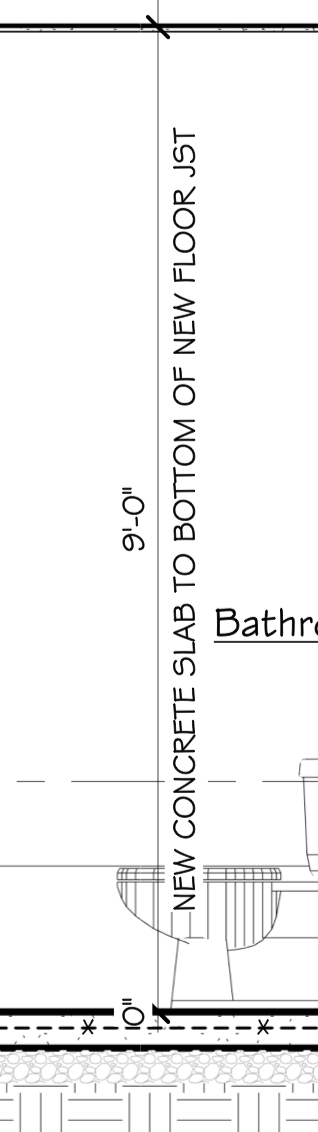

4” concrete slab & 9’ 10” slab to subfloor >> 10’ 2” foot to subfloor
New Floor Joist actual: 1-½"x 9-¼"

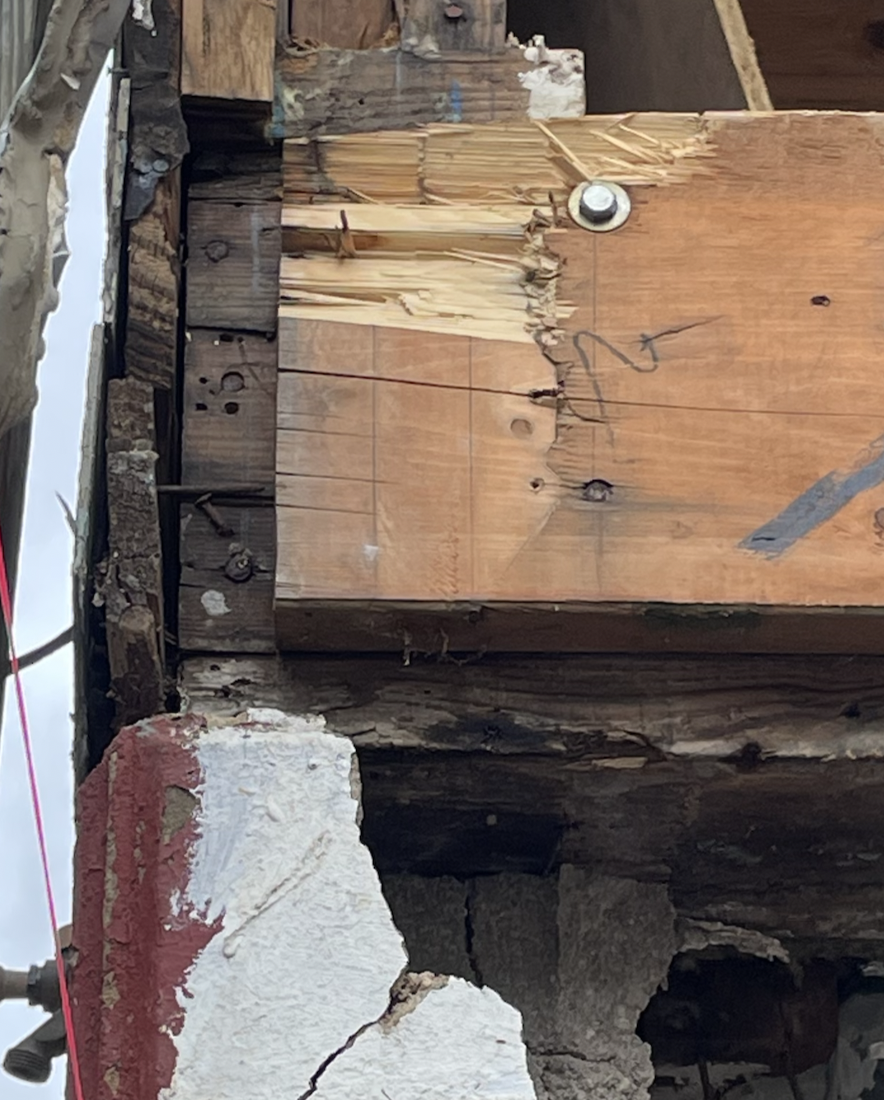

Existing floor: subfloor 3/4” + sill plate 1-1/2” + joist 9” >> 11 1/4”
New foundation wall to be 1/4” below existing foundation wall.
