Reference and explain what a V-speed is.V-speeds are specific airspeeds for maneuvers in an aircraft’s particular configuration, shown as indicated airspeeds (IAS) on the airspeed indicator as stated by Pilot Institute.Add a column to the table above and include V-speed indicators. There may not be an exact match, so think critically about what the parameter “speed” represents.
A full upward deflection of the right stick moves which control surface and in which direction?This input would move the elevator full down, which would result in a nose low pitch in flight.A full rightward deflection of the left stick (at throttle idle) causes which two controls to move? What rotational motion will result from this input? Refer to the for additional information.This input would cause full right rudder and full right nose steer, leading to a right yaw in flight and on the ground.
Under high power (i.e., during takeoff), the aircraft will experience an asymmetric condition called “P-factor.” Define P-factor and describe the control inputs required to counteract it. P-factor is essentially a left turning tendancy caused by the down ward side of the propeller blade having a higher angle of attack when the wing’s angle of attack is positive. Essentially, the right side (in planes with clockwise rotating props) takes a “bigger bite” of the air in climbs, which causes a yaw to the left. This must be counteracted with right rudder in most cases.During the takeoff climb, power must be “pinned” fully open (i.e., throttle control stick full upward deflection) until you reach your cruise altitude and “level off.” You must maintain your takeoff speed according to your values from . What control input should you use to set your speed?In the climb, thrust is set full, and speed is determined by pitch caused by elevator deflection. In level flight, speed is controlled by thrust and altitude is controlled by pitch.As you reach cruise altitude (say, 200 ft AGL), how will you need to adjust the controls to level the aircraft at 200 ft AGL while maintaining cruise speed? To level off, the pitch will need to be decreased with a relaxing of the pitch up elevator input or nose down input. The throttle will then need to be reduced to avoid over speeding.Counteract P-factor.Level off at a cruise altitude of 200 ft AGL.Speeds were used as follows, TO: 25, climb: 30, cruise: 35, approach: 25
What throttle input is used during takeoff (in percentage)?100% throttle is used for takeoff.What throttle input is used during cruise (in percentage)?Around 60% throttle is used in cruise.Describe the aileron input(s) required to achieve and maintain a 20° bank. Only a small input is required to begin a turn in the direction of the turn, and then the ailerons are held essentially neutral during the turn.In the 20° bank above, what will happen to the altitude of the aircraft if neither the throttle nor the pitch is adjusted?The aircraft will descend in a turn if neither the throttle or pitch are adjusted.Using the two questions above, what inputs are required to complete a turn from departure to crosswind?From departure to crosswind, a few things must happen. The level off will require a pitch to level with elevator input followed by a reduction in power for cruise. The turn and the climb may not always be in sequence. The turn will require ailerons into the turn until the desired bank angle is reached, and then neutralized. Power and pitch may need to be increased depending on trim and energy state. When the turn is complete, the ailerons will be brought out of the turn, and straight and level cruise will commence.Level off at a cruise altitude of 200 ft AGL.Maintain cruise speed (±5 mph)Perform all turns in the traffic pattern without gaining or losing altitude (± 25 ft)Complete the traffic pattern two times (do not set up for landing - fly the runway at cruise altitude)
What speed (in mph) should you target for your landing approach according to the ?According to the provided checklist, the landing approach speed target should be 33 mph.Imagine the aircraft is aligned on the centerline, and you have hit the target altitude by the final turn. Describe the shape of the aircraft as it approaches you/the touchdown point?The aircraft should essentially be stuck stationary in one’s sight picture while growing slightly. This lets the pilot know they are on glidepath.If you notice that, as the aircraft is approaching you, it appears to be moving lower within your reference frame, what input should you provide to stop the ascent?To stop the drop on final, one should either pitch up, add throttle, or both to gain altitude depending on the energy state of the aircraft. Go arounds may be required in situations such as these as well.What is a flare, and what is the purpose of this maneuver?A flare is the bleeding off of airspeed near the ground during a landing where pitch is increased to a stall for minimum energy when touching down. The purpose is to make a soft touchdown and lose all unnecessary speed.At what point in the landing operation should you target the AIRSPEED_MIN_LND?The minimum landing airspeed should be targetted around short final when nearing the flare.The descent requires the opposite inputs from the ascent. Describe the throttle and pitch inputs needed to transition from straight and level flight in cruise into a descent?To go from straight and level flight to descent, one generally begins by reducing power, and after that the power will typically control descent rate. Pitch will usually control airspeed, and combinations of the two can be experimented with to achieve the desired flight path.Level off at a cruise altitude of 200 ft AGL early in the downwind leg.Maintain cruise speed (±5 mph)Begin descent and target approach speed as you turn base.Continue descent through base and target ~75-100 ft AGL as your turn final.Continue descent, maintaining glide slope (ensure the aircraft does not move up or down in the reference frame).As you approach the runway, stop the ascent at eye level by adding throttle.Maintain centerline and eye level as the aircraft flies past your location.Perform a go-around as the aircraft passes you by, applying full throttle and targeting the takeoff speed.If you have mastered the lowpass, perform a touch and go by pulling throttle to idle, and begin rounding out (flare) until the rear wheels touch the runway (reference figure 9-10 in )Before the front wheel touches, perform a go-around as the aircraft passes you by, applying full throttle and targeting the takeoff speed.
Upload a completed copy of this document (as a PDF) to brightspace by the due date listed in the . See to add this page to your own doc.See to create a PDF of your doc for submission.Inline or attached to Brightspace submission.Inline or attached to Brightspace submission.Inline or attached to Brightspace submission.
SeligSIM Assignment 3
15 points
Nathan Tyler Rose
Last edited 24 days ago by Jacob Daniel Sieber.
Overview
Tasks
Simulator Setup Overview

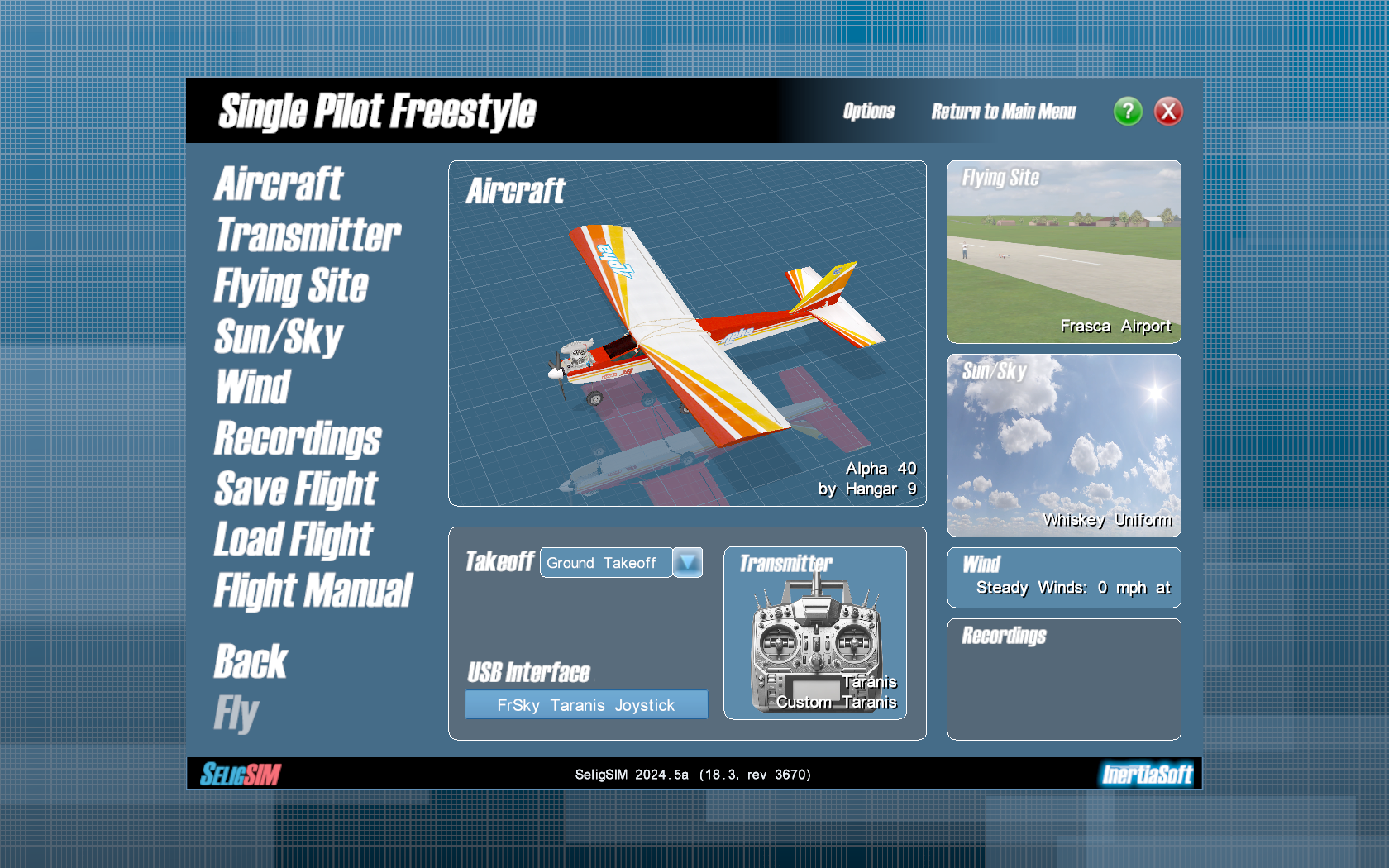

Use the following images and settings to set up your simulator. Be sure to reference and for help with setup.
Broken link
Broken link
Aircraft and environmental defaults

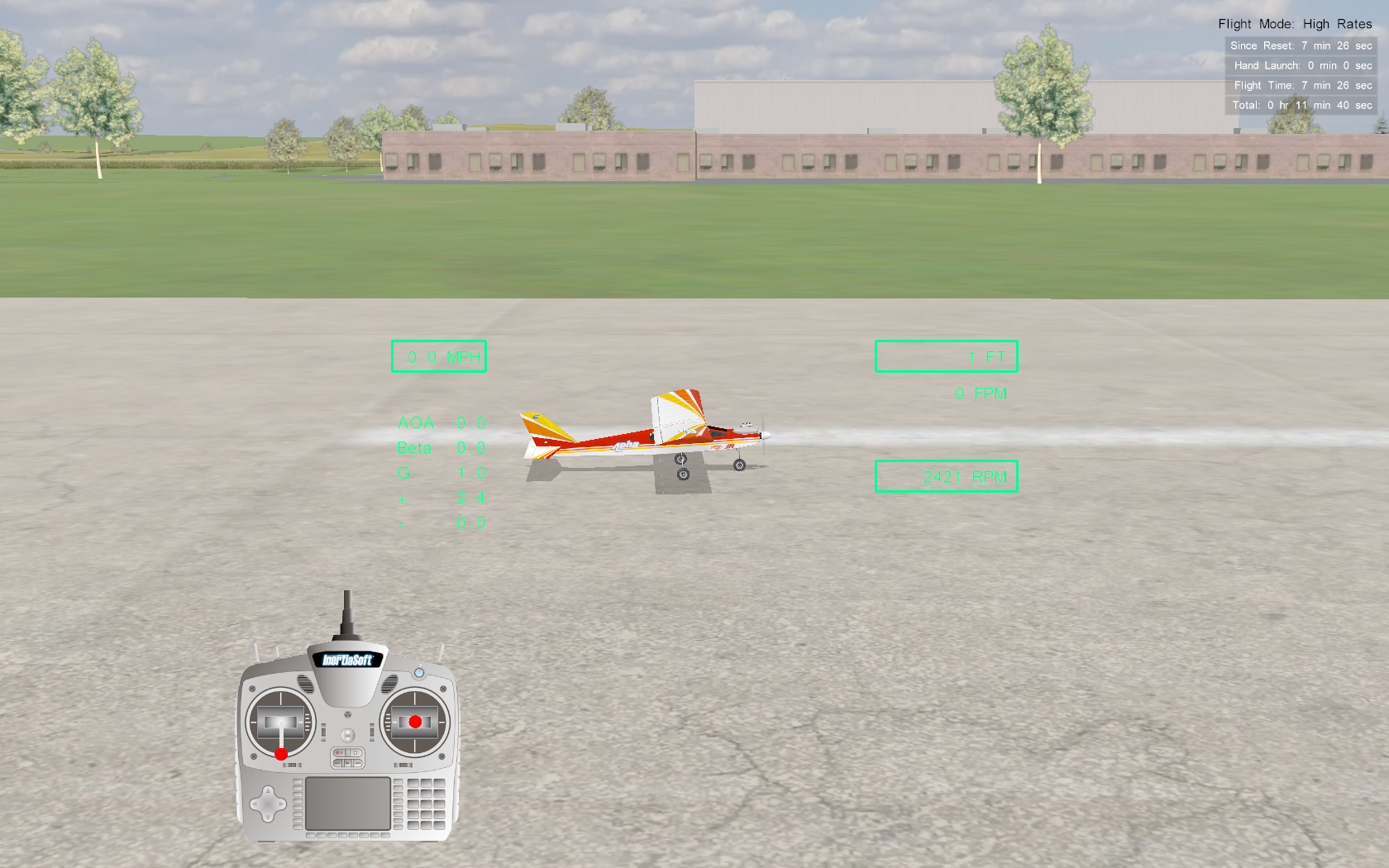

Flight screen must show transmitter and HUD.
Aircraft Setup
The aircraft in it’s current configuration is overpowered relative to the Believer. Please follow the guidance in by to set the aircraft output to 75% of current.
Screenshot

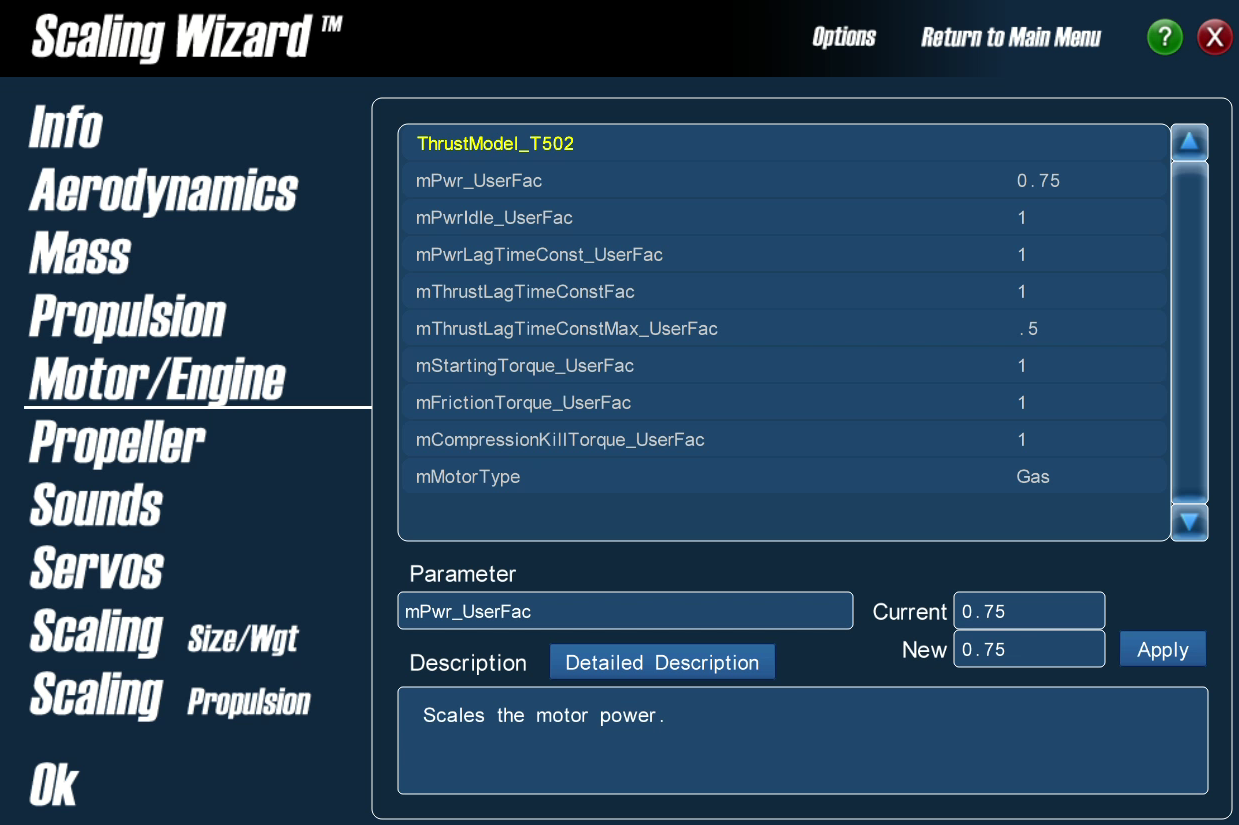

Take a screenshot of the updated motor/engine output.
Convert and Define Speeds
The SeligSIM (at the time of writing) does not allow changing the airspeed units from miles per hour (mph). In this and all future SeligSIM assignments, we will follow and reference the Believer's airspeed settings.
Create a table below that shows the unit corrected speeds from the . The table must include four columns: 1. Parameter/condition Name, 2. YOUR description of the parameter/condition, 3. Speed (m/s), 4. and Speed (mph). The description of each parameter may require some research into as well as some intuition. There should be 9 rows in your table. The conversion from m/s or kts to mph MUST be completed using a formula entered into Coda. You may use AI and the Coda help docs to build your formula. Type out your formula in the callout below.
Conversion Table
Build and complete the required conversion table as a deliverable.
Formula:
Parameter Table
Parameter Name
Parameter Description
V speed
Speed MS
Speed MPH
AIRSPEED_CRUISE
Straight and level condition speed
Vc
20
44.74
AIRSPEED_APPR
Approach to land condition speed
Vapp
15
33.55
AIRSPEED_MAX
Maximum airspeed condition
Vmo
38
85
AIRSPEED_MIN
Minimum airspeed condition
N/A
16
35.79
AIRSPEED_MIN_LND
Minimum landing airspeed condition
N/A
12
26.84
AIRSPEED_TKOFF
Takeoff airspeed condition
Vr
20
44.74
Maximum in-flight wind speed
Highest wind condition allowed
N/A
40
89.48
Maximum surface wind speed
Highest surface wind condition allowed
N/A
30
67.11
Maximum crosswind component
Highest crosswind component condition allowed
N/A
5
11.18
Never Exceed Speed (Vne)
Highest possible airspeed condition
Vne
50
111.85
Stall Speed
Stalled condition when straight and level (1g)
Vs
24
53.69
Normal Cruise Speed
Normal cruise airspeed condition
Vc
39
87.24
There are no rows in this table
Scaled Platform Checklist
Speed Questions
Traffic Pattern Diagram
Throughout the Believer flight training, you will be expected to navigate and communicate using standardized aviation language. Positional information about the aircraft will be communicated in accordance with a standard traffic pattern. That is, if your instructor commands a left turn for base, you must know what that means and execute the maneuver expeditiously and confidently. Additionally, each leg of the traffic pattern may have a different speed requirement that must be followed for successful launch, cruise, and landing.

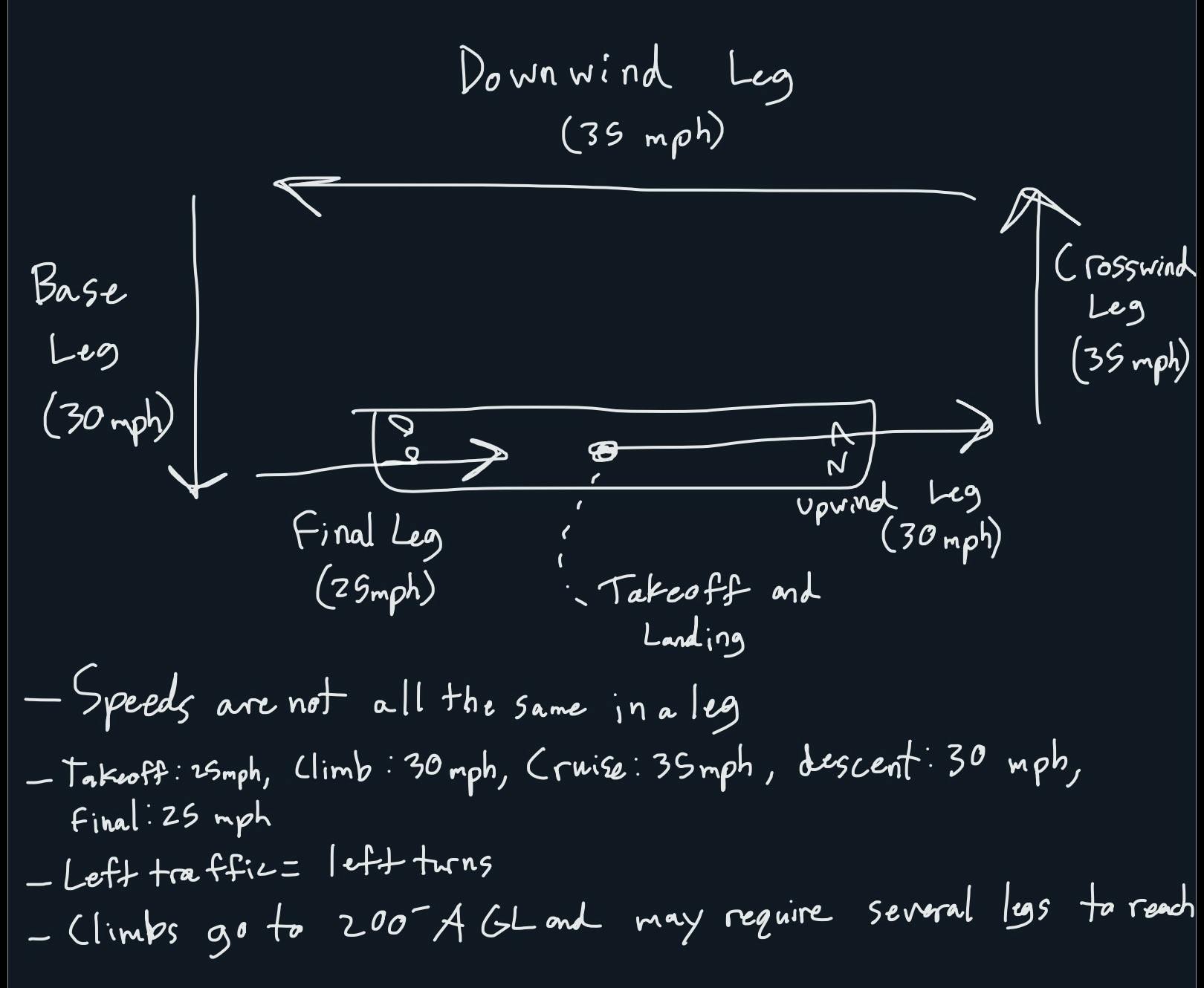

For this task, draw and label a standard left-hand traffic pattern for the simulated Frasca Airport. Assume that the aircraft is oriented to take off on runway 09. You must label the leg name in the traffic pattern AND the desired speed for each leg. If needed, you may justify your response in the footer of your drawing.
Drawing
Traffic pattern drawing required as a deliverable.
Controls Check
Perform a controls check according to and answer the following questions. Remember that a control check is required before each flight.
Broken link
Takeoff and Energy Management
Next, you will perform an aircraft takeoff while maintaining the proper takeoff speed through the system's energy management. The Believer (and any system with a stabilized mode) has a total energy control system (TECS) algorithm built in to continually monitor and adjust the aircraft to balance its kinetic and potential energy, maintaining sufficient lift at all times. When this system is well-tuned, entering a stall condition on the Believer is very difficult (though still possible). [Optional] You may read for more information on the algorithm architecture.
Before your first recorded takeoff, answer the following. Many of these questions can be answered from the .
Screen Recording
Record the takeoff maneuver described below.
Now, perform a takeoff maneuver and achieve the following (you do not need to turn or land - you can press the ESC key to respawn at launch):
Turns and Energy Management
After a successful takeoff, depending on the aircraft's performance before or after reaching cruise altitude, you will need to turn crosswind. There are several special considerations when turning in a fixed-wing aircraft. Answer the following questions to guide your understanding before entering a turn in the simulator. Again, many of these questions can be answered from the .
Screen Recording
Record the turning maneuver described below.
Now, combine the procedure in and add in turns to achieve the following (you do not need to turn or land - you can press the ESC key to respawn at launch as needed):
Landing Approach and Go Arounds
Now that you have mastered the takeoff, turns, and the traffic pattern, it’s time to start the landing approach. As you might have guessed, this part is also about energy management. In this case, we are looking to shed energy. In this task, you will not land, but instead complete low pass approaches to the runway while maintaining centerline AND altitude discipline before performing a go-around and reentering the pattern. Answer the following questions regarding the landing approach. Refer to the as needed.
Screen Recording
Record the landing approach maneuver described below.
Now, combine the procedures in , , and add in the landing approach to achieve the following (you do not need to turn or land - you can press the ESC key to respawn at launch as needed):
Deliverables
