Grab Component in VR template
VR flashlight
Creat BP interface, called Grab

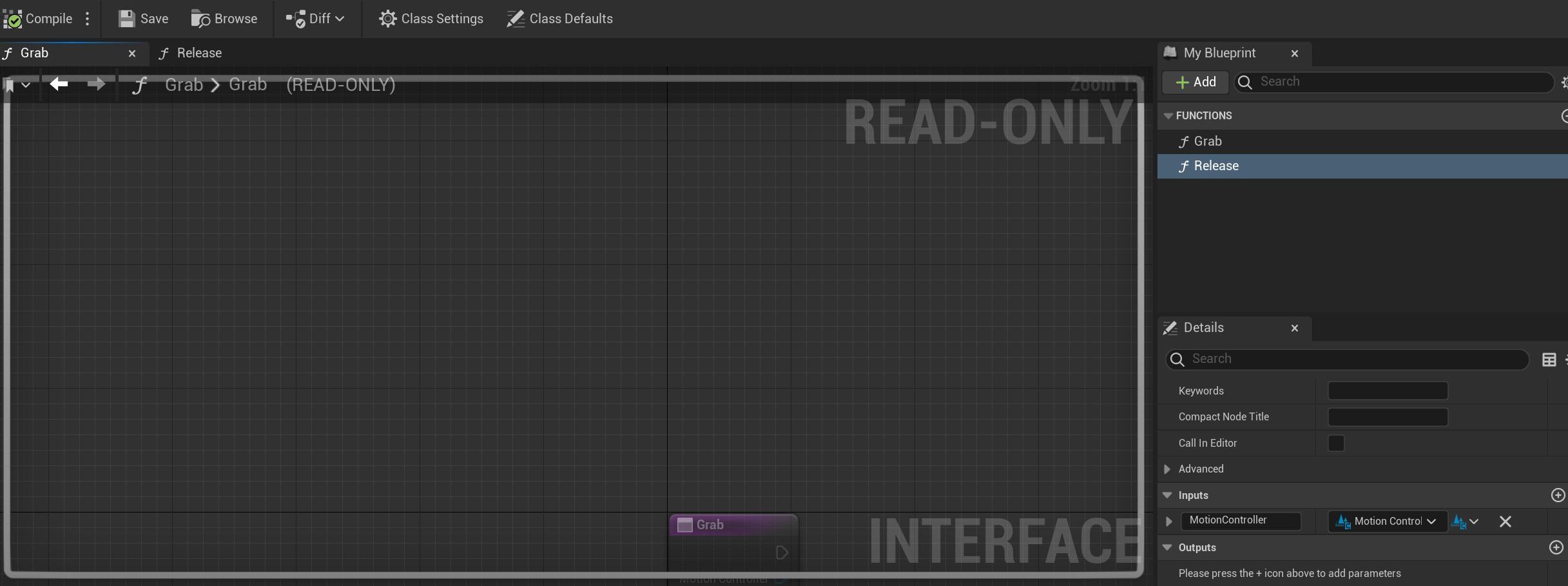

Create 2 functions: Grab and Release, both create input: Motion Controller
Also add a function named Interact (to turn on/off light)
BP actor called Flashlight:

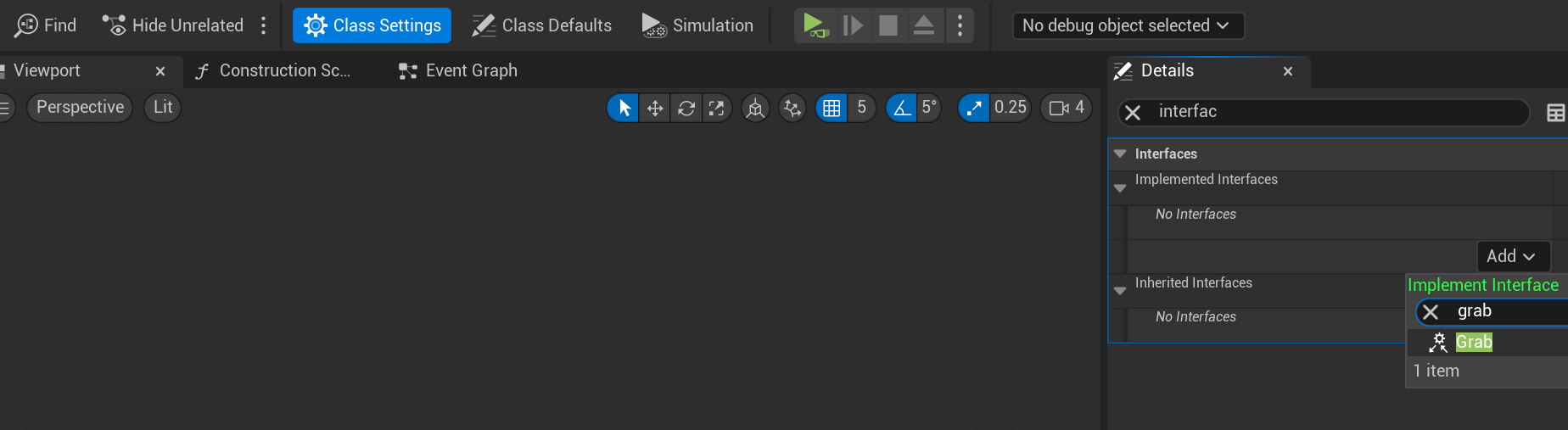

to Class setting, add grab interface
Event graph:

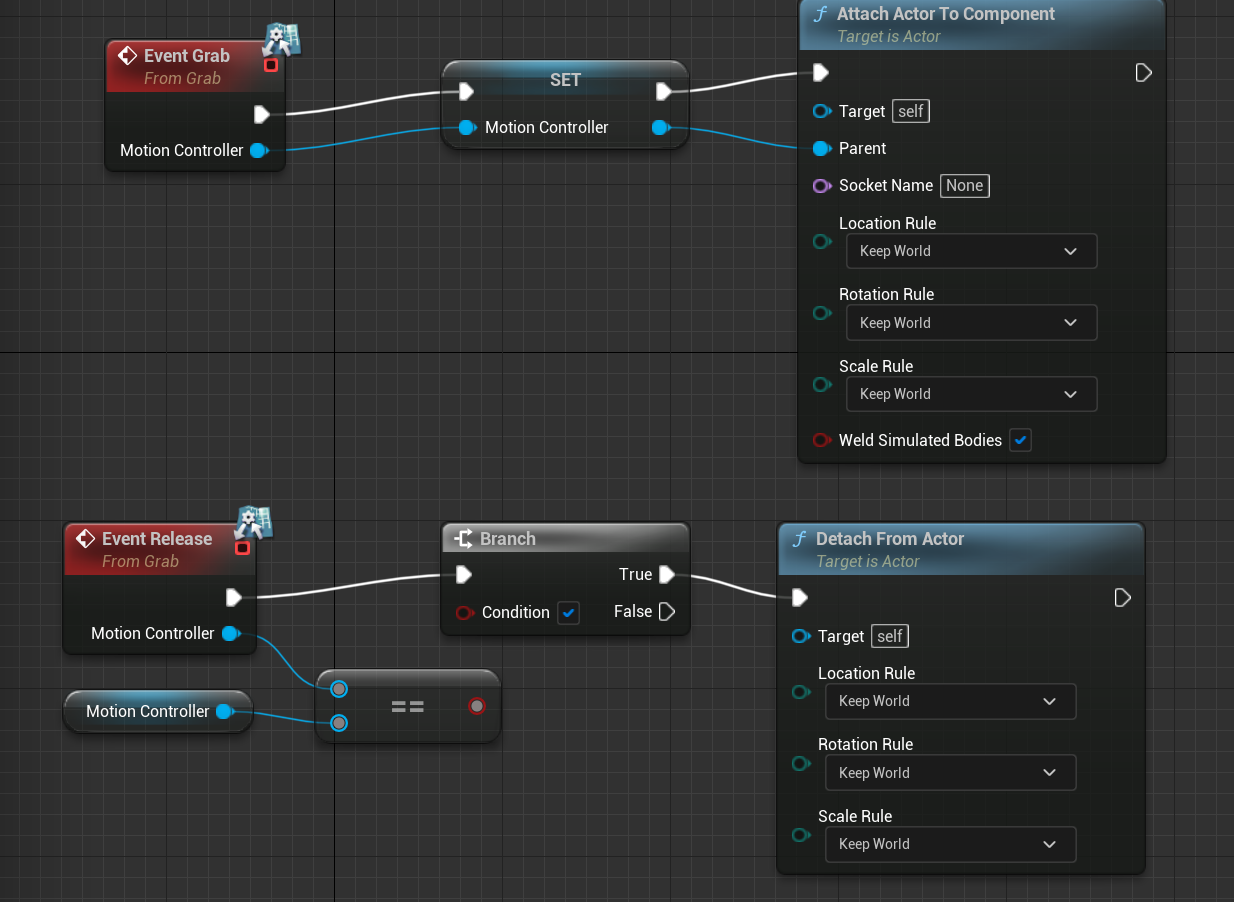

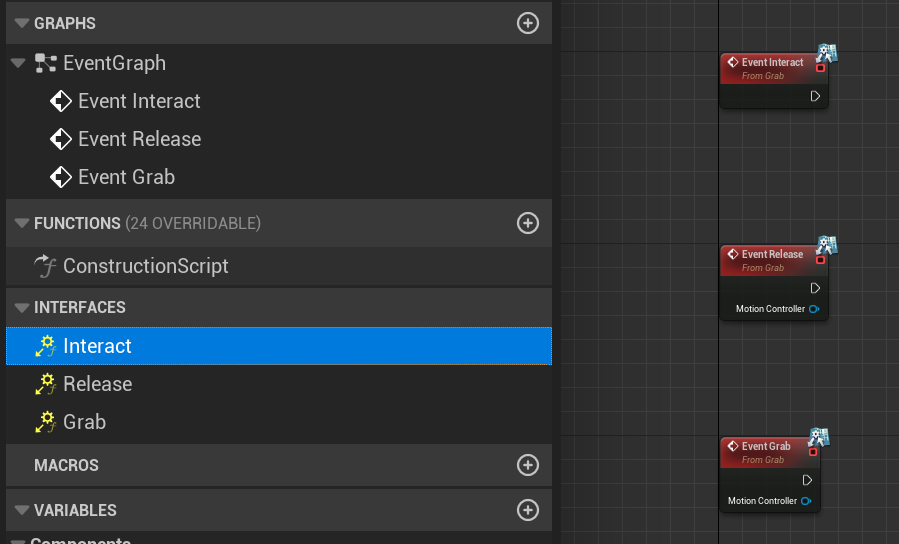

Double click all 3 interface to create their nodes

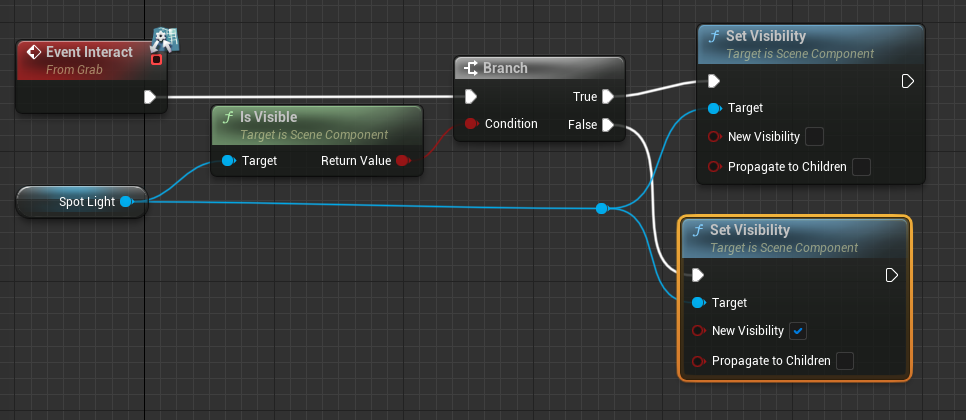

Event interact (if spot light is on, the light will be visible; and if the flash is on, untick new visibility mean next action is to turn it off)
in VR pawn:

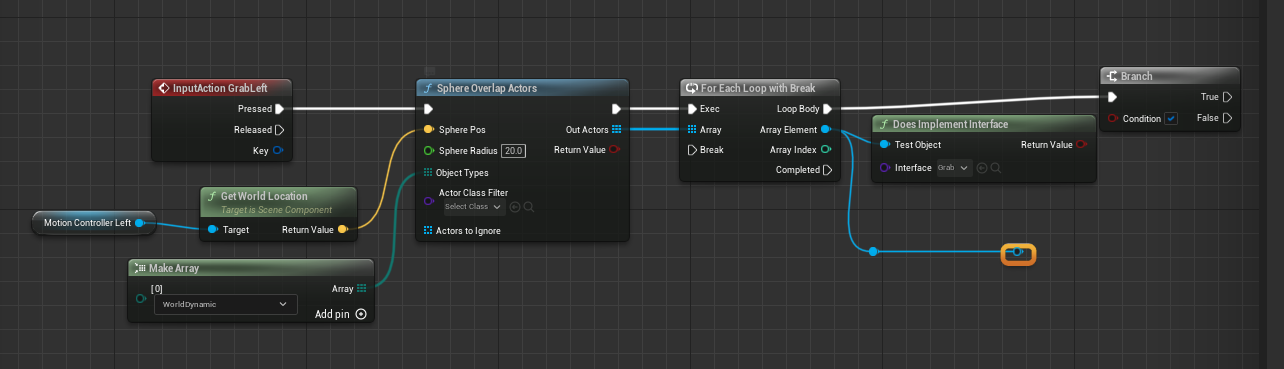

Grab left node, for Pressed

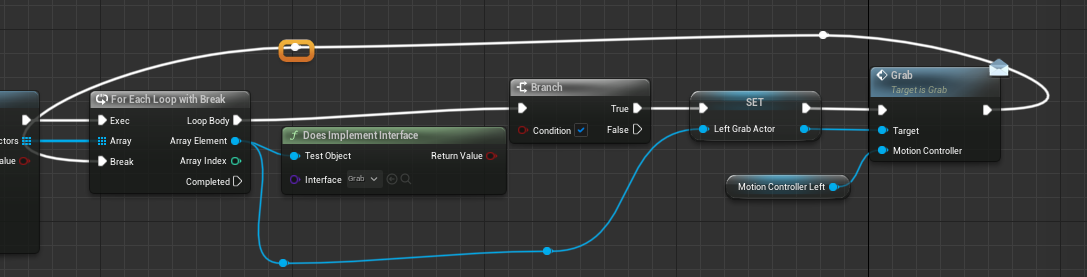

(set nearby actor overlap to controller, will perform Grab interface)

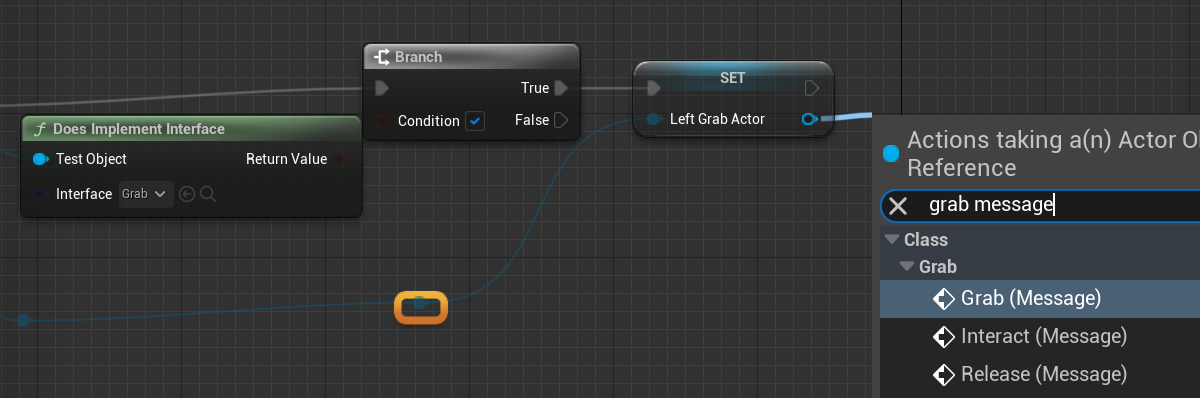

promote variable(left grab actor) from above reroute node (grab message node, with a envelop at cotner) is to send message telling grab is functioning):

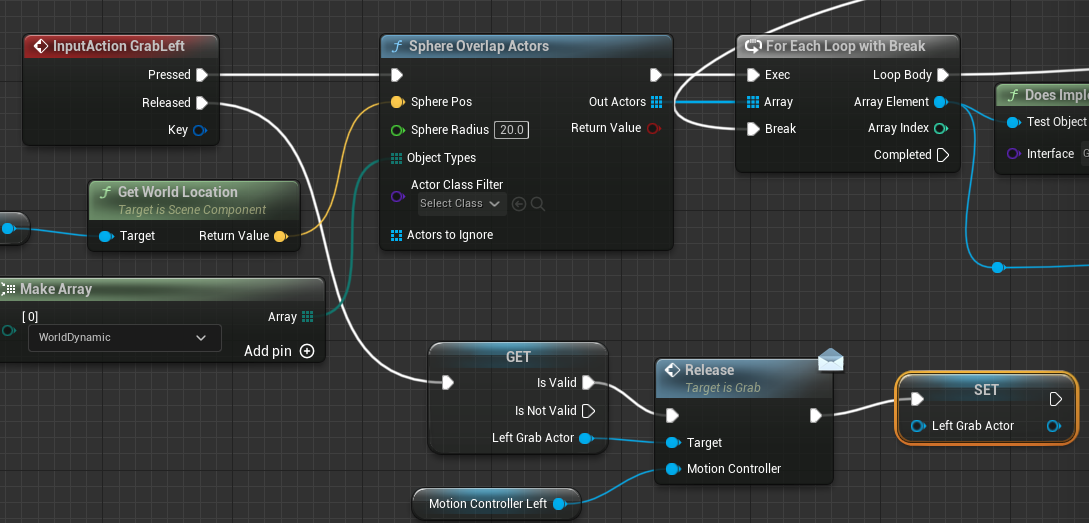

For Release,
Convert to validate of Left Grab actor variable, use release message node as well:

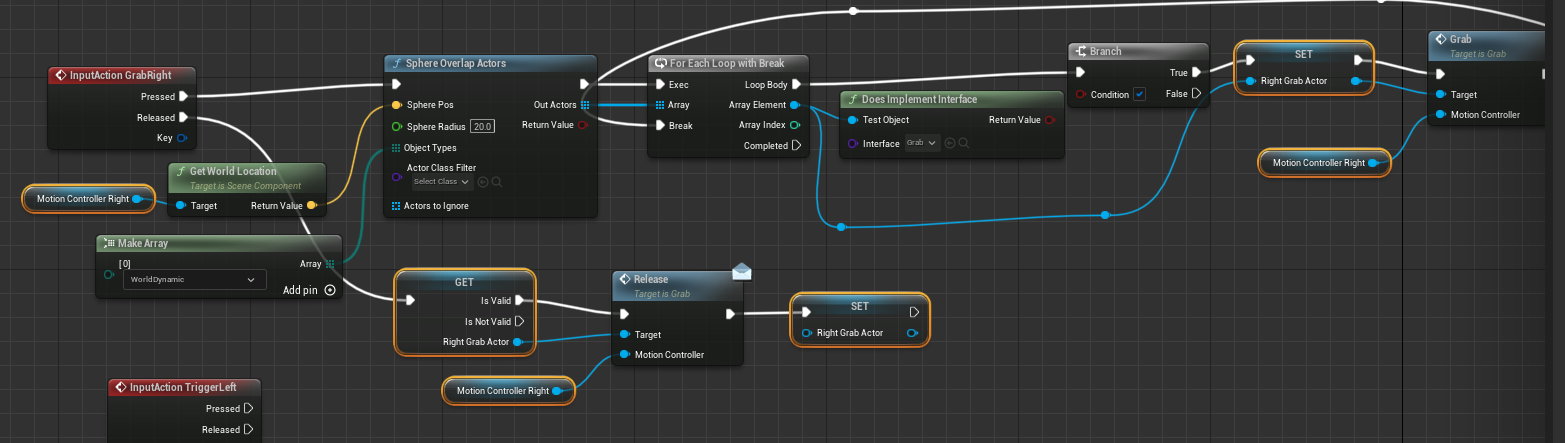

Duplicate on Grab right node and replace follow:

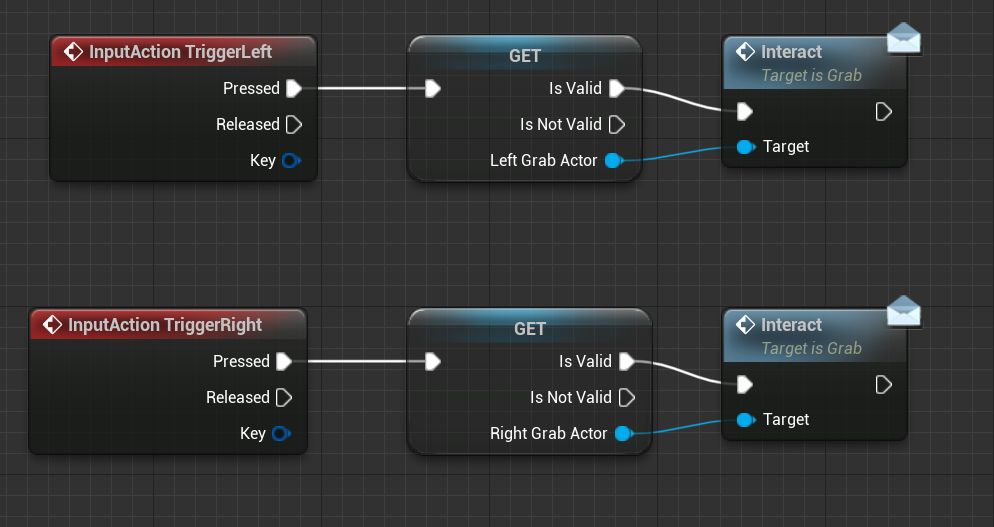

For trigger nodes (turn on off light)

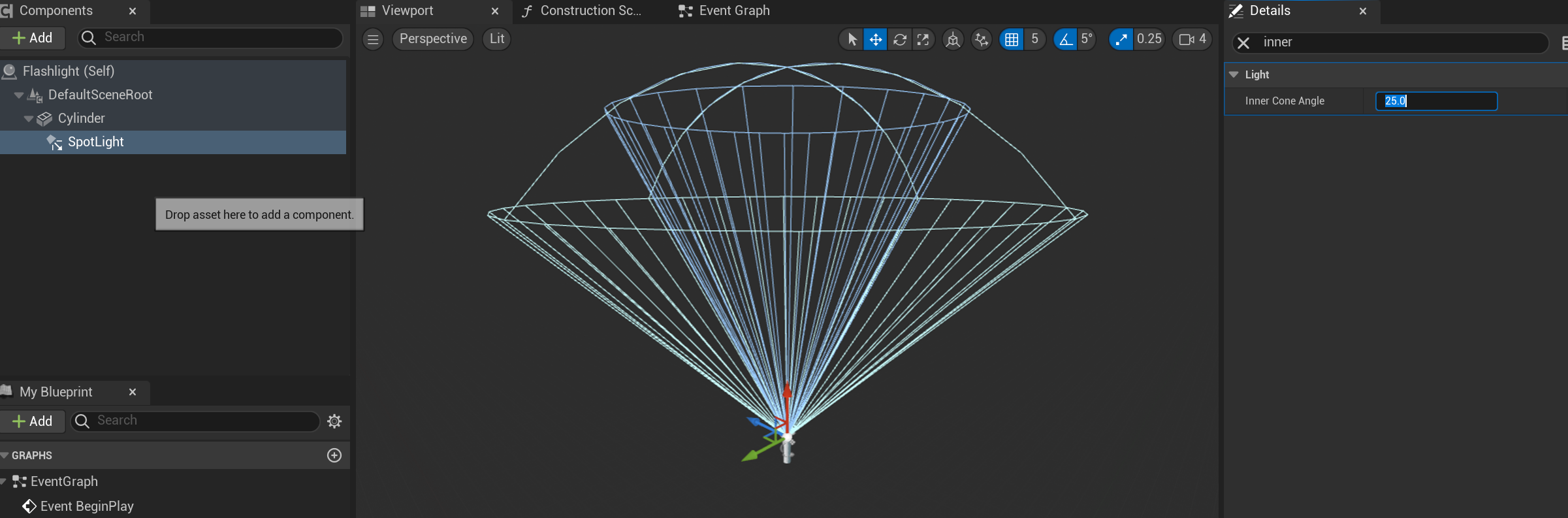

Dim down the light in scene, drag the flashlight BP to test
