Epic Online Services (EOS)
Using EOS with UE Blueprints
Tutoiral 1 (T1)
Tutorial 2 (T2)

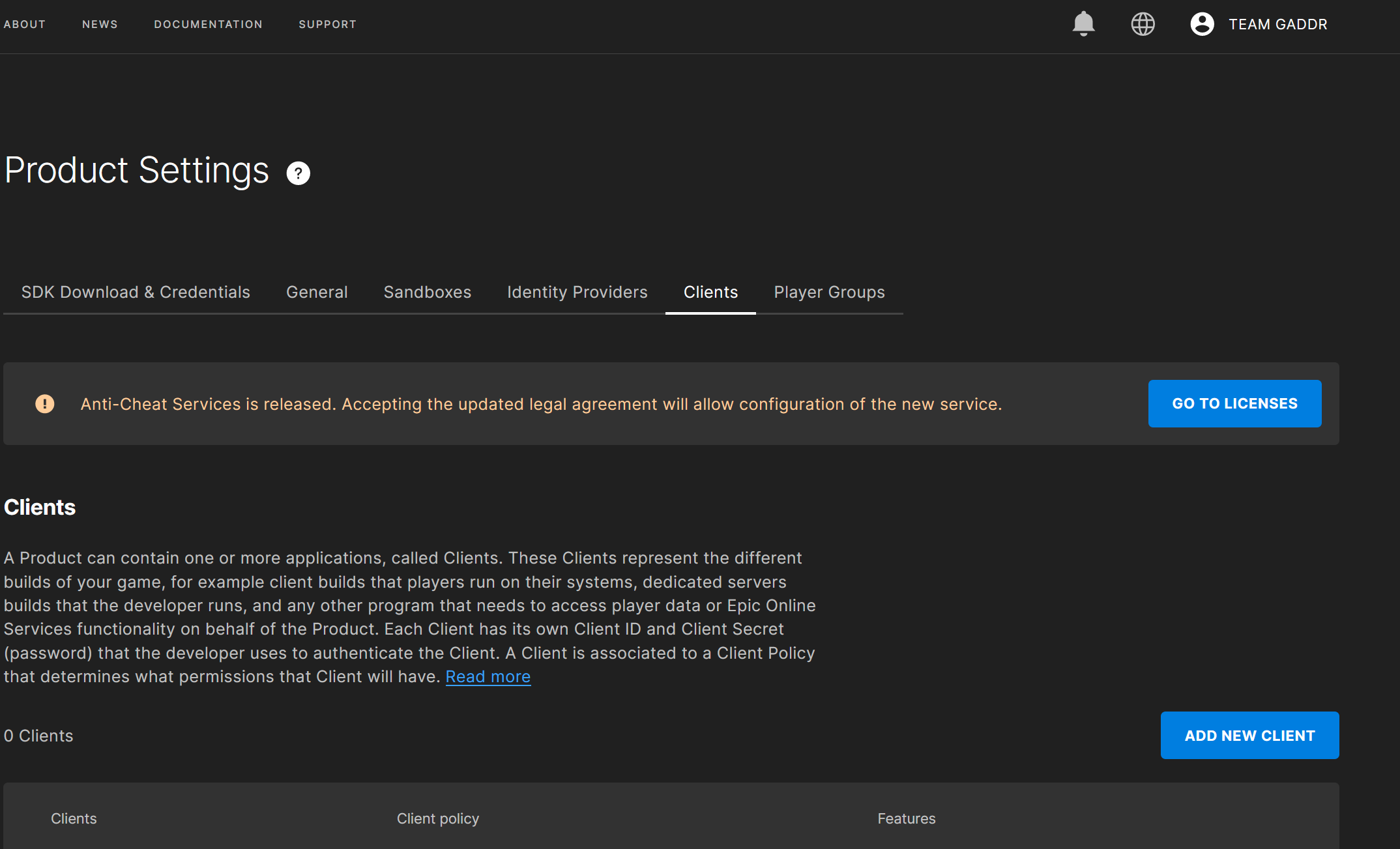

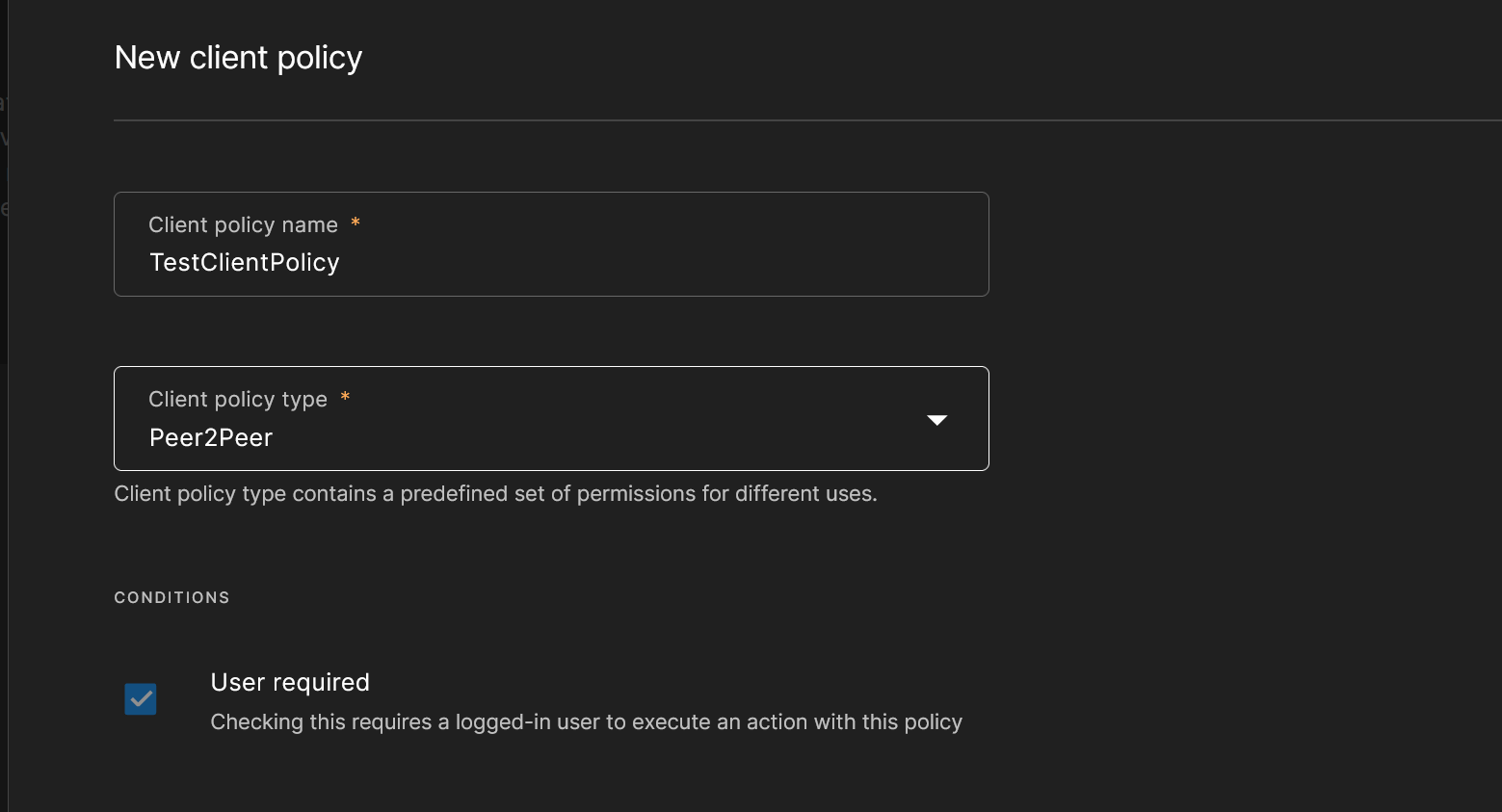

Add new Client Policy as Peer2Peer in Product Settings → Clients
Product ID also shows in Project Setting → SDK

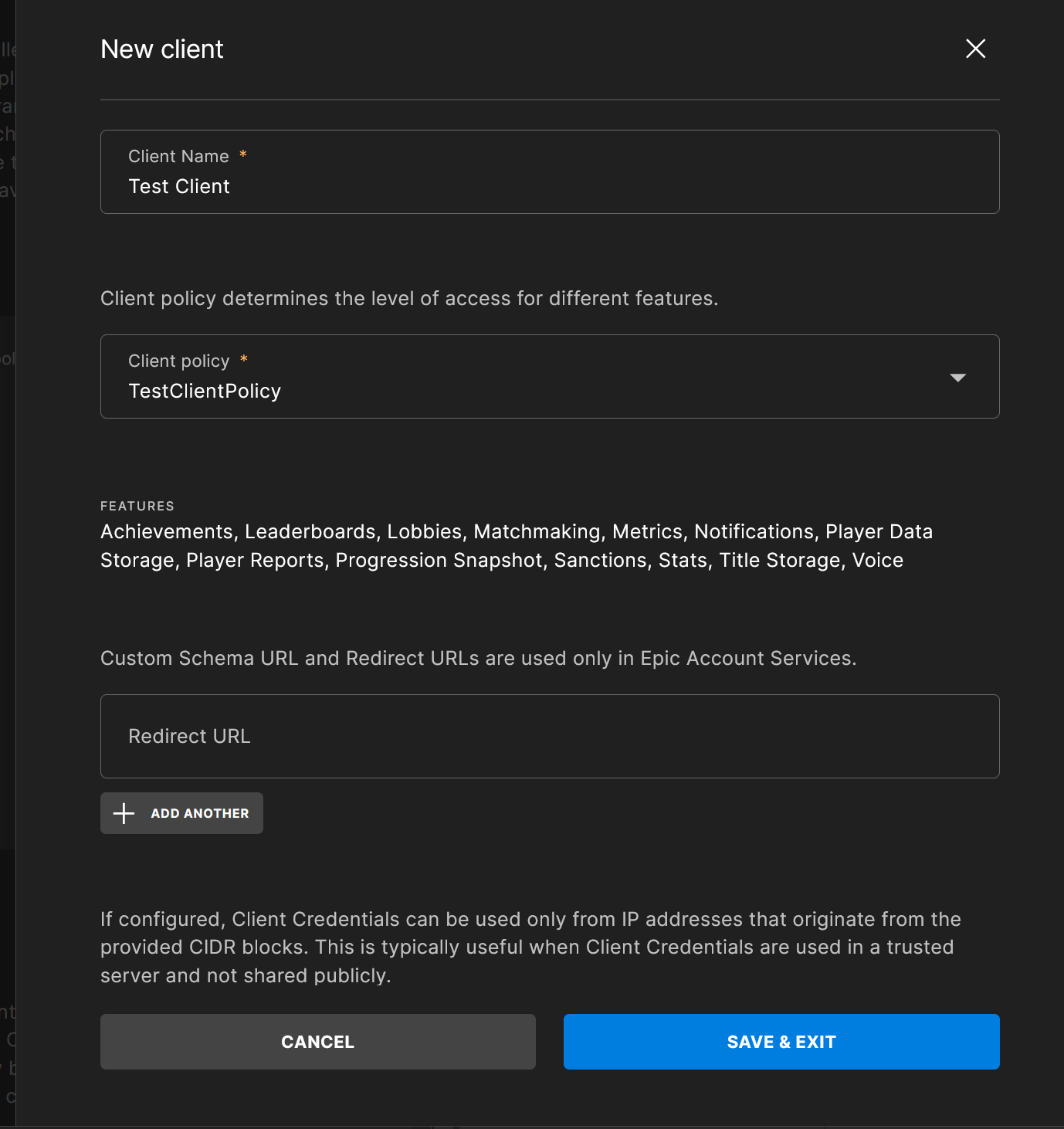

Add Clients, name it and choose the policy created:
Link the client to the service:

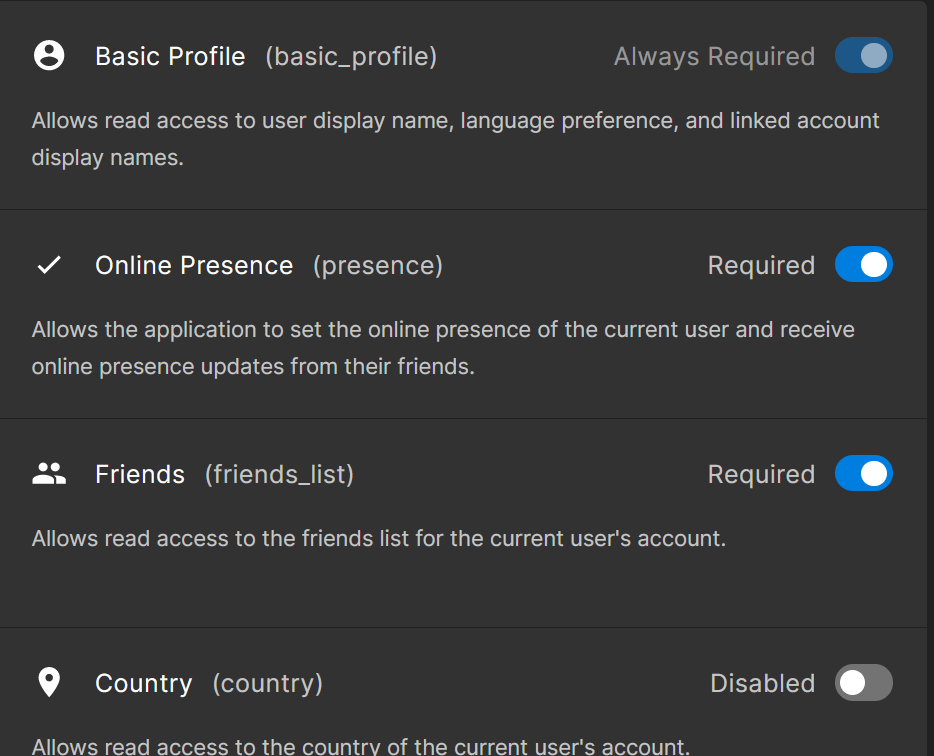

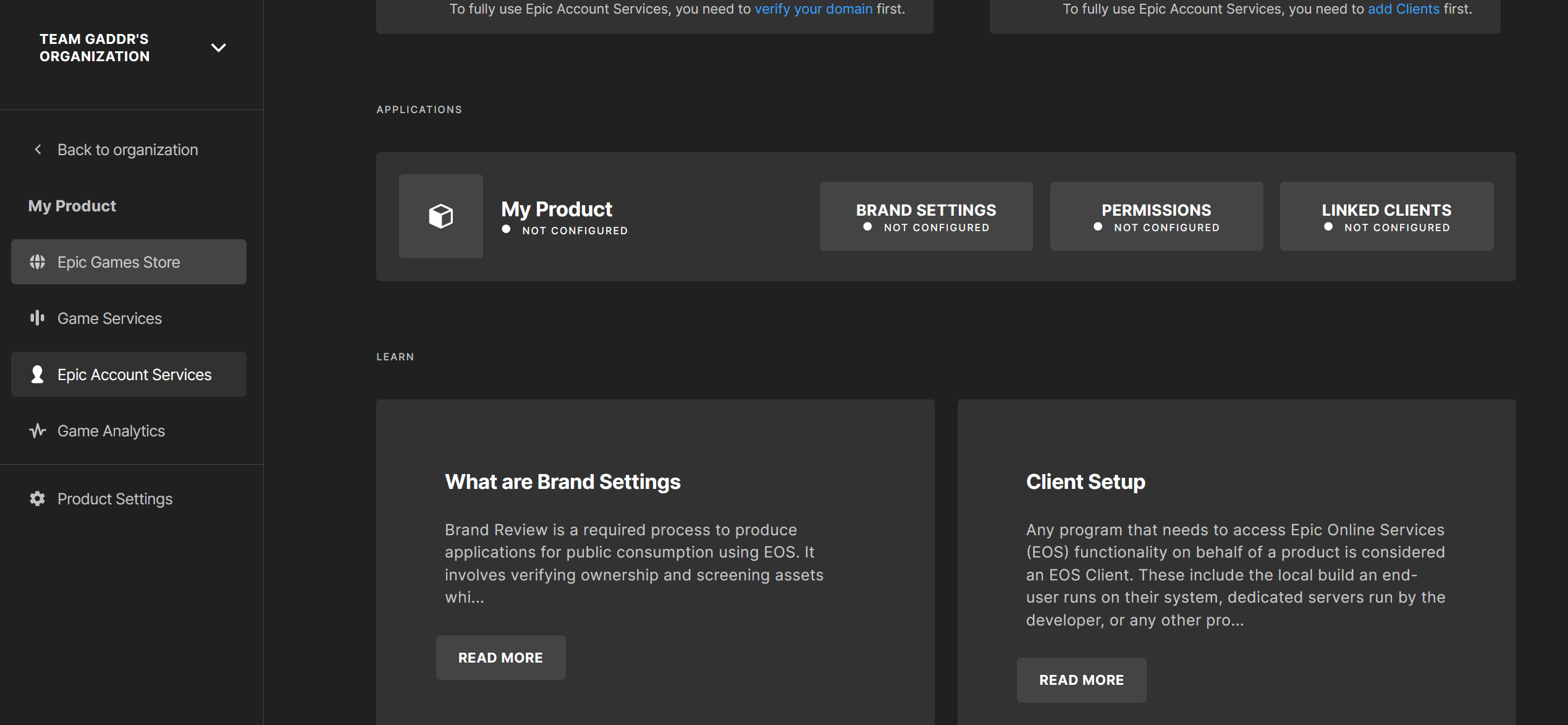

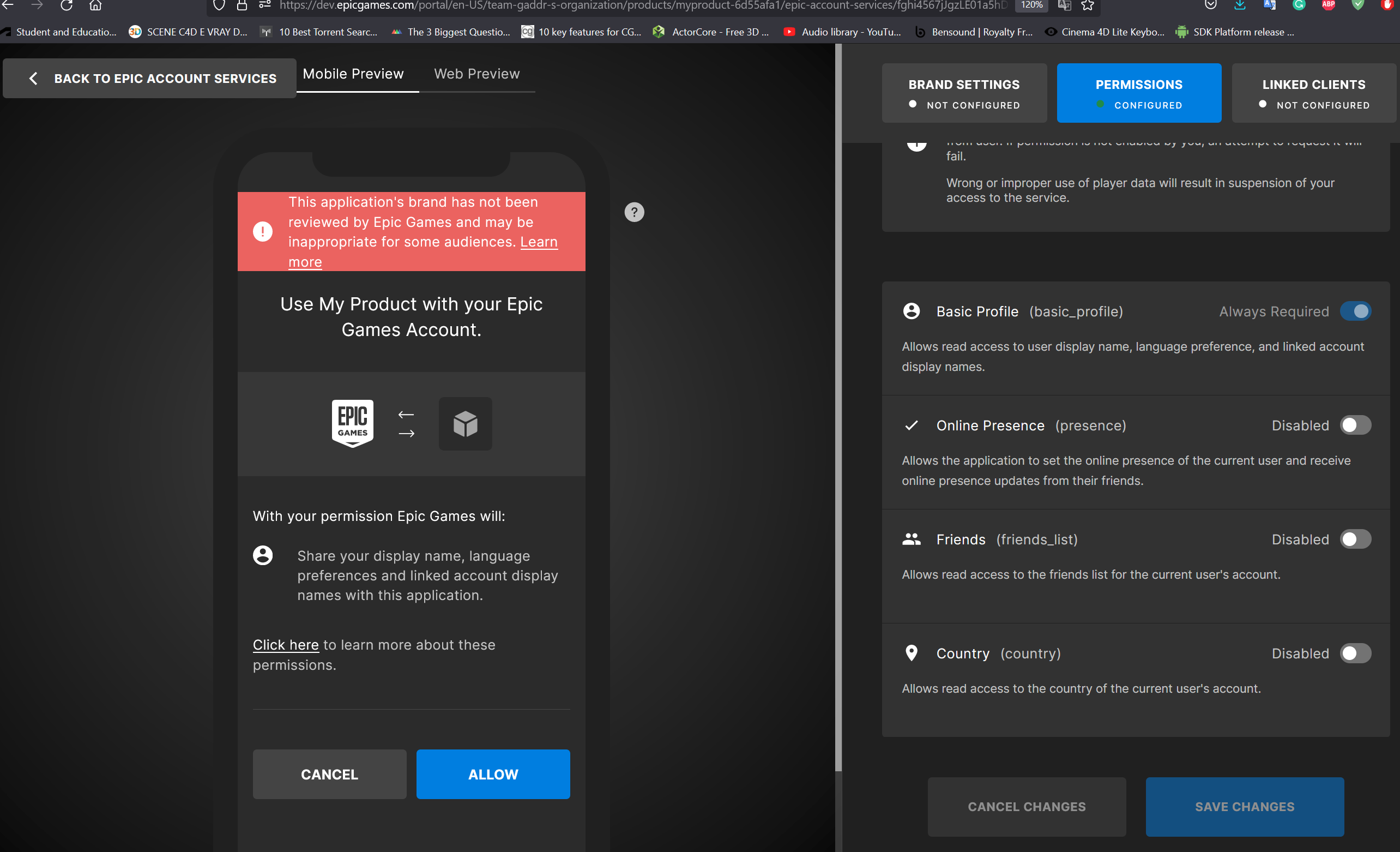

Go to Epic Account Service → Permission:
Save changes to configure it:
P.S. T2 sets as this:

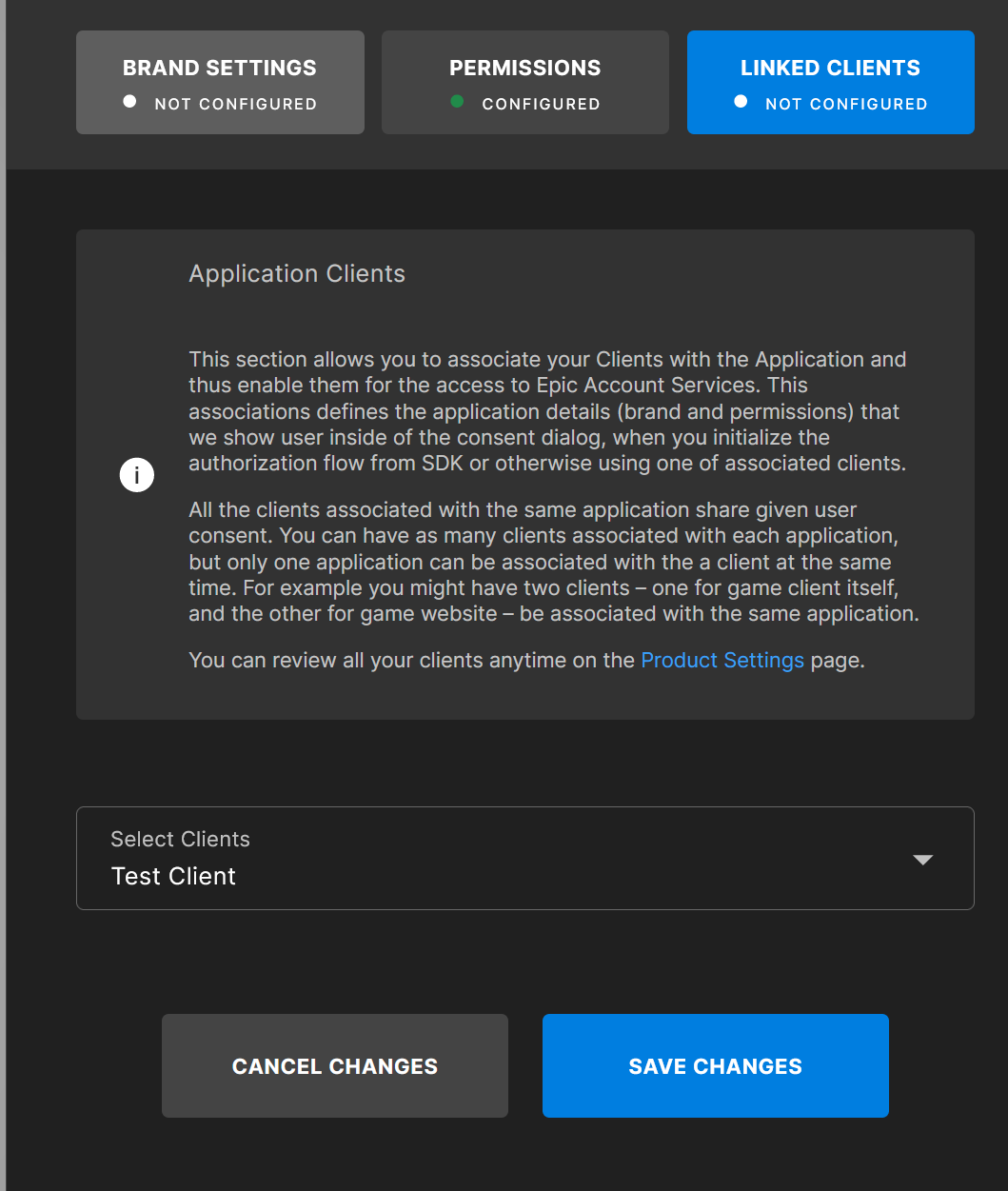

Choose Clients created on Linked Client tab, to configure it:
Create a third person template UE:
Move the download Advanced session plugin into the created Plugin folder in UE project

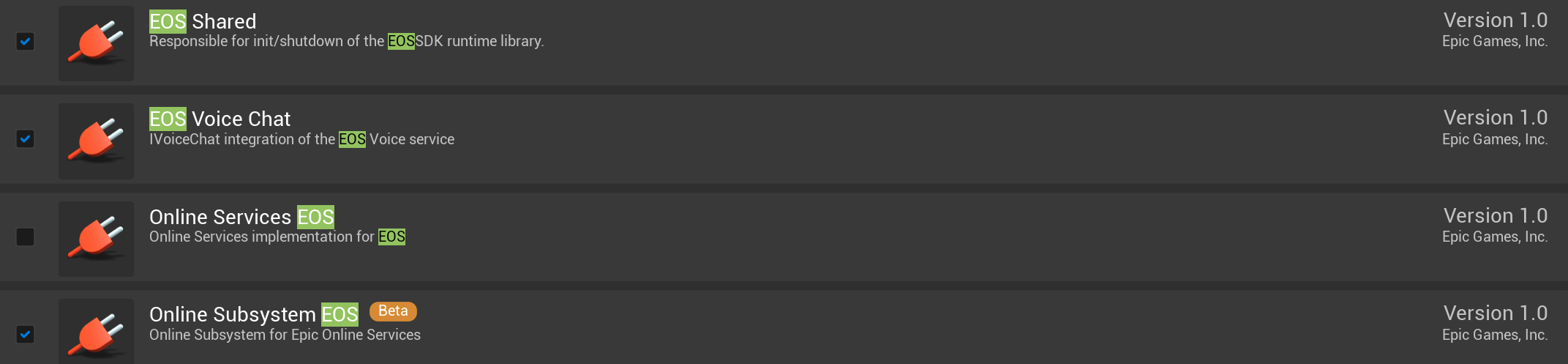

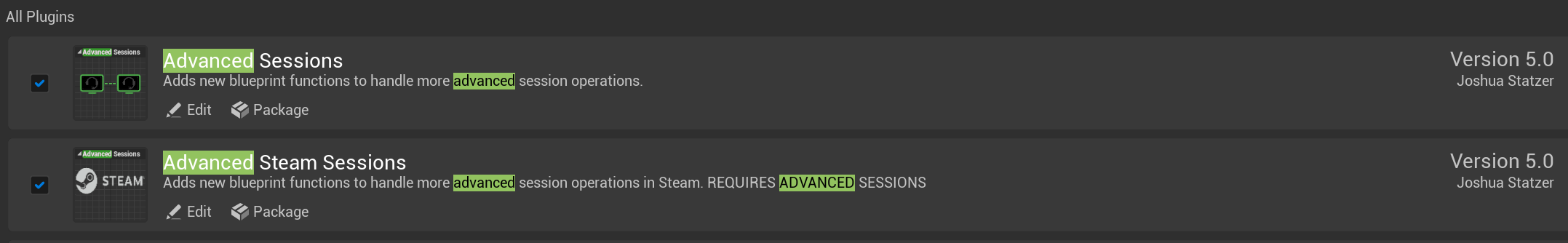

Plugin: Advanced Sessons, Online Subsysytem EOS, ticked
copy below codes:
[OnlineSubsystemEOS]
bEnabled=true
[OnlineSubsystem]
DefaultPlatformService=EOS
[/Script/Engine.GameEngine]
+NetDriverDefinitions=(DefName="GameNetDriver",DriverClassName="OnlineSubsystemEOS.NetDriverEOS",DriverClassNameFallback="OnlineSubsystemUtils.IpNetDriver")
[/Script/OnlineSubsystemEOS.NetDriverEOS]
bIsUsingP2PSockets=true

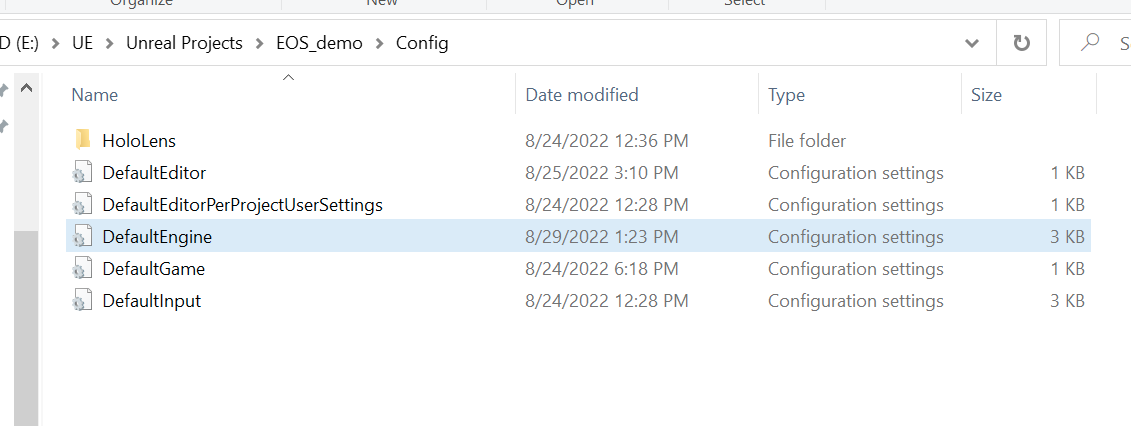

open this and replace the content at end

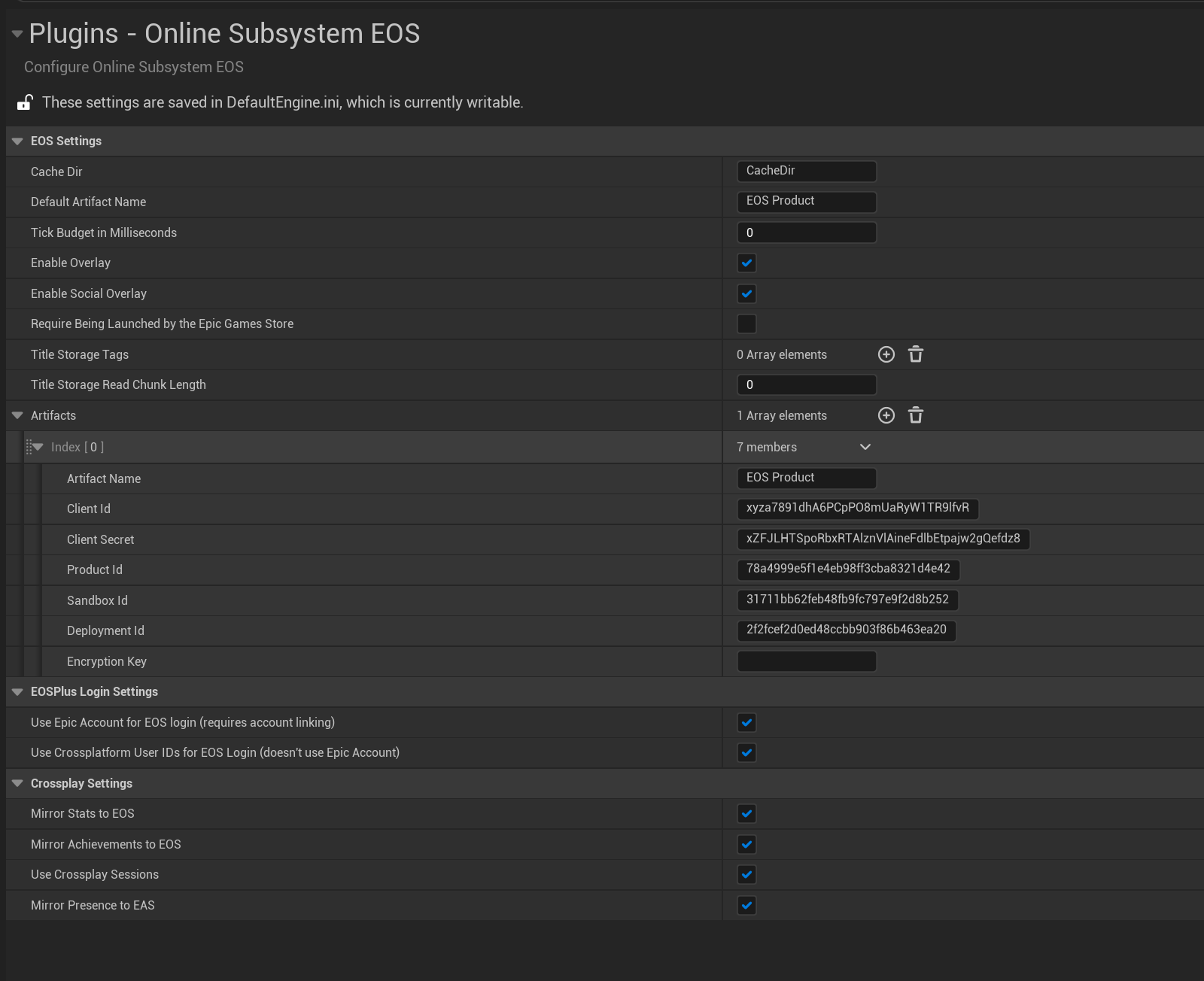

Configure EOS plugin in Project Setting (Artifact name depends on the project name made):

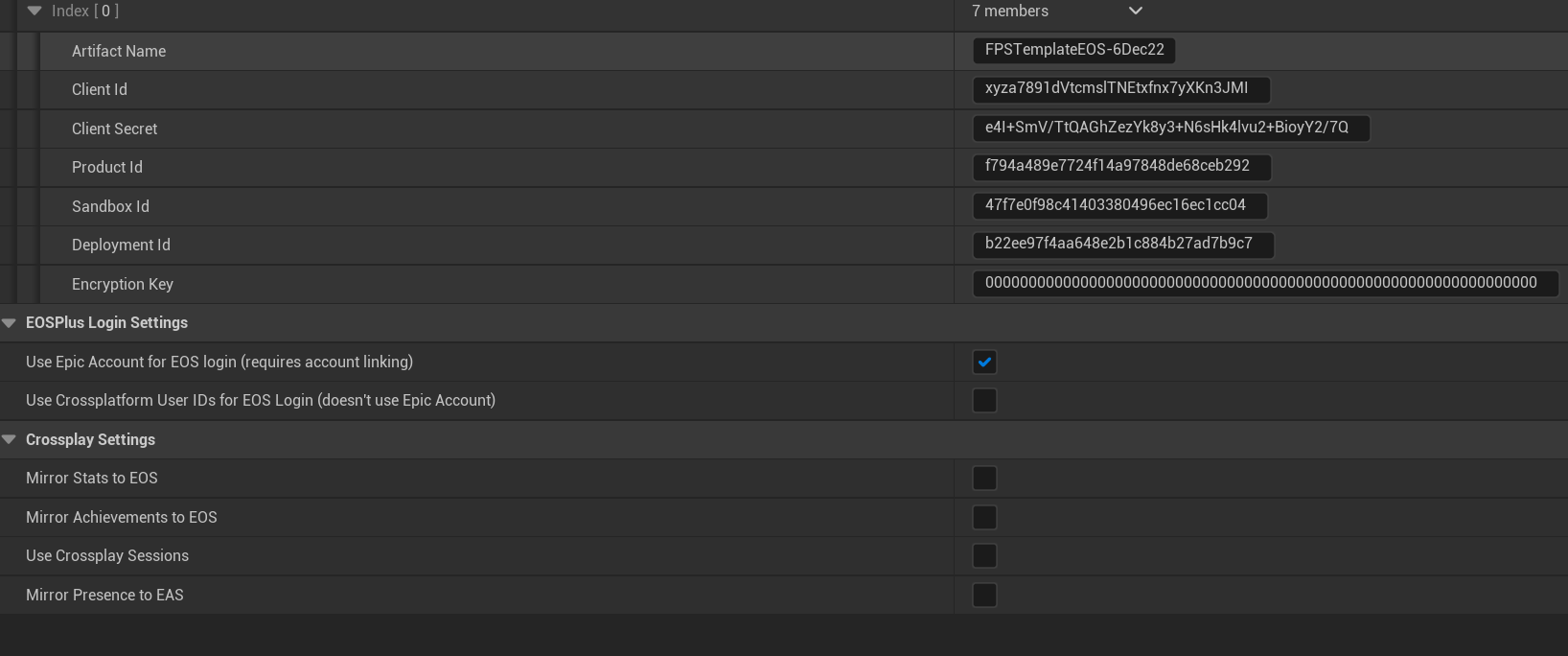

P.S. In T2, it sets Encryption key with 64 digits of 0, and several settings untick:
Reopen the UE project, test
Change to Stand Alone game mode, test if the game ok
Set Auto login by default:

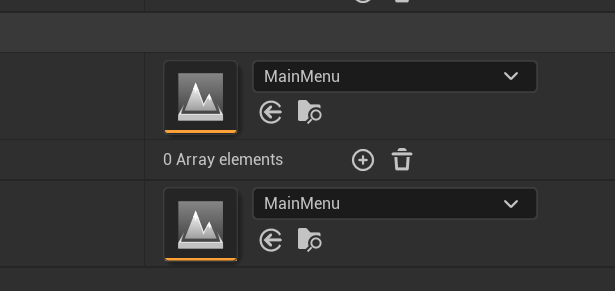

Create a new map called MainMenu, set it as default map in Project Setting
Default game mode: ThirdPersonalGameMode
Create a Game Mode Base BP, name as MainMenuGameMode:

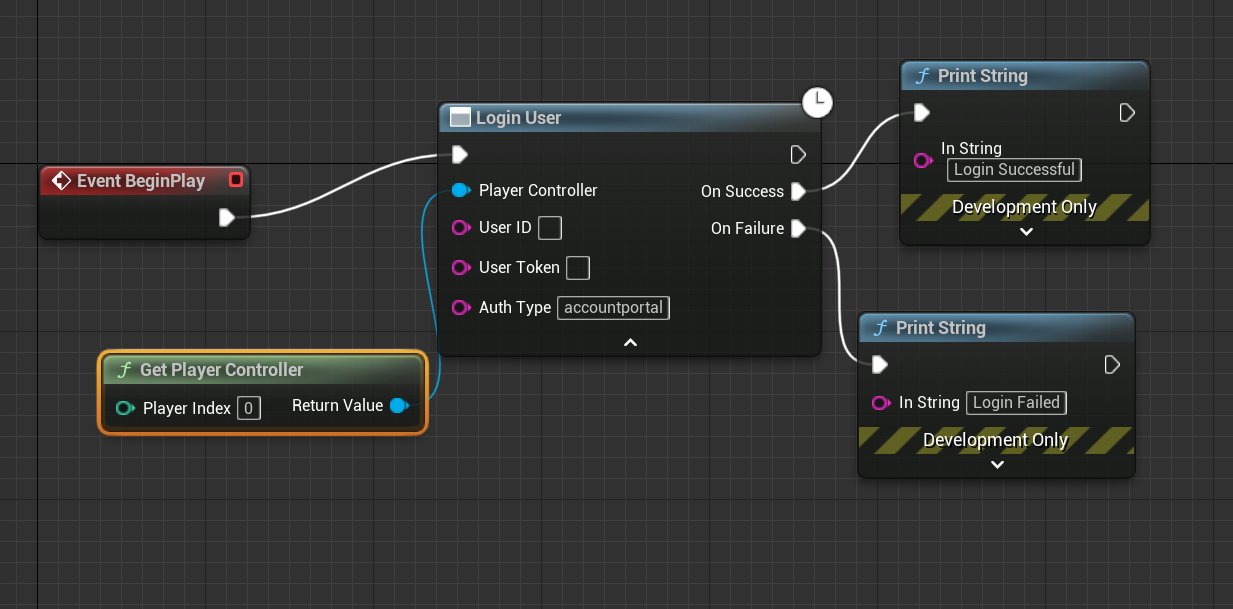

To Event graph, connect event begin to Login User node (for demo purpose, will change later in tutorial):

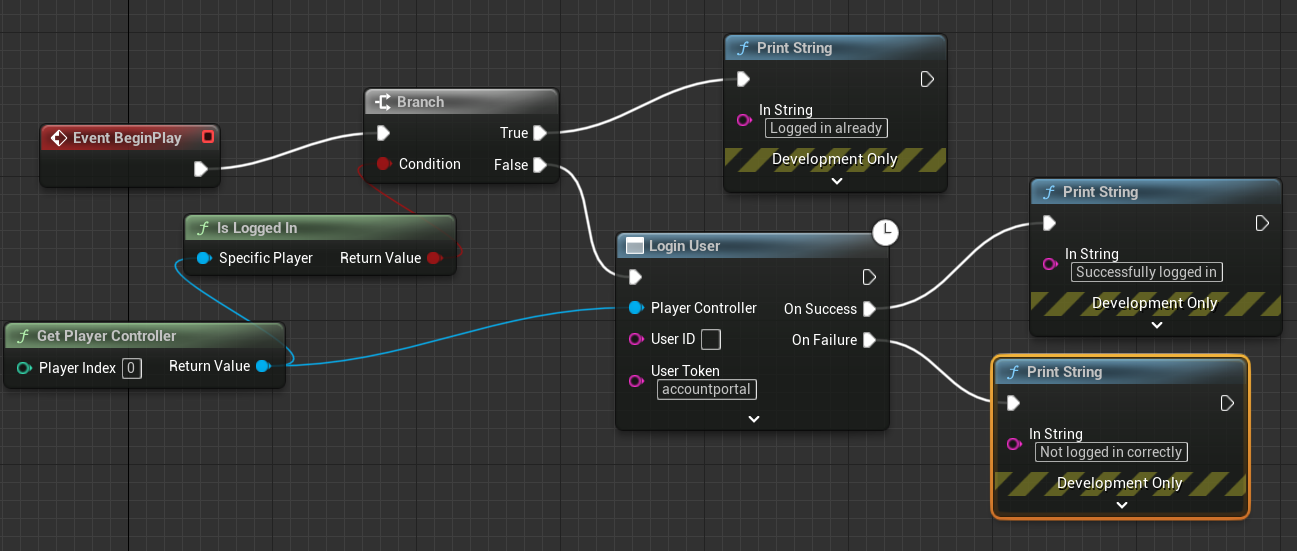

T2 modifies the graph as below:

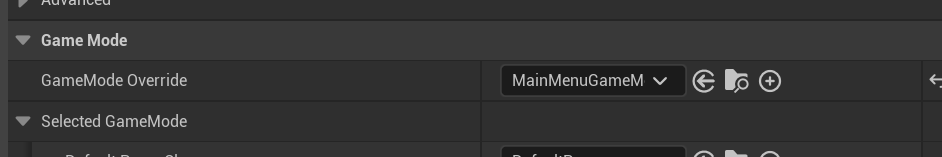

Change Override gamemode:
Launch Stand Alone game preview
(Hold Shift+F3 should be able to open chat room)
Create a session for joining a server game:
Design a menu:
Create a Widget BP called WBP_MainMenu

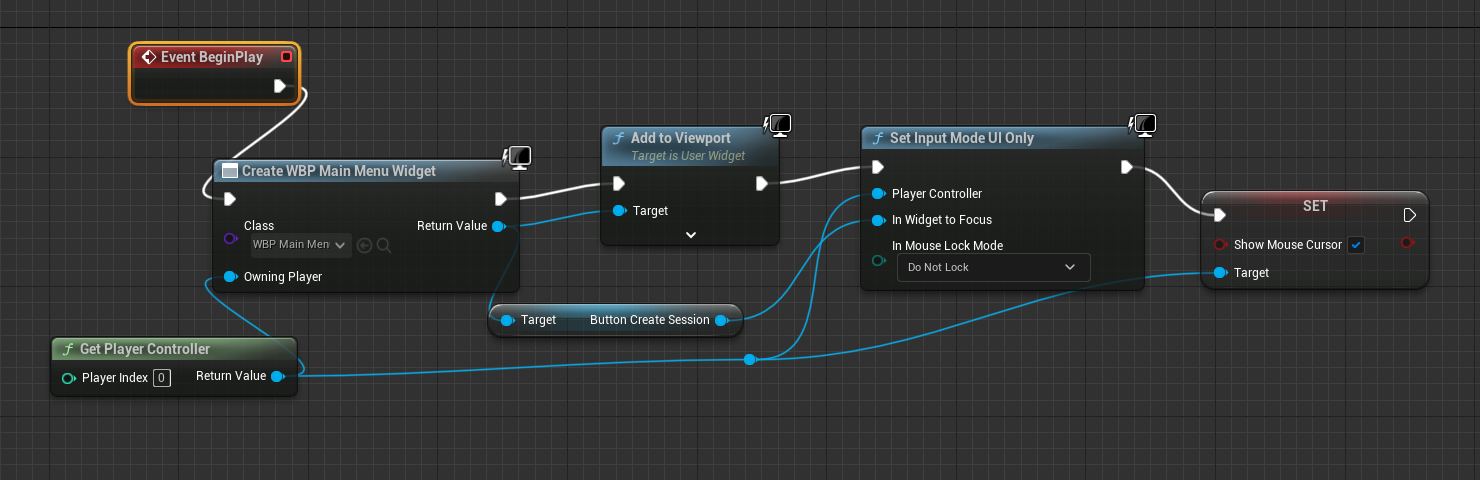

Go to MainMenu and revise the graph with new widget in:
(node output to Event beginPlay, type Create Widget, then choose WBP_mainmenu widget in class)

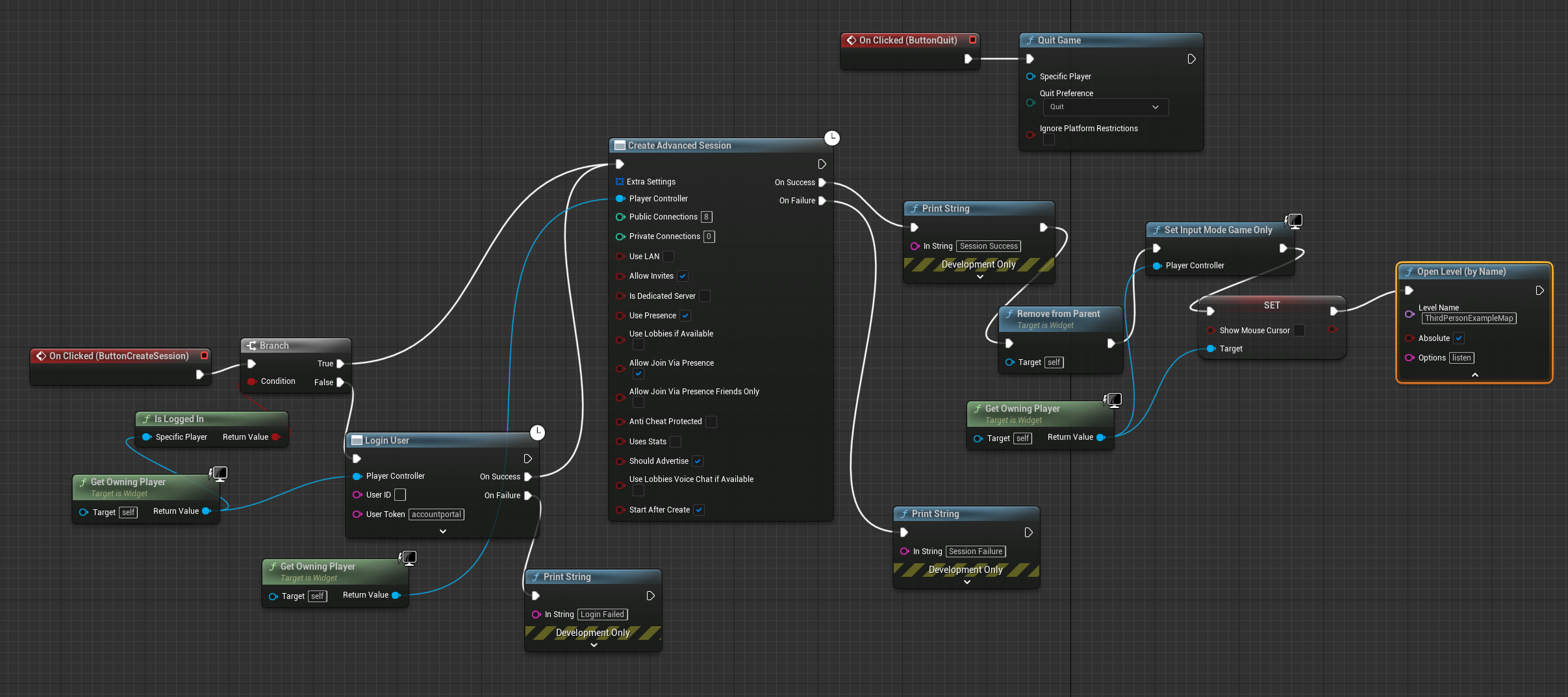

Open WBP_MainMenu Widget and edit the graph (for login to EOS → remove main menu and open game map in listen mode):

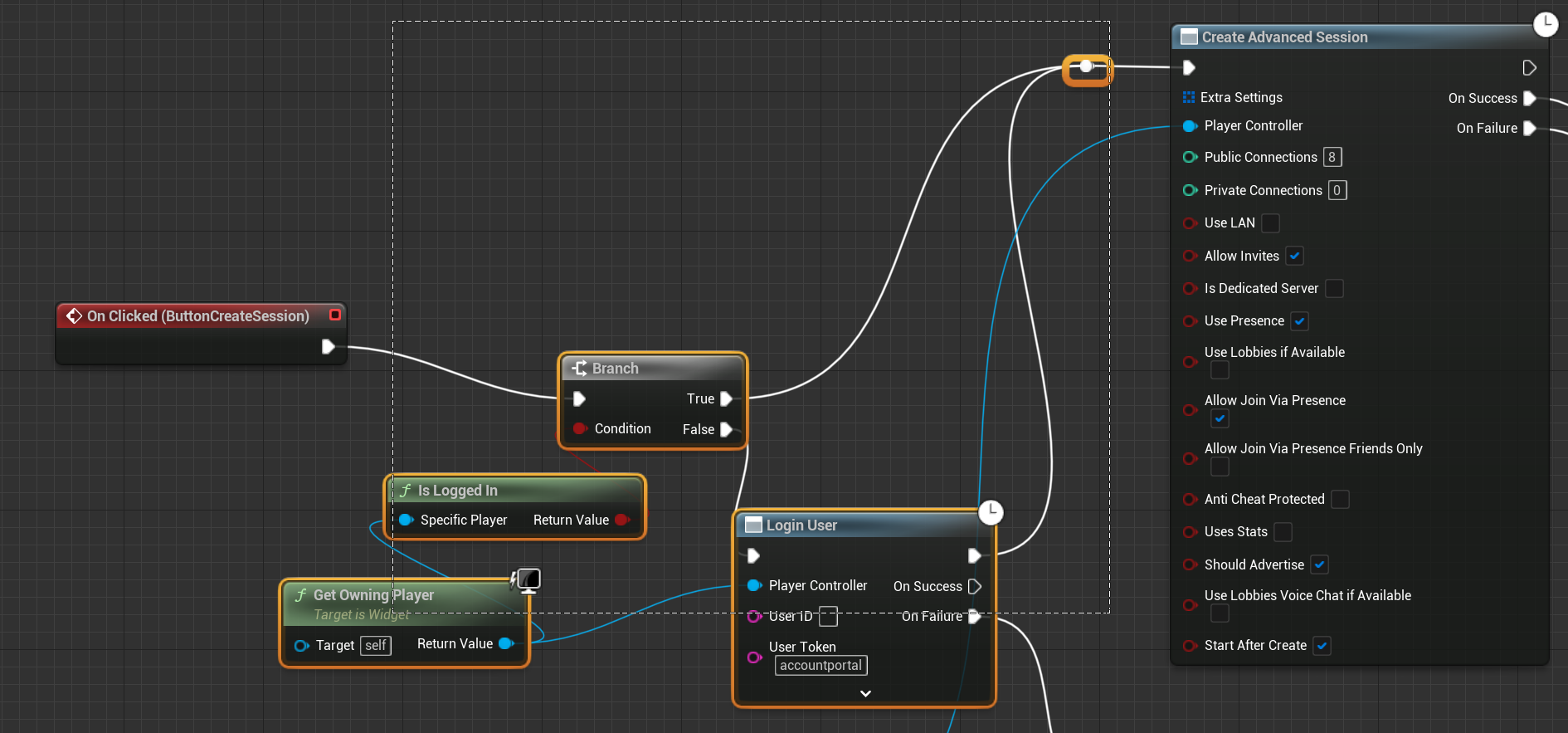

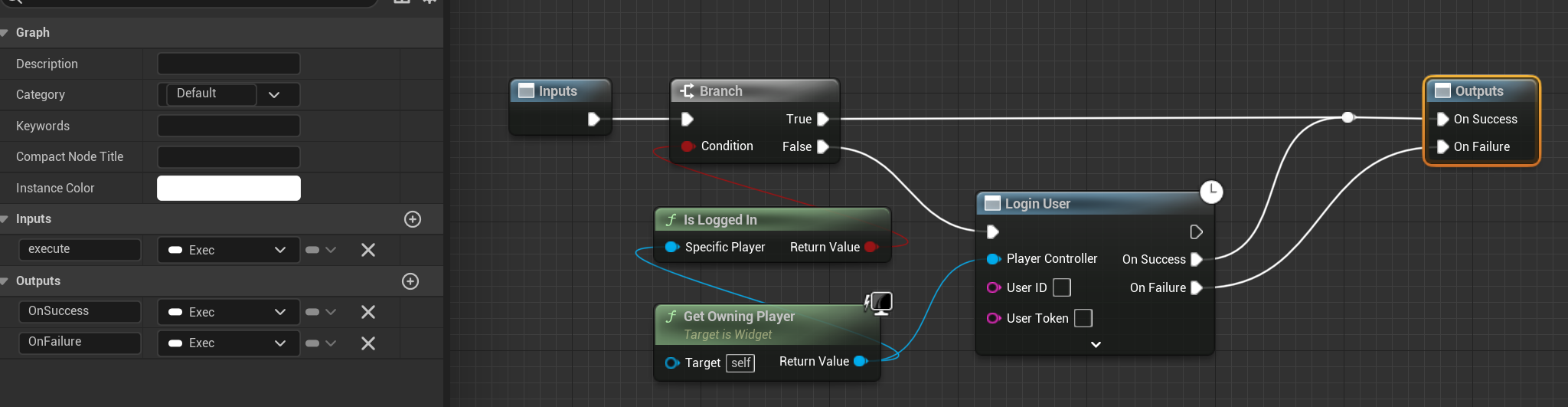

Select the follow nodes (include a reroute) and create a marco, name as login
Open the Marco, rename the outputs node Output

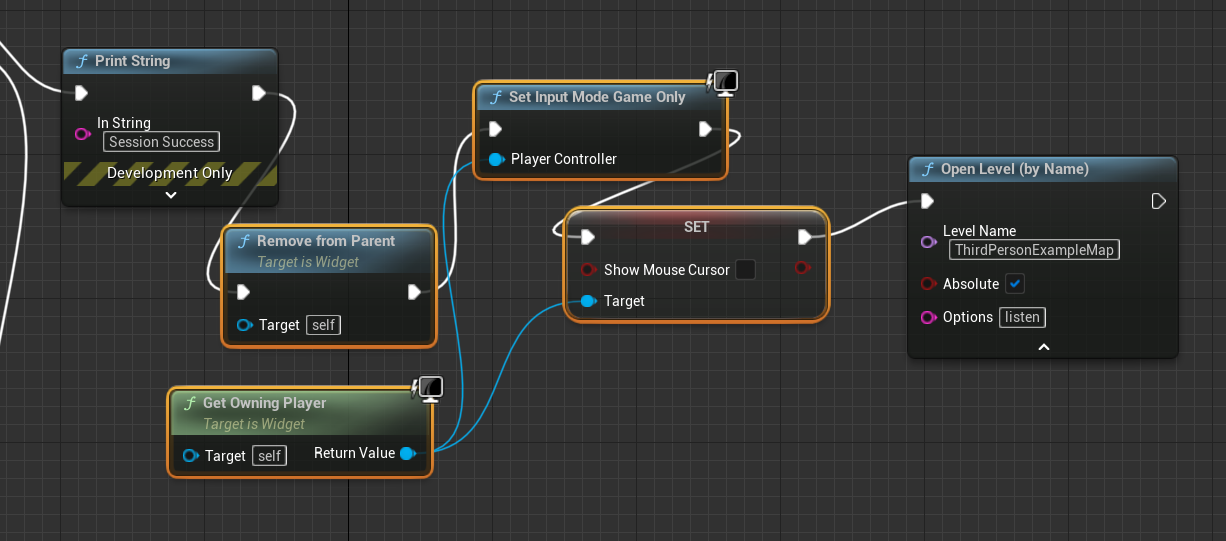

Create a function nodes called Clear UI with follow nodes

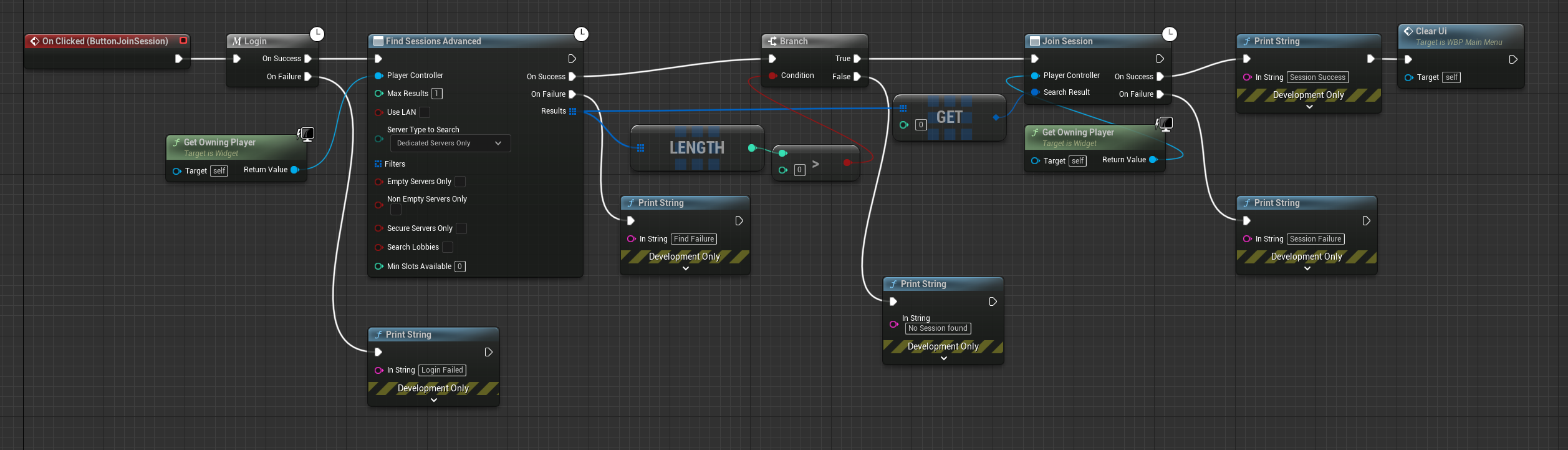

For Join button graph (Login to EOS → look for dedicated servers without lobbies, find any session→ join session → remove main menu) :
