UEFN Modeling Basic (Pt 1)

Import Cleanup (Pt 2)

Set Collision (Pt 3 & 4)

UEFN stands for Unreal Editor for Fortnite

⁠

https://www.youtube.com/watch?v=2NpvX7eSThA&t=634s⁠

⁠

Choose Modeling in Selection mode (top left Corner) in UE

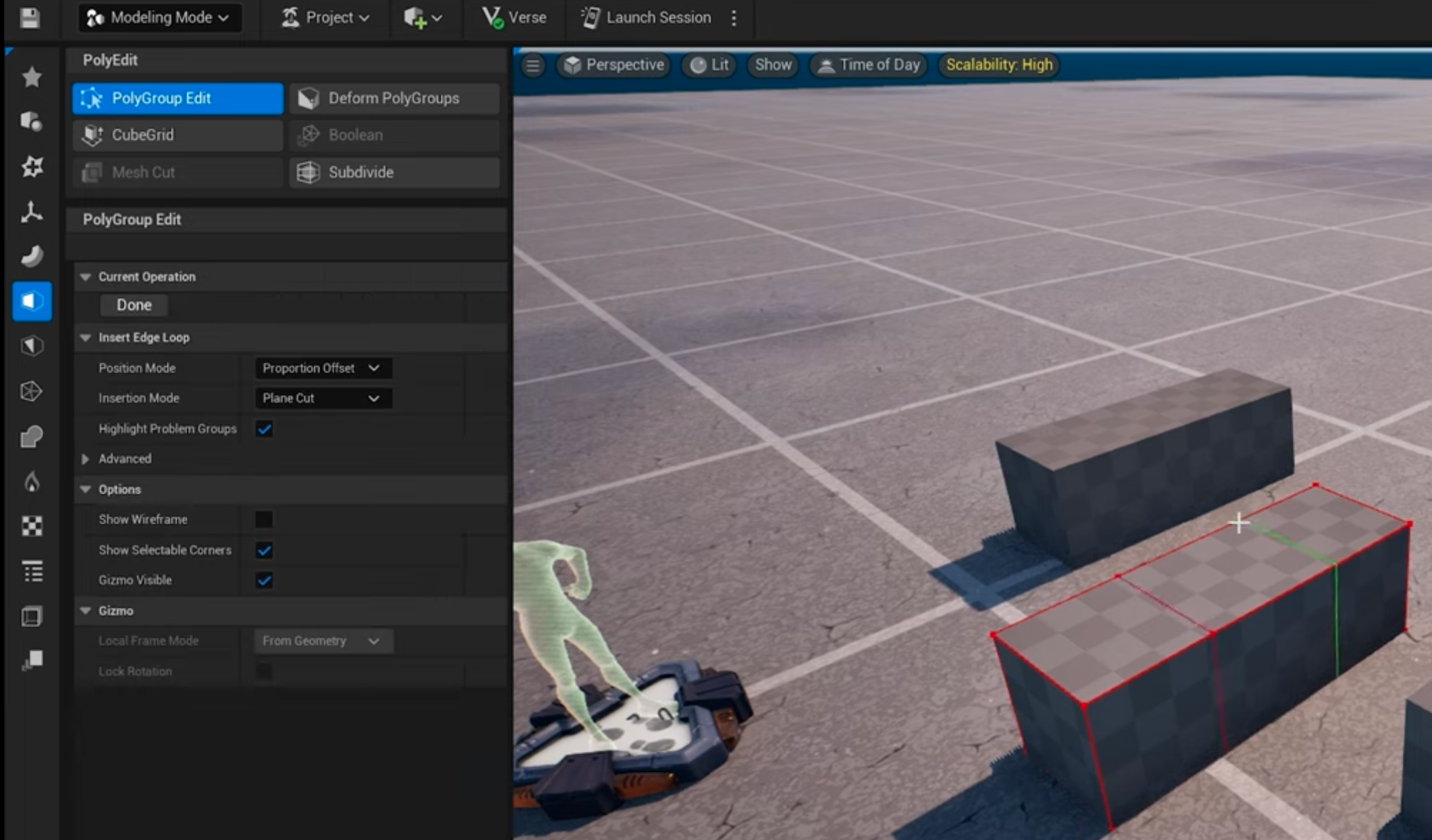

Edit imported shaped polygonL PolyEdit tab → PolyGroup Edit → e.g. Inset Edge Loop

⁠

To duplicate meshes while keep the original mesh not changed:

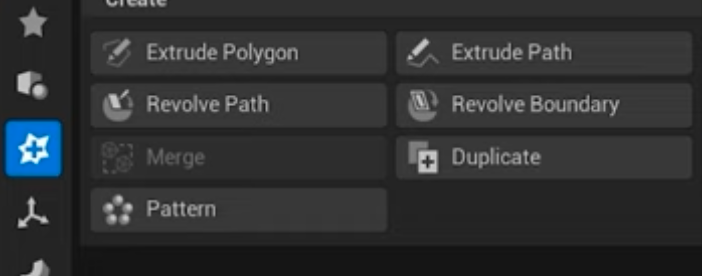

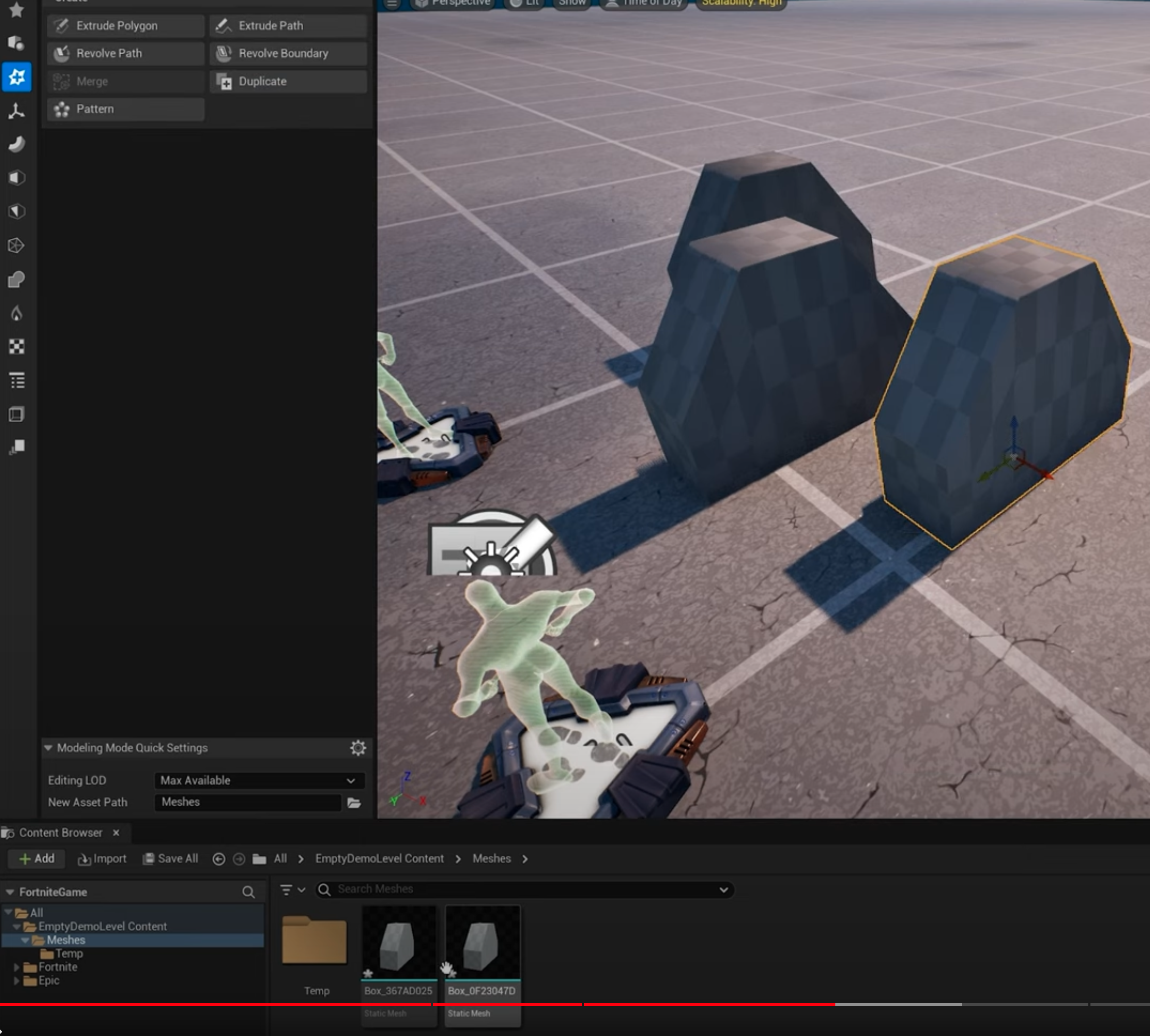

Create tab → Duplicate → Accepted (a new mesh is created in browser, it can be edited. If just Ctrl +D in scene, they all will be changed when either 1 is edited)

⁠

Imported meshes merging (if it’s fragmented meshes), orienting and pivot setting:

Select all mesh need to combine → Create → Merge

⁠

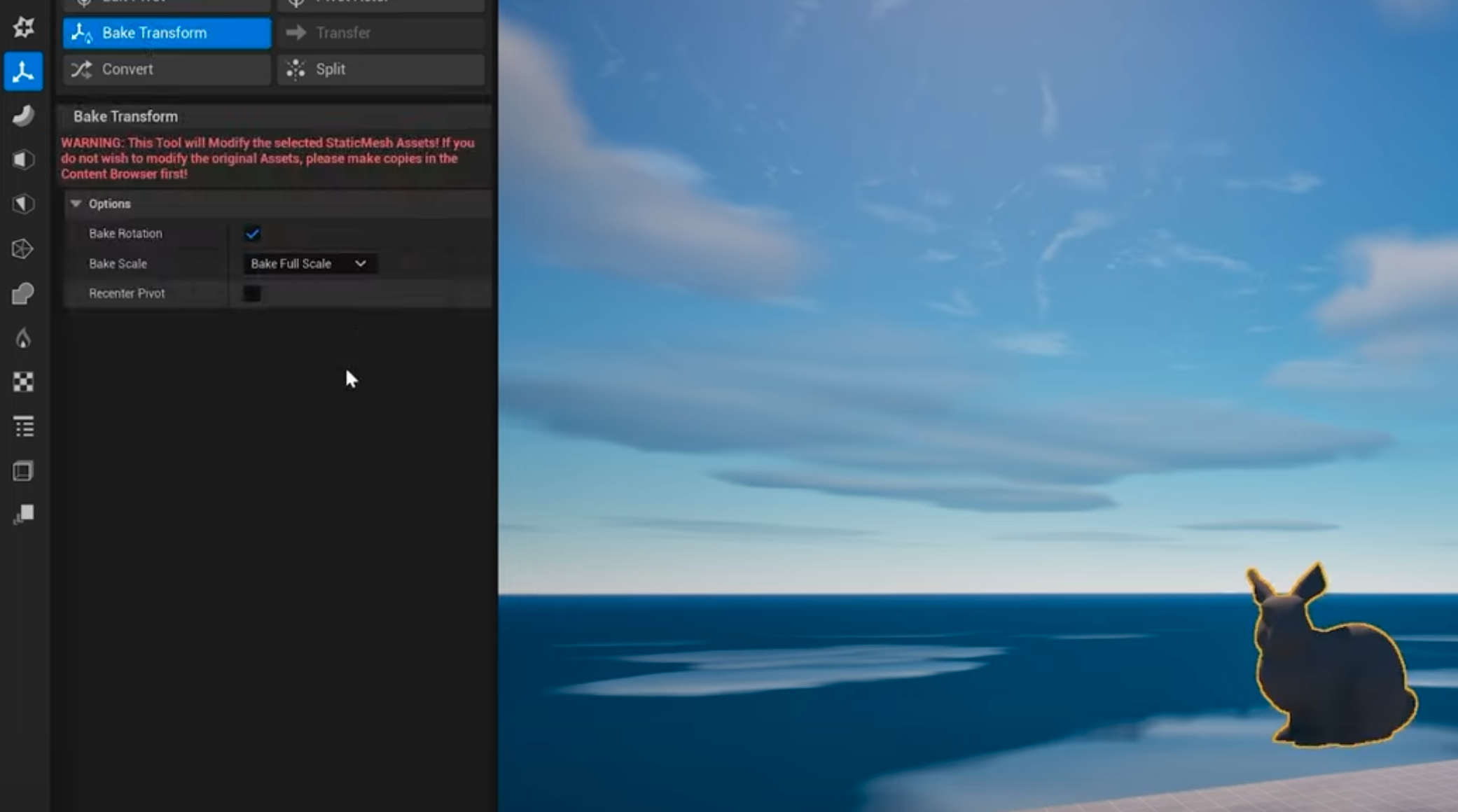

Orient, scale the mesh in scene correctly → Transform → Bake Transfrom

⁠

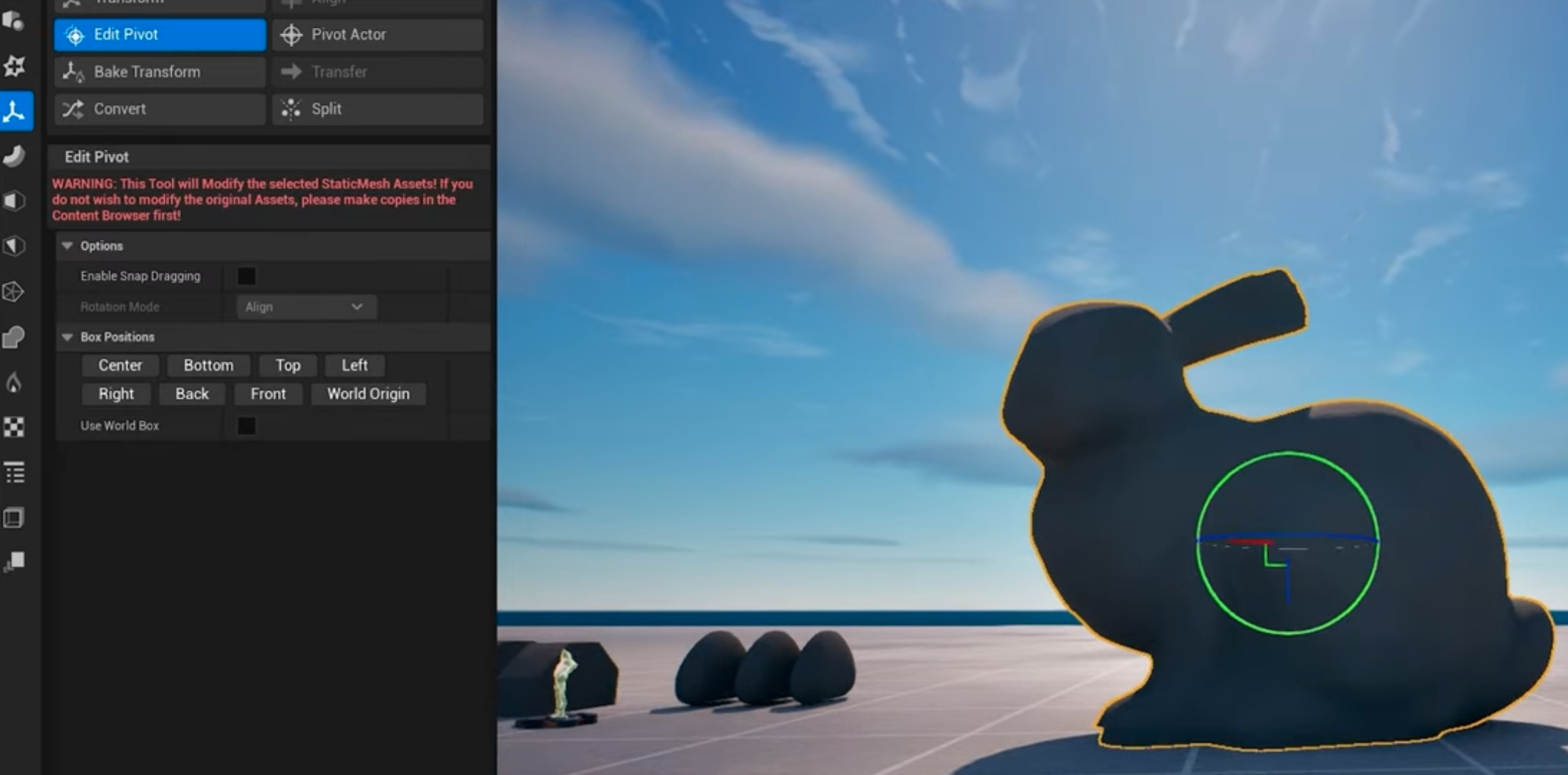

Transform → Edit Pivot → drag the pivot to where I want:

⁠

P.S.

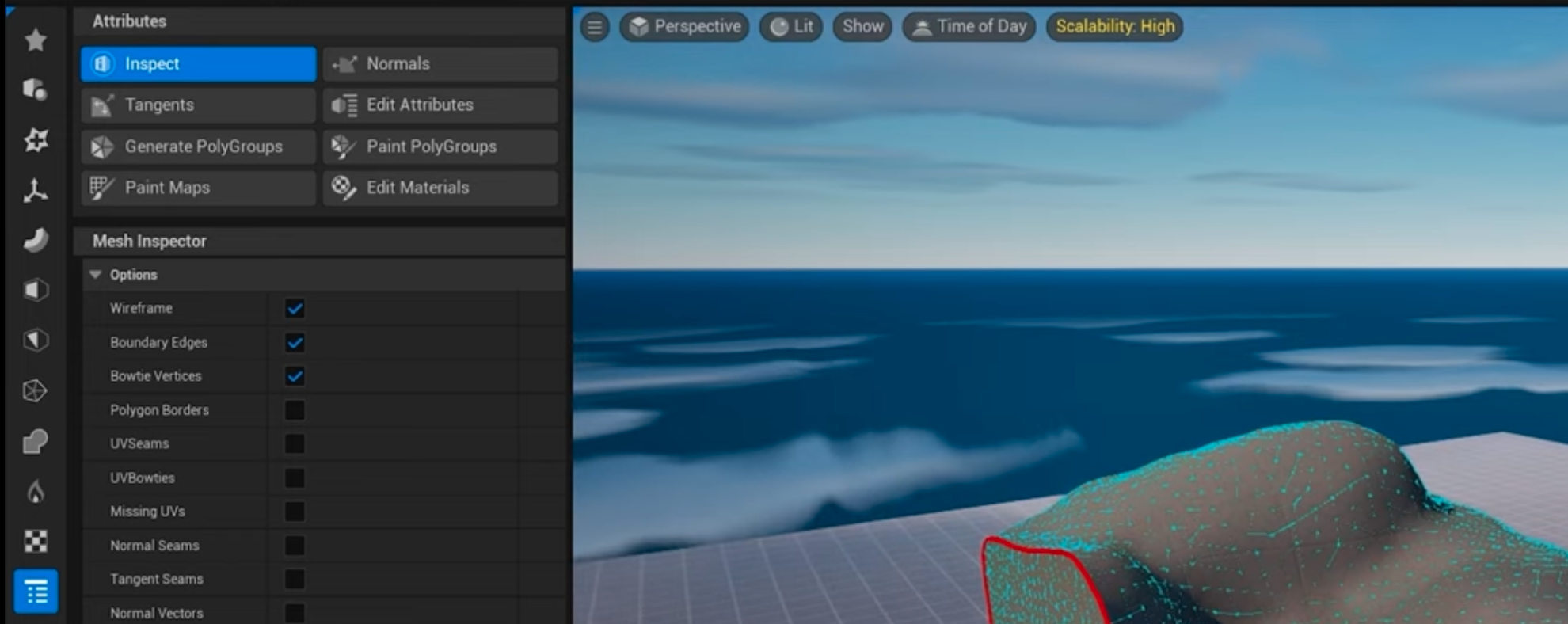

Good habit to inspect meshes modeling structure/point cloud/polygon:

Attribute (e.g below of red line means those are 2 pieces, not connected, just merged)

⁠

To make it into 1 piece:

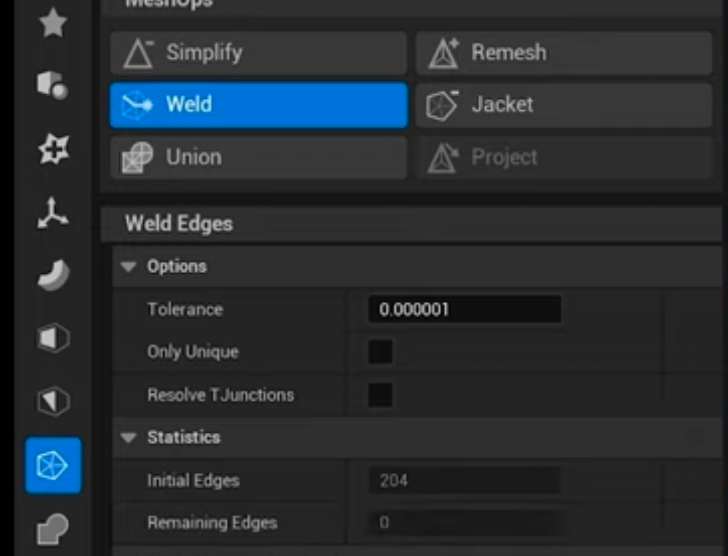

MEshOps tab → Weld

⁠
