Transform Effect

⁠

https://www.youtube.com/watch?v=bJwRpkLWZEQ&t=22s⁠

⁠

Import 2 objects, position them overlapping each other (e.g. Head and Helmet here)

On Halmet, Shift+ R click → Smooth

→

Alt+Shift +D to delete history

→

Modify → Freeze Transformation

→ Hide the Helemt

Delete the polygon below neck part in Head layer (face mode → L click 1 face, then Shift+double click) → Use default material → select the head

delete history

→

Modify → Free Transformation

In Head layer, open Node Editor → remove all nodes inside from the graph (icon below Options tab in editor) → Drag Head layer into Node graph

Select the head → Face mode → select the whole area of the head →

Shift + R click → Extract Face (2 nodes will create in node editor)

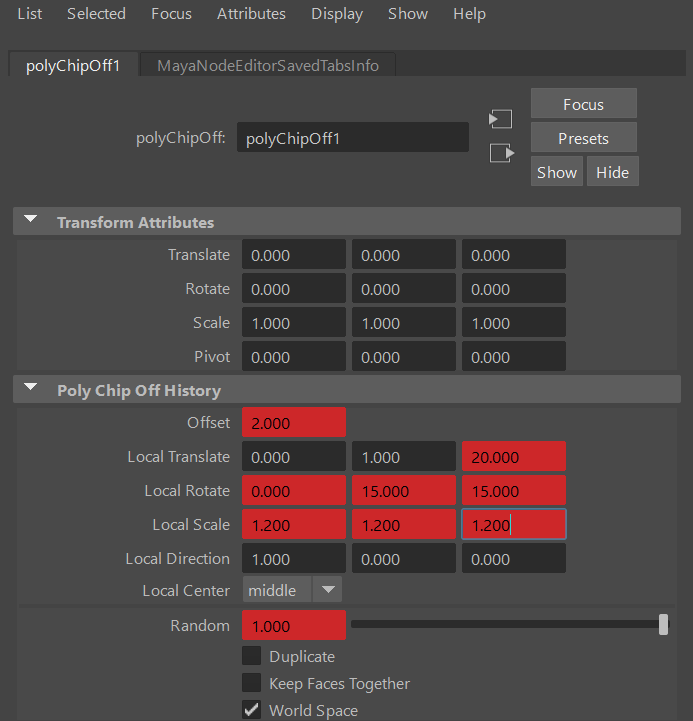

Select polyChipOff1 in node graph → set the values as follow (translate Y should be 0)→ Untick Keep Faces Together

⁠

Set Key for the adjusted values above at 30F; set all values to 0 at 10F

Create new node in node editor → Drag Helemt this time to the graph → repeat set procedure to add Extracted Face Nodes → set same Poly Chop Off History as the Head layer

→

Go to 20F to set Key for the values above, while 40F for all values to 0 (opposite to the Head)

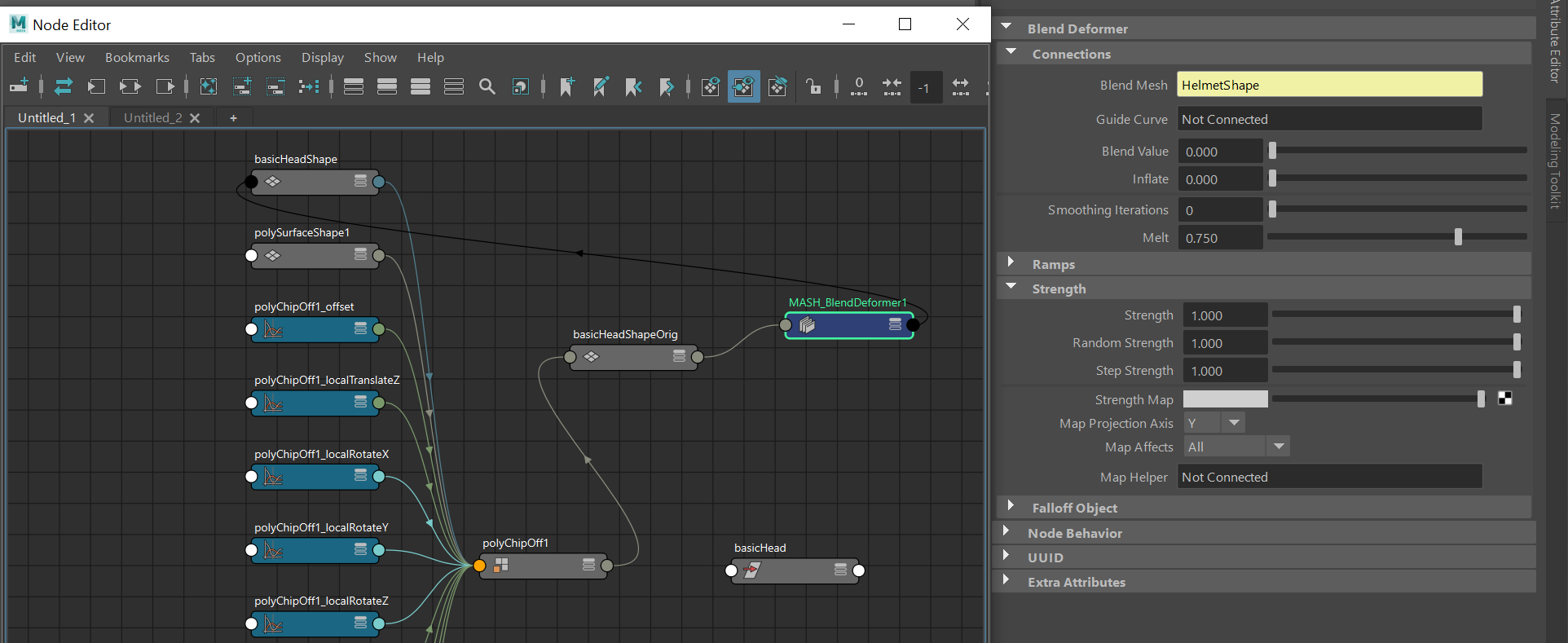

Select the Head layer, Go to FX (F5) → MASH (top bar) → Utilities → Create MASH Blend Deformer (a new node created in Head node graph) → Select the defromer node attribute

→ Open Connections tab → drag Helmet layer to Blend Mesh box

⁠

Set key of Blend value 0 at 10F, value 1 at 30F

Remark: The Helemt layer is suppose to be hidden all the time, ust let the Head layer does the work.
