Swimming system

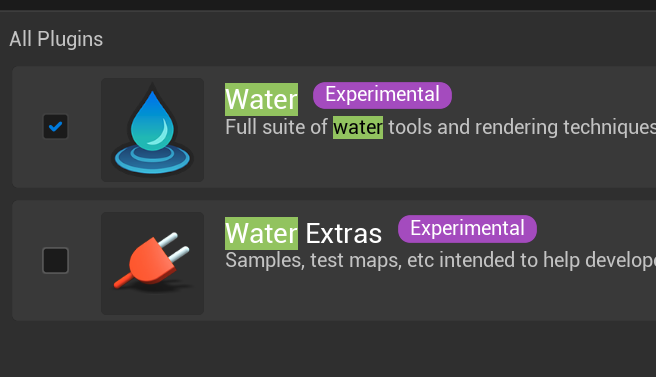

Activate water plugin

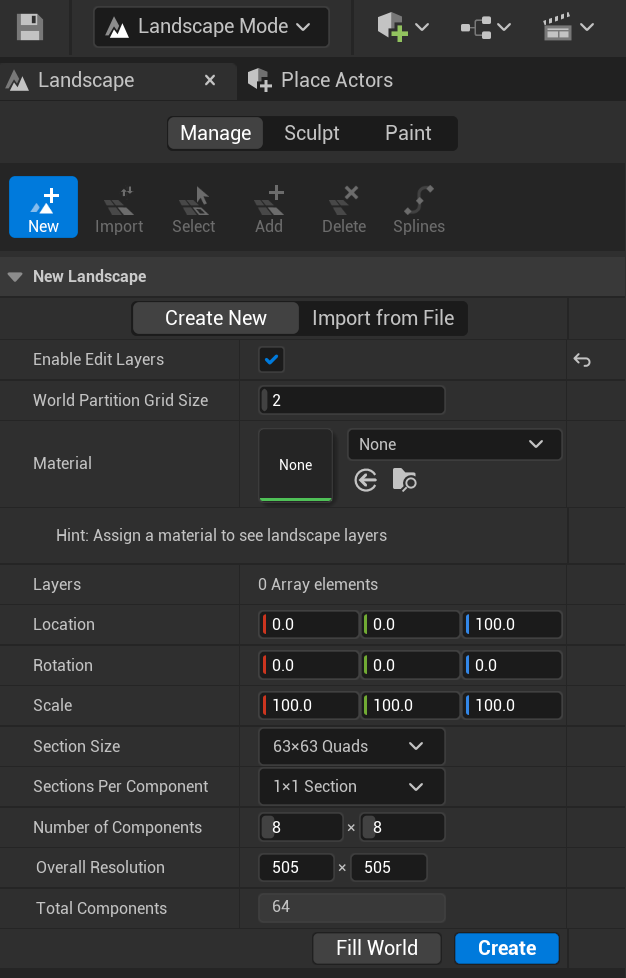

Select landscape mode
New, enable edit layer
Back to select mode

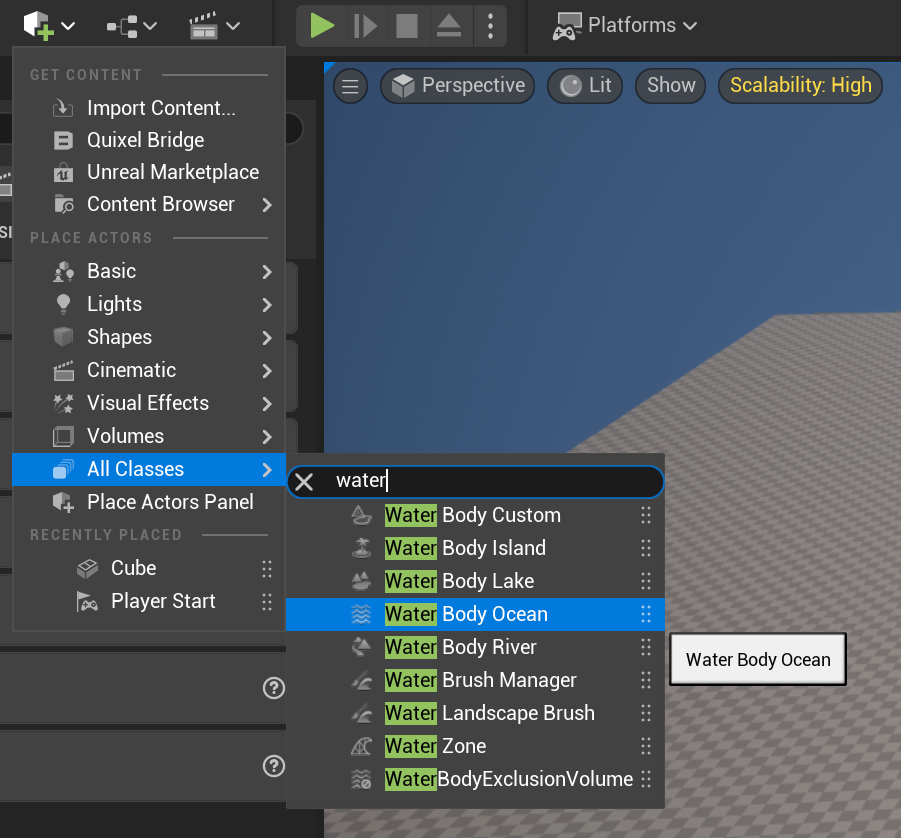

Click left hand corner icon, Drag water body ocean to scene

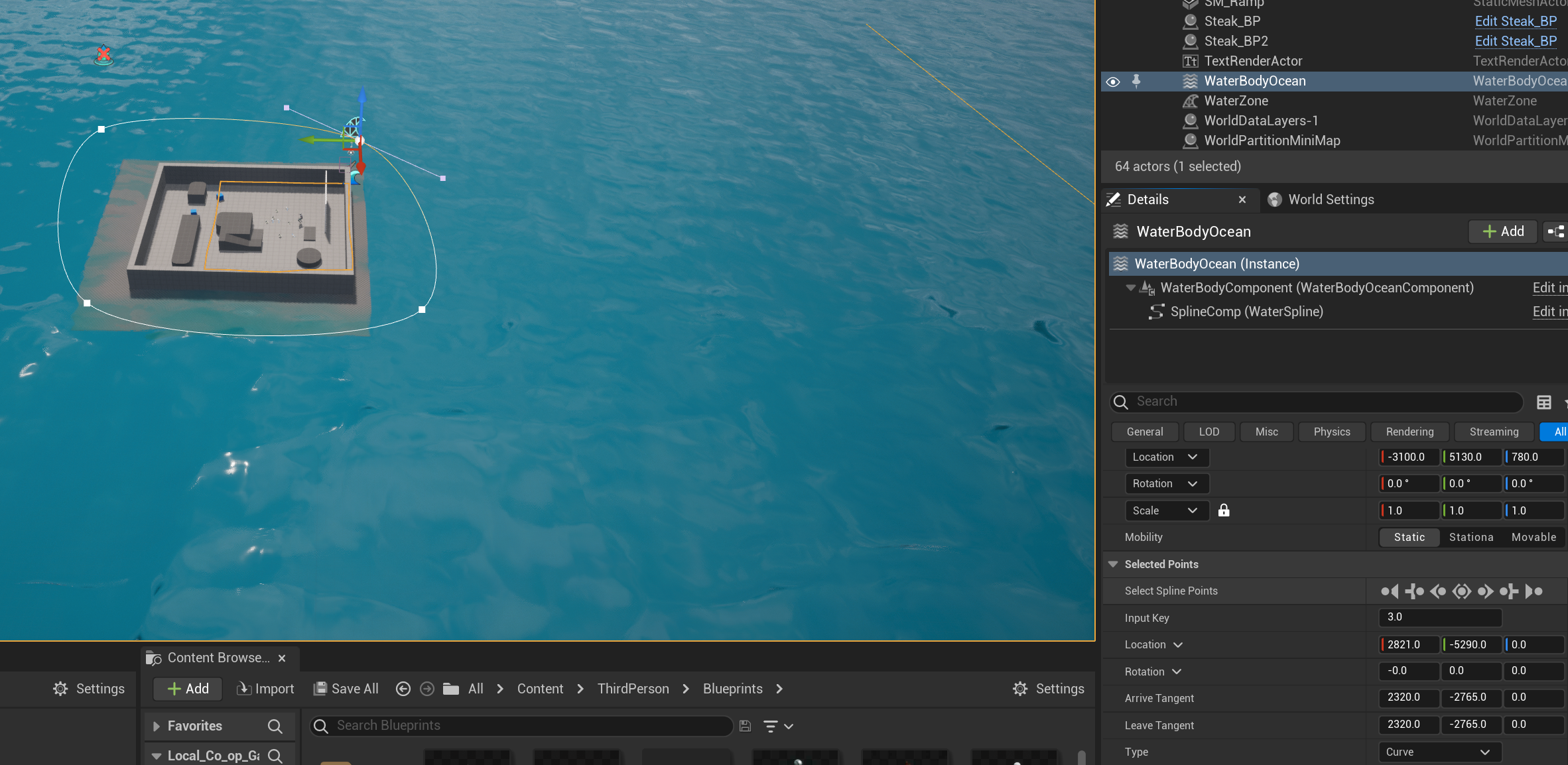

Reduce the island size by moving its location
Open 3rd person BP

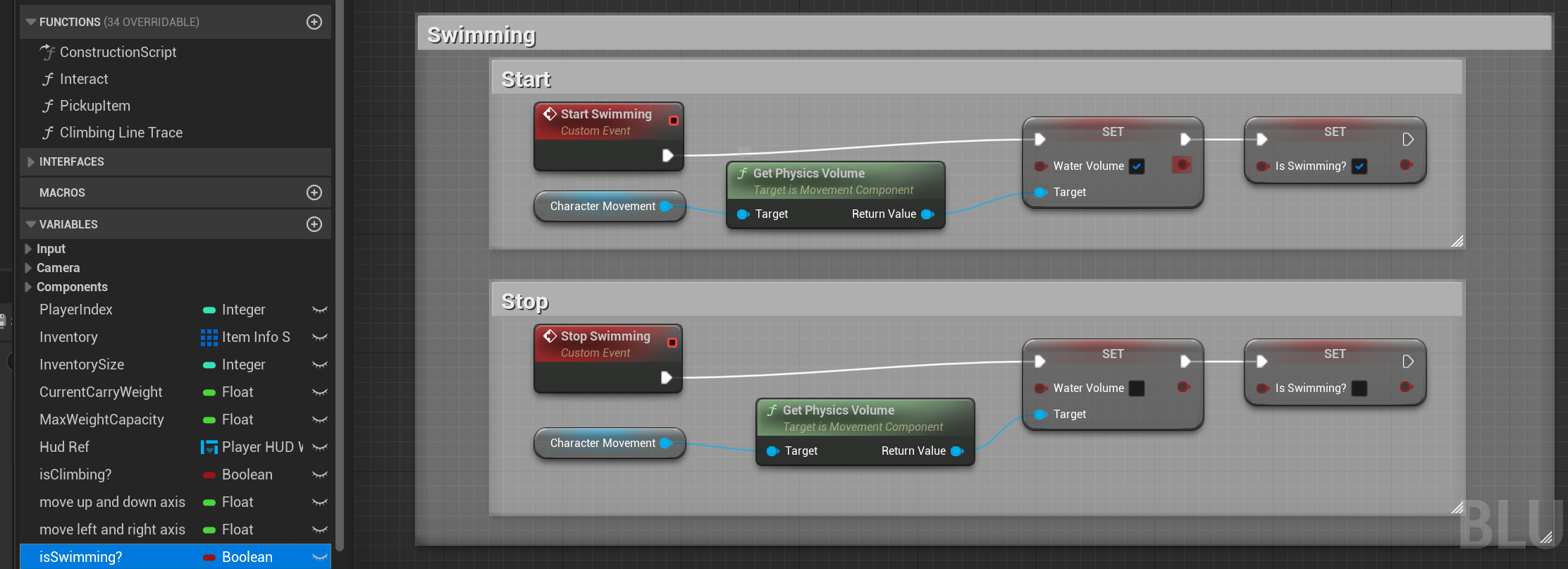

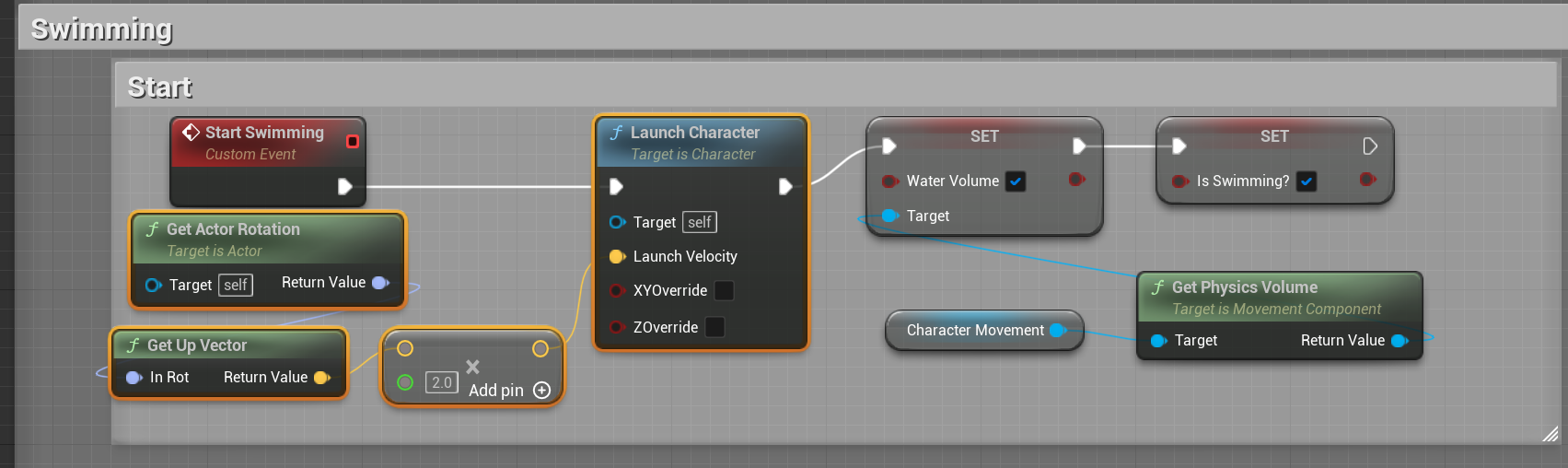

Create 2 custom events:

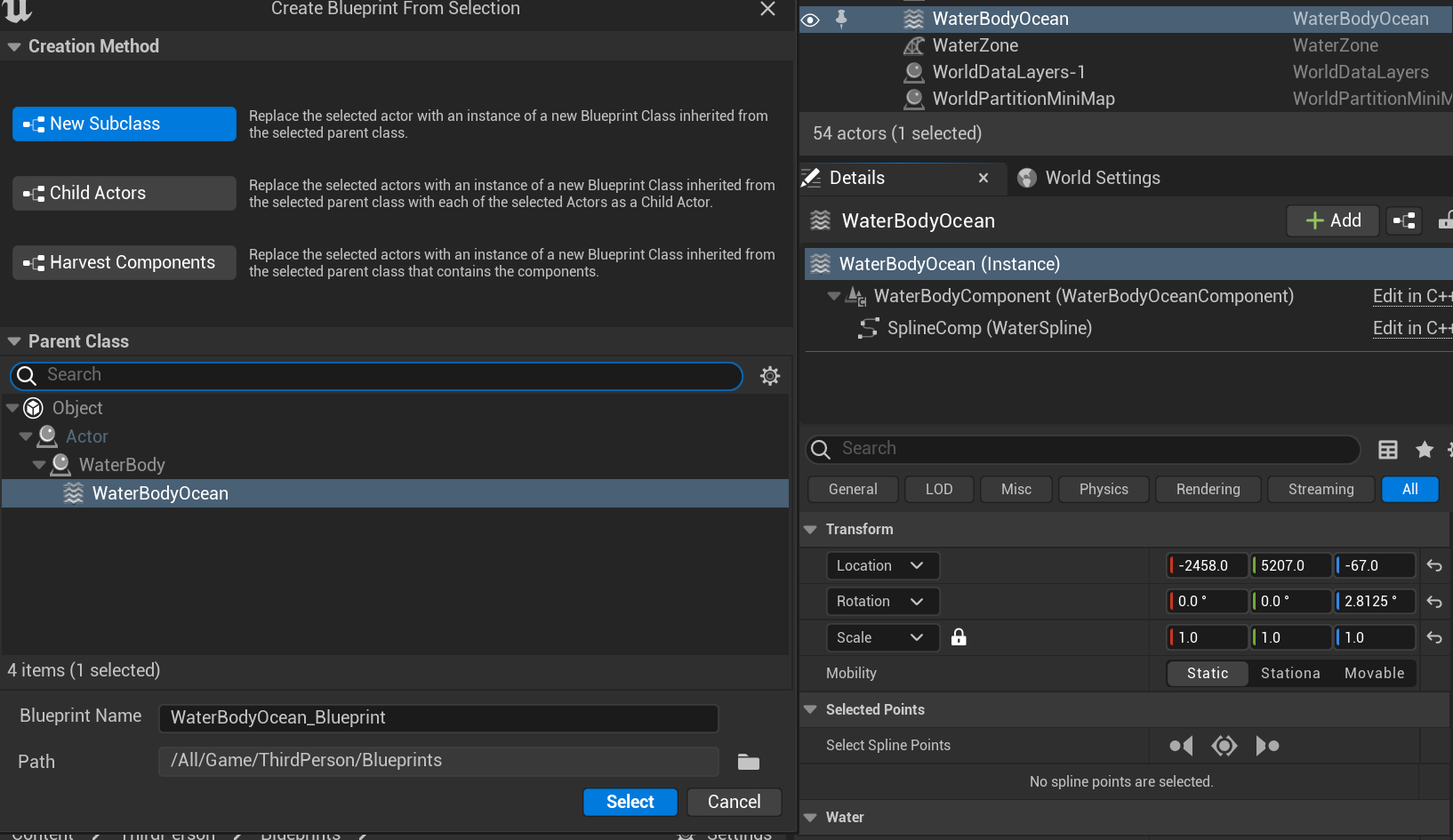

In Outliner, choose Water Body Ocean, create a BP for it by clicking the icon next to +Add

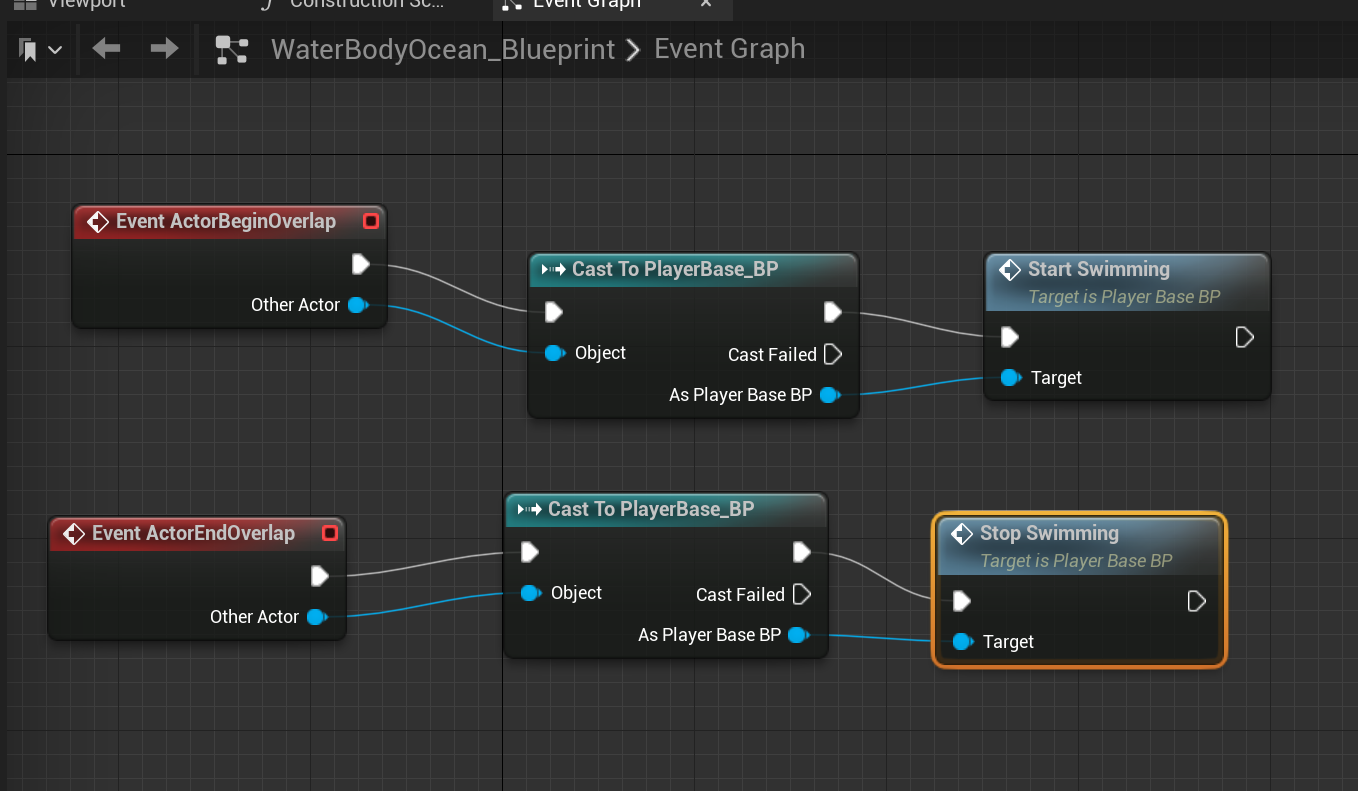

Create the event graph
Back to 3rd person BP

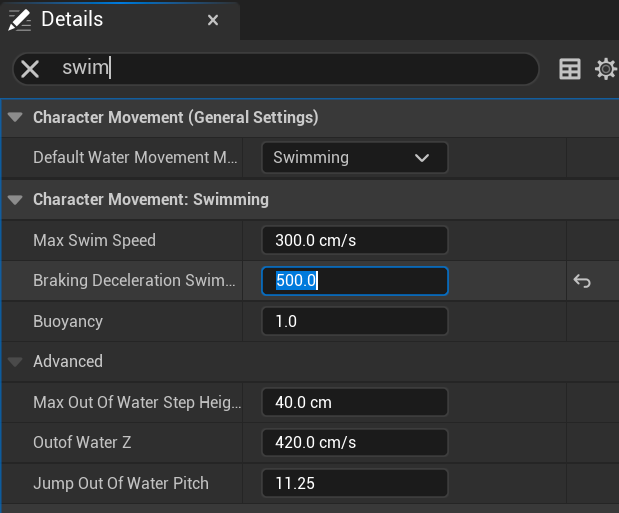

In character movement, set below from 0 to 500

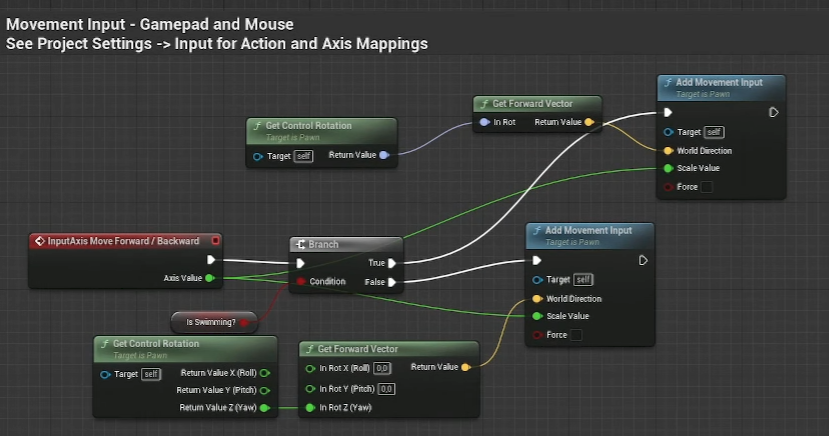

Modify the swimming event, so it won’t jump during swimming:
Open Mannequin Manny ABP

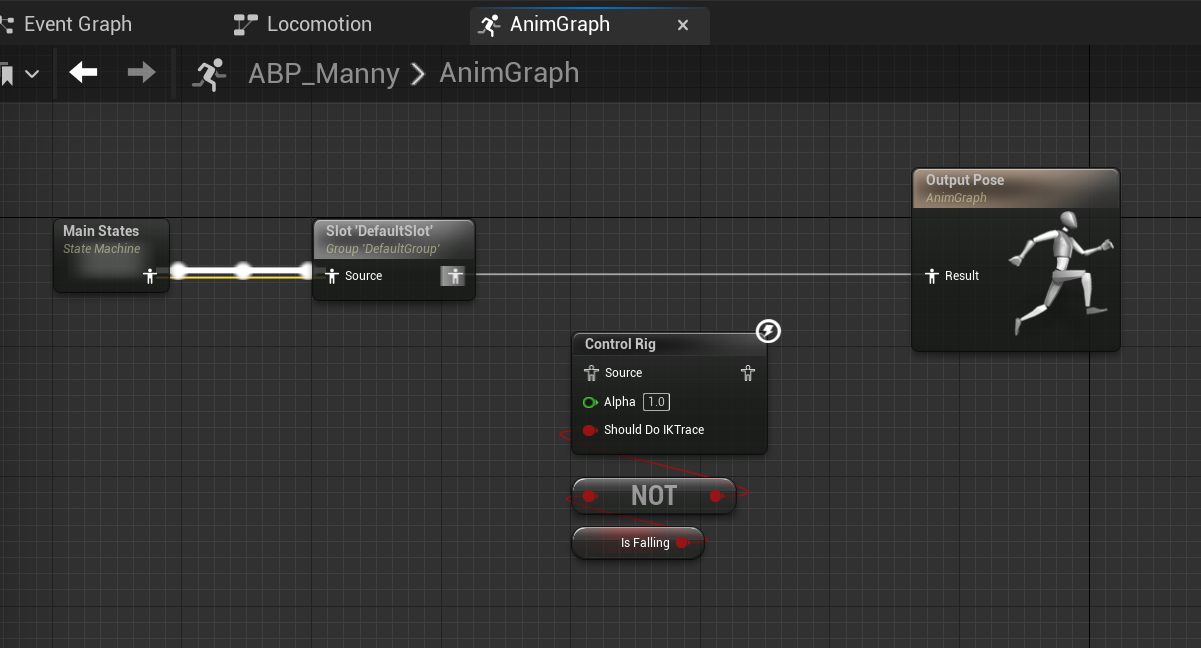

Get out of control rig link
Download the animation and import to UE, retarget from ue4 to ue5 mannequin

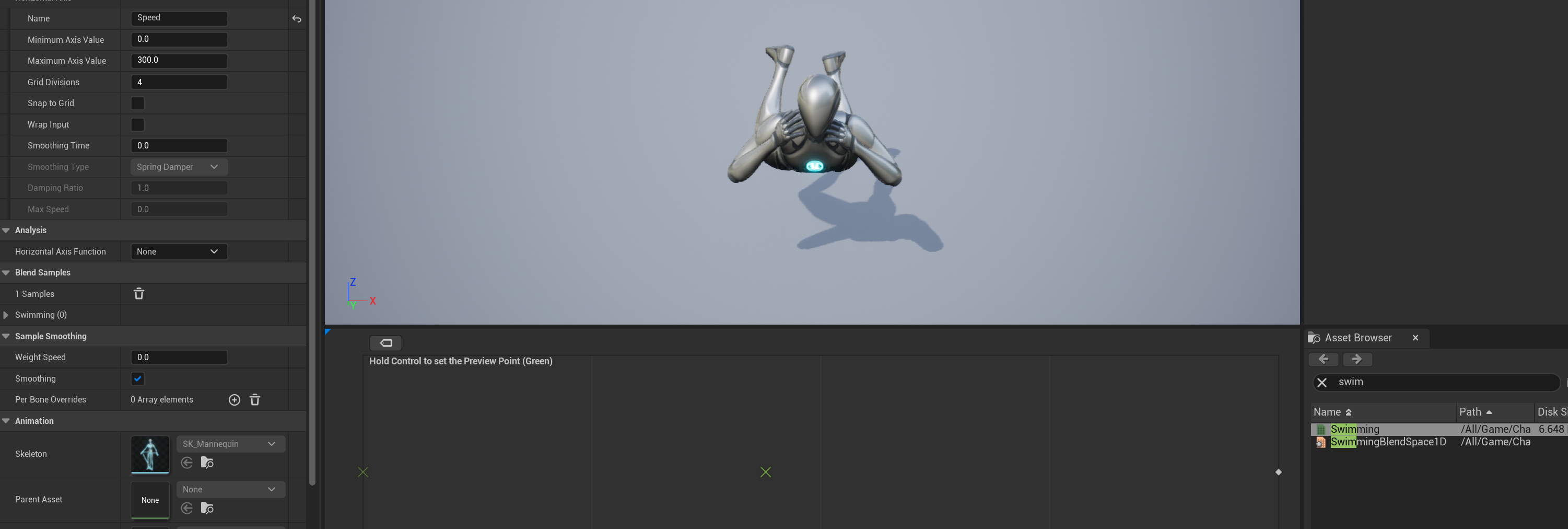

Create blendspace 1D, put the swimming anim in

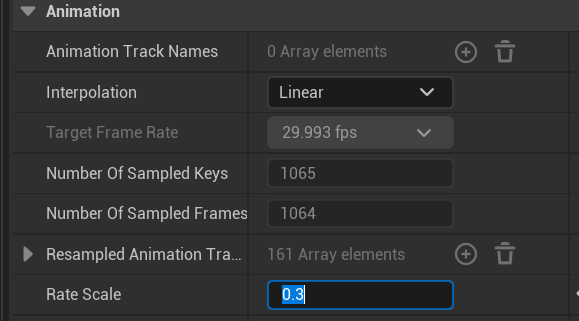

Create a swimming idle anim by duplicate the swim anim and slower the movement with lower rate scale:
Put it in bendspace

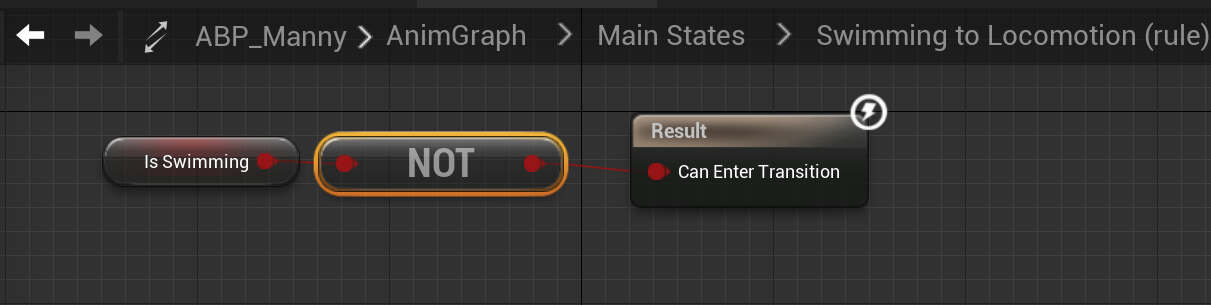

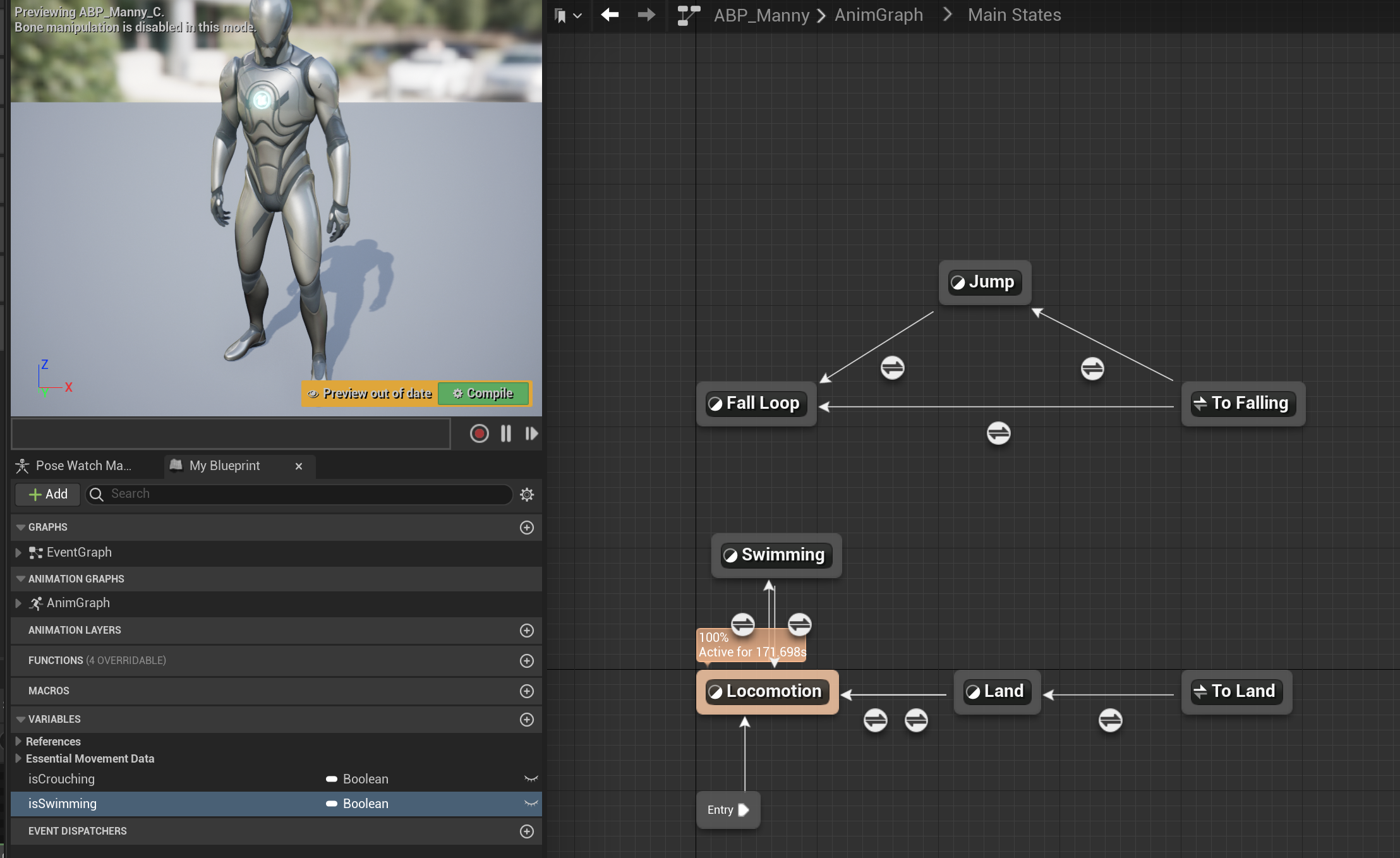

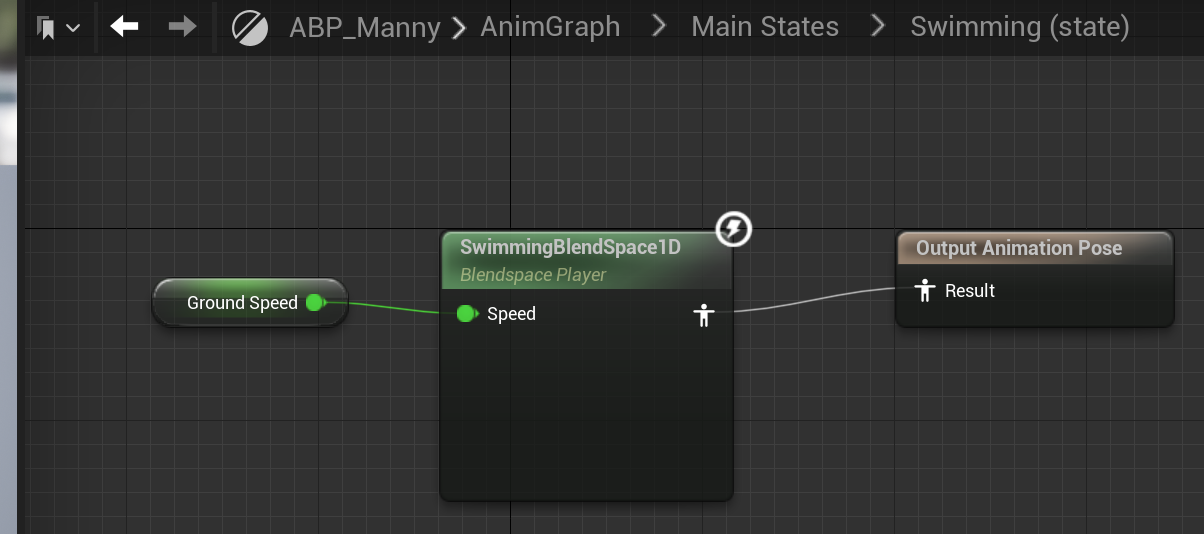

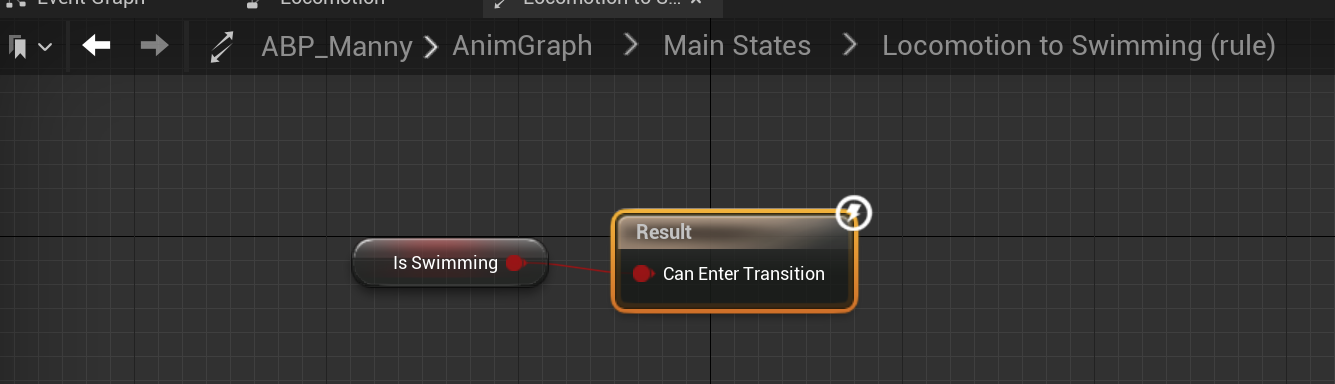

Open Manny ABP again, animGraph, main states:

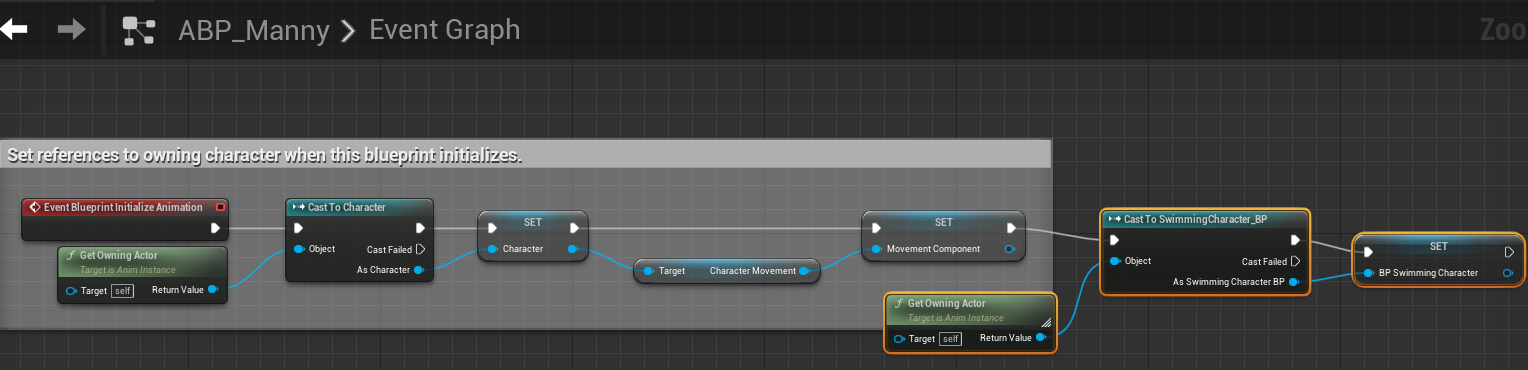

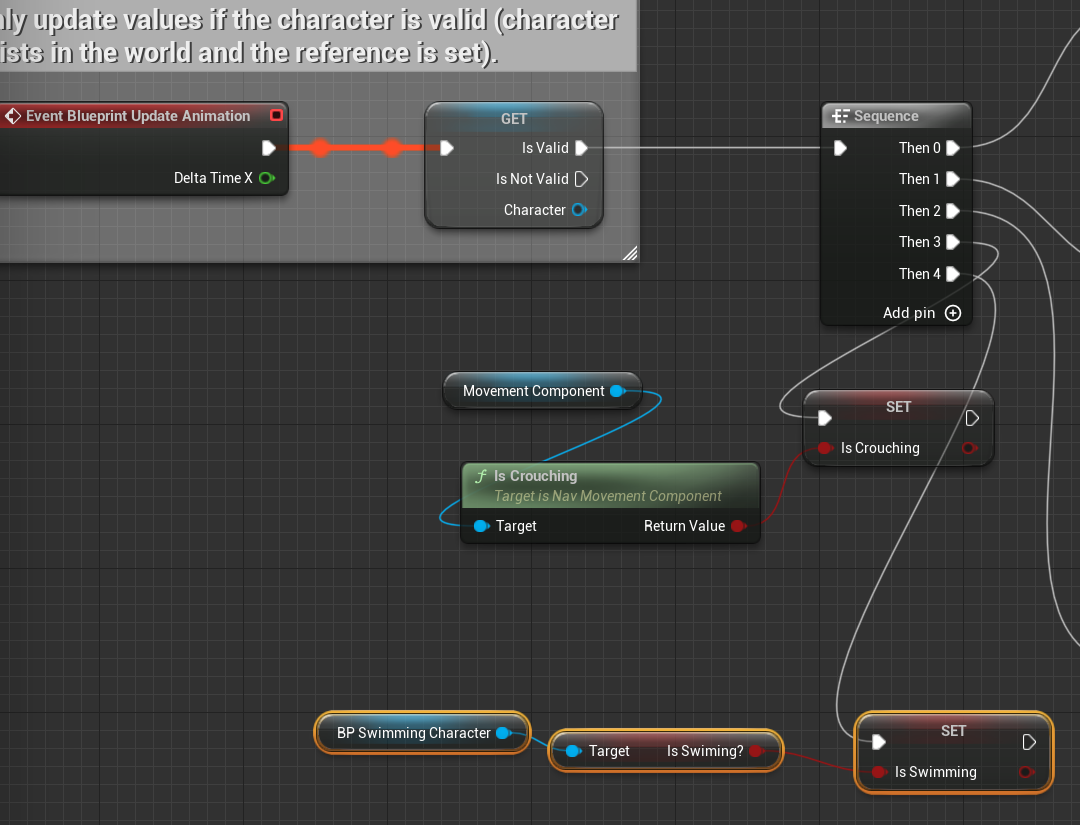

In event graph, add cast to BP
