Shooting functions - Line Tracing
Strafe movement
Create Blend Space animation, choose UE5 mannequin, name as StrafeBlendSpace

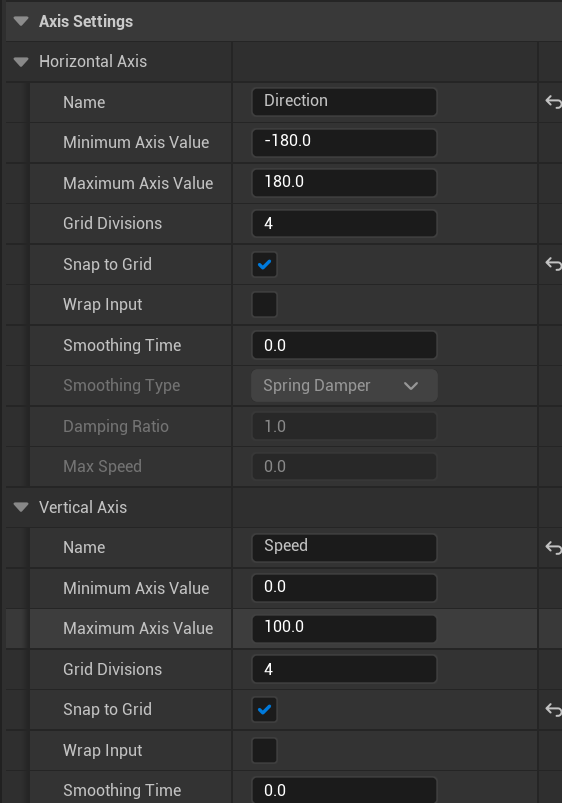

Name and change horziontal axis and vertical axis, and tick snap to grid

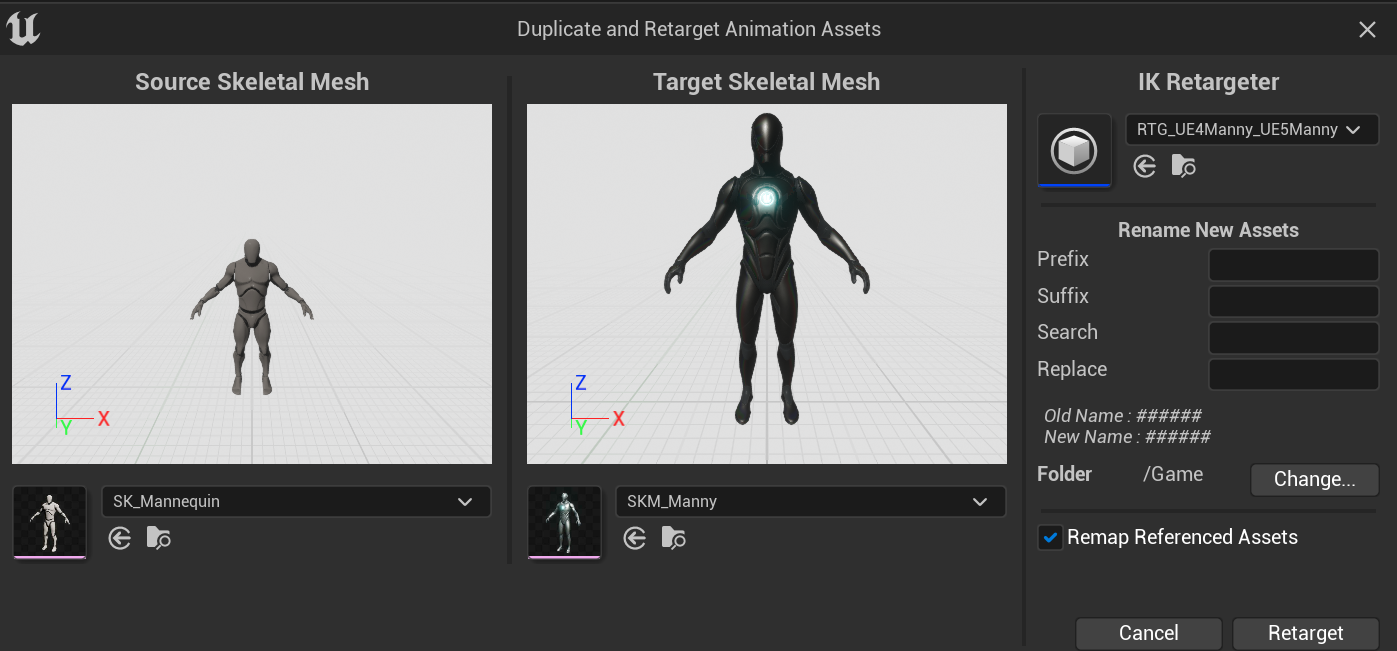

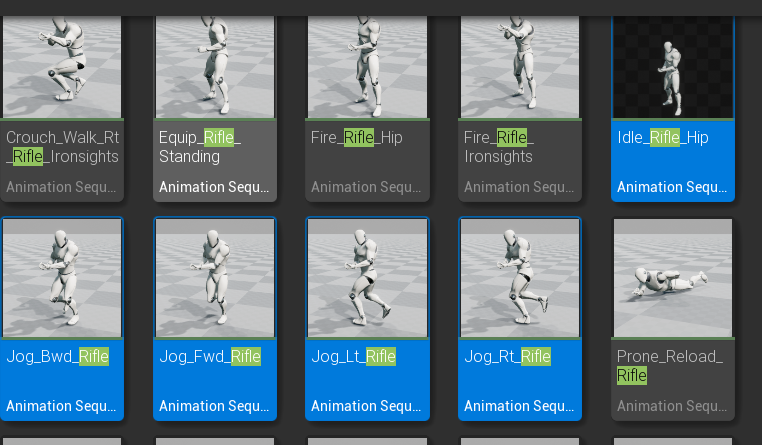

Add the animstartpack to project, choose those 5 Idle Rifle anim (idle, joggle foward, backward, left, right) and retarget it form ue4 to ue5 character

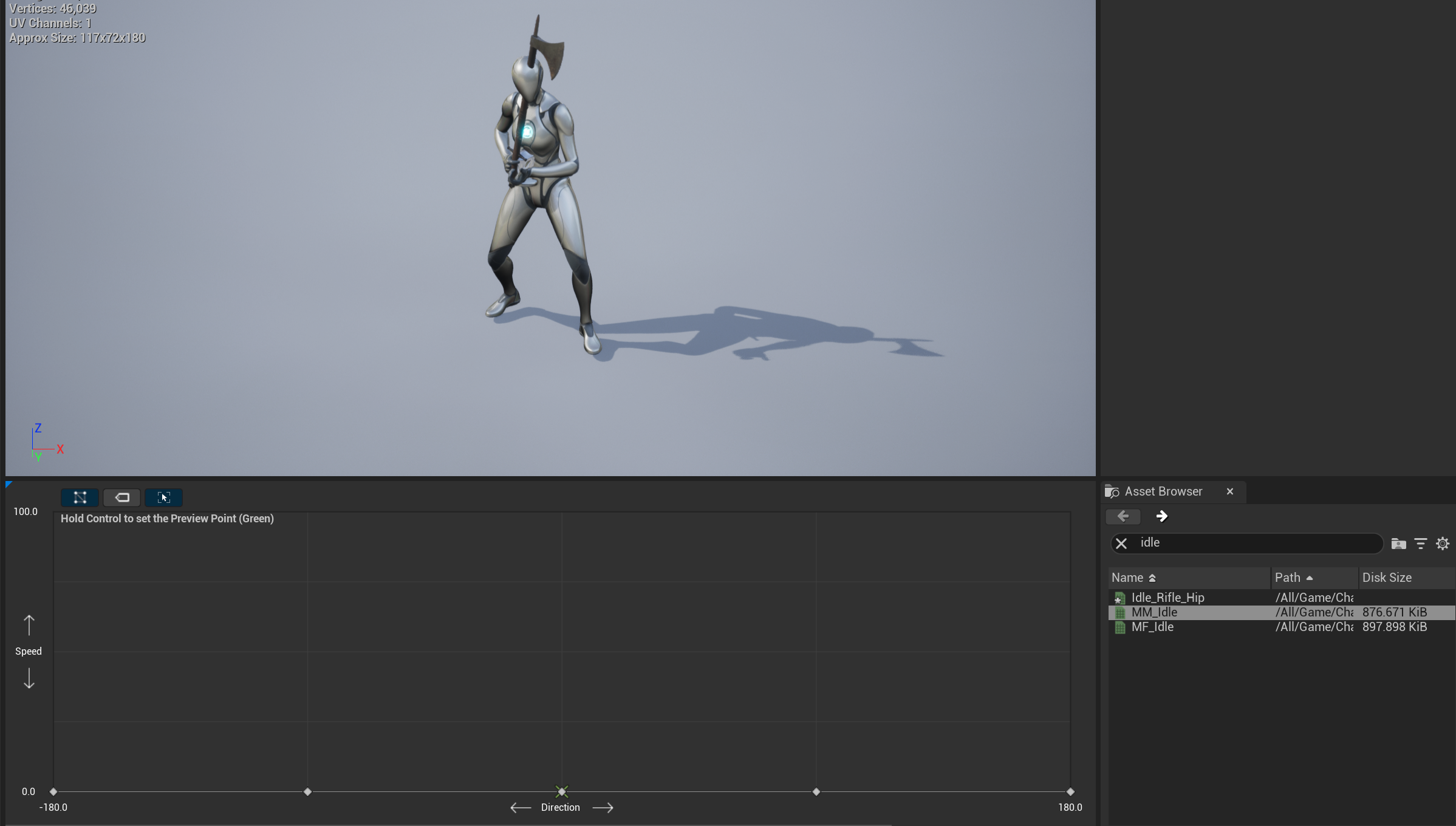

Drag the rifle idle anim at all 5 direction points when speed is 0

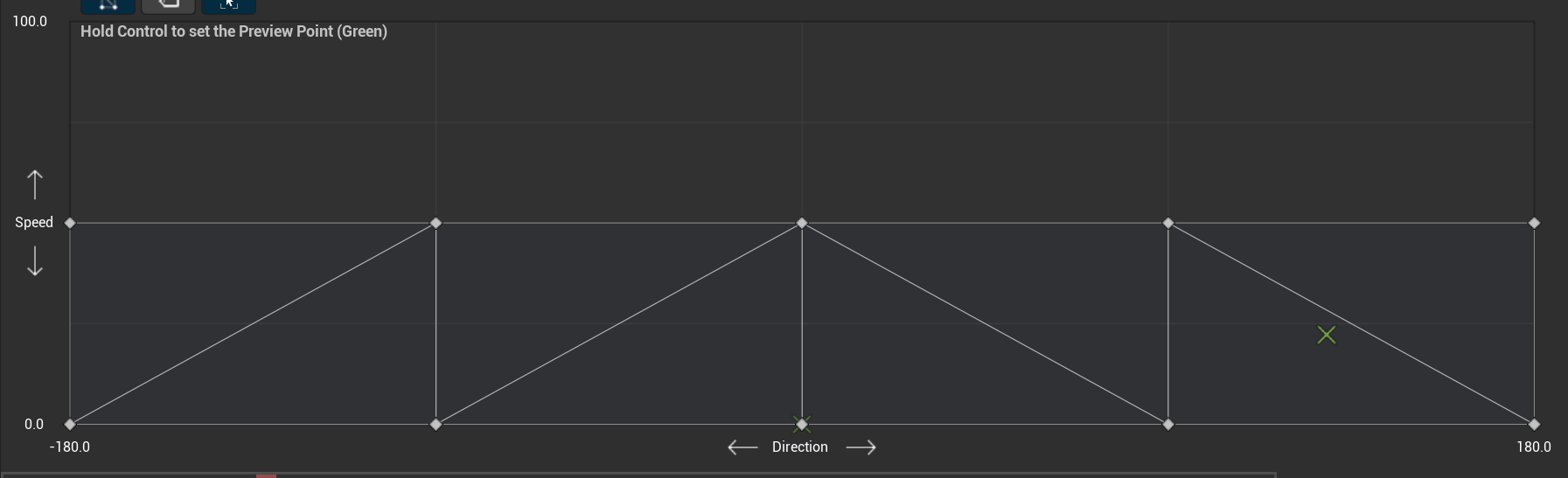

Put forward anim in centre, left, right on direction -/+90, and backward on both -/+180 direction
Create a Anim BP, name as StarfeAnimBP

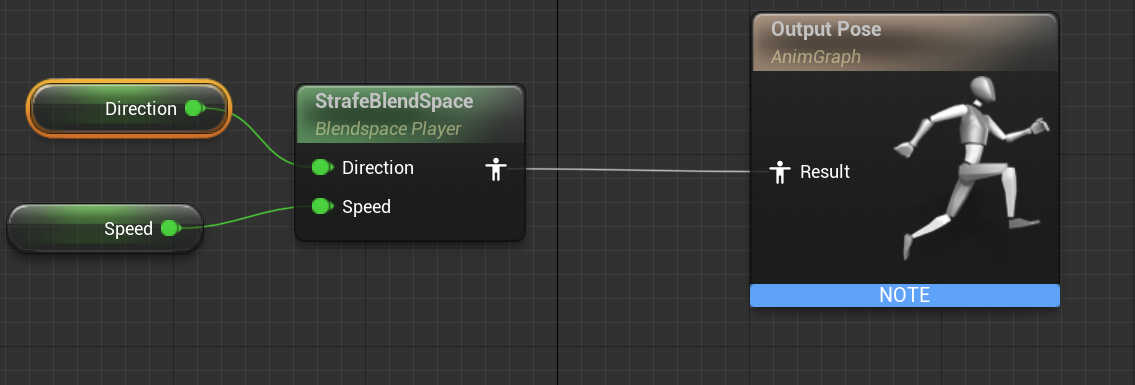

Drag the Blendspace in graph, promote variables speed and direction

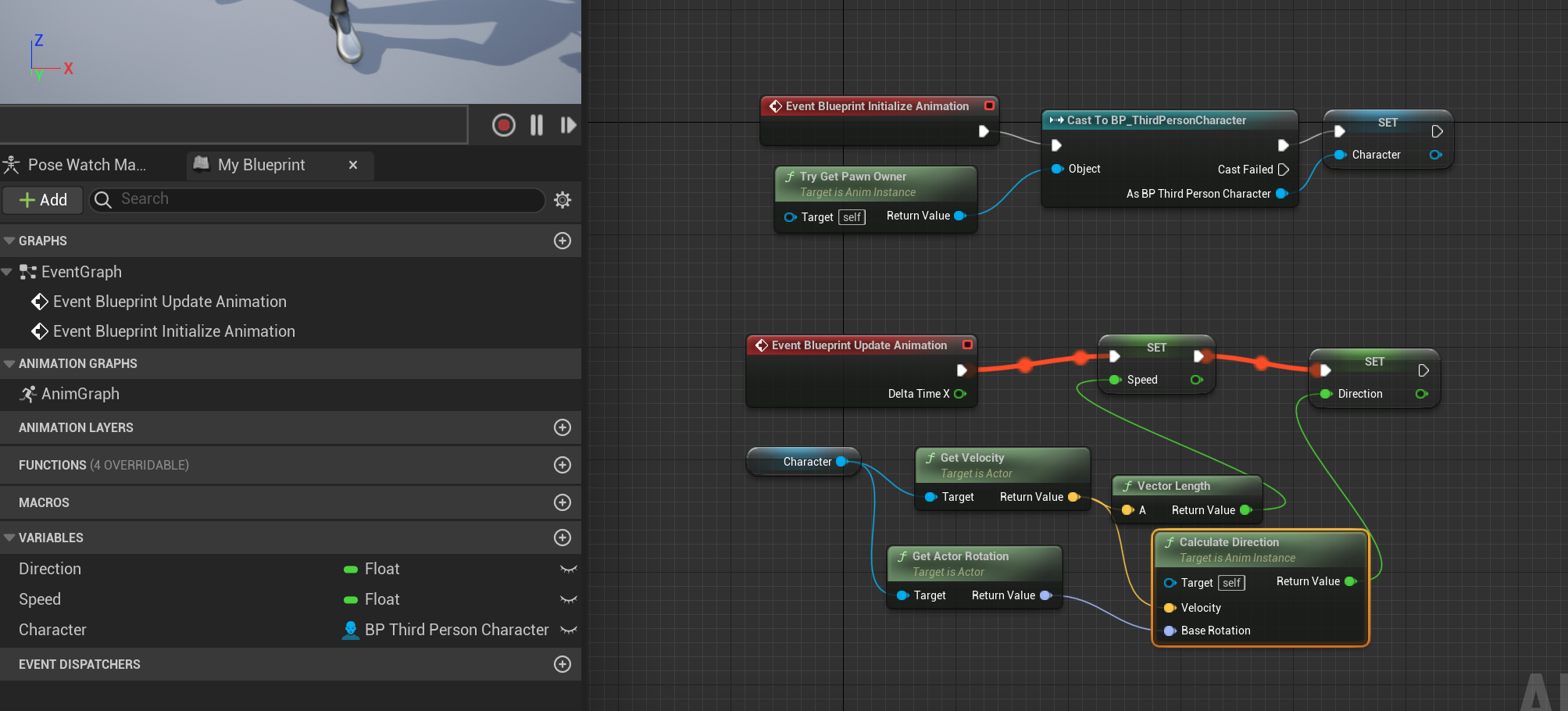

To event graph:
Go to 3rd person BP

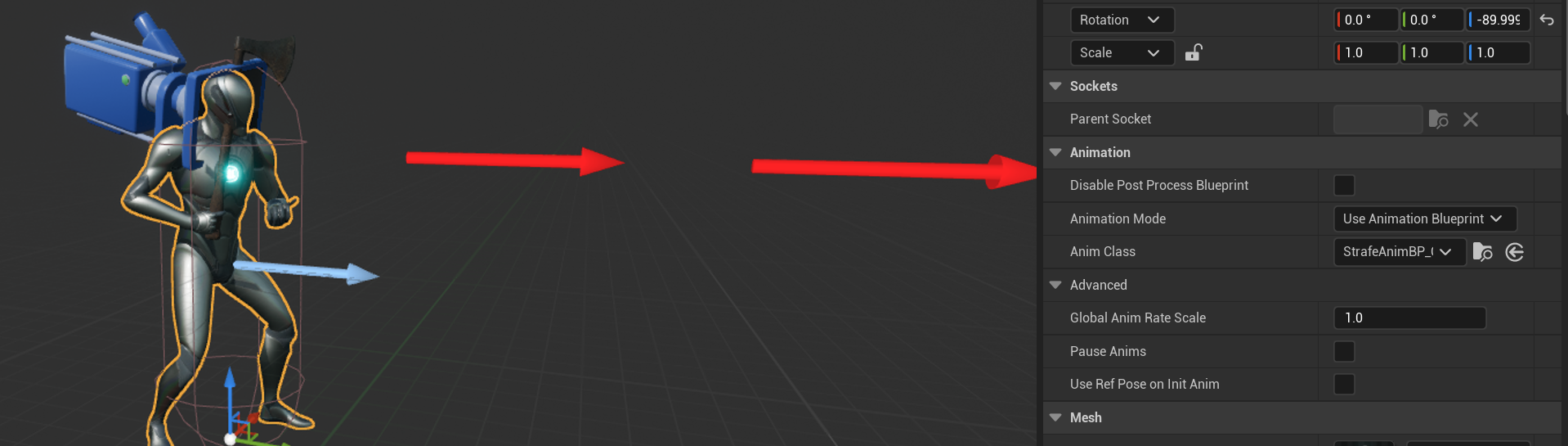

Viewport, choose Mesh component
change Anim Class:
To let character always look forward to the camera

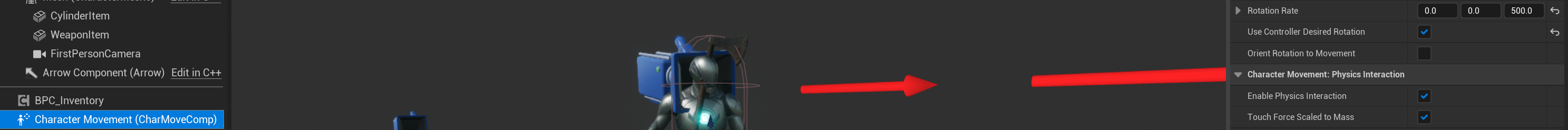

in character movement component,
tick use controller dersired rotation; while untick orient rotation to movement
To fix snappy movement,

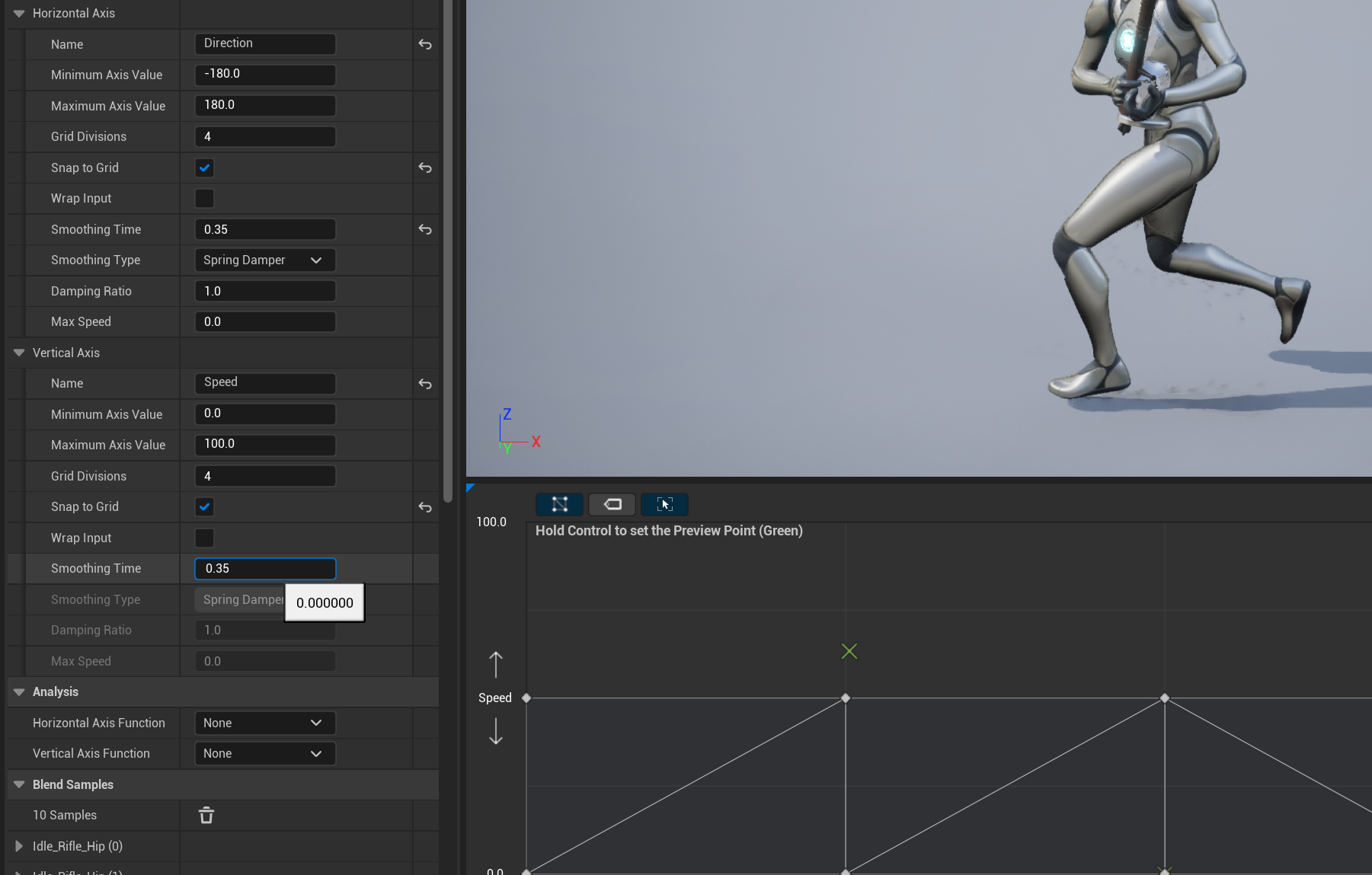

Open strafe blend space

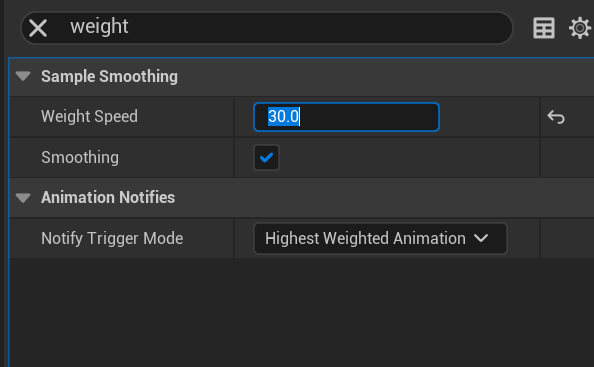

add weight speed to 30
increase smoothing time to 0.35 on both horizontal and vertical axis:
