VFX
Simple Explosion
Drag the cube/object in scene

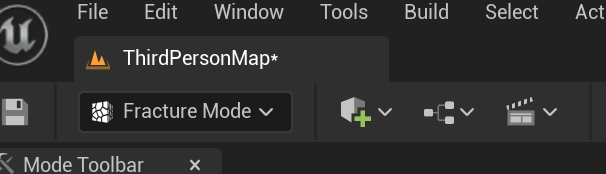

Choose Fracture mode

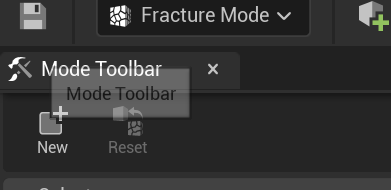

Click new, create geometry collection

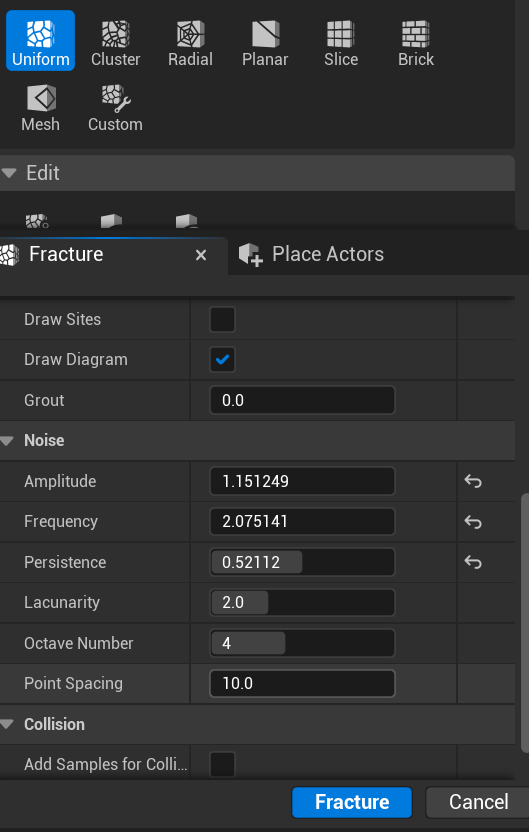

Choose unifrom, and play around the values

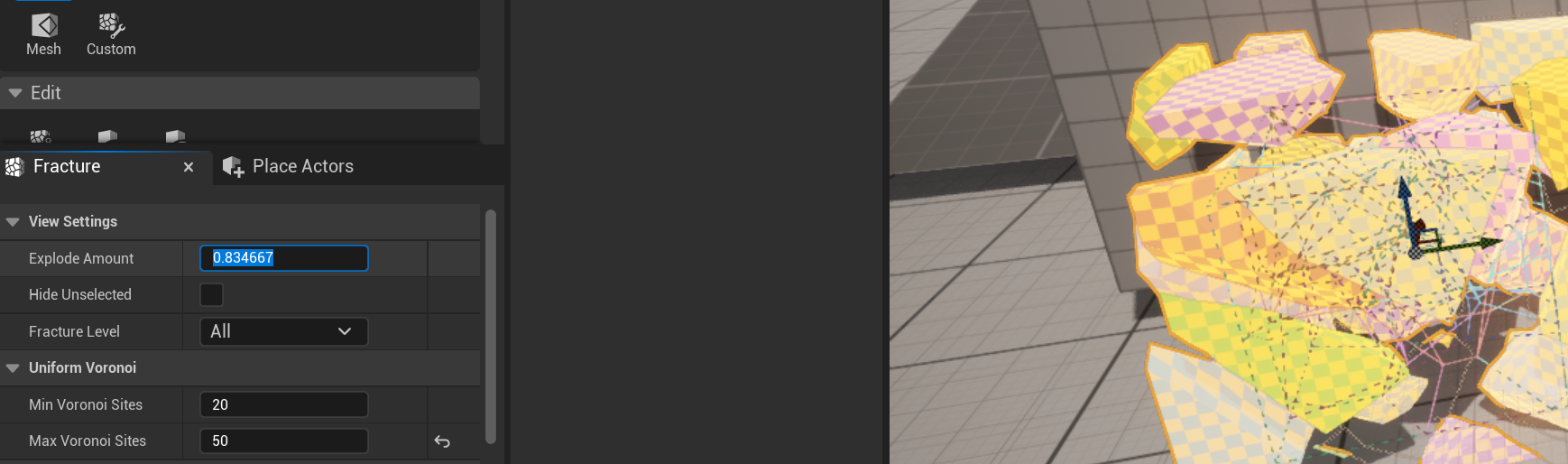

Test the explosion with explode amount value
Choose the Outliner, the instance in the details,

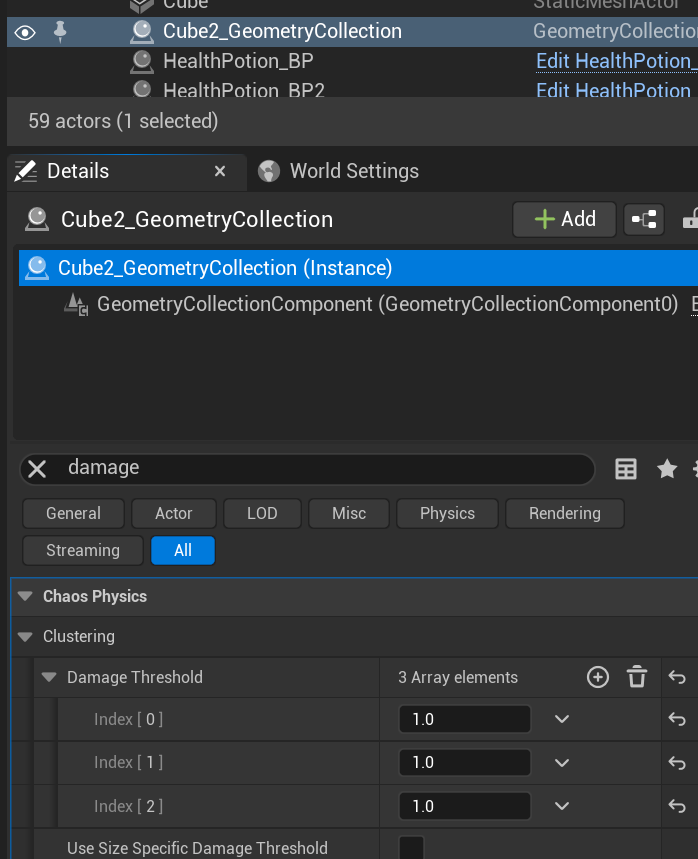

Set damage threshold all index to 1 (lower index make it easier to break)

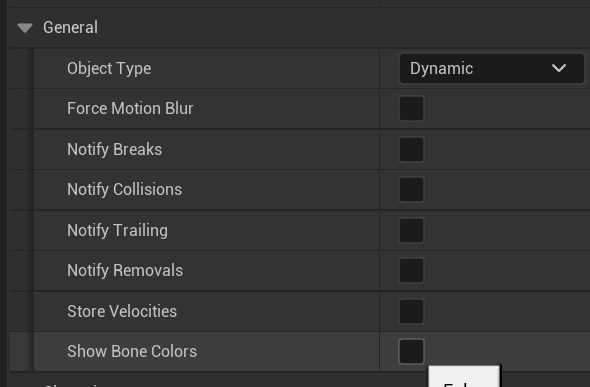

Untick show bone color in General (optional)

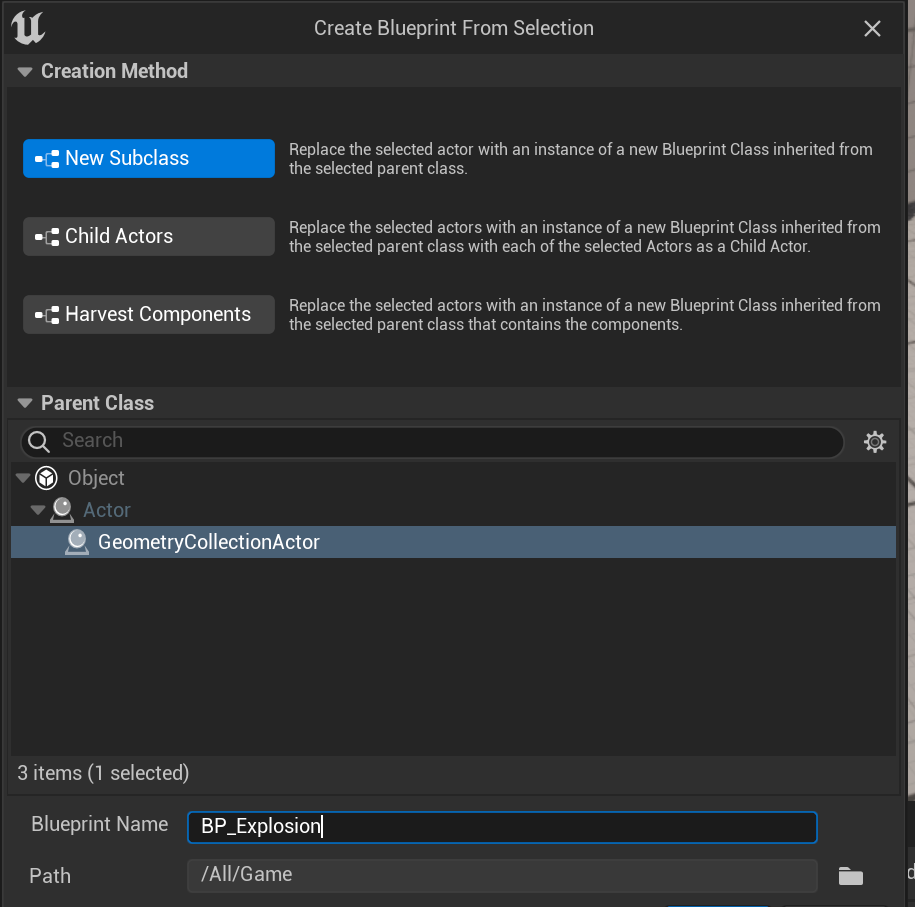

Set the BP, name as BP_Explosion

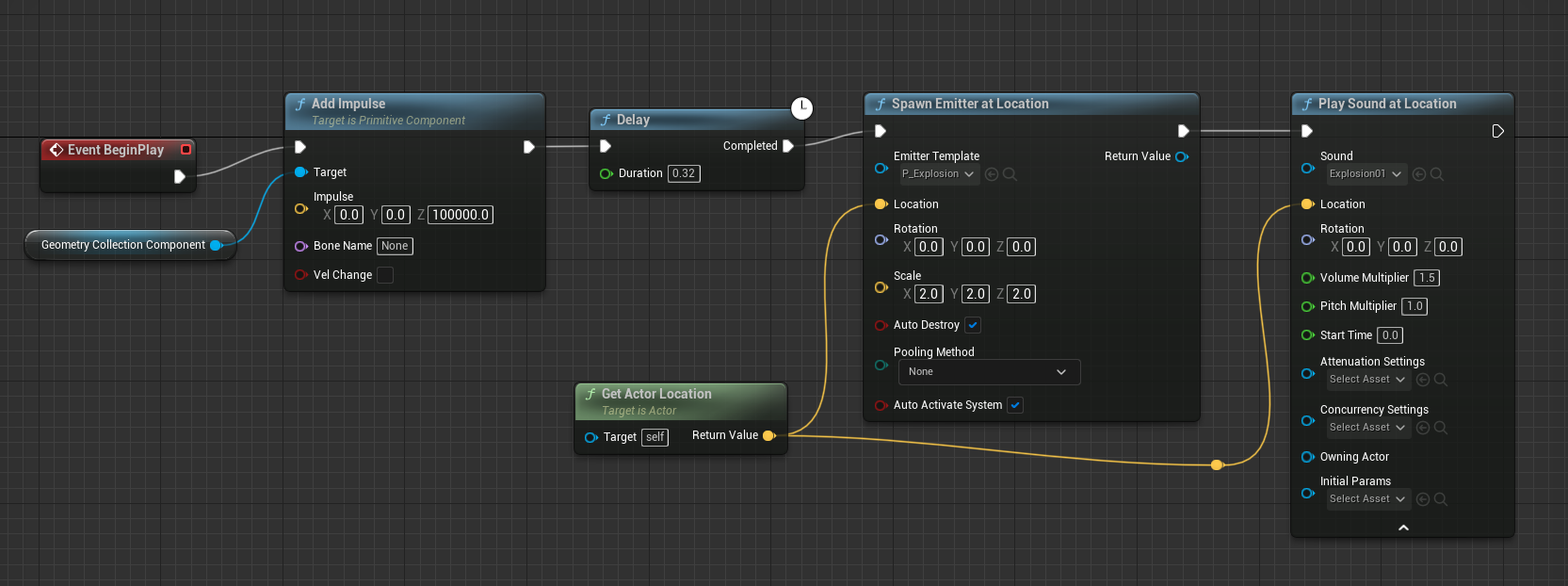

If for nigara particle system, spawn system at location instead of emitter at the end node
