Animation & Mesh character
Simple Crouching system

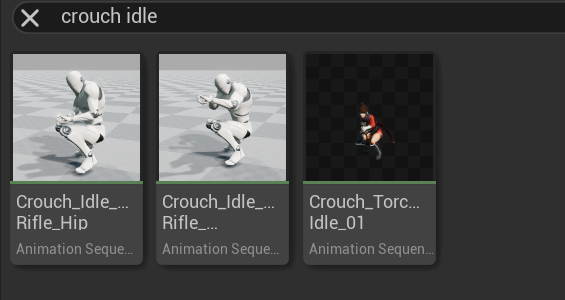

Download Crouch Idle anim
Retarget the anim from ue4 to ue5 manneqin
Or simply retarget the ue4 blendspace crouch walk anim

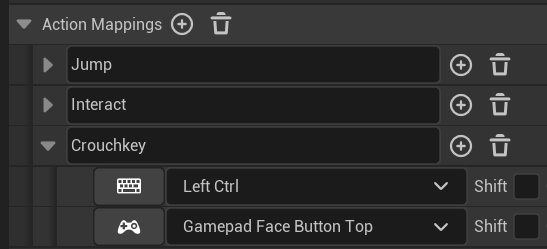

Create new input in project setting:
Open 3rd person BP,

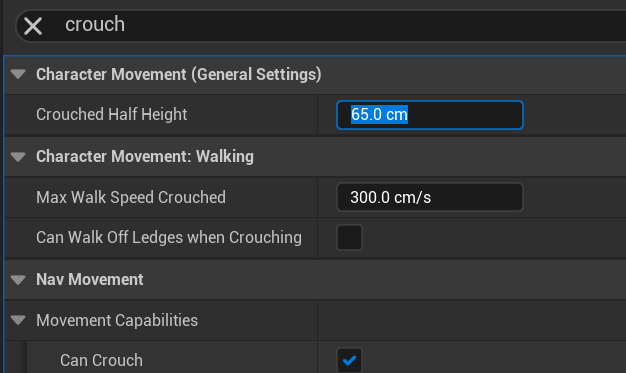

Character movement, tick Can Crouch
half height from 40 to 65cm

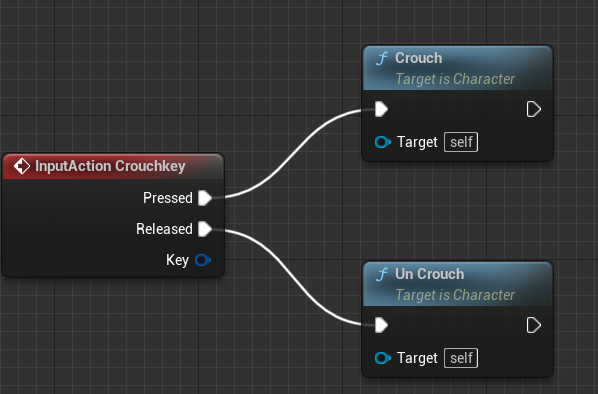

Event graph
To set camera snap down more smoothly when character crouch down:

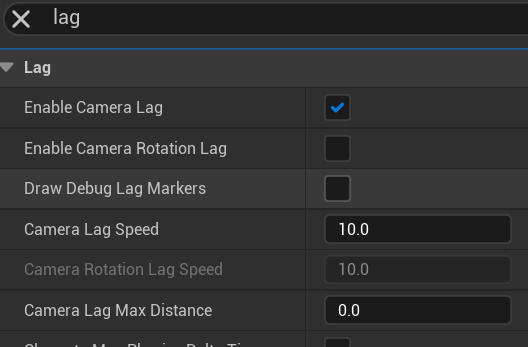

Select CameraBoom component:
tick Enable Camera Lag

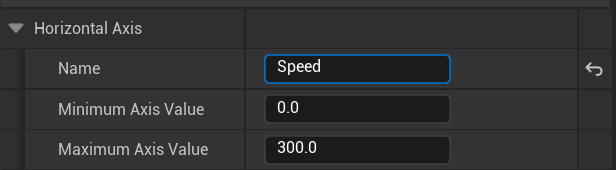

Create BlendSpace 1D, choose UE5 mannequin:

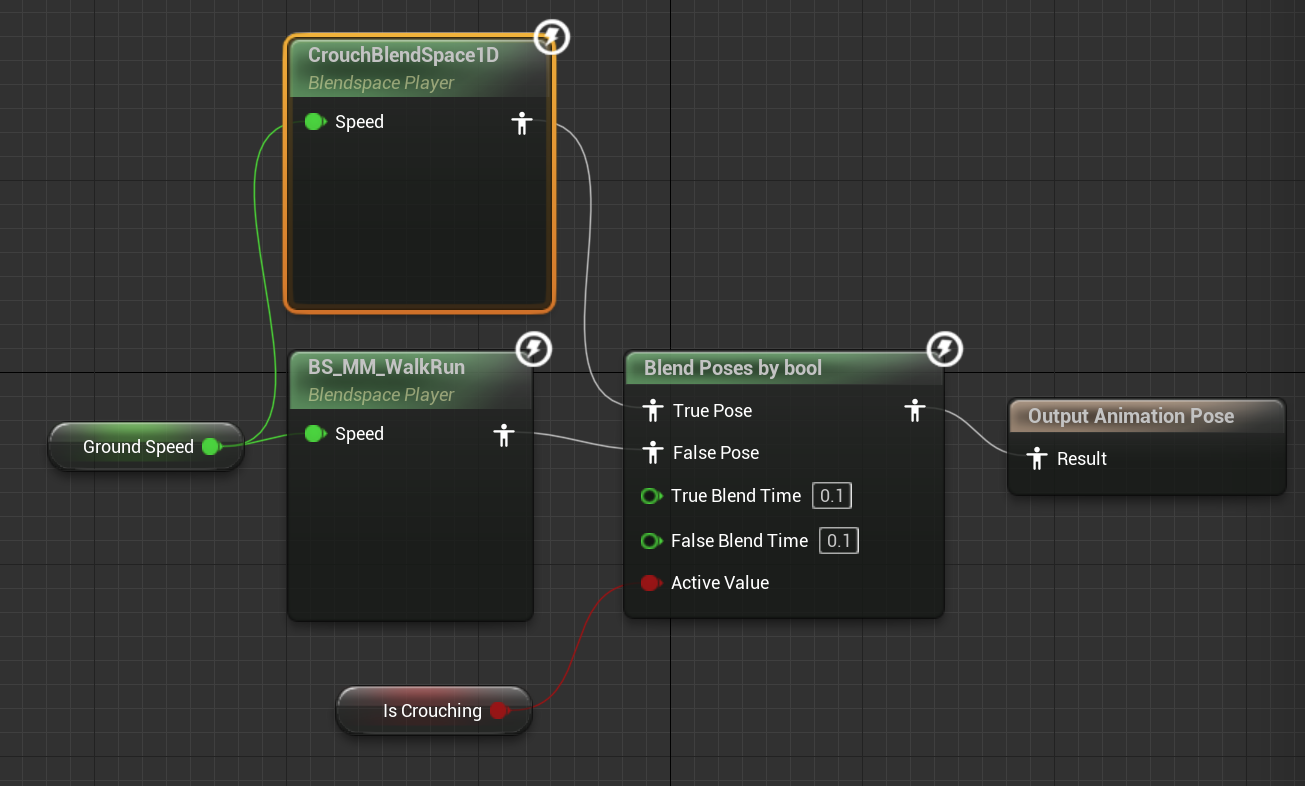

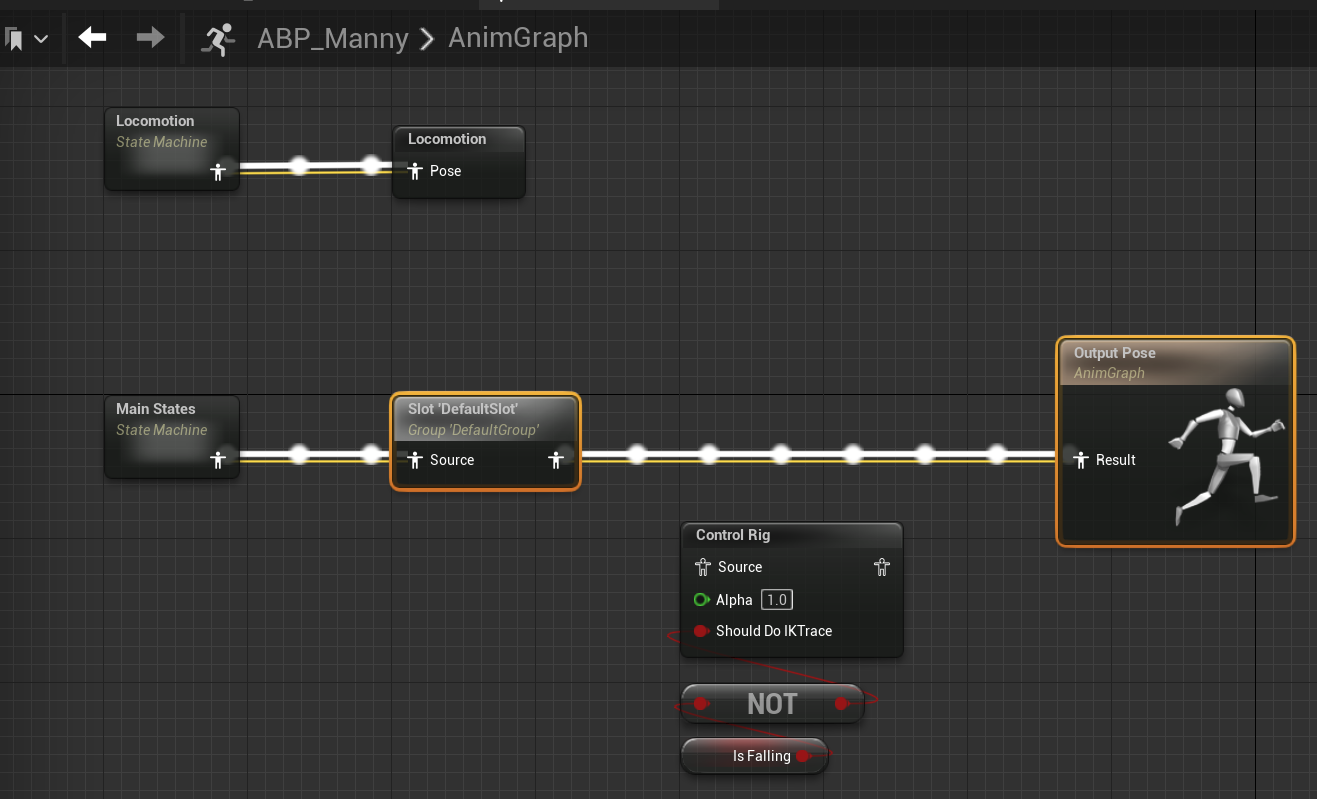

Open ABP Manny - >anim graph → Locomotion → Walk/Run (state) node
R click on active value, promote to variable: isCrouching

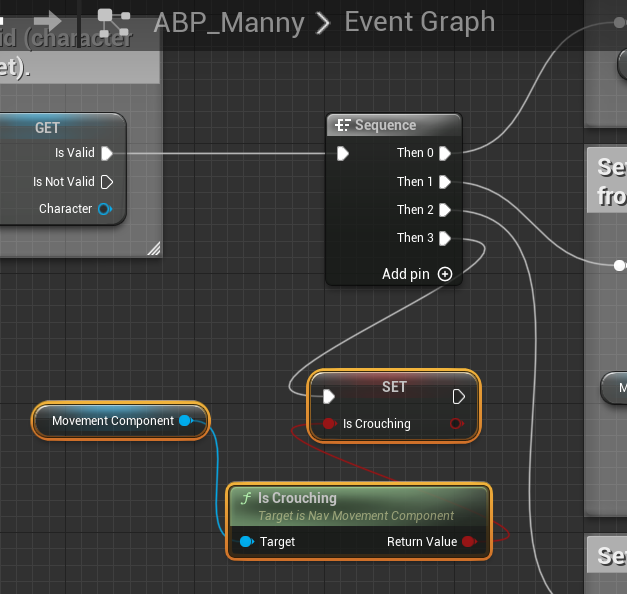

To event graph, add a pin 3 on sequence:
If the character can crouch now but don’t blend with other default anim, change as below:

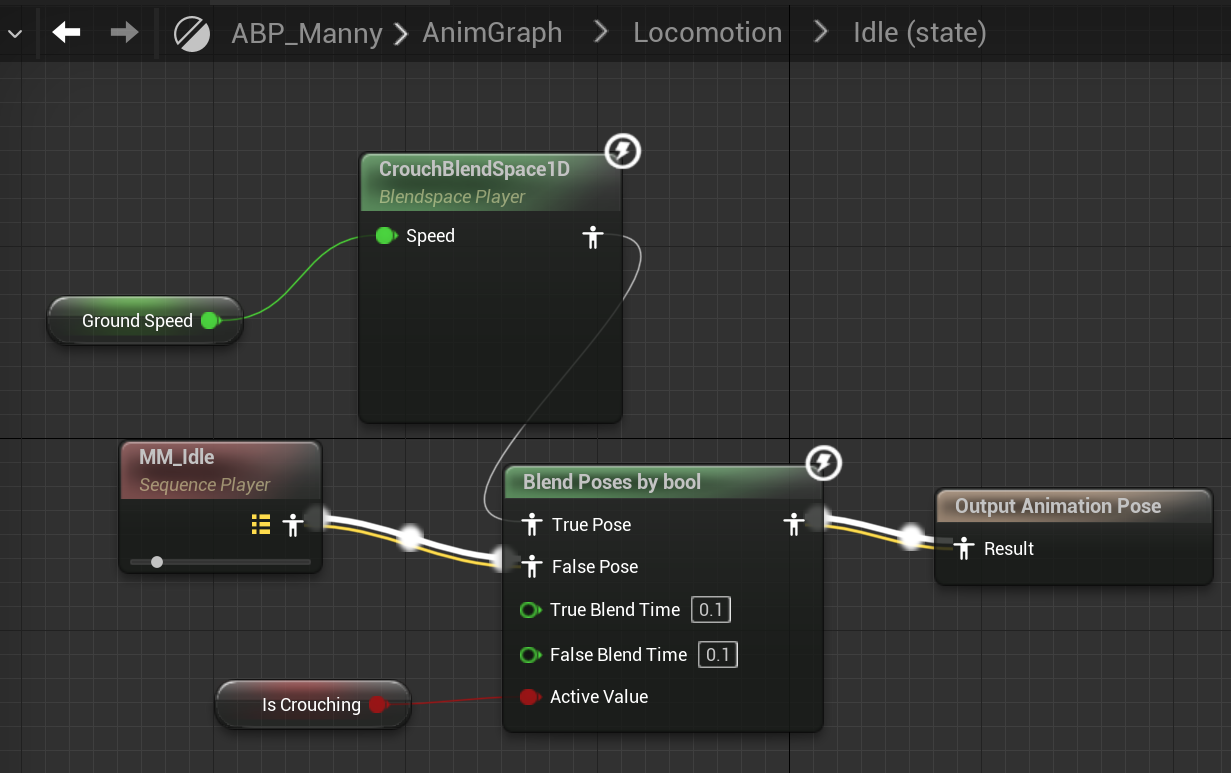

Also in Idle node in locomotion:
