Quest System (with BP provided, UE4)
Quest System for UE5 (Pt1)
Create a folder called Quest in content broswer

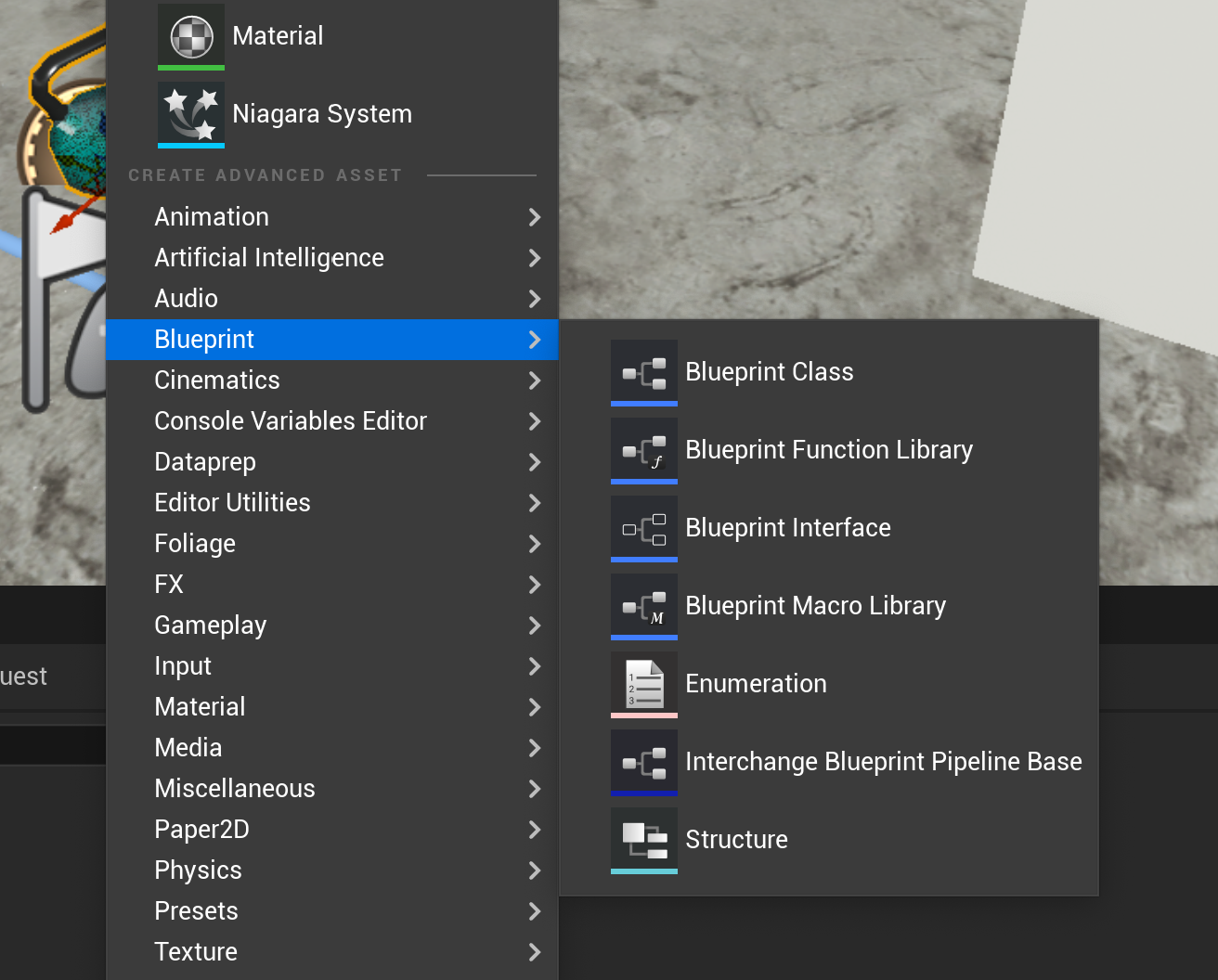

Create BP Structure, name as S_Quest

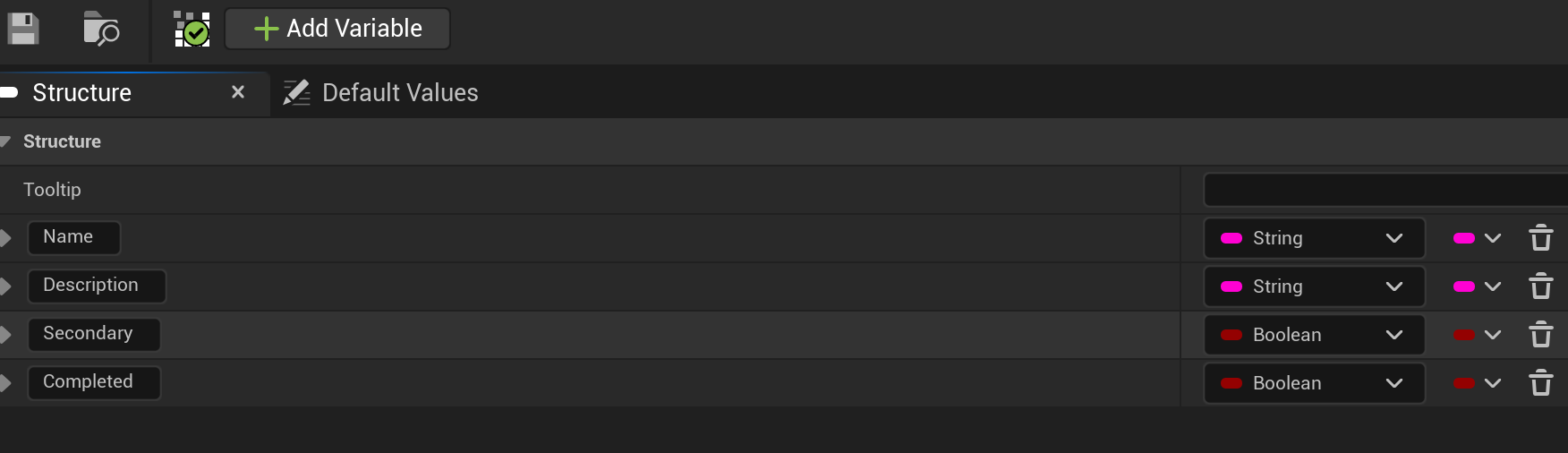

Open it and add follow variables:
Create Quest Giver
Make a BP dummy mesh character, copy it into Quest folder

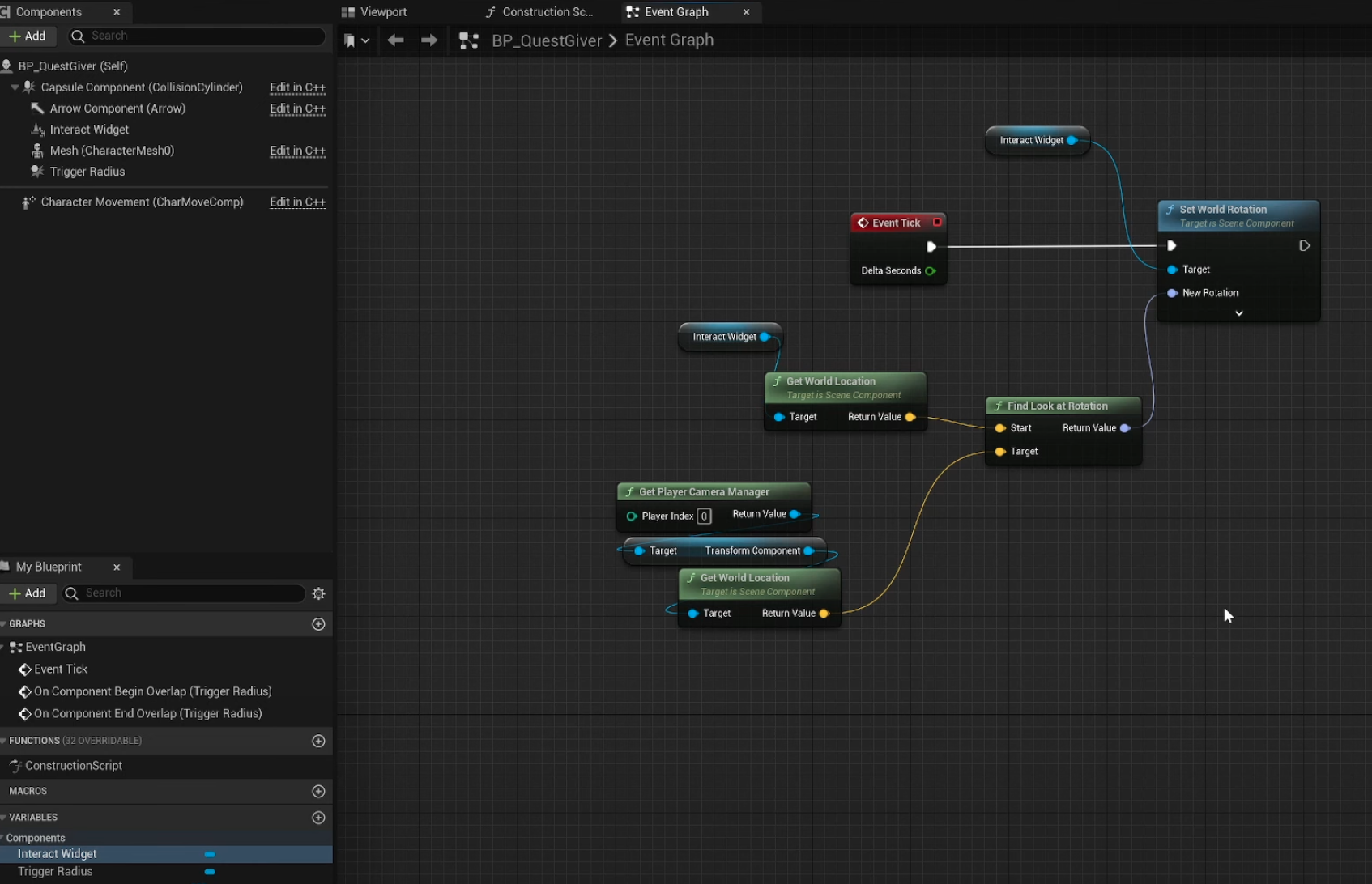

In the Copied BP dummy, rename as BP_QuestGiver, make the follow graph:

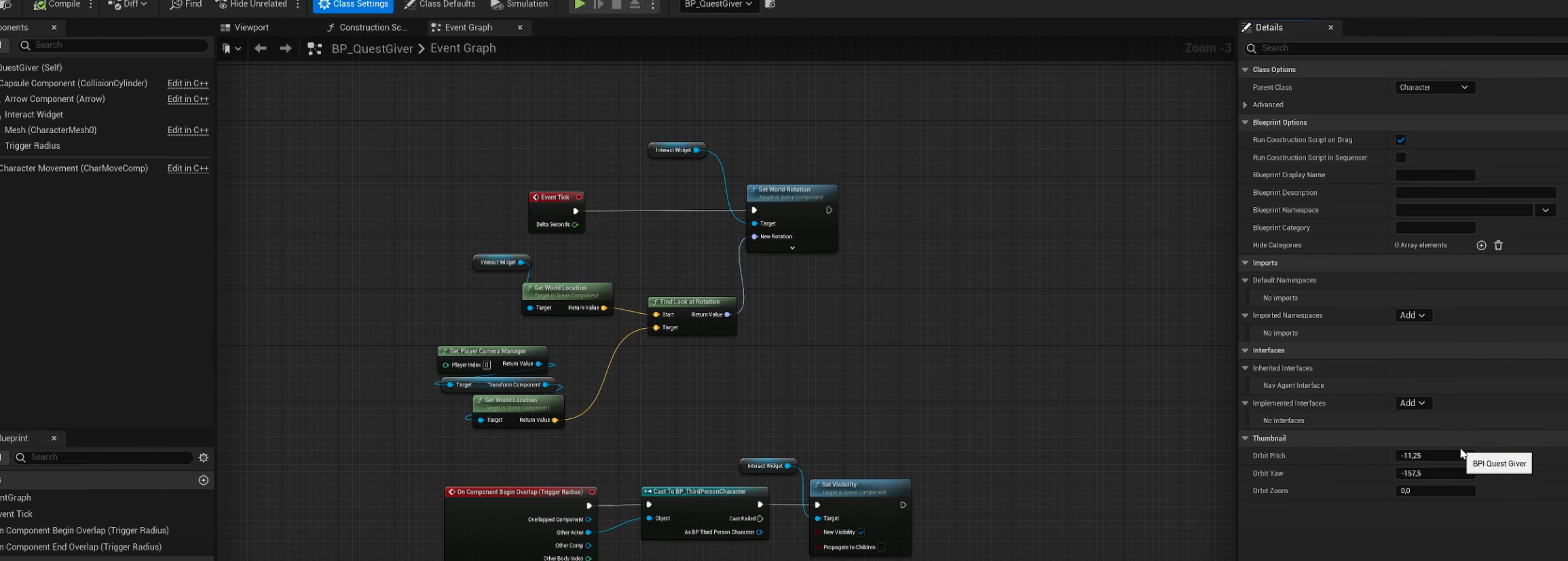

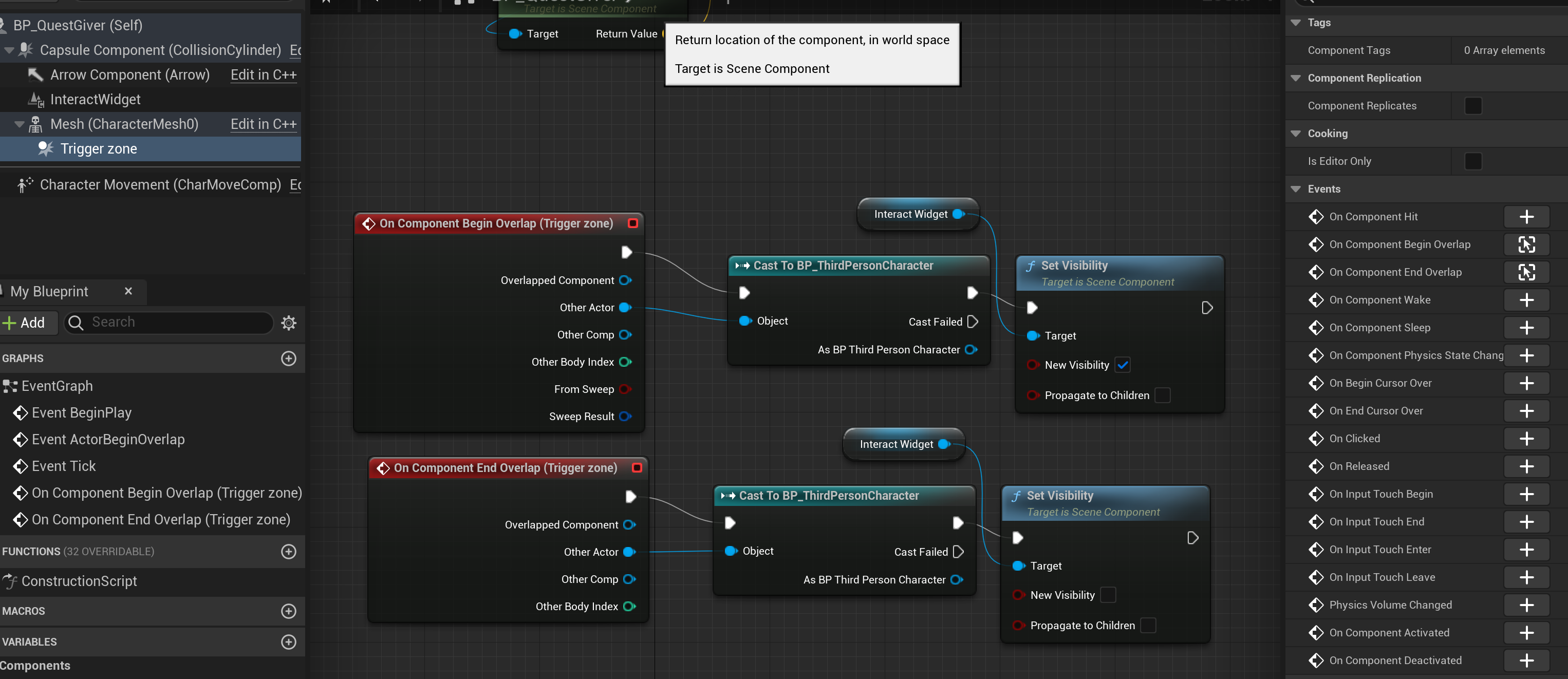

Add Overlap event begin and end on Trigger Radius component, make the graph as below:
Create a widget called WB_QuestInteractPrompt:

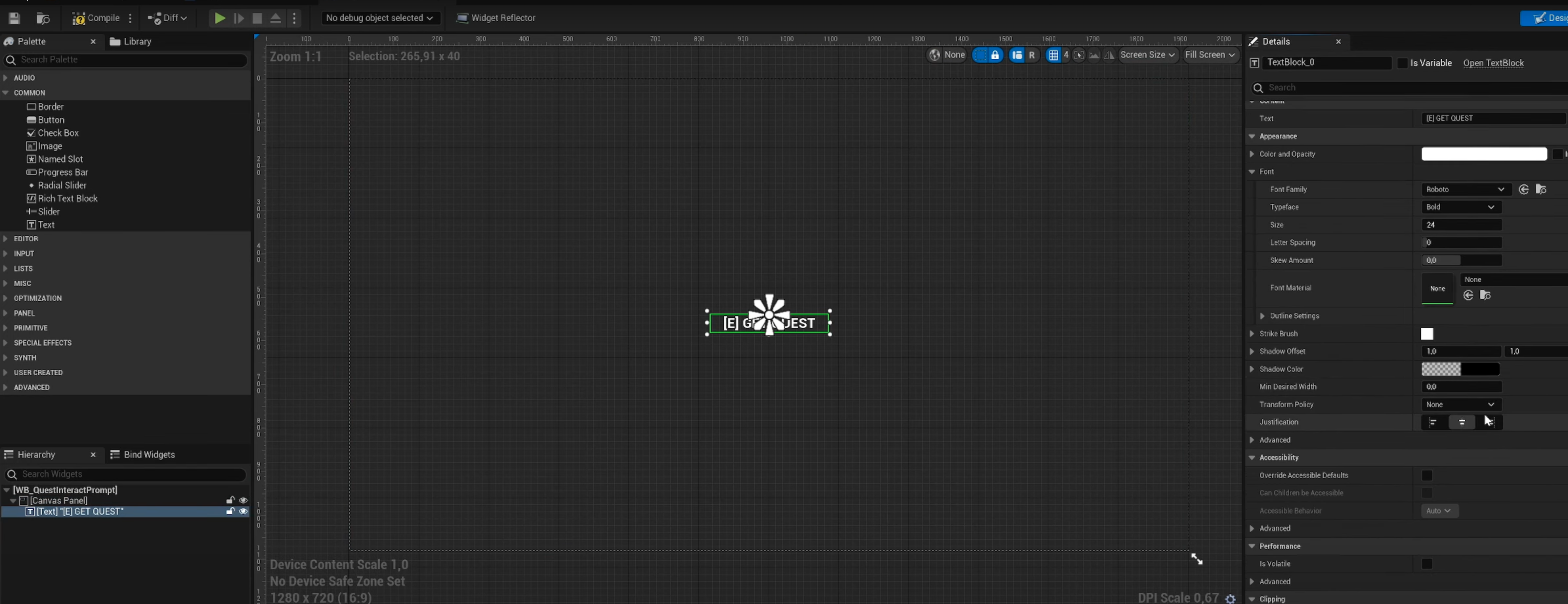

Make the text exactly in middle, or else may not be able to see it in BP character viewport:

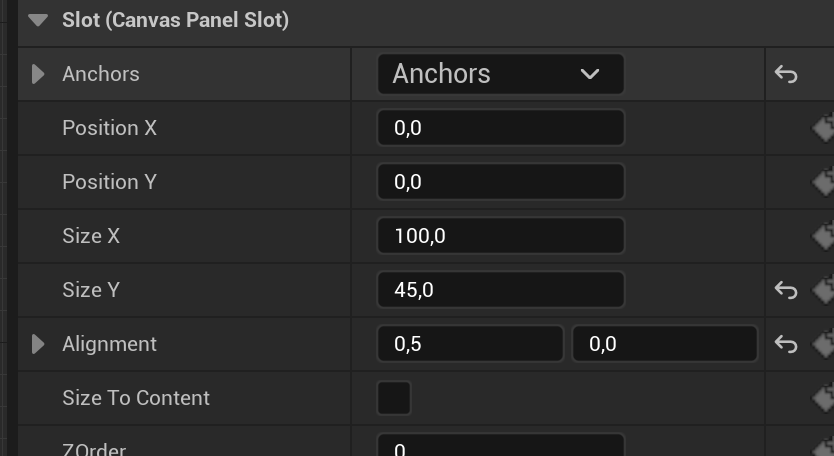

Position X and Y are 0, Alignment 0.5, 0; Anchor choose middle:

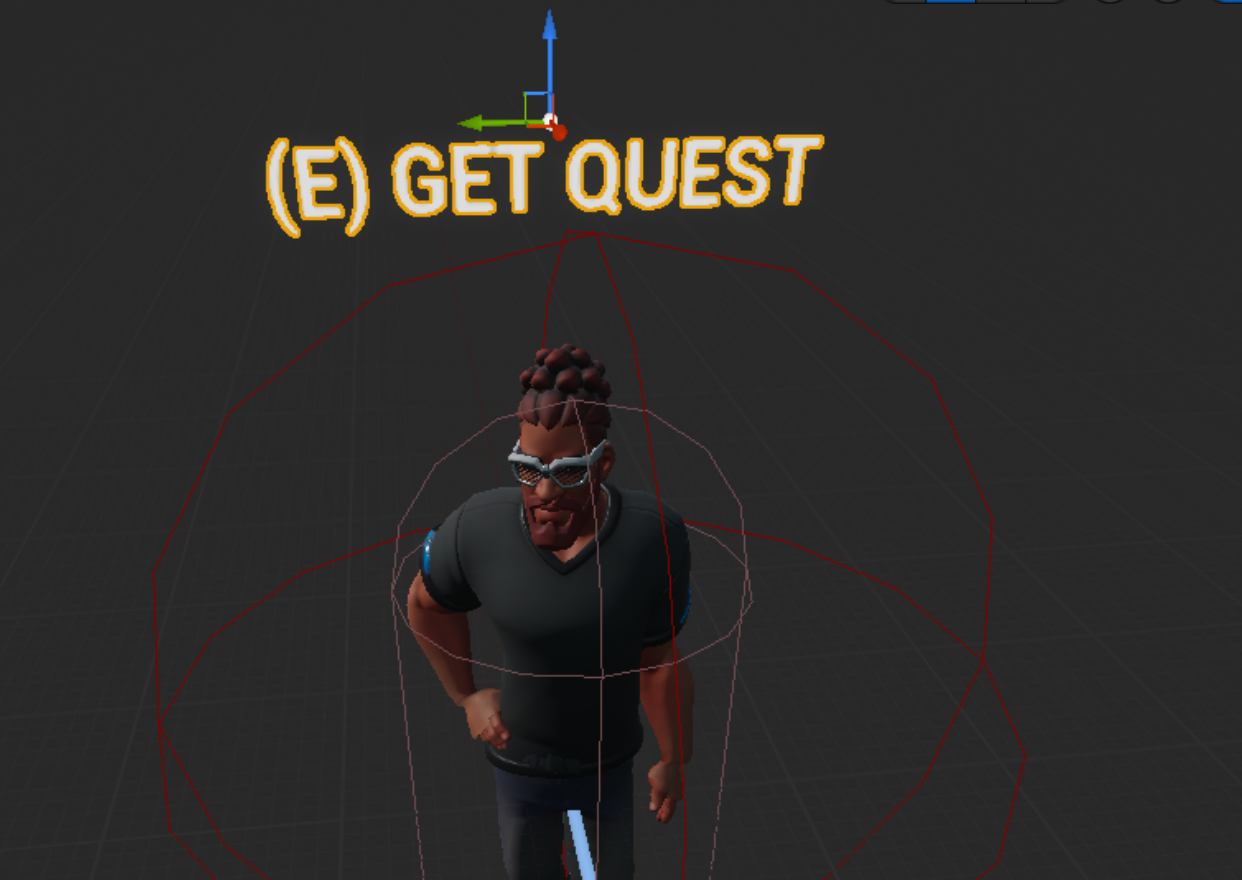

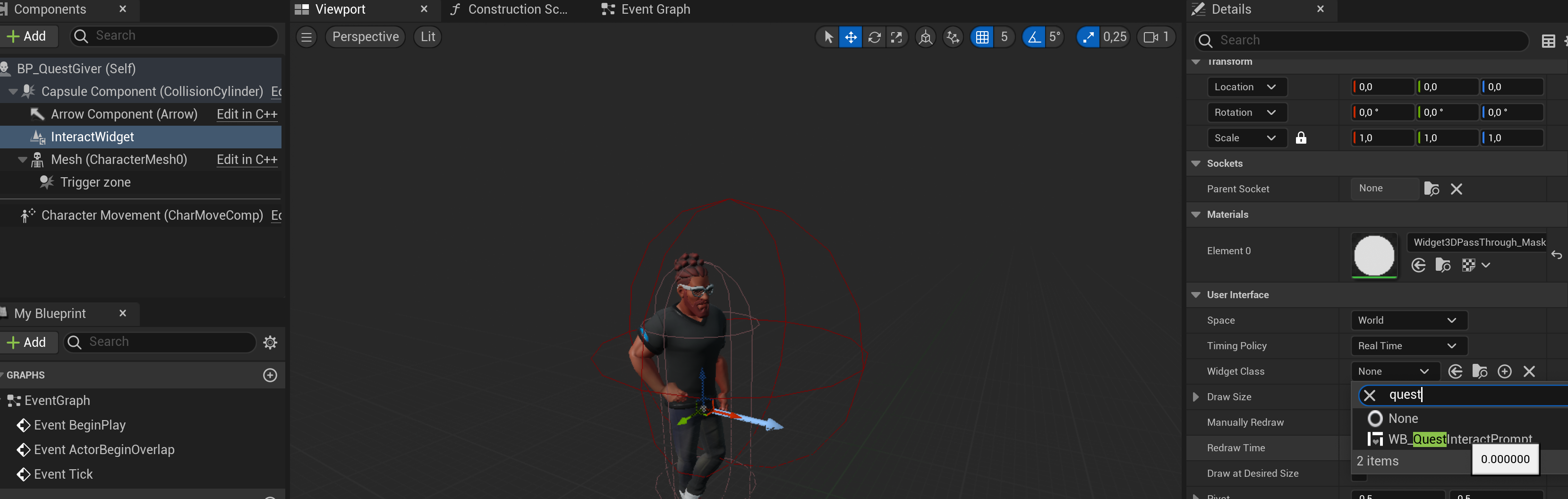

Back to The BP Quest Giver, choose the Widge class in Interact Widget, and paste the text above his head

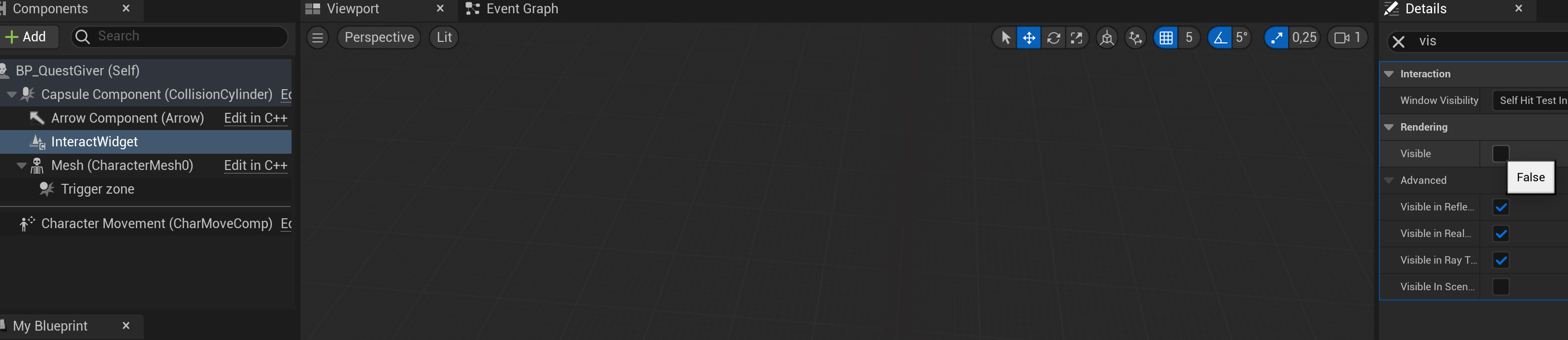

Disable the interactwidget visible

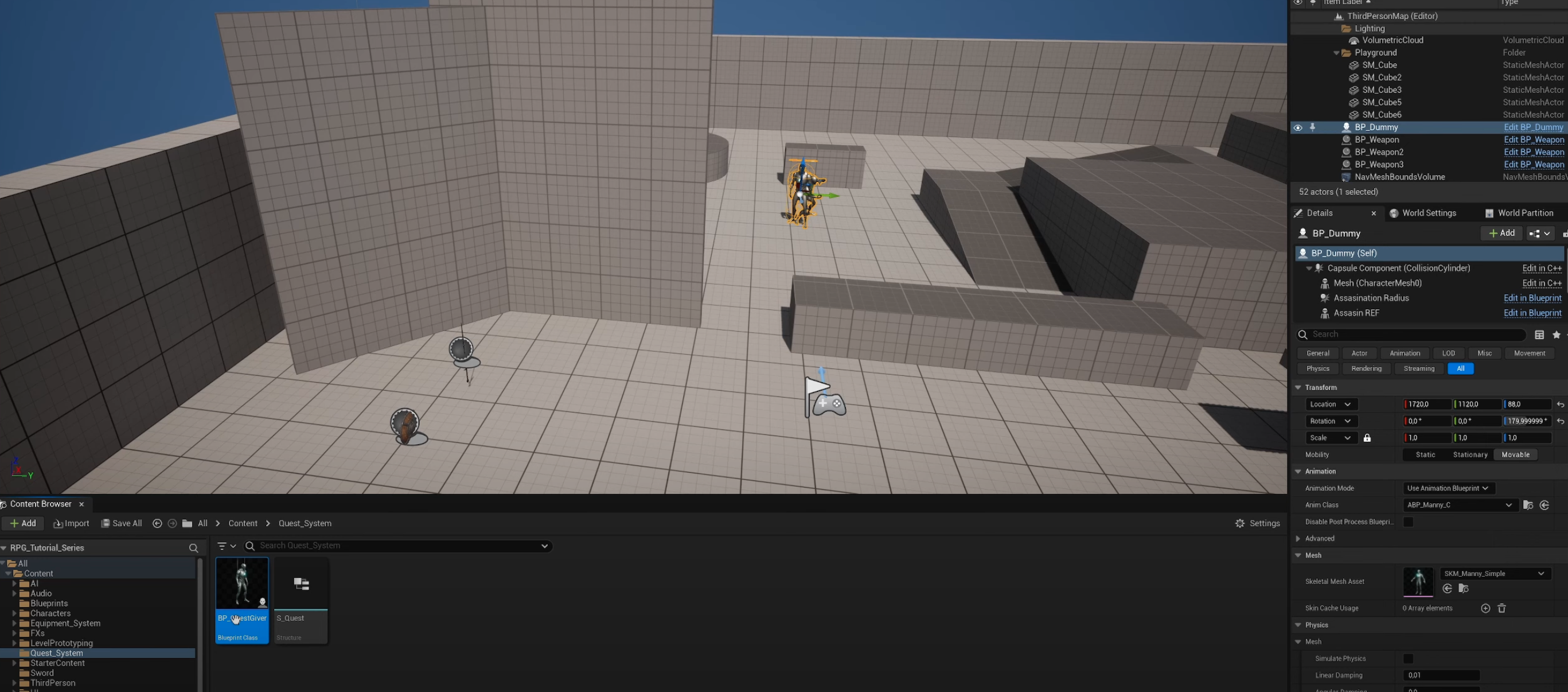

Drag the BP Quest Giver in the scene, try to see if the widget comes up when walk close to the giver
Create Interact to the player
Create a BP interface, called BPI_QuestGiver

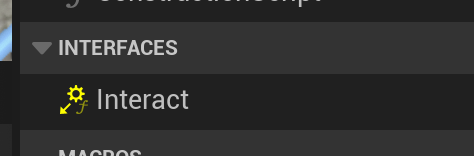

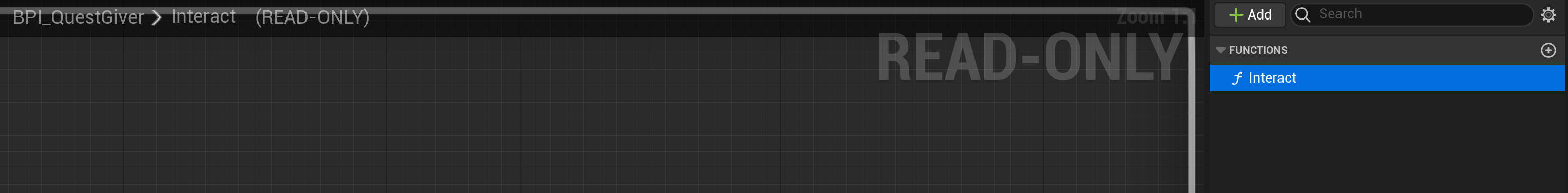

Name the new function as Interact
Add the BPI in BP_QuestGiver BP class

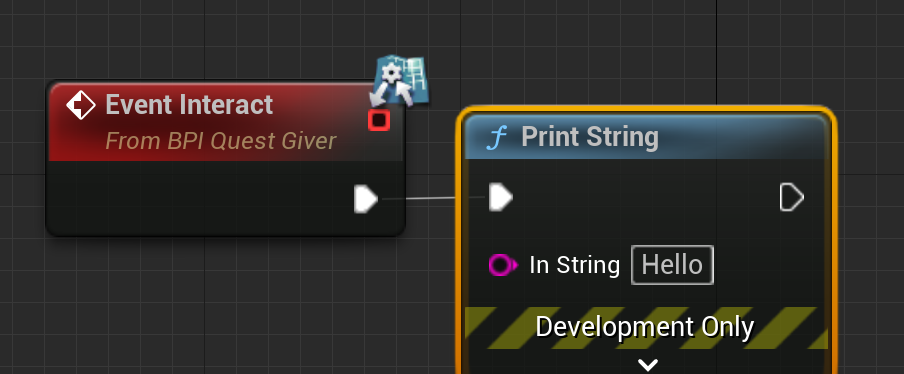

Open Interact in Interface, make the graph print string to test:

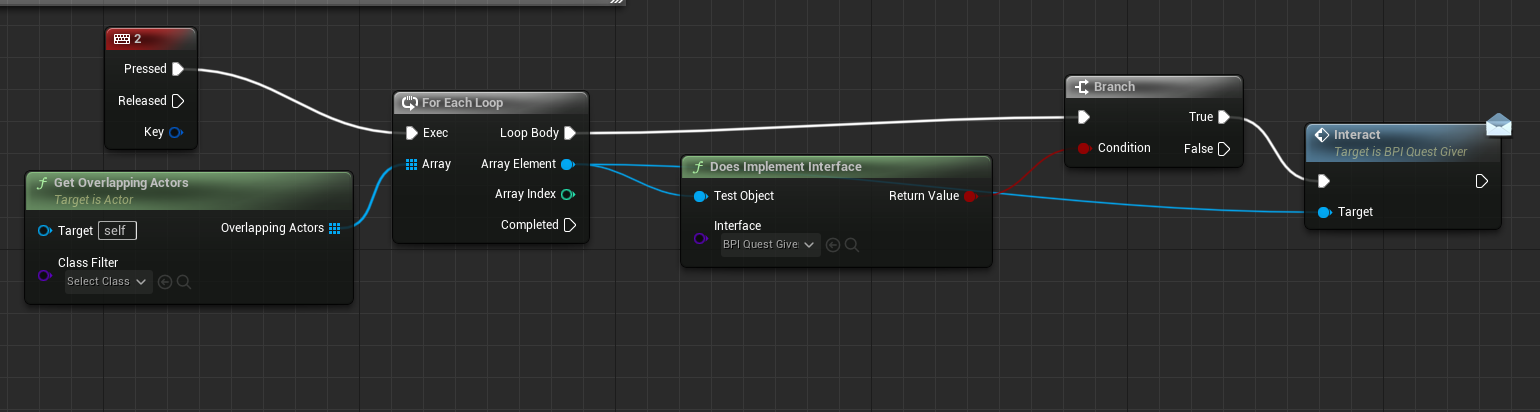

Go to 3rd person BP, set below and test in game
Create Quest UI:
Make a Widget in Quest folder, called WB_QuestGiver

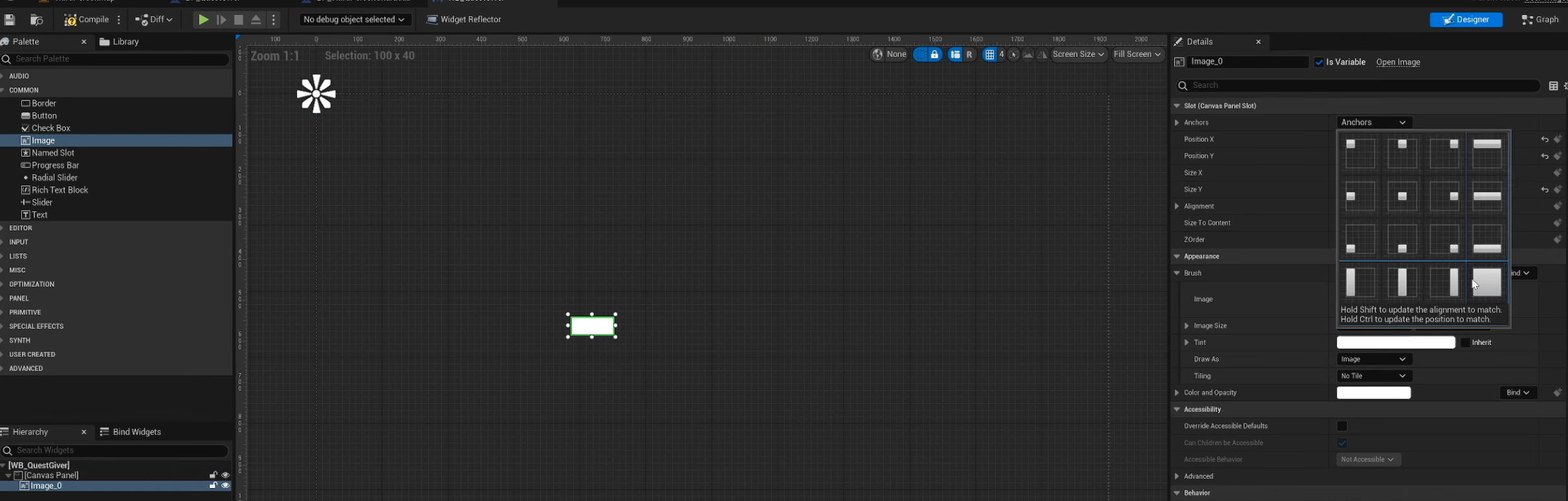

Hold left Ctrl when choose below anchor, will let the image fill the whole screen:
Tiling, black color, and alpha 0.3
Name the image as Background, then add bacground blur (strength 10)

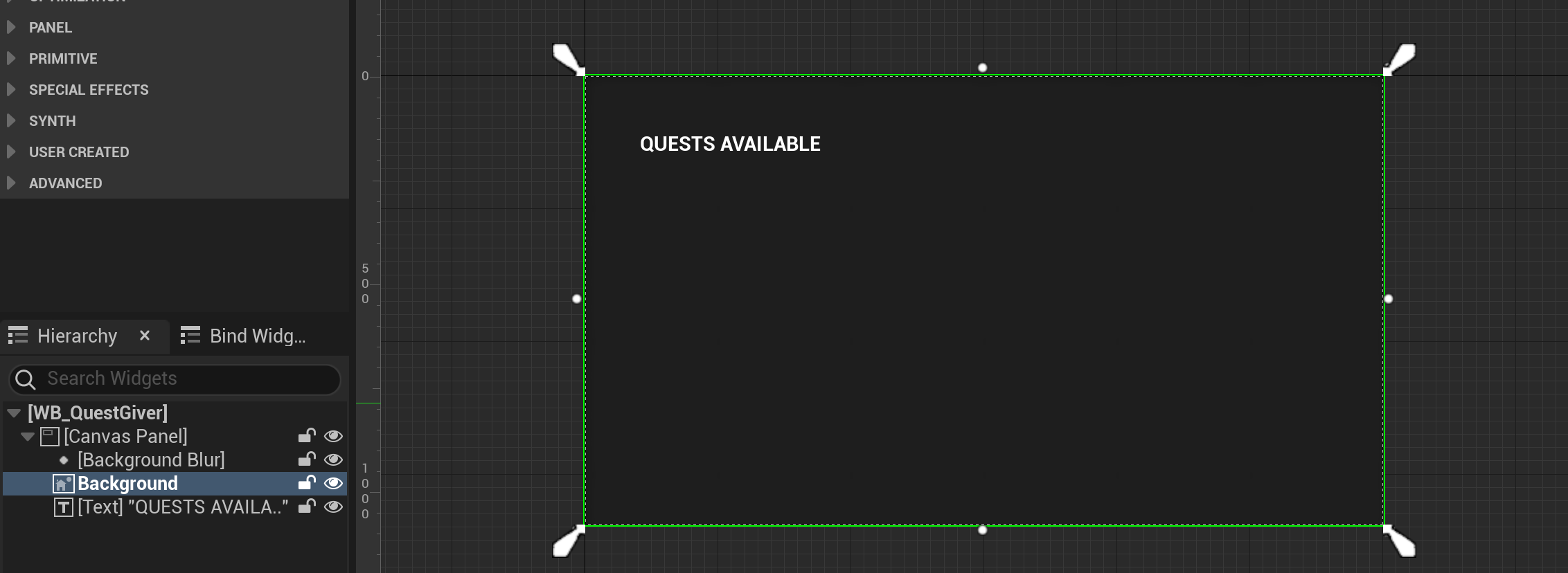

Add text and finalize as below:

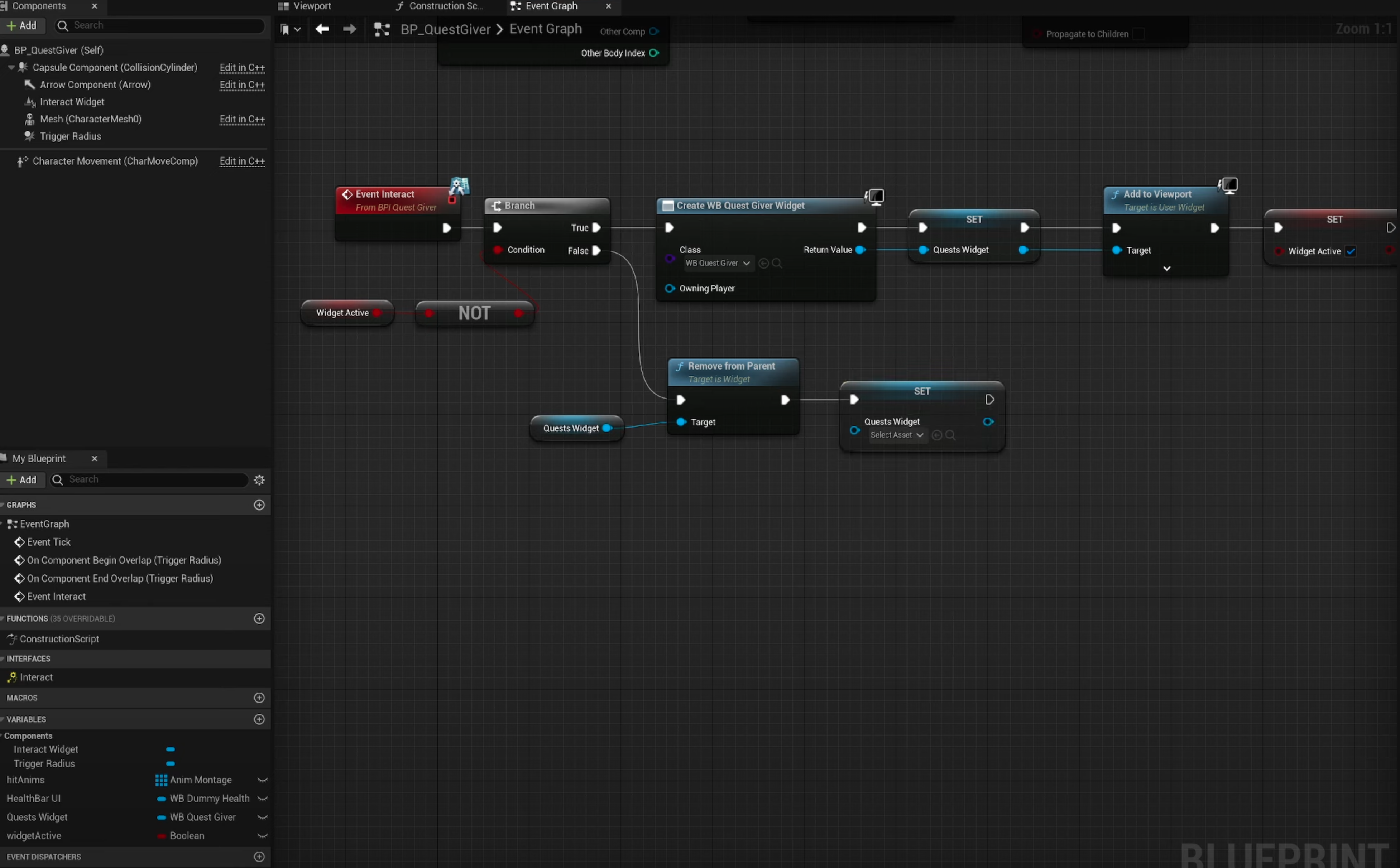

Replace the print string in BP QuestGiver

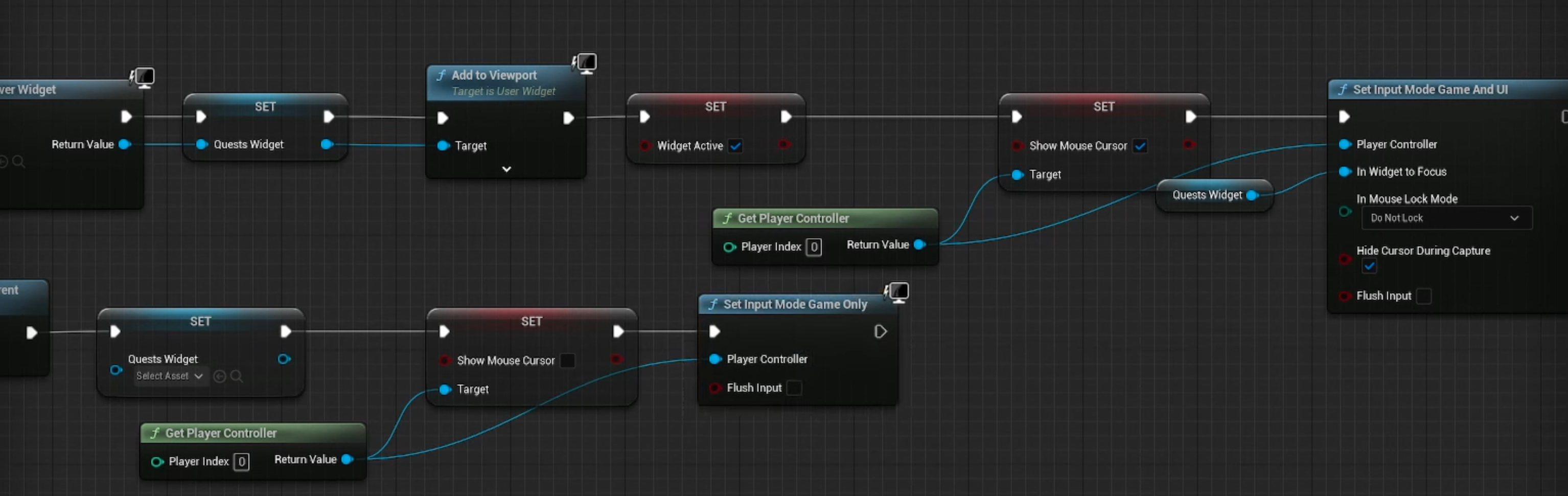

Add mouse cursor at end of SET node:

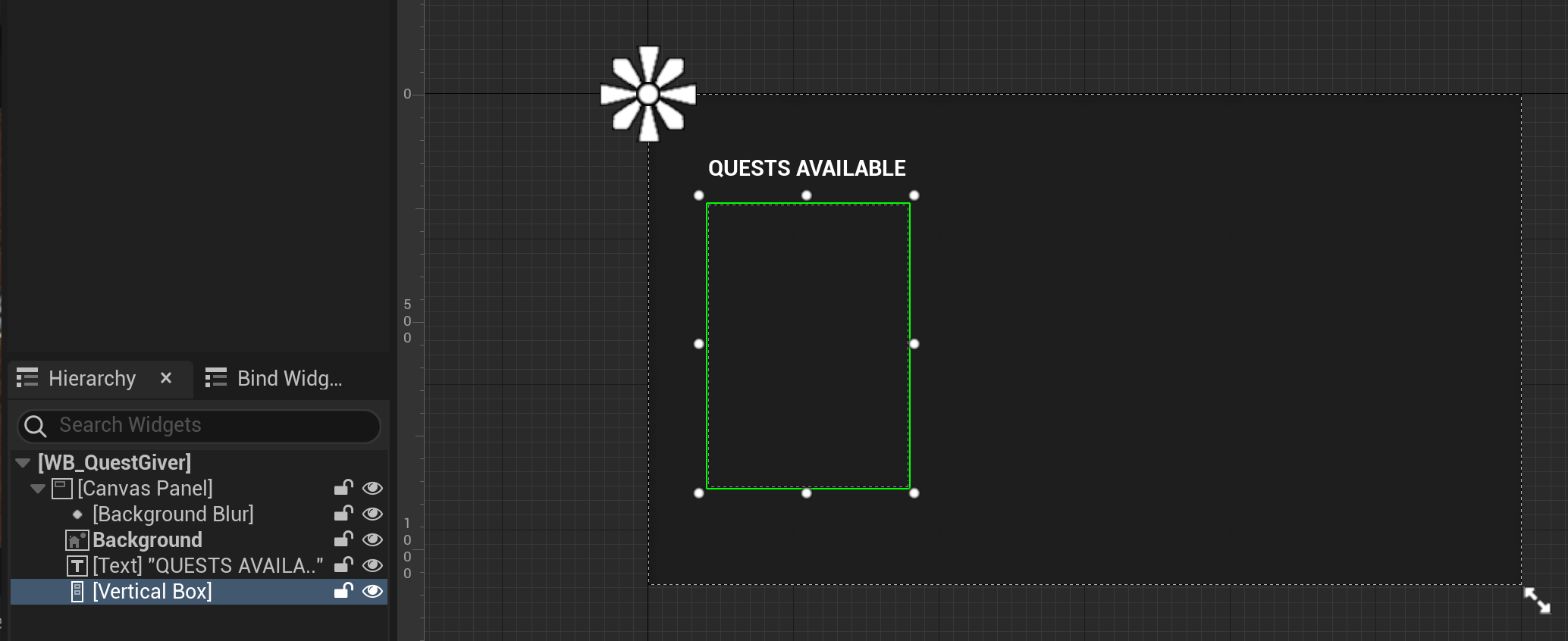

Modify the WB Quest by adding a vertical box:

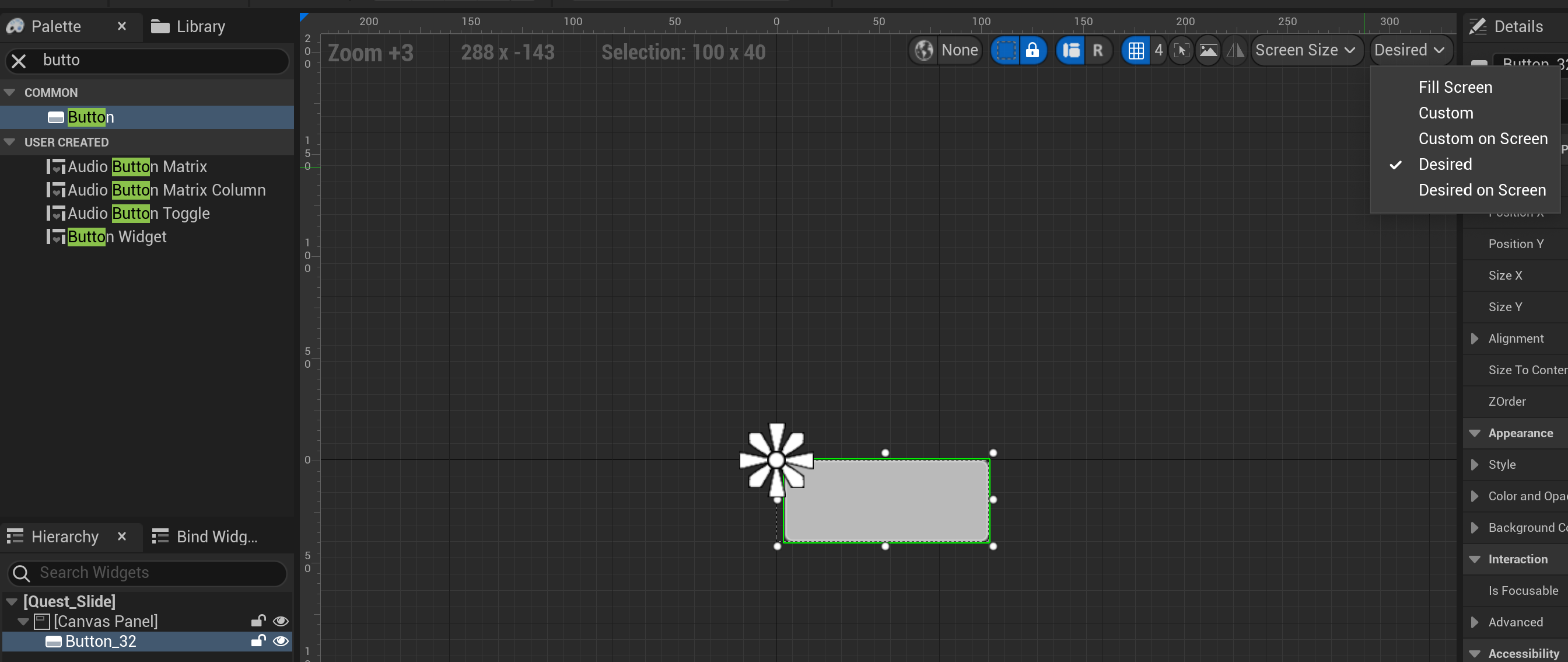

also create a new WB called Quest Slot, add a button on it:

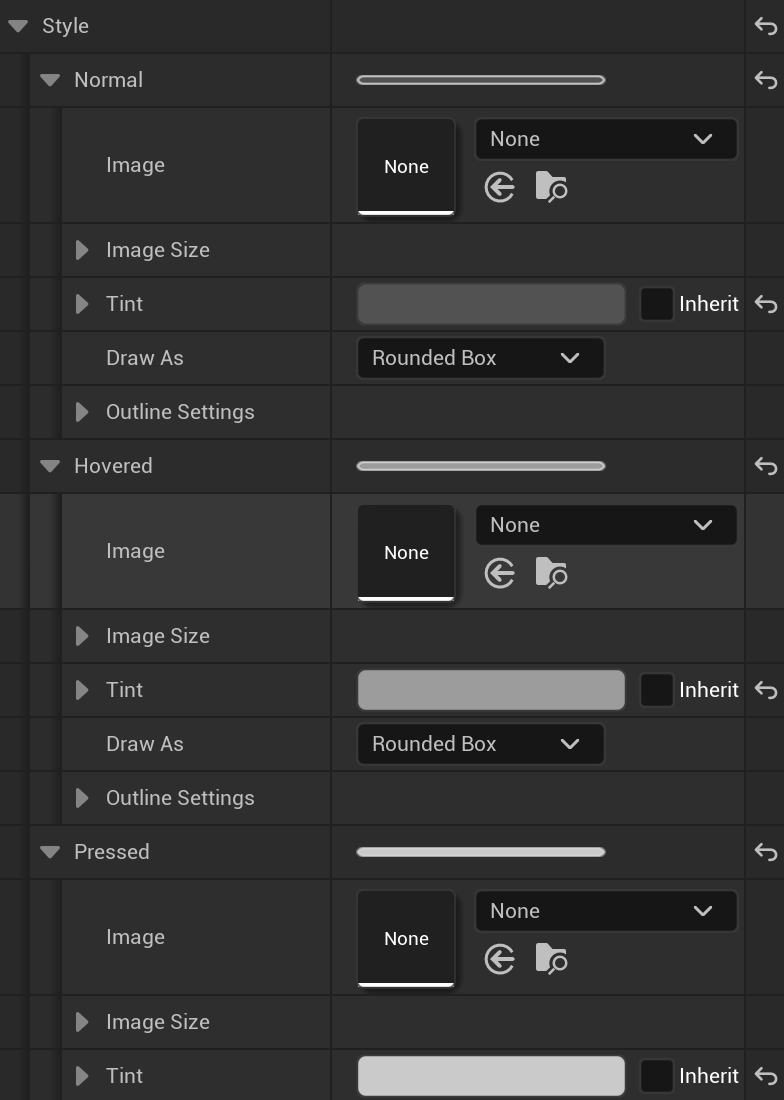

Add button text, on button layer, adjust style color,
normal: darkest grey, hovered: lighter, Pressed: Lightest

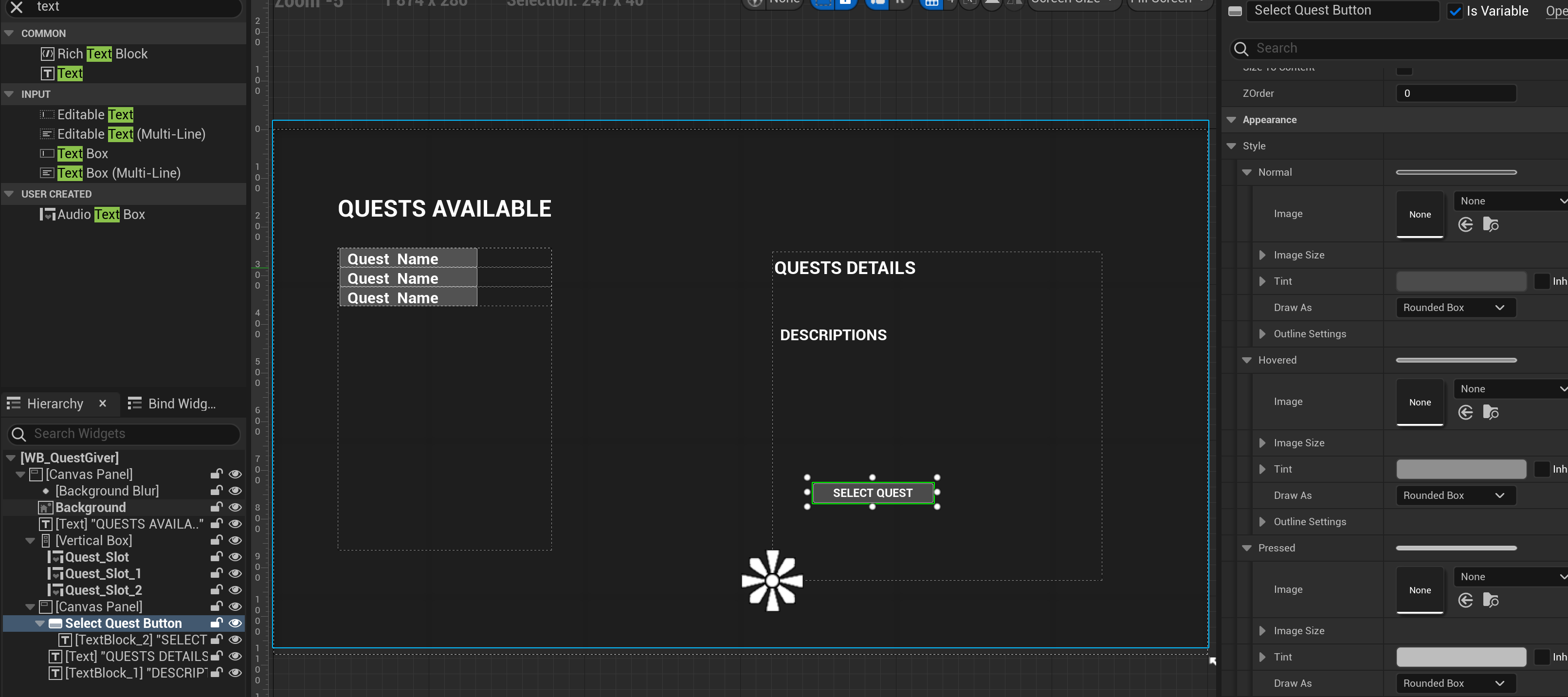

Further modify the WB Quest by adding a smaller Canvas panel in and:

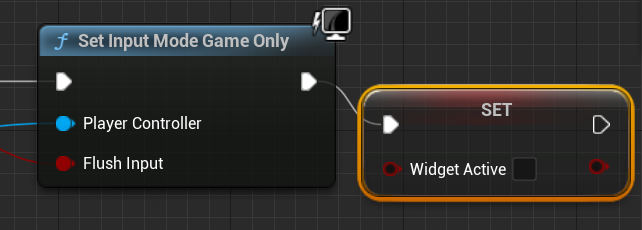

Back to BP Quest Giver, add set Widget active node as false (or else the quest menu can only open once)
