Multiplayer Game Series (Pt 1 -character)
Part 2 - Menu, Controller, Save game
Create game instance (for UI related stuffs e.g. join,create session, because it’s
only local, won’t get replicated, but persistent in entire game even change map):
In framwork, BP → type gameinstance, name as BP_Shooter_Gameinstance

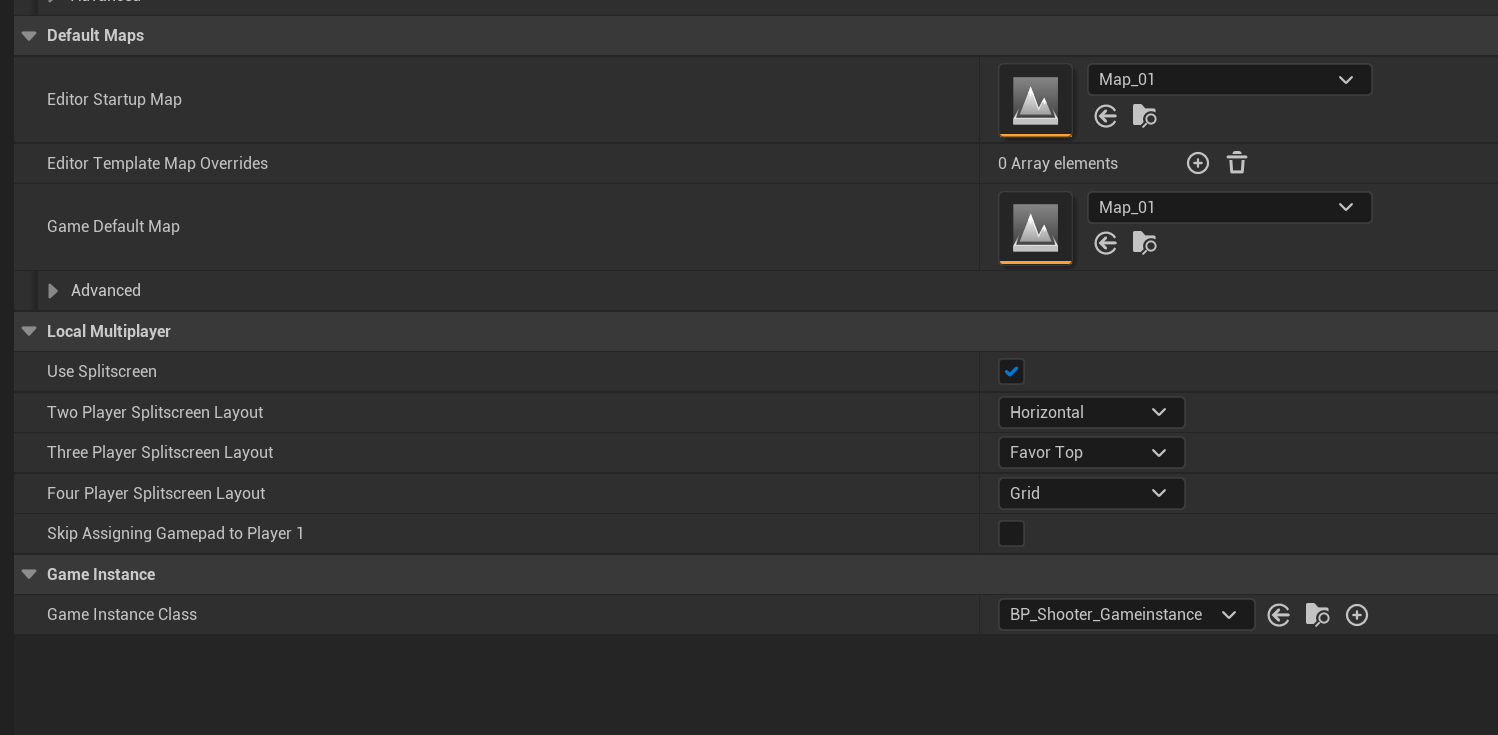

Go to project setting, choose the gameinstance created:
Create Framework BP:

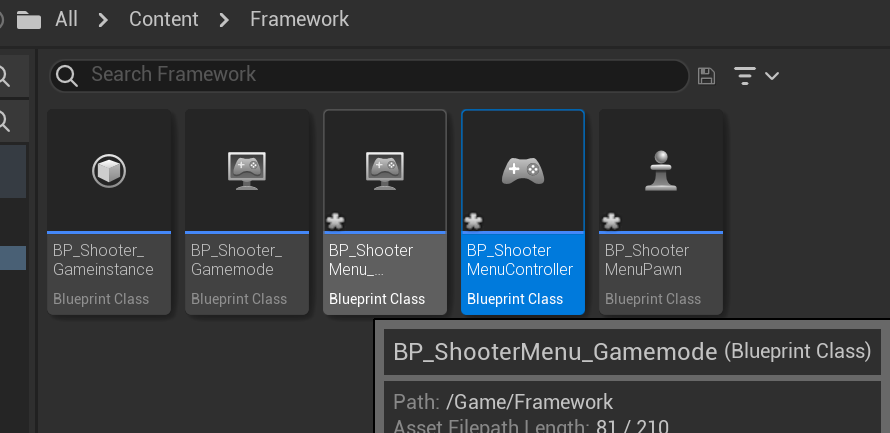

Create new gamemode base, pawn and controller for menu page:

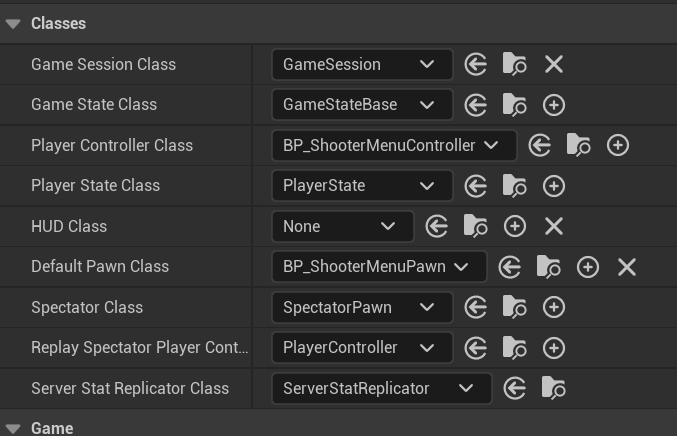

Set gamemode menu base BP as follow:
Create a new folder called menu in Map folder
Add a new level, choose Blank, save and name as MainMenuMap
Add a 2nd level, choose Basic, name as LobbyMenuMap

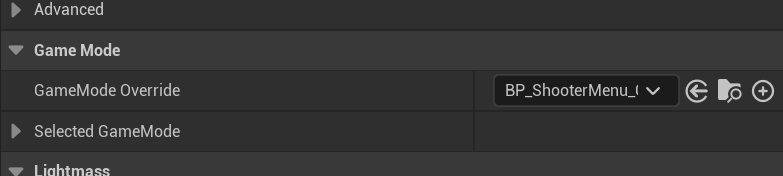

In lobby map, set gamemode override in world setting, as BP_shooterMenu_Gamemode
Repeat the same in MainMenu Map
Create Widget for main menu:

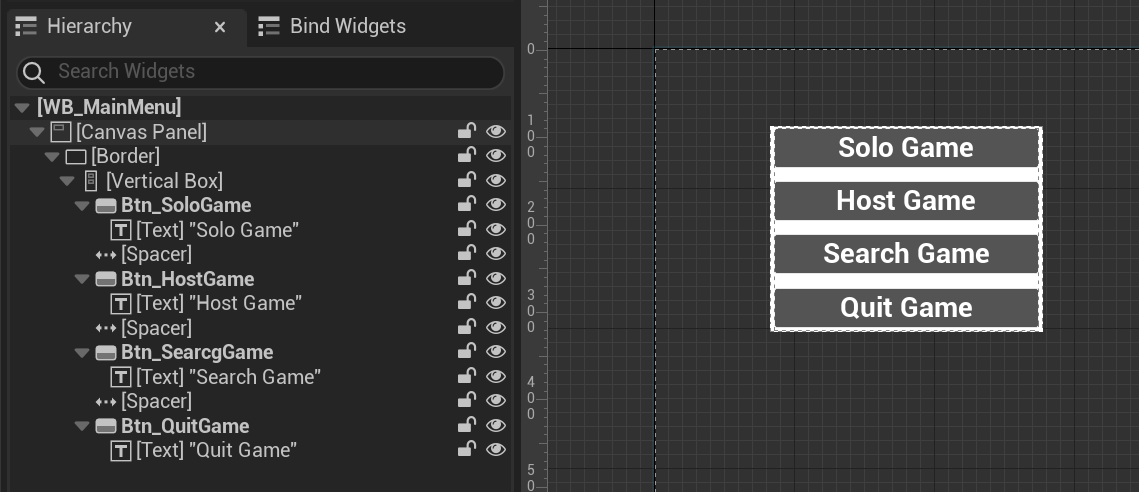

Create Widget named WB_MainMenu
set button style of tint color differently at normal, hovered and pressed
Add Spacer (size Y 15) between each button
Open GameInstance BP

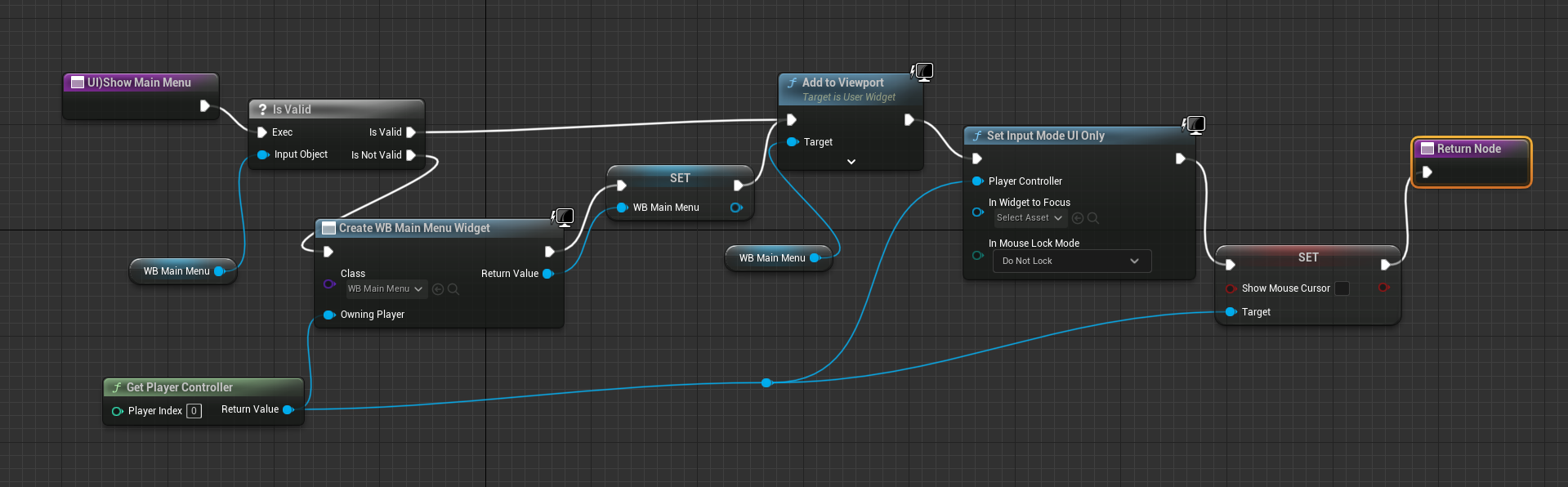

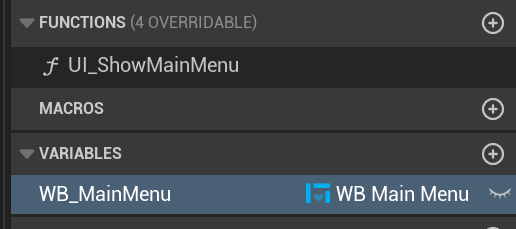

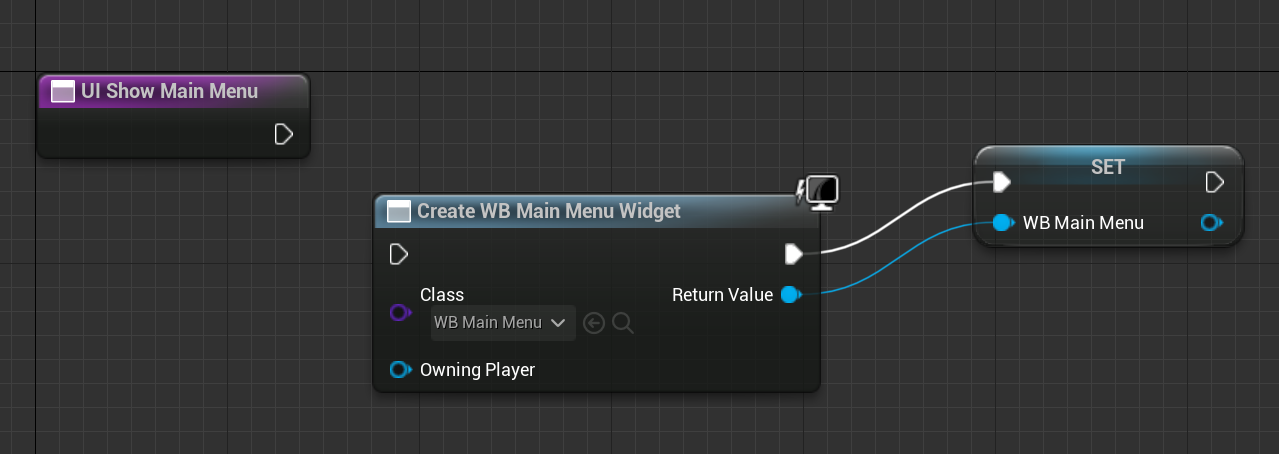

Add new function called UI_showMainMenu, creat the nodes, and new variable called WB_MainMenu
Create Widget node, choose the class and connect to set variable:
Continue:

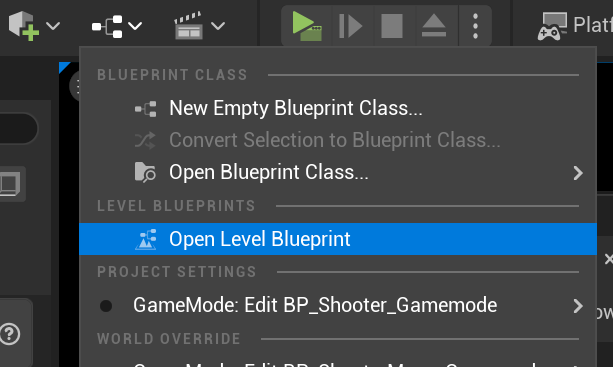

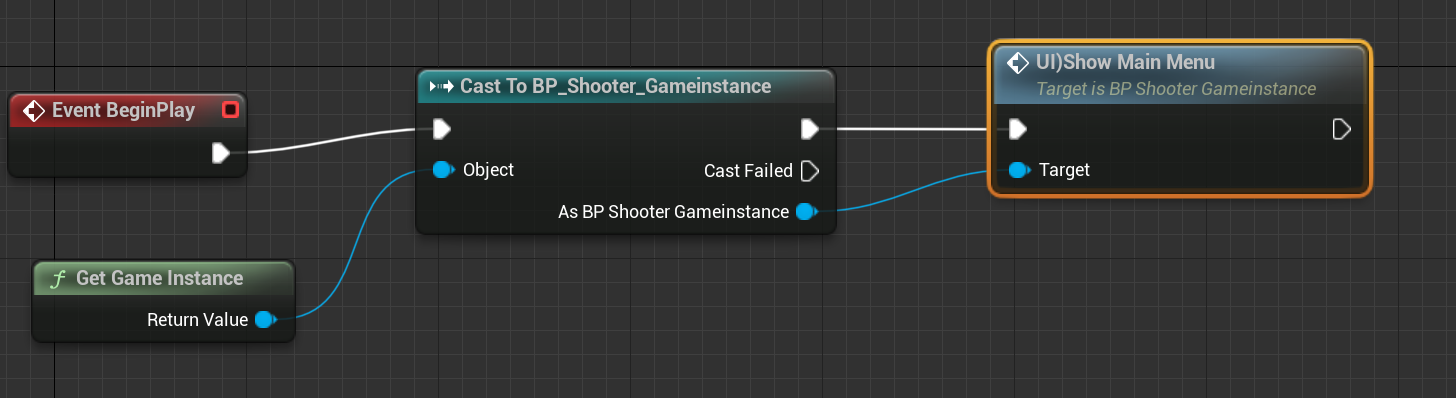

Open Main Menu Map BP (in main menu level, click below), set the nodes:
Now start the game, will open from main menu widget page

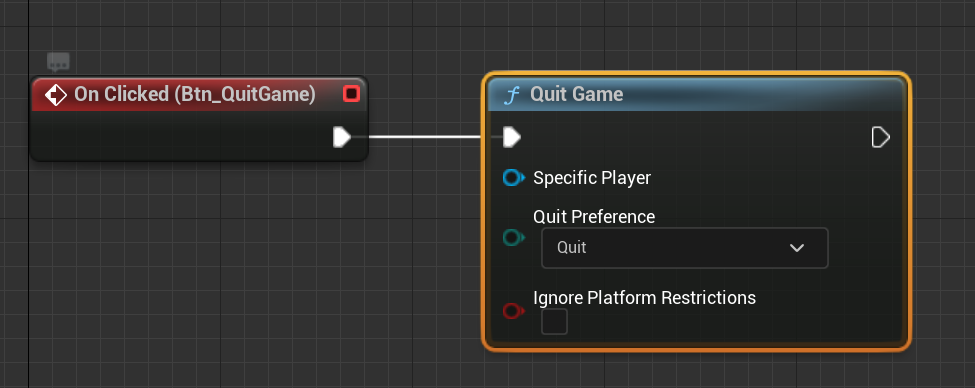

Back to WB_MainMenu Widget, set Quit game and Solo Game buttons graph:

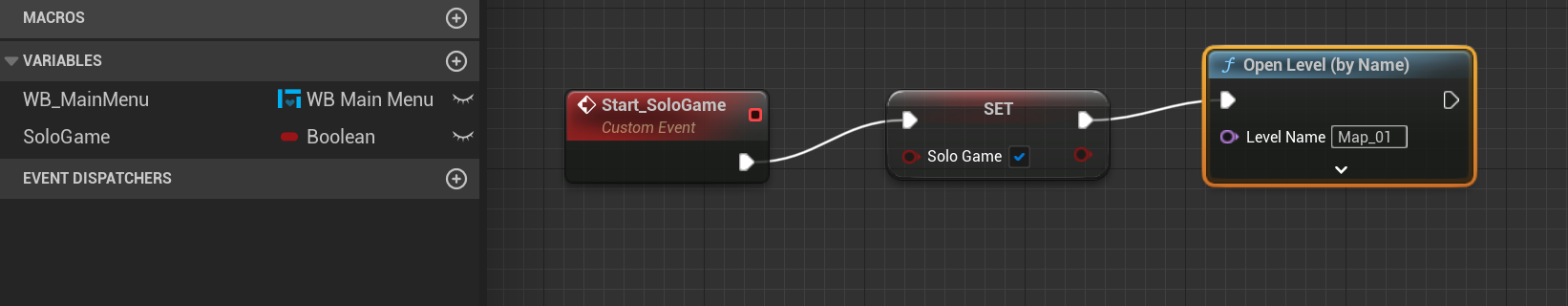

Set follow in GameInstane BP, event graph for Solo game button:

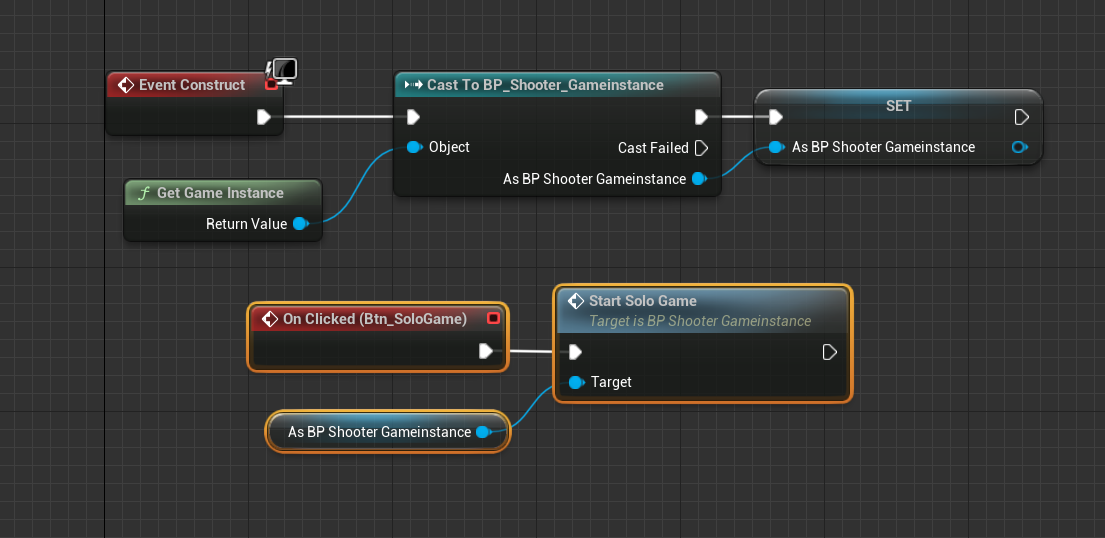

Back to WB mainmenu widget graph
Create Player Controller in Solo Game character movement
In Framework folder, create Player Controller BP, name BP_shooter_PlayerController

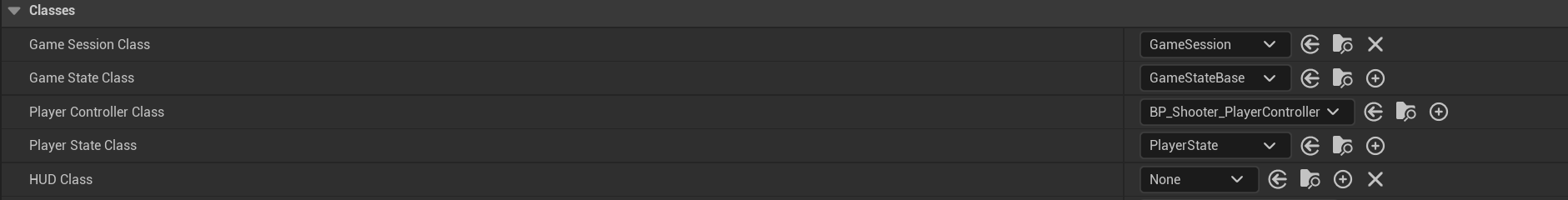

Open Shooter_Shooter Gamemode Base, change the Playercontroller to the one created

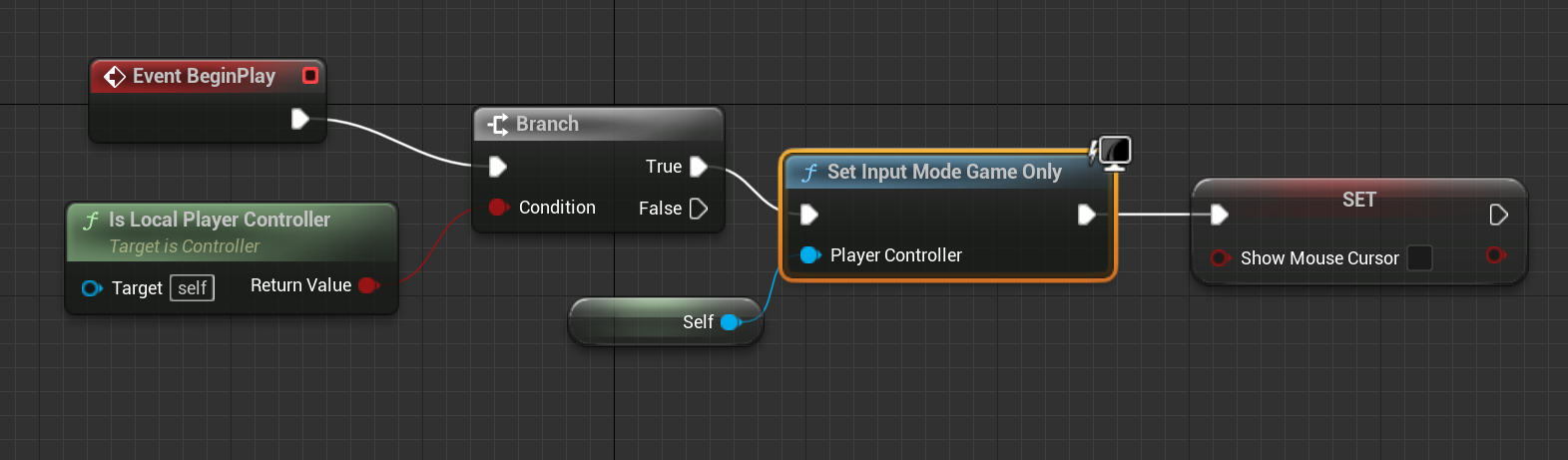

Open new player controller, event graph
Save player profile whenever connect the server, can just load it out:

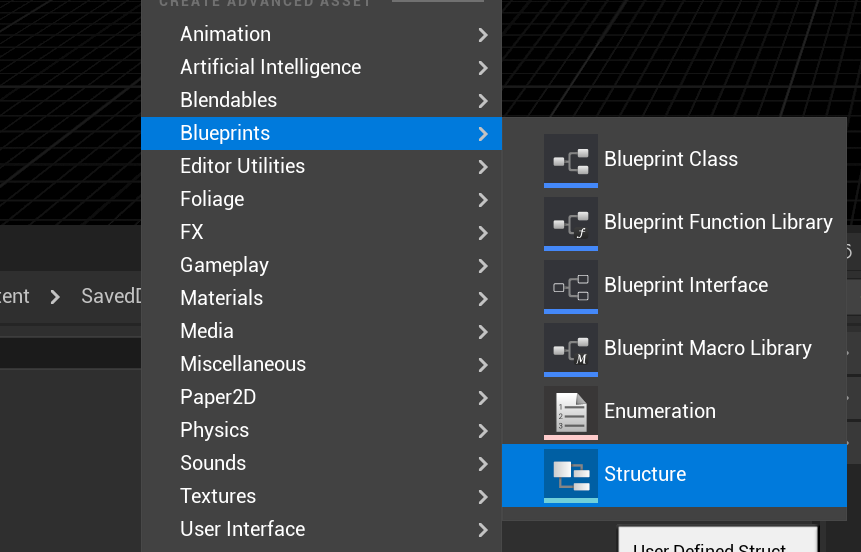

Open a folder called SavedData in Content, create a structure, name S_PlayerProfile

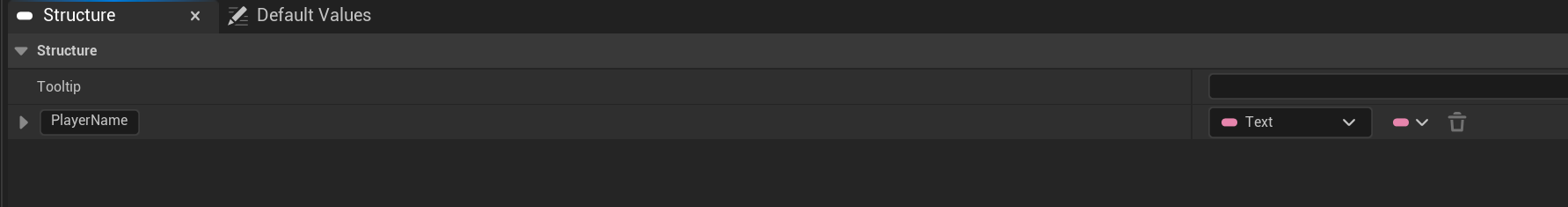

Open it and rename as:

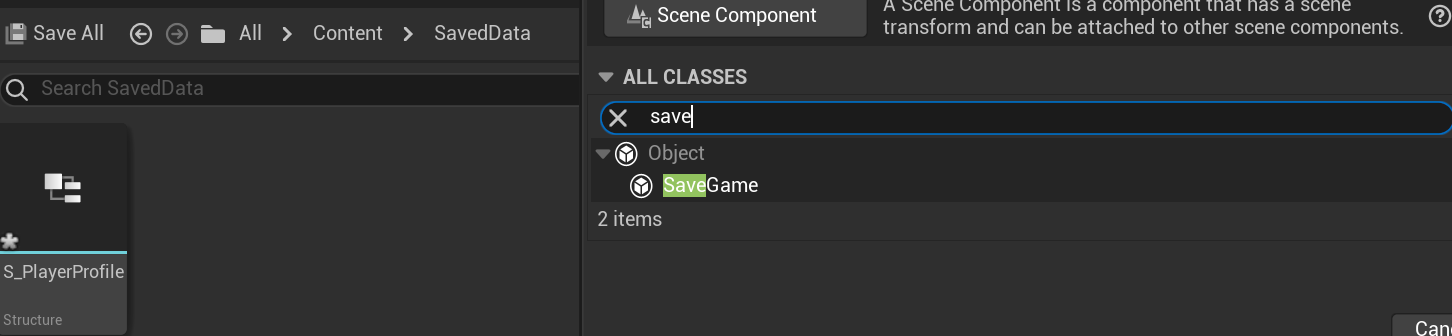

Create BP class, type SaveGame, name as SG_PlayerProfile

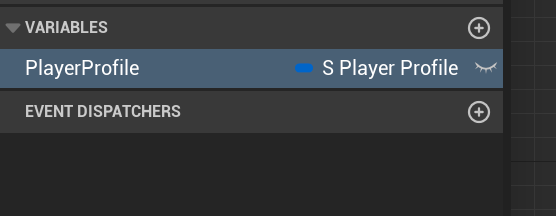

Open it, add variable:

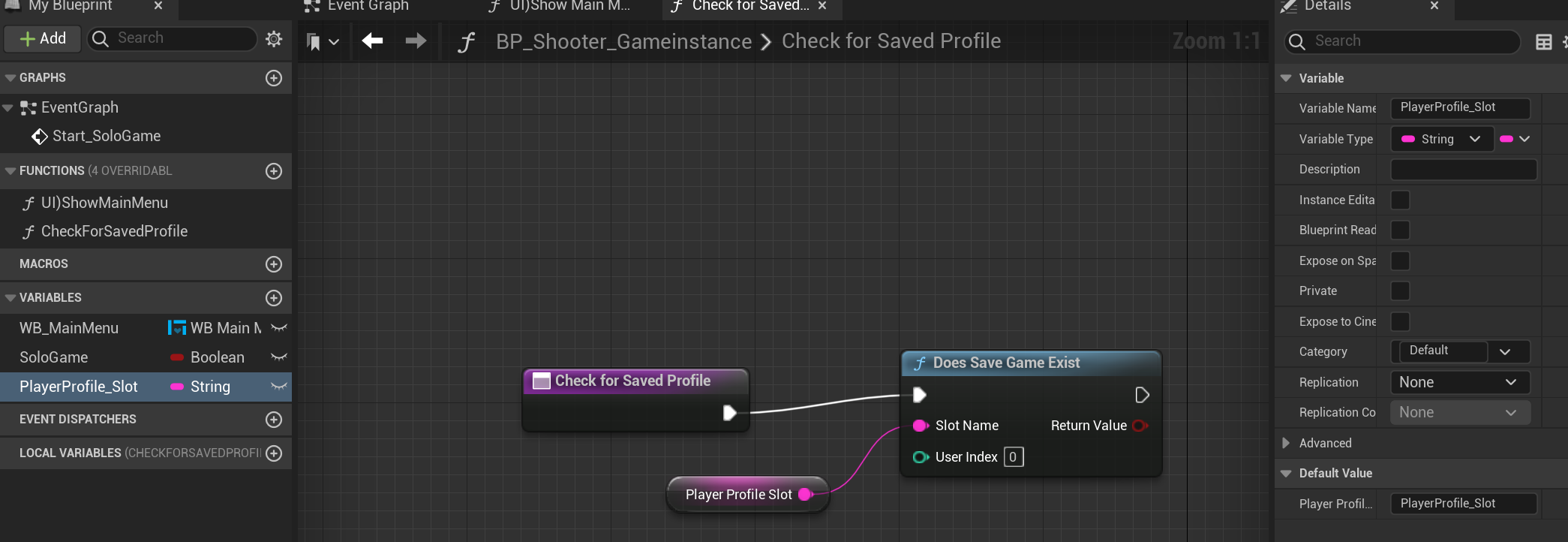

Go to Gameinstance graph, add new function CheckForSavedProfile,
promote variable on slot name, rename it as PlayerProfile_Slot, type it on Default value box too

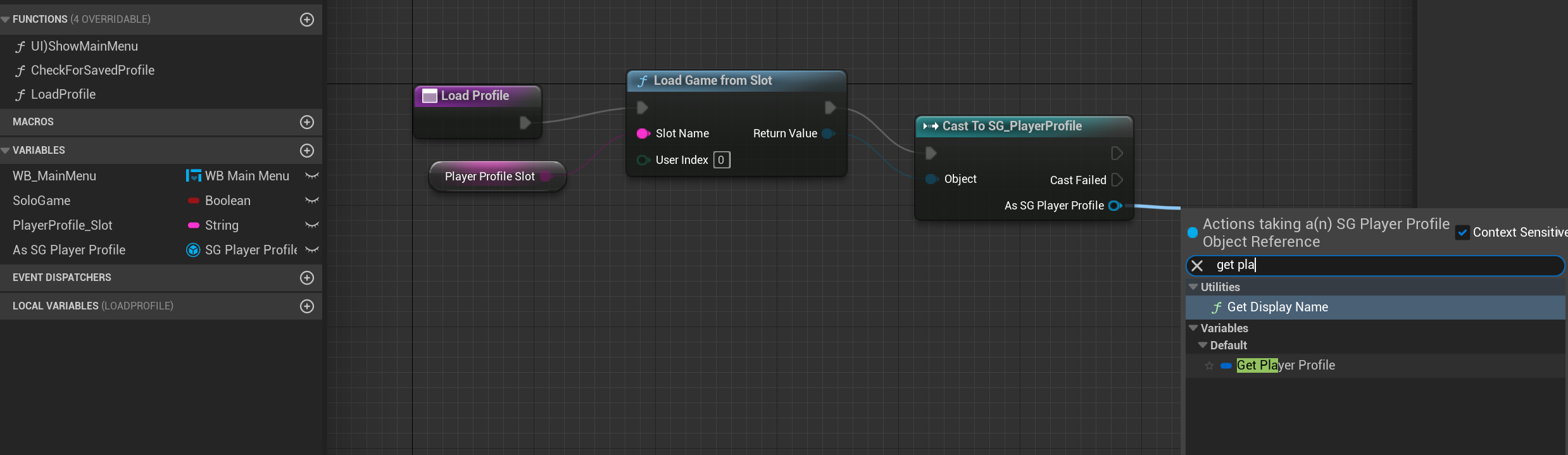

Add function “LoadProfile”, connect graph (get player profile at end)

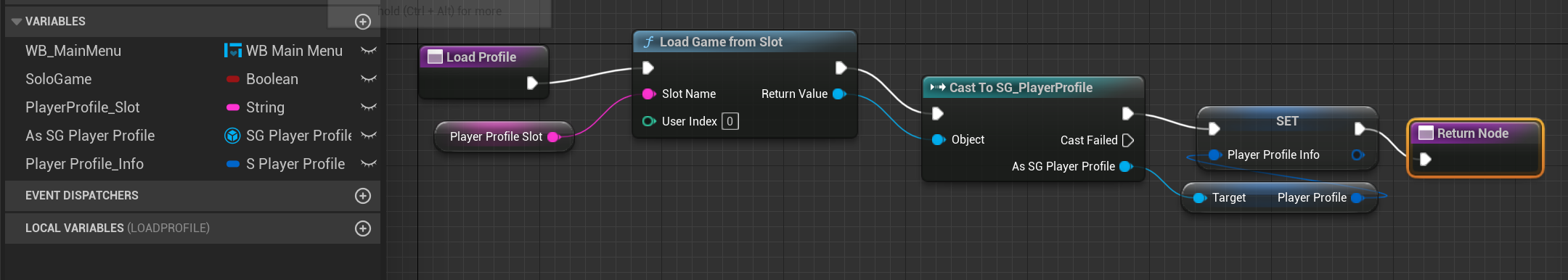

Promote to variable, name as Player Profile_Info, result:

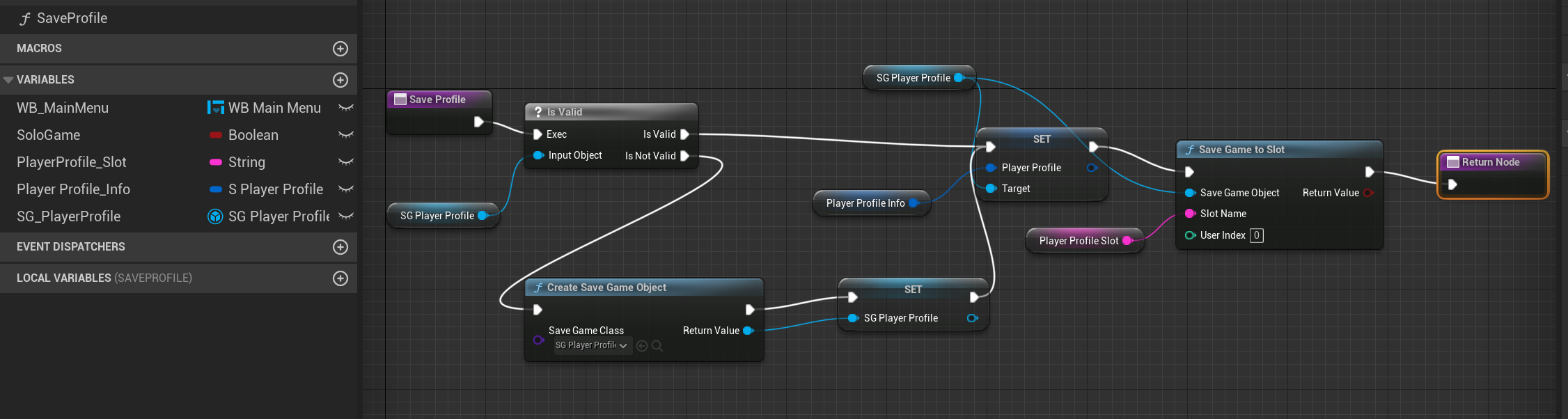

Add new function as SaveProfile (if no previous profile saved can be loaded, will create a new save game)

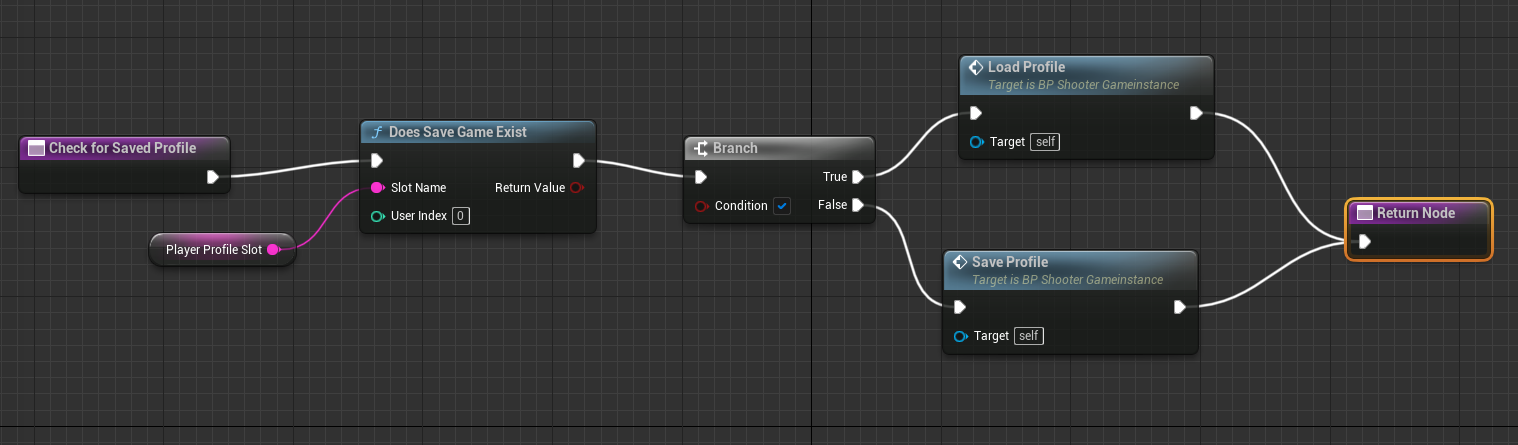

Back to CheckforSaved funciton, set branch if go to load profile or save new profile

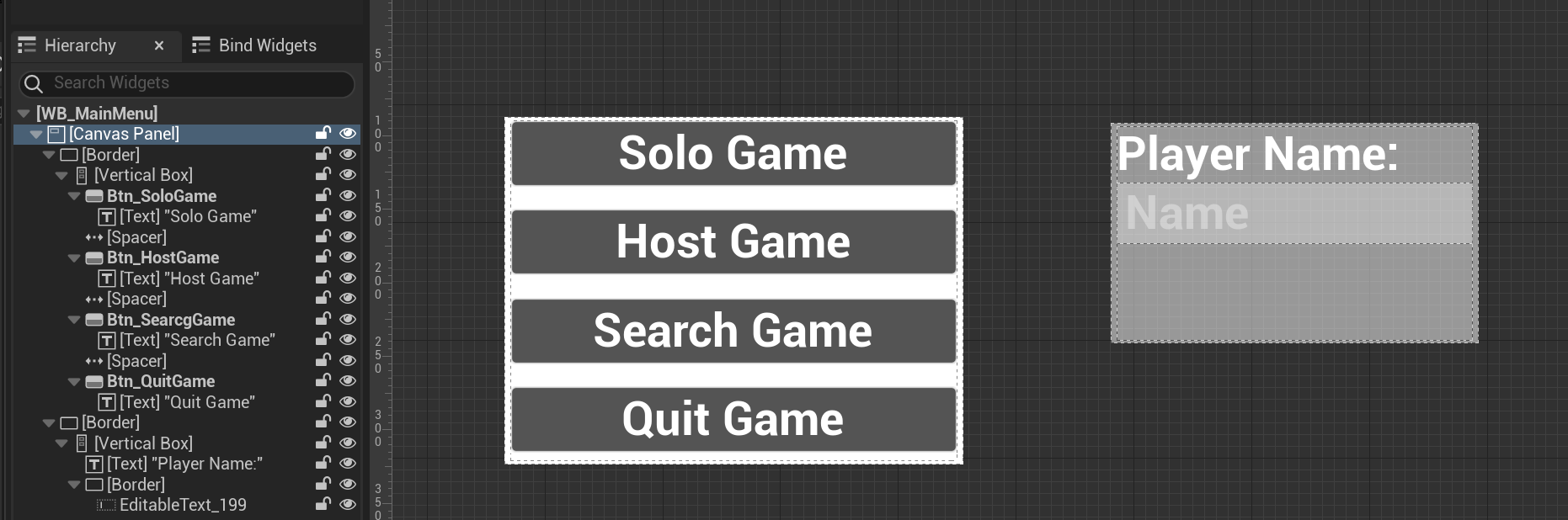

Go to WB_MainMenu Widget, create a new border for player:
change editable text name as Input PlayerName

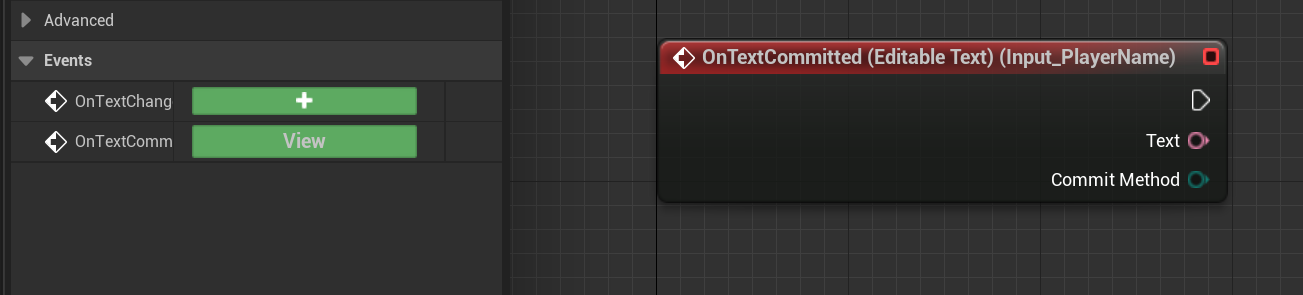

Go to its graph, add on text committed

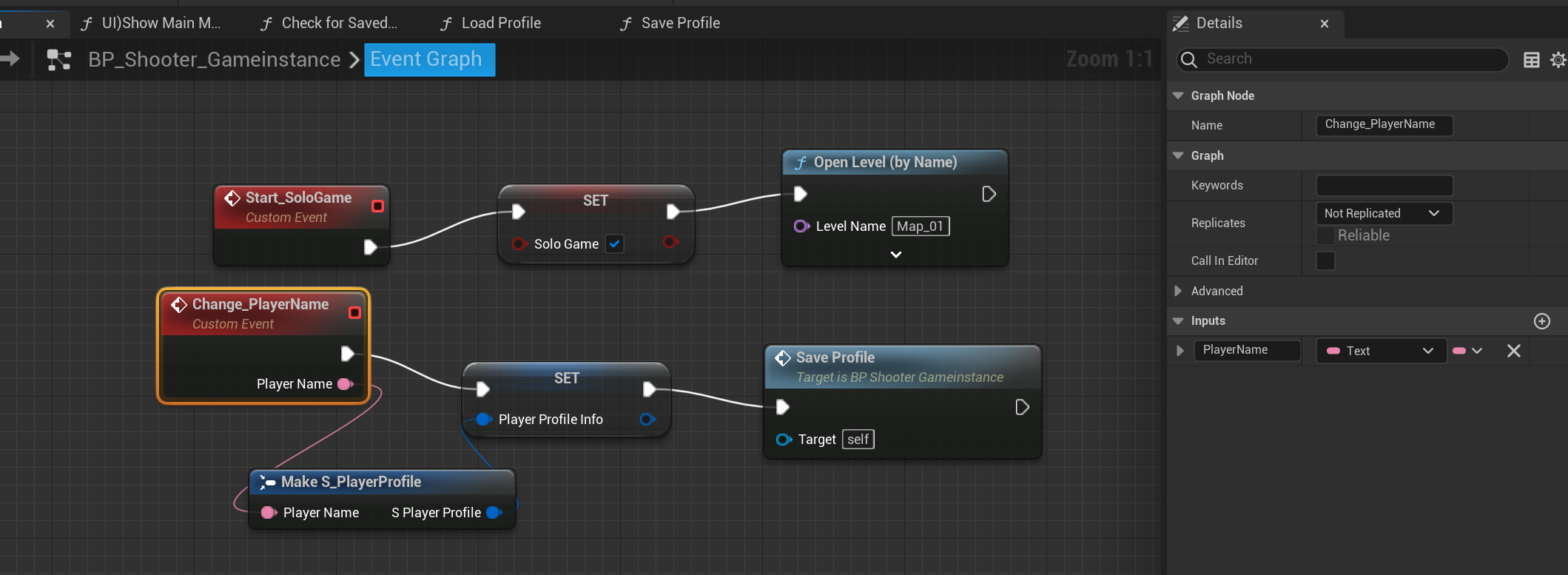

Back to GameInstance, event graph, add custom event and add input variable as Playername:

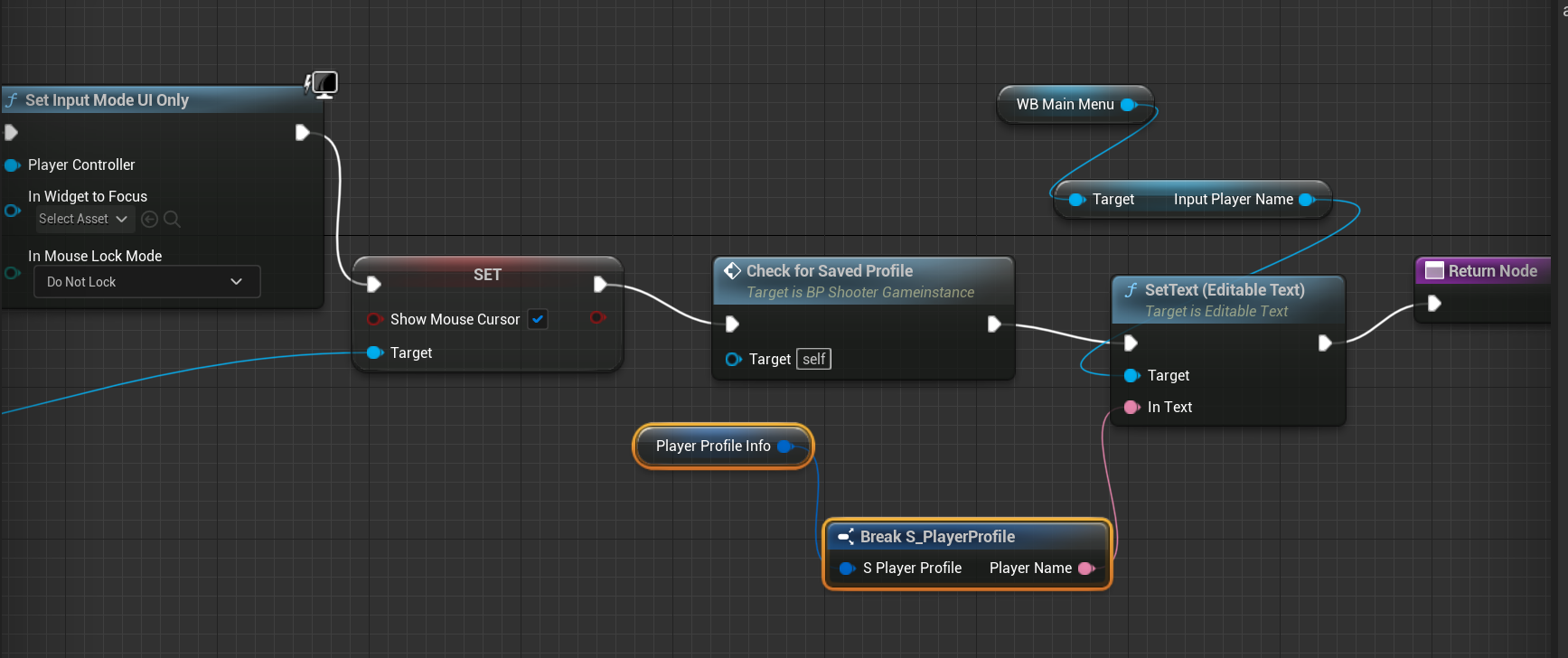

Go to UI ShowMain Menu funciton to add nodes before return node (to be sure name in text box if old player profile found)
Back to WB_MainMenu Widget graph
