Material, Texture, FX in game 3D world
Oil Surface Material

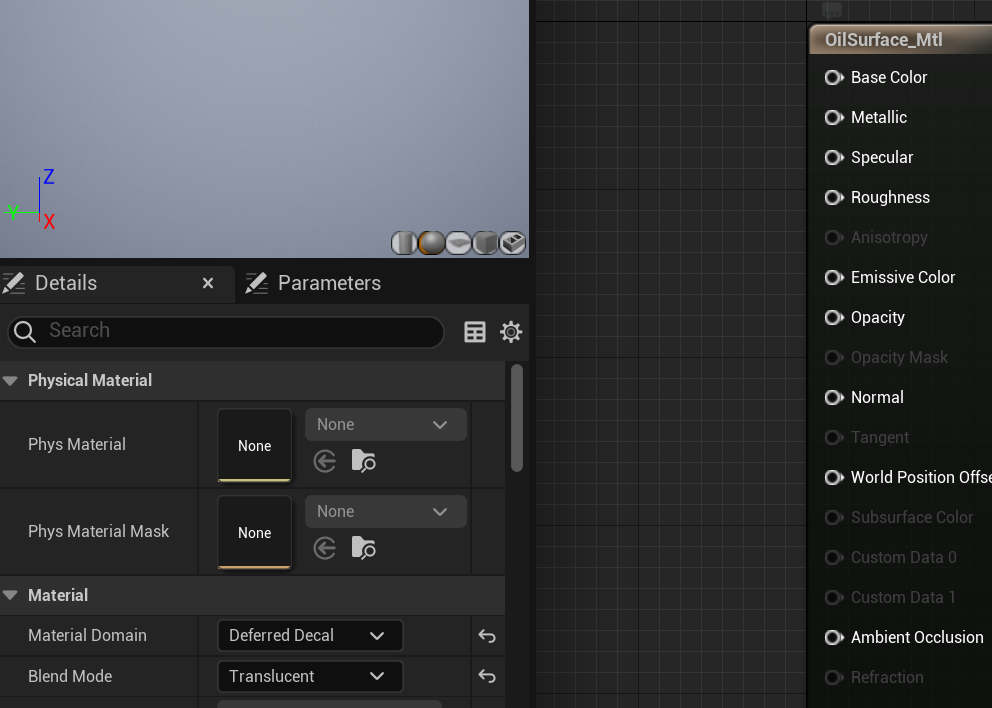

Create a oil material, set domain and blend modes as: deferral decal, translucent

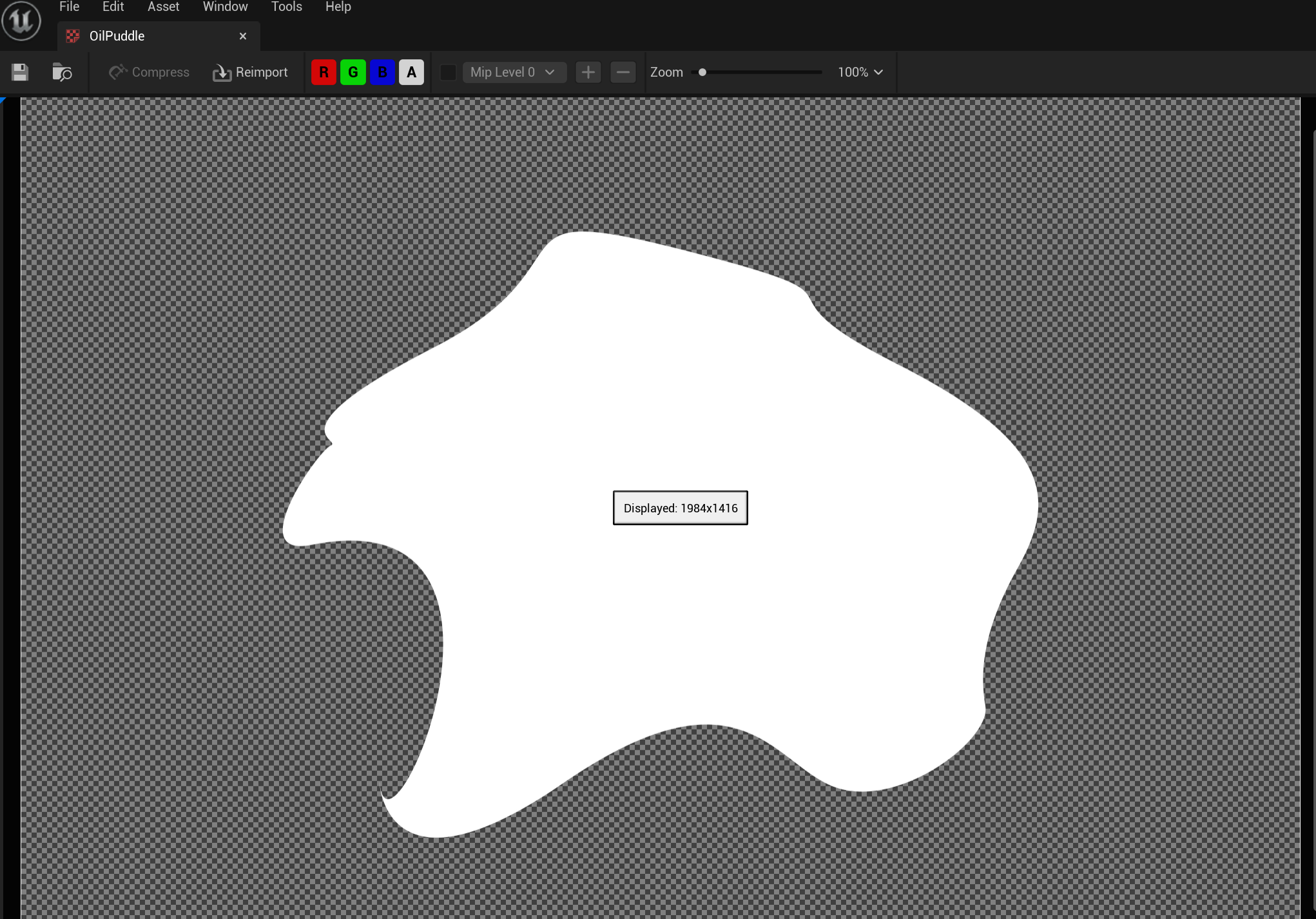

Make a oil shape image in photoshop, export it as a texture in ue

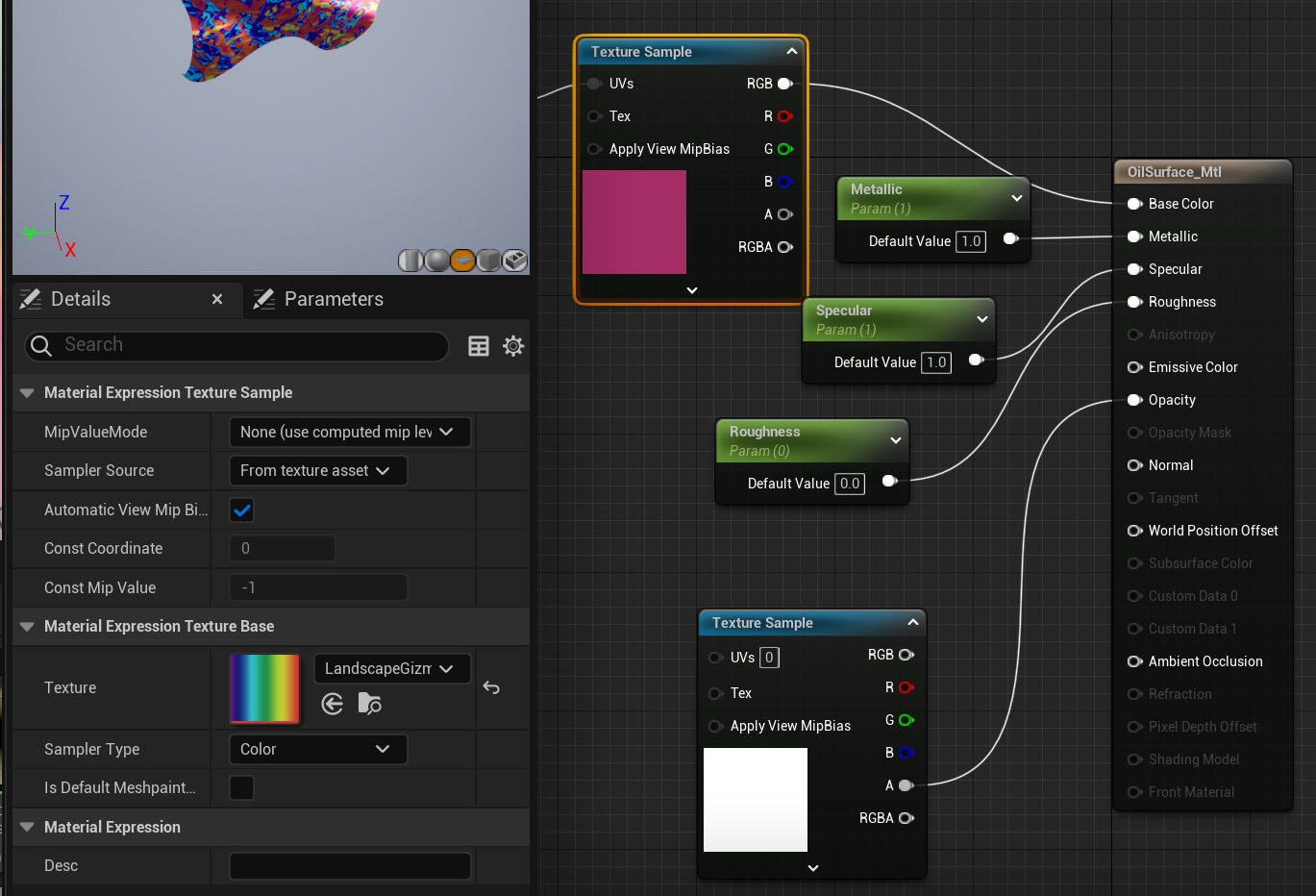

Connect the mtl of the texture with its alpha channel to opacity

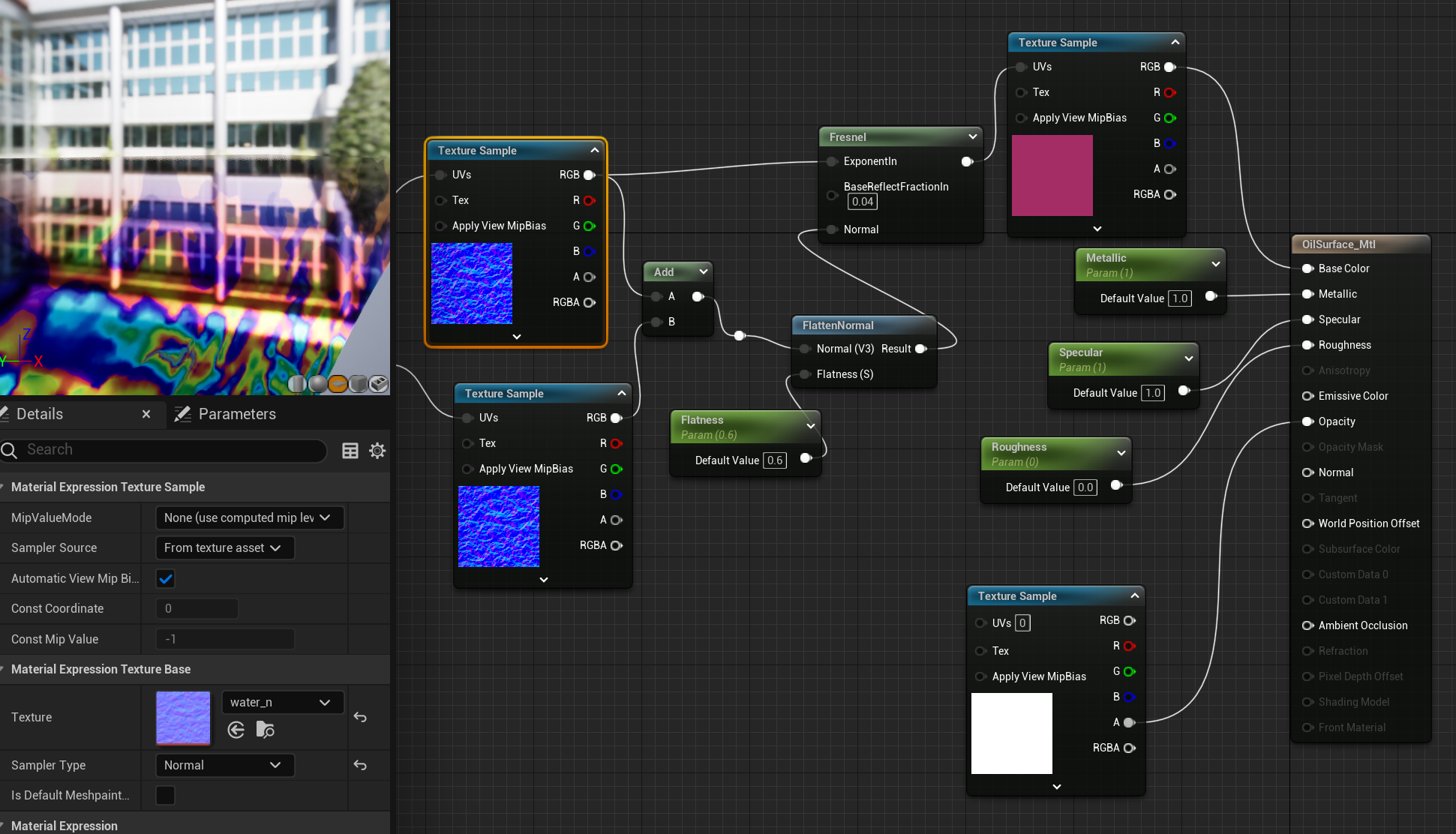

Add water normal texture to fresnel node and connect as:

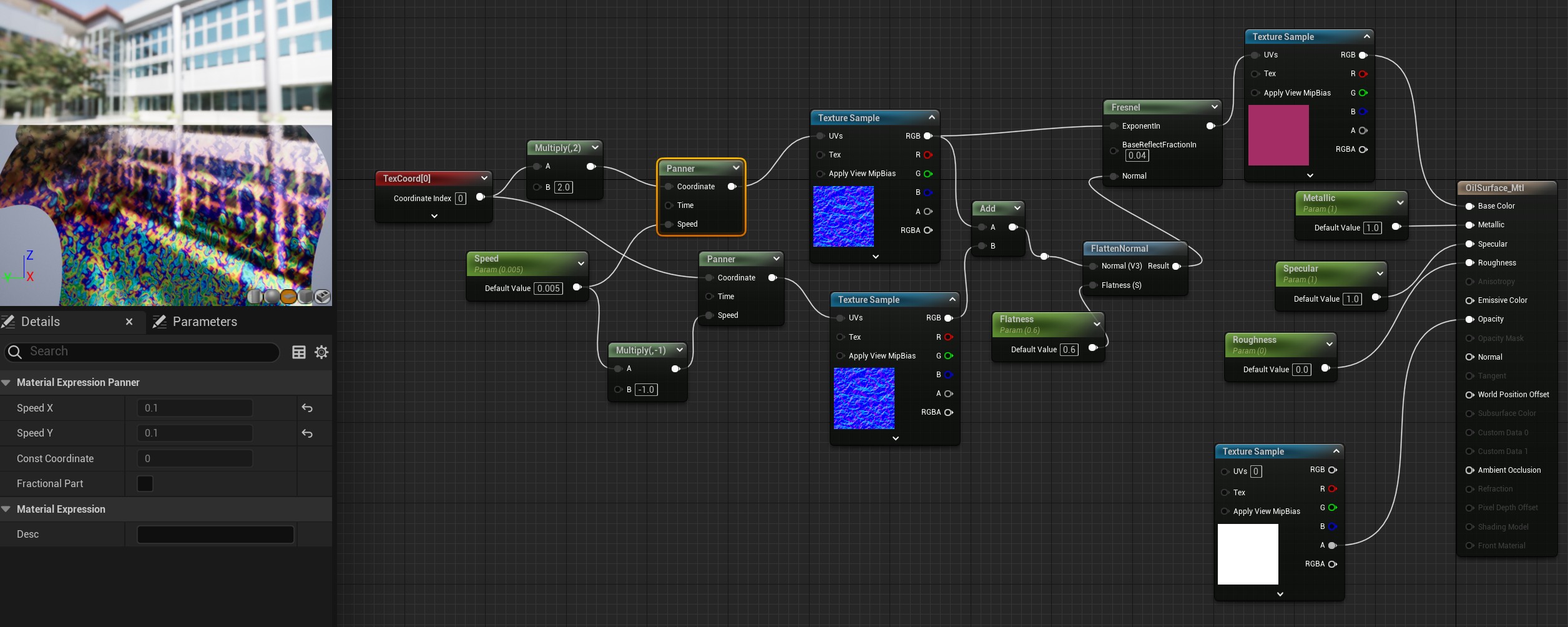

Add Paner node lets the object spin/rotates (set speed X as 0.1, Speed Y optional)

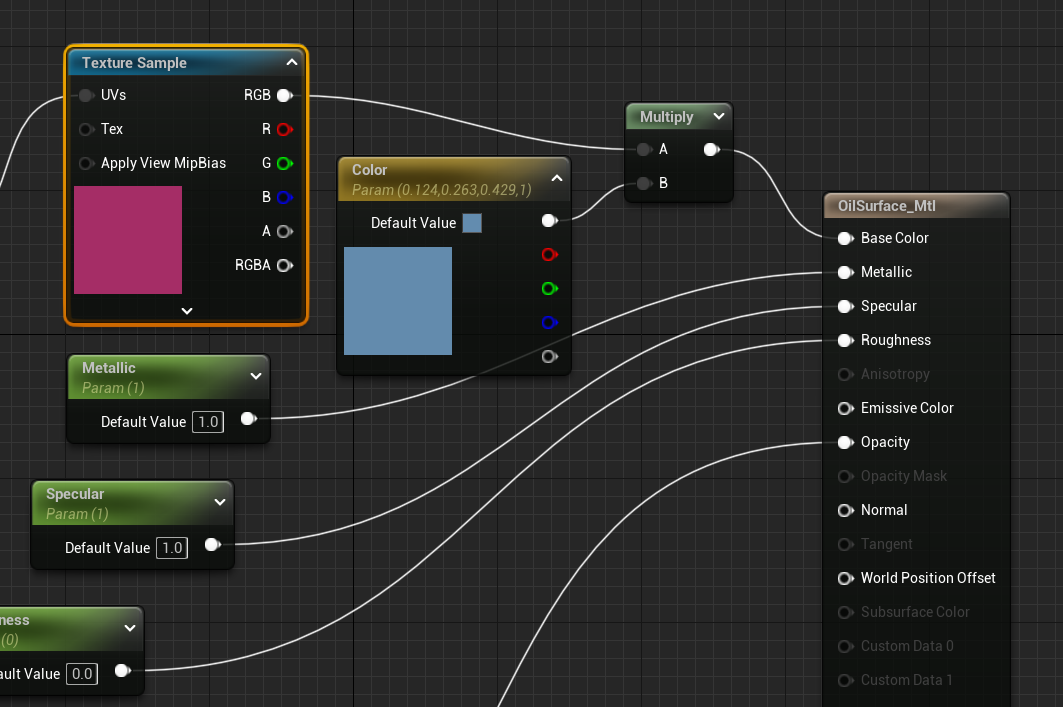

Add Color multiplier

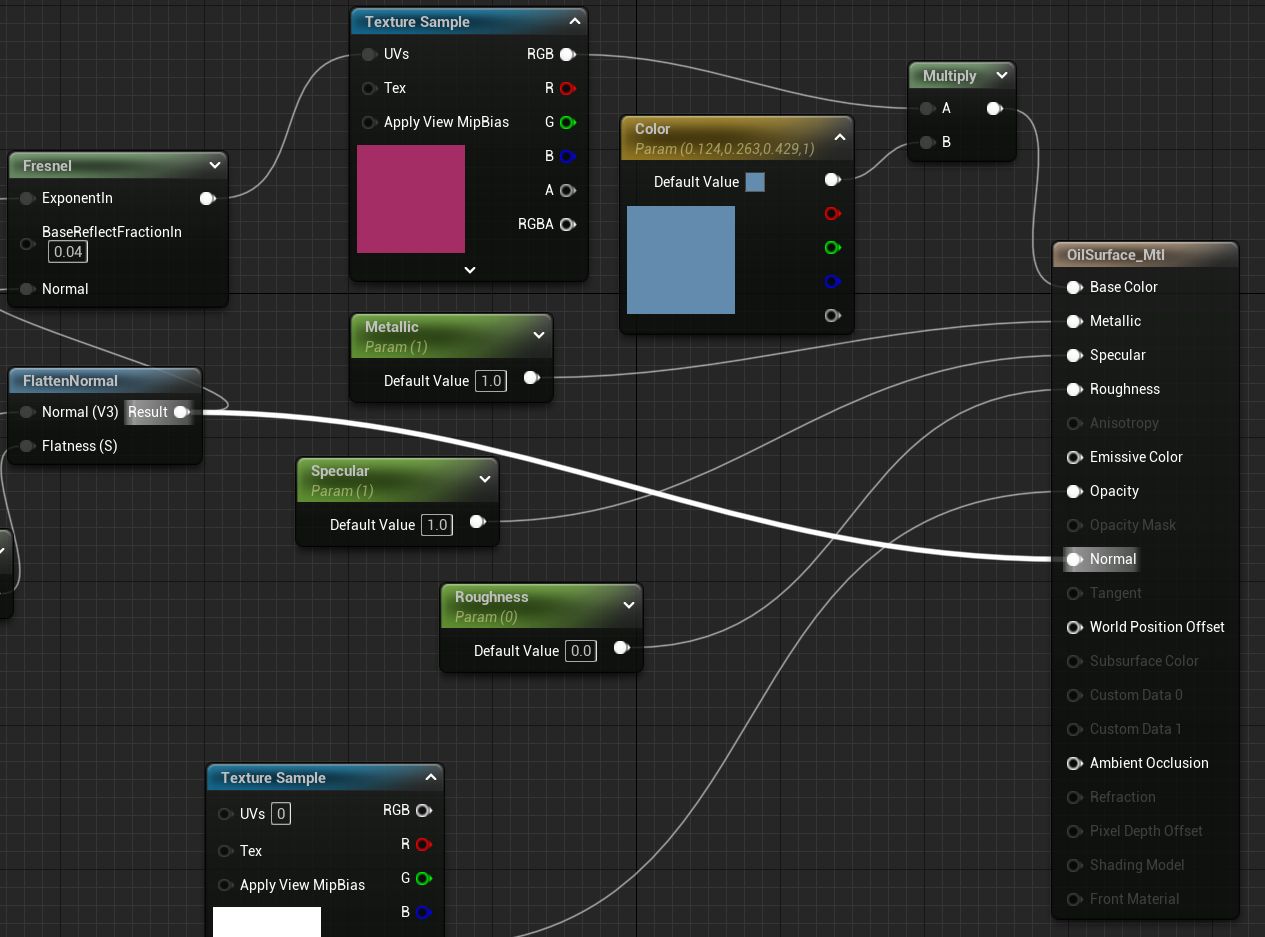

To get rid of the reflection, connect Flattennormal node to Normal:

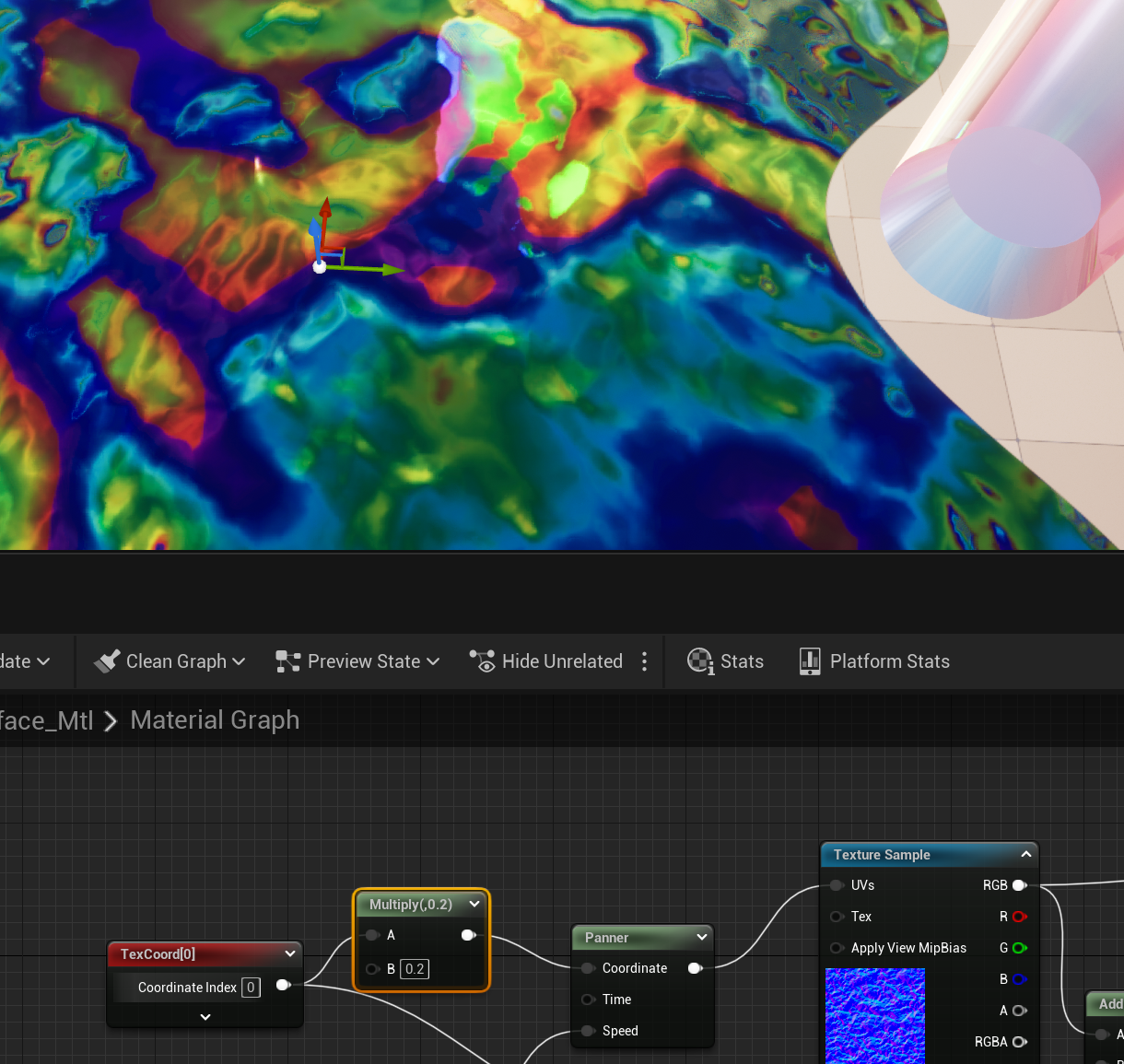

Set multiply value from 2 to 0.2, if want less detail pattern:
