Inventory Wheel

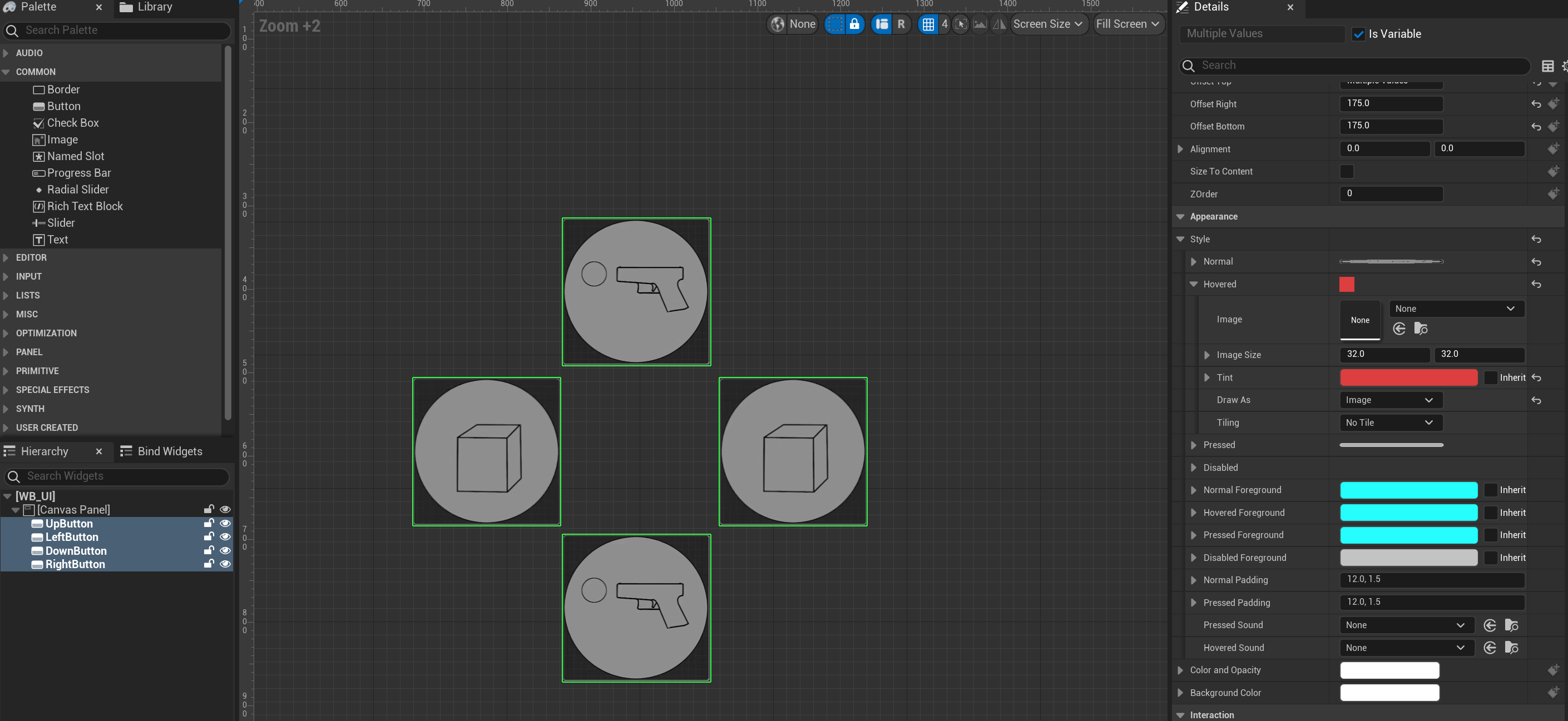

Create Widget called WB UI
Style:
Normal: Select the image on each button, Outline Settings (Width: 0), alpha tint: 0, draw as image
Hovered: : Select the image on each button, change to red color, draw as Round box,
Create a actor BP, called WheelSelection UI, add 2 components:

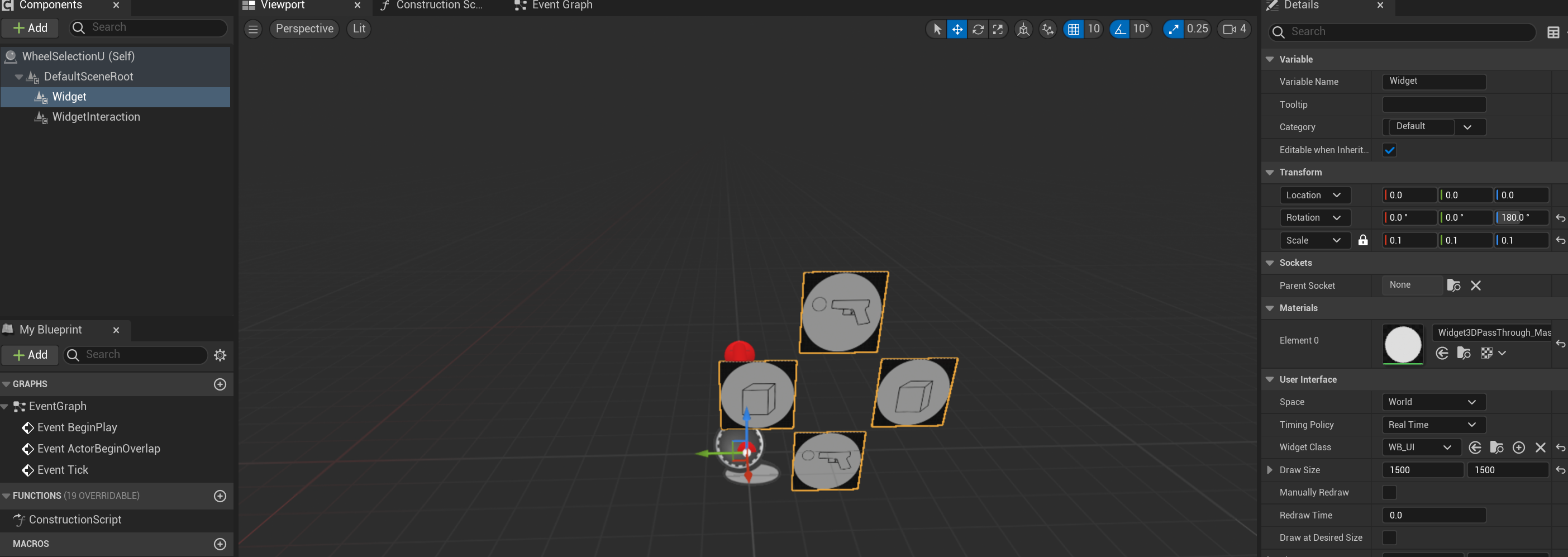

Widget component: scale down, rotate, , add widget class, and set draw size
Increase draw size if still don’t see the widget menu in the viewport
Change to world dynamic in trace channel in widget interaction, location X -50

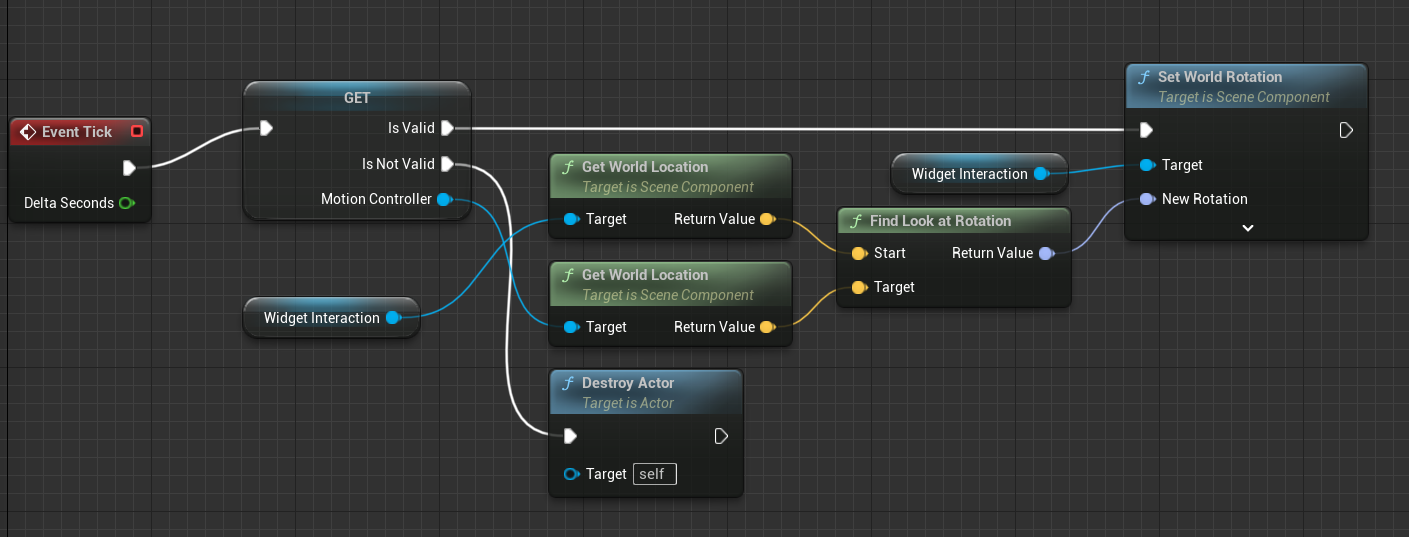

In event graph,

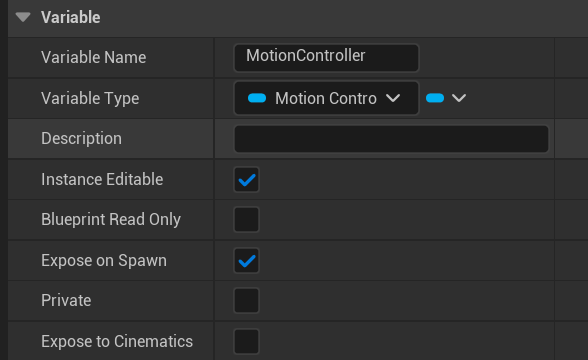

add variable and tick instance editable, expose on spawn

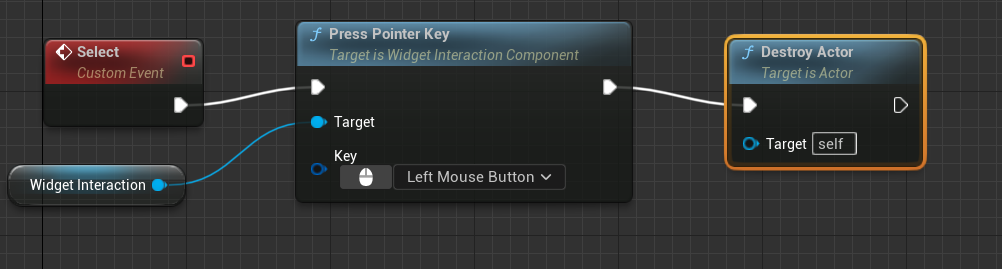

Add custom event called select

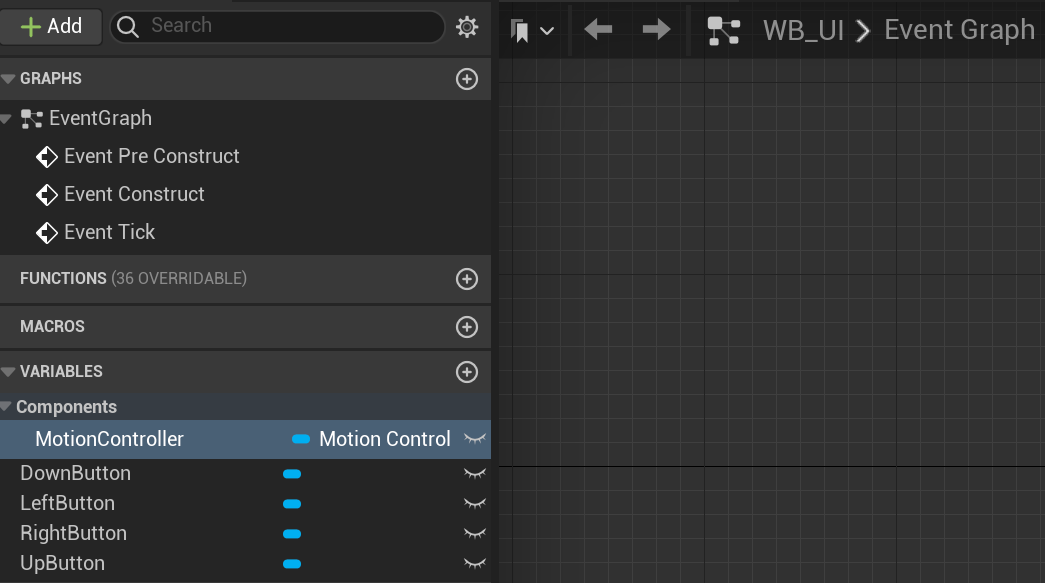

Add the same variable (motion controller) in WB UI too

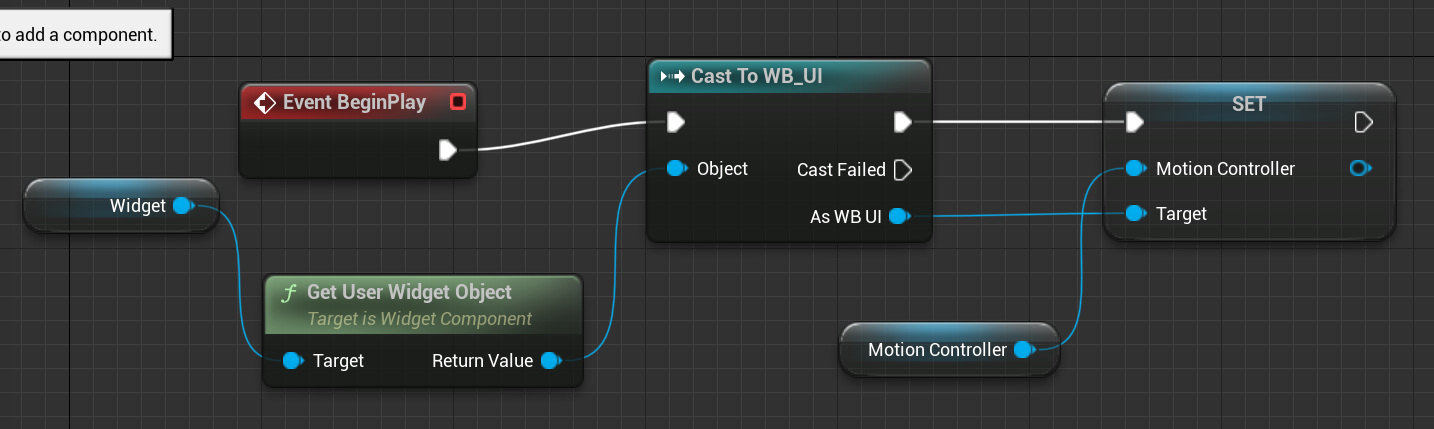

Back to Wheel Selection BP, even begin play
Open VR Pawn
Delete widget interaction right and left components

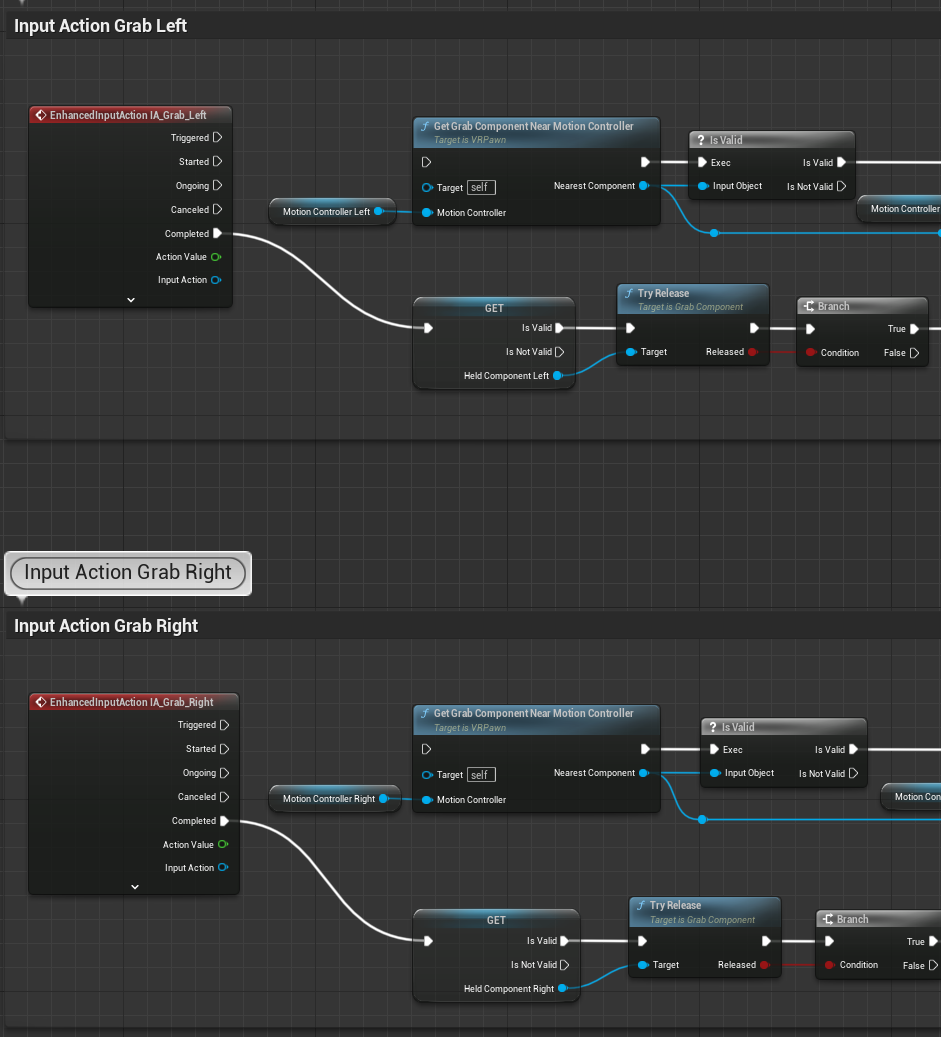

Disconnect action grab left and grab right nodes:
(Disconnect by assuming player only be able to grab the tools from wheel UI, not anything else)

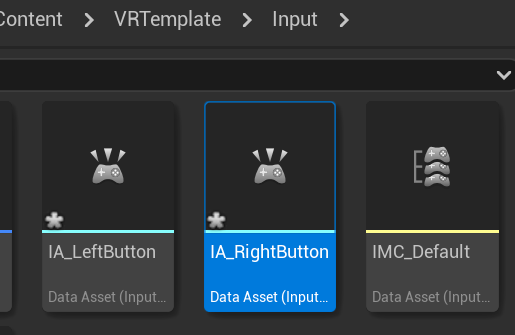

Add 2 input actions called IA Left Button, IA Right Button

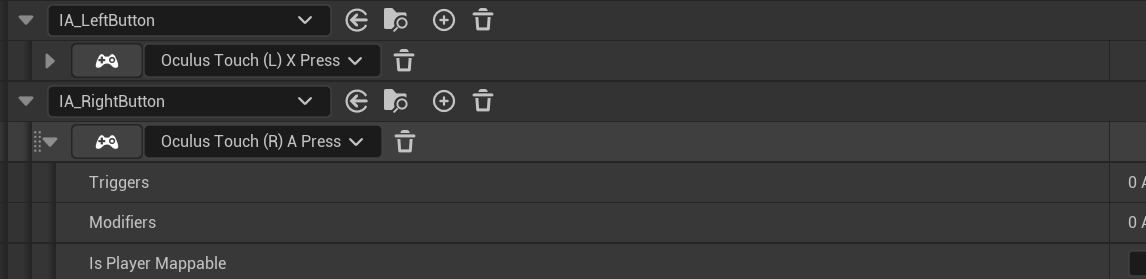

Open IMC Default , add follow 2 mappings:
Back to VR Pawn, event graph:

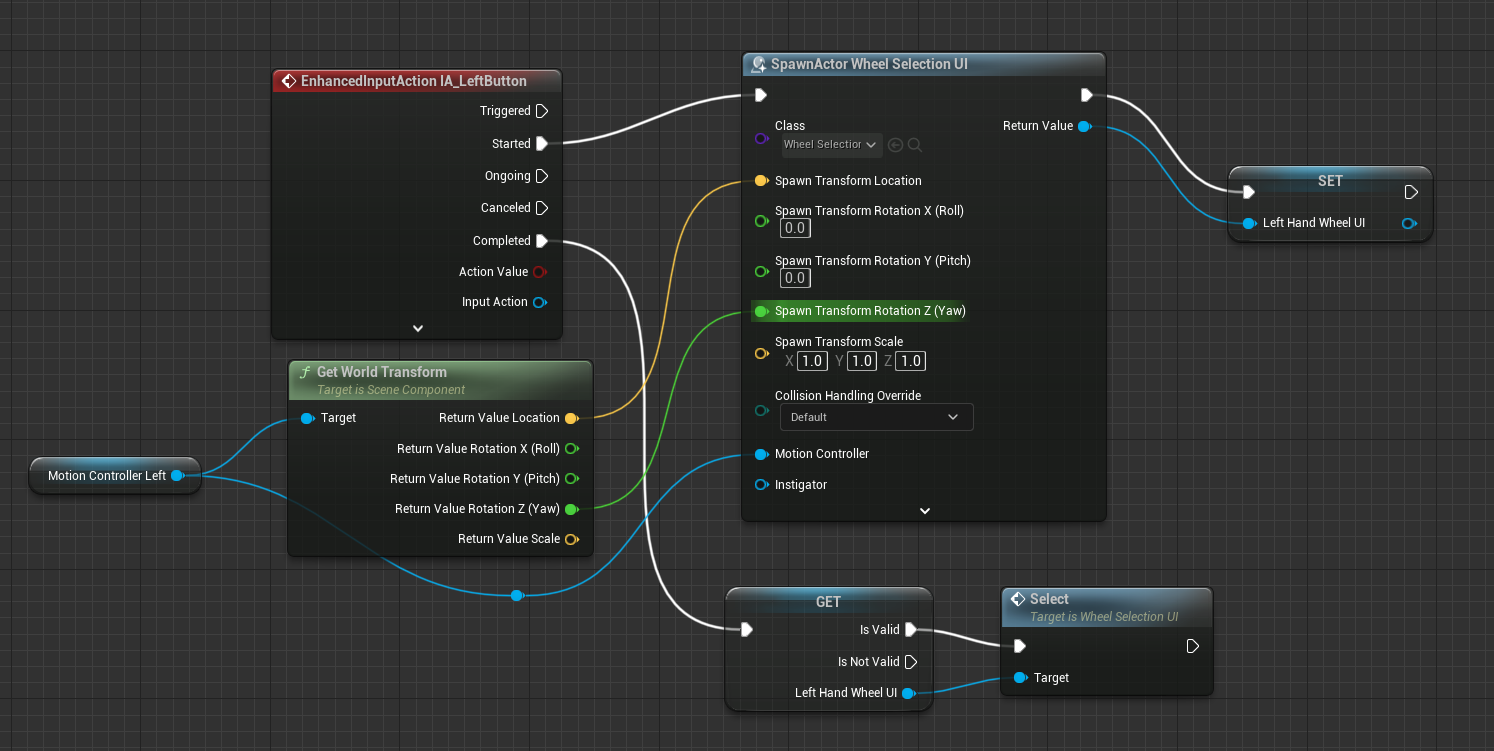

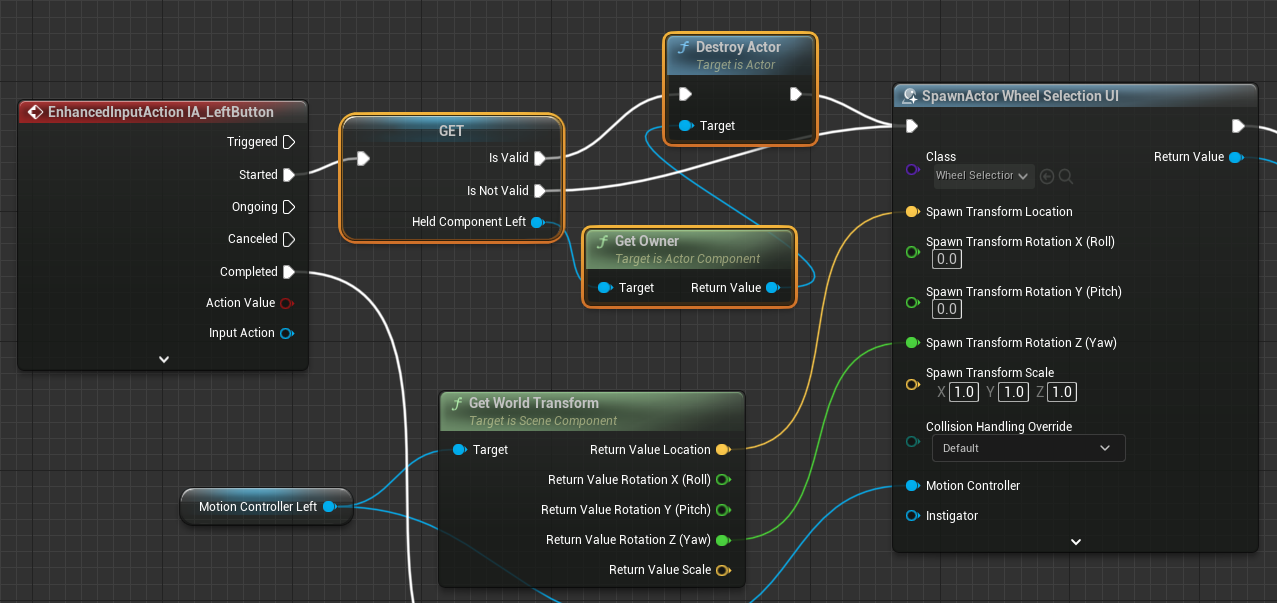

Promote new varilable: left hand wheel UI, from Spawn actor from class node

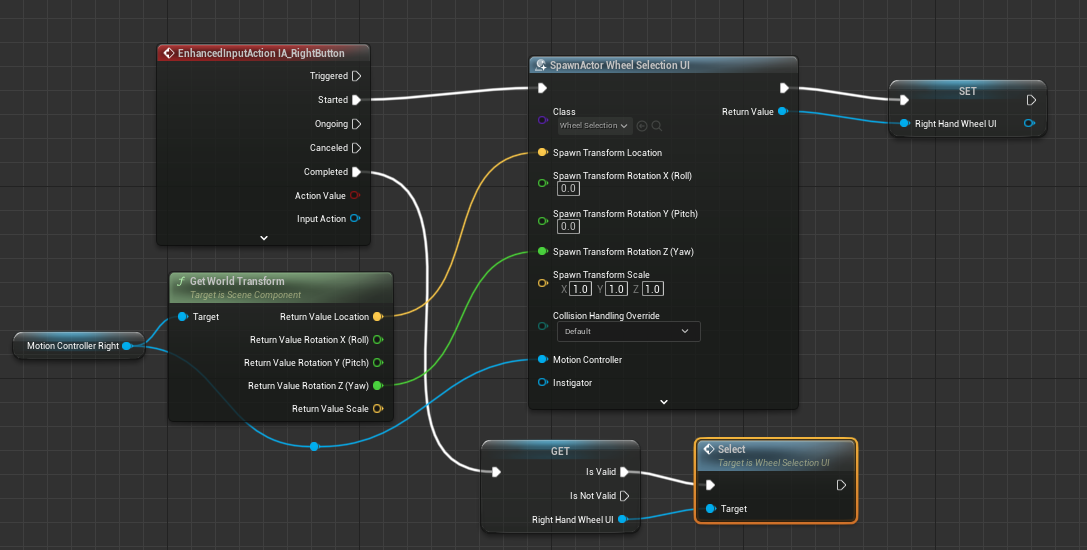

Repeat on right hand, change to right hand variables

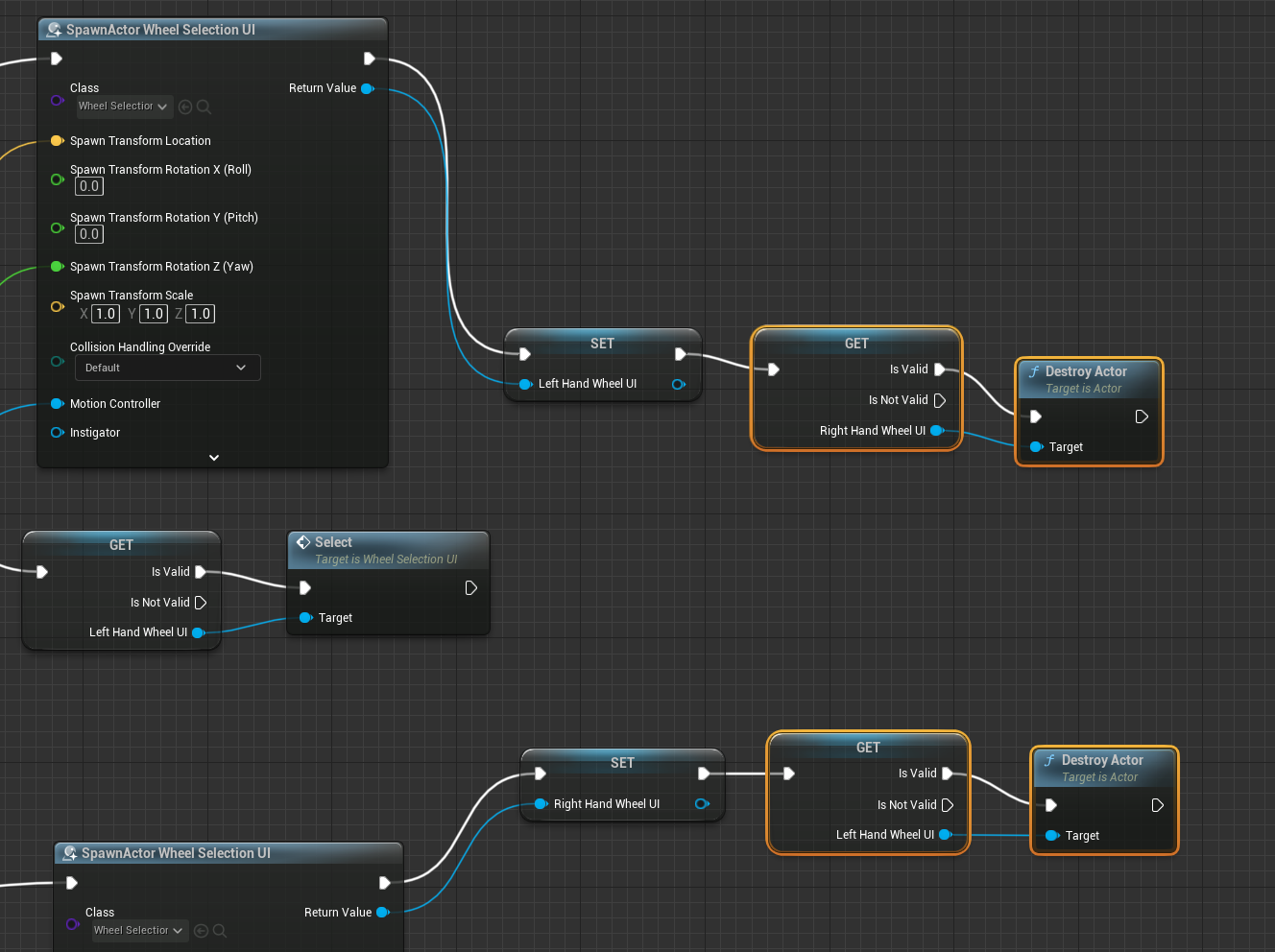

To set destroy one UI if both hands open at the same time:
To check first if the hand holding anything (only open wheel UI when nothing held on hand, or else destroy the UI), use Held Component left/right variables
Repeat on right hand

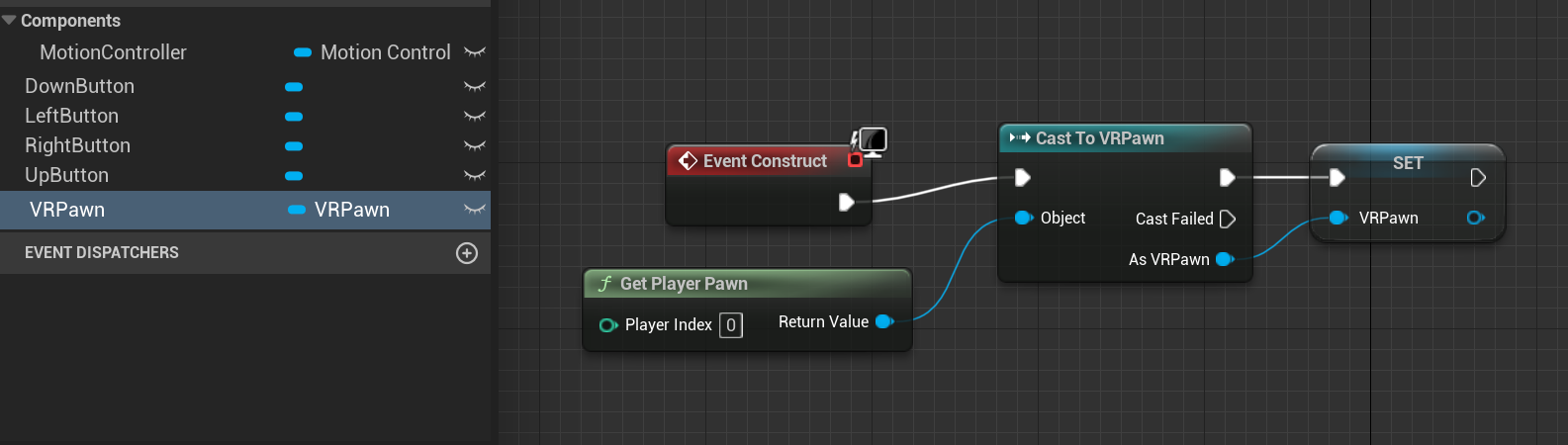

Back to WB UI, event graph
Add Pressed node on each button:

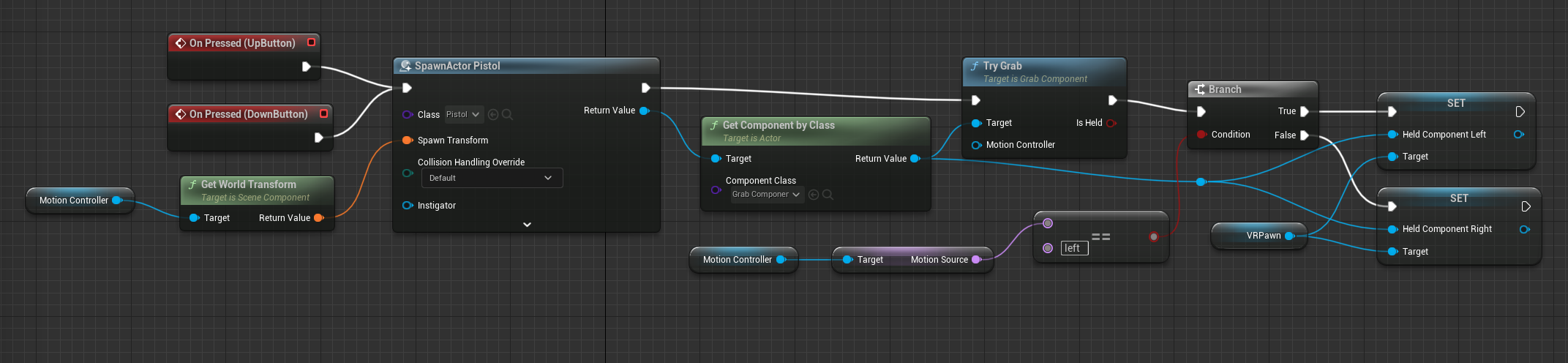

Set the graph (up and down button)

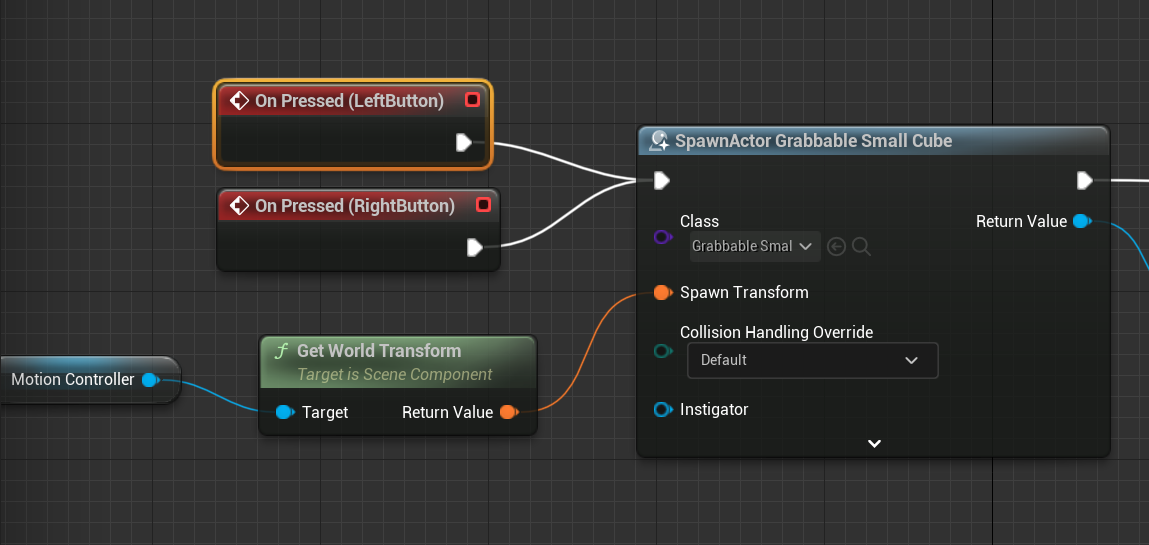

Repeat on left and right button, change spawn actor from pistol to grabble cube
