Grab Component in VR template
Inventory for VR Player
Create BP Interface:
Open a folder called Interface

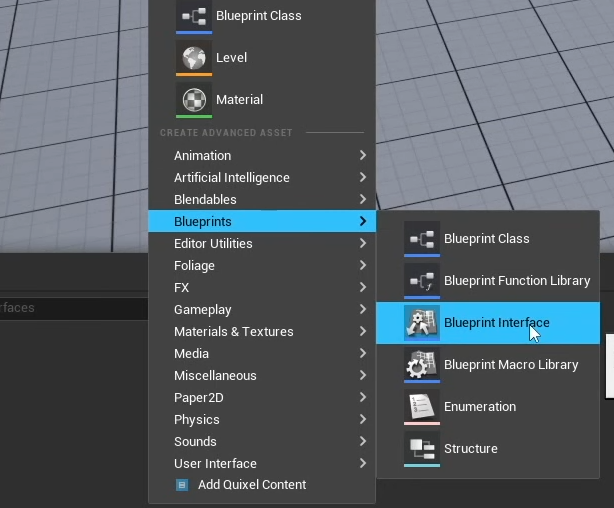

Create a BP interface, name as Grab, open it

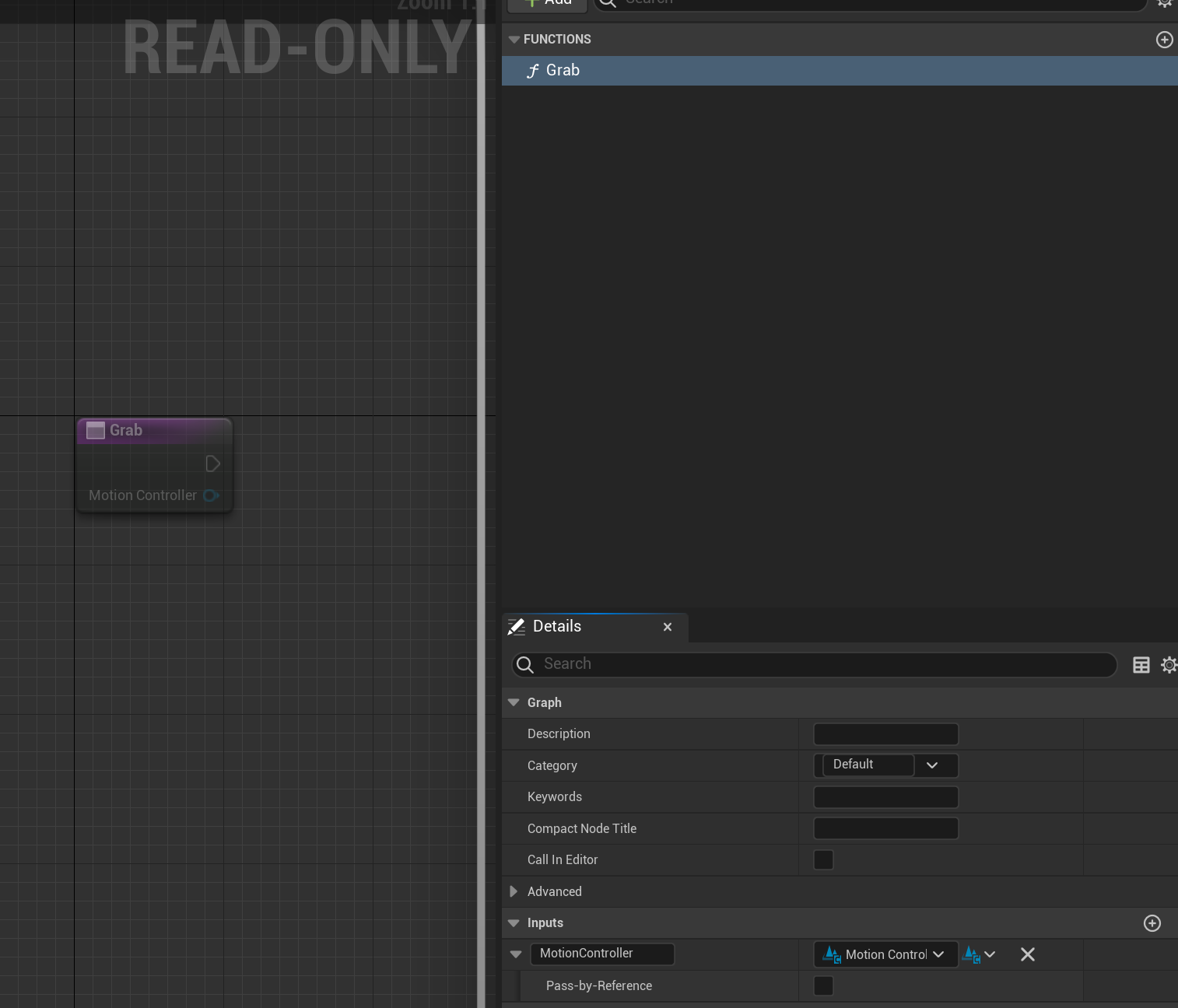

Name the funtion inside as Grab, add variable Motion Controller in Input

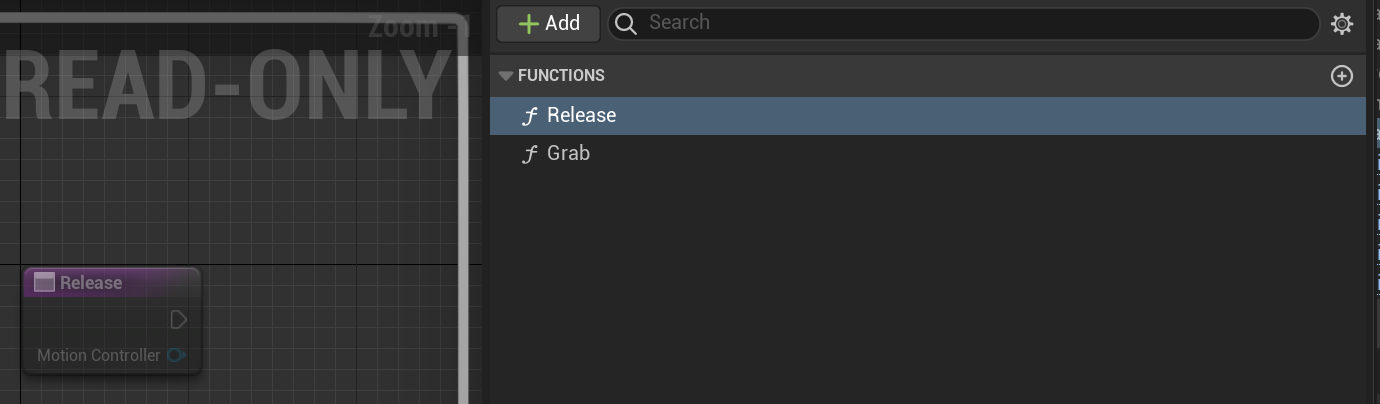

Add a new function name as Release, repeat the same on Input
Set Inventory BP with actor:
Create a new folder called Blueprints
Create a BP Class actor, name as InventoryCube, open
Add Static mesh in component, set as Root component

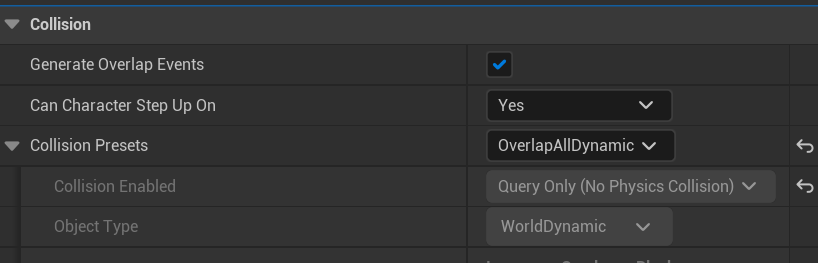

Choose the mesh (cube in this case), collision presets as OverlapAllDynamic

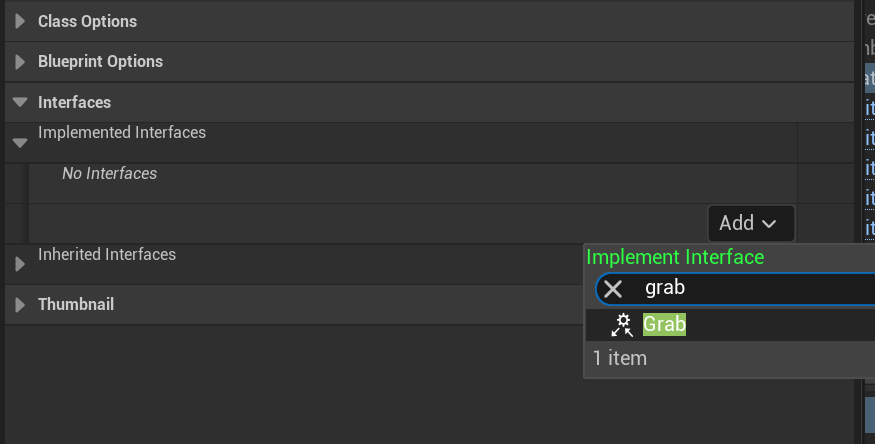

go to Class Setting → Interface, Implement interface, add the Grab

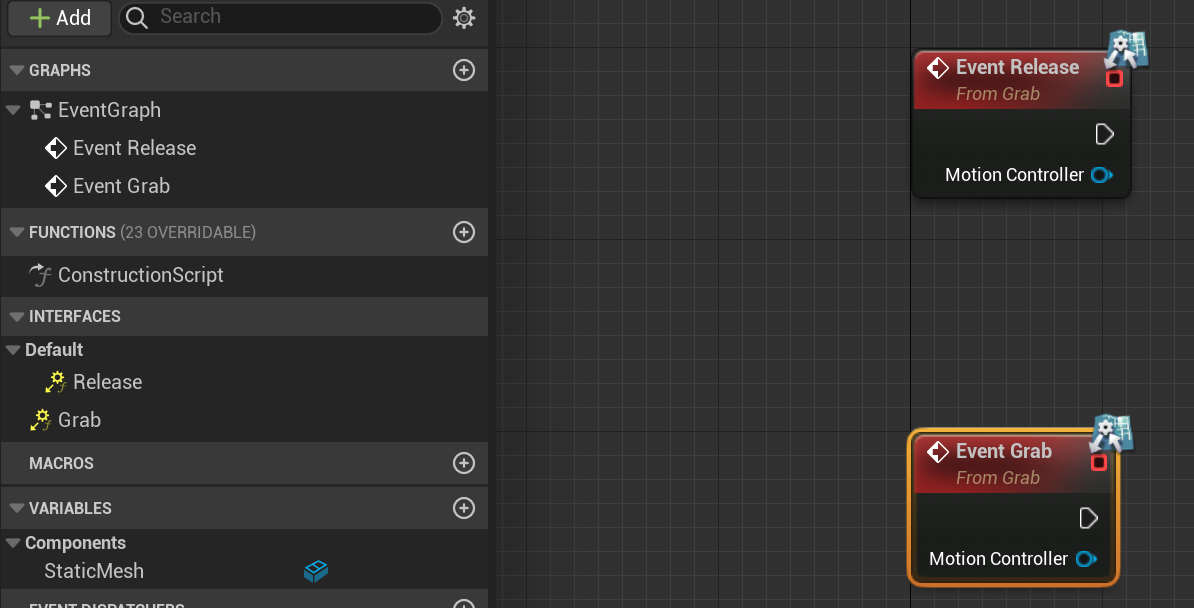

Go the event graph, drag of double click interface release and grab functions in the graph

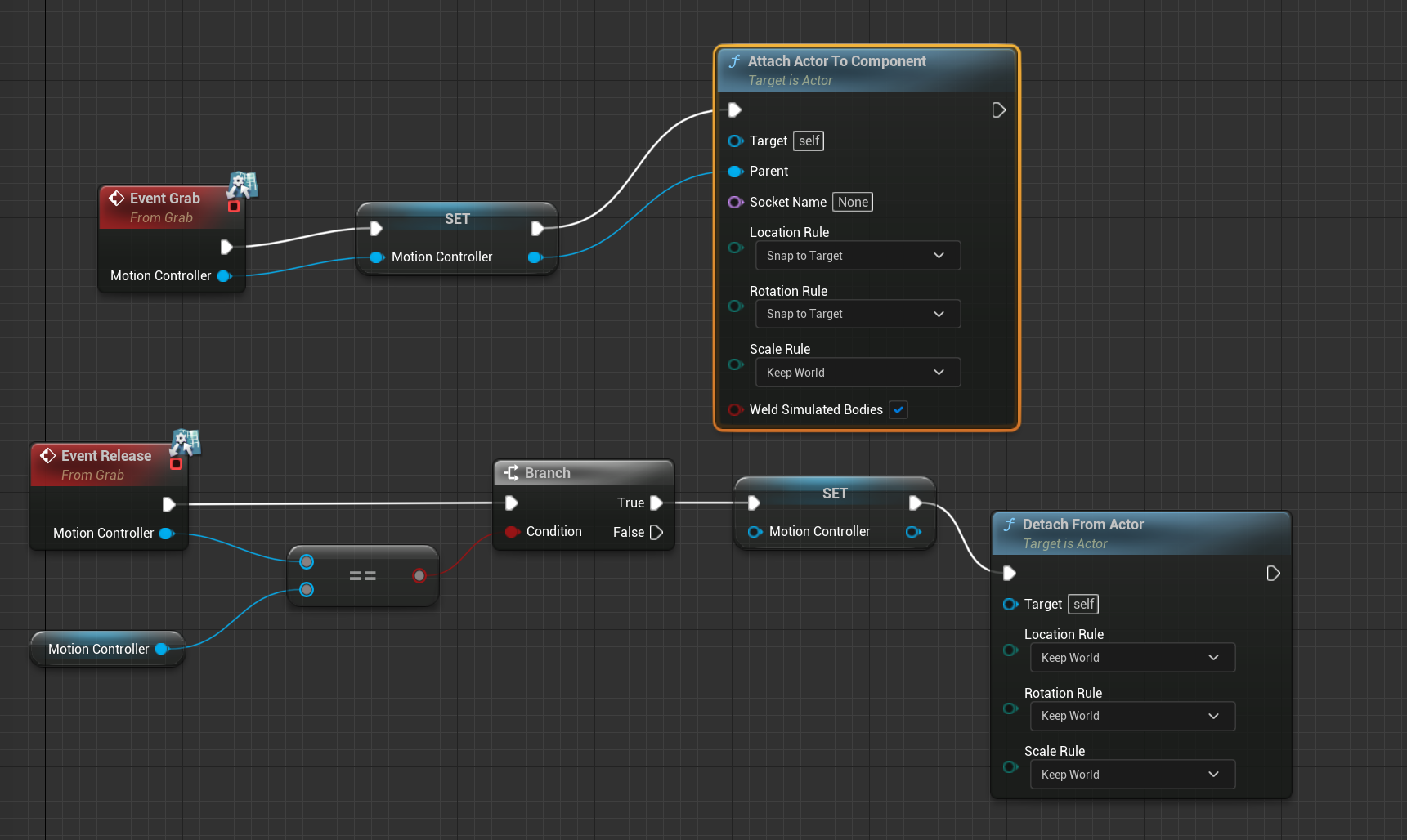

Create the graph as follow:

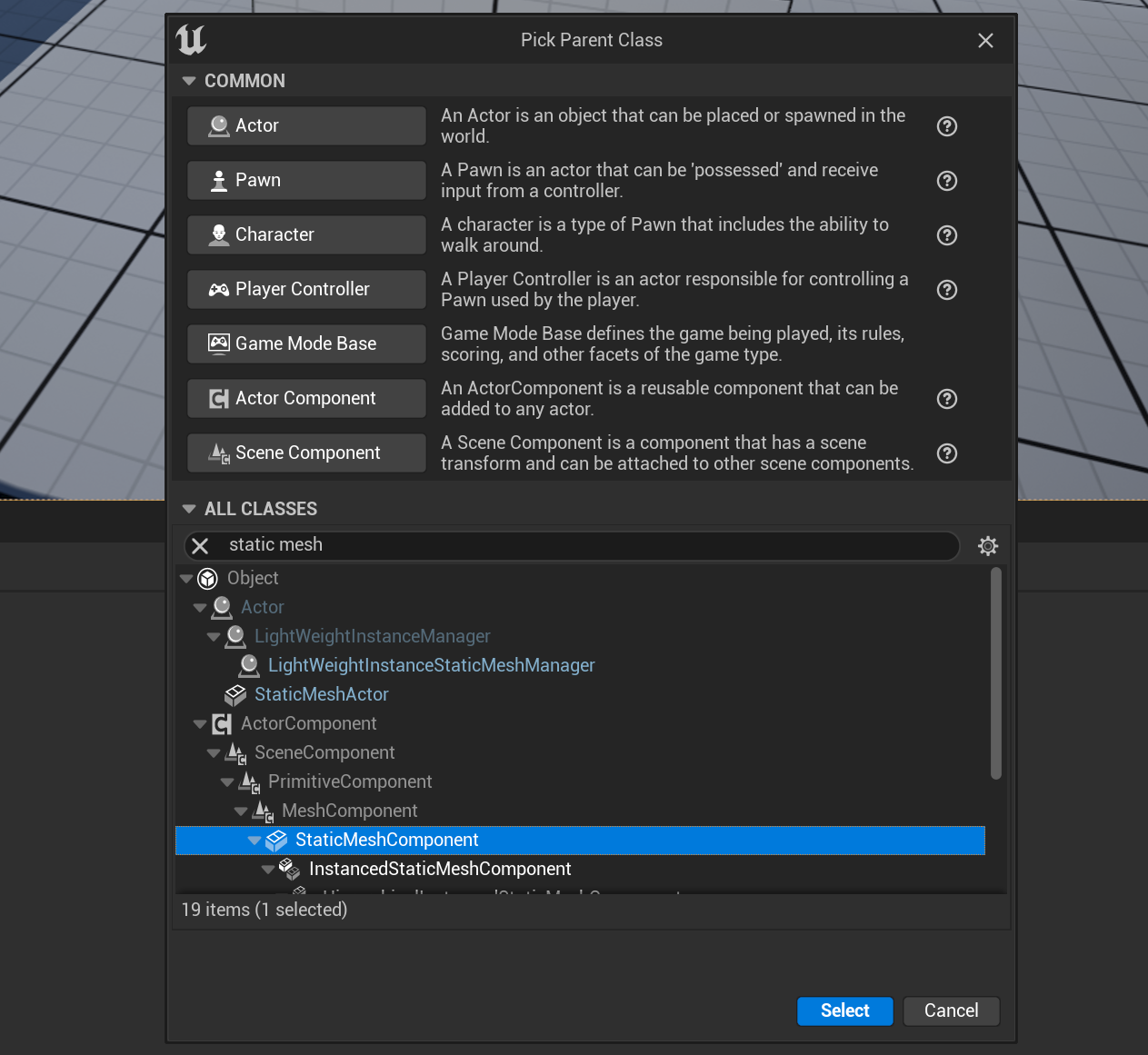

In BP folder, create BP class, type StaticMeshComponent, name a InvetnoryComponent. open it

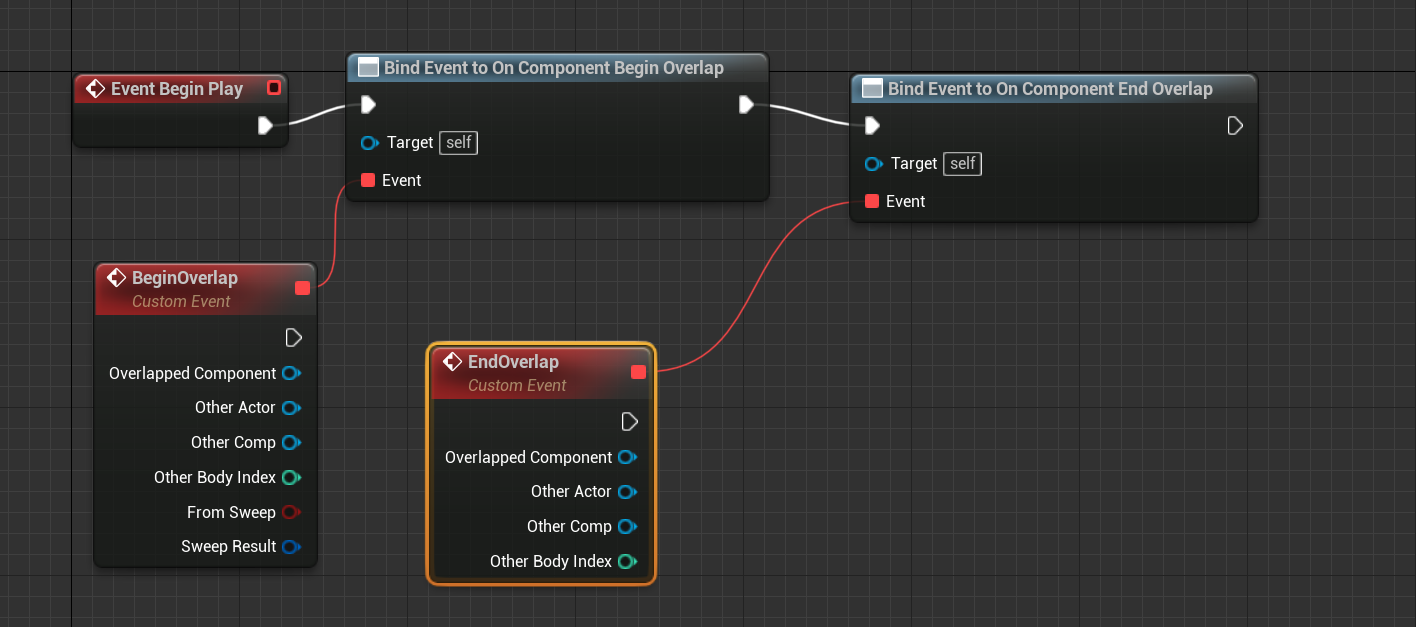

Create the graph as follow:
Remark: BeginOverlap node renaming by Add Custom Event

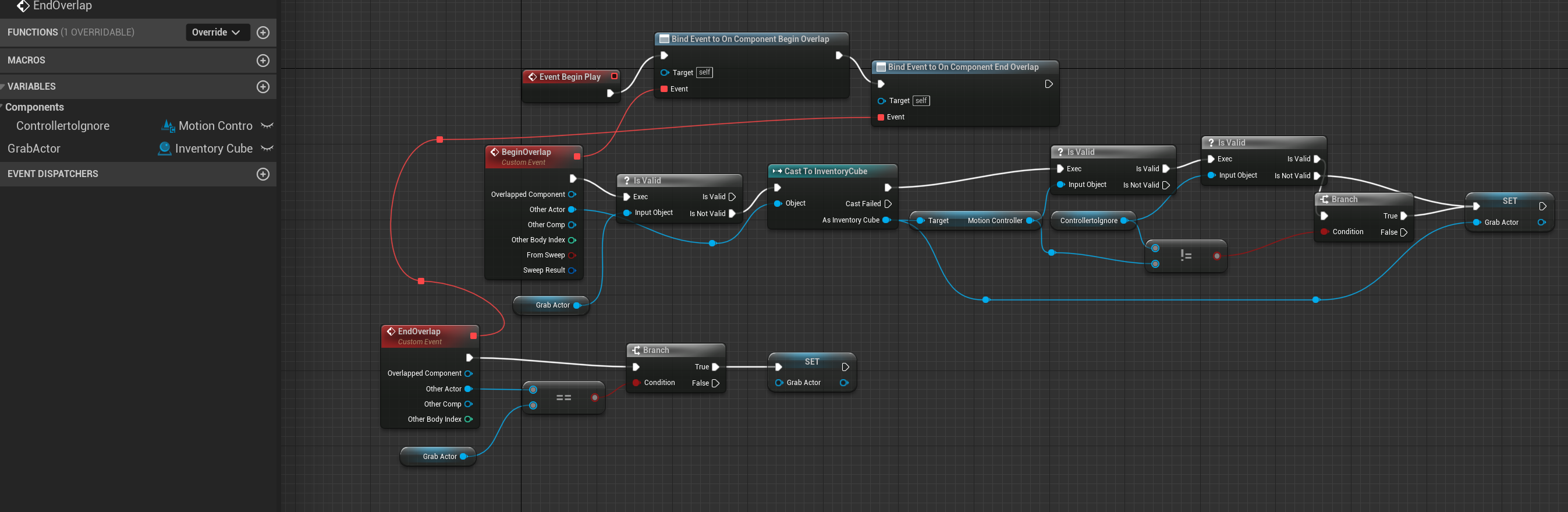

Continue by adding variables GrabActor, and Controller to Ignore:

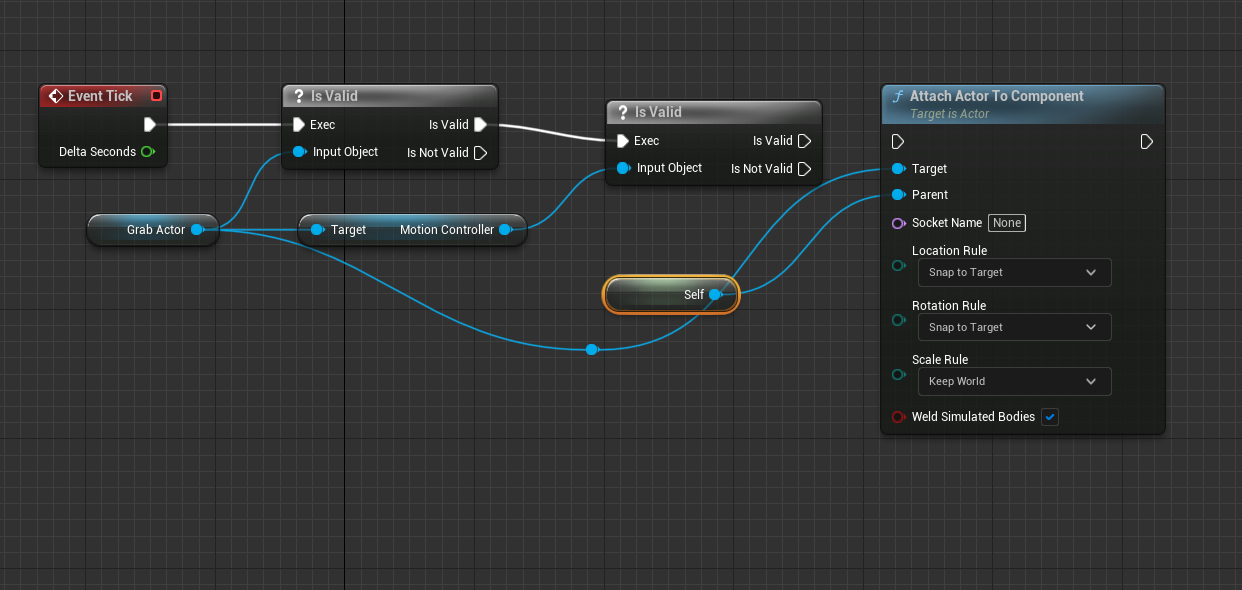

For Event Trick:
Remark: Self node by Get a reference by self
Attach inventory to VR pawn For Player:
Open VR Pawn, viewport,

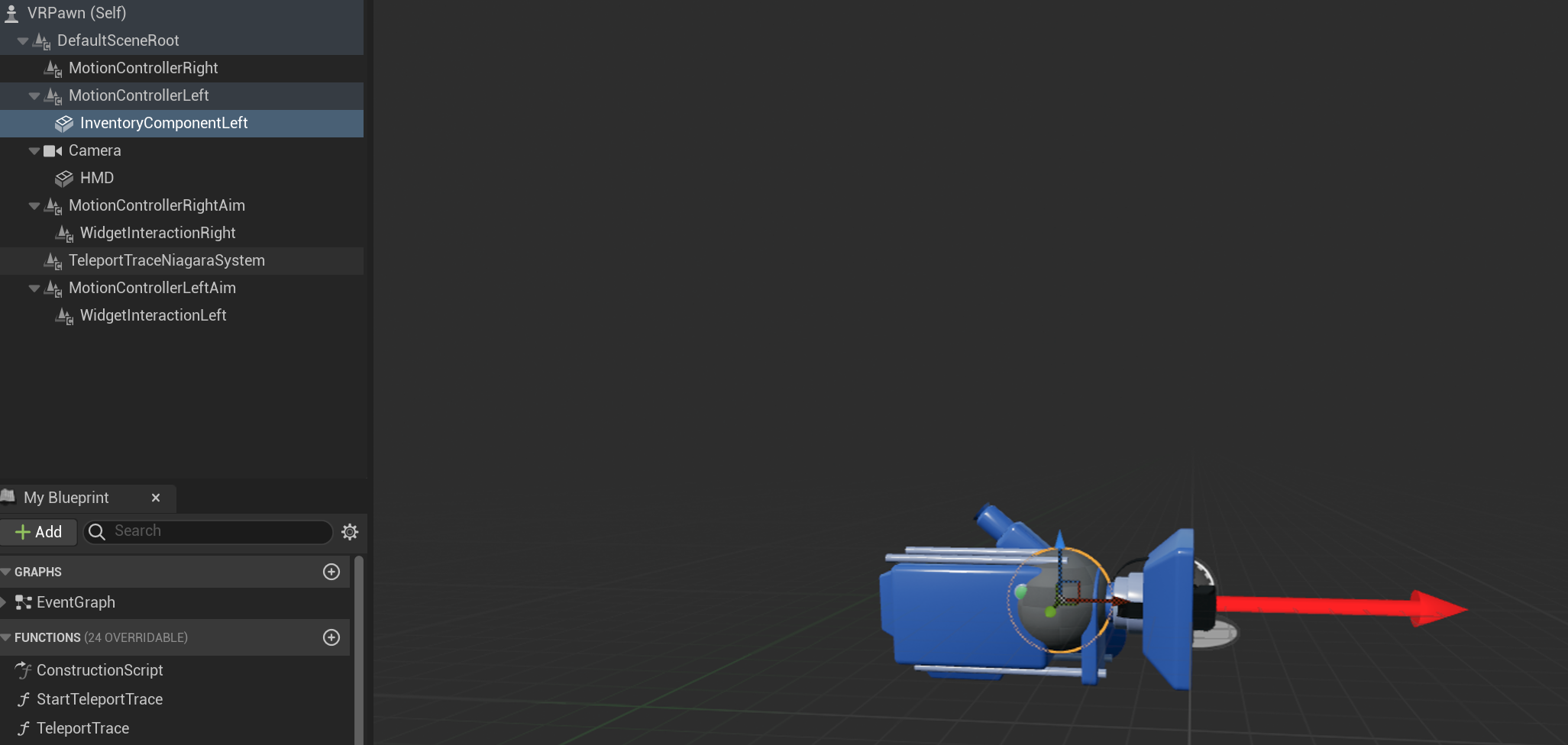

Add InventoryComponentLeft under MotionControllerLeft,
Change it mesh to a sphere, scale down to fit in the camera mesh:
Collision Preset OverlapAllDynamic (to make sure not collide with motion controller)
Duplicate the inventorycomponent for Right hand

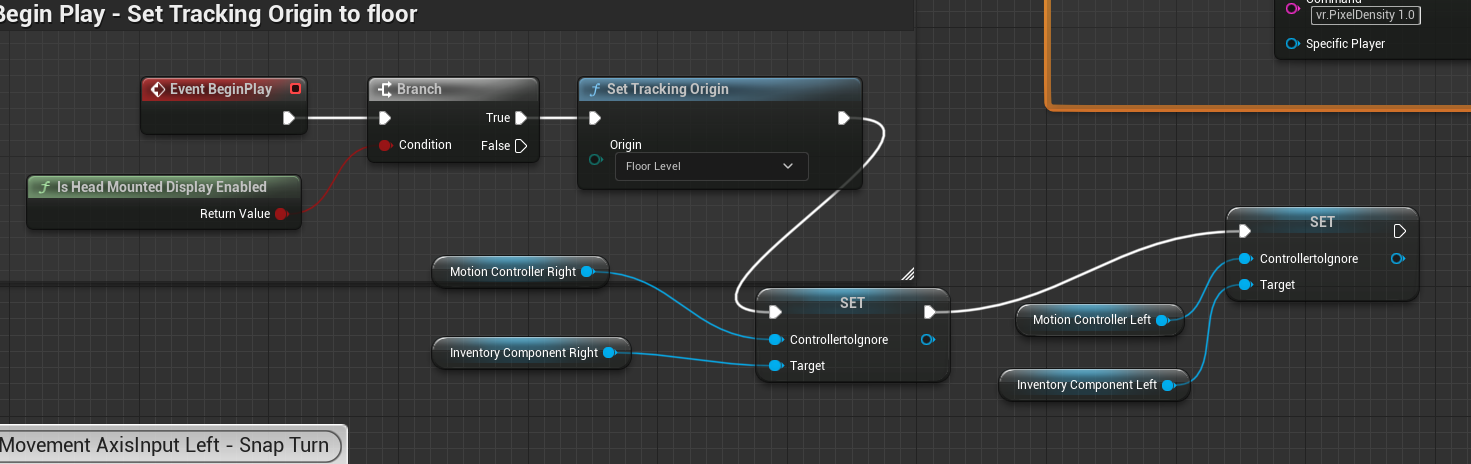

Go to Event Graph, end of begin play nodes, add follow:

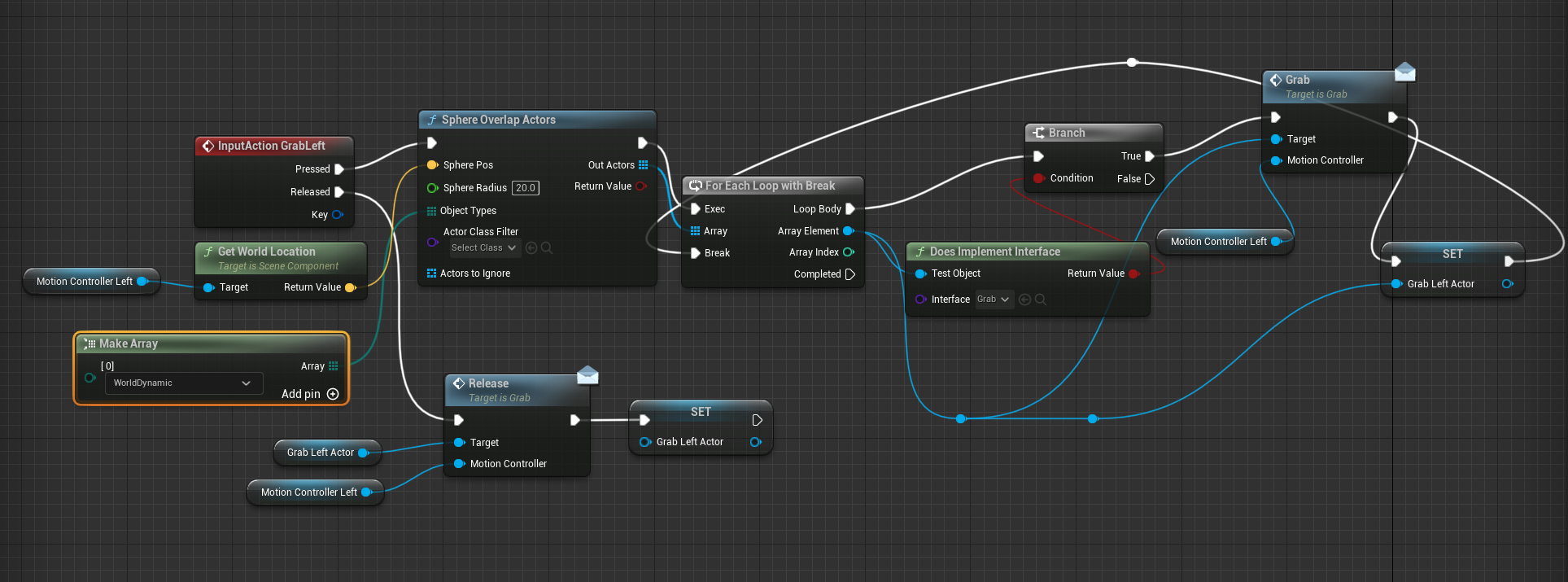

In InputActipn Grab left and Right nodes, recreate the graph as follow:

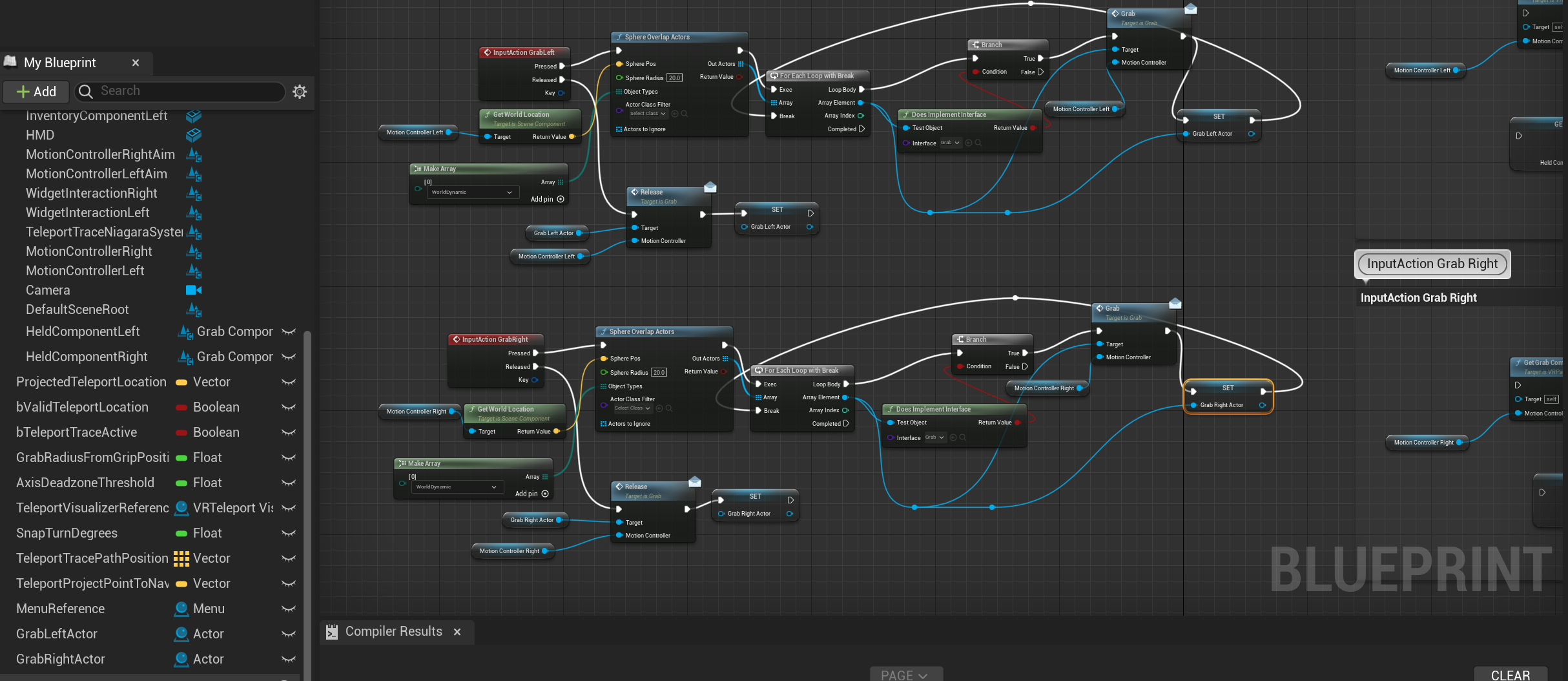

Copy all nodes above apply on InputAction Grab Right, change motioncontroller, GrabActor (duplicate from Grableftactor) variables from left to right
Drag the InventoryCube BP in the scene, open VR preview
Now can snap the inventory cube on Vr component (controllers), can create other inventory elements besides cube to snap on the component/actor/character
