Grab Component in VR template
Grab Objects from a Distance
Create Distance grab component:

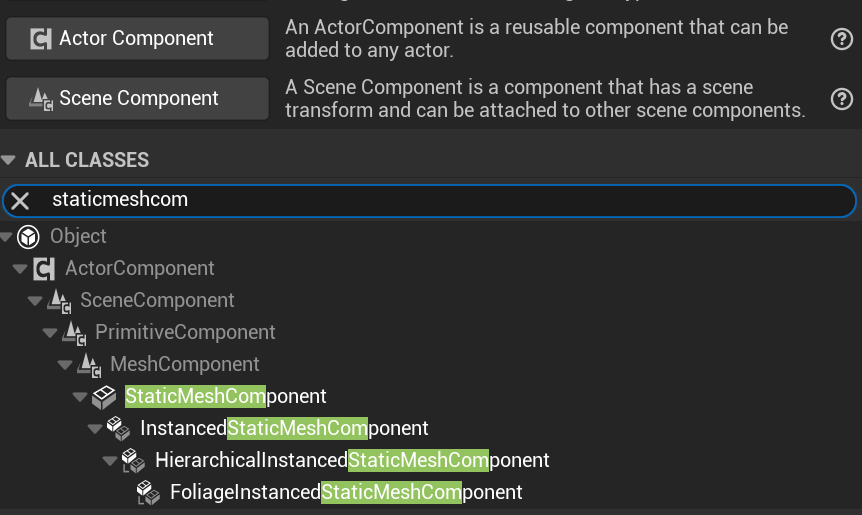

Create a BP staticMeshComponent, name DistanceGrabComponent

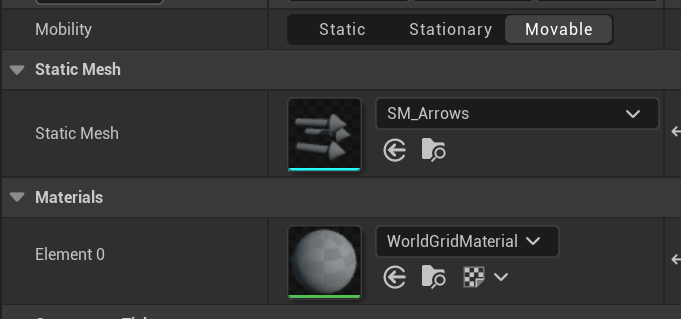

Choose arrow for its mesh

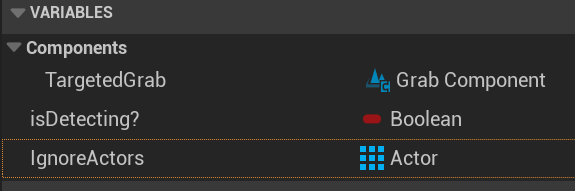

Create 3 variables

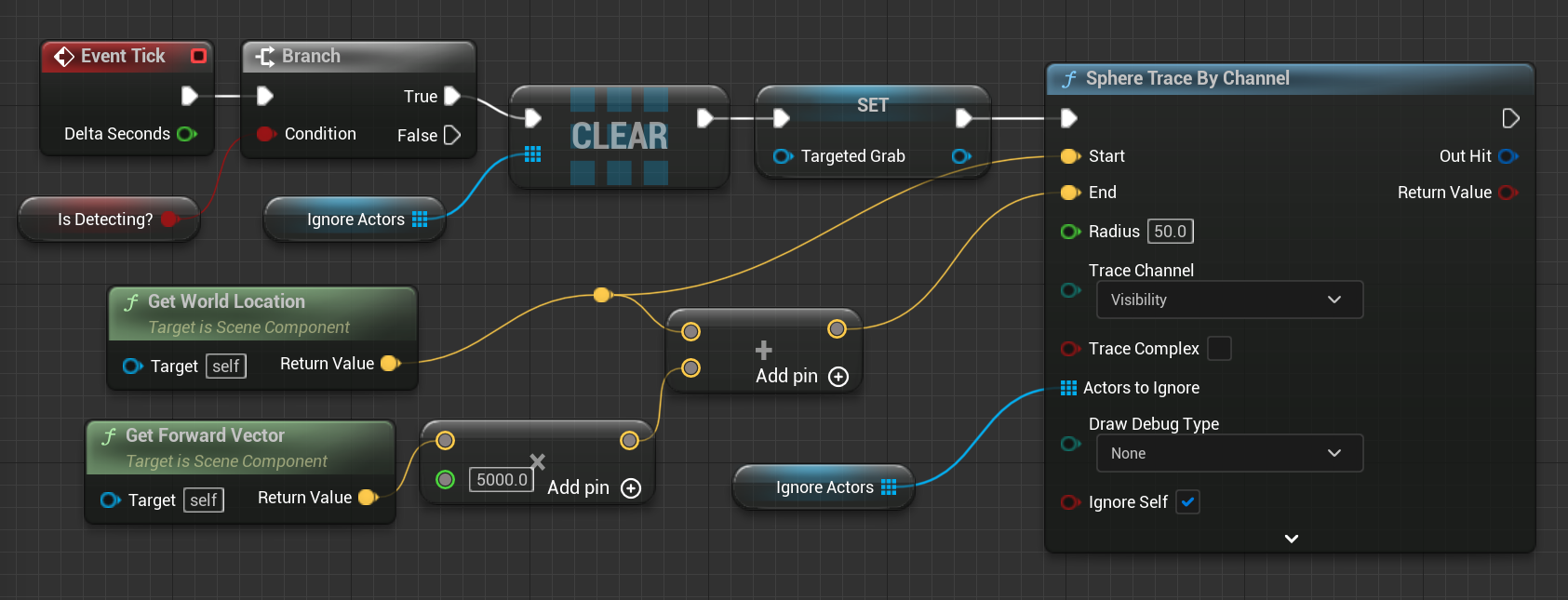

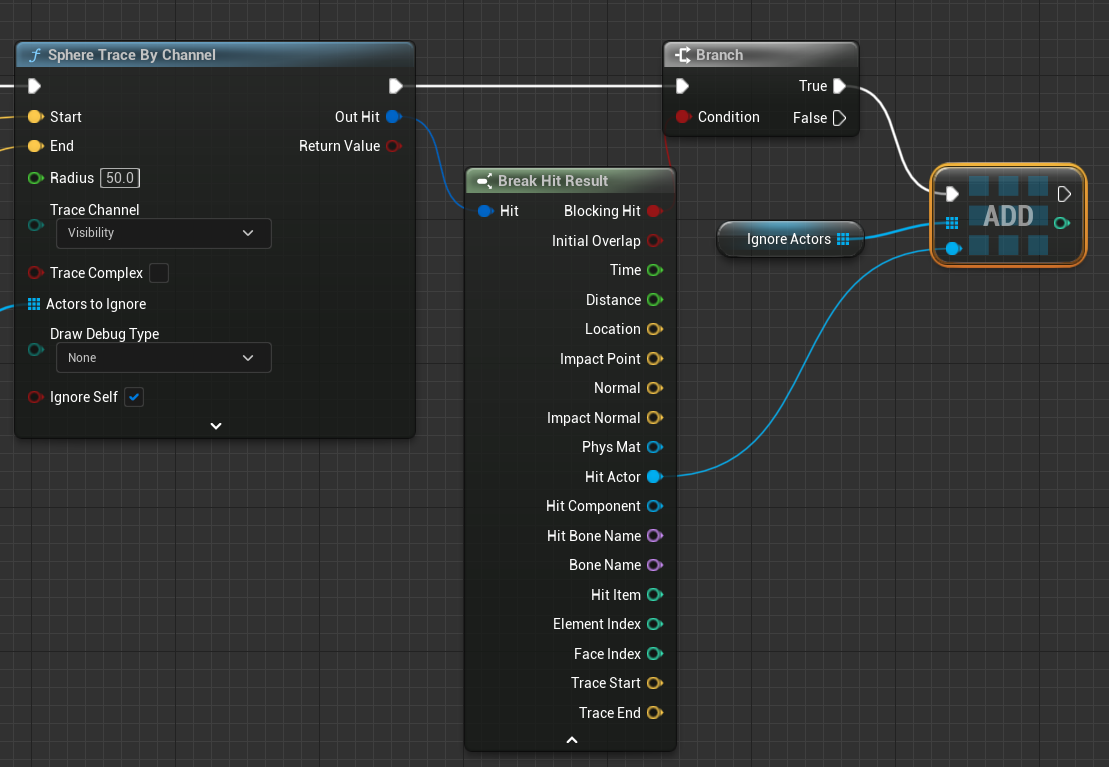

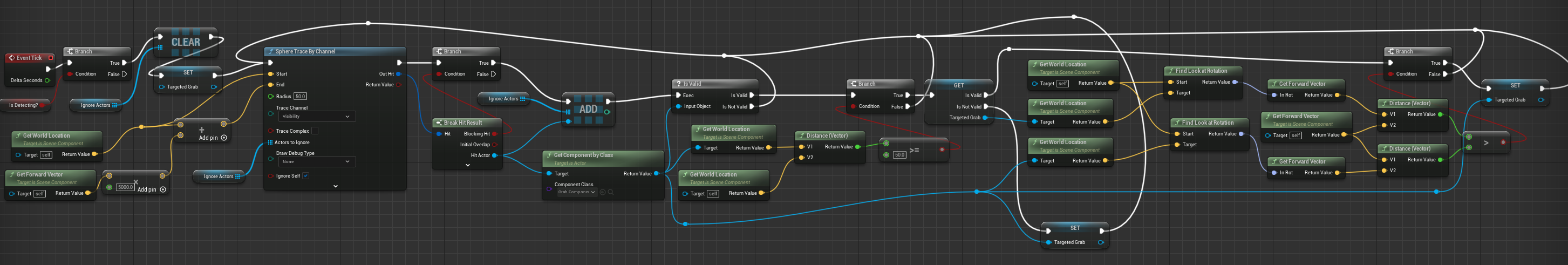

So far it’s to check if anything has grabable components by hitting everything in the scene within a direction, by running loop, then either ignoring those actors, or target them for next action
Continue:

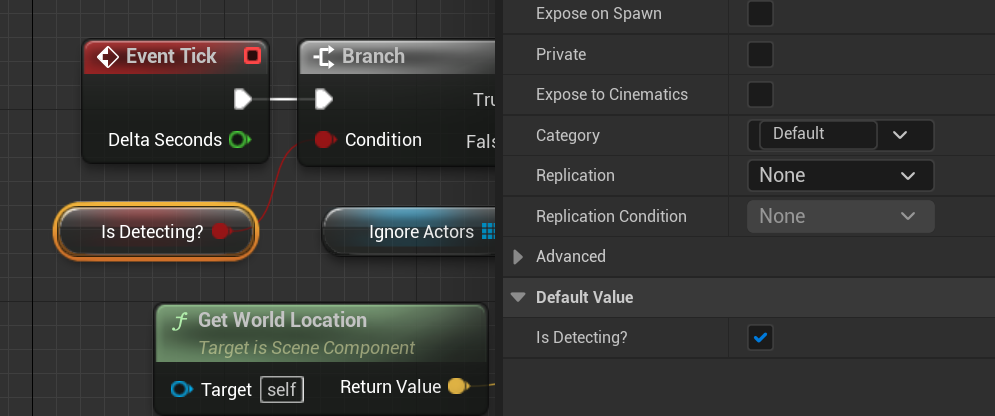

Set detecting boolean be true

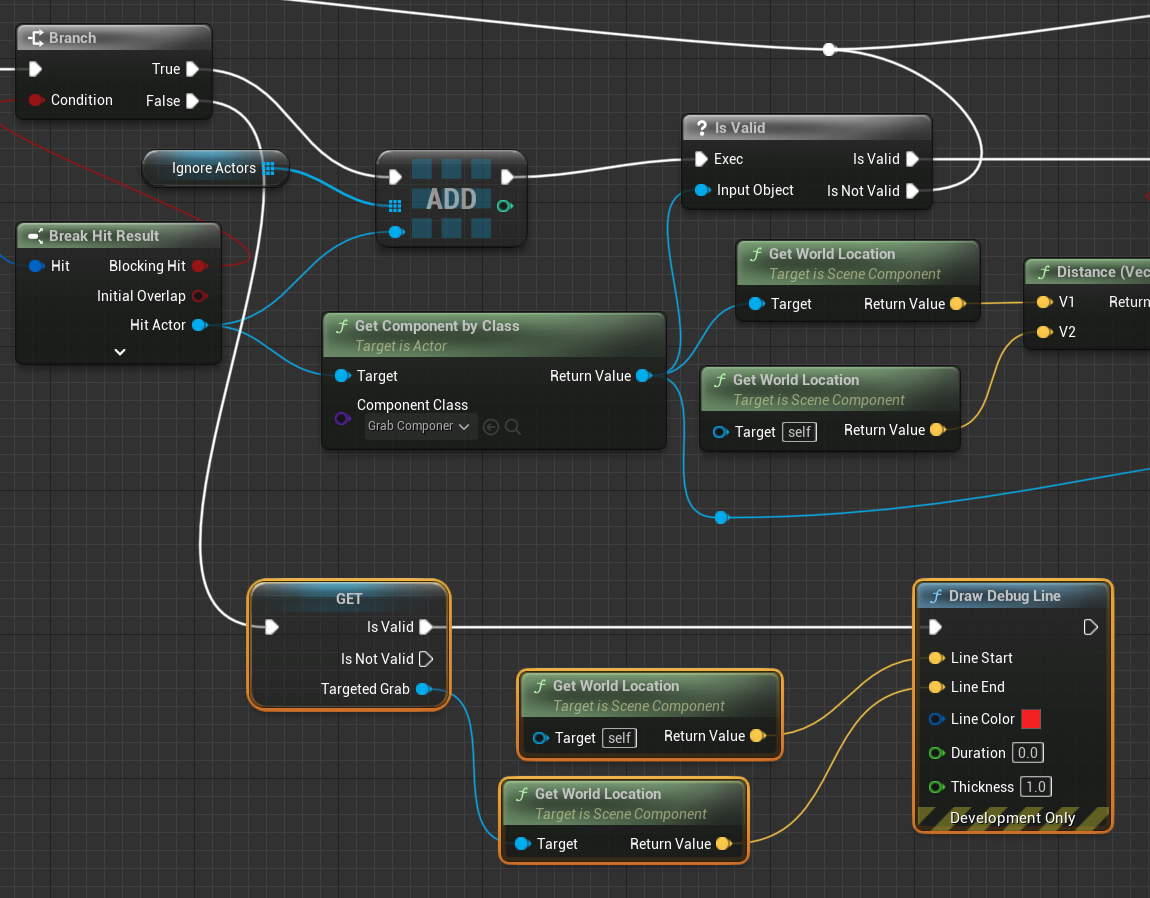

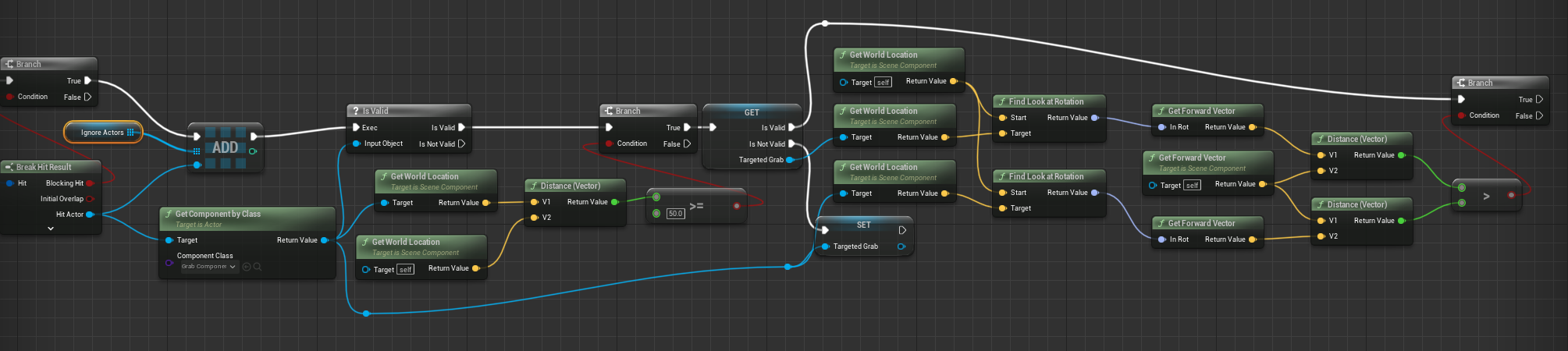

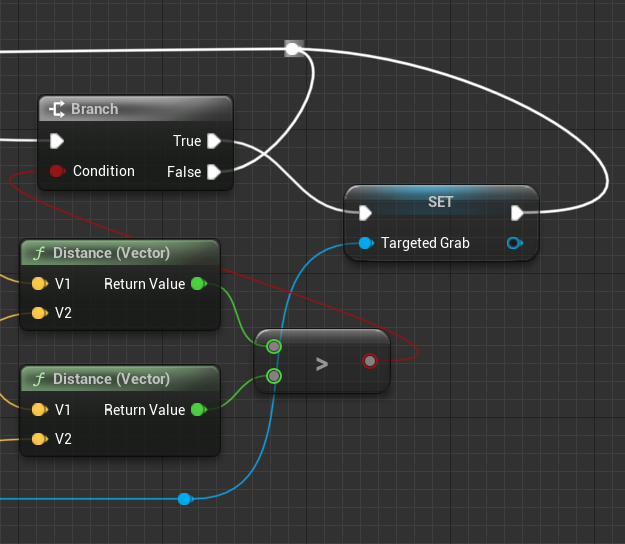

To a loop back to serach again any targeted grab if all parameters are true/false, connect all not valid/not true nodes back to earlier nodes as looping
Final:

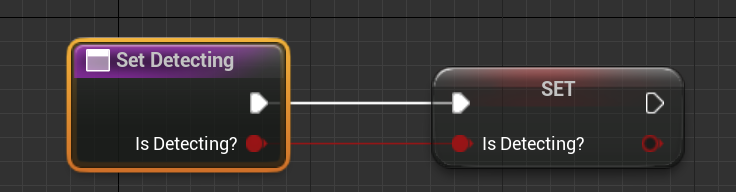

Create new function, called SetDetecting

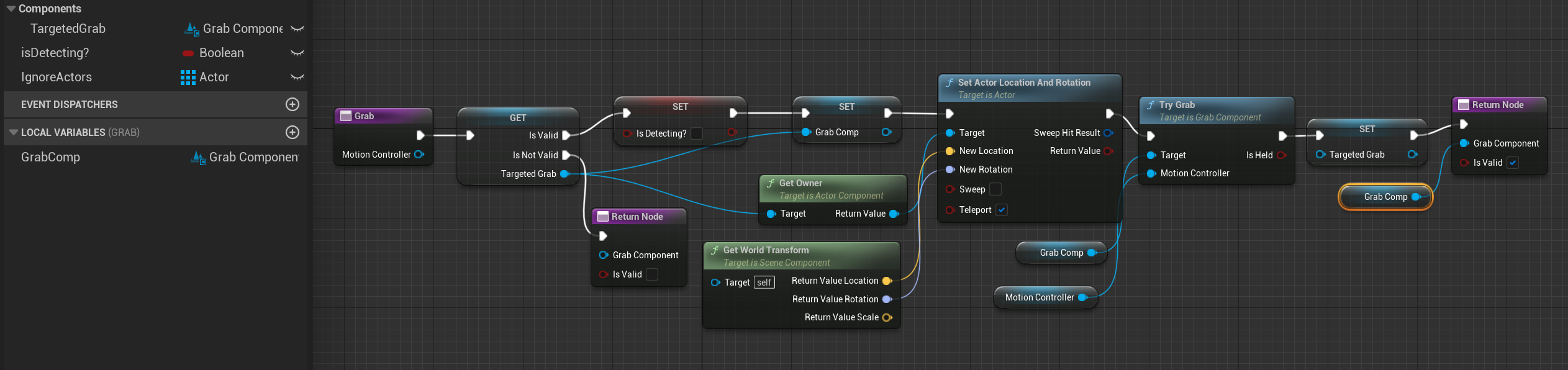

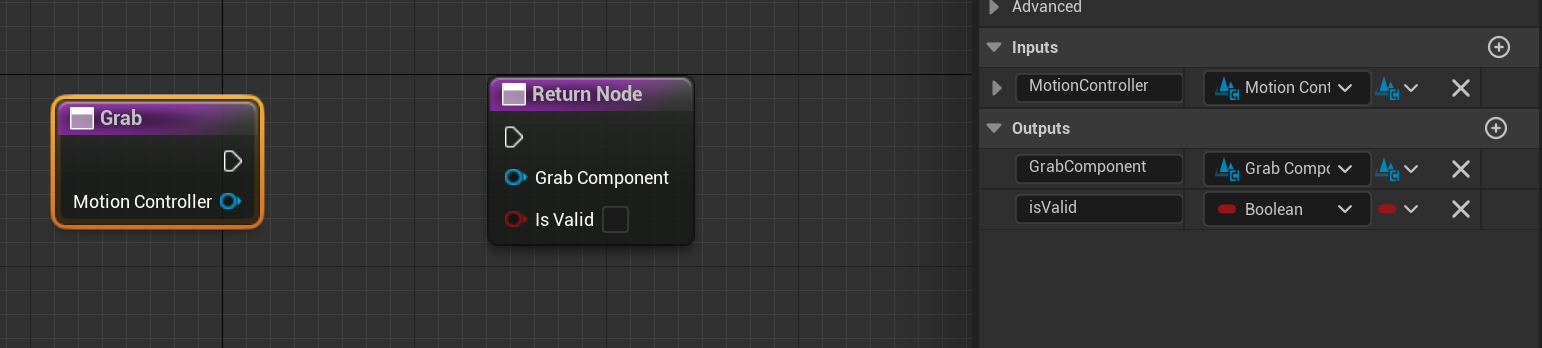

2nd function: Grab:
promote local variable for Grab Comp

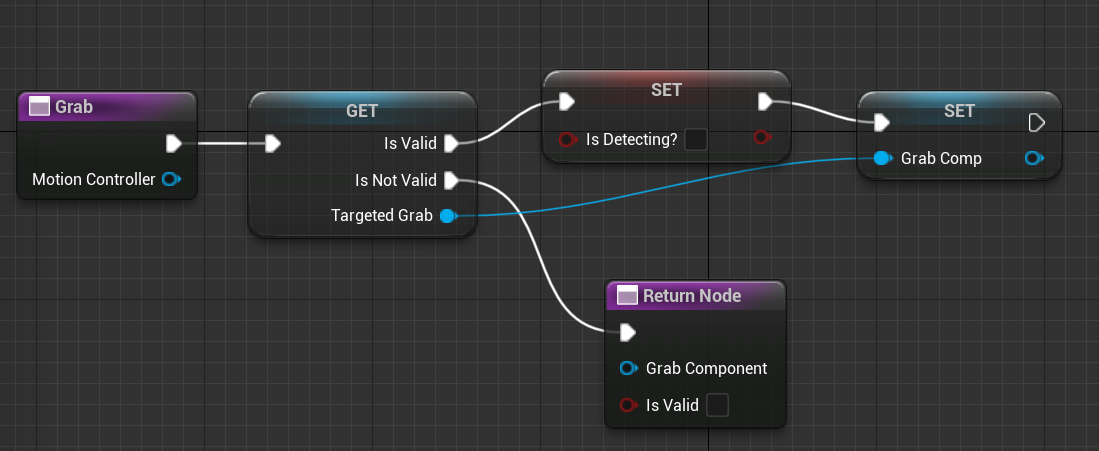

Back to event graph, add following for false branch:
Go to VR Pawn:

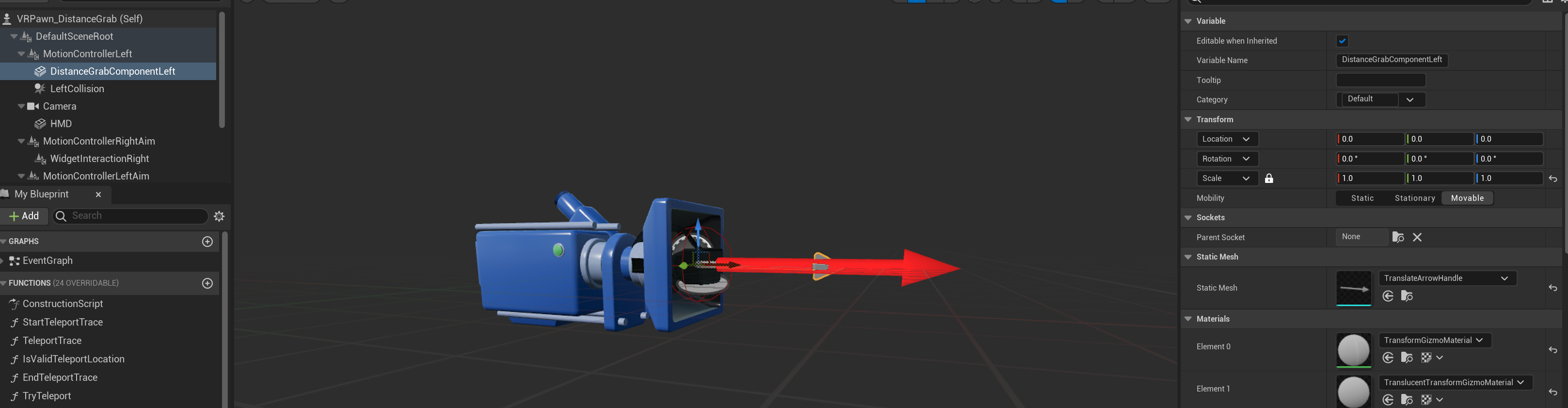

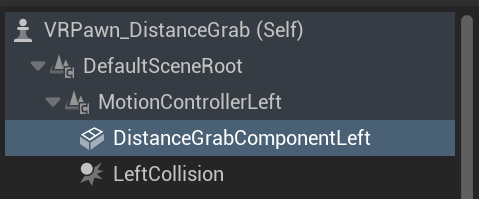

Open viewport, add distance grab components on both hands:

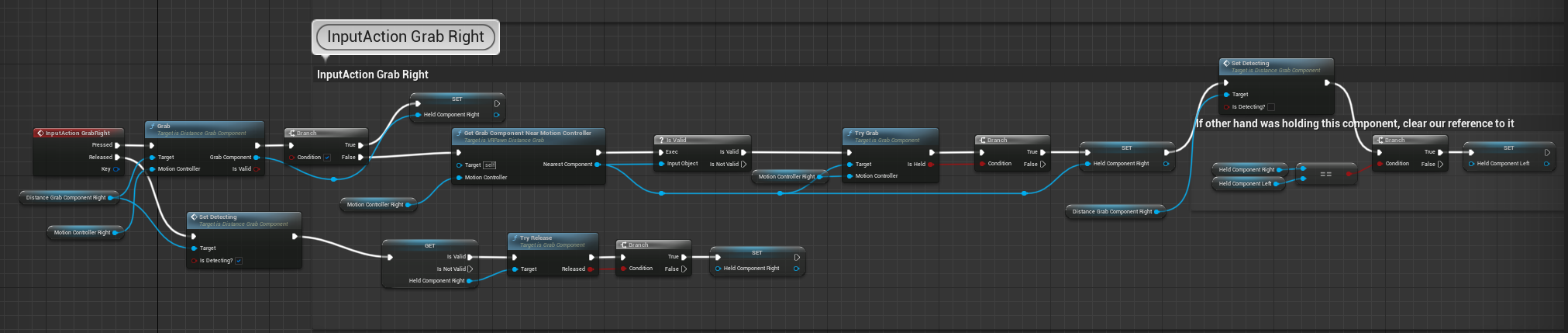

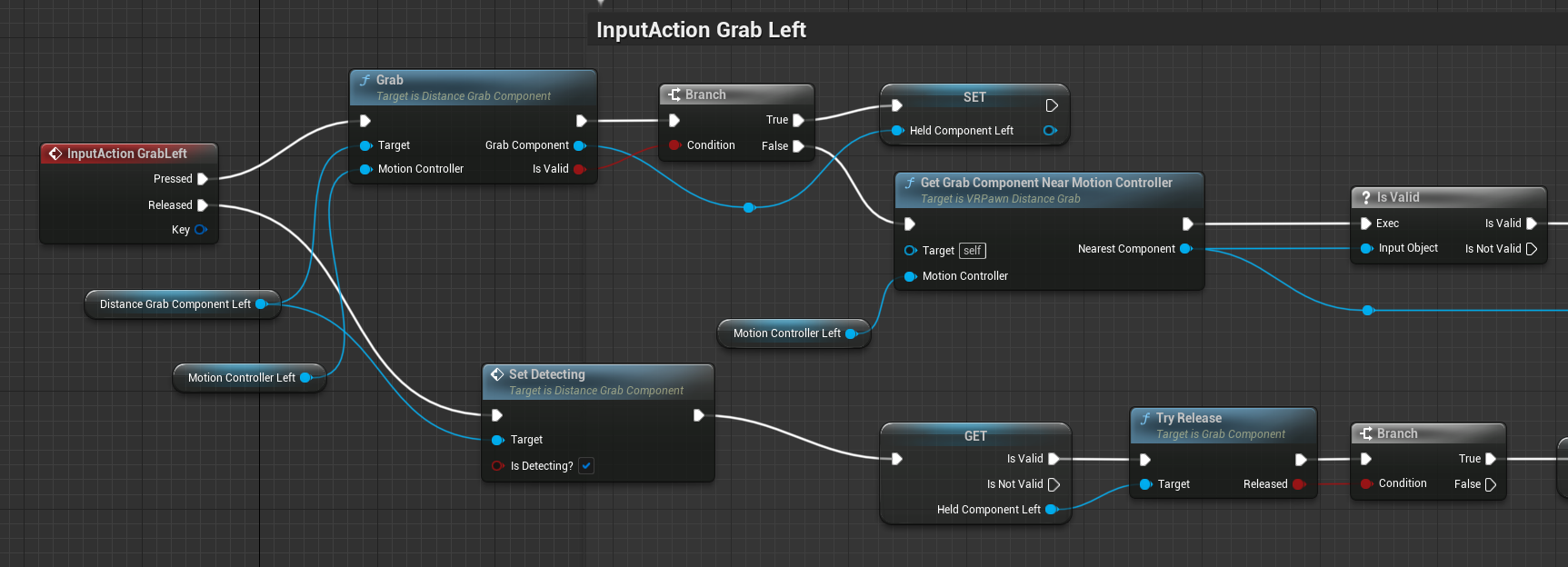

In event graph, add following in inputaction grab nodes:

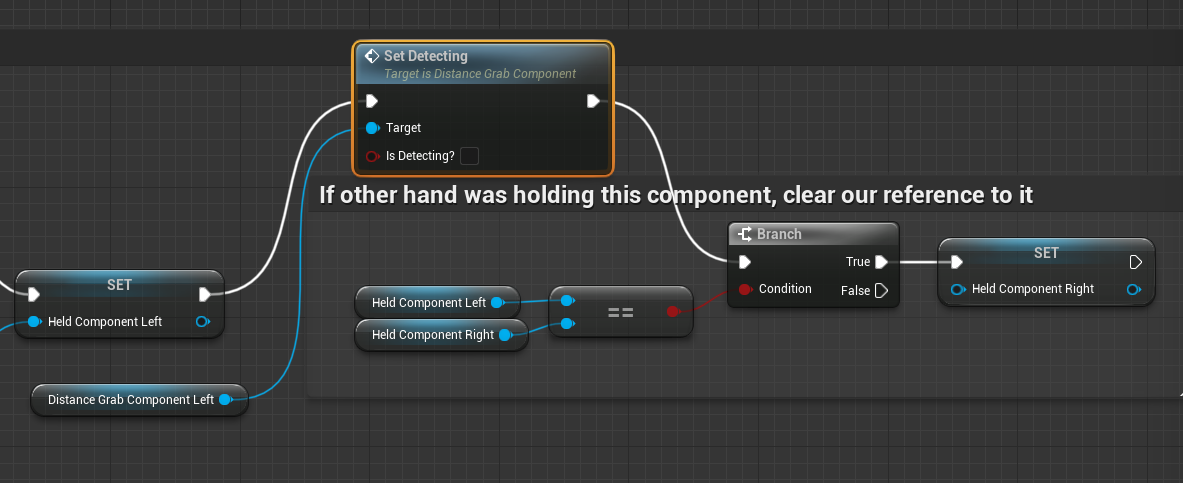

Ending nodes:
Duplicate on right hand
