Shooting functions - Line Tracing
Enemy Target Lock System
open 3rd person BP

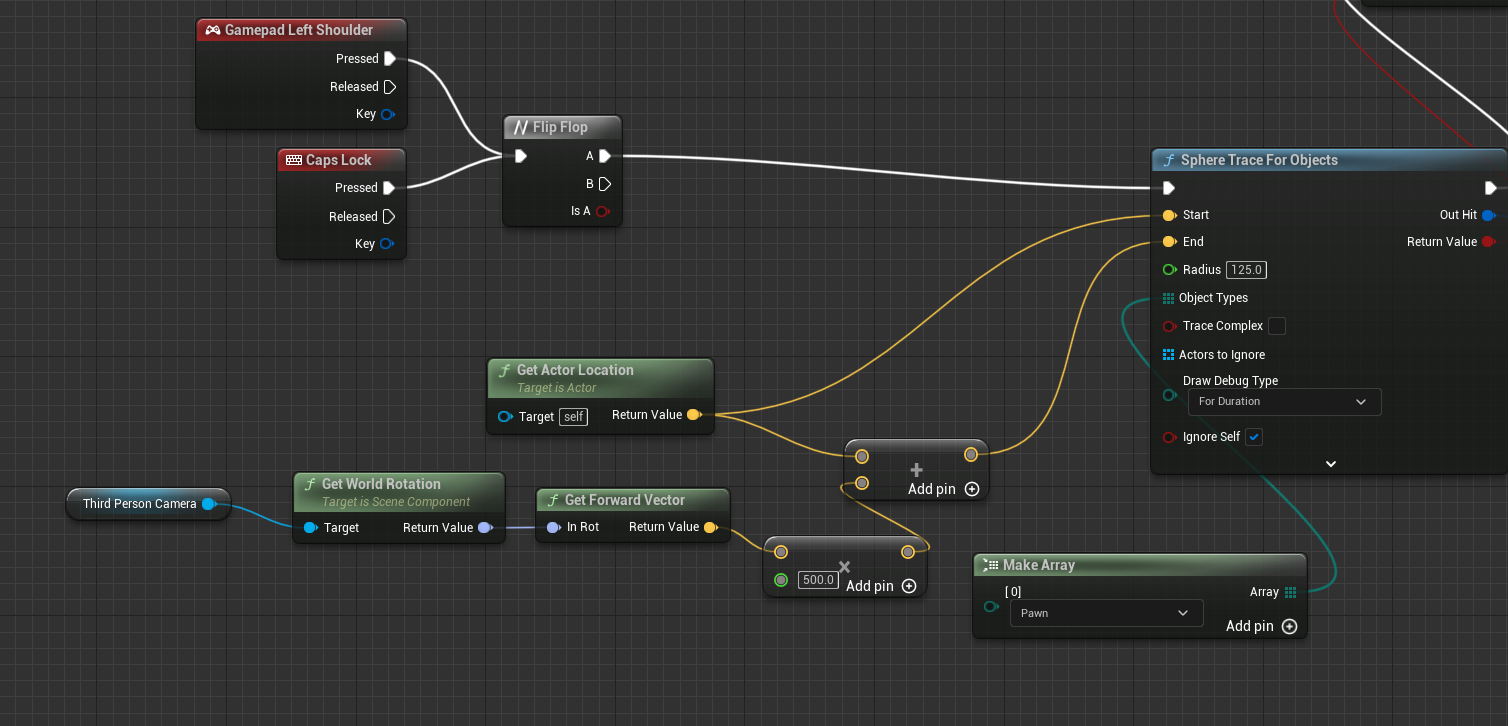

Create follow graph (For Target Lock Trace and Hit):

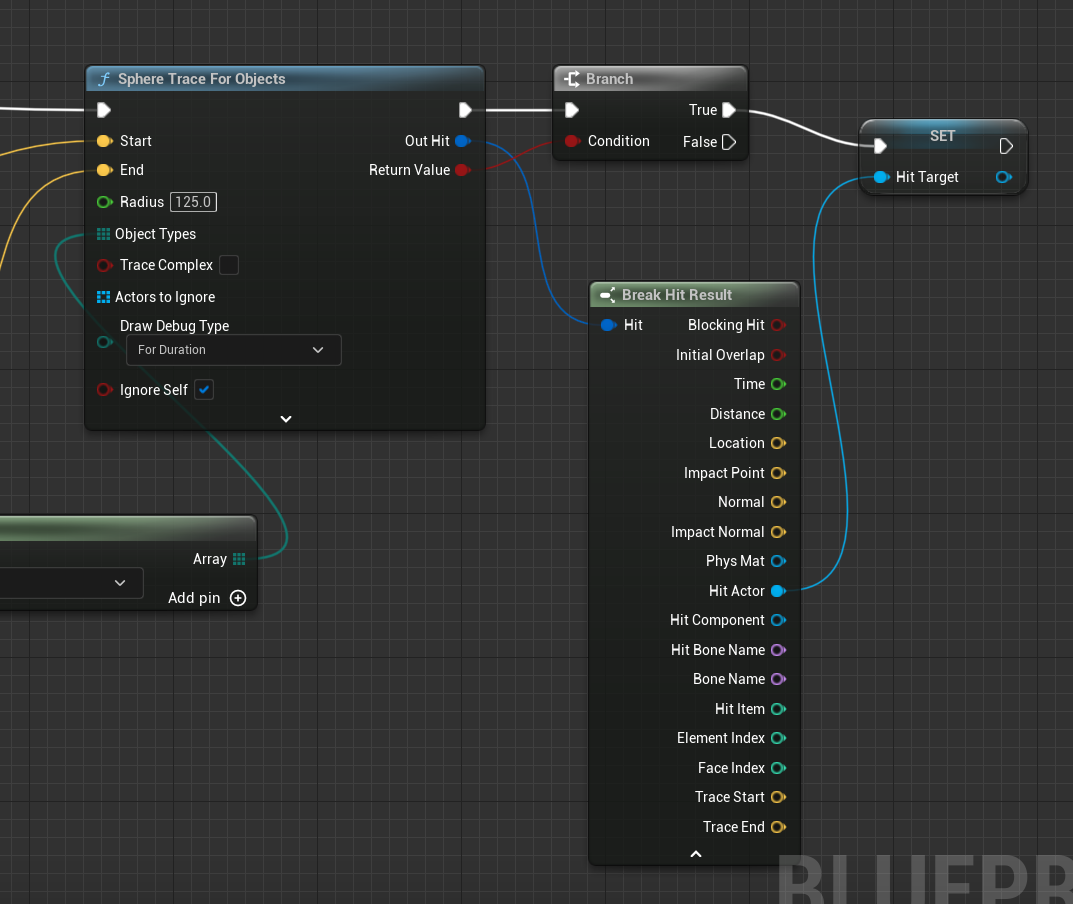

Extend the graph by adding break hit result, promote hit actor variable, rename as hit target

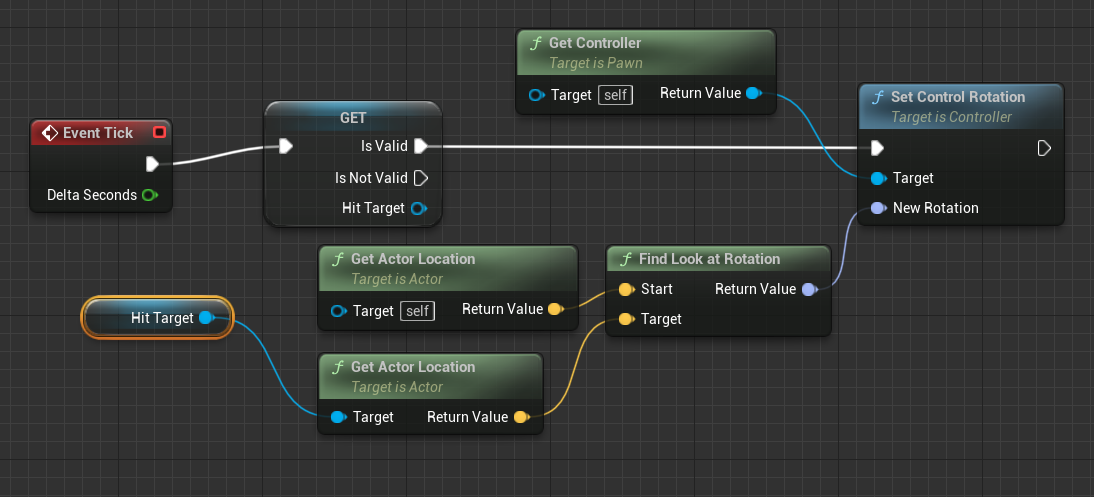

and make event tick (For Set Target Lock Rotation)
Create a BP Pawn, name as BP_Enemy
Put a skeletal mesh, set its collison preset as Pawn (coz the 3rd person BP Make Array node set as Pawn)
Now all pawn targets will be locked when player checks them out, but can’t unlock them (roation axis is fixed at the locking status).

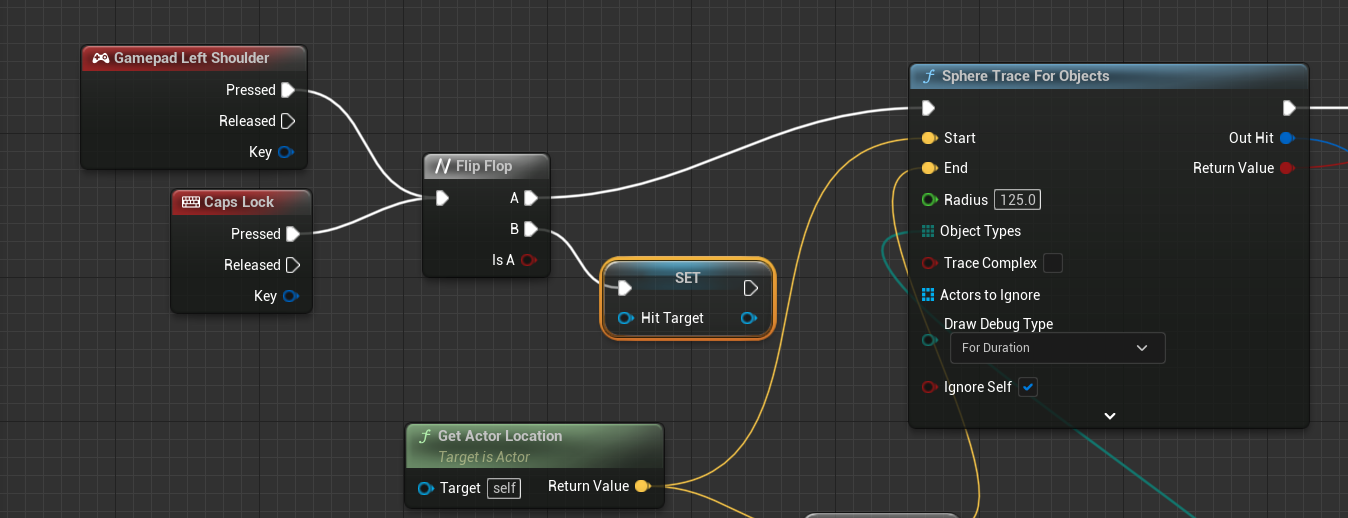

To unlock, revise the 3rd person BP as follow:
