Easy BP Anim (idle & walk) for CityCrowd

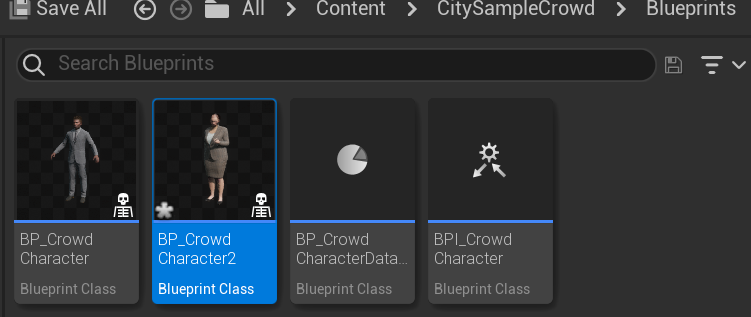

Duplicate a BP Crowded Character, called character 2

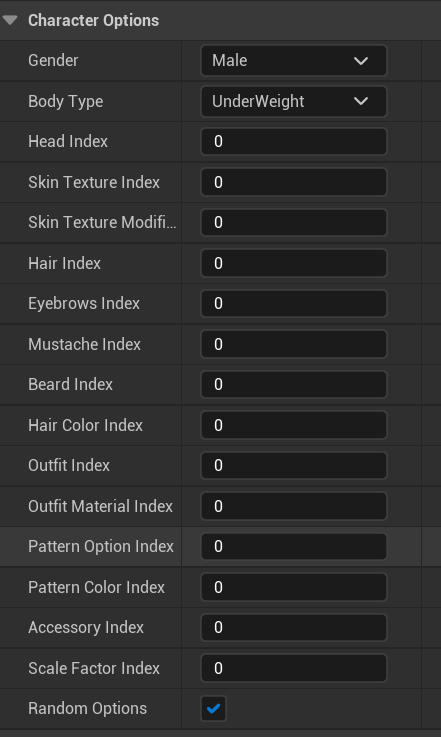

open it and tick Random options in the root

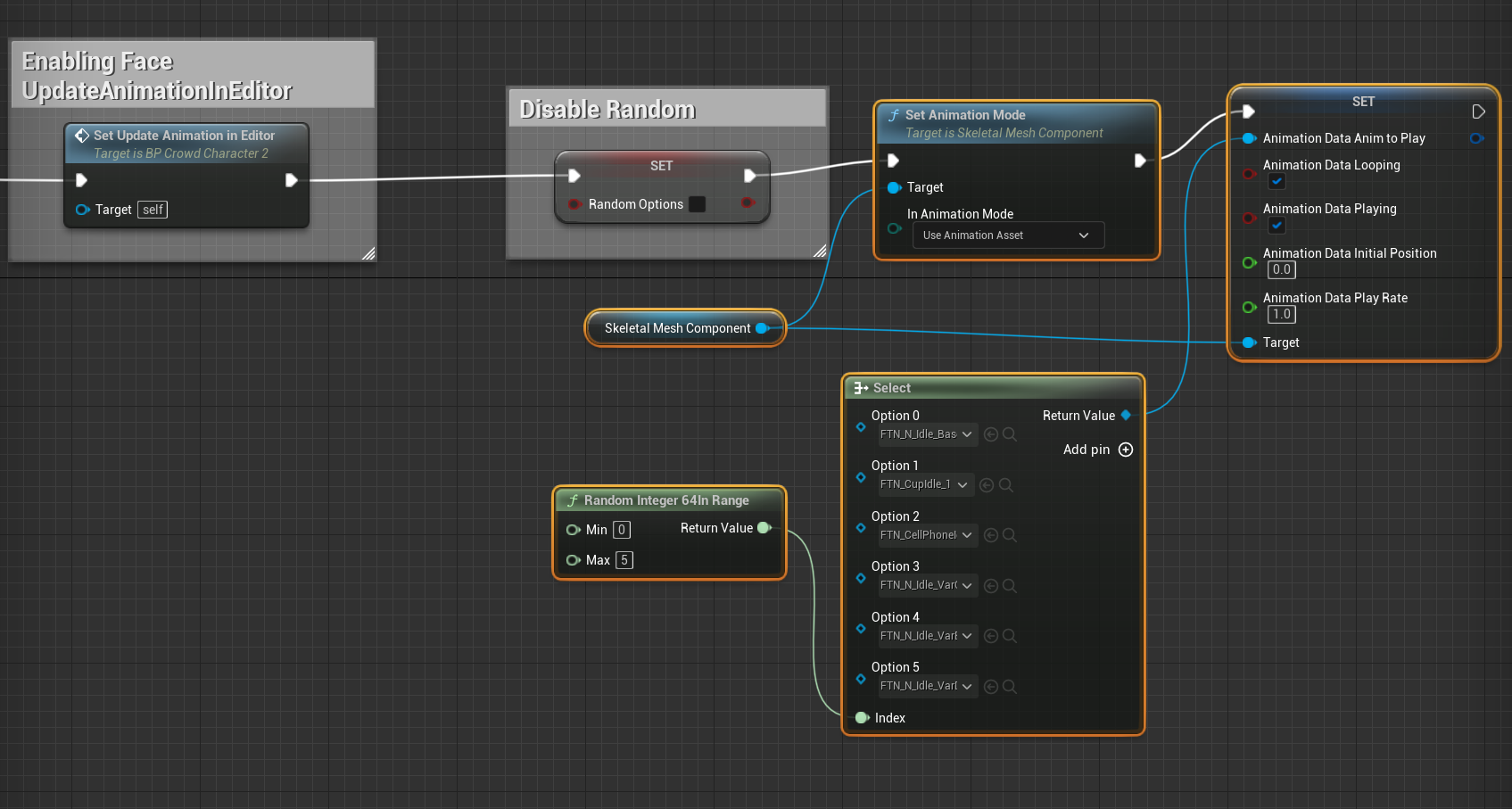

Go to construction script, at the ending Disable Random Command, add follow:

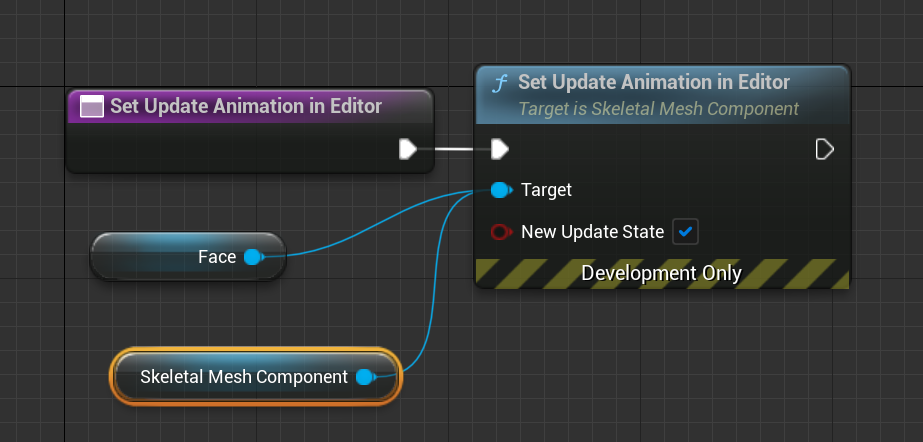

double click to open Enable face update animation editor command node:
Add skeletal mesh component node:

Walking metahuman:



Role: To make event tick in construction script (coz event tick only in event graph (work in game play), not in construction script (work in editor)

Create a BP interface, called BI_EditorTick

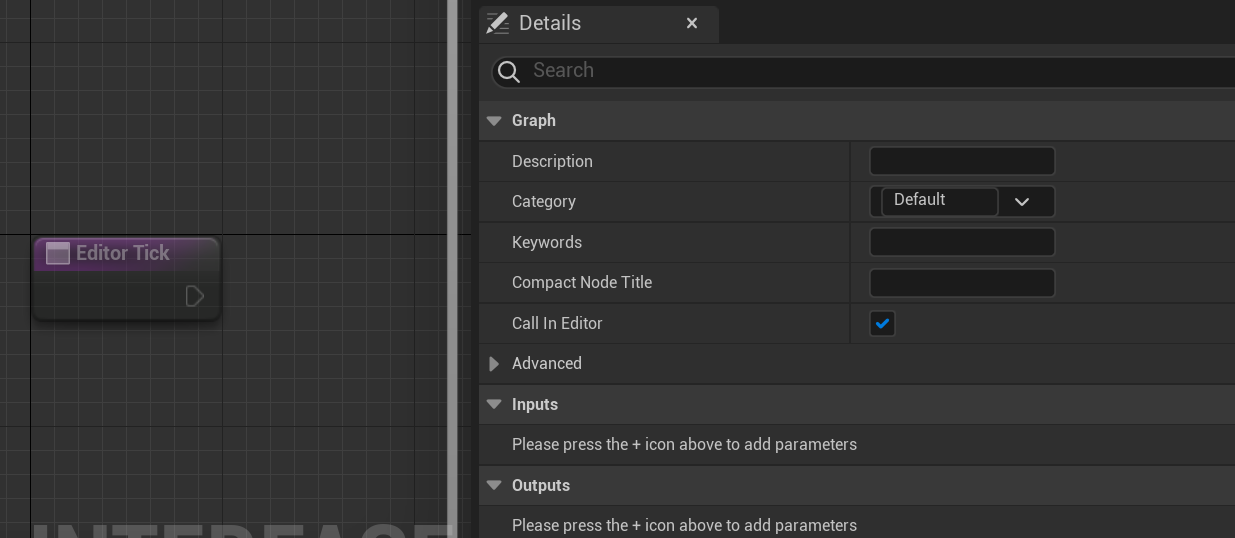

name the function as Editor Tick, tick Call in editor

Make a rotating cube as an example:


Create a BP actor, called BP_RotateCube

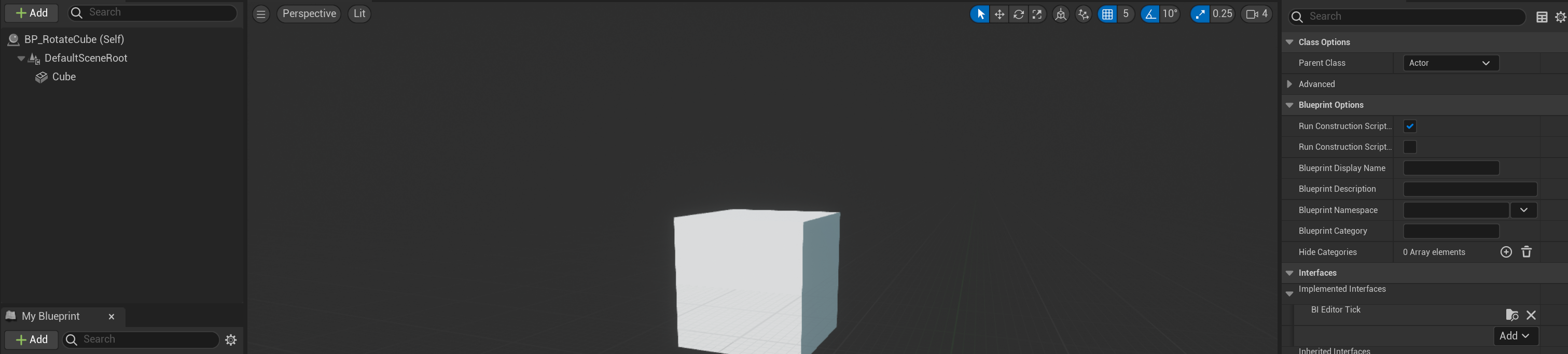

Add a Cube component, and implement interface

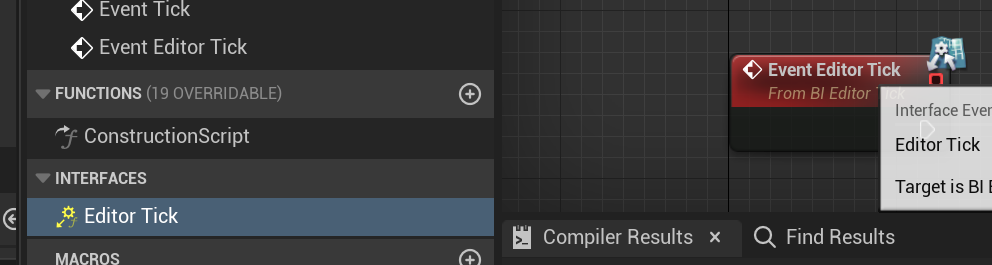

Implement Editor Tick node to event graph:

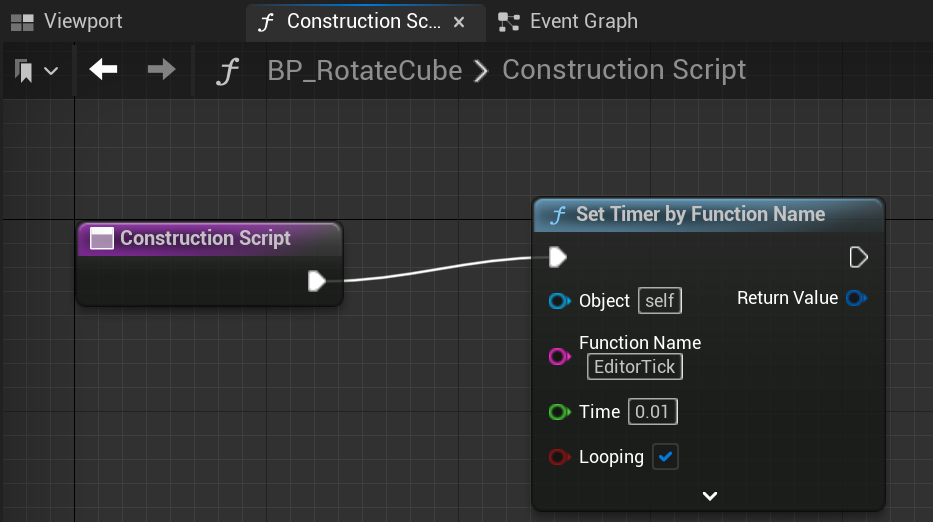

Go to Construction script:

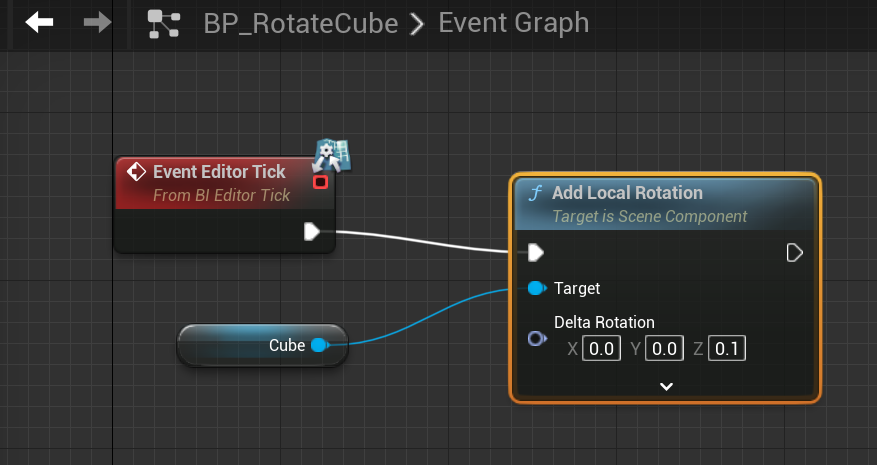

Back to event graph:

Apply same concept on metahuman walking:


In construction script, add walking? variable, tick instance editable
promote original location from get actor location

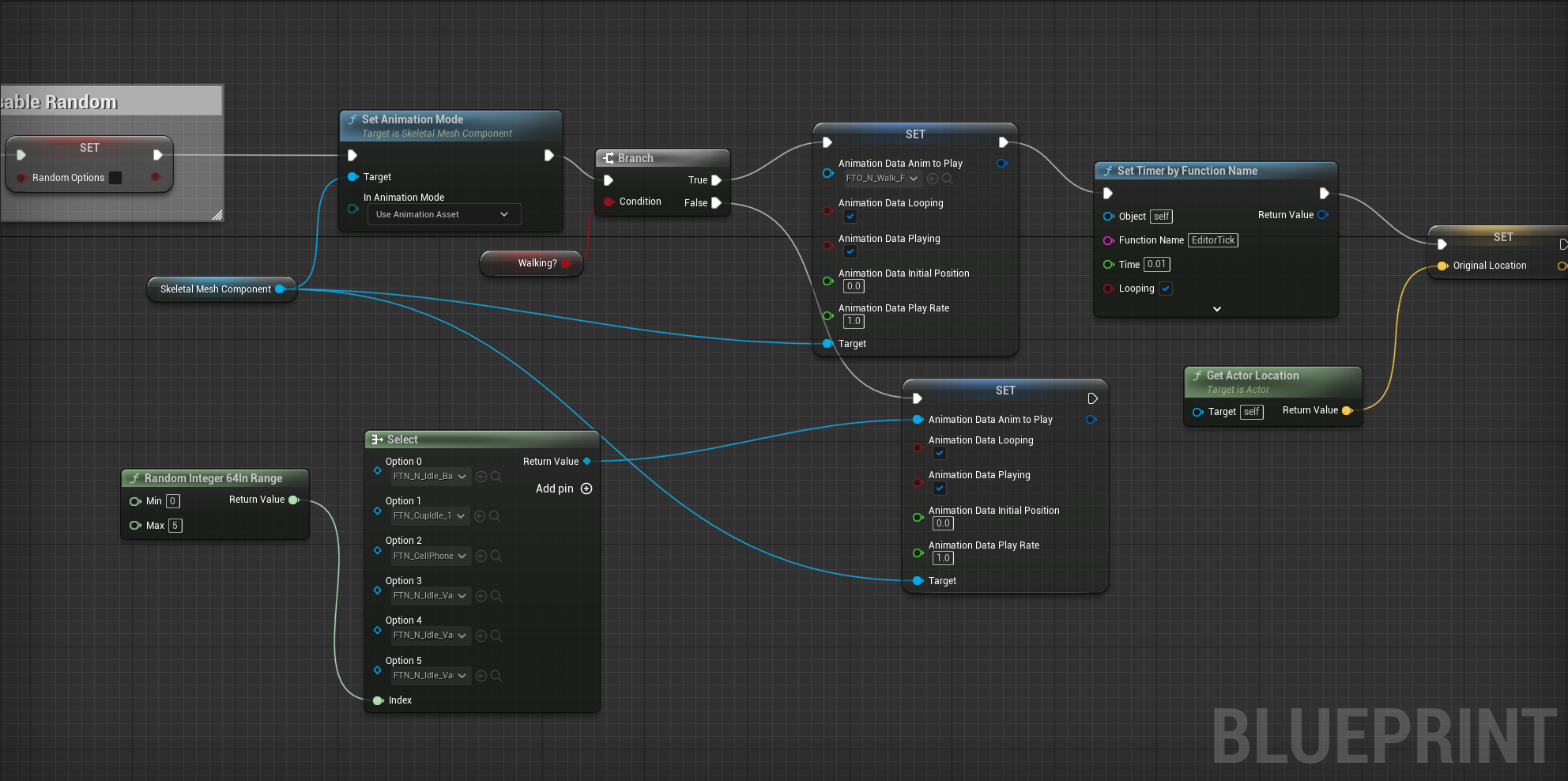

Add a branch after set amination mode and extend as below:

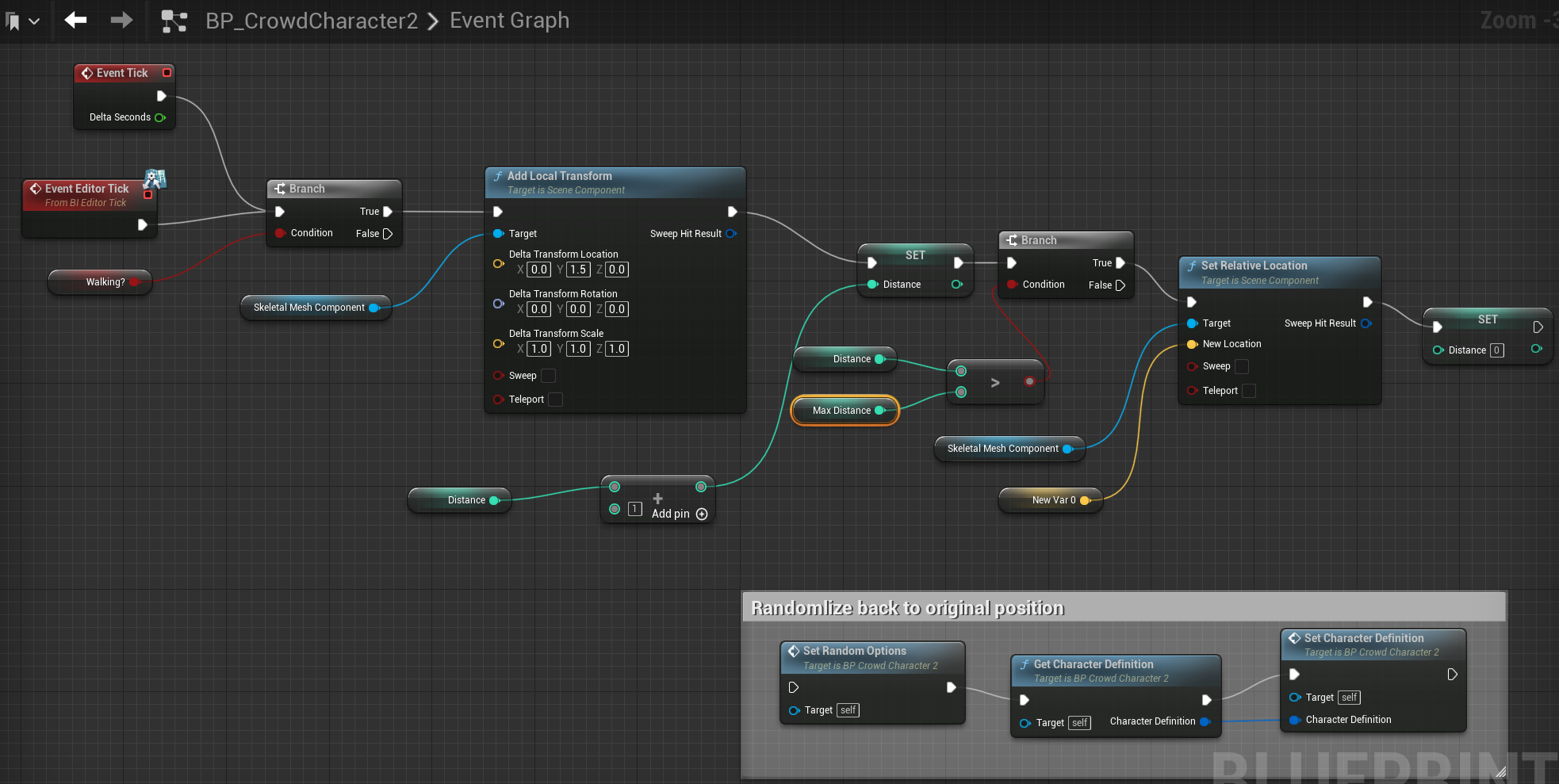

In event graph, add variable distane and max distance (default value 1000)
