Hand Functions
Drawing in VR
Aim: To make right trigger draw, left trigger delete
Open VR pawn in VR template, choose Trigger left and Right nodes disconnect from default
Create Event Tick node

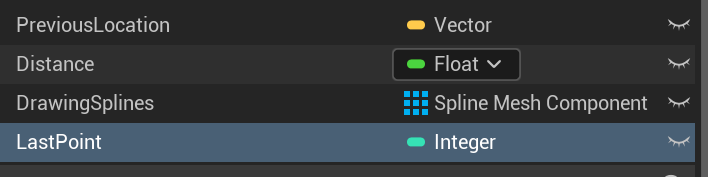

Add following variable: Previouslocation, Distance, DrawingSplines, LastPoint:

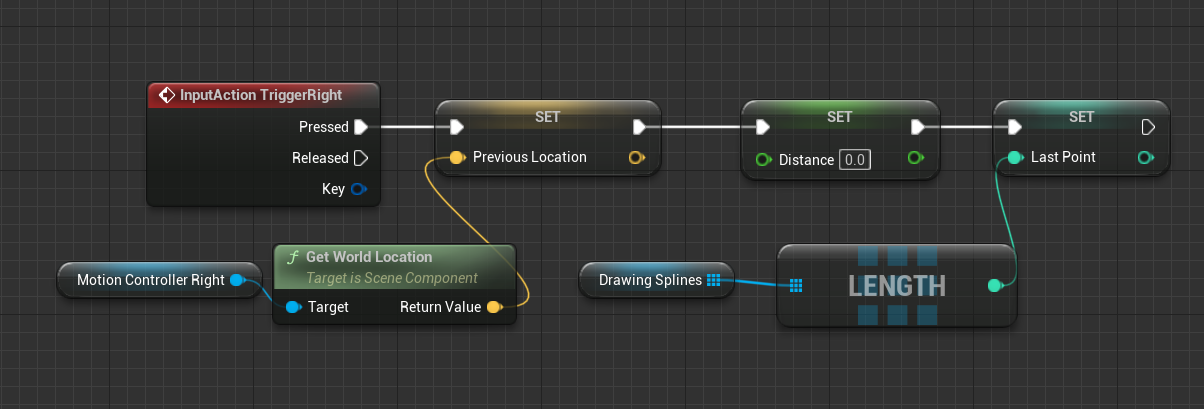

Set Right trigger as follow:

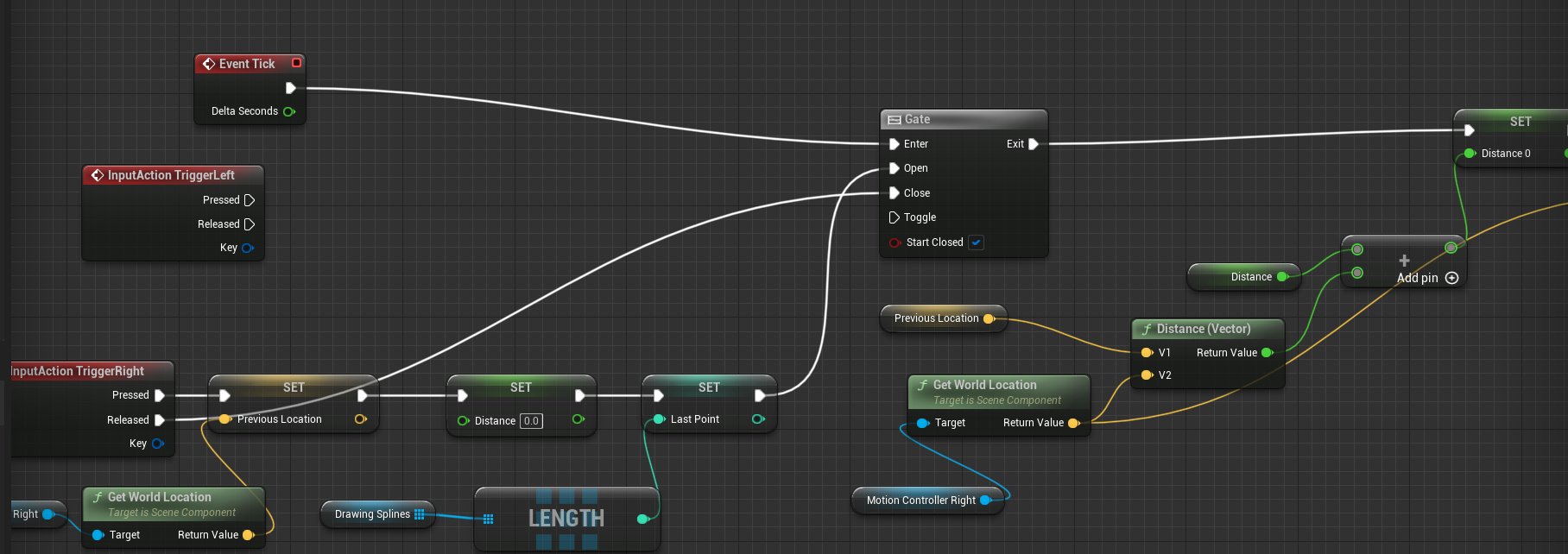

Set the gate node for right trigger pressed and released, and the distance setting after previous location:

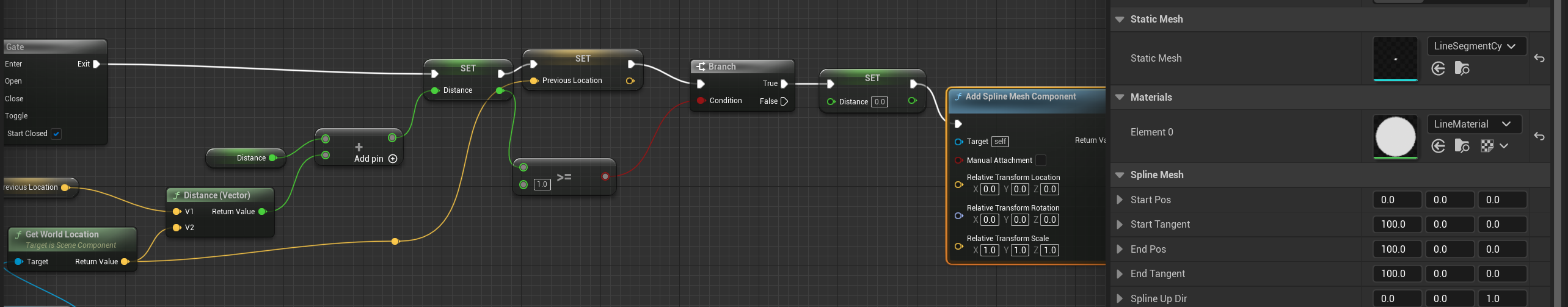

Continue the graph, set Static Mesh to Linesegmentcylinder on Add Spline Mesh Component node:

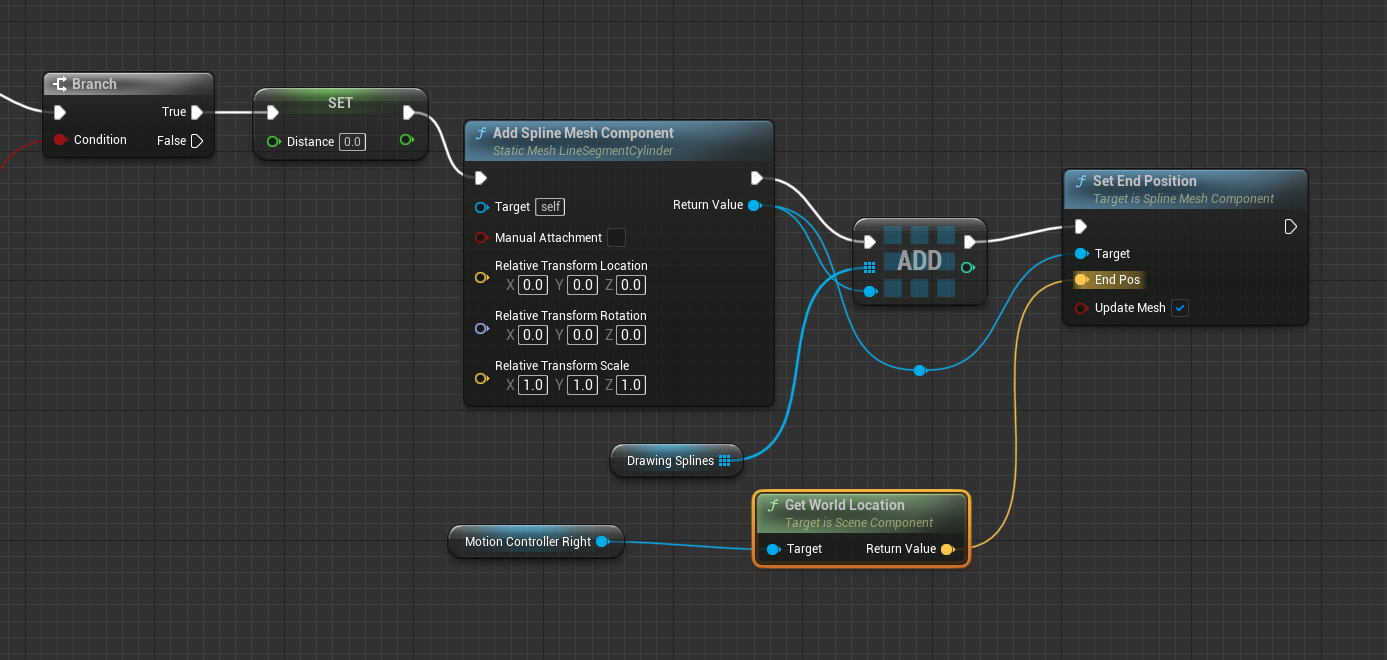

Continue (set End position):

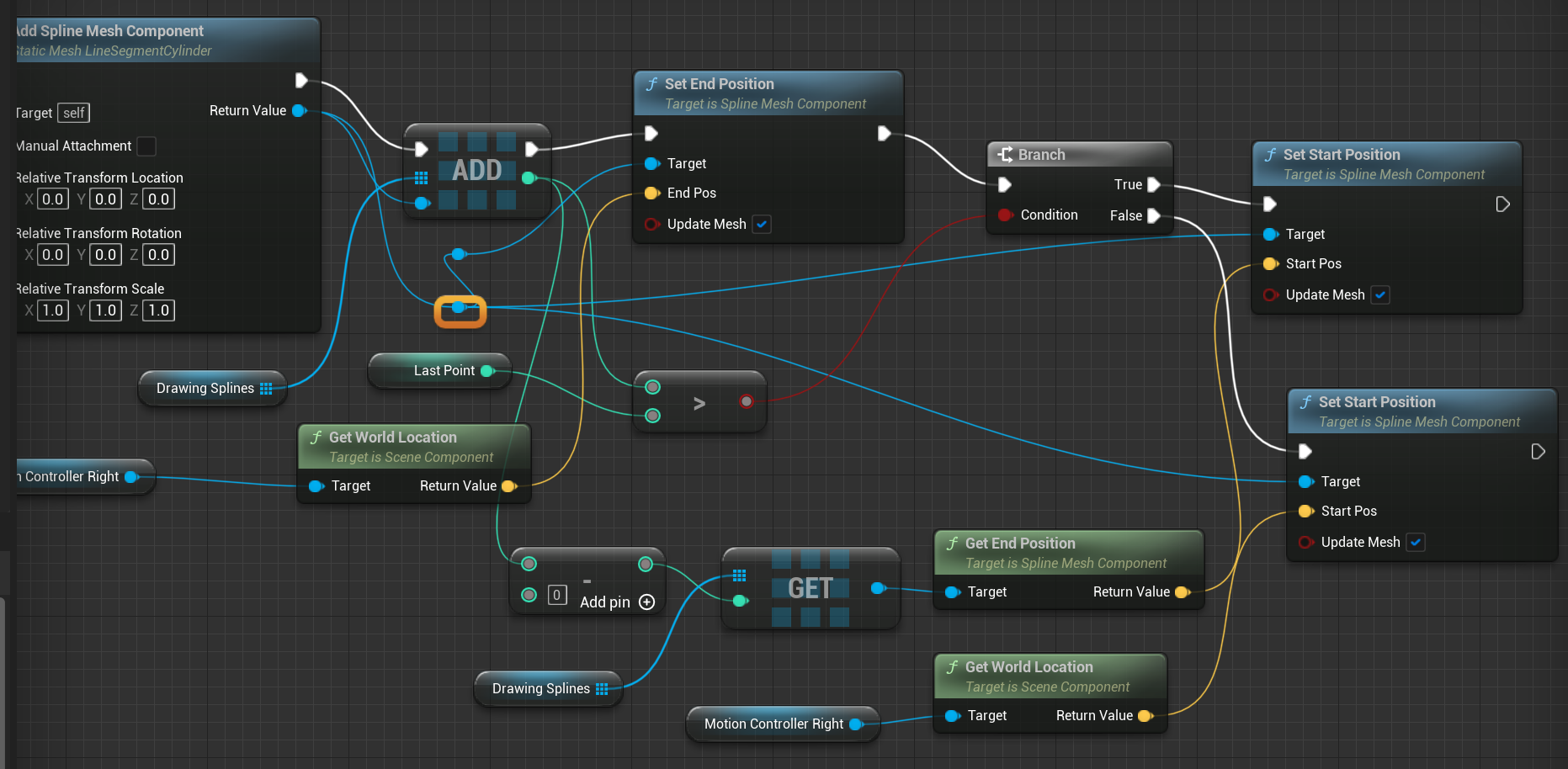

Continue (set Start point, greater value and branch T/F, to determine whether it’s a new part drawing or the same drawing altogether):

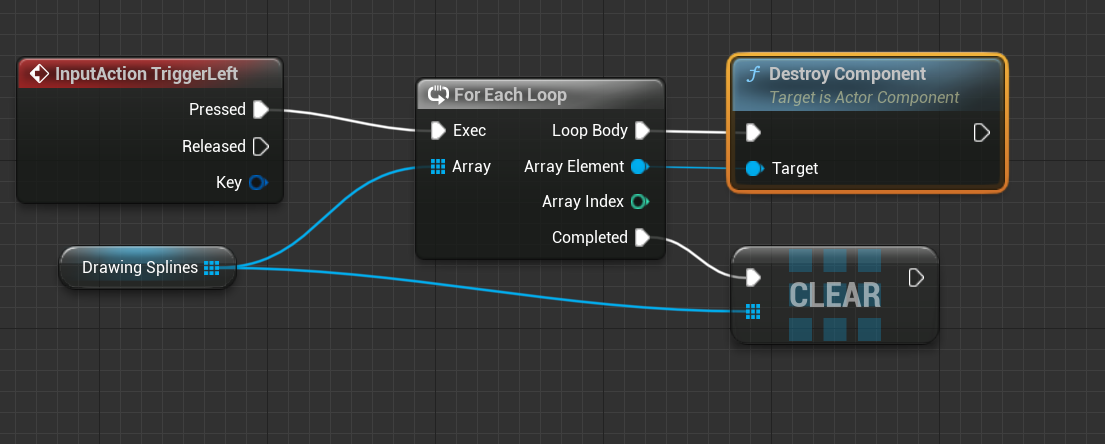

Clear off splines with left trigger controller:
Remark: Destroy component actor created by drag from array element from for each loop
