Blender
Create procedural environment
Base Setup:

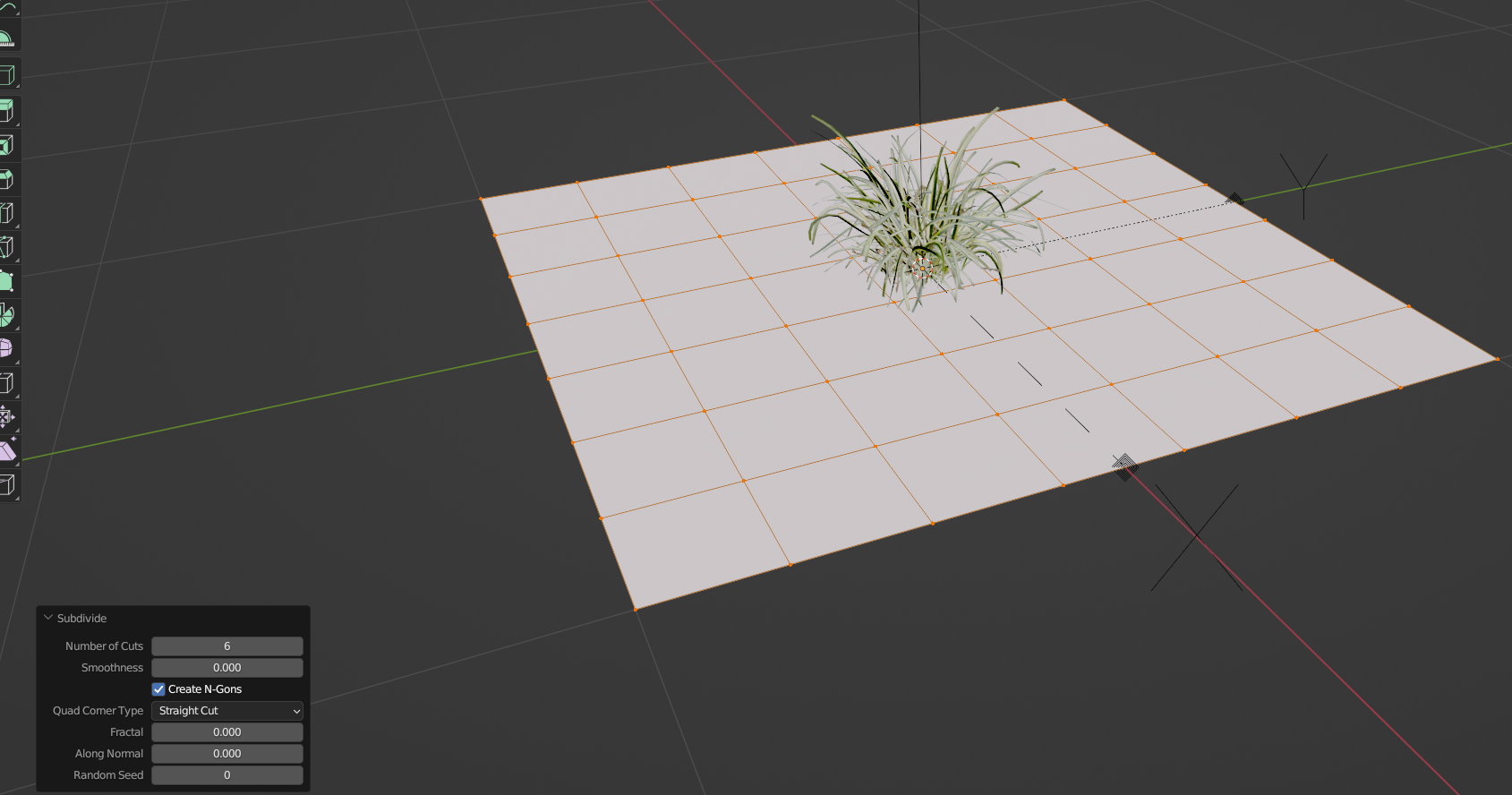

Create a plane, subdivide it (Right click in Edit mode)
number of cut 6
Back to Object mode

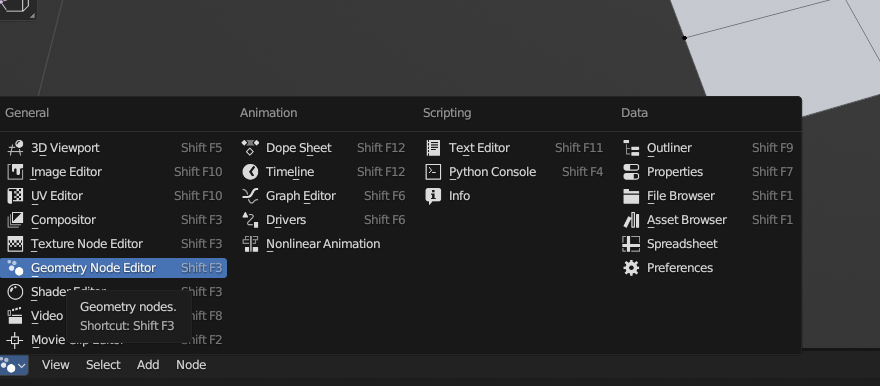

Switch to Geometry node editor
+New node, Shift+A → Search→ type follow node:
Distribute Points on Faces,
Instance on Points

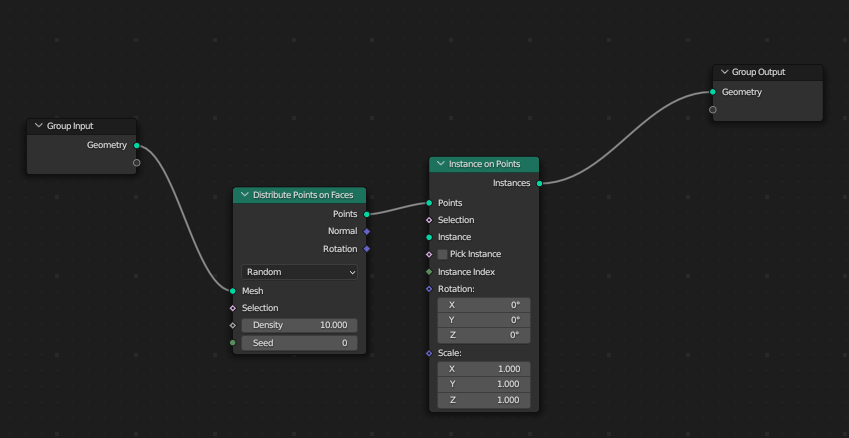

The plane will disappear after connect as follow:

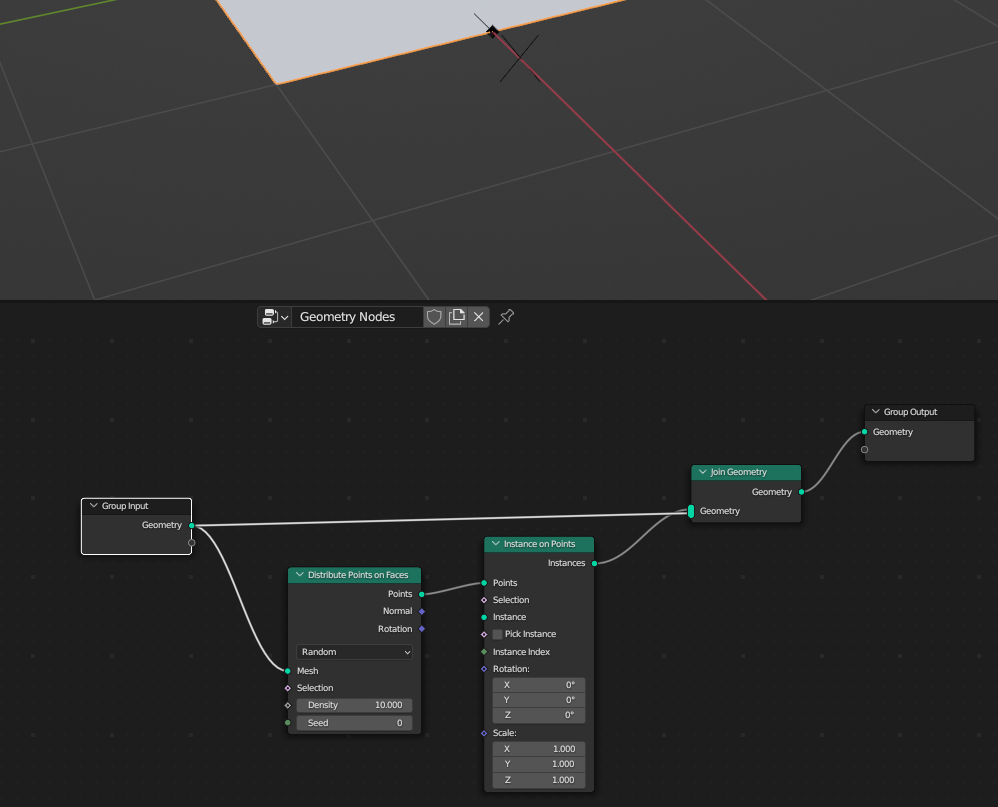

Now also add Join Geometry node, connect as below
The plane will reappear
Add Assets:

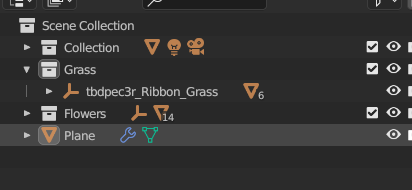

Add new collections and rename each collection files in outliner
Import relevant items from Quxiel Bridge in collection folder

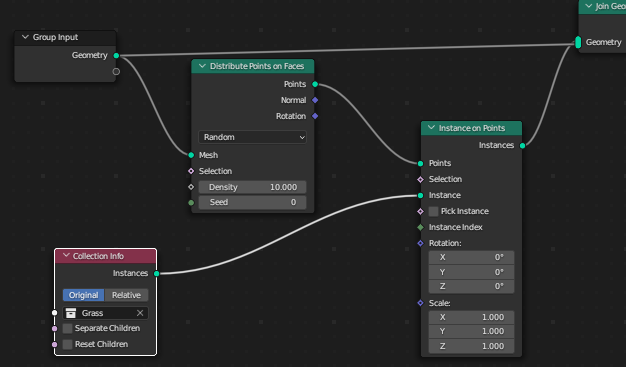

Now drag the whole folder (e.g. grass) into Plane Geometry node graph
Connect the connection node to Instance Point
The Grass will appear on plane in the scene
Set Collection node form original to relative

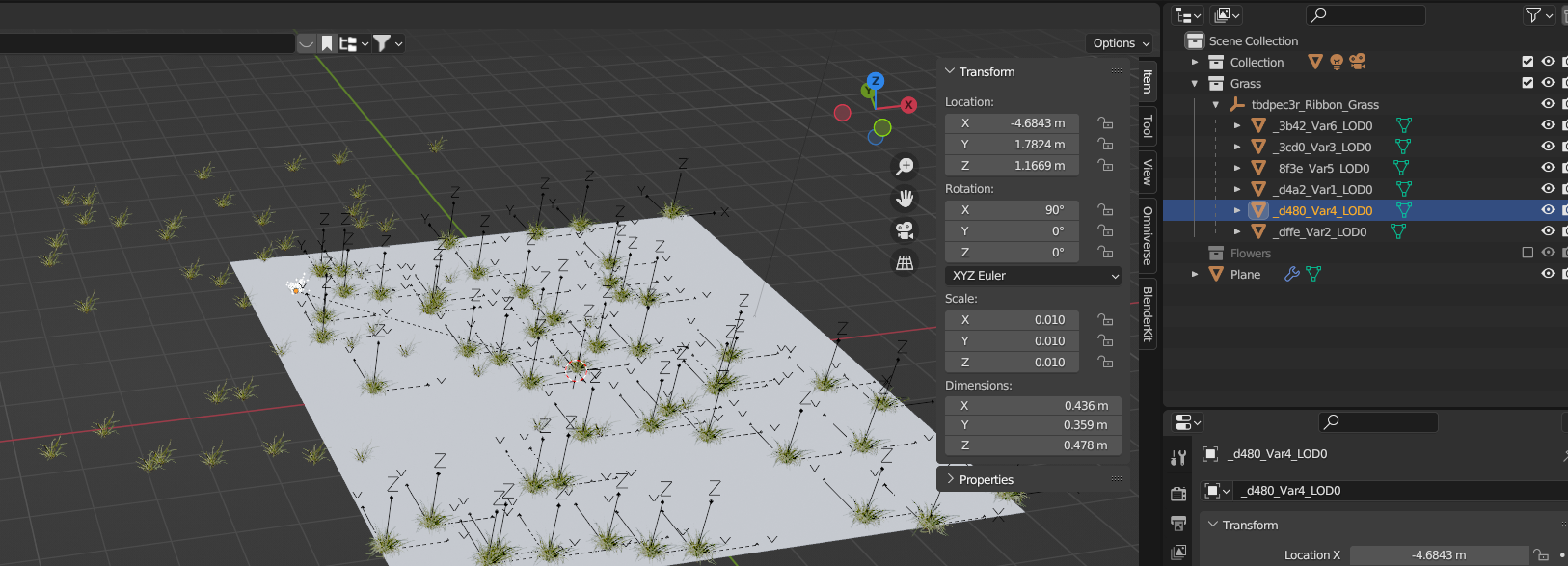

Control the grass position based on the grass layer in outliner

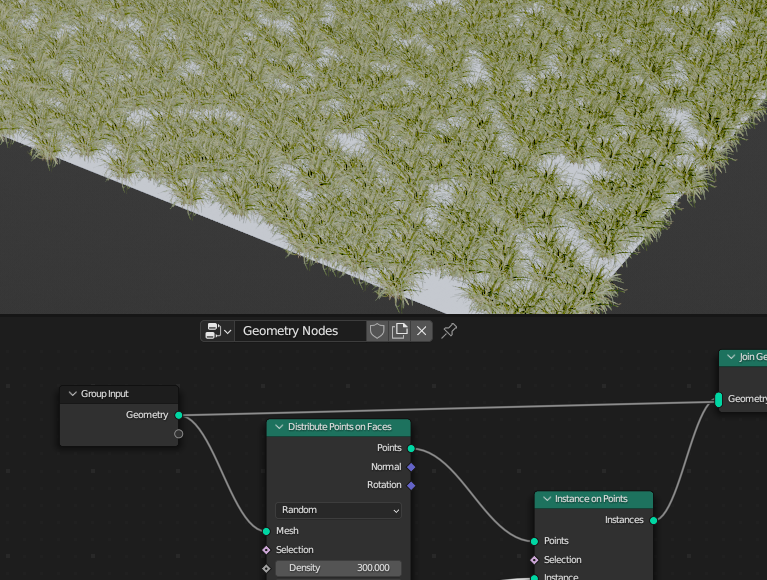

On Distribute Points on Faces node, increase density to 300
Now the plane is full of grass
To make different grass with different length and randomness,
add random value (with min and max value), and Combine XYZ node below:

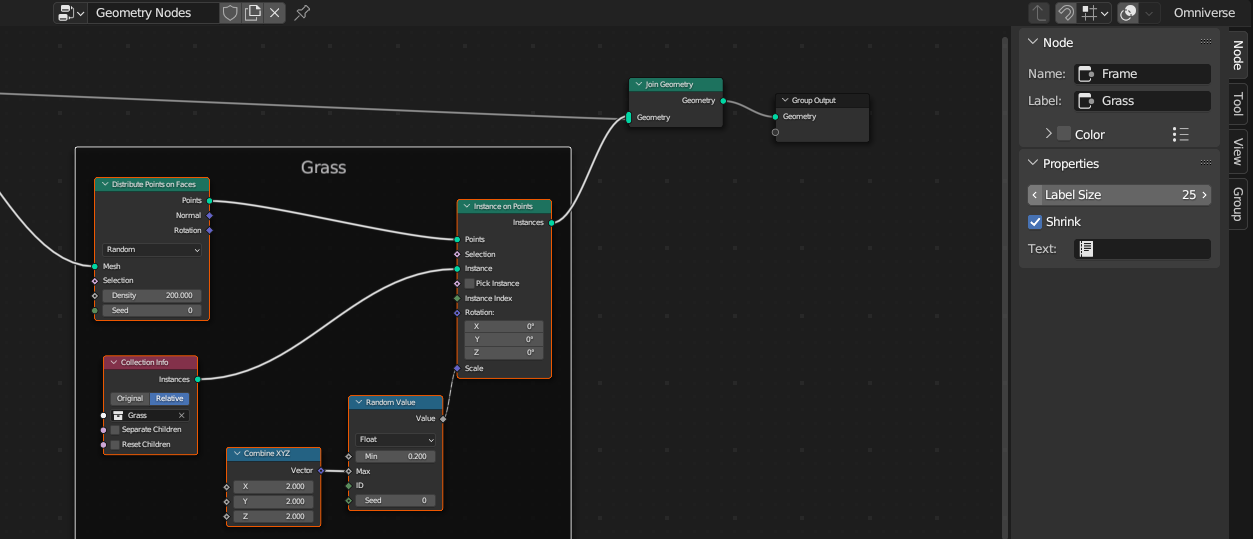

Select the follow nodes, Ctrl +J
Click on Node tab (R side), then Label as Grass

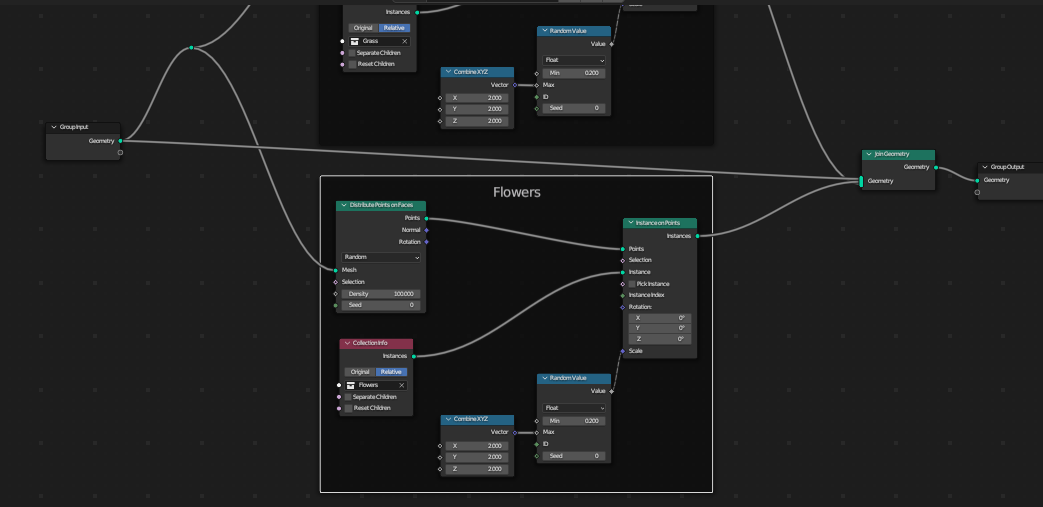

Duplicate the Grass nodes, but replace with Flowers,
Connect to join geometry and Group input
Density drops to 50
Repeat the same for trees, or other assets
Add transform nodes between Collection and Instance on points, so that it can be controlled in the nodes:
