Combat system (Part 1) attack anim

Combat (Part 2) random anim & sound



Randomly execute different attack anim

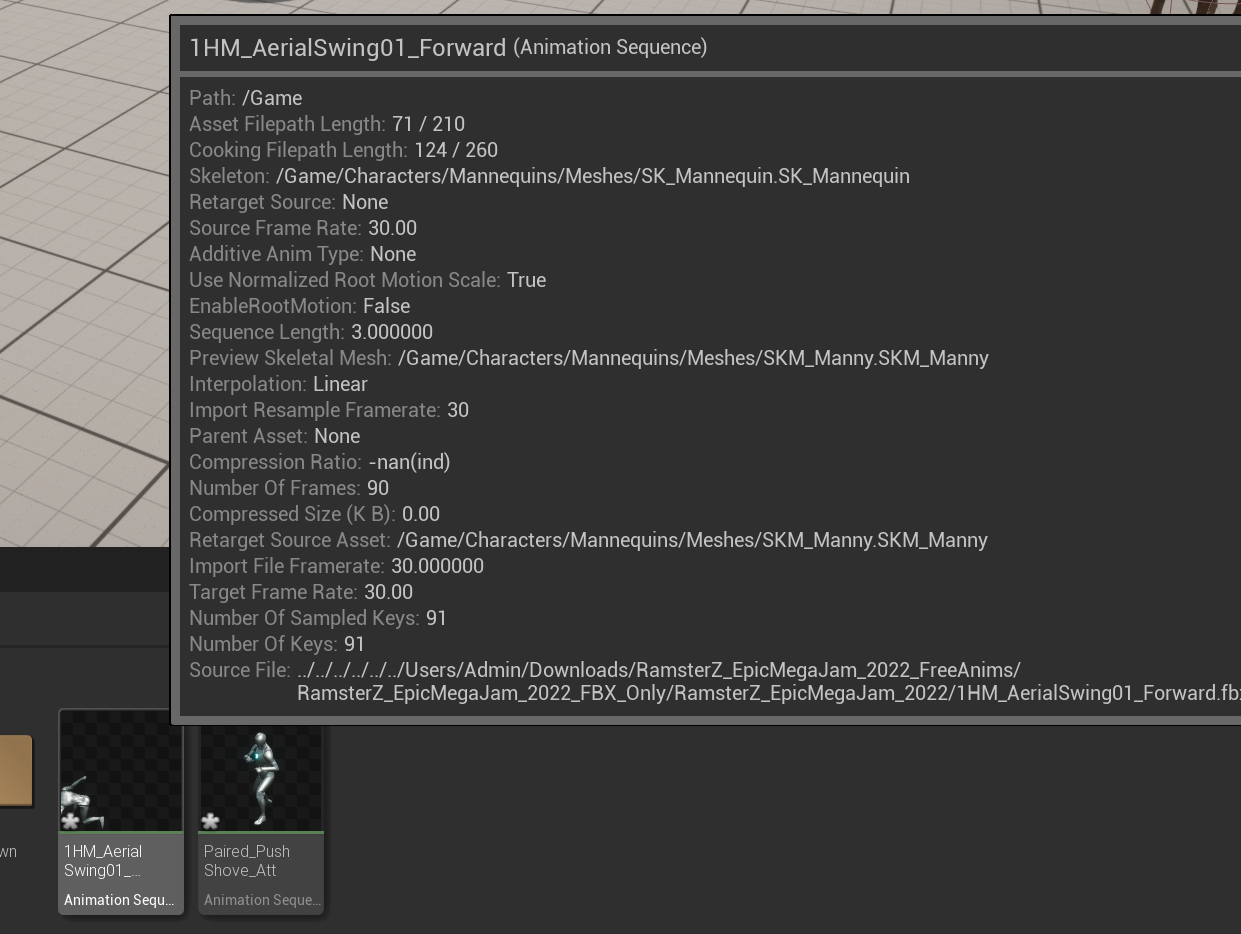

Retarget these 2 anim from the anim pack. and their montage anim (from part 1):

Go to 3rd person BP event graph, add Random Anim Custom event and integer variable AttackNum:
(Assume use 2 anim above)

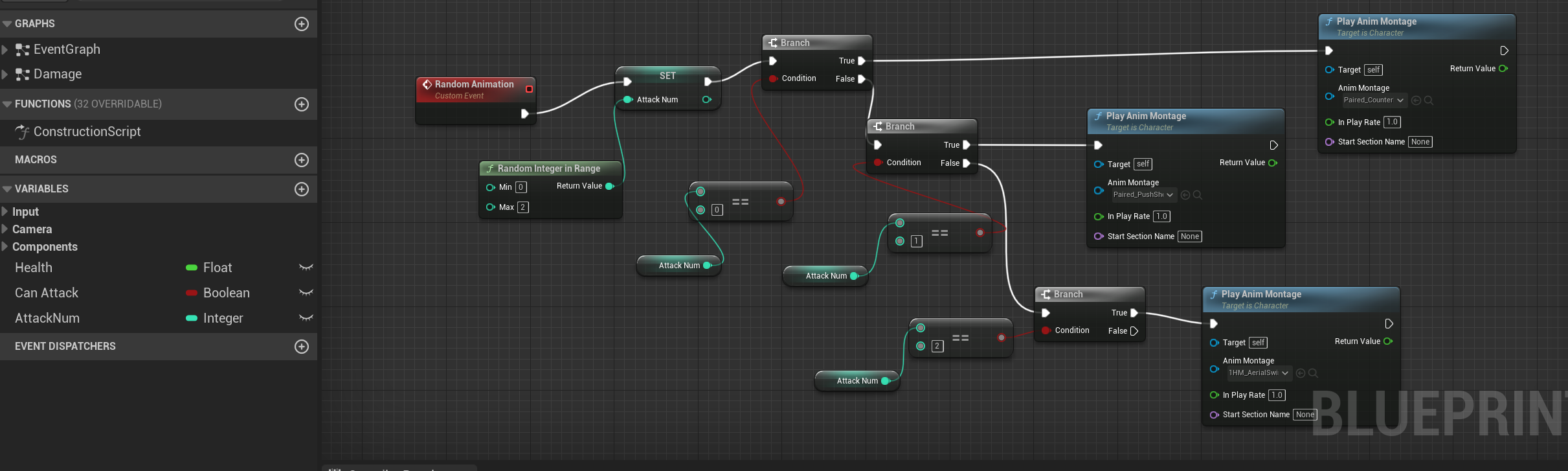

Graph as below:(If anim equal to 0, will execute 0 (original), if false, will exeute anim 1, etc)

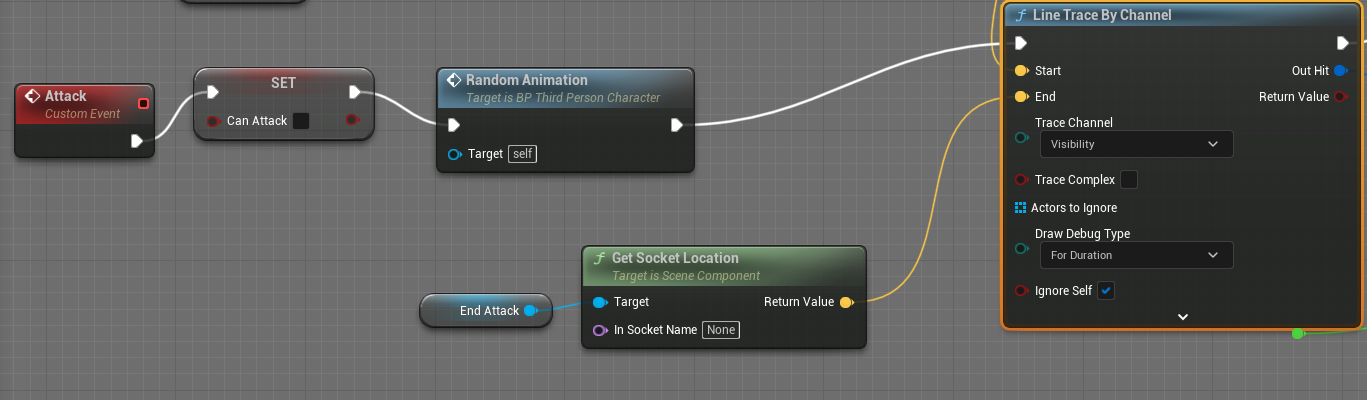

Replace with random anim function in Attack custom node made in Part 1:

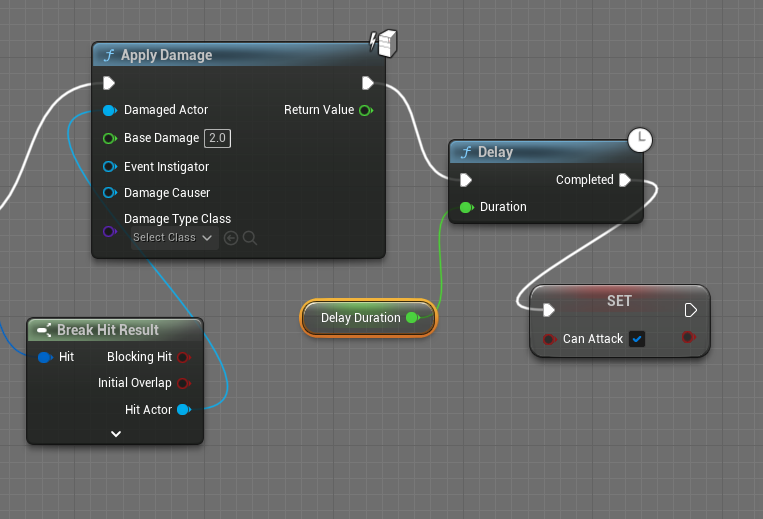

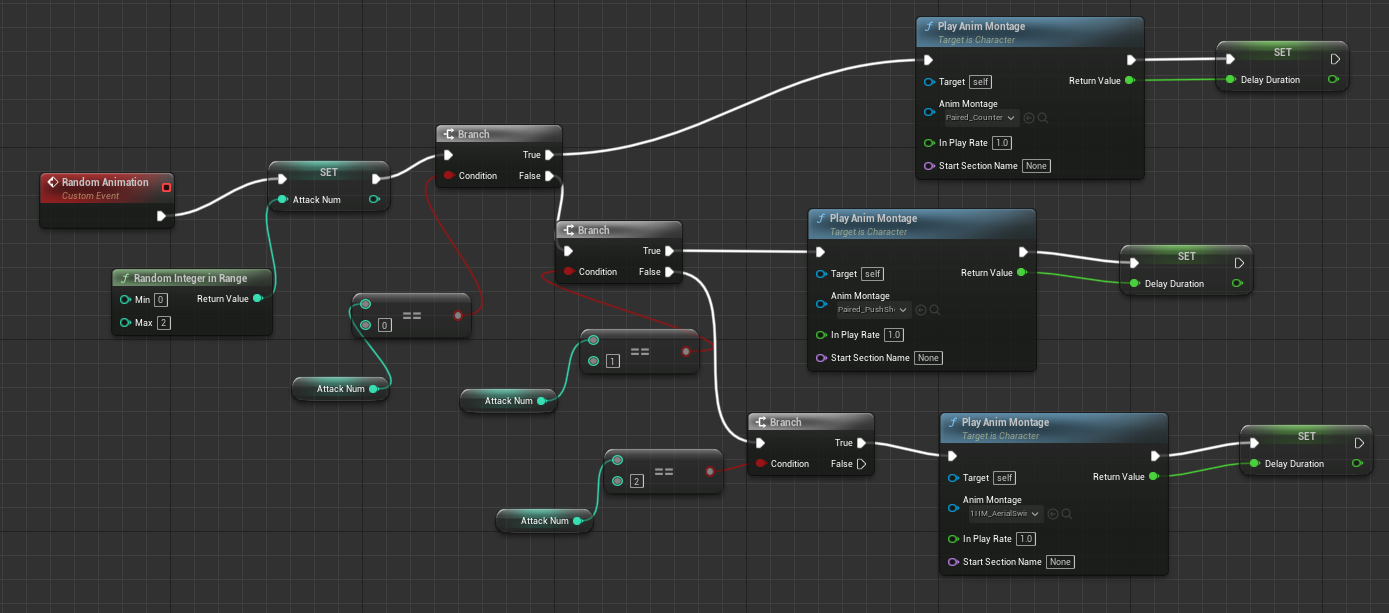

Add DelayDuration Float variable, add on end of anim montage nodes:
Also on part 1 attack graph:

Add random sound effect:


Import wav sound file (not mp3)

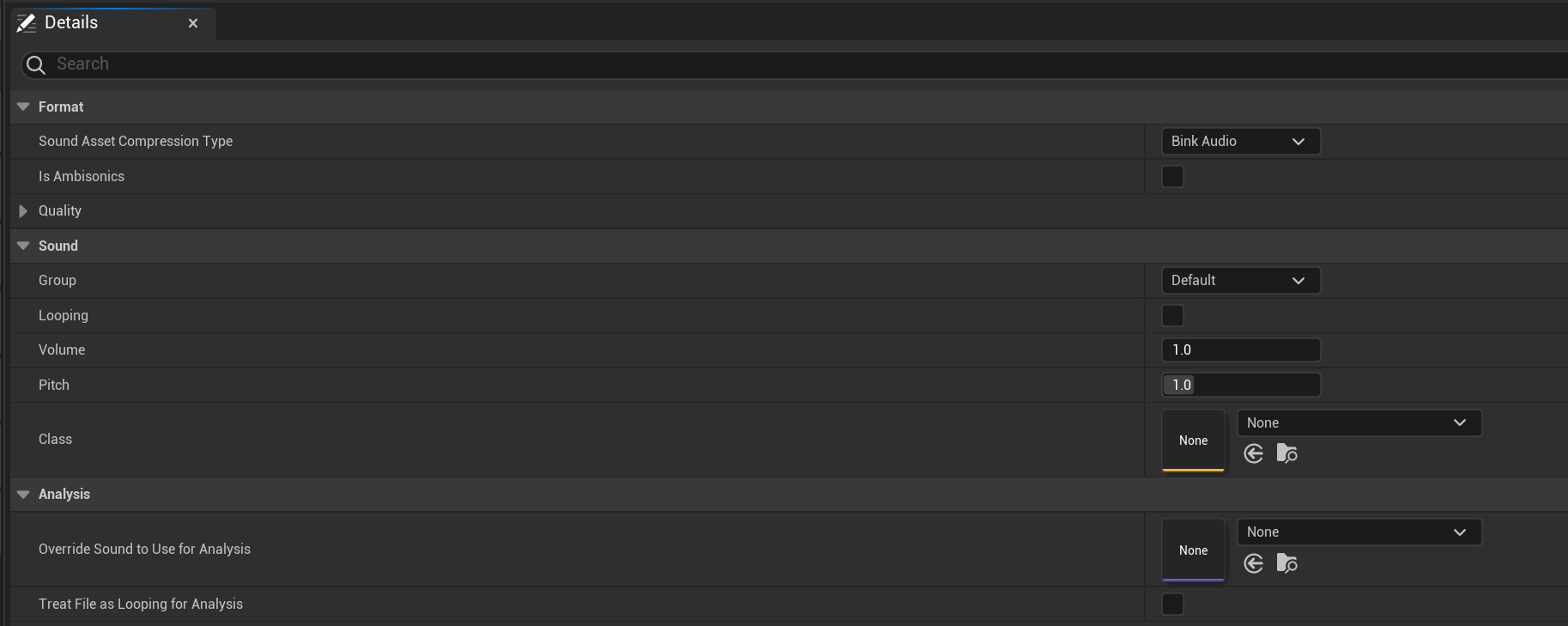

adjust pitch and volume if wanted by clicking the file

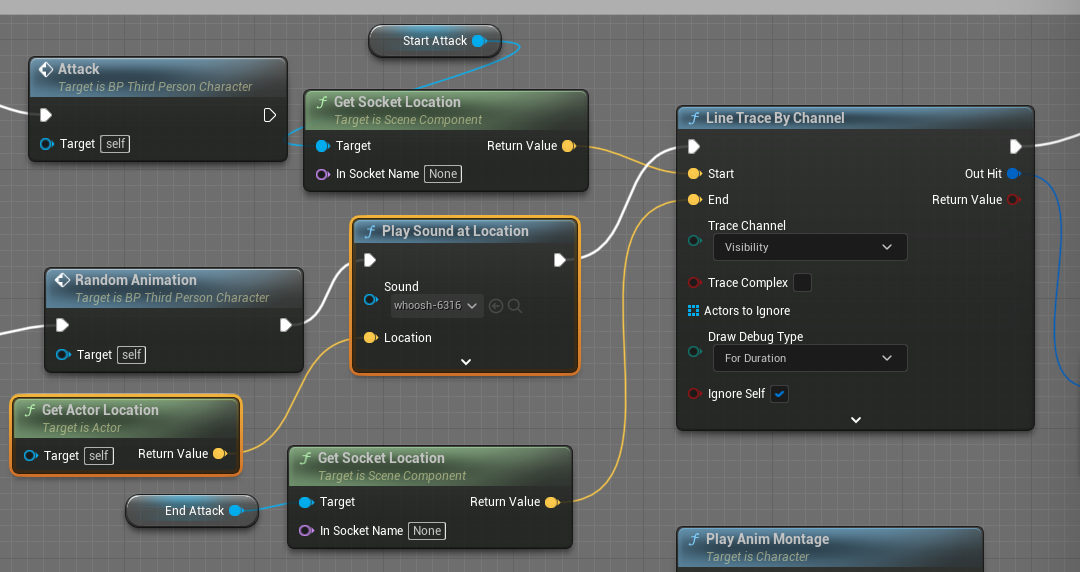

Open 3rd person BP, add sound location and location actor node

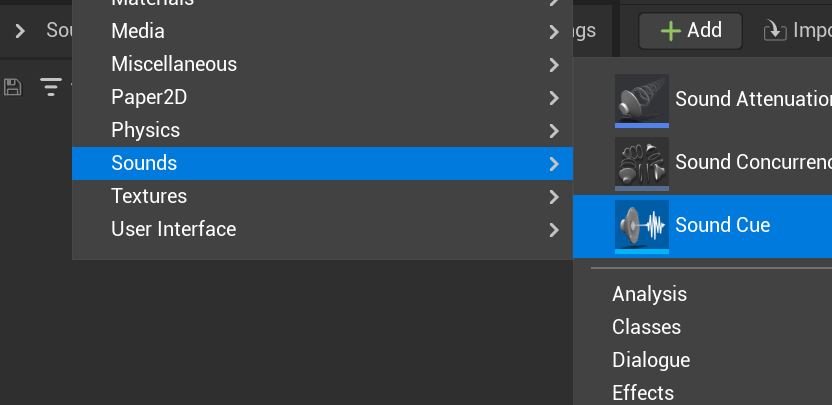

Create a sound cue, name as Punchsoundcue

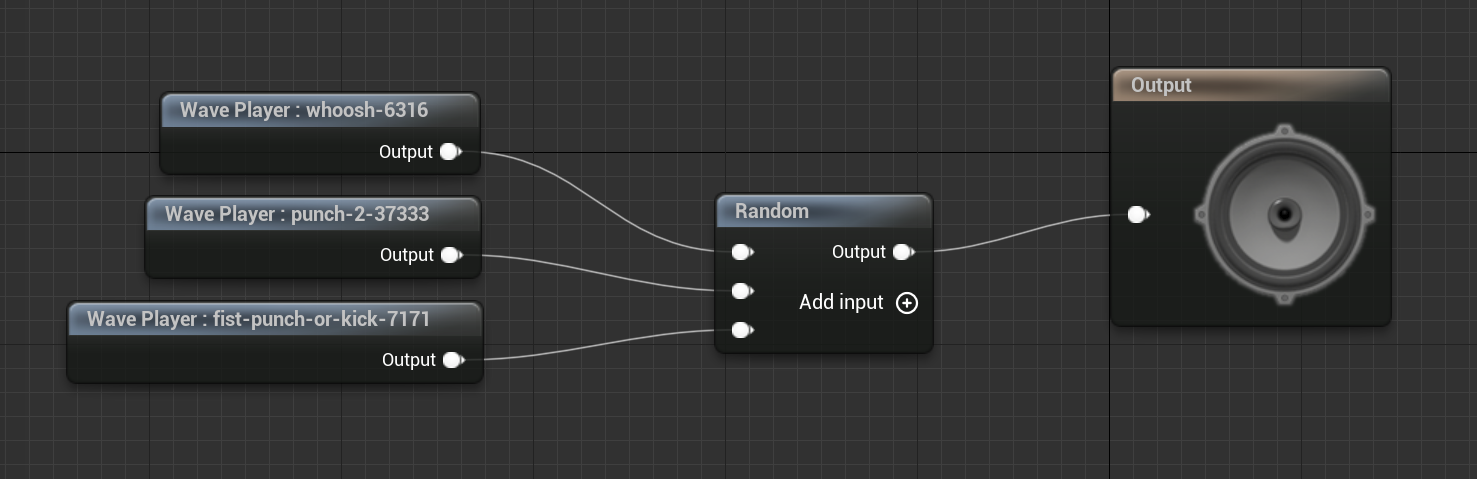

Drag the sounds files in the cue graph and graph:

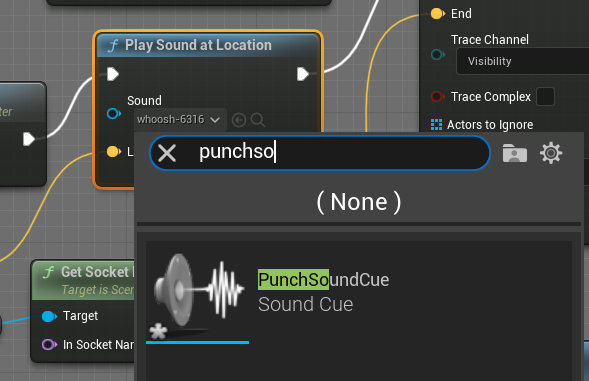

Change the sound in play sound node:
