Locomotion

Auto Navigate (teleport+locomotion)



Set NAVmesh bound
Create BP Character, name as AutoNavigateCharacter

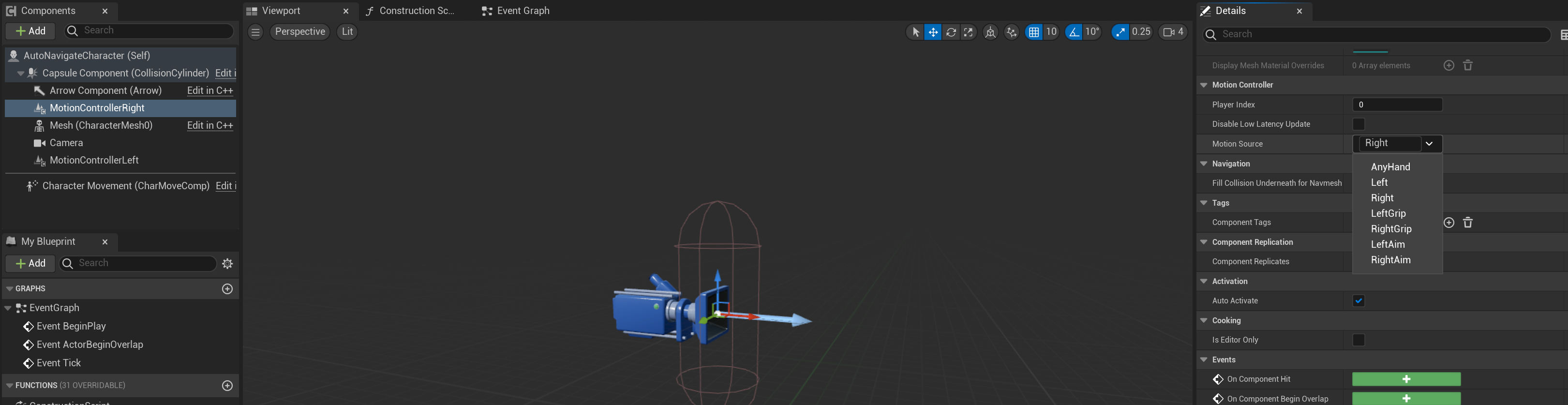

Add component camera, motioncontroller left and right

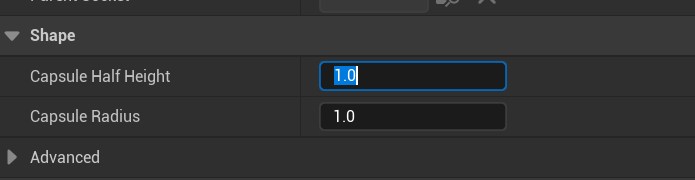

set capsule height and radius to 1 (let player close to correct height while still have collision)
To event graph:

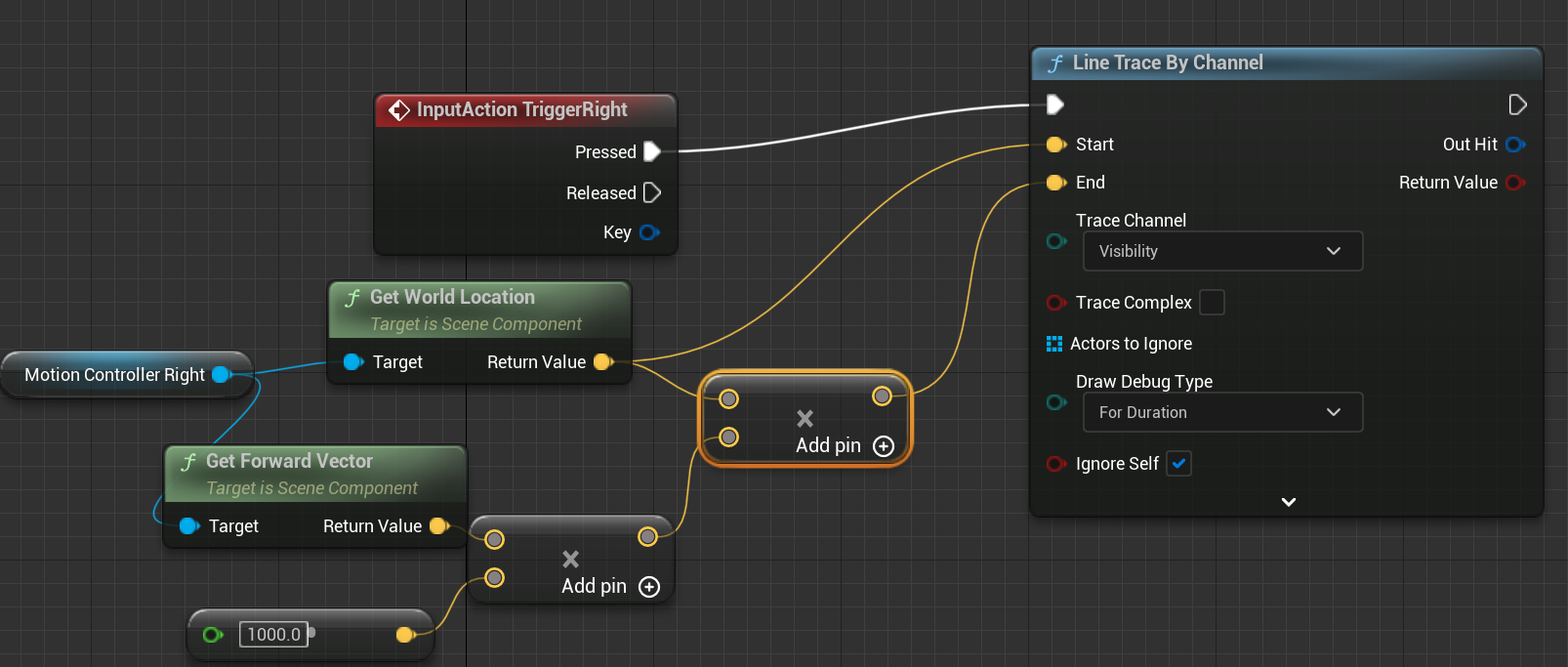

node value 1000 by typing To Vector (float)

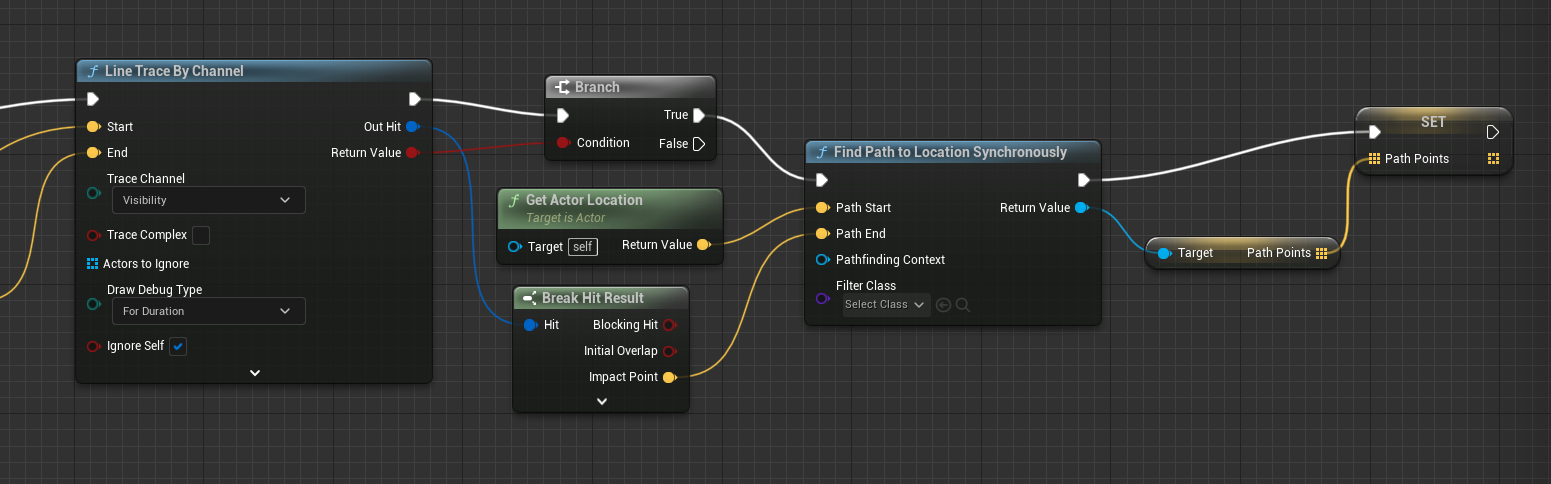

Continue to make the path for finding navigation:
Get Path Point, then promote variable to SET path points

Create a function, called Navigate
To navigate from current point to target point, by using the path found above

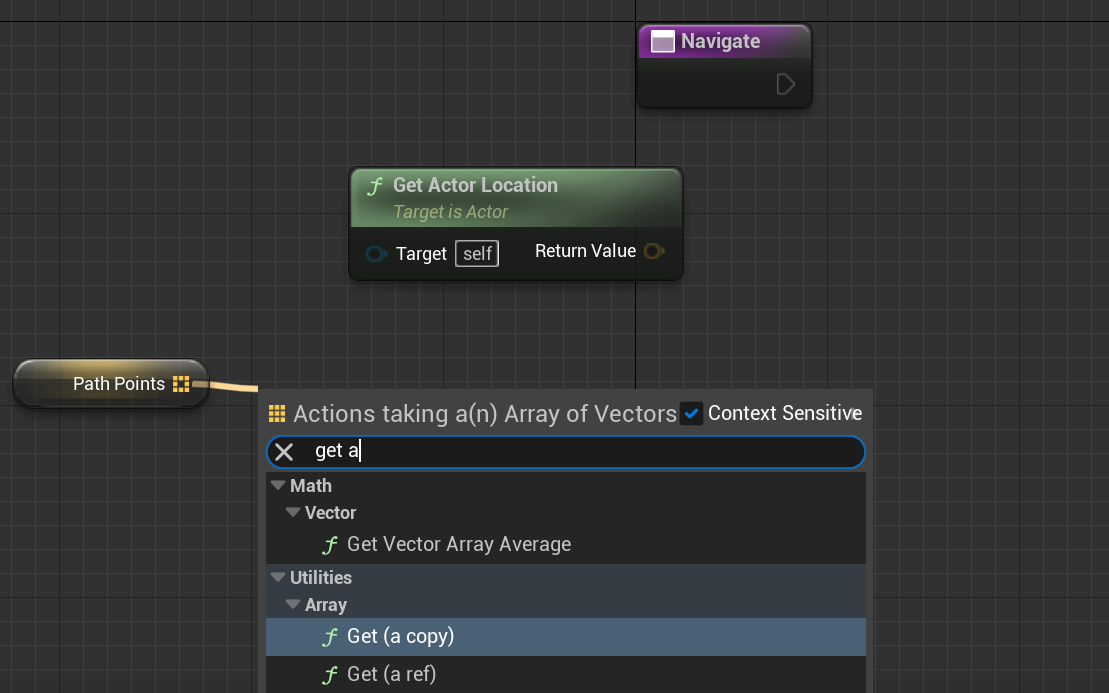

GET node by get a copy from path points node

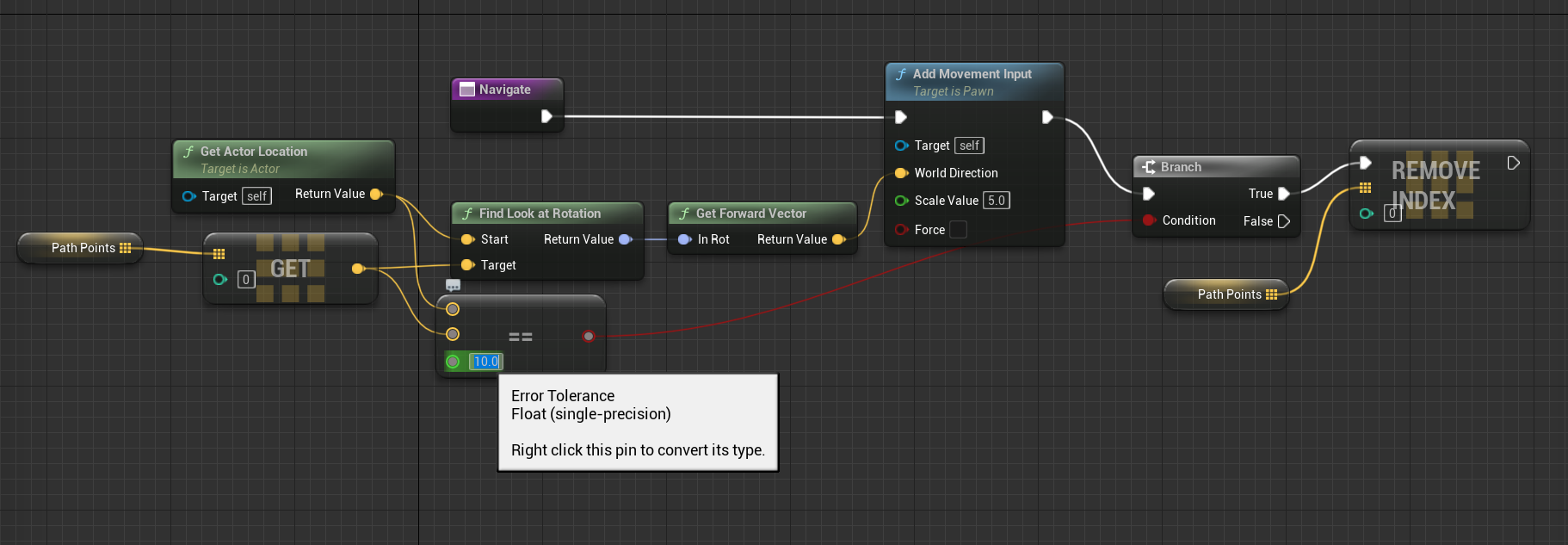

Continue (Scale value determine how fast it moves to the point)
Error tolerance as 10, mean the leniency between 2 values

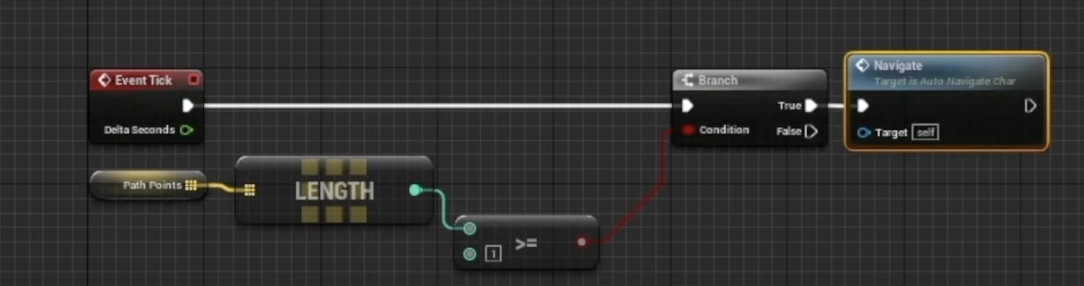

Back to event tick
Set >-= value greater than 1

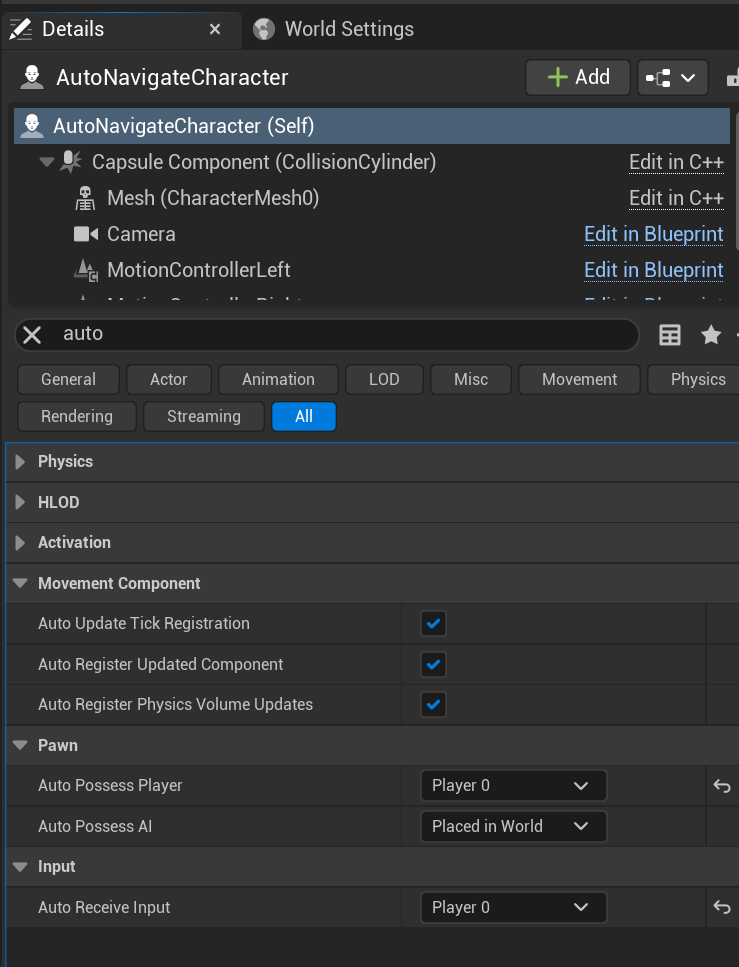

Drag the BP in scene, set player 0
