Design Process

Below is the design process for your outdoor design.
We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!

Design Waivers

1️⃣ Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.
2️⃣ Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Client must obtain landscape plan to verify specific plant species and sizes.
3️⃣ Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.
4️⃣ Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.

Current


Version 1

Updated 1-14-25

Layout


Moore V13-6.jpg

Renderings

Click preview to enlarge images 🔎 Click
to download full resolution images.
2_11 - Photo.jpg
2_12 - Photo.jpg
2_16 - Photo.jpg
2_17 - Photo.jpg
2_5 - Photo.jpg
2_6 - Photo.jpg
1_1 - Photo.jpg
2_7 - Photo.jpg
2_8 - Photo.jpg
2_9 - Photo.jpg
2_10 - Photo.jpg
1_2 - Photo.jpg
2_13 - Photo.jpg
2_14 - Photo.jpg
2_15 - Photo.jpg
2_18 - Photo.jpg
2_3 - Photo.jpg
2_19 - Photo.jpg
2_21 - Photo.jpg
2_20 - Photo.jpg
2_4 - Photo.jpg
There are no rows in this table

Archive

Feasibility Study

Primary Structure Setbacks:
25' from front yard property line
8' from side property lines
10' from rear property line
Accessory Structures Setbacks (Pergolas, Cabanas, Kitchens):
3' from side and rear property lines. Must be 10' away from Primary Structure.
If there is not ten foot of separation between the Accessory Structure and the Main Use, then the accessory must meet primary structure setbacks described above and in the ordinance.
Swimming Pool and Spa Setbacks (Measured from the water's edge):
10' from the rear property line
8' from the side property lines
Paver Setbacks:
3’ setback from property lines
Max Lot Coverage by Impervious Surface Area:
70%
HOA Restrictions: N/A
All improvements east of the coastal construction control line require DEP approval

Sun Study

Loading…

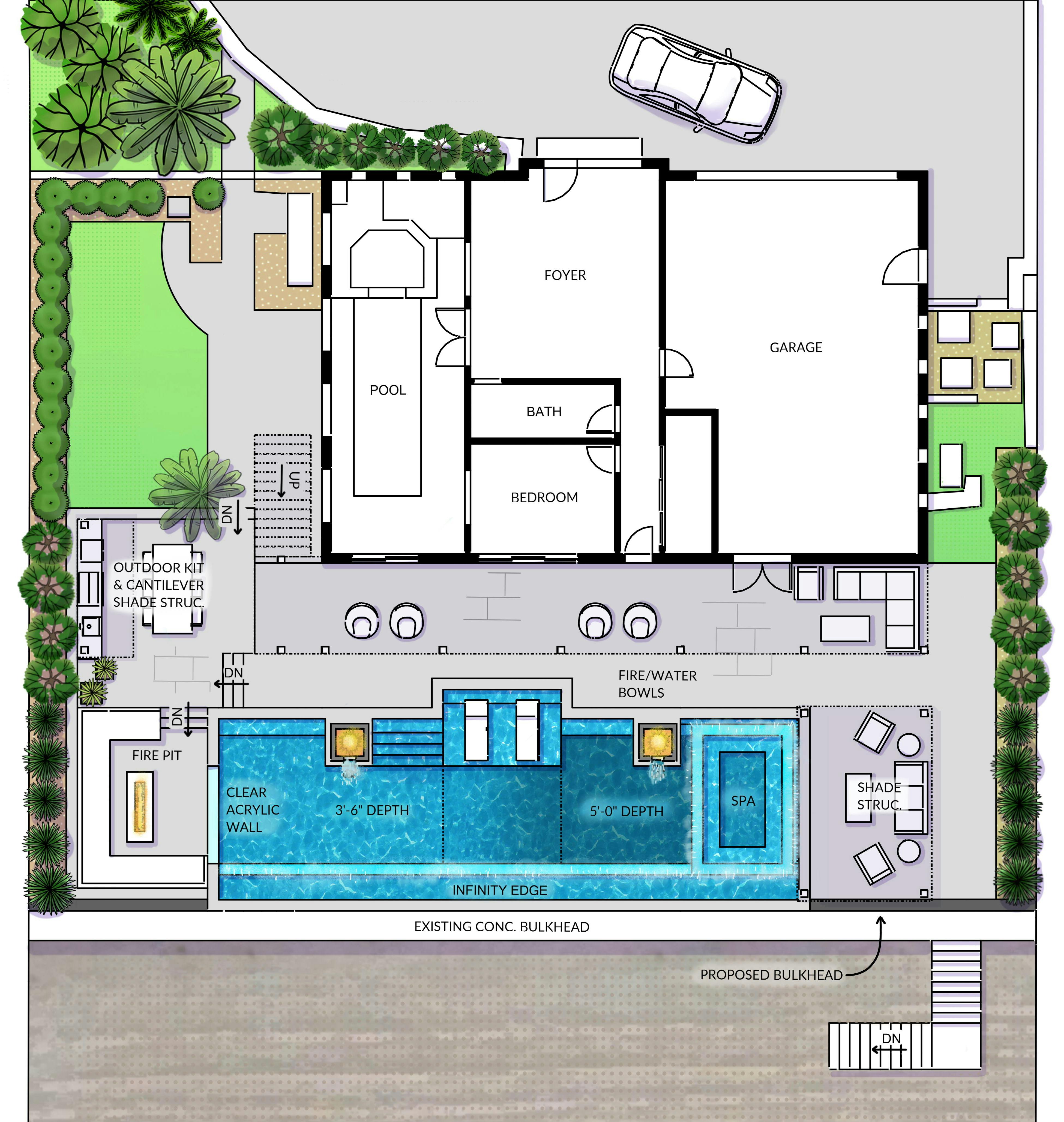

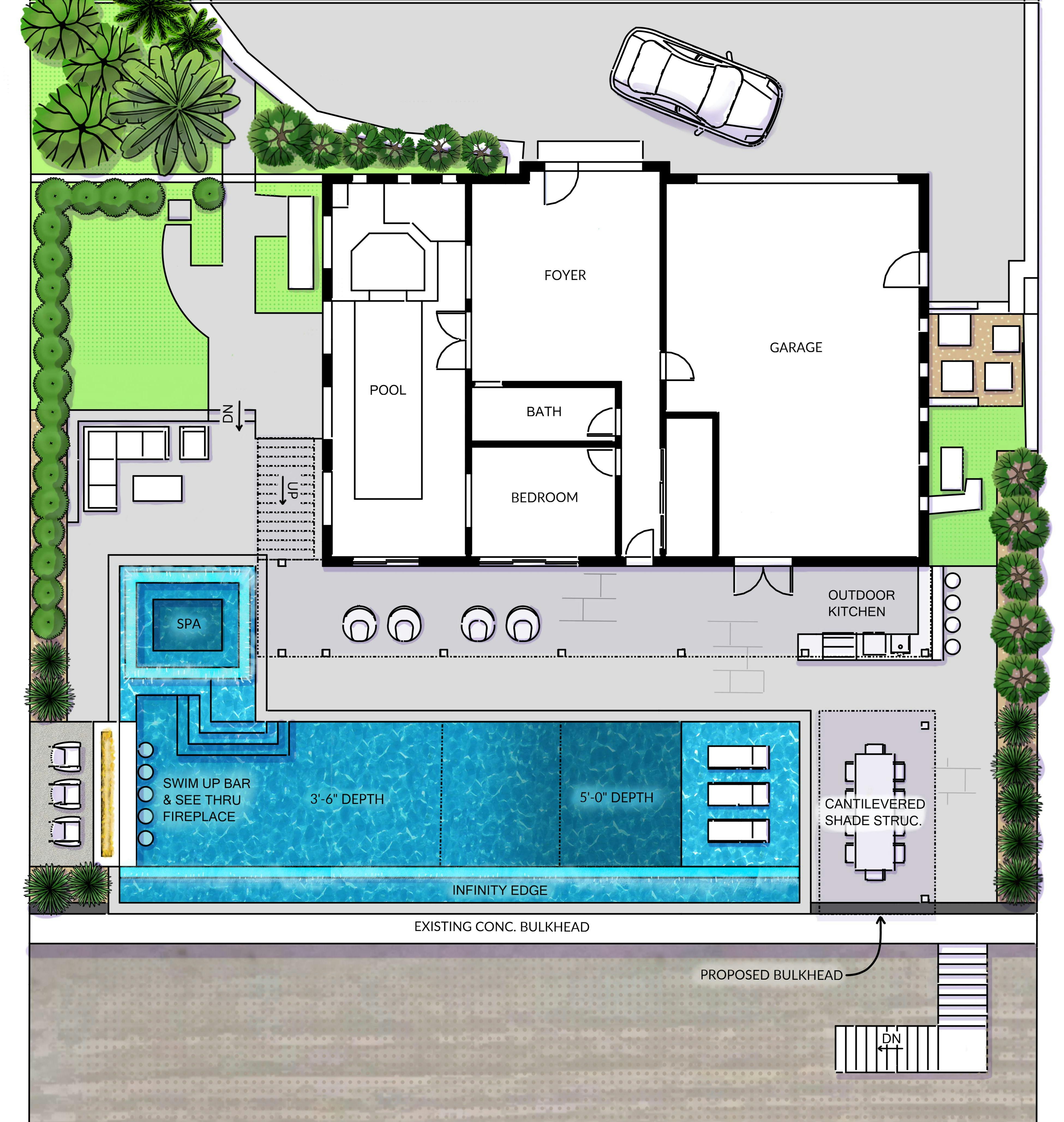

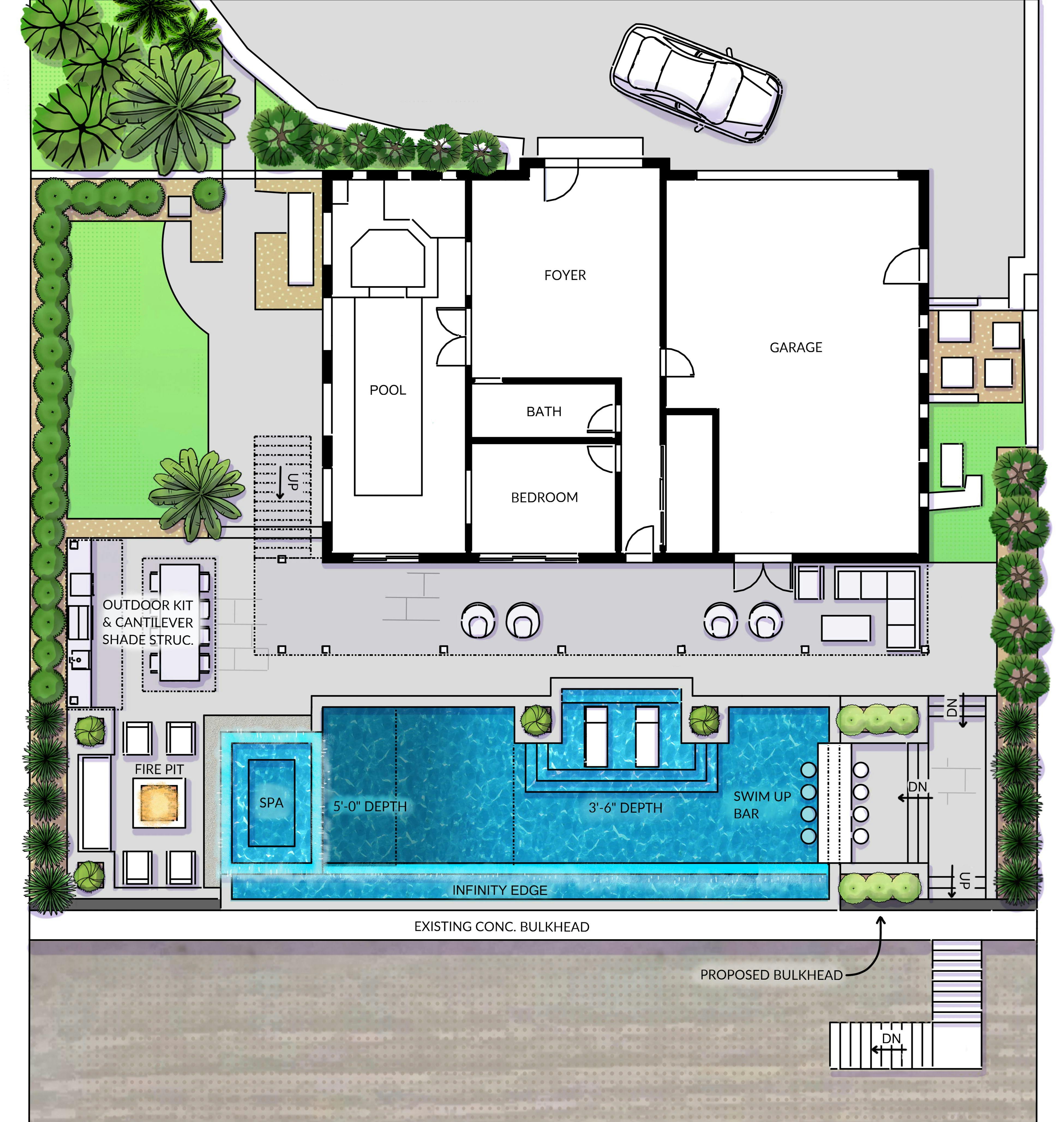

Preliminary Layout

Concept A


Concept B


Concept C


Concept D

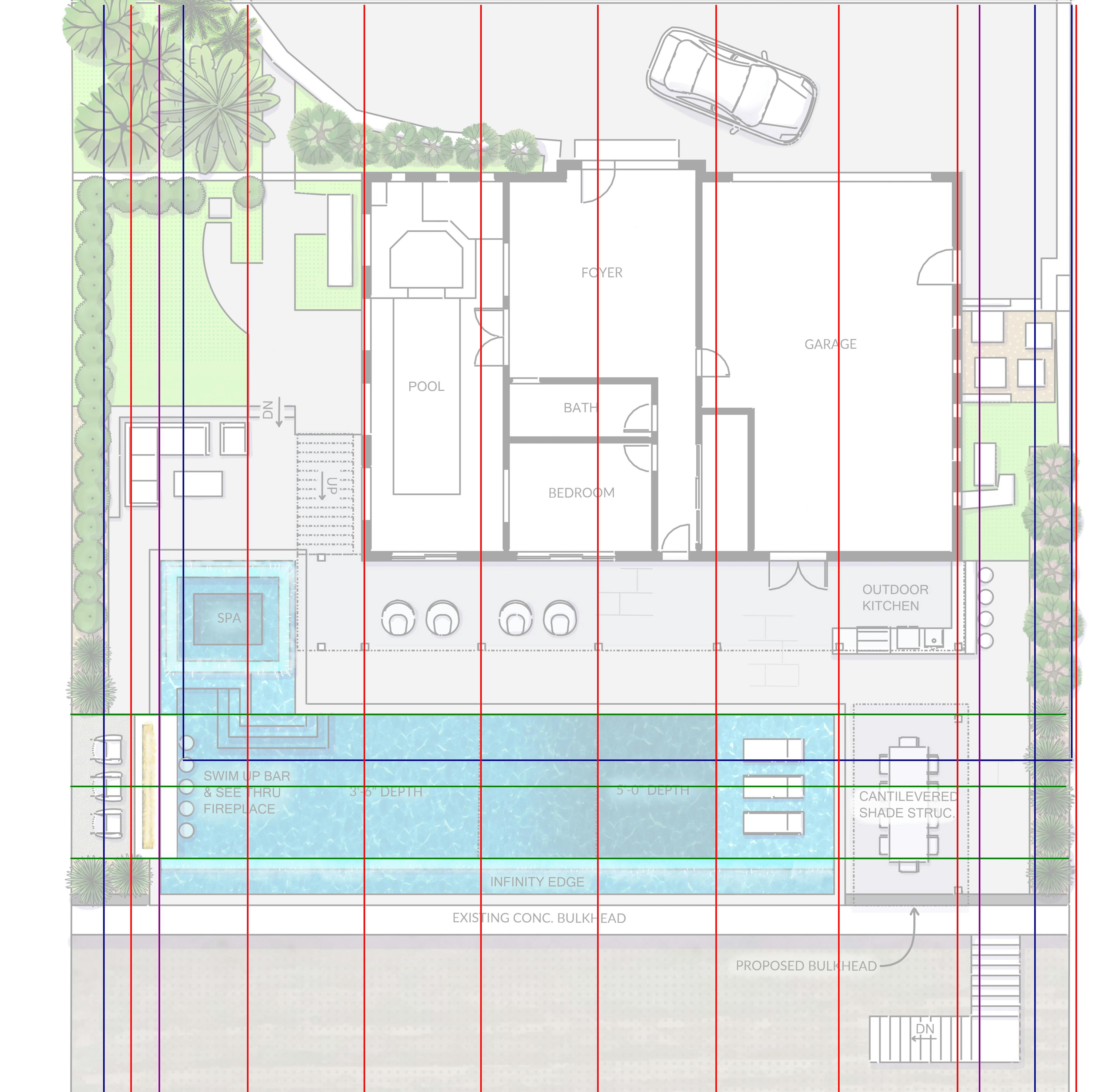

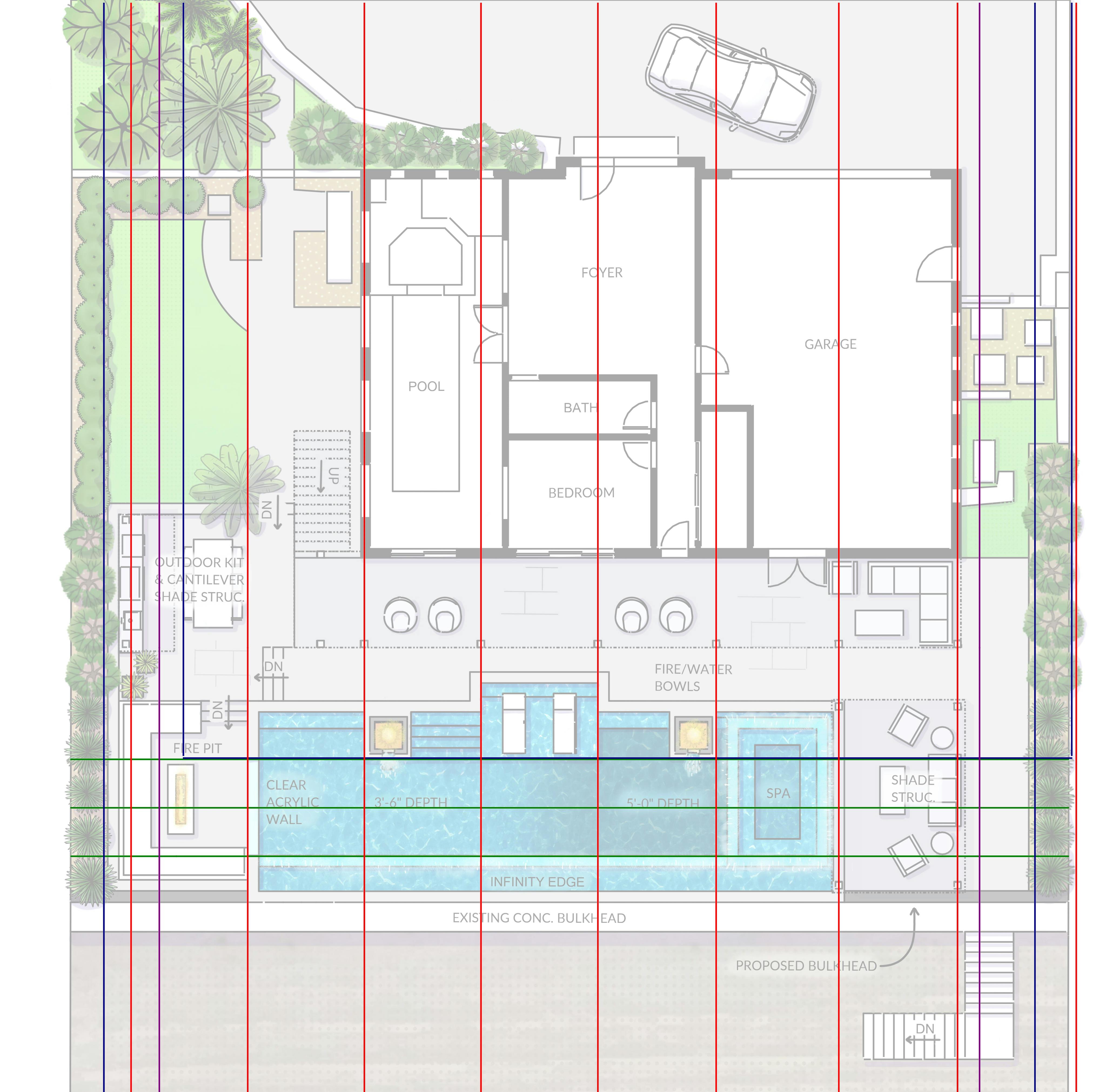

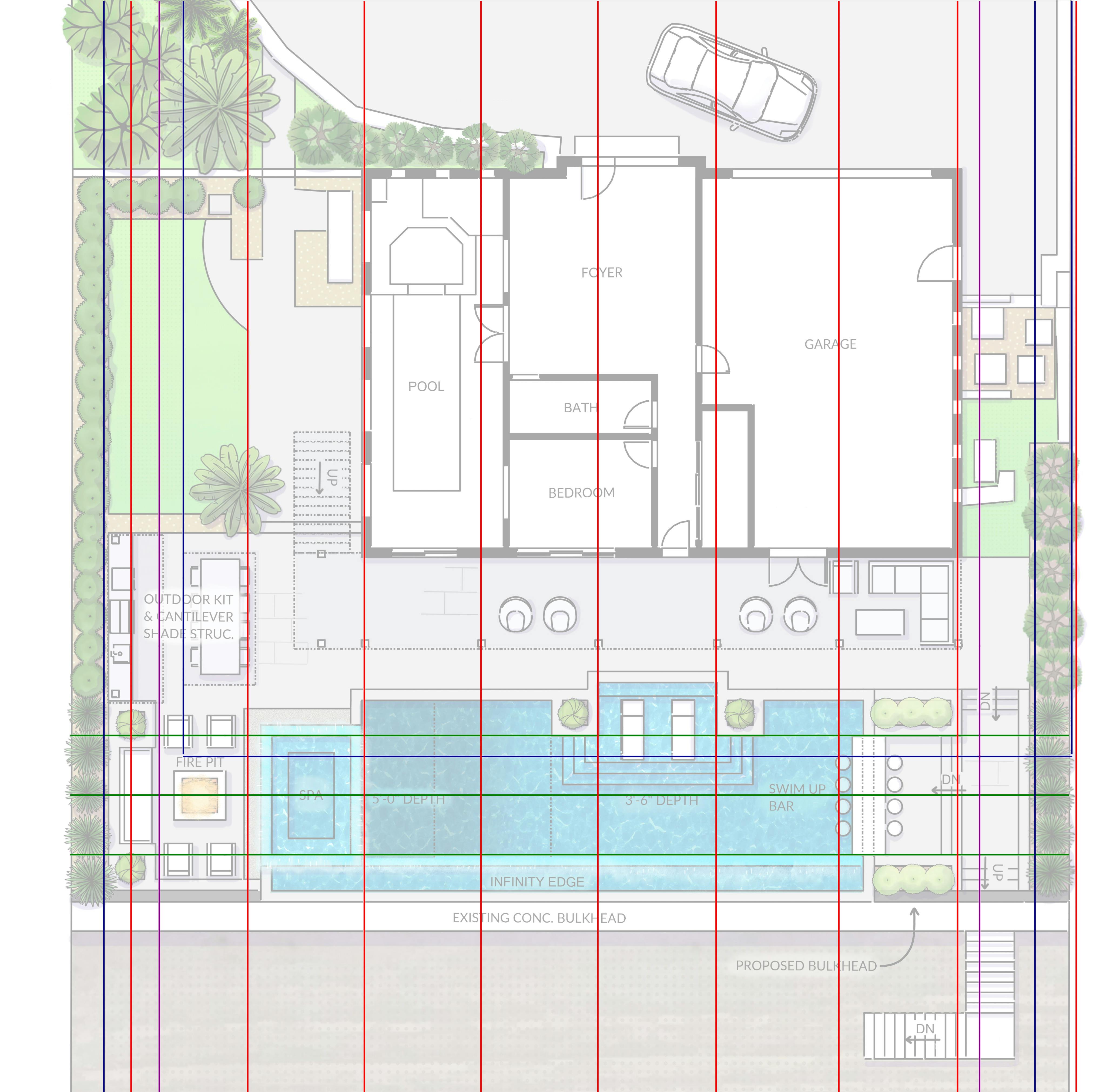

Alignments
