Front - 25’Rear - 25’Sides - 10’35’ or no taller than existing home15'Sides - 3’Rear - 3’TBD40 percent45 percent
Design Process
Below is the design process for your outdoor design.
We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!
Design Waivers
Scope of Work Waiver: The design presented is conceptual in nature and does not define the final scope of work. Refer to your approved invoice on Buildertrend for a complete and accurate description of your included scope of work. Features or elements depicted in the design that are not specifically included in the approved invoice are not part of the contracted scope, regardless of their appearance in renderings or drawings.
Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.
Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Landscape plan will verify specific plant species and sizes.
Survey Waiver: The design presented is based on the survey information provided by the client. Tree locations, topography, and other site-specific details are subject to verification and may require adjustments to ensure accuracy in implementation. Any discrepancies in the survey data could impact final design elements.
Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.
Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.
Feasibility Study
Zone Type: PUD
Setbacks for Any Permanent Construction (Primary, Accessory Anything with Footings or Decks on top of retaining walls)
Max Height for Primary Structures
Max Height for Accessory Structures
Paver Walkway Setbacks
Pool Deck & Paver Patio Setbacks (Must not be on Retaining Wall)
Max Lot Coverage by Buildings
Max Impervious Surface Ratio
Shade Study

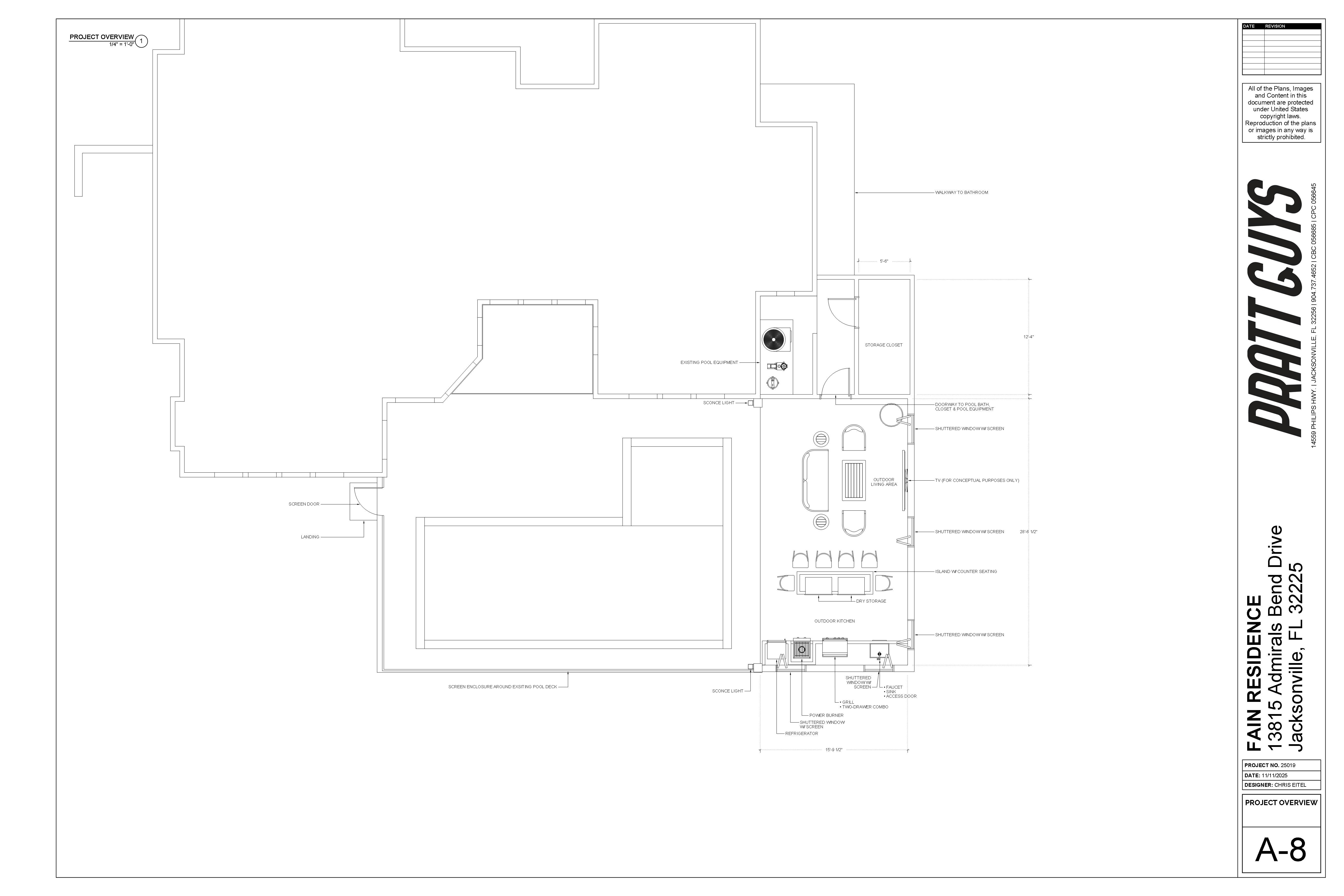

Layout (11/12/2025)

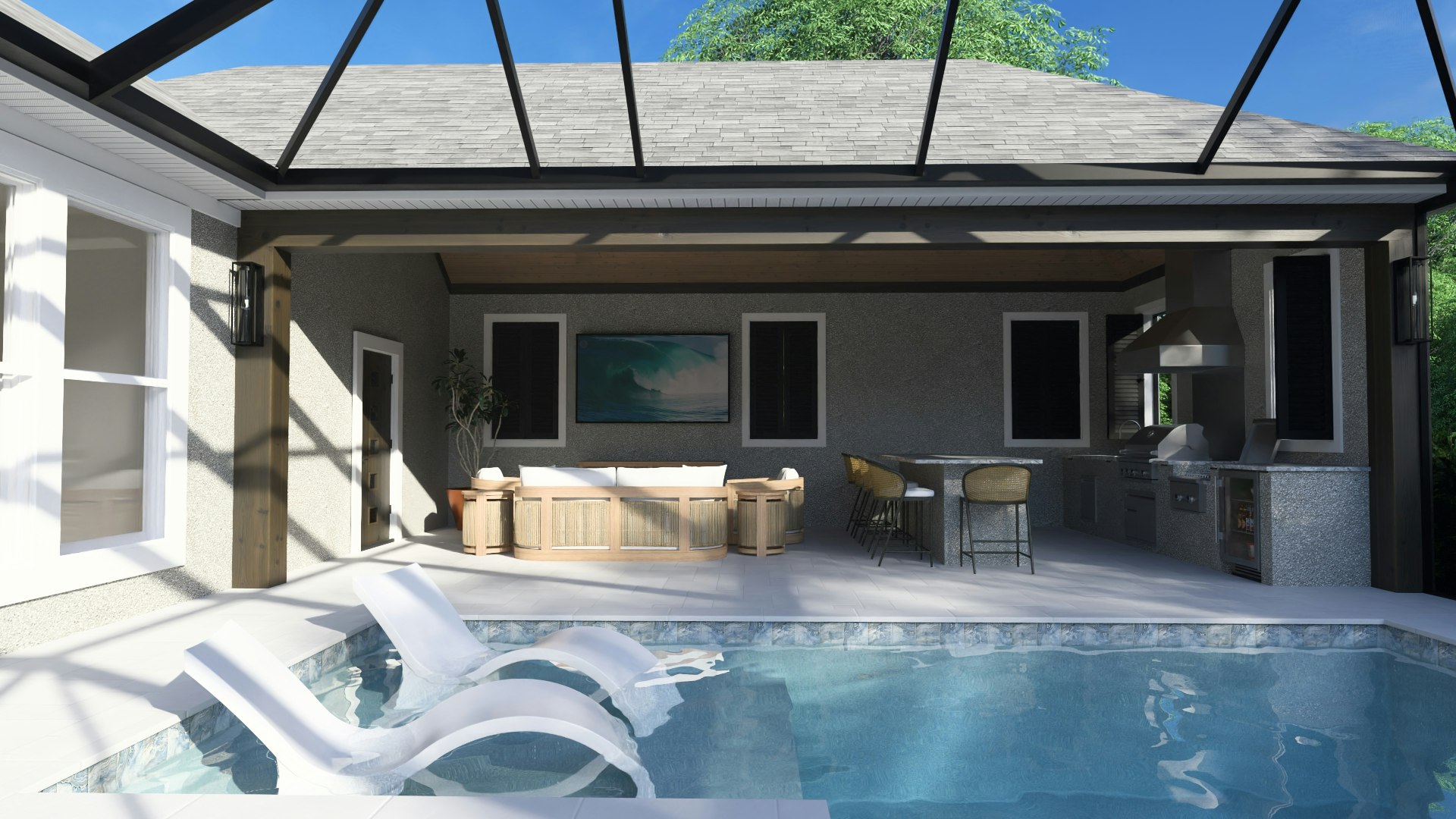

Renders
There are no rows in this table
Archived Designs (11/11/2025)
Renders - Dark Trim Option
There are no rows in this table
Renders - White Trim Option
There are no rows in this table
Archived Designs (From 11/04/2025)
Below, please find two design options. The screen enclosure and cabana (roof structure) in each option are the same dimensions and general shape. Each option also has a large living/lounging area.
Option - 1
The first option features a U-shaped kitchen with peninsula seating. This kitchen layout allows for a doorway to the pool equipment, bathroom and storage closet, without having to leave the covered structure. This option also provides a clear delineation between the living and kitchen areas. It does, however, come with a couple of disadvantages. First, placing the grill on the outside wall necessitates closing in part of the structure, as the grill hood needs a wall behind it. Second, the storage closet in this option is also rather smaller than the Option - 2.

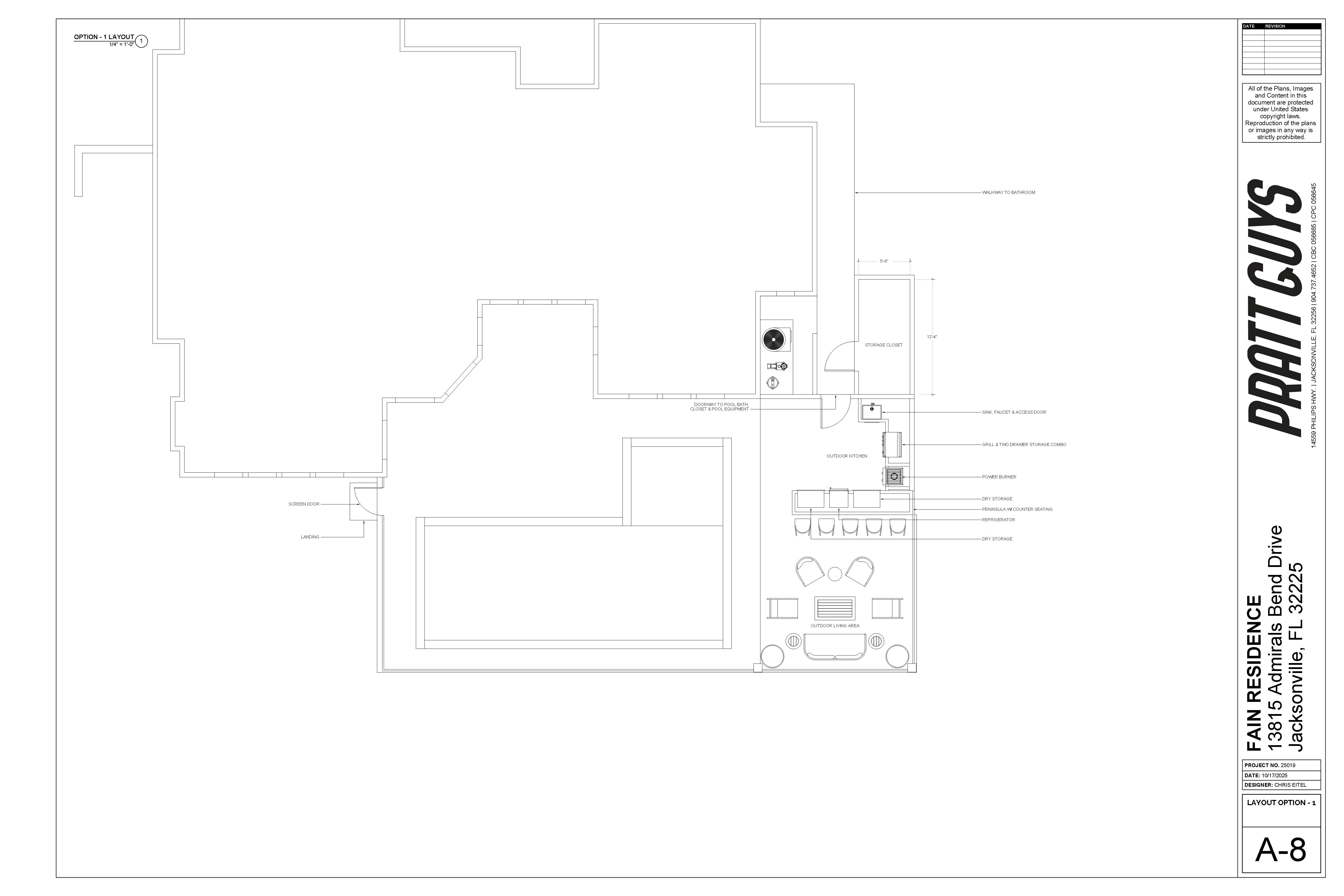

Option - 1 Layout
Option - 1 Renders
There are no rows in this table
Option - 2
The cabana in this second option features an outdoor kitchen with the grill centered on the peak of the cabana ceiling, and an island with counter seating. By centering the grill along the front wall, we were able to create a much larger storage closet, and keep the cabana completely open on the sides. This layout does come with the slight disadvantage of having to walk outside the screen to get to the bathroom, pool equipment and closet. A walkway with planters could make the walk a little more enjoyable.
Option - 2 Layout
Option - 2 Renders
There are no rows in this table
