Design Process

Below is the design process for your outdoor design.

We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!

⁠

Design Waivers

1️⃣ Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.

2️⃣ Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Client must obtain landscape plan to verify specific plant species and sizes.

3️⃣ Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.

4️⃣ Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.

⁠

Feasibility Study

Zone Type: PUD Main Takeaways: A detached garage is possible, and we will need to screen the pool equipment with landscaping

Primary Structure Setbacks:

20' from front yard property line (Legacy Pines Way Side)

20' from second front property line (Tribute Circle)

3' from rear property line (Alley Side)

5' from side property line (Western Line Against Neighbor)

Max Height for Primary Structures - 35'

Accessory Structure Setbacks (Pool, Spa, CMU Wall Fence, Outdoor Kitchen, Fire Pit, Rock Grotto, Detached Garage, Pool Equipment Pad)

20' from front yard property line (Legacy Pines Way Side)

10' from second front property line (Tribute Circle)

3' from rear property line (Alley side)

5' from side property line (Western Line Against Neighbor)

Max Height for Detached Accessory Structure - 22'

NOTE*: There is no minimum separation enforced between an accessory structure and a primary structure for this lot

DETACHED GARAGE NOTE:

Must be measured to setback from the furthest projection of the structure

Max Lot Coverage by Buildings

65 percent

Maximum Impervious Surface Ratio

N/A

ARCHITECTURAL GUIDELINES:

Shrubs used to screen pool equipment pad must be a minimum of 3-gallon, 24" tall

Roof pitch on primary structures must be 5/12 — Accessory Structure Roofs can have a 3.5/12 pitch

⁠

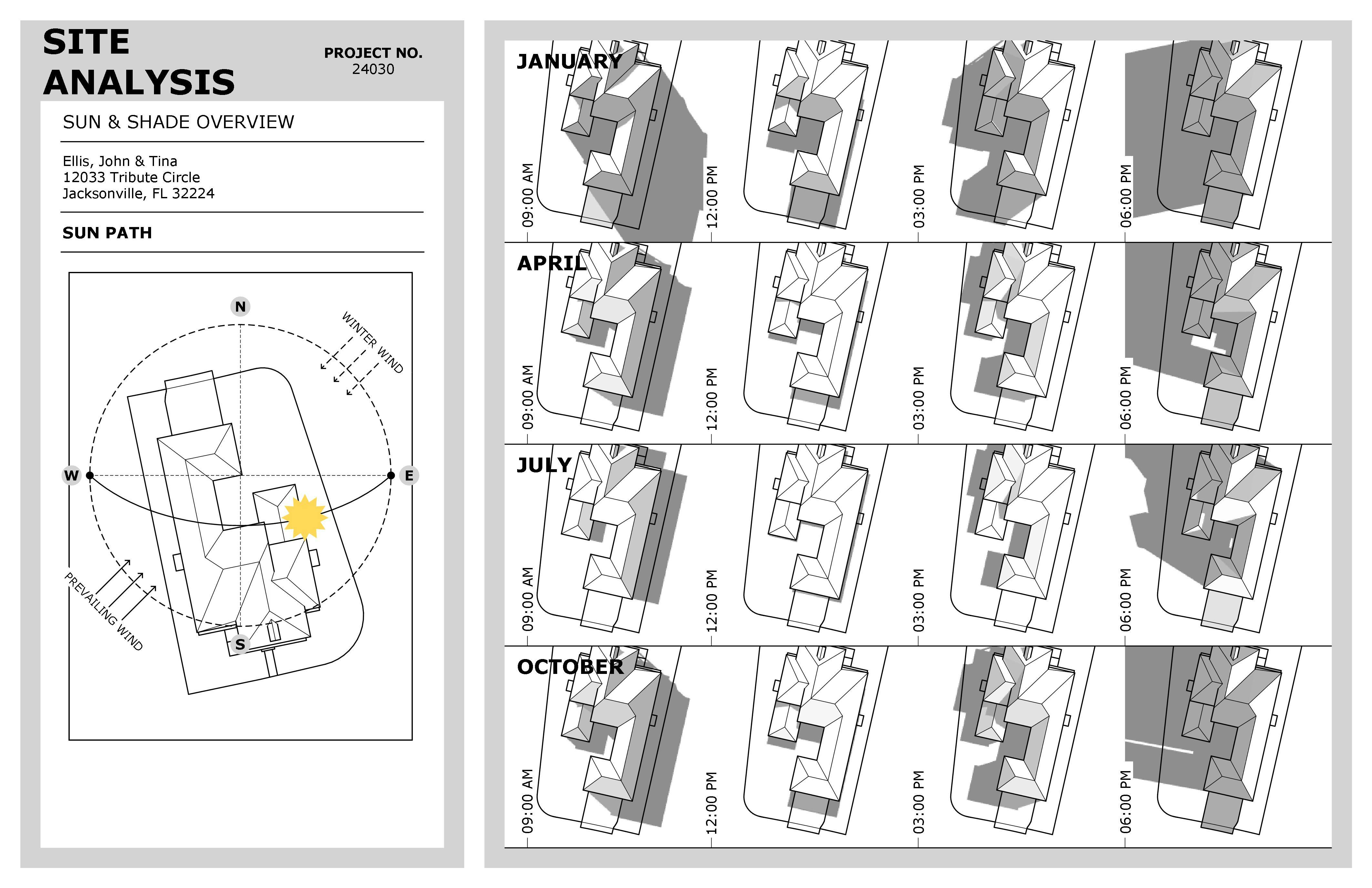

Sun Study

⁠

⁠

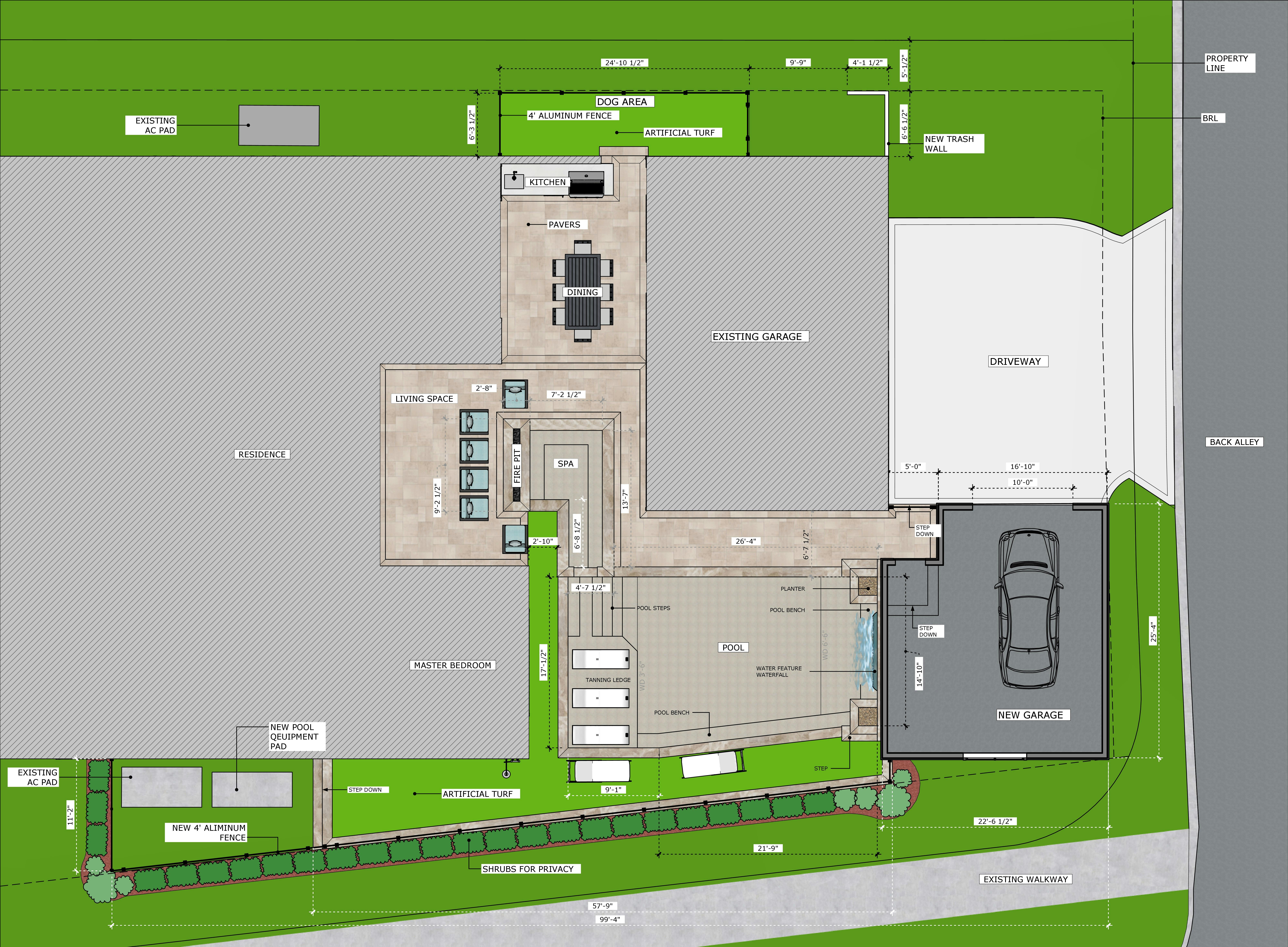

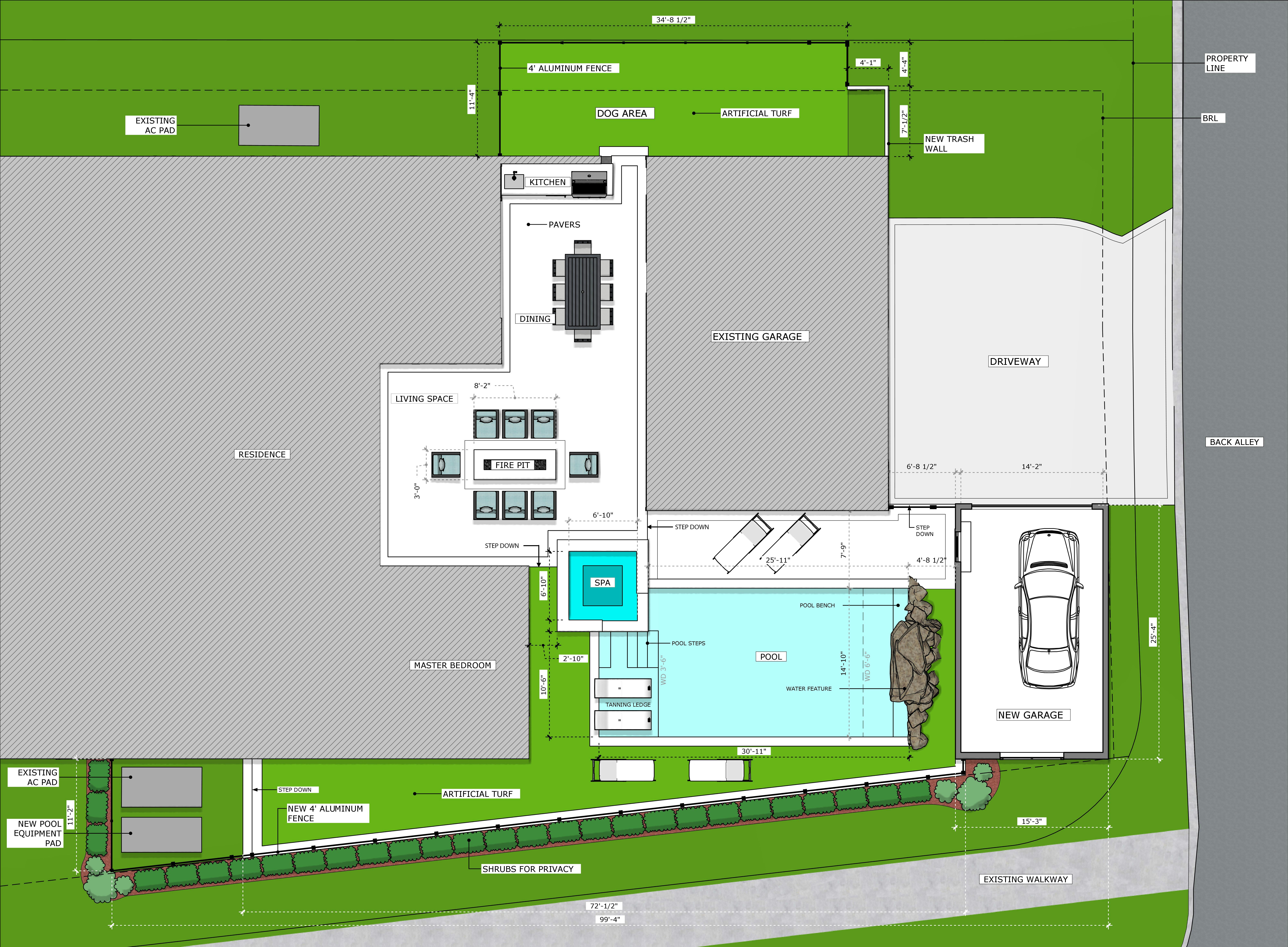

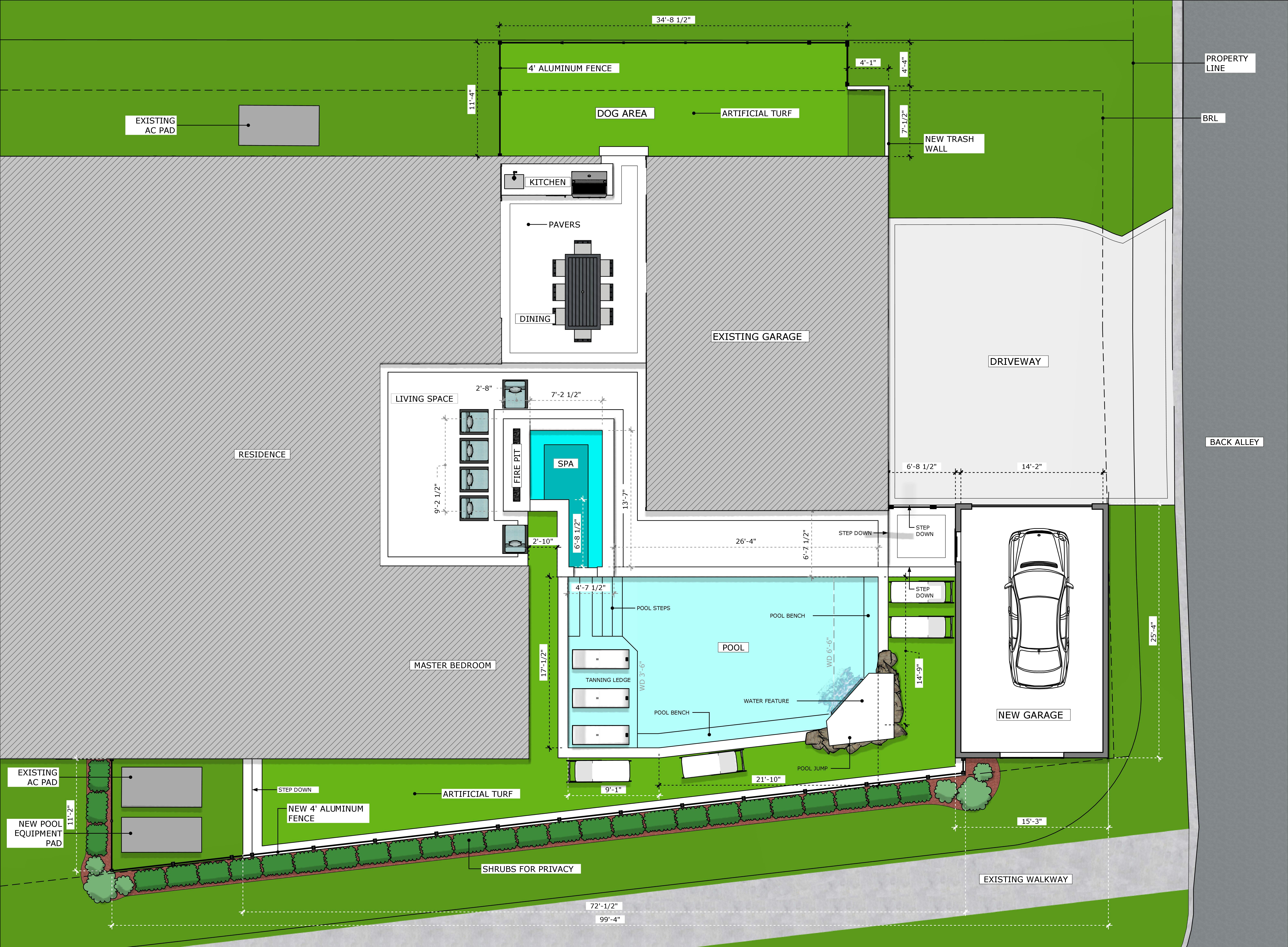

Preliminary Layout

CURRENT VERSION - 02.13.25

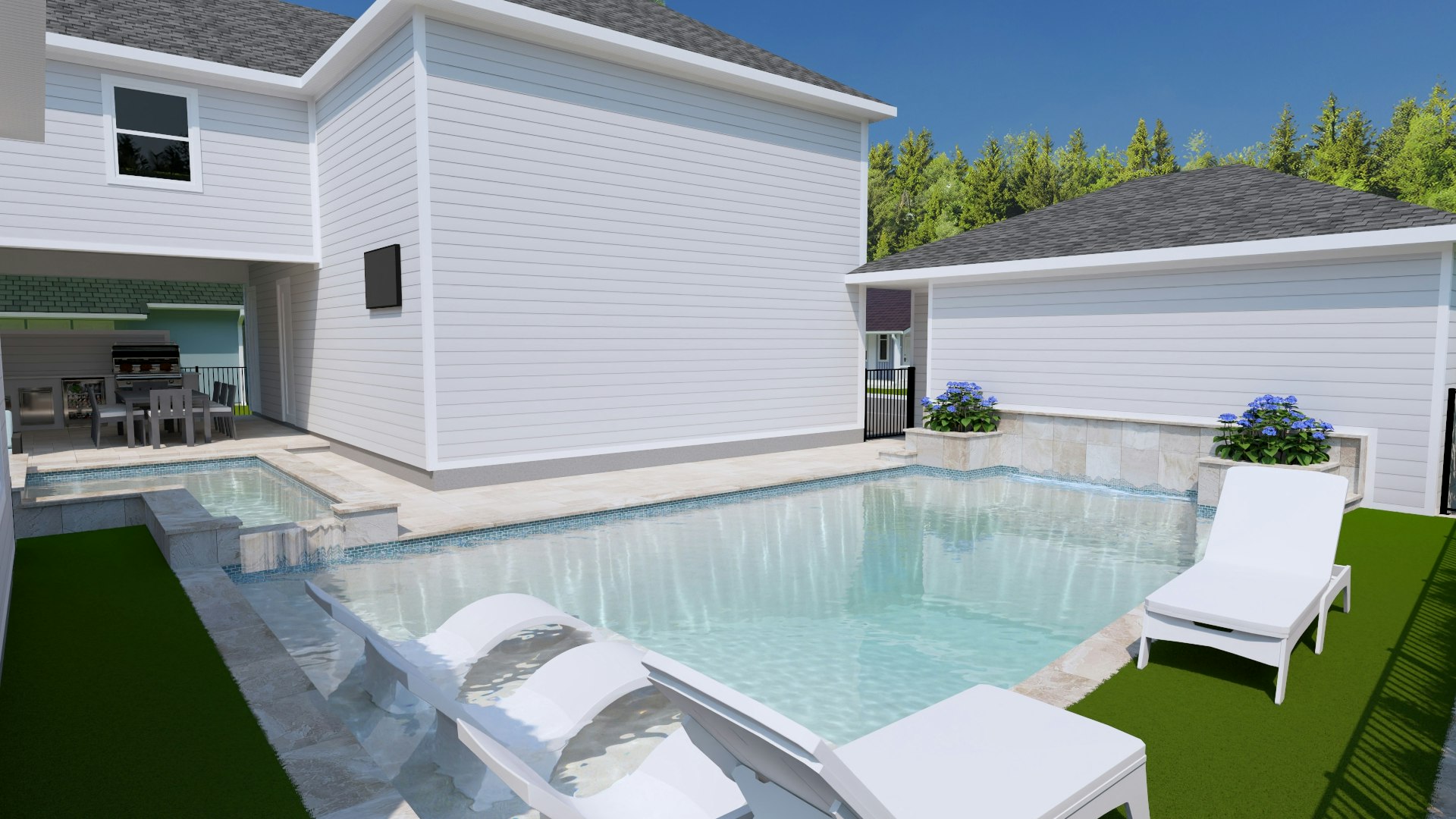

NOTE! - The layouts are not final! They most probably will need to be changed after we get that info from the HOA. Justin is on it. The renderings represent the two layouts, they just show how the materials look like.
