All images correctly portray my intent for the layout and structural design for my Backyard Design.All important structural information is included.Stated dimensions are correct.
Front Property Line15'Side Property Lines5'Rear Property Lines15'Corner Side Property Line15'Note that setbacks are measured from furthest projection of structure, not walls.Encroachment on easements is not permitted45' or no taller than height of the existing principal structureSide Property Lines3'Rear Property Line3'Corner Side Property Line15'Note that setbacks are measured from furthest projection of structure, not walls.Encroachment on easements is not permittedSide Property Lines5'Rear Property Line5'Corner Side Property Line15'Encroachment on easements is not permittedSide Property Lines5'Rear Property Line5'Corner Side Property Line15'Encroachment on easements is not permitted40'50'NoneNone
White Painted Brick (Paint Color: White Dove)Quartz Countertops & Backsplash (Isla Velvet)Traditional Framing w/ Cement Backer Synthetic Stucco Finish Niche for 65” TV (Paint Color: White Dove)Delta Heat 32" Gas Grill w/ RotisserieDelta Heat 18" Griddle Plate for Grill Delta Heat 32" Vinyl Cover for Grill Delta Heat 30" Door & Two Drawer Combo Delta Heat 18" Double Tall Trash DrawerTrade-Wind 40.5” Outdoor Vent Insert (12) AMP DescentPro Under Cap Hardscape Lights (Bronze)48" Cabo Square Concrete Gas Fire Pit (Limestone)(4) 1 Gang Outlets on Island (by Pratt Guys)
Design Approval
Below is the design approval for your outdoor design.
We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!
Design Approval Checklist
Refer to this checklist 📋 to make sure your drawings are error-free and designed just the way you want 💯. Please note, that we cannot release your Final Drawings without confirmation that these items are correct.
Design Waivers
Scope of Work Waiver: The design presented is conceptual in nature and does not define the final scope of work. Refer to your approved invoice on Buildertrend for a complete and accurate description of your included scope of work. Features or elements depicted in the design that are not specifically included in the approved invoice are not part of the contracted scope, regardless of their appearance in renderings or drawings.
Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.
Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Landscape plan will verify specific plant species and sizes.
Survey Waiver: The design presented is based on the survey information provided by the client. Tree locations, topography, and other site-specific details are subject to verification and may require adjustments to ensure accuracy in implementation. Any discrepancies in the survey data could impact final design elements.
Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.
Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.
Feasibility Study
Address: 100 San Cristobal Court, St. Augustine, FL 32095
County: St. Johns
Neighborhood: Palencia
Zone Type: Planned Unit Development (PUD)
Primary Structure Setbacks:
Max Height of Primary Structures:
Accessory Structure Setbacks (Structures without solid roof)
Accessory Structure Setbacks (Structures with solid roofs)
Paver Setbacks
Max Height of Accessory Structures:
Max Height of Spires, Cupolas, Monuments, Parapets and Chimneys
Max Lot Coverage by Buildings
Max Lot Coverage by Impervious Surfaces
Architectural Design Guidelines:
(Last Updated 3-31-26)

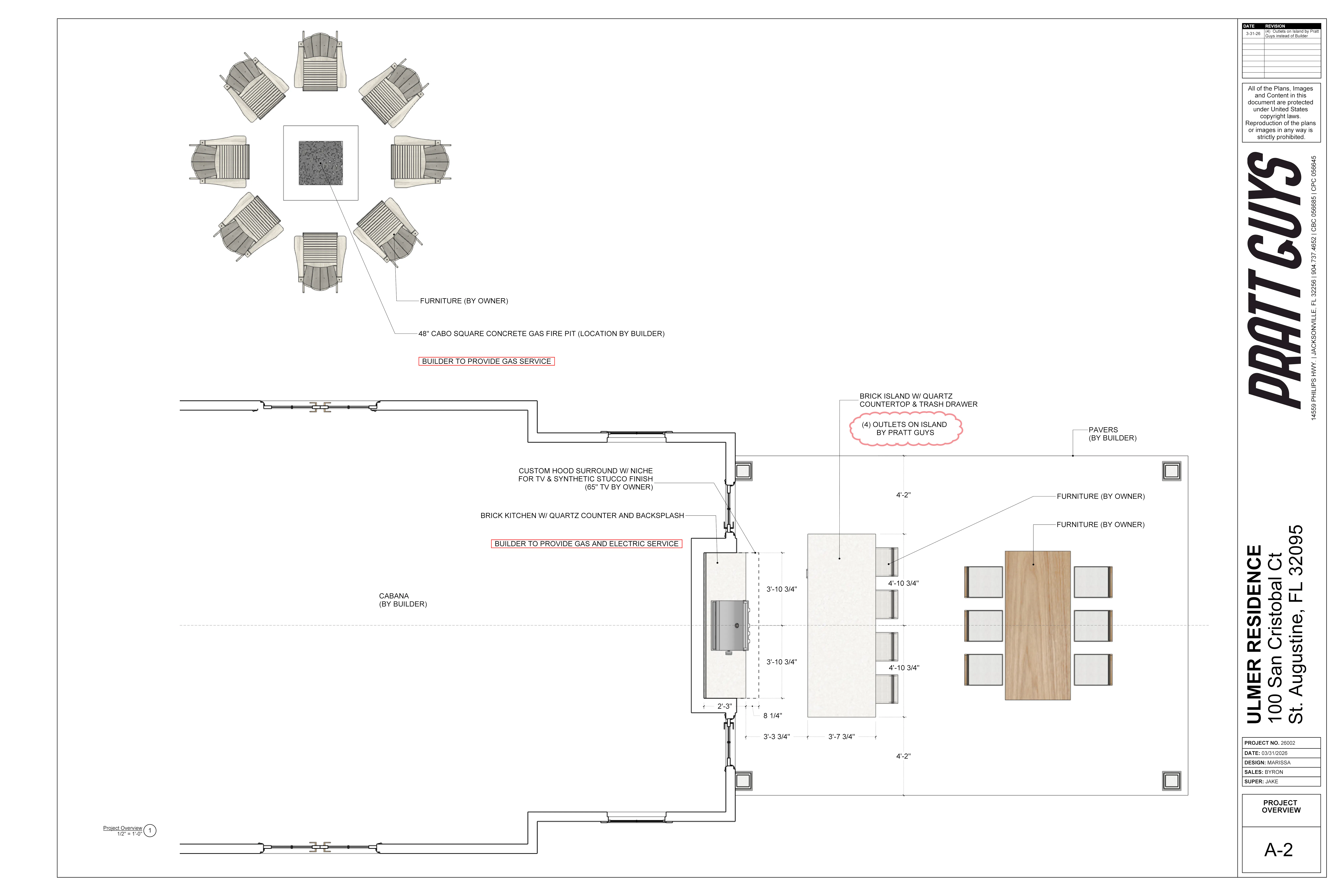

Project Overview

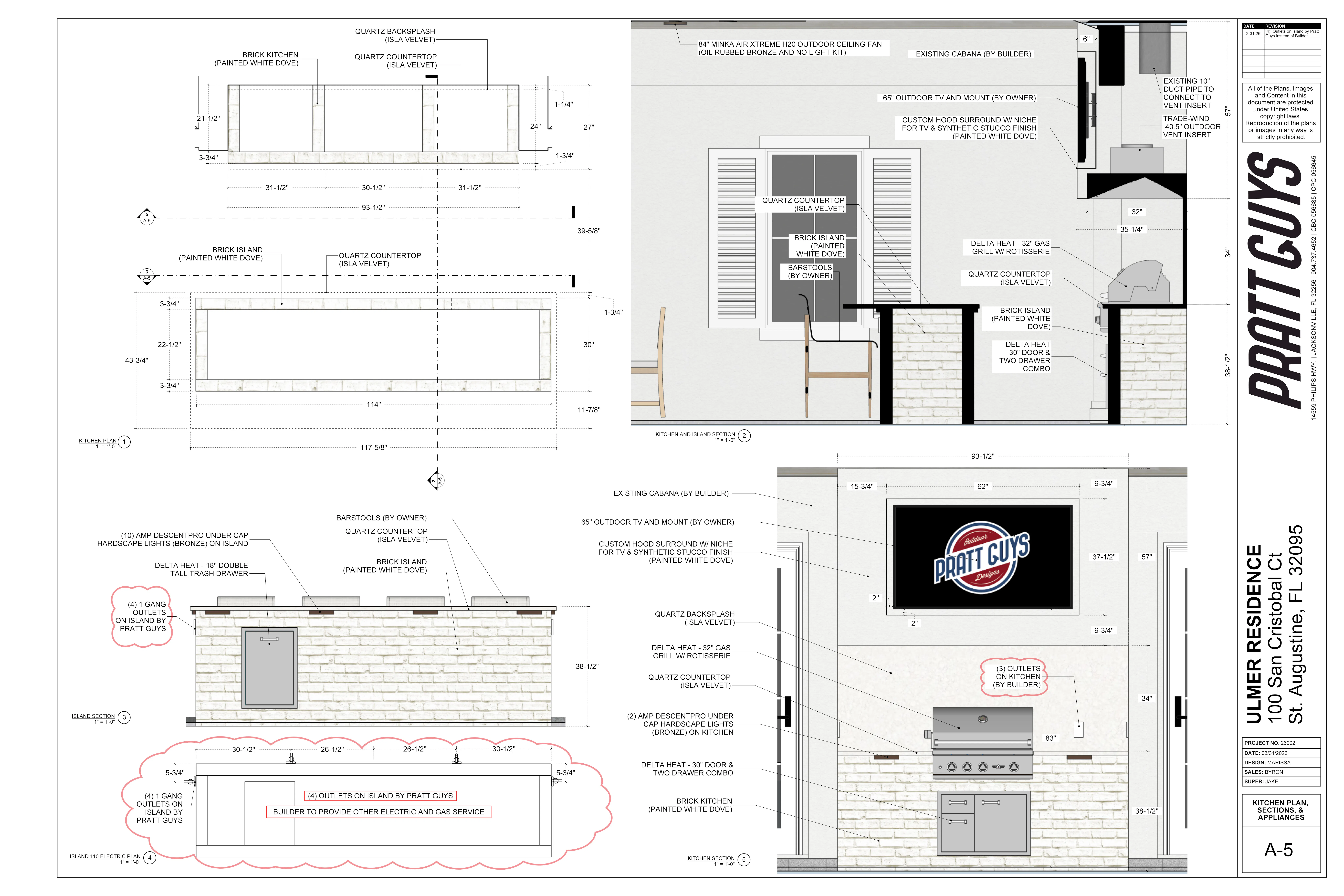

Kitchen and Island
Custom Hood Surround
Appliances

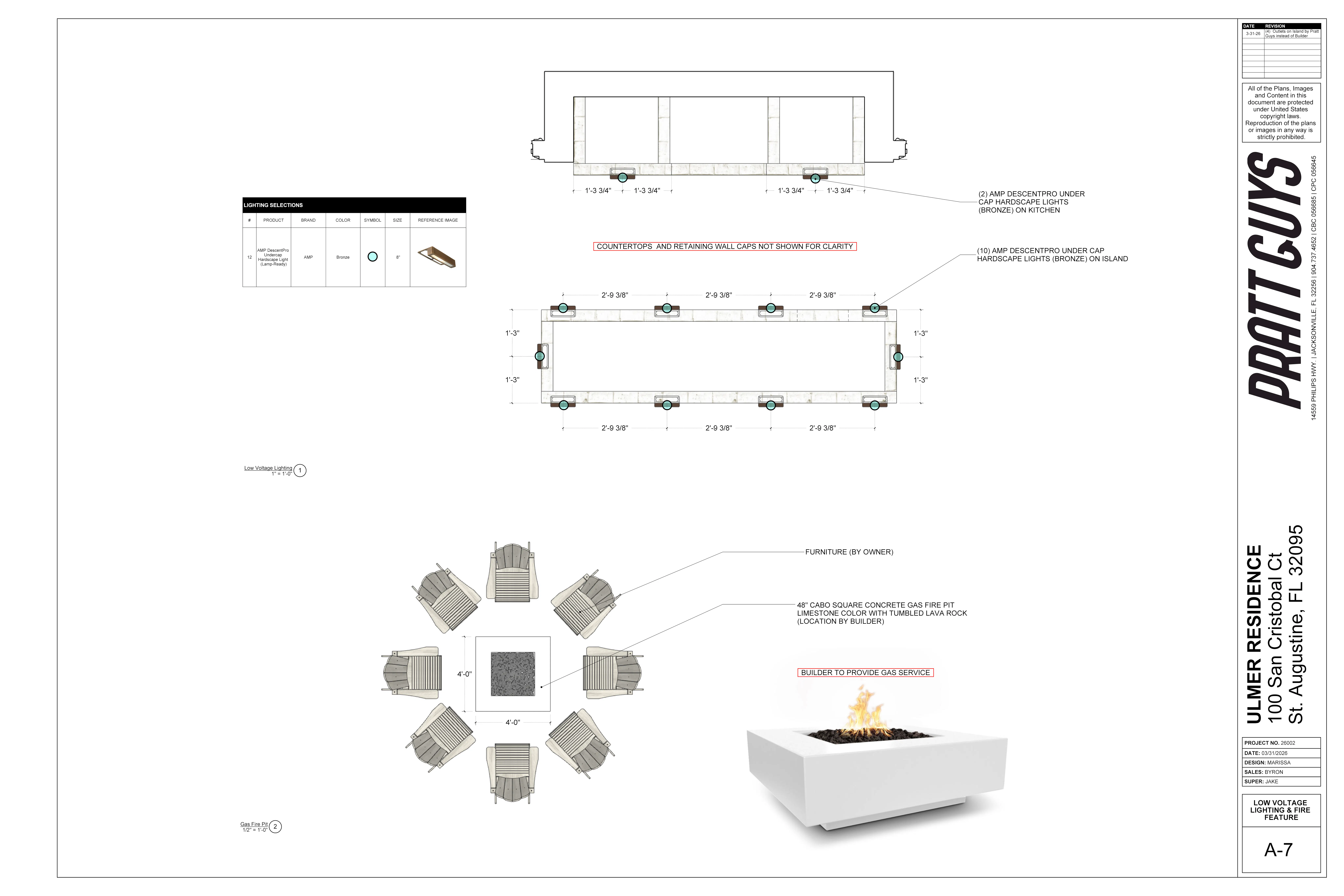

Low Voltage Lighting
Fire Pit
110 Electric
Kitchen
Low Voltage Lighting & Fire Pit

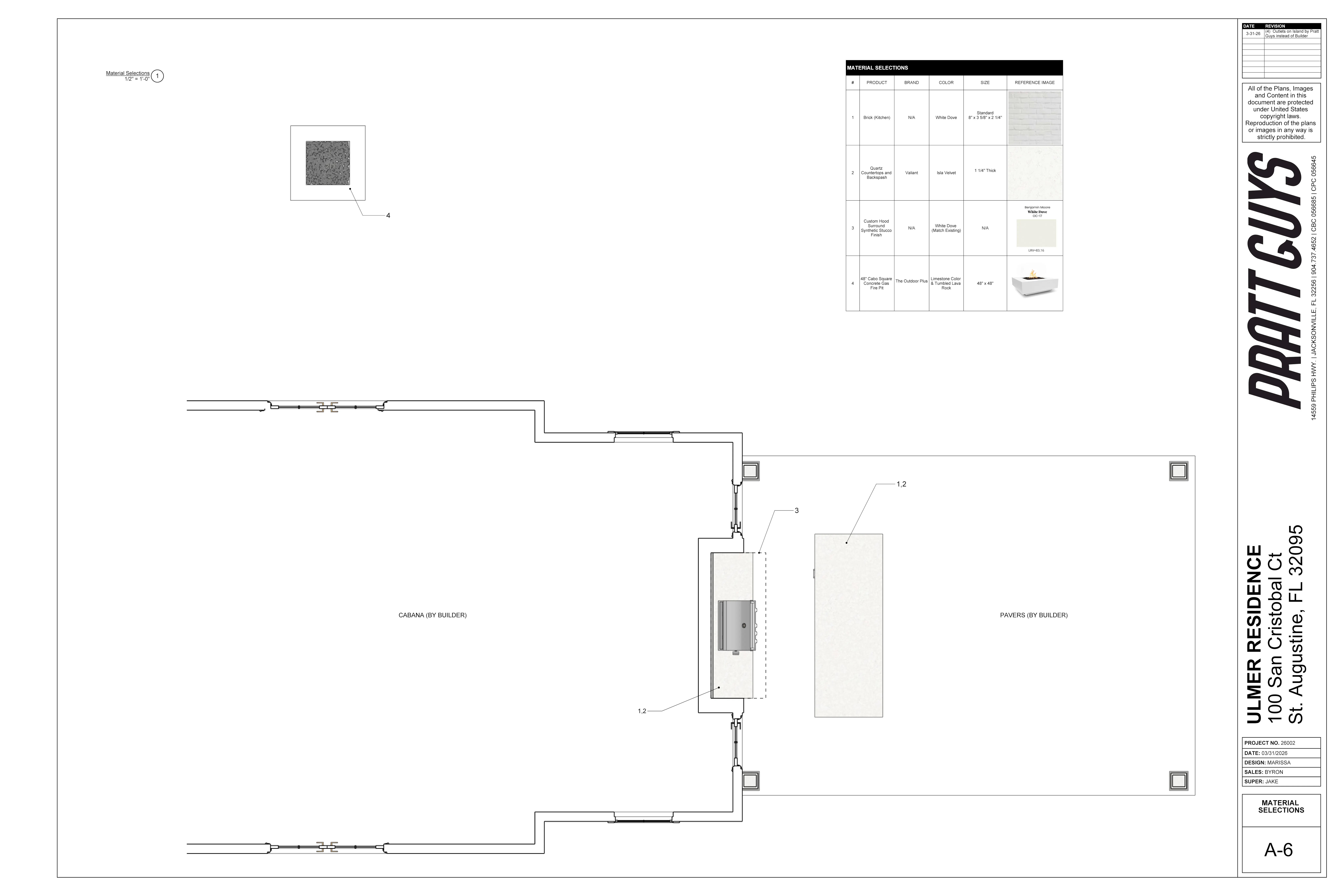

Material Selections
