Building Maps with UAS Data Using ArcGIS Pro
Overview
Cartography is one of the most important tools used in the UAS industry. Cartography can turn raw data from the drone into visual, accurate, and meaningful geographic information. Furthermore, these maps are created to support many professions such as engineering, agriculture, surveying, and many more. In this lab, we were introduced to the cartography capabilities in the ArcGIS Pro software.
Part 1:
There are many insights from spatial patterns from UAS data.
Part 2:
From the data we copied over answer the following questions related to that data:
Descriptive Statistics for the DSM dataset
Table 17
Band Name
Minimum
Maximum
Mean
Std. Deviation
Band_1
281.0470886230469
323.0886535644531
296.96691083562587
4.178350237820167
There are no rows in this table
Part 3: Creation of Maps using the Wolf Creek Data
To create the maps below, I was provided with a variety of data. I was given a traditional and multidirectional hillshade layer, an orthomosaic layer, elevation values, and ground control locations. Using these layers, I was able to create the maps listed below.

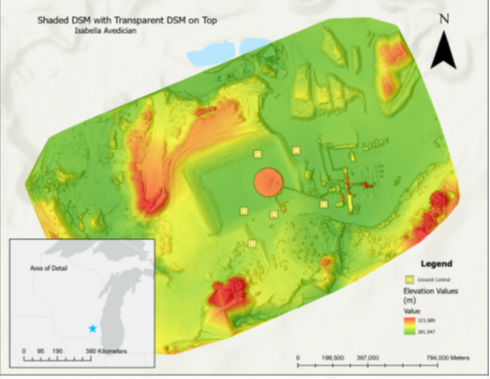

Figure 1. Shaded DSM with Transparent DSM on Top Locator Map

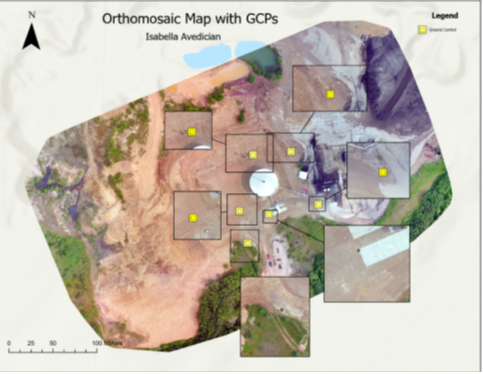

Figure 2. Orthomosaic Main GCP Detail Map

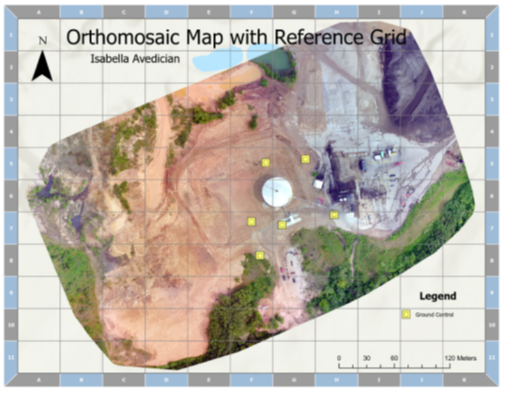

Figure 3. Orthomosaic Map with Reference Grid Map
Summary
The maps that were created in this lab are some of the most important geospatial products in the UAS industry. Orthomosaics show accurate surfaces and map imagery, DSM illustrates elevation on every surface, and utilizing Ground Control Points on a map shows the exact position used to georeference the drone’s data. Throughout this lab, we learned how to use the cartography capabilities available in the ArcGIS Pro software while also learning the importance of metadata, file and folder formatting, and answered questions that dived deeper into cartography. These skills are incredibly important not only to the UAS industry but also to many other professions.
