GAUSSIAN SPLATTING
BLENDER VERSION 4.5
all GS in blend. file could be found under this route:
Projekte\ATMOSPHERE VR\00 TEAM PRODUCTION\01.scan\Test20250924\GS_Interior\GS_Interior\FILES_REVIEW
GS FILE PREVIEW (24.09.2025)
Name
Original Files name
1-Pass Clean up
Performance
ScreenShots

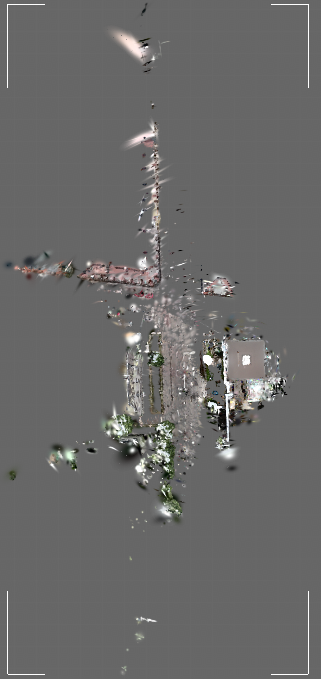

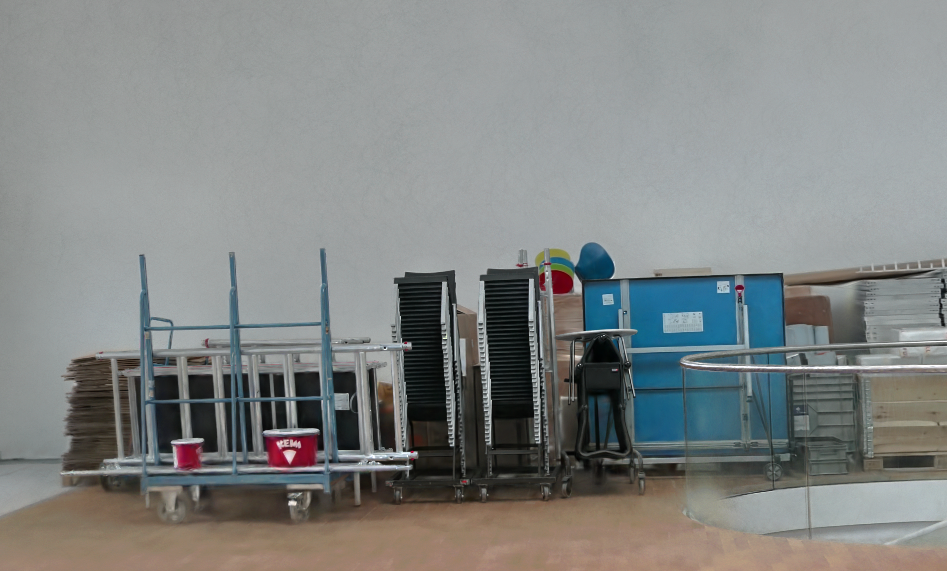

GaussianSplatting_INSIDE
int1m30-70k.ply (LOW)
54MB
fast, efficient but to less ply results in rough visuals
Open

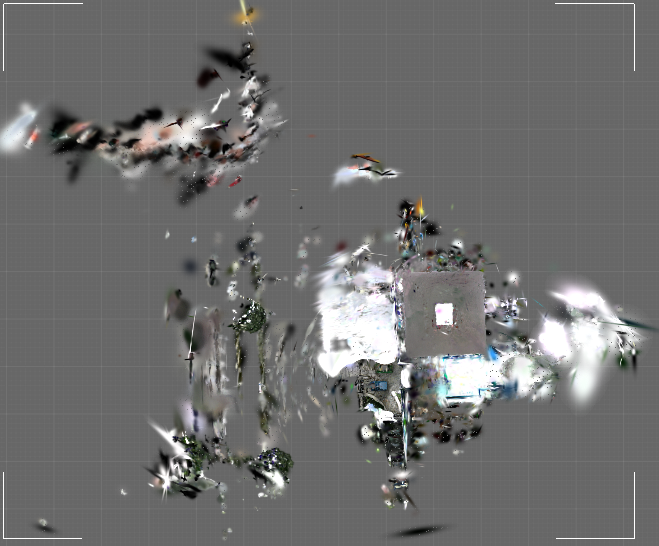

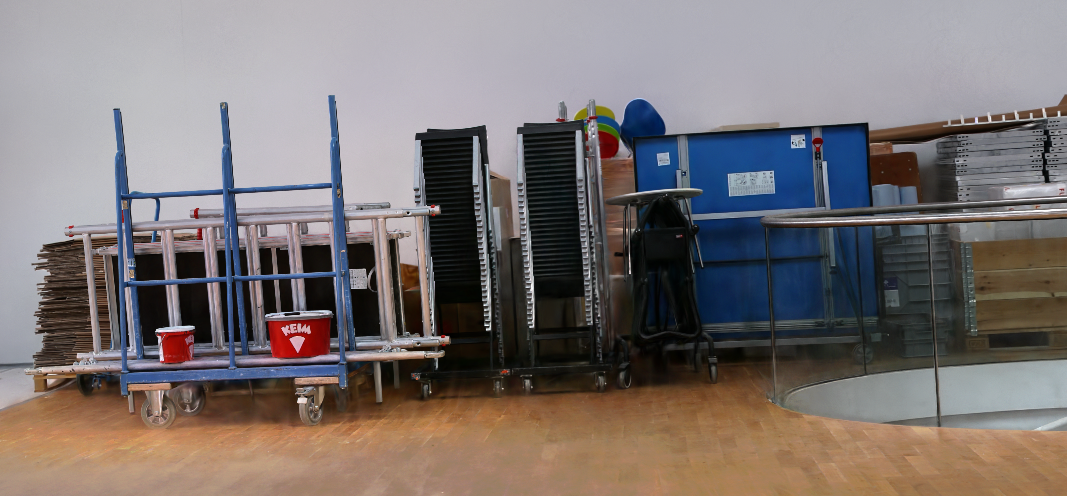

6K8B8517-6K8B8728_1m_70k_c.ply (MID
224MB
Handable and usable, with decent visuals, and not much different from the highest-quality version.
Open

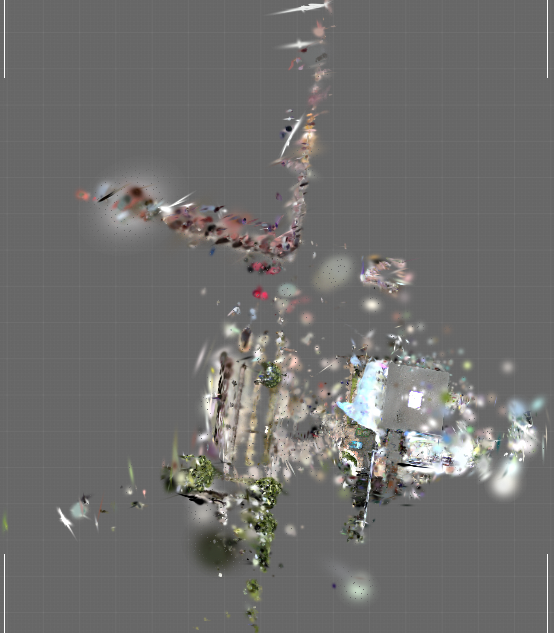

6K8B8517-6K8B8728_3m.ply (HIGH)
674MB
openable, but not really editable and not much higher in quality compare the its triple big file size
Open
There are no rows in this table
VR Inspector in Blender
STEP 1 - Activate the VR Inspector add-on in Blender 4.5
STEP 2 -Connect the headset to PolarBear and select PC Link
STEP 3 - Start the VR Session 🎉
I learned how to use the 3DGS KIRI Add-on from this short tutorial.
👉 In case something doesn’t render correctly, this should help!
OLD_TEST
Comparison of Scanner Model Outputs in Blender and Supersplatt
SuperSplatt:
In Blender, GS ply. is imported into Blender using Kiri Engine addon: 3DGS Render Addon3.0
Side-by-Side Comparison: Lixel K1 vs L2 vs L2 Pro vs L2 Pro + HD
Feature / Model
K1 (with HD‑DSLR‑GPS)
L2 (16‑ch)
L2 Pro (16‑ch / 32‑ch)
L2 Pro + HD‑Enhancement
LiDAR Specs
40‑channel, ~40 m range
16‑ch, ~120 m
16 or 32‑ch, up to 300 m
Same as L2 Pro
Camera System
Dual 48MP + DSLR (GPS-enabled)
Dual 48MP
Dual 48MP
Dual 48MP + DSLR fusion
Point Density
~200k pts/s
~320k pts/s
Up to 640k pts/s
Same
SLAM System
Visual‑LiDAR + basic GPS
Visual‑LiDAR
AI-enhanced SLAM with IMU
Same + photo fusion
Accuracy (Rel./Abs.)
~1.2 cm / ~3 cm
~2 cm / ~3 cm
~2 cm / ~3 cm
Same
Mountable / Drone Use
Handheld only
Can pole/drone mount
Can pole/drone mount
Can pole/drone mount
Storage
256 GB SD
1 TB SSD
1 TB SSD
same
Max Scan Range (Test)
🔻 Smallest coverage
🔺 Good coverage
🔺🔺 Large coverage
🔺🔺 Large coverage
Color Quality (Test)
✅ Best color + clarity in Blender
❌ Less impressive
⚠️ Slightly noisy in Blender
⚠️ Great in SuperSplat, noisy in Blender
Blender Import Quality
✅ Best overall
❌ noisy and blurry with transparent material
❌ much noisy and low in resolution, lower contrast in color
❌ Problems with noise and fusion artifacts ✅Details captured
SuperSplat View
✅ Best performance
Not optimal
Great
✅ Best performance
Strengths
✔️ Best color quality
✔️ Clean point cloud
✔️ Lightweight
✔️ Balanced range/portability
✔️ Range + AI SLAM
✔️ High density
✔️ Looks excellent in SuperSplat
✔️ Best all-in-one features
Weaknesses
❌ Shortest range ❌ Less robust SLAM
❌ Basic SLAM
❌ Less detail than Pro
❌ Heavier
⚠️ No HD fusion
❌ Noise after Blender import
⚠️ Fusion artifacts
There are no rows in this table
Scanner Modell

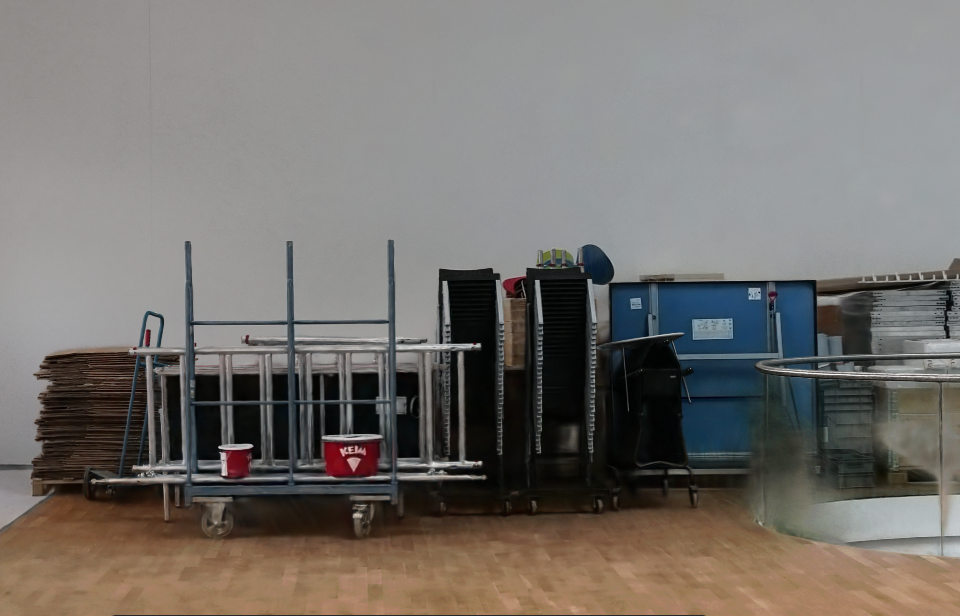

Result (preview in Blender)
General Cap

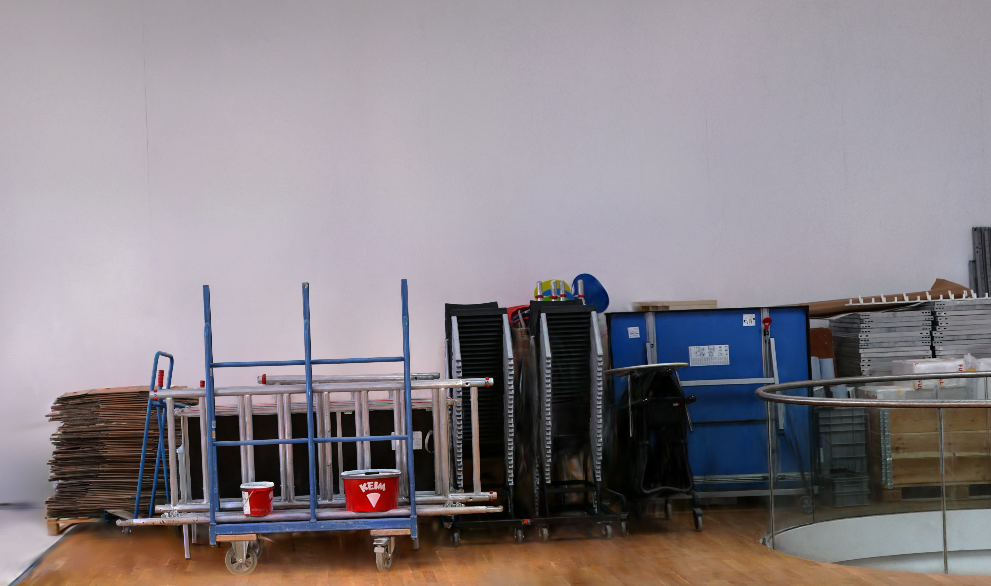

Result (preview in Superspl. Web Editor)
L2 pro no HD

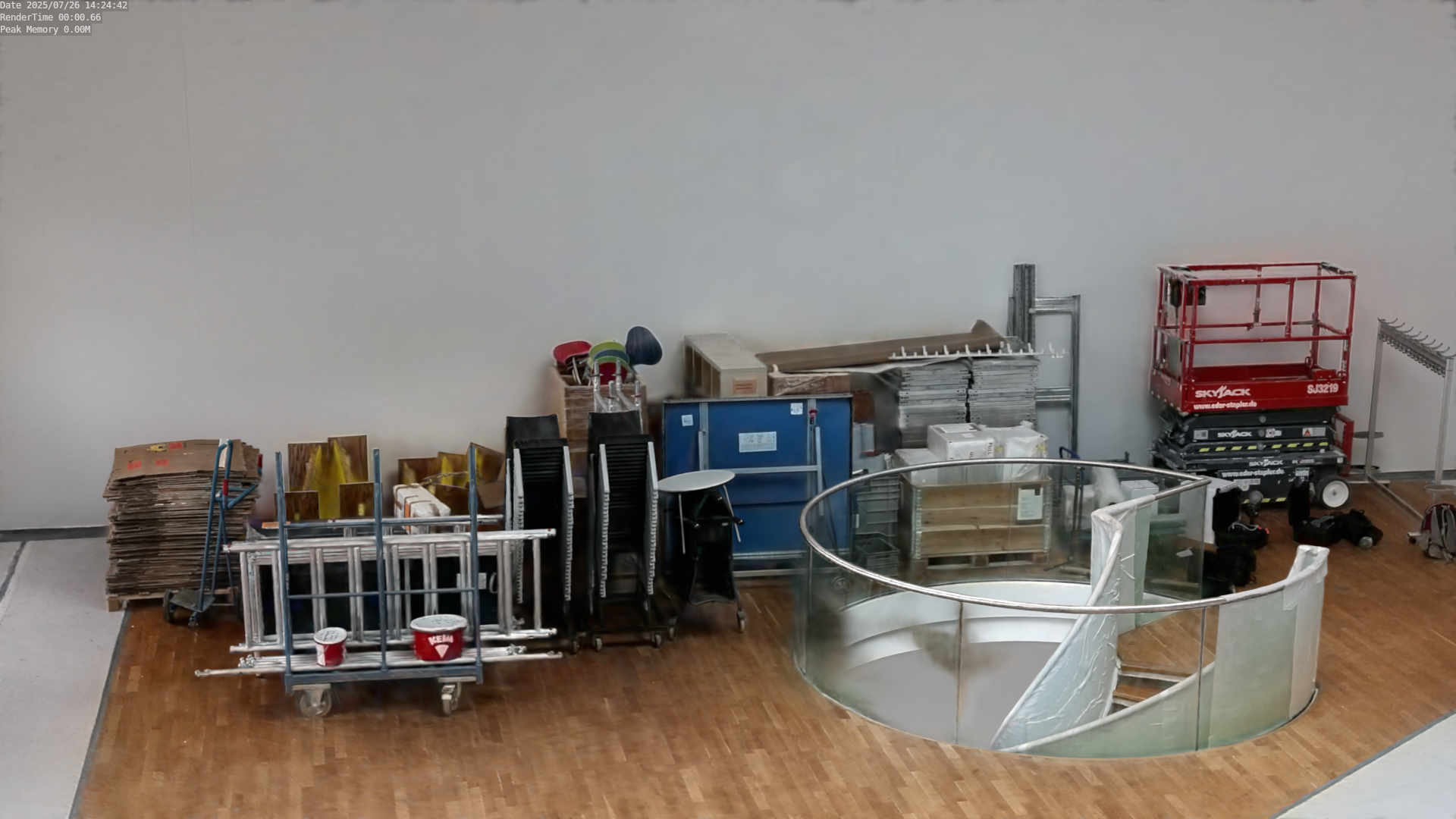

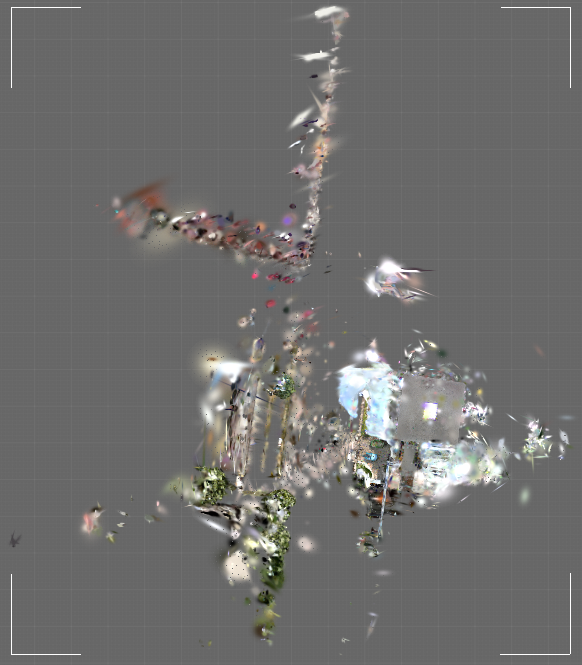

L2_PointCloud
CONS:

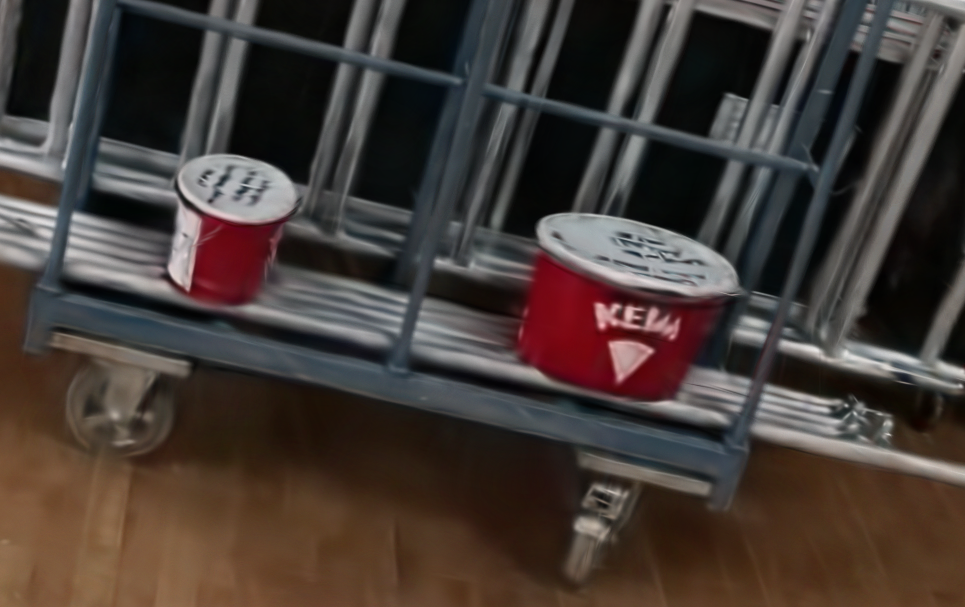

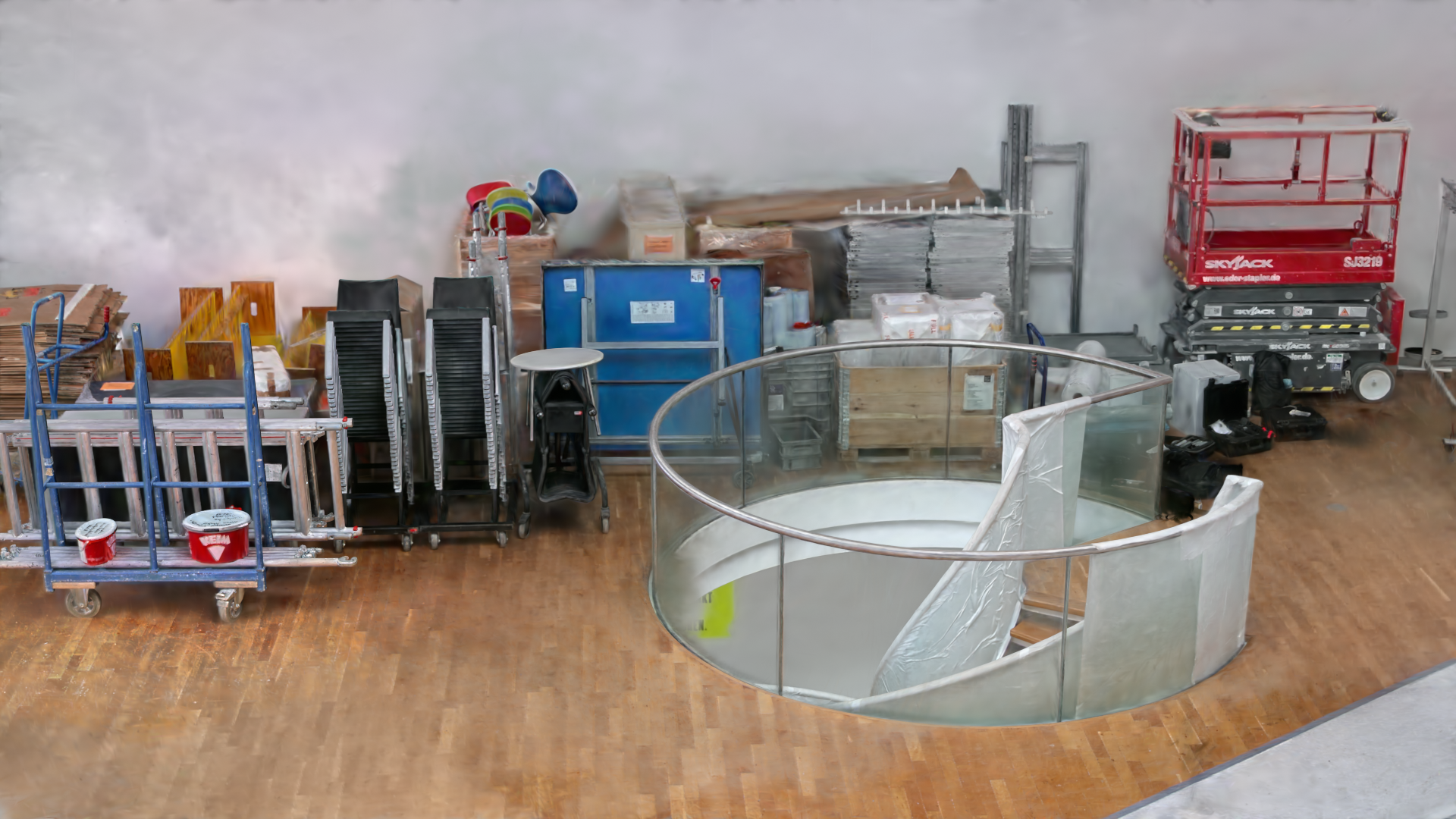

L2_Pro_plus_HD
Details captured but there seems to be some extra noises around, especially the white wall.

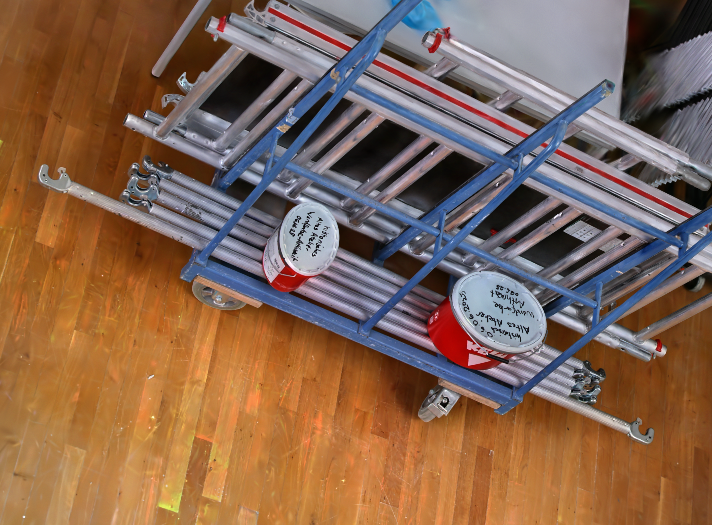

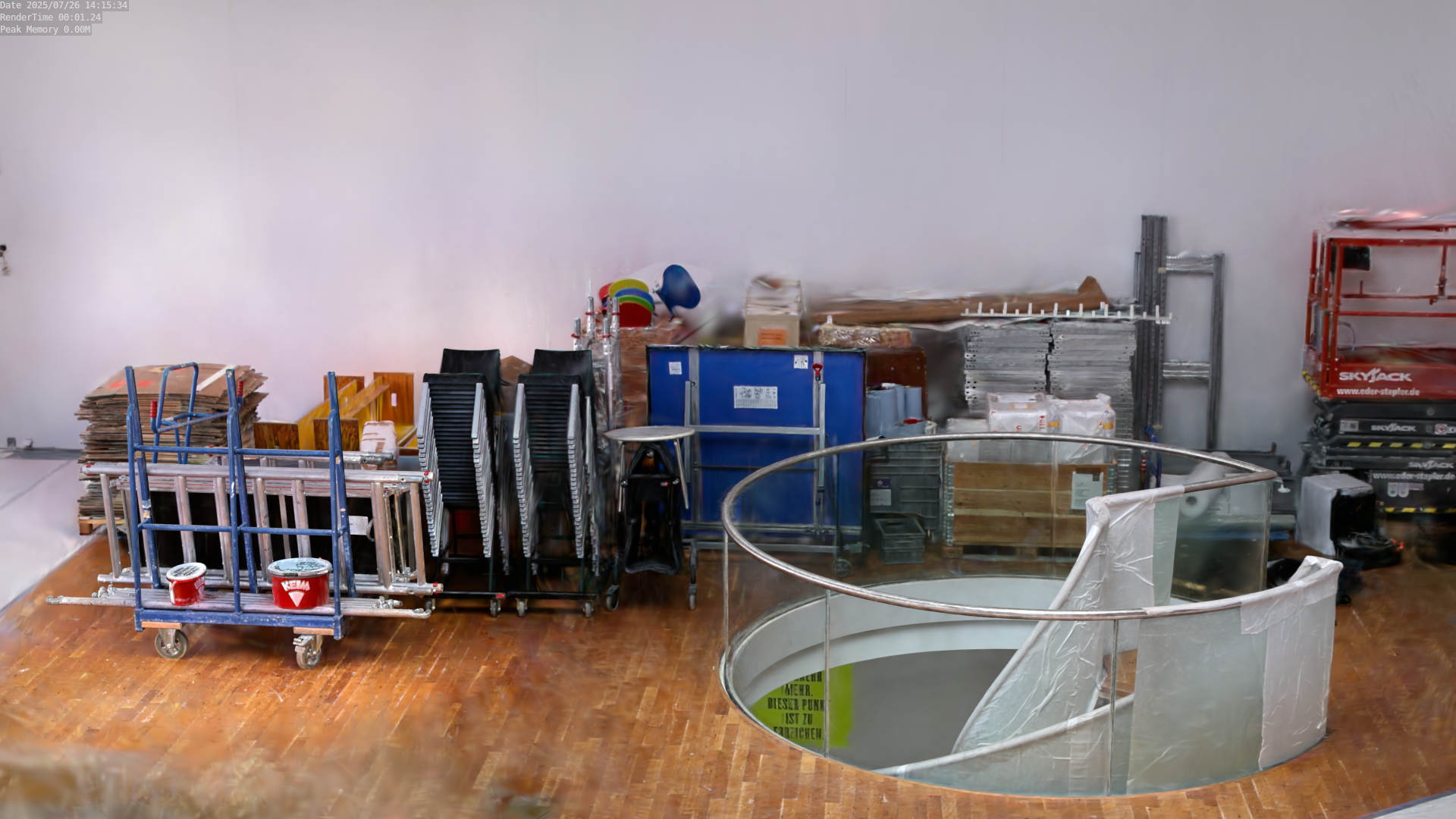

Lixel K1 (mit HD-Feature + DSLR mit GPS-Modul)
Best Result
Details captured
There are no rows in this table
COMPARASIONT ONLINE:
GS inside - original file size 53,4 MB
