1 - Digital Calipers1 - Socket
Fill in your chosen socket size here: .
What is the listed accuracy of the calipers? What is the listed resolution of the calipers? What is the difference between accuracy and resolution?
What are two potential sources of systematic/random error?
1 - Digital Multimeter1 - Believer DA-15 Cable
Modern DMMs protect themselves from overcurrent. What electrical safety device provides this protection? The DMM has three ports/plugs on the bottom. Complete the table below, explaining what each port is for.
In aviation applications, why are crimps preferred over soldering?
Why is it important to always return a torque wrench to zero?
Why is it important to use a torque wrench instead of just “tightening until it feels snug”?
Copy this Coda Doc to your e-portfolio.Organize this doc on your AT 209 page.Complete the lab assignment.
Overview
This lab introduces students to a set of essential measurement and assembly tools used in aviation maintenance: digital calipers, digital multimeters, crimping tools, and torque wrenches. Through hands-on exercises, you will learn how to measure dimensions with precision, test electrical continuity, create reliable wire connections, and properly torque fasteners. Each activity emphasizes accuracy, safety, and good technique, helping you build a foundation in tool use that is critical for quality control, system reliability, and professional practice.
Assignment
Caliper

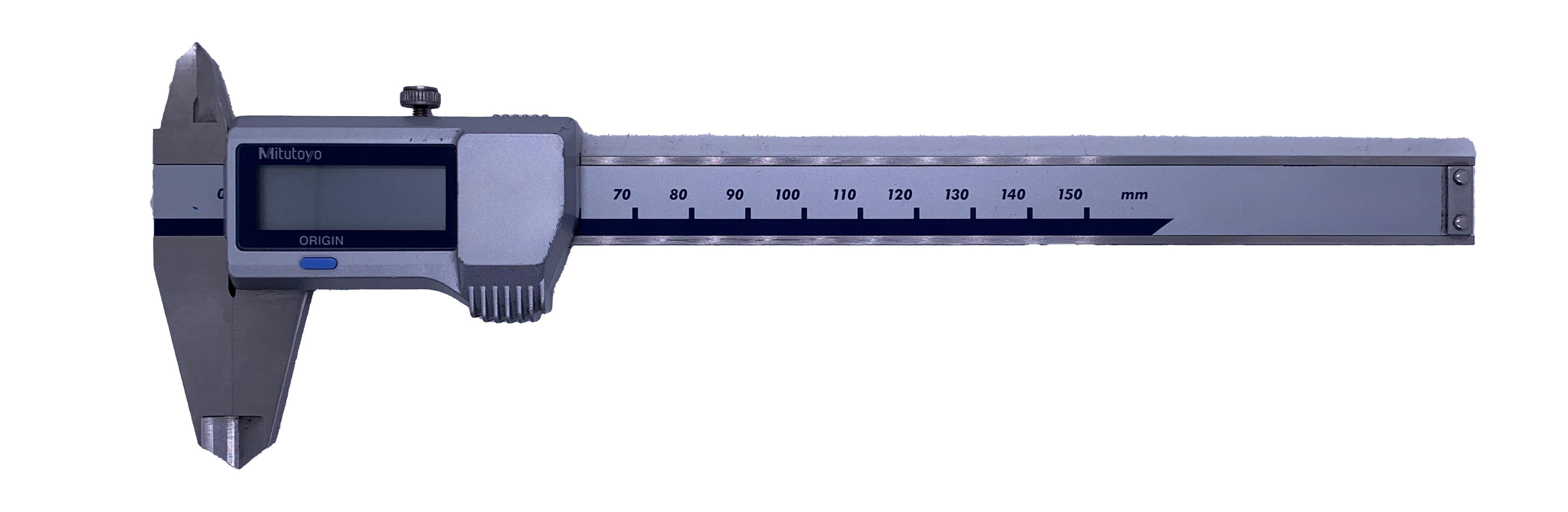

Figure 1: Digital Caliper
Introduction to Using Calipers
Digital Calipers are precision instruments that measure internal, external, and depth dimensions. They provide quick, accurate digital readouts, making them essential for ensuring proper fit, design accuracy, and quality control. This lab will cover how to read measurements and tips for practical use.
Equipment
Collect the following equipment

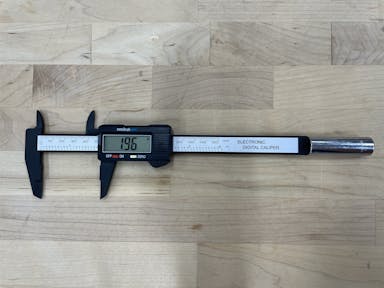

Making Measurements

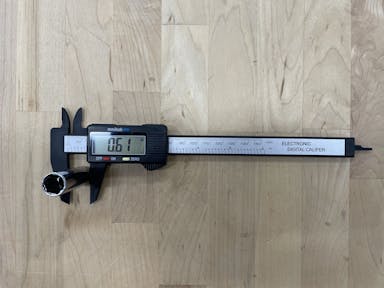

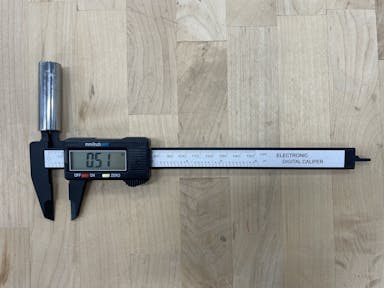

In this section, you will measure the outer diameter, inner diameter, and depth of a socket.
Measurements Table 2
3
Outer Diameter
Inner Diameter
Depth
Questions
Answer the following questions about calipers. Use any resource (AI, Wikipedia, etc.).
[ ]
[ ]
Digital Multimeter (DMM)

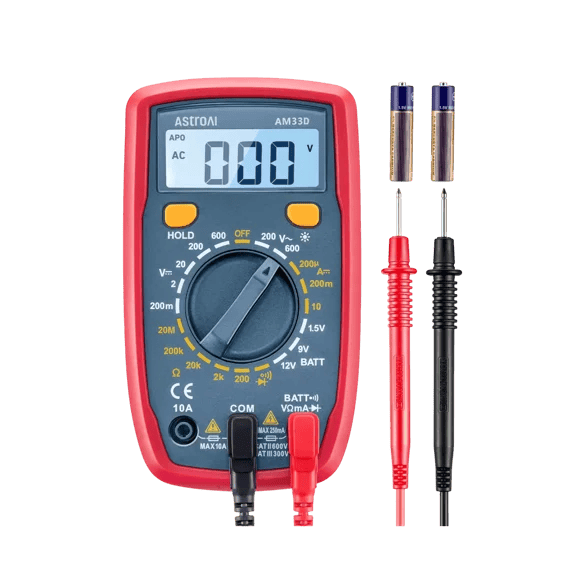

Figure 2: Digital Multimeter
Introduction to Multimeters
Digital Multimeters (AstroAI AM33D) are handheld instruments used to measure voltage, current, resistance, and check continuity or diodes. They provide a digital readout and require the user to select the correct range before measuring, making them reliable tools for basic electrical testing.
Equipment
Collect the following equipment

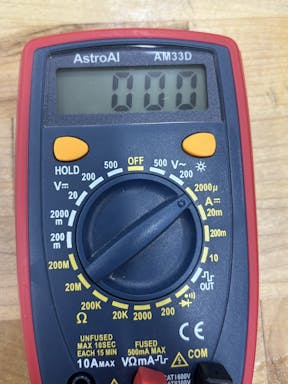

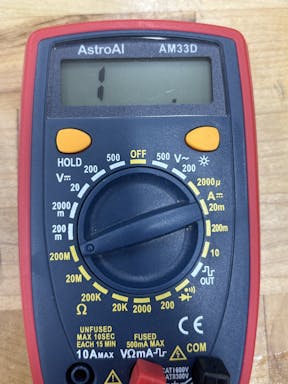

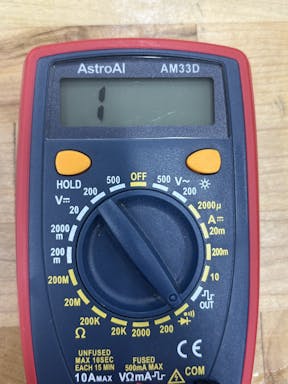

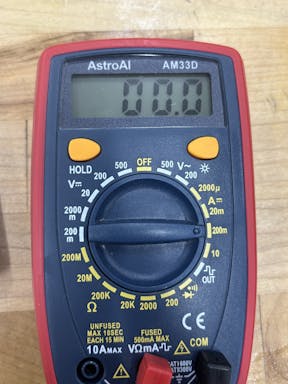

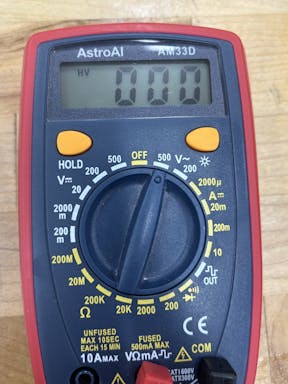

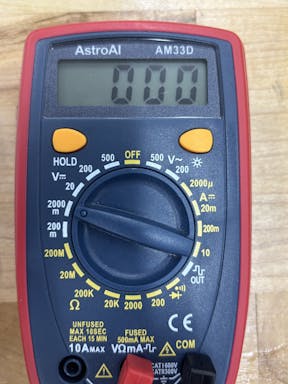

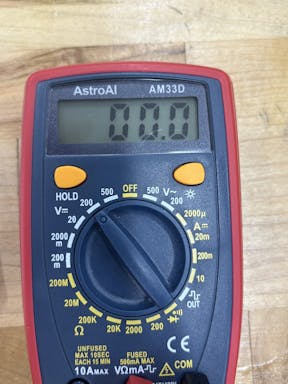

DMM Settings
In this section, you will learn about the different measurement settings available on a DMM, what it measures, and the range and limits.
There are no rows in this table
Making Measurements
Now it’s time to put the DMM to use by using the continuity settings to learn the pinout of a DA-15 connector. D-subminiature or D-sub connectors are commonly used connectors in the digital signal world, and we will be working with the same connector used in the Believer wing section. Follow the steps below:
DA-15 Pinout Table 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
There are no rows in this table
Questions
Answer the following questions about DMMs. Use any resource (AI, Wikipedia, etc.).
DMM Ports 2
COM
Open
VΩmA⎍
Open
10A_MAX_
Open
There are no rows in this table
Crimping

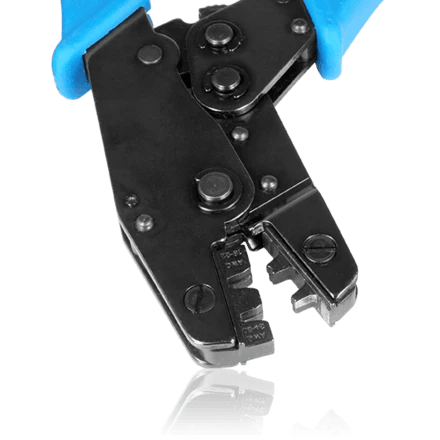

Figure 4: Wire crimper
Introduction to Crimping
Crimp Tools are used to join wires to connectors by compressing (or “crimping”) a metal sleeve around the wire. This creates a secure mechanical and electrical connection without the need for soldering.
Making Crimps
Follow the steps below to remanufacture a servo cable.
Crimp Analysis Table 2
3
3
3
Questions
[ ]
Torquing
Torque Wrenches are precision tools used to apply a specific amount of torque to a fastener, such as a bolt or nut. They ensure that parts are tightened enough to hold securely without being over-tightened, which can damage components.
Table Assembly
In this section, we will assemble a lab table. Follow the steps below.
Torque Table 2
3
40
64
111
Questions
[ ]
[ ]
Deliverables
