I ABOUT US
Setech is the company to research and manufacture products about measuring and controlling instruments, and manufacturing AC Servo Nutrunner—and we have been doing it for 15 years.
We had the opportunity to develop the rotary Torque Transducer and Nutrunner first in korea and we have been developing Hand Held Nutrunner and Motor.
Also, Our products have been used at industry factories with high quality, Accuracy, and competitive prices and this has served to strengthen production equipment, and we have been trying to manufacture and market high quality products and services.
Finally, as developing high quality products more than now, Setech will be the most competitive company.
I IMAGES
I OUR PRODUCTS
I. NUTRUNNER Robot
1. KN07-RS
6-axis payload 7 kg robot with STNR-RS NUTRUNNER can be controlled by robot program (when nut runner is connected by communication or i/o) Easy to set up, since air-cylinder, y-pipe and position sensor are included User does not need to design mechanical parts for the tightening process 2. SRX-SQV
Single axis robot and nut runner all-in-one model Since Y-chuck and vacuum unit is adopted, the deep position can be tightened by the bolt. SRX series can tighten the bolt with high accuracy (torque transducer is adopted) SRX series can control the rotation angle(encoder is included) II. Robot
1. STNR-RS
STNR-RS is designed for easy adoption for multi-axis robot Easy to design bolt shooting assembly process, since air-cylinder, Y-pipe and position sensor are included User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 2. STNR-SQV
Vacuum unit all-in-one nutrunner STNR-SQV series are useful for tightening screws where shooting the bolt is not possible to apply process STNR-SQV series can tighten the bolt with high accuracy(torque transducer is adopted) STNR-SQV series can control the rotation angle (encoder is adopted) 3. STNR-SQC
30 mm cushion is included in STNR-SQC for easy to set up at robot or machine facilities Easy to maintenance, since the connector is only one User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted III. Automation

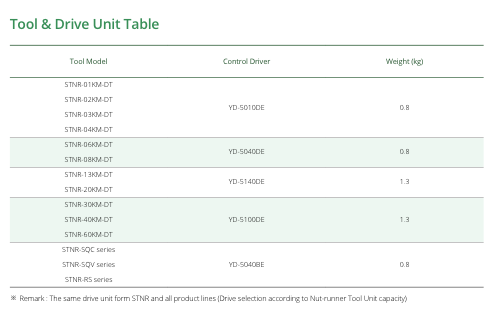

1. STNR-T-DT
The STNR-T-DT Type is designed for tightening small torque screws The AC servo motor has been adopted to improve torque efficiency and durability User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 2. STNR-DT
The STNR-DT Type is designed for general bolt tightening The AC servo motor has been adopted to improve torque efficiency and durability User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 3. STNR-CU
The STNR-CU Type is included 40 mm cushion. User do not need to design separate cushion The AC servo motor has been adopted to improve torque efficiency and durability User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 4. STNR-AG
STNR-AG type is designed to be used in places that cannot be installed vertically Foot mount position can be changed by user request The AC servo motor has been adopted to improve torque efficiency and durability User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 5. STNR-ST
STNR-ST type is designed to fit multiple units in a narrow space The AC servo motor has been adopted to improve torque efficiency and durability User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 6. STNR-DU
STNR-DU type is designed to be installed in a low installation space The AC servo motor has been adopted to improve torque efficiency and durability User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 7. STNR-SP
STNR-ST type is a cushion spindle unit that absorbs the shock generated when bolts and nuts are tightened to protect the tool When tightening screws, the cushion pushes the screws, so there is no need to adjust the height of the nut runner Designed to deliver accurate torque 8. YD-5000

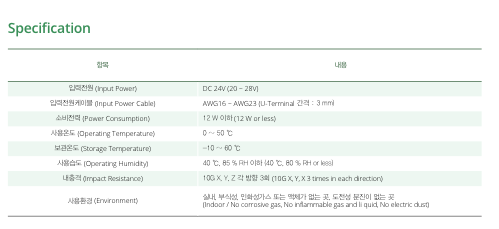

9. YD-6000
Up to 31 NUTRUNNERs can be connected through communication Selective operation of each NUTRUNNER is possible 8 GB SD memory card applied Torque, Angle, speed and rotation direction can be set arbitrarily 10. YD-5000DU

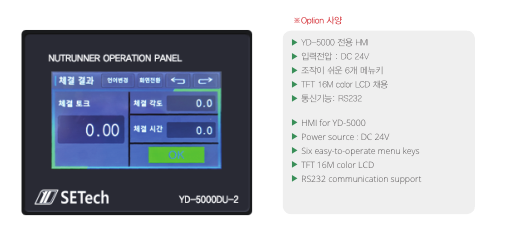

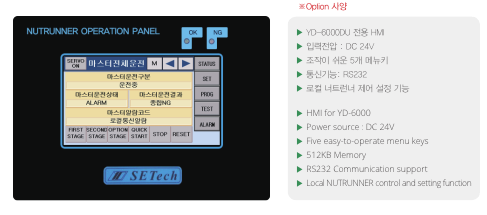

11. YD-6000DU
IV. Hand-held
1. STHT-DT
STHT-DT is designed by convenient to use for user User can check current NUTRUNNER state by LED Easy to change the tightening direction by using built-in dial User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 2. STHT-AG
STHT-DT is designed by convenient to use for user User can check current NUTRUNNER state by LED Easy to change the tightening direction by using built-in dial User can get the high accurate tightening result torque, since torque transducer is adopted User can get the tightening angle data, since encoder is adopted 3. YD-8100
V. Reaction arm
1. SRAF-L
SRAF-L type helps to get correct torque for tightening bolt by STHT model (manual nutrunner) SRAF-LE (encoder included type) can control tightening position (with SPC) SRAF-L has maximum 500 mm stroke for vertical and horizontal
2. SRAF-A
SRAF-A type helps to get correct torque for tightening bolt by STHT model (manual nutrunner) SRAF-AE (encoder included type) can control tightening position (with SPC) 3. SRAH
SRAH type helps to get correct torque for tightening bolt by STHT model (manual nutrunner) SRAH has maximum 450 mm stroke for vertical and horizontal 4. SPC
SPC controls the reaction arm position and show SETech NUTRUNNER tightening result by connection with SETech NUTRUNNER and reaction arm Maximum 50 JOBs and 1000 position can be set Position OK / NG signal and tightening OK / NG can be checked The result data can transmit per every tightening process I CATALOGUES
SETech_nutrunner_catalogue_EN.pdf
11.5 MB
