I ABOUT US

⁠

Muinauto develops and supplies various feeding devices such as parts feeders, rotary feeders, and performance feeders. Applicable to various industries such as automobile, food, medical, aircraft, semiconductor, stationery, etc. Continuous productivity improvement and manufacturing cost reduction can be achieved easily by completely automating the supply of parts in a process that was previously done by handwork.

I IMAGES

⁠

I OUR PRODUCTS

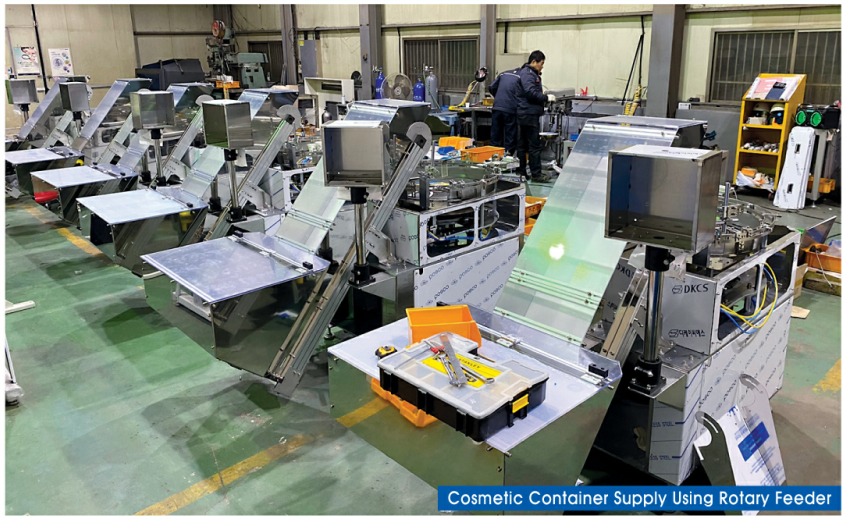

I. Rotary Feeder

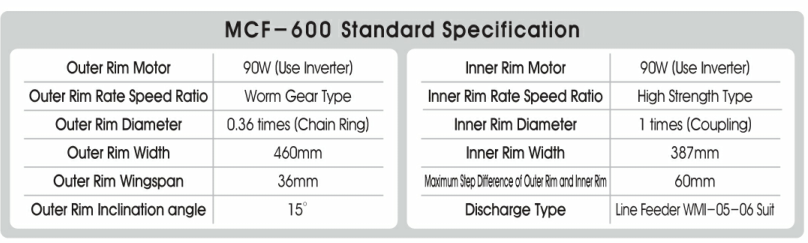

1. MCF-600

⁠

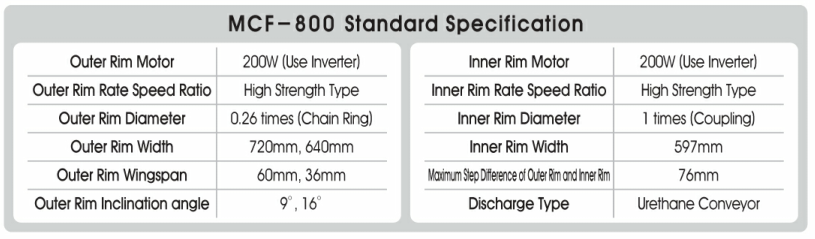

2. MCF-800

⁠

3. MCF-800H

⁠

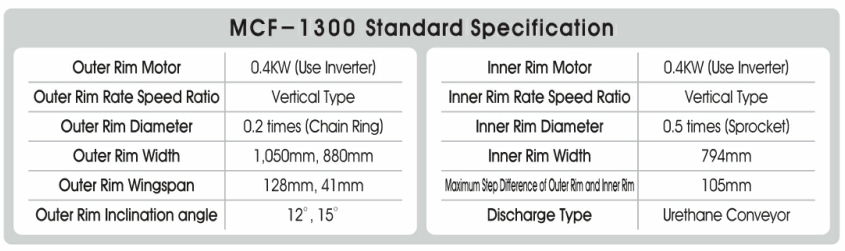

4. MCF-1300

⁠

5. MCF-1500

⁠

II. Disk Feeder MDF-600, MCF-800, MCF-1300

⁠

III. Silent Feeders

⁠

IV. Line Feeder Mi-00~Mi-w600

V. Vibratory Feeders (Bowl Feeder)

1. MP-No. 0,5(100)~MP-No.9(100)

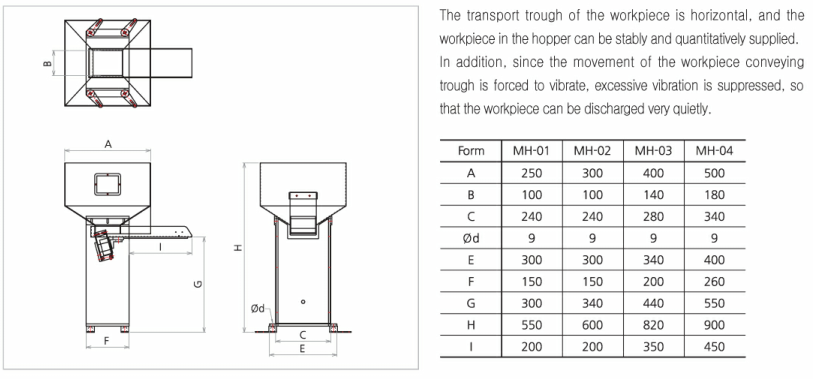

2. Hopper Feeder MH-01~MH-04

⁠

3. Parts Feeder

⁠

4. Smart Feeder MSF-600H

Smart Feeder is easy to align and supply simple products. The noise from operating is very low, and sponge or rubber material products are also available. It can be occupied at small space and can be stacked by 2 or 3 layers.

⁠

VI. Performance Feeders

1. Bolt Shooting

⁠

2. Spring Feeding

⁠

3. Step Hopper MSeh-350~

⁠

4. O-ring Auto Feeding

⁠

5. Stick Feeding

⁠

6. Roller Sorting Machine

⁠

7. Inverted Lift (Tilting Machine)

An inverted lift (tilting machine) is a device that supplies a boxed product by a forklift. It can be customized from light one up to 5 tons.

⁠

8. Smart Drum Robot Supply System MSDF-200H

1. Muinauto Drum Feeder

Drum Feeder in Performance Feeder is a supply that provides an economical alternative to traditional vibration feeds and reduces tooling conversion costs to deliver products with simple orientation requirements. The space-saving feeder operates quietly without transmitting vibration to the machine base and is ideal for applying to simple-shaped parts.

The system uses a drum at one end that provides for recirculation and randomization of parts.

The part is pulled out of the drum of the linear tooling and holds the part at back pressure to act as a buffer.

2. Features

Low cost

Compact and small space to be installed

Quiet operation due to long life tooling

Advanced sensors in the linear tooling standard

Easily redesign for new or modified products

Low cost when changing tooling system to supply different products

No vibration are transmitted to the machine base

Option: Hopper for parts storage and delivery

9. Smart Drum Robot Supply System MSDF-200H~

⁠

10. Vertical Lift Hopper

Vertical Lift Hopper is a hopper device that supplies parts from low to high.

As a substitute for a conveyor hopper, it can be installed in a narrow space and can be raised up to 3 meter high.

⁠

11. Conveyor Hopper

The Conveyor Hopper is a device that feeds part from a low place, which is convenient for the operator, and raises it up. It can be manufactured at various angles. The size can also be customized according to the product loading capacity and supply speed.

⁠
