Resources for Permit set development

URL for this doc:

https://coda.io/@cymbal/resources-for-permit-set-development⁠

⁠

Task:

Produce a site plan, floor plans and full permit set documents (including building, mechanical, electrical, plumbing etc.) for a renovation.

⁠
`Detroit residential plan checklist:`⁠
⁠
`https://detroitmi.gov/sites/detroitmi.localhost/files/2018-05/Res%20Bldg%20Permit%20Checklist_2013-06.pdf`⁠
⁠

Existing floor plans

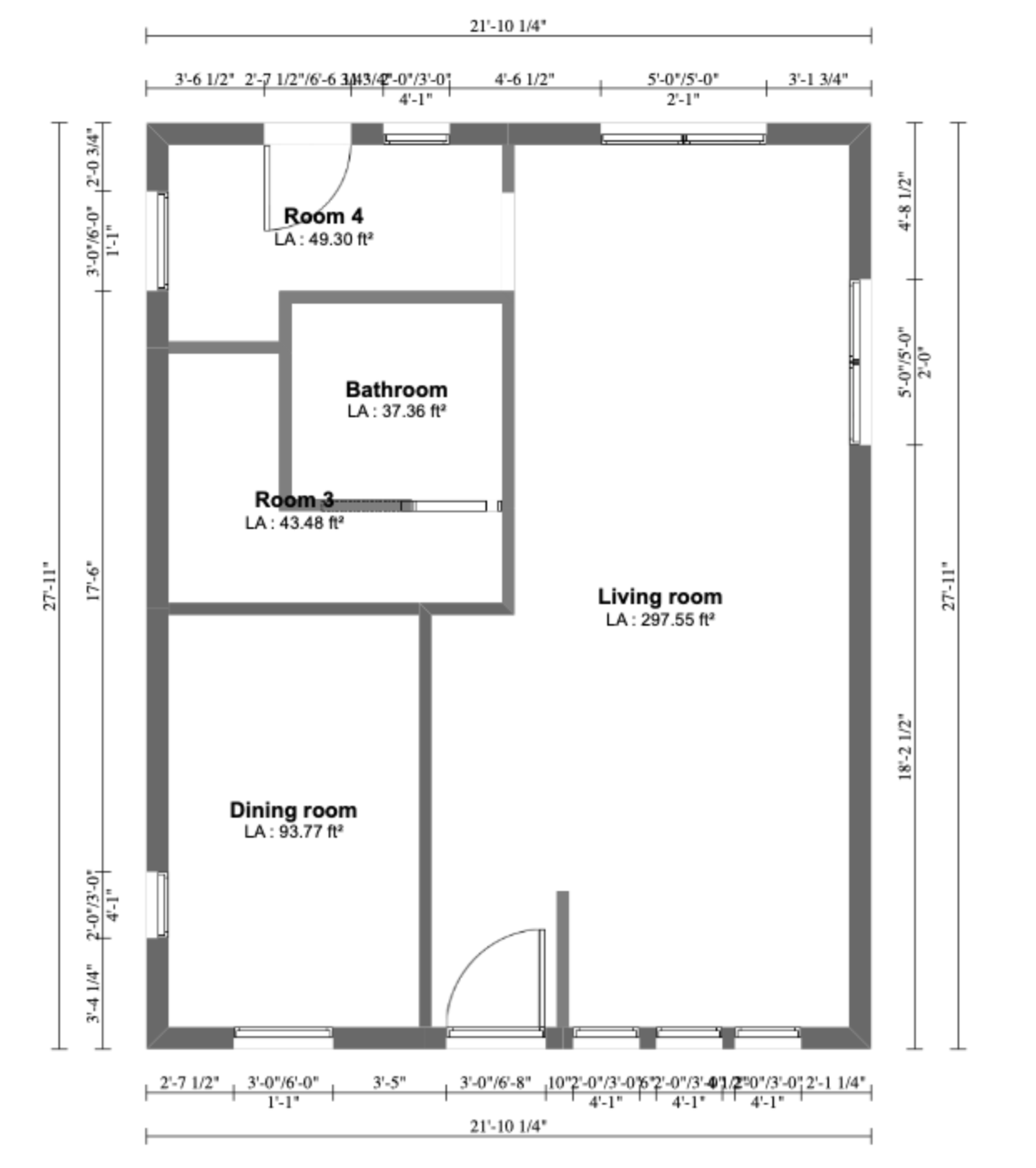

Ground floor (4ft above soil level)

Original floor plan not available, but only change is that the bathroom pictured below does not exist, room 4 is bigger and was the previous kitchen.

Room 3 is the stairwell

⁠

⁠

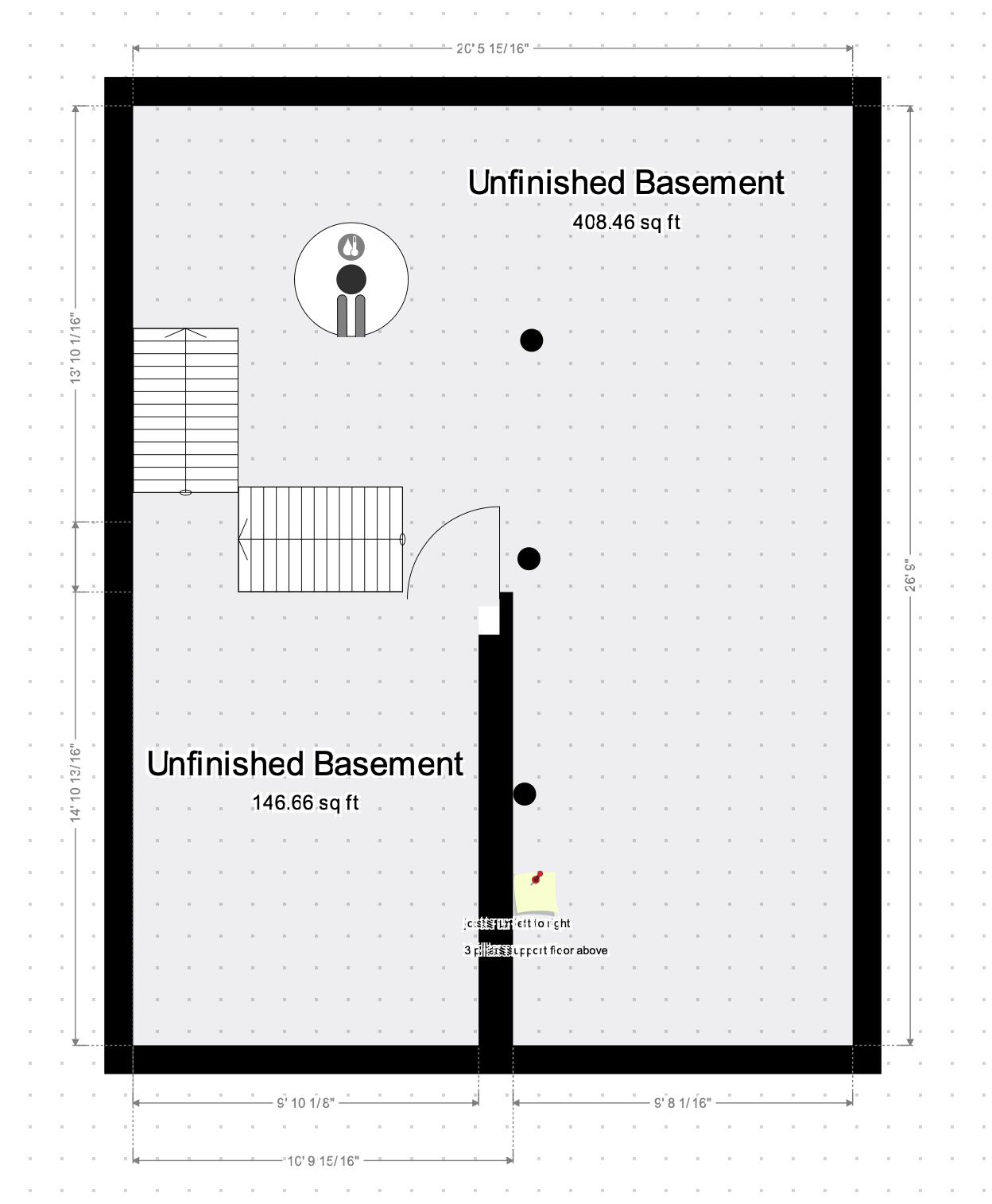

Basement

⁠

⁠

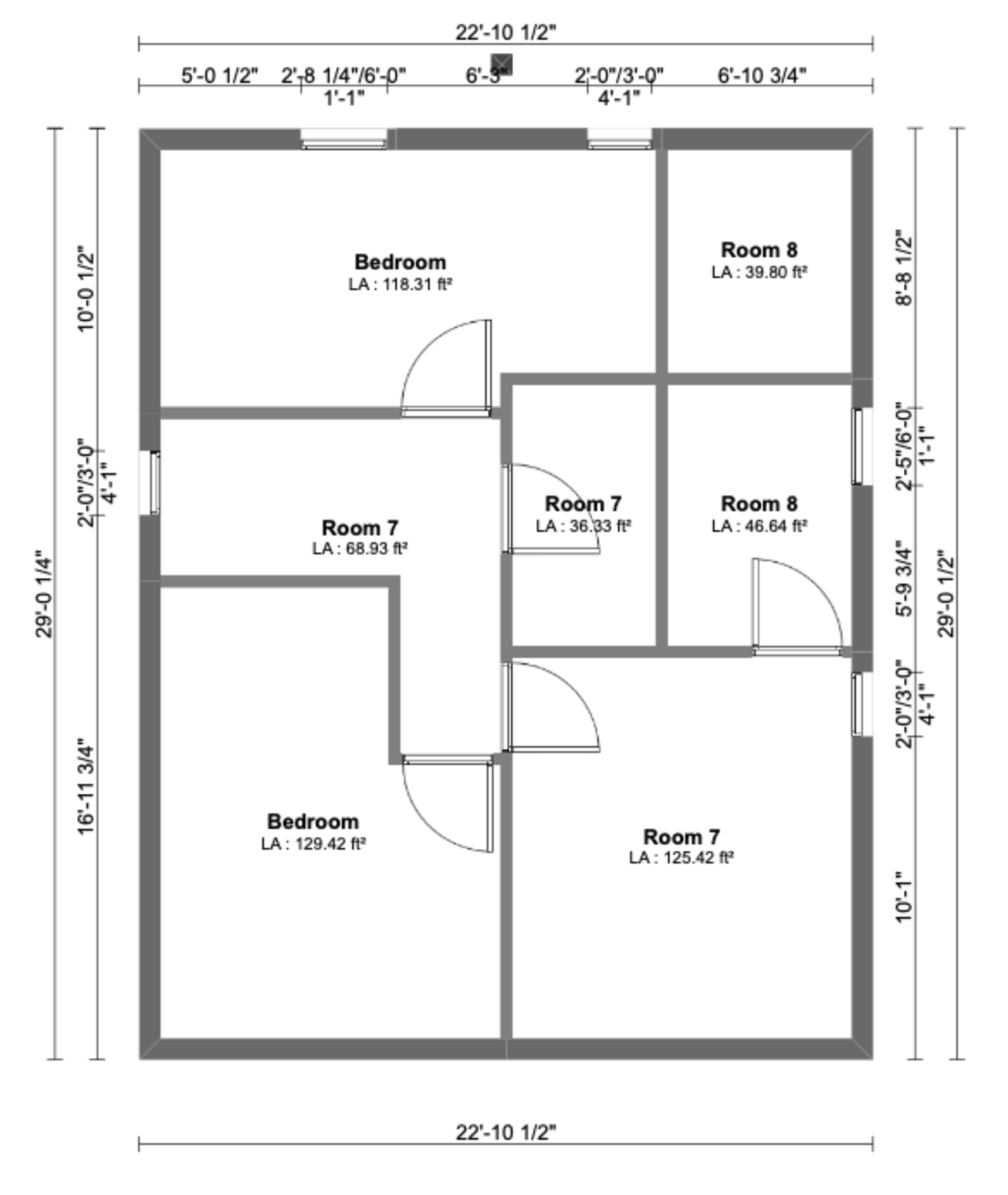

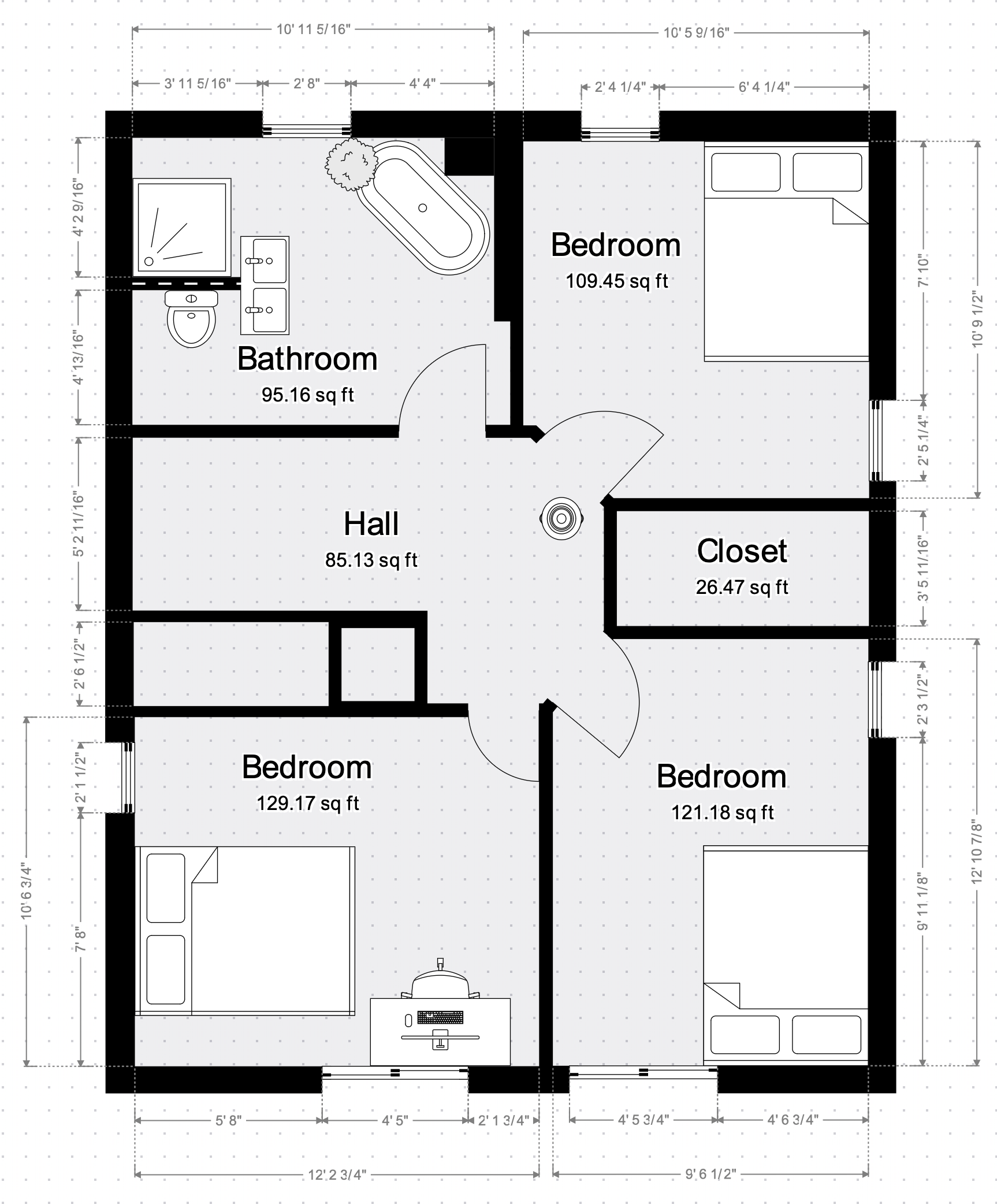

Second floor

⁠

⁠

Proposed changes to Original structure:

Ground floor (4ft above soil level)

Bathroom added inside room 4 (old kitchen)

New kitchen will be open plan with the living room.

⁠

Second floor (3 Bedrooms + 3 bathrooms)

⁠

⁠

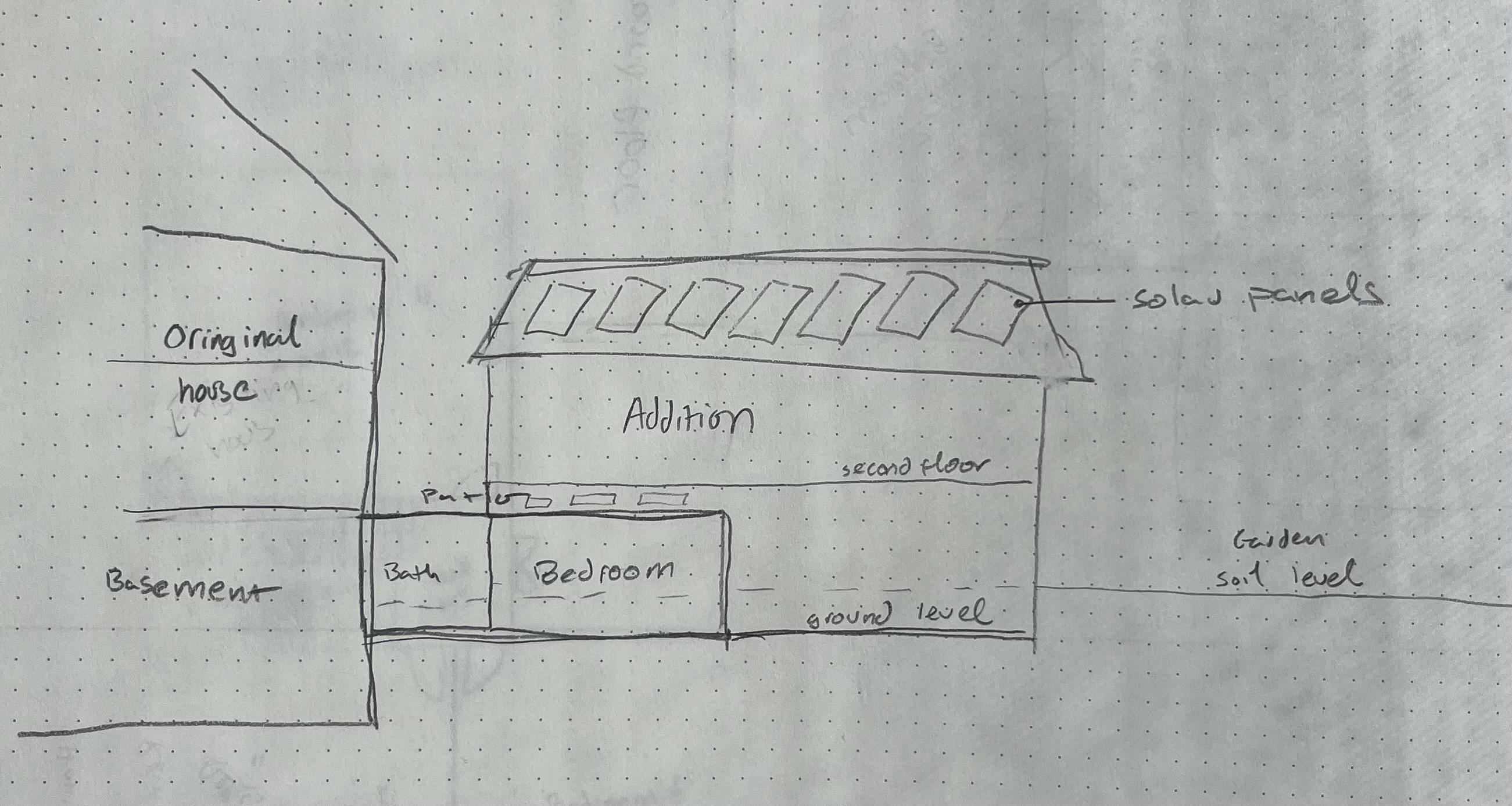

Proposed Addition to the back of house:

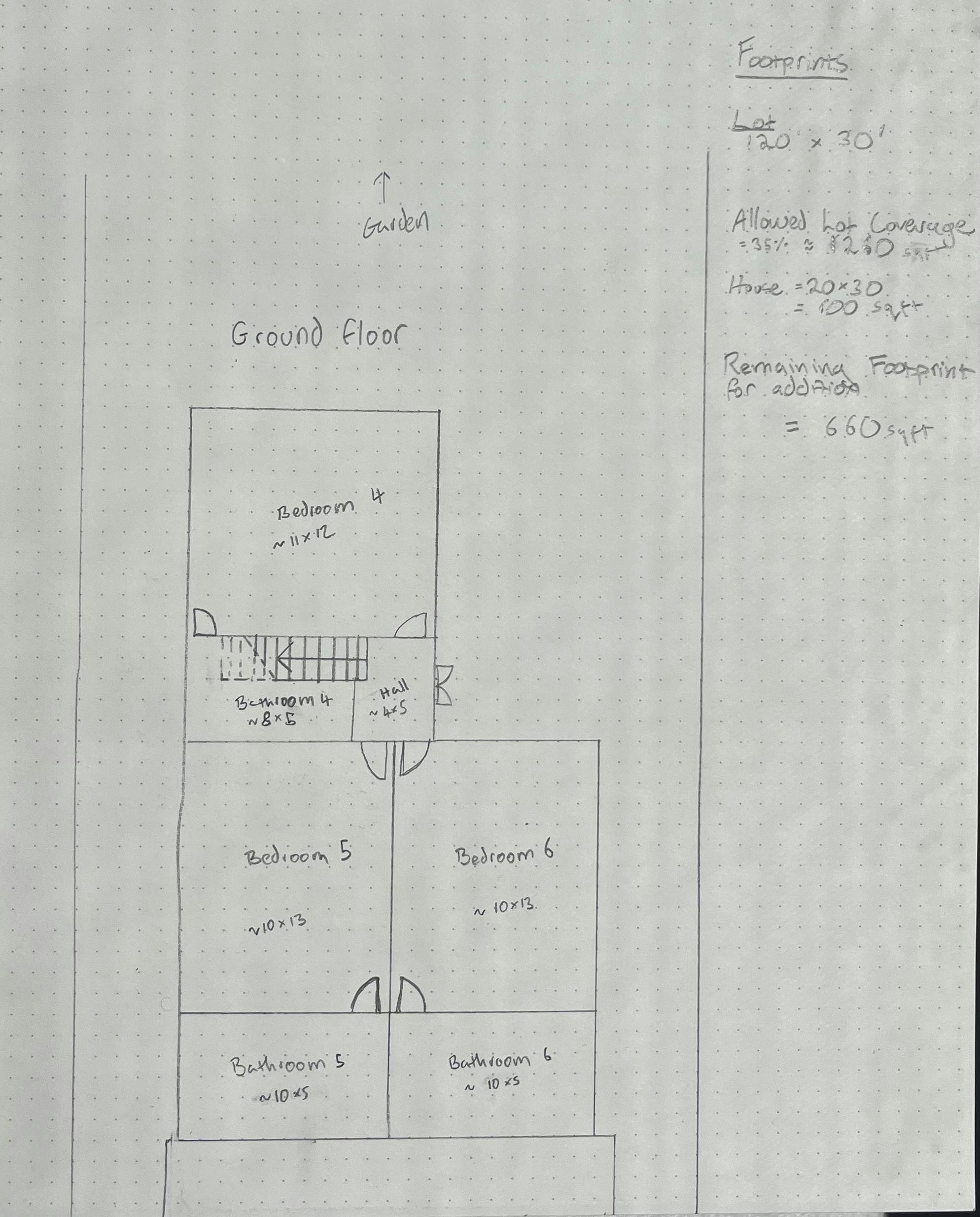

Ground floor (Add three bedrooms with en-suite to ground floor). Bedrooms will be sunk into earth (floor is below soil level at slab foundation)

⁠

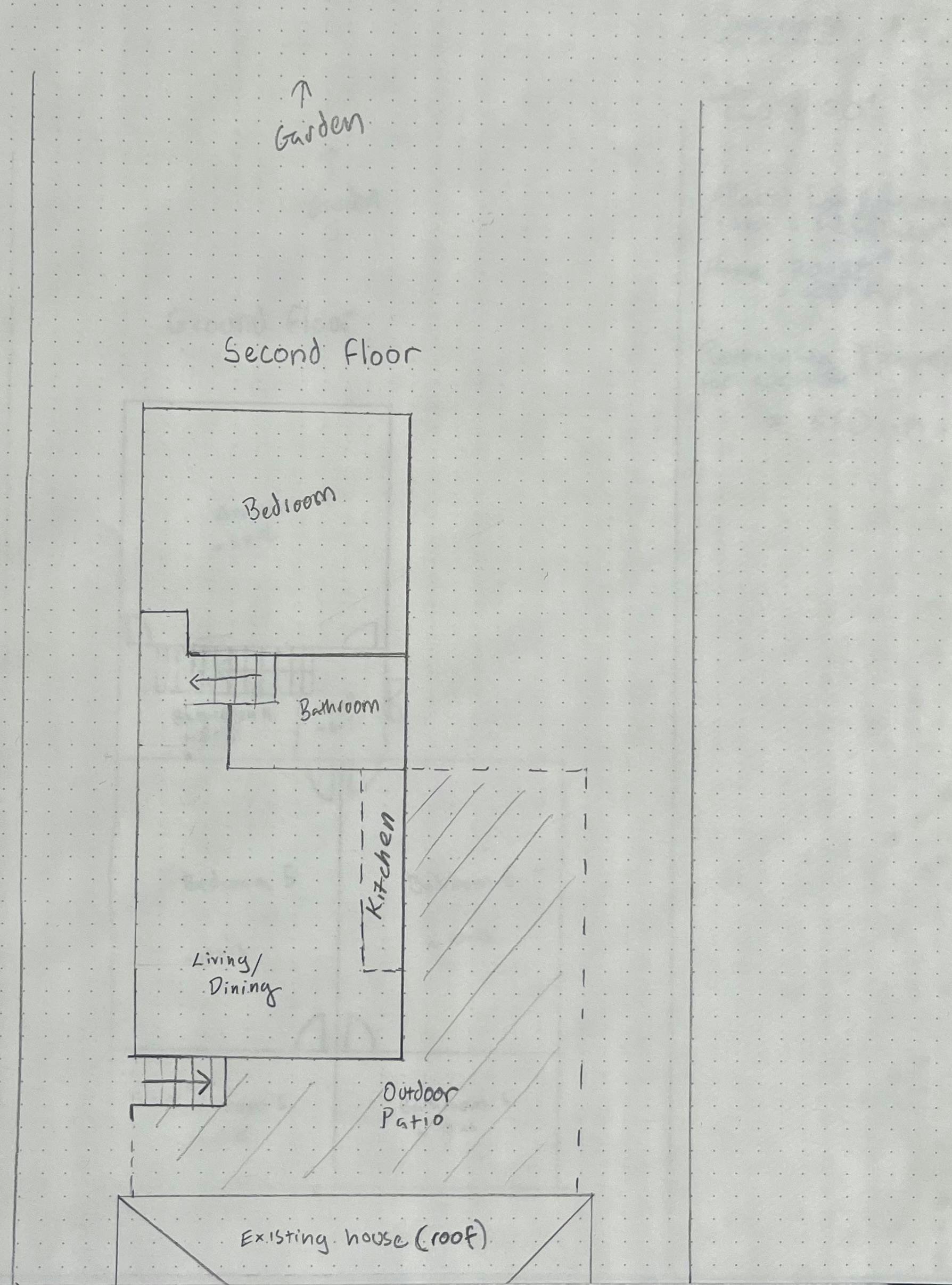

Second floor: Bedroom with en-suite and Kitchenette / Living Dining area. The space above Bedroom 6 and Bathroom 5+6 become an outdoor patio. over a flat roof.

⁠

Site Photos

⁠

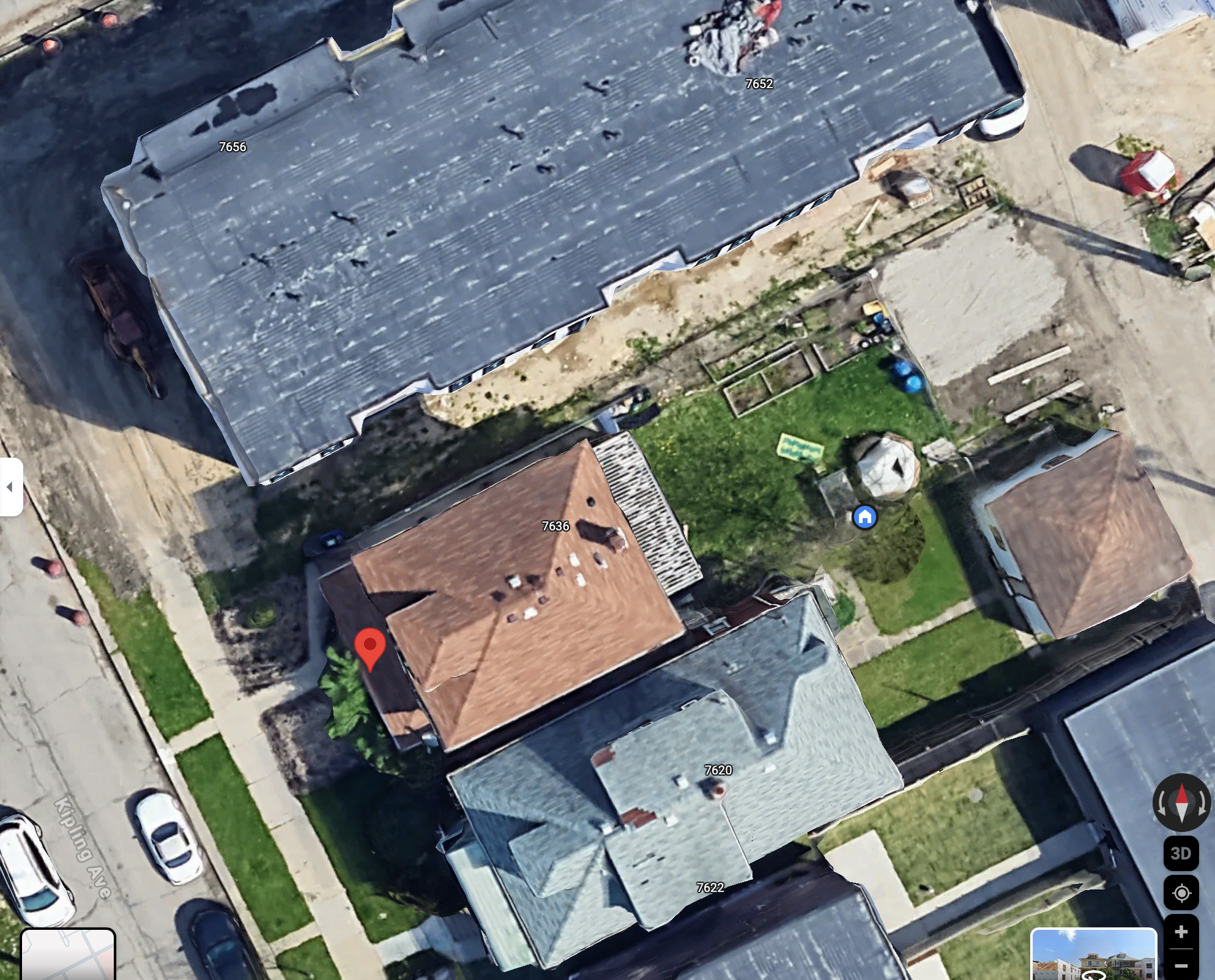

Screenshot 2024-08-12 at 10.29.19 AM.png

⁠

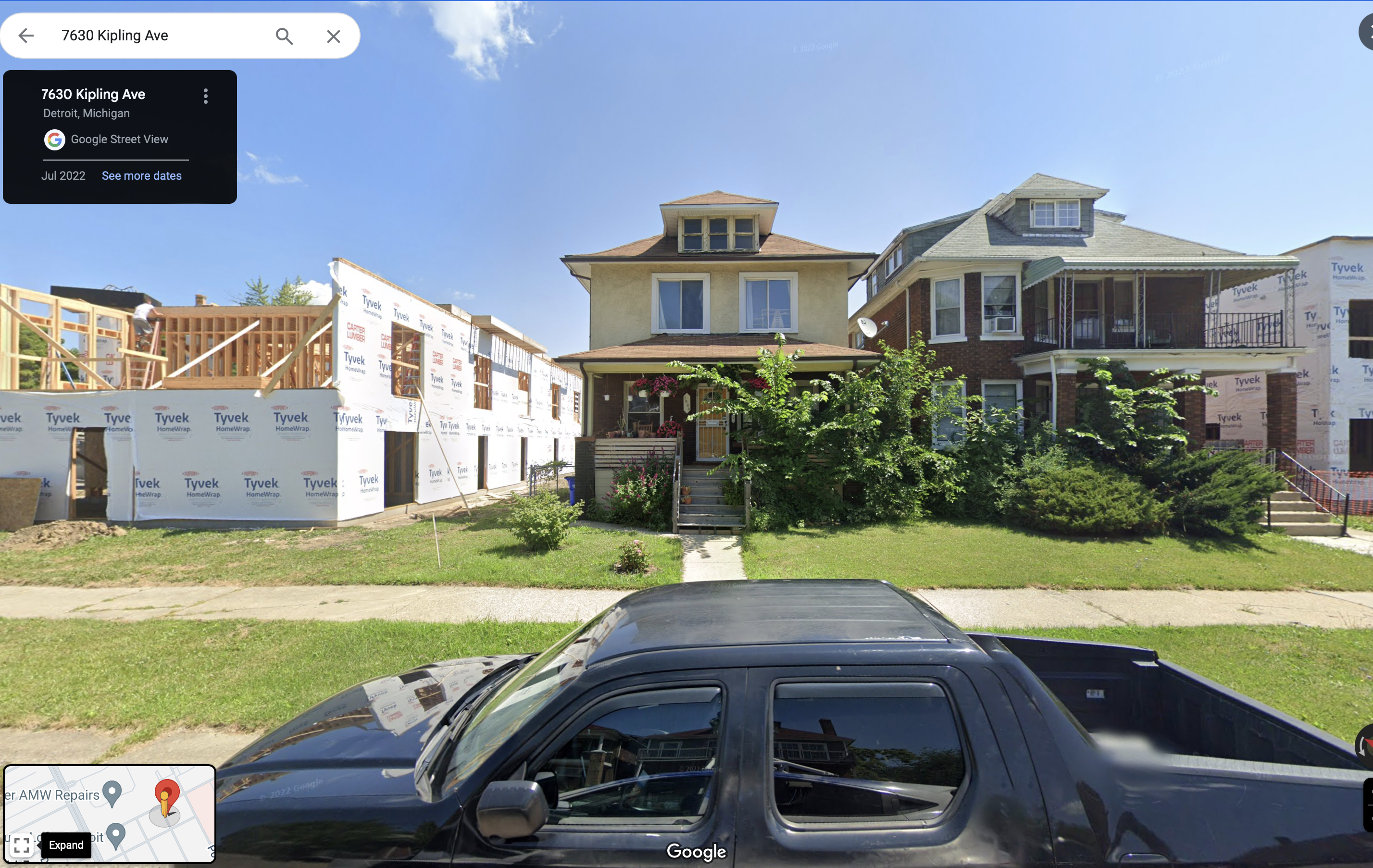

Screenshot 2024-08-09 at 11.11.33 AM.png

⁠

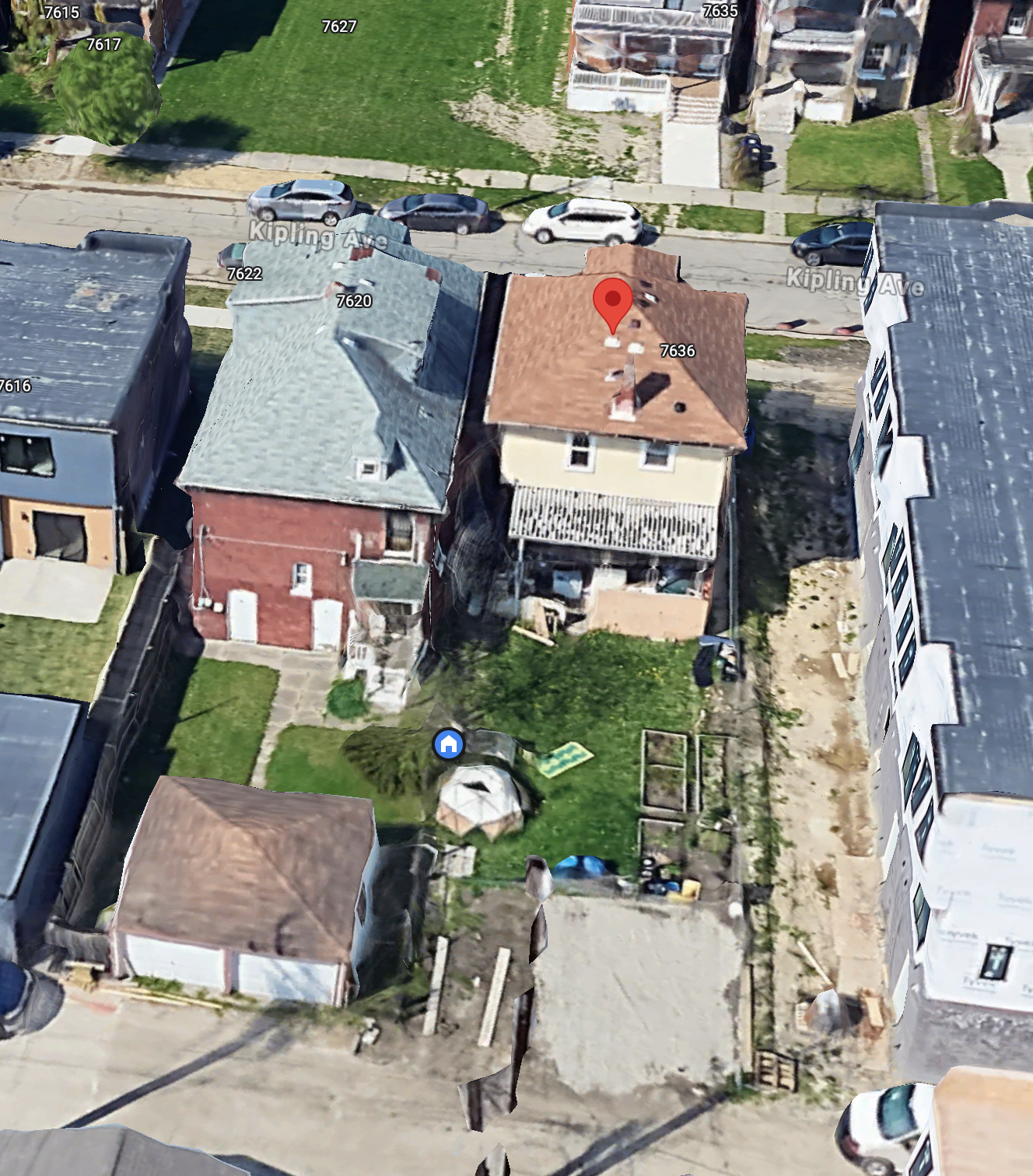

Screenshot 2024-08-12 at 10.36.58 AM.png

⁠
