Method & Data Analysis - Sept. 25th, 2025

Method & Data Analysis - Sept. 25th, 2025

Method

Drove to site

Read thoroughly through objective requirements

Consulted with flight crew over base of operations

Field notebook out and ready to take notes

Set up Drone Station

Flew Drone within flight limits

Max Alt. 400’ AGL

Purdue Wildlife Boundaries

Flight Mission - SE Corner to NW Corner

Striaght up & out

400ft AGL altitude

2,200ft distance from RPIC

Landed & packed up

Processed Data

Data Collection

Setup and Travel

40min

Drone flight

30min

Images (HD1080p)

Straight out & up (400ft AGL)

16 Images - 13.9 MB per Image

Size of Files

Photos

Straight out & up (400ft AGL): 220 MB

Common Questions

Geofencing?

We didn’t use geofencing because it wasn’t a requirement for the lab and we were under LAANC already.

Ceiling?

Set to 200’ AGL because that was the max altitude, we could get an automatic approval for through LAANC.

⁠

Aerial

⁠

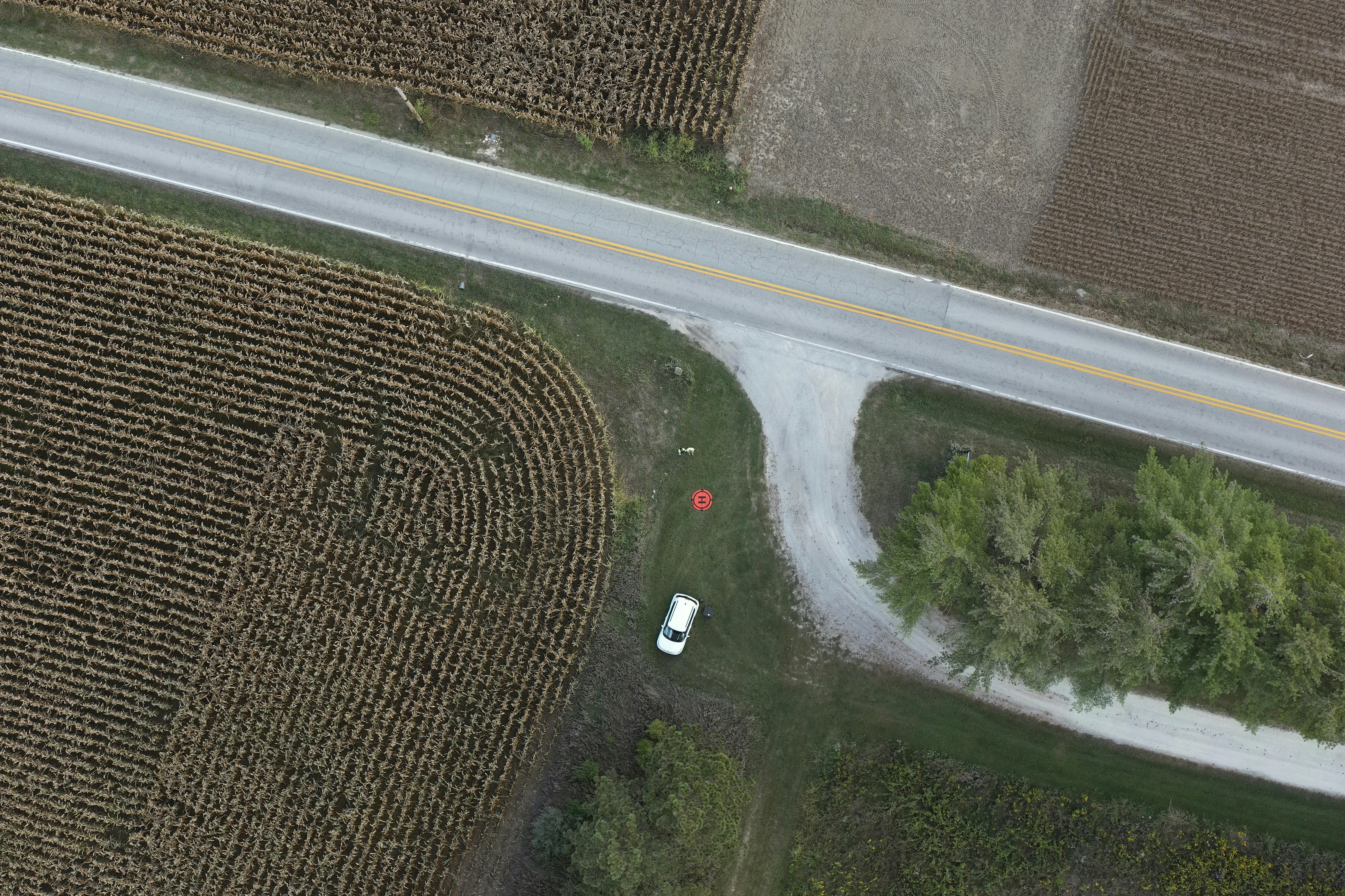

Fig. 1: Over Home Point (HP) - 400ft AGL

Fig. 1: Over Home Point (HP) - 400ft AGL

⁠

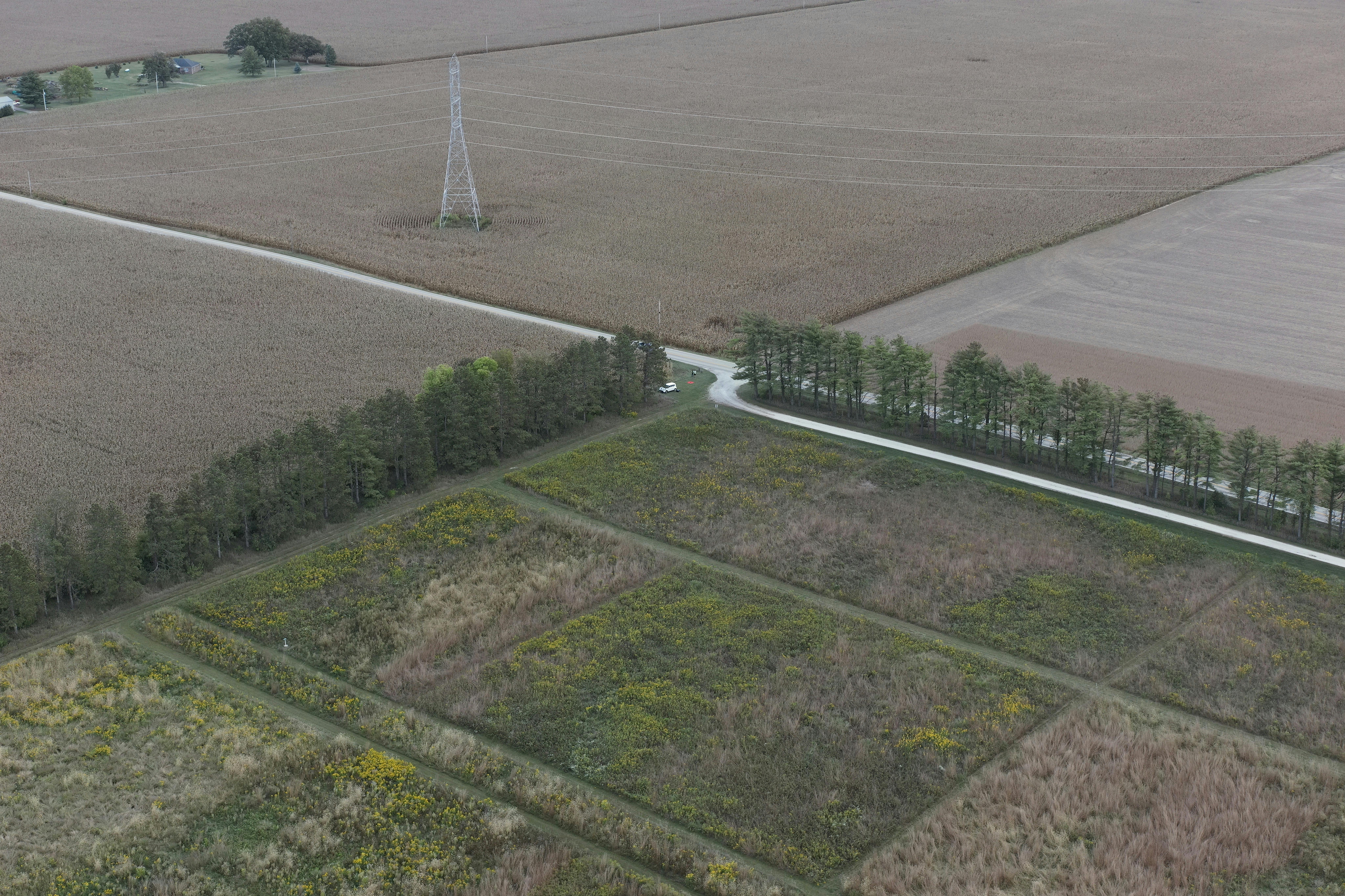

Fig. 2: 400ft AGL

Fig. 2: 400ft AGL

⁠

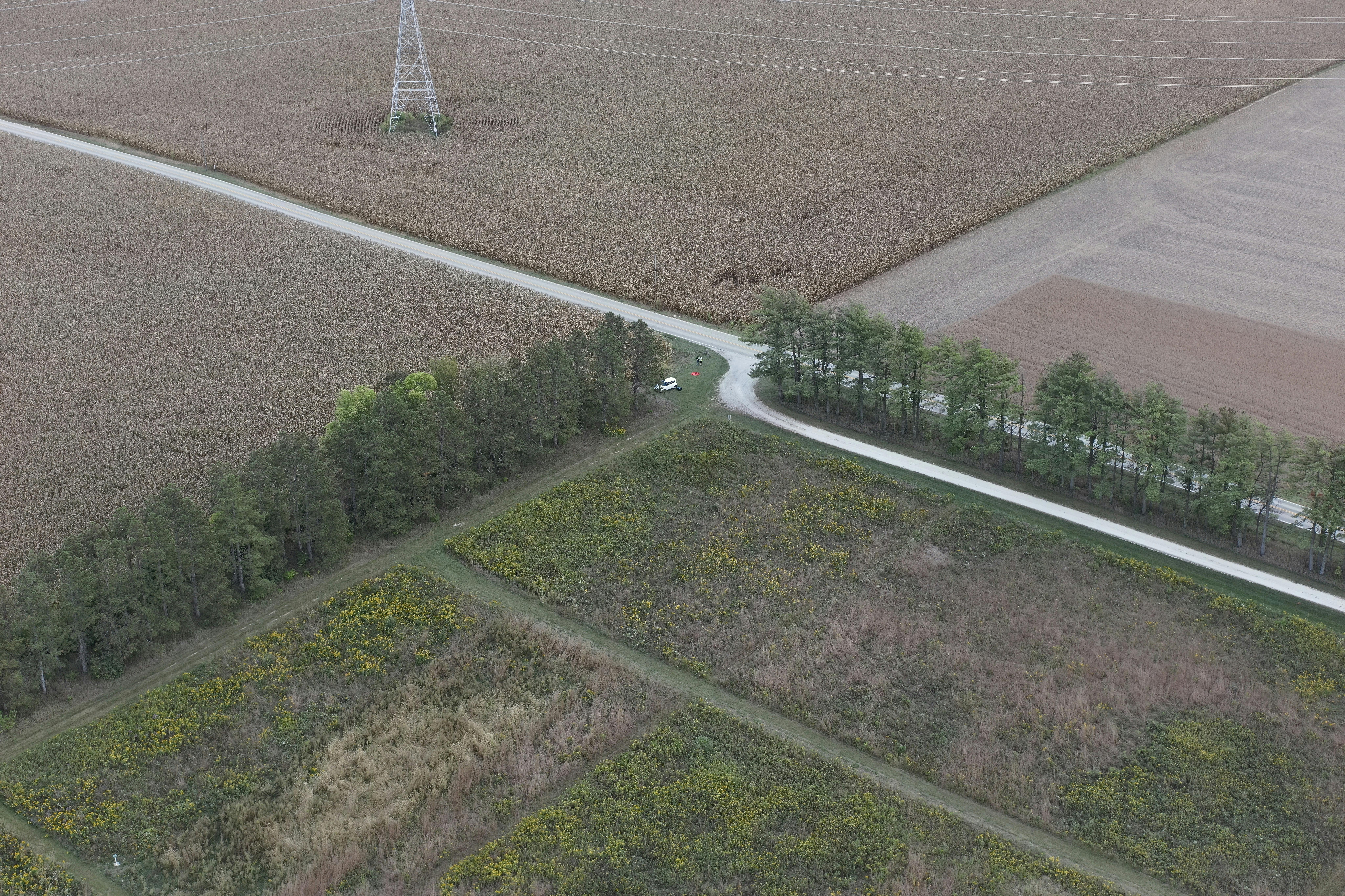

Fig. 3: 400ft AGL

Fig. 3: 400ft AGL

⁠

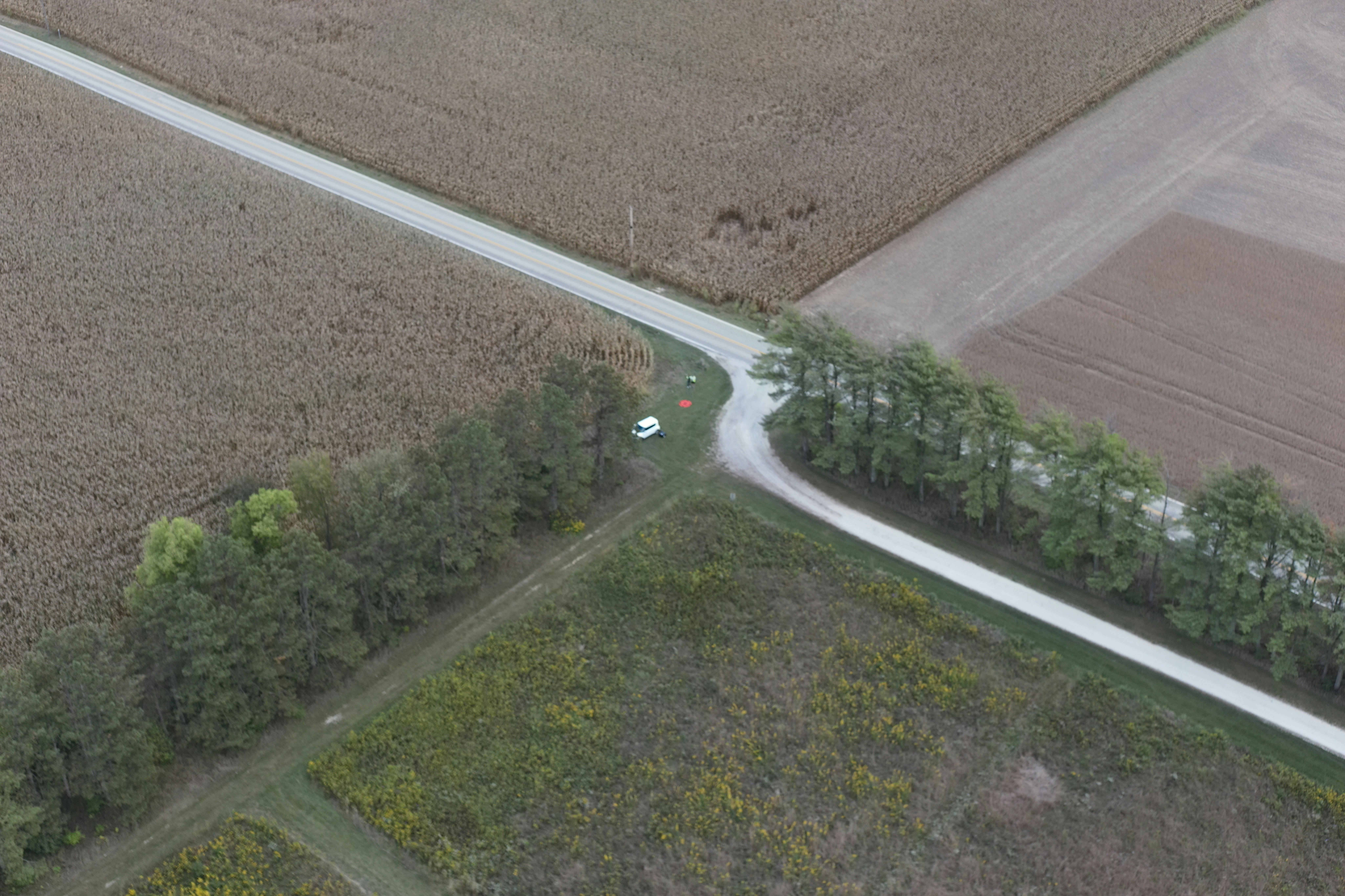

Fig. 4: 400ft AGL

Fig. 4: 400ft AGL

⁠

Fig. 5: 400ft AGL

Fig. 5: 400ft AGL

⁠

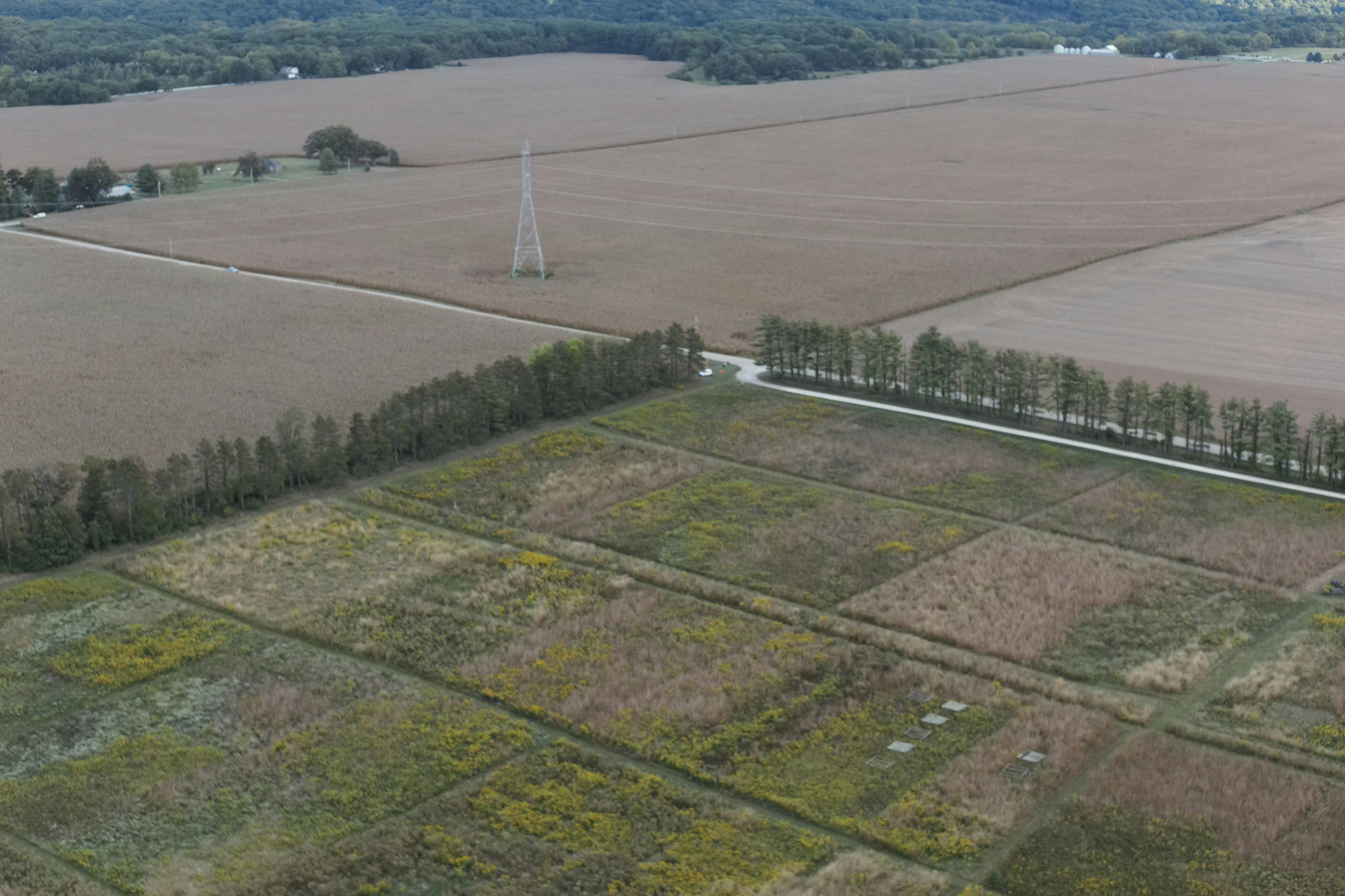

Fig. 6: Approx. 2,200ft Away from (HP) - 400ft AGL

Fig. 6: Approx. 2,200ft Away from (HP) - 400ft AGL

⁠

Visual Distance

⁠

Fig. 7: Above Home Point - 400ft AGL

Fig. 7: Above Home Point - 400ft AGL

⁠

Fig. 8: Visual Approx. Size - 2,200ft Away from (HP) - 400ft AGL

Fig. 8: Visual Approx. Size - 2,200ft Away from (HP) - 400ft AGL

⁠
