Drove to site Read thoroughly through lab requirements Field notebook out and ready to take notes Set up Drone Station Flew Drone within LAANC authorization limits Max Alt. 200’ AGL Purdue Turf Farm Boundaries Mapping Mission - Predetermined FlightRed Boundary200 feet altitude80% side and frontal overlapLens straight down at 90 degrees (known as Nadir)Blue Boundary60-to-80-foot altitude80% side and frontal overlap75-degree bevel on lensCrosshatch enabledPerimeter enabledLanded & packed up Processed Data Setup and Travel 1hr 5minDrone flight 45min Images (HD1080p) Red Boundary (200ft AGL)132 Images - 4.85MB per Image Blue Boundary (100ft AGL)321 Images - 5.63 MB per imageSize of Files Photos Red Boundary (200ft AGL): 682MBBlue Boundary (100ft AGL): 1.67GBGeofencing?We didn’t use geofencing because it wasn’t a requirement for the lab and we were under LAANC already. Ceiling?Set to 200’ AGL because that was the max altitude, we could get an automatic approval for through LAANC.
AllowAllow
Method & Data Analysis
Method & Data Analysis - Sept. 9th, 2025
Method
Data Collection
Common Questions
Aerials

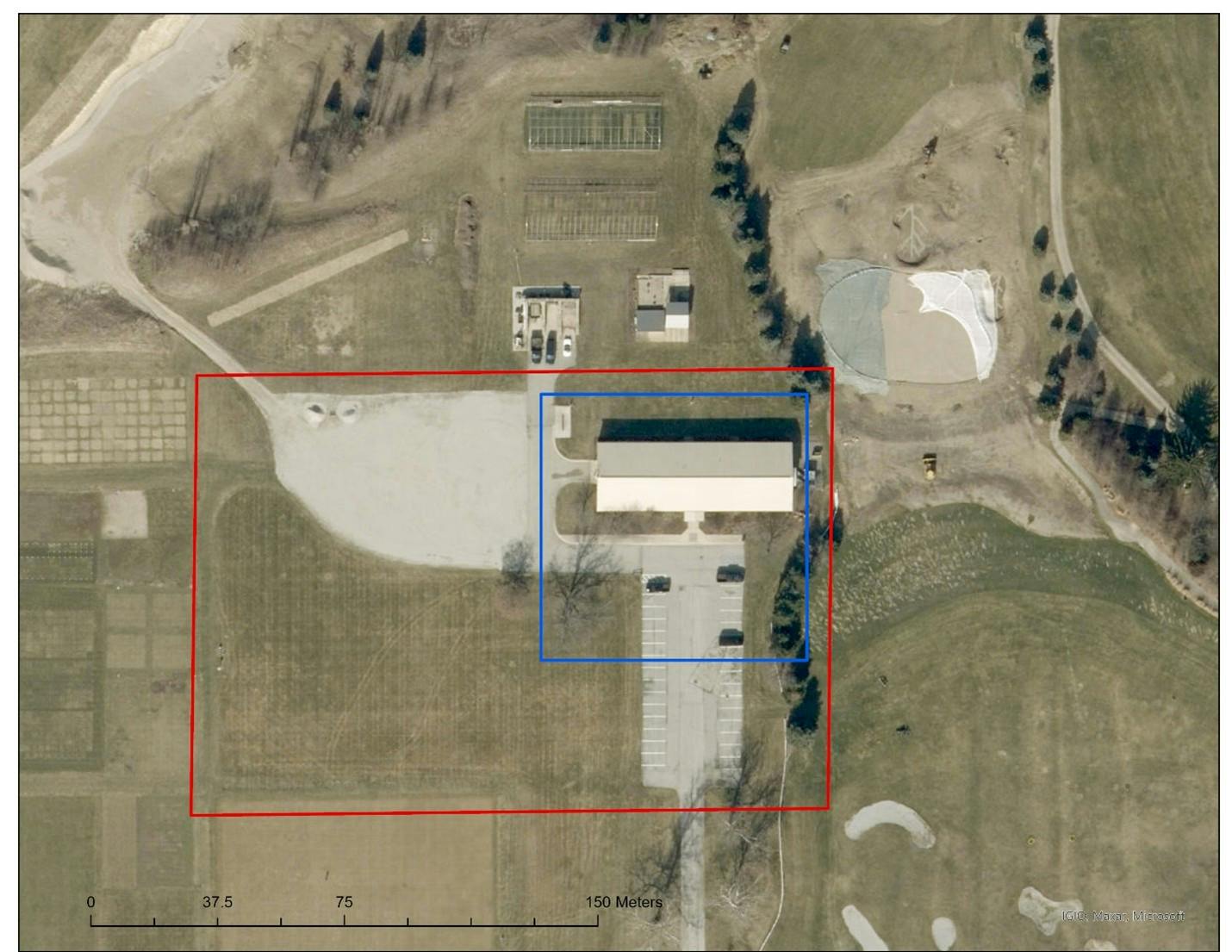

Fig. 1: Group A Mapping Missions
Blue Boundary
Fig. 2: 100ft AGL - Blue Boundary
Fig. 3: 100ft AGL - Blue Boundary
Fig. 4: 100ft AGL - Blue Boundary
Fig. 5: 100ft AGL - Blue Boundary
Fig. 6: 100ft AGL - Blue Boundary
Fig. 7: 100ft AGL - Blue Boundary
Red Boundary
Fig. 8: 200ft AGL - Red Boundary
Fig. 9: 200ft AGL - Red Boundary
Fig. 10: 200ft AGL - Red Boundary
Fig. 11: 200ft AGL - Red Boundary
Fig. 12: 200ft AGL - Red Boundary
Fig. 13: 200ft AGL - Red Boundary
