Drove to site Read thoroughly through lab requirements Field notebook out and ready to take notes Set up Drone Station & Base StationFlew Drone within LAANC authorization limits Max Alt. 200’ AGL Purdue Turf Farm Boundaries Mapping Mission - Red BoundaryParallel ‘Lawn Mower’ Grid200 feet AGL altitude90% lateral and frontal overlap90 degrees Nadir lens (Straight Down)Landed & packed up Processed Data Setup and Travel 20minDrone flight 45min Images (HD1080p) - Red BoundaryParallel ‘Lawn Mower’ Grid (200ft AGL)796 Images - 1.39 MB per imageSize of Files Photos Parallel ‘Lawn Mower’ Grid (200ft AGL): 1.09 GBGeofencing?We didn’t use geofencing because it wasn’t a requirement for the lab and we were under LAANC already. Ceiling?Set to 200’ AGL because that was the max altitude, we could get an automatic approval for through LAANC.
AllowAllow
Method & Data Analysis
Method & Data Analysis - Sept. 30th, 2025
Method
Data Collection
Common Questions
Aerial

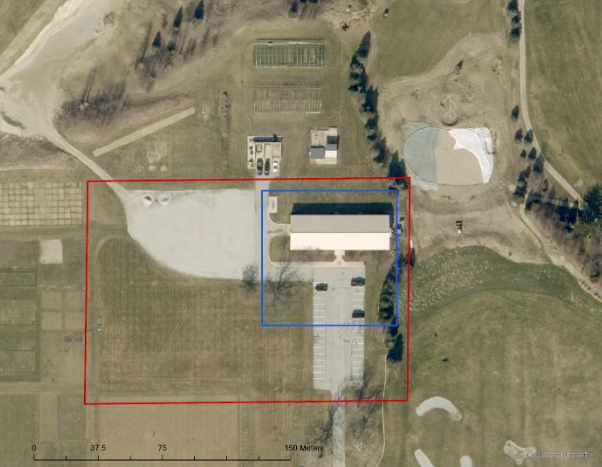

Fig. 1: Approx. Flight Boundary (RED)
Parallel ‘Lawn Mower’ Grid

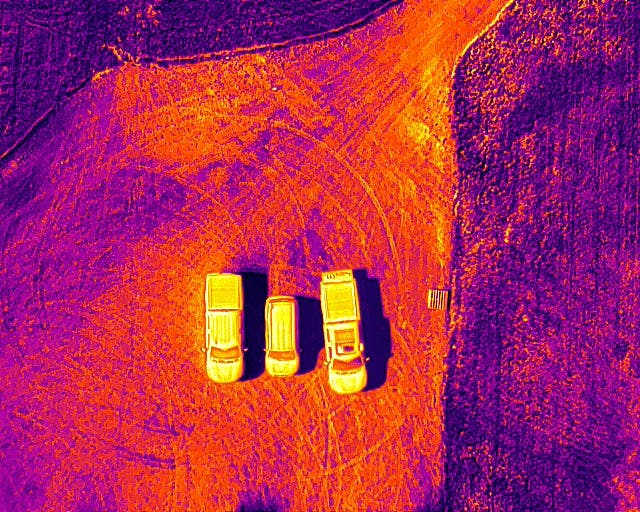

Fig. 2: 200ft AGL

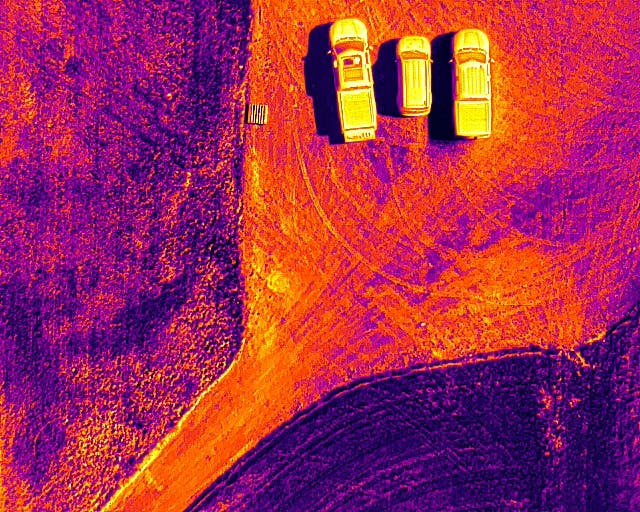

Fig. 3: 200ft AGL
Fig. 4: 200ft AGL
Fig. 5: 200ft AGL
Fig. 6: 200ft AGL
Fig. 7: 200ft AGL
Mission Planning Screen View
Fig. 8: Flight Mapping Screen

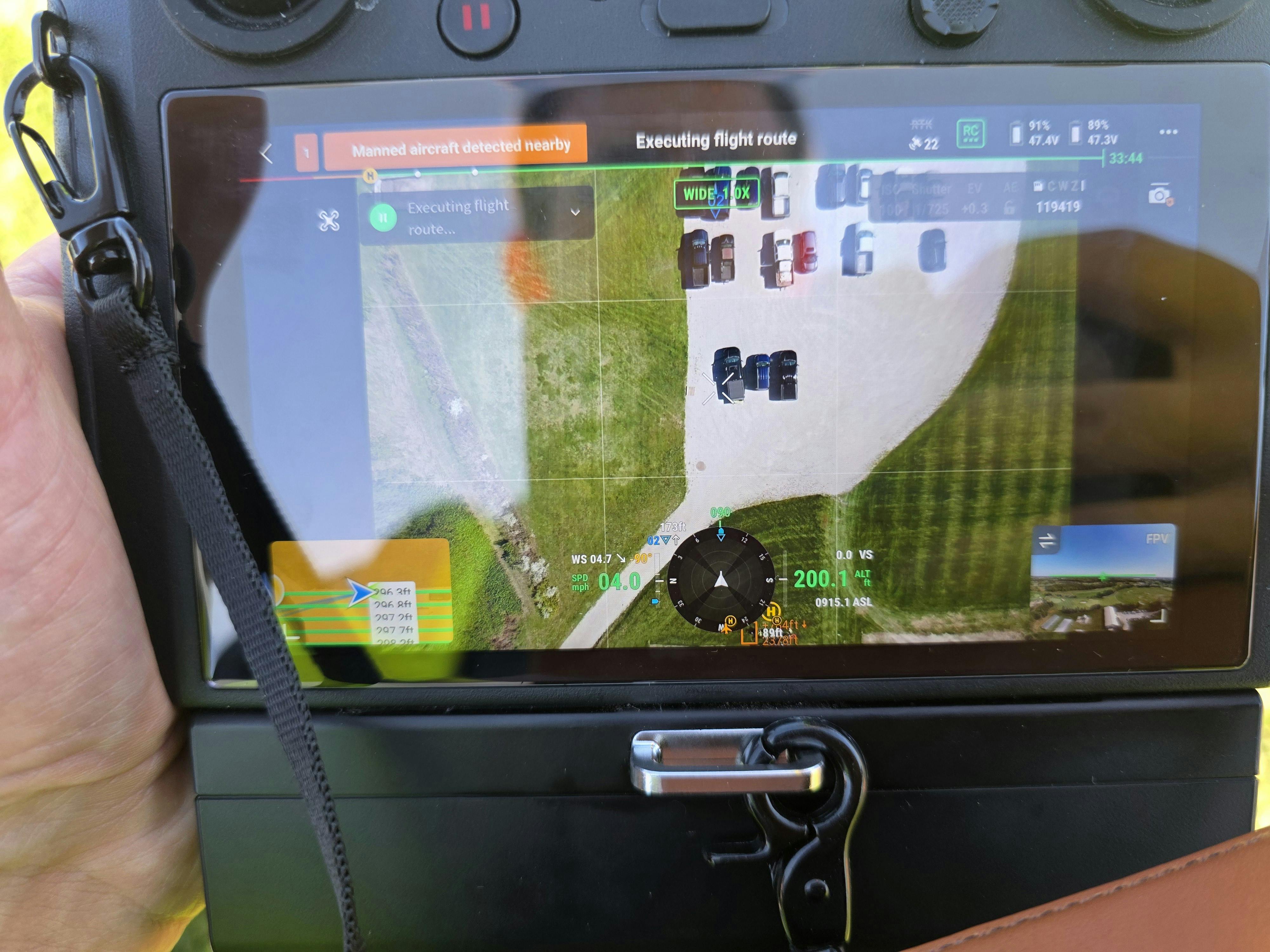

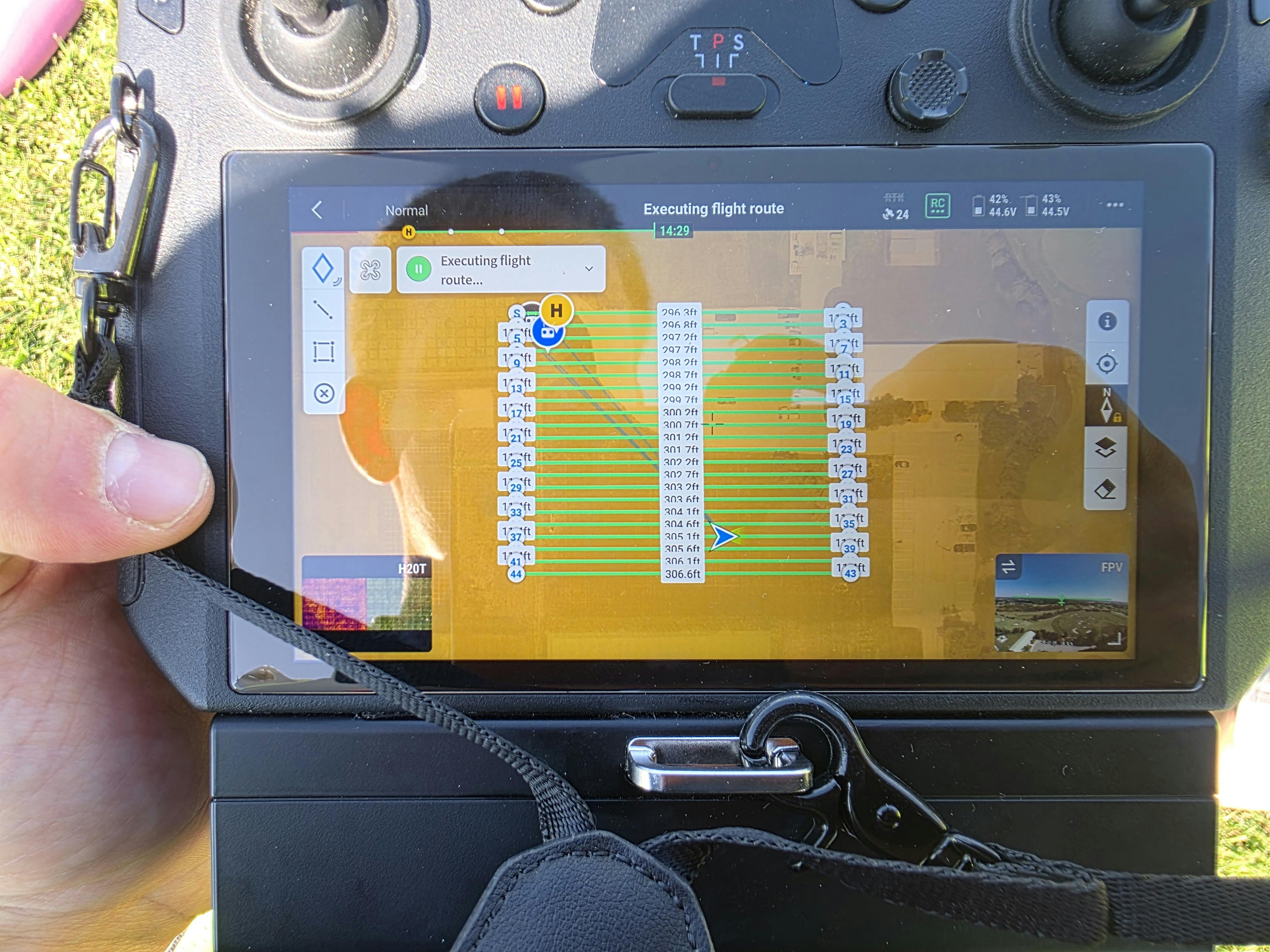

Fig. 9: H20T Flight Mission Screen

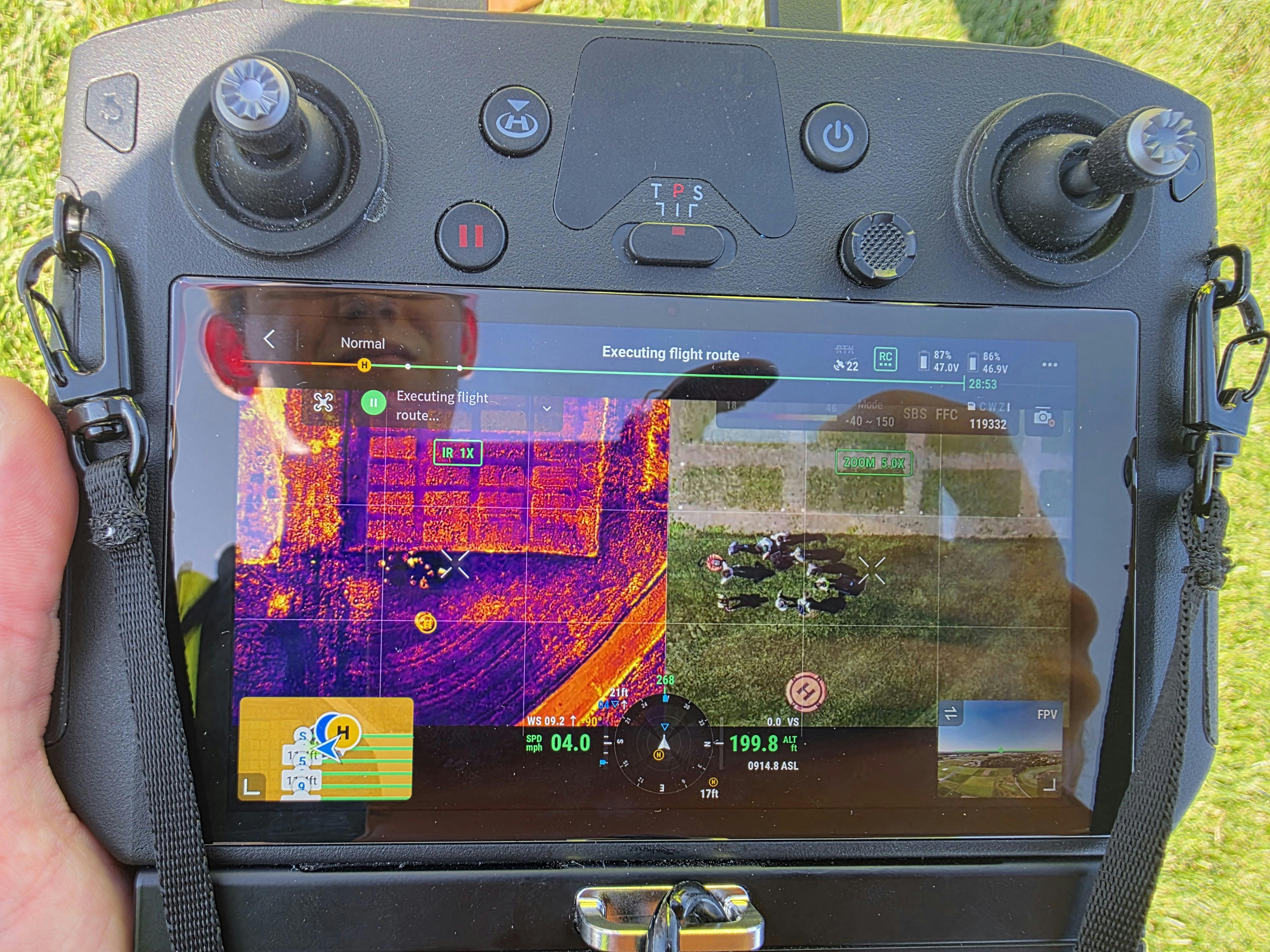

Fig. 10: H20T Flight Mission Screen
