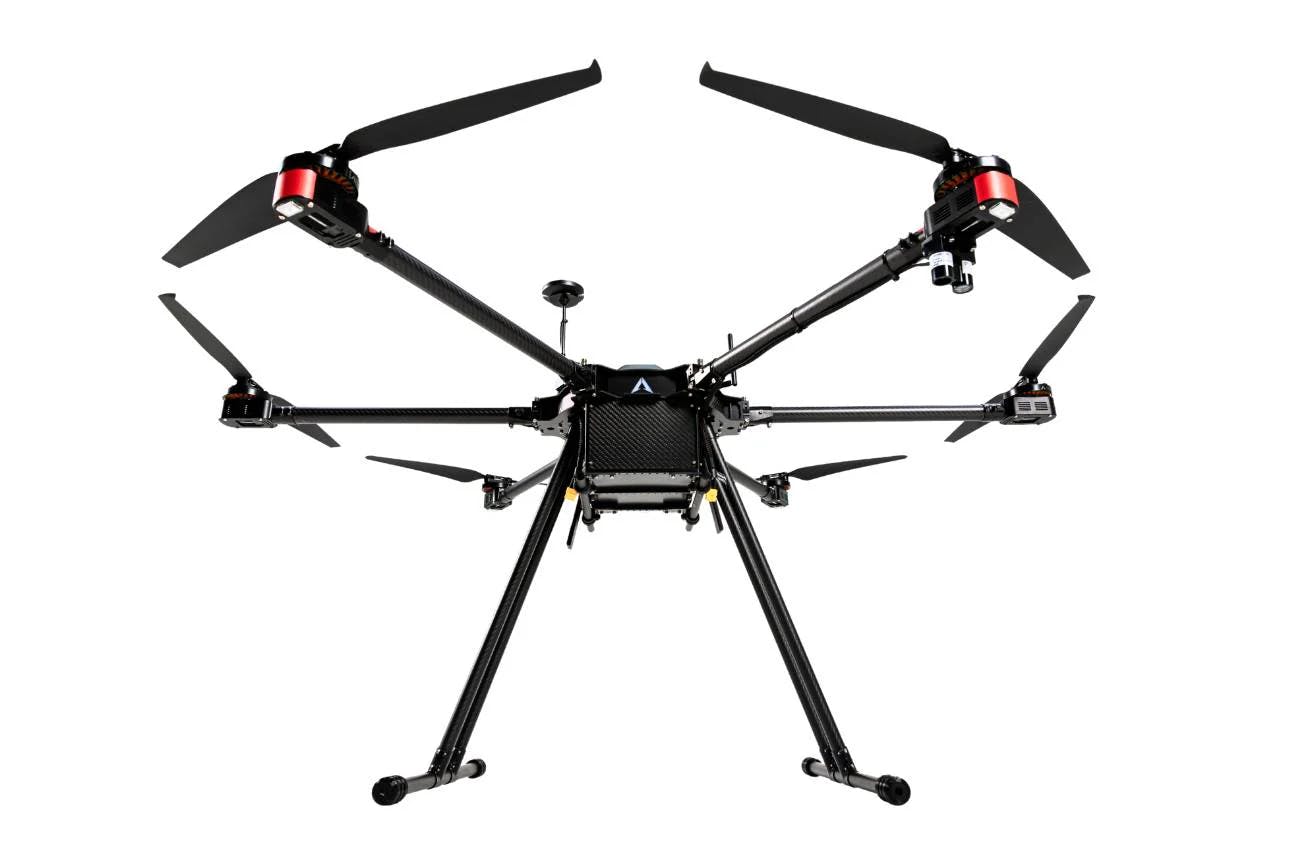

Aurelia X6 MAX
Serial Number: 19069B04015659

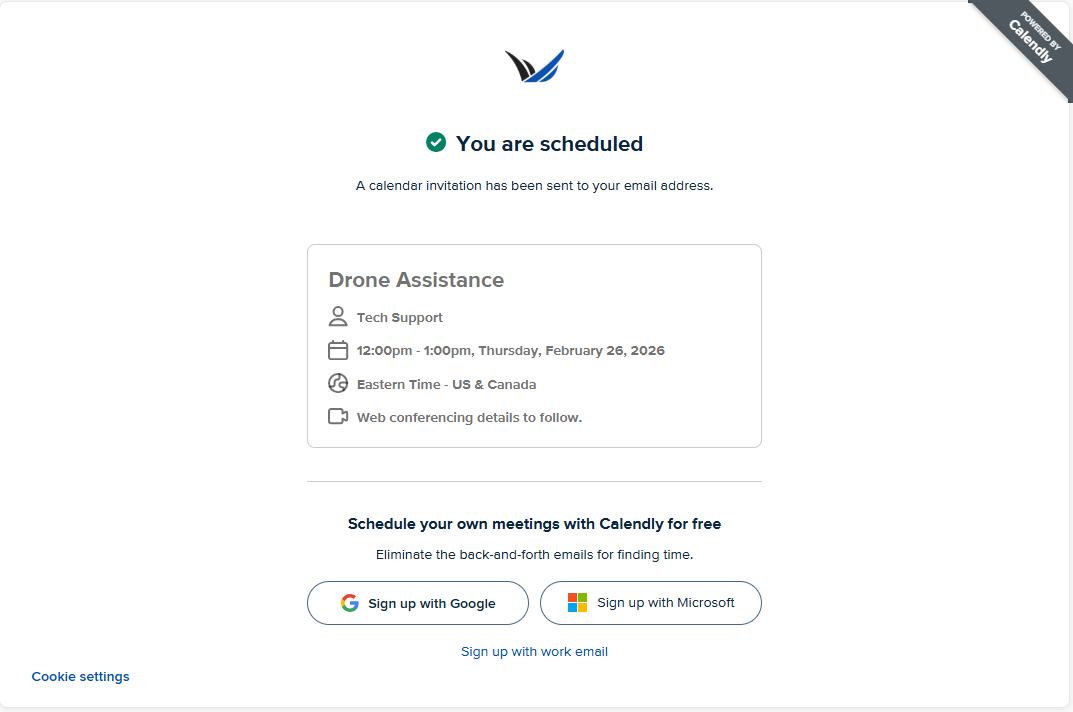

Aurelia Engineering Meeting
Roundcube Webmail __ Confirmed_ Drone A...pdf
155.6 KB
Roundcube Webmail __ Aurelia X6 MAX __ S.N.pdf
122.9 KB
Aurelia Contact
Roundcube Webmail __ Aurelia - Costumer support.pdf
102.7 KB
Jonathan Poully
418-476-3007
#3204
DroneXperts
Aurelia Instructional Documentation
qrco.de/aalogin
Login: 015659
Password: A8McYupQ
4.2 X6 MAX.pdf
7.1 MB
FAA Registration:
fe9149cc-f78b-4e96-b082-49aead1162f9.pdf
34.1 KB
Aurelia System
Table
Capability
Specs
Max

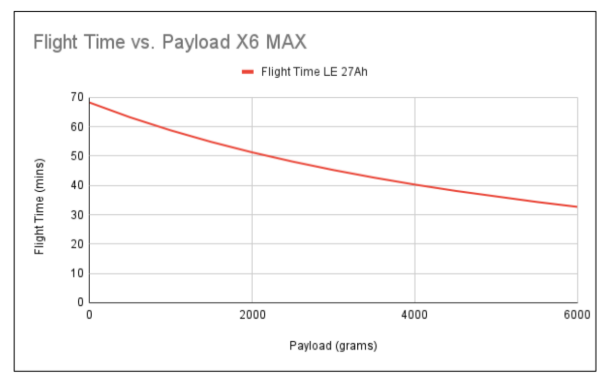

Flight Time
70 Minutes
UAV Empty Weight
4900g | 10.80 lb
UAV Weight
Incl Batteries
9566g | 21.09 lb
Payload
Capabilities
6000g | 13.23 lb
UAV MTOW
15566g | 34.32 lb
Max Flight
Speed
35 mph | 56 km/h
Max Wind
Resistance
20 mph | 32 km/h
Max Service
Ceiling
3000m ASL
There are no rows in this table
Table
Variable
Specs
Operating Frequencies
915 MHz (Worldwide)
433 MHz (Europe)
2.4 GHz (HereLink Ground Station Only)
Operating Range
Standard:
RFD900X -
3 mi (5 km)
with HereLink -
9.3 mi (15 km)
Battery Type
Standard:
Lithium Ion (Li-Ion)
Battery Capacity
2x 27,000 mAh
Battery Voltage
22.2V
Operating Temperature
-15C to +50C
Data Link Encryption
AES-128:
HereLink Black, Skydroid H16, HereLink Blue, and RFD900X
AES-256:
UXV Navigator Tab 3
There are no rows in this table
Table
System
Specs
GPS
uBlox M9N
GPS Constellations
GPS, GLONASS, Galileo, BeiDou, L2 Band (concurrently)
Rangefinder LiDAR Accuracy
+/- 2.5 cm
Rangefinder LiDAR Range
0 - 40 Meters
Compass
RM3100
Redundancy
2 Accelerometer / 2 Gyroscope / 1 Mag
ADS-B
uAvionix 1090 with a 12 mile (20 km) range
Europe/UK Drone Class
C3 Class
Export Control
Classification
(ECCN)
EAR99
There are no rows in this table
Components
